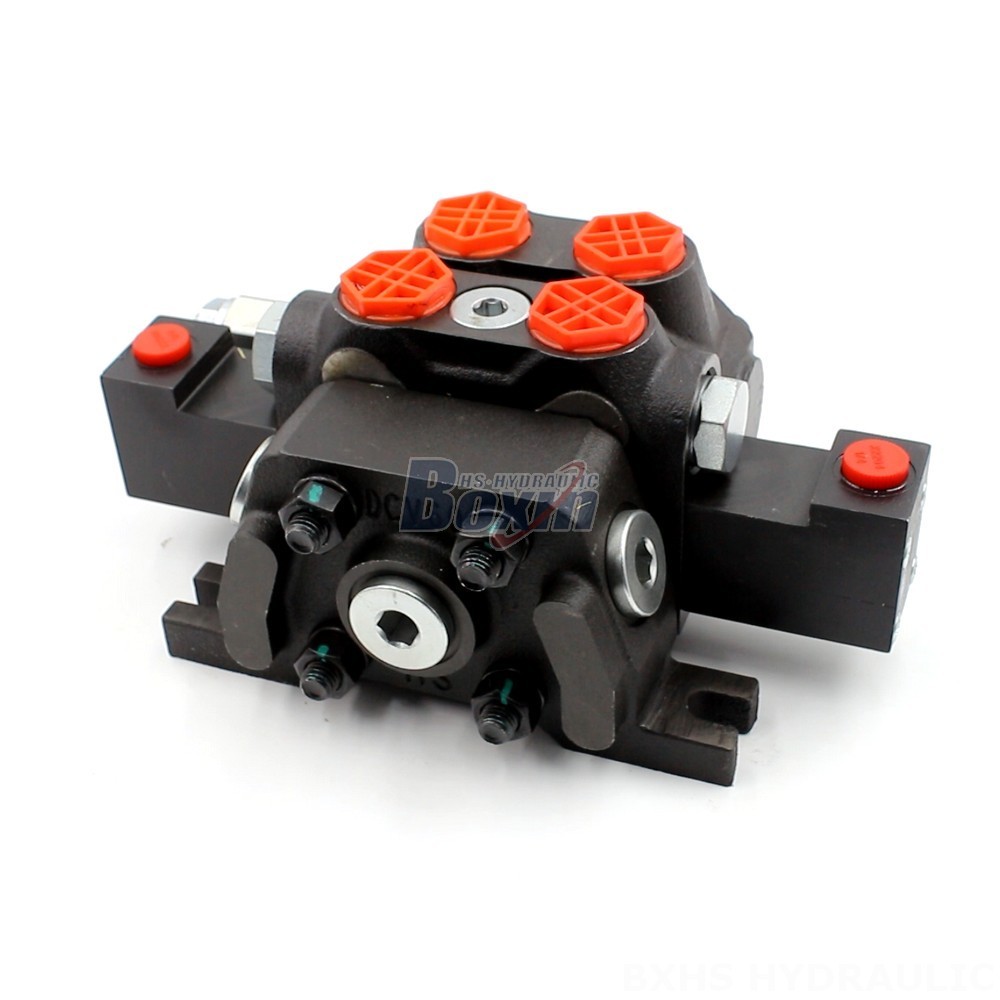

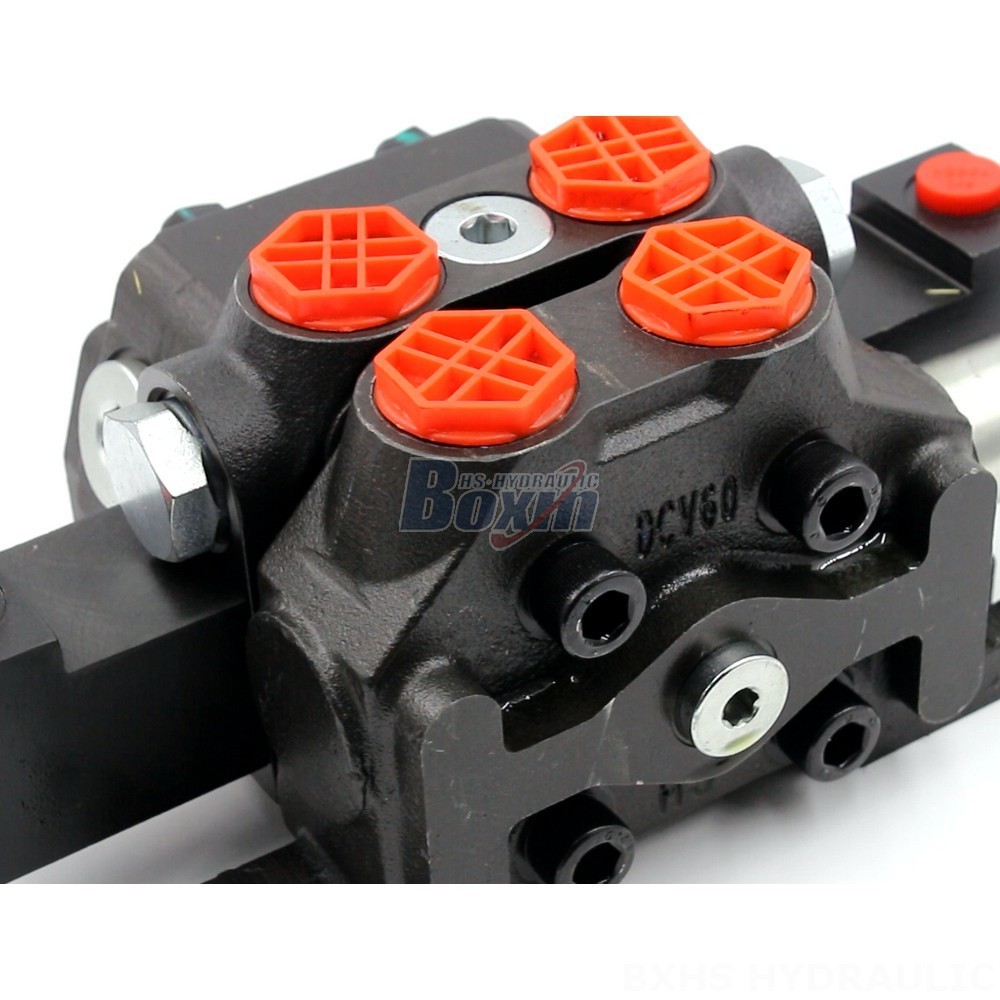

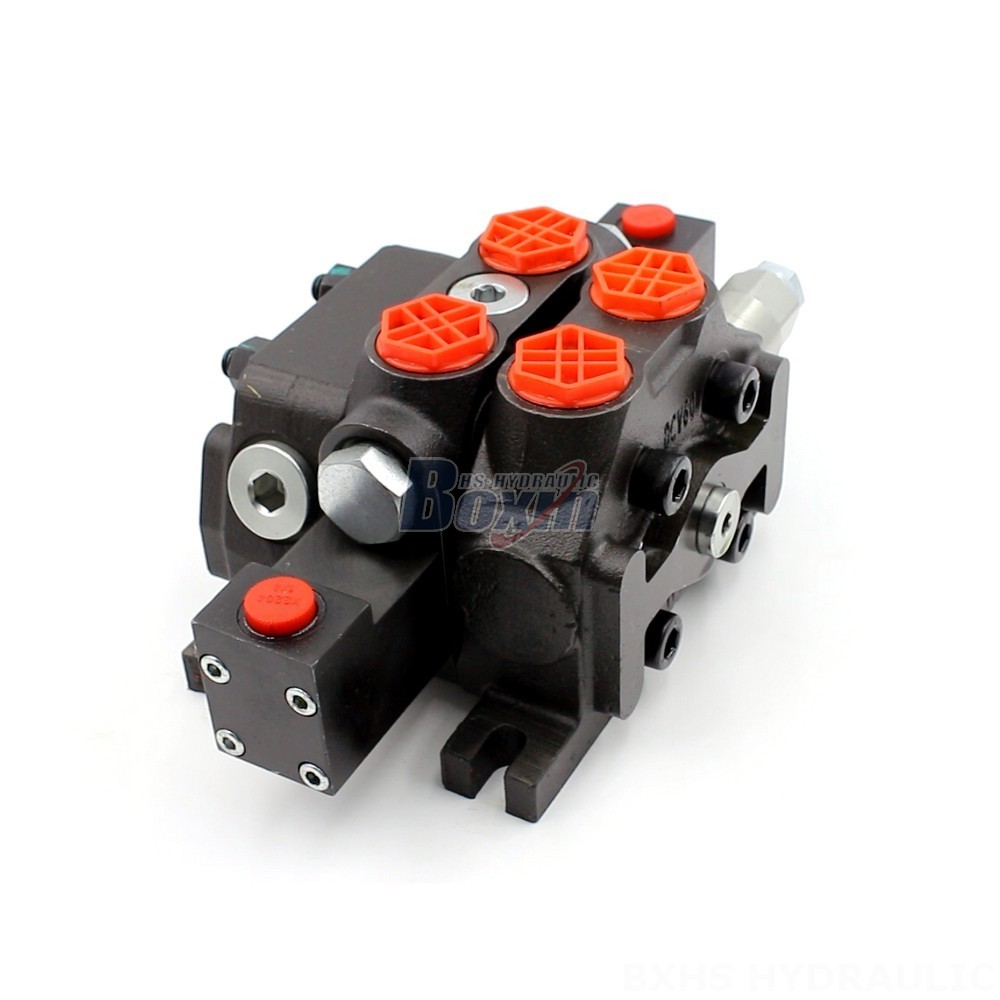

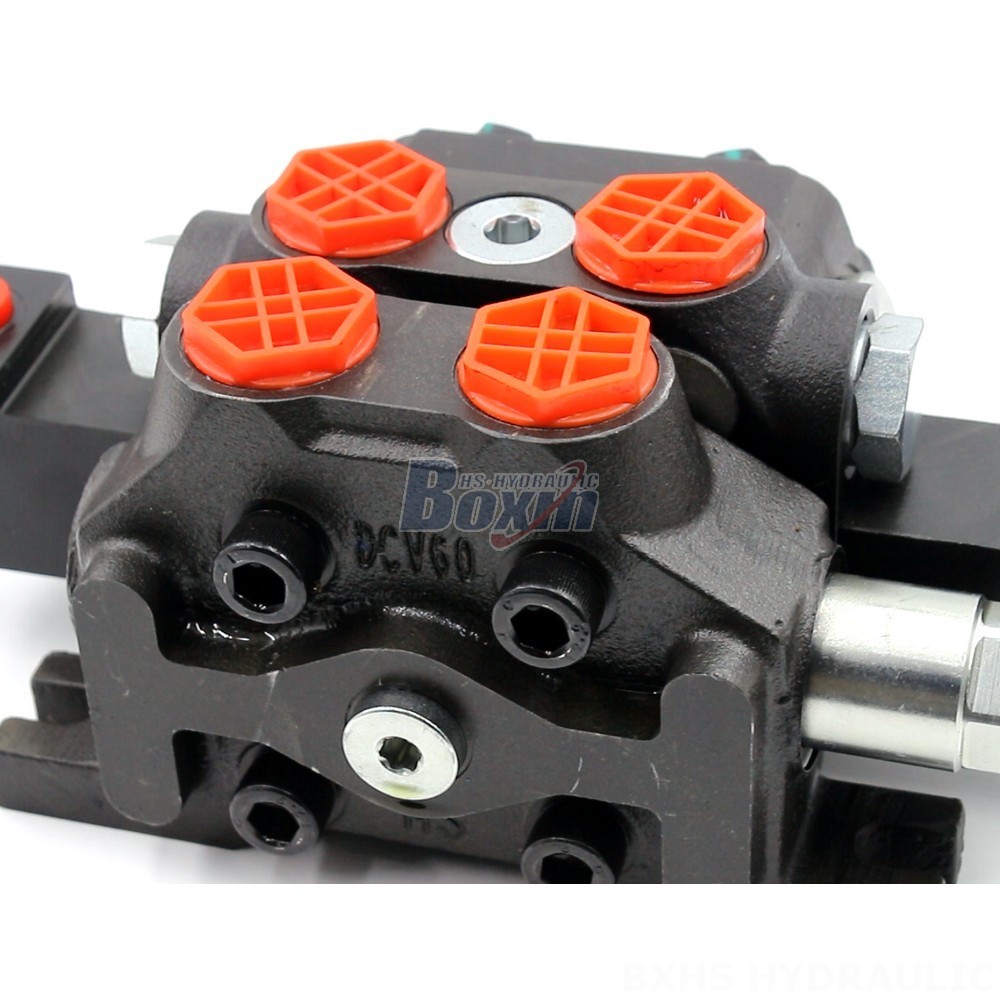

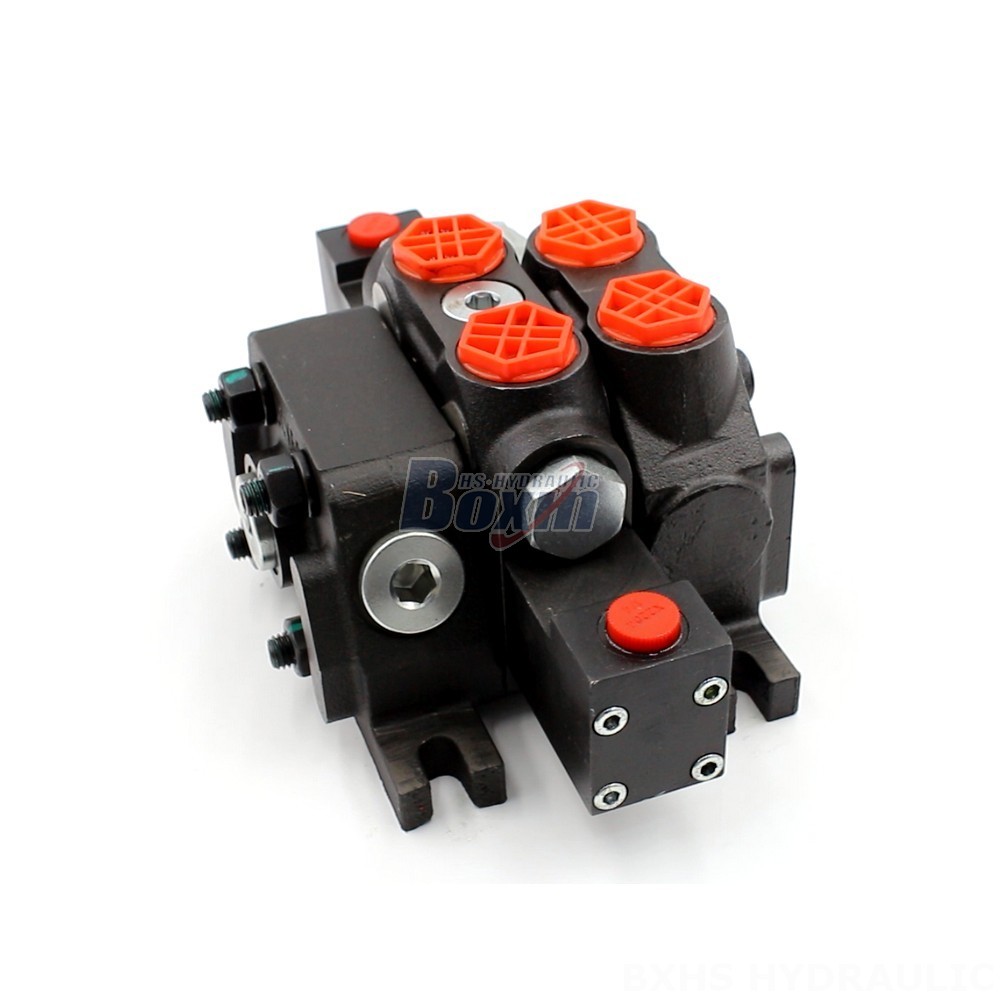

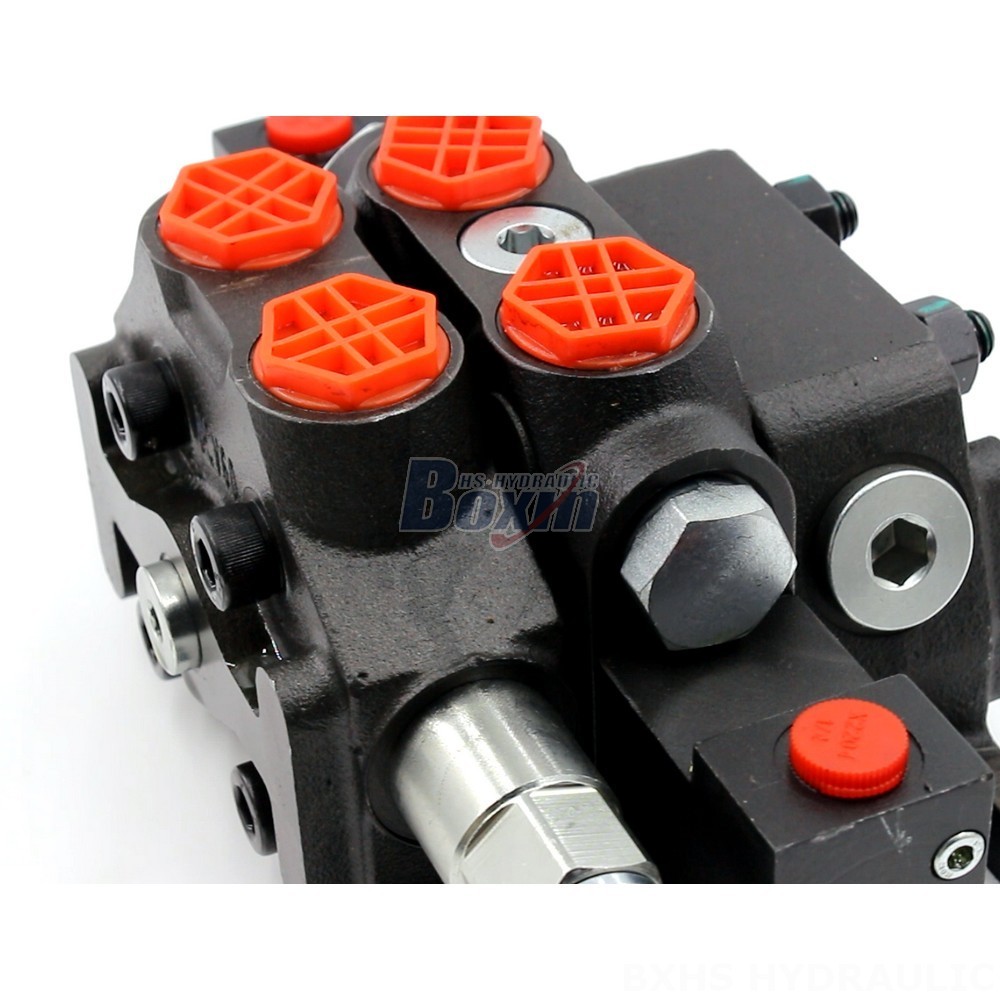

The DCV60-G34 Series hydraulic valve is a high-performance, sectional valve designed for use in a variety of mobile applications, including construction, material handling, and agriculture. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve is suitable for demanding applications.
| DCV60系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁和手动, 电磁+一控二, 手控+一控二, 电动马达 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 60 L/min (15.8 US gpm) |
| 最大压力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 进油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The DCV60-G34 Series hydraulic valve is a robust and reliable solution for controlling hydraulic systems in a variety of mobile applications. Its sectional design allows for easy customization and maintenance, while its high flow rate and pressure rating ensure efficient operation in demanding environments. The valve is suitable for use in a wide range of equipment, including forklifts, telehandlers, mini excavators, skid steer loaders, compact wheel loaders, harvesters, seeding machines, forestry trailers, and balers. Its versatile design and high performance make it an ideal choice for a variety of hydraulic system applications.
