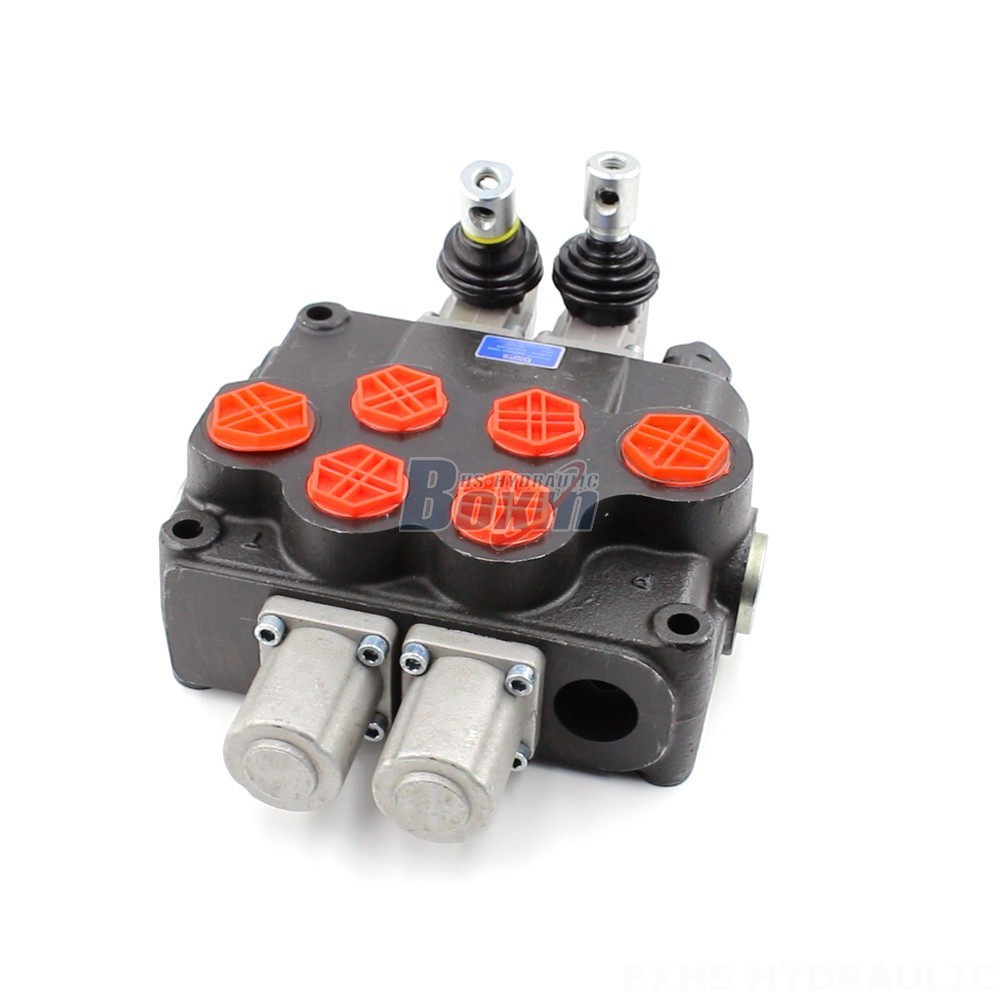

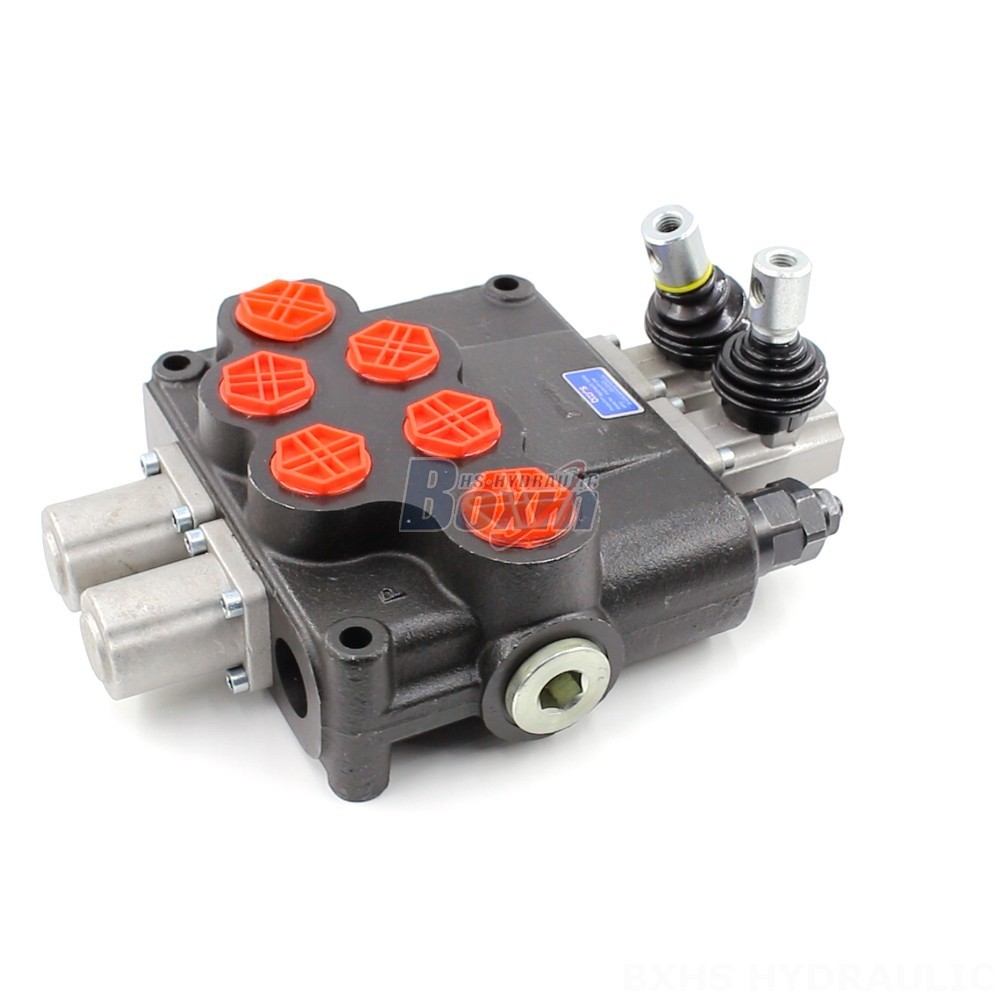

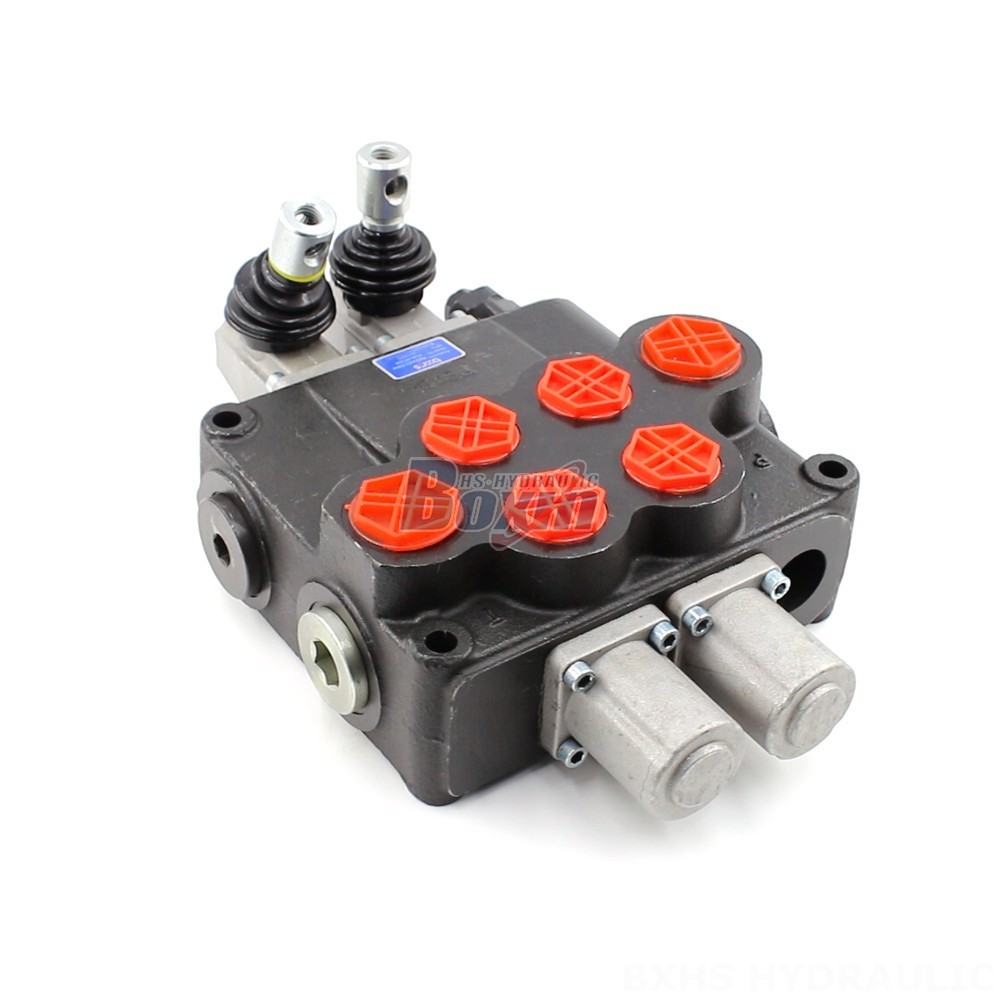

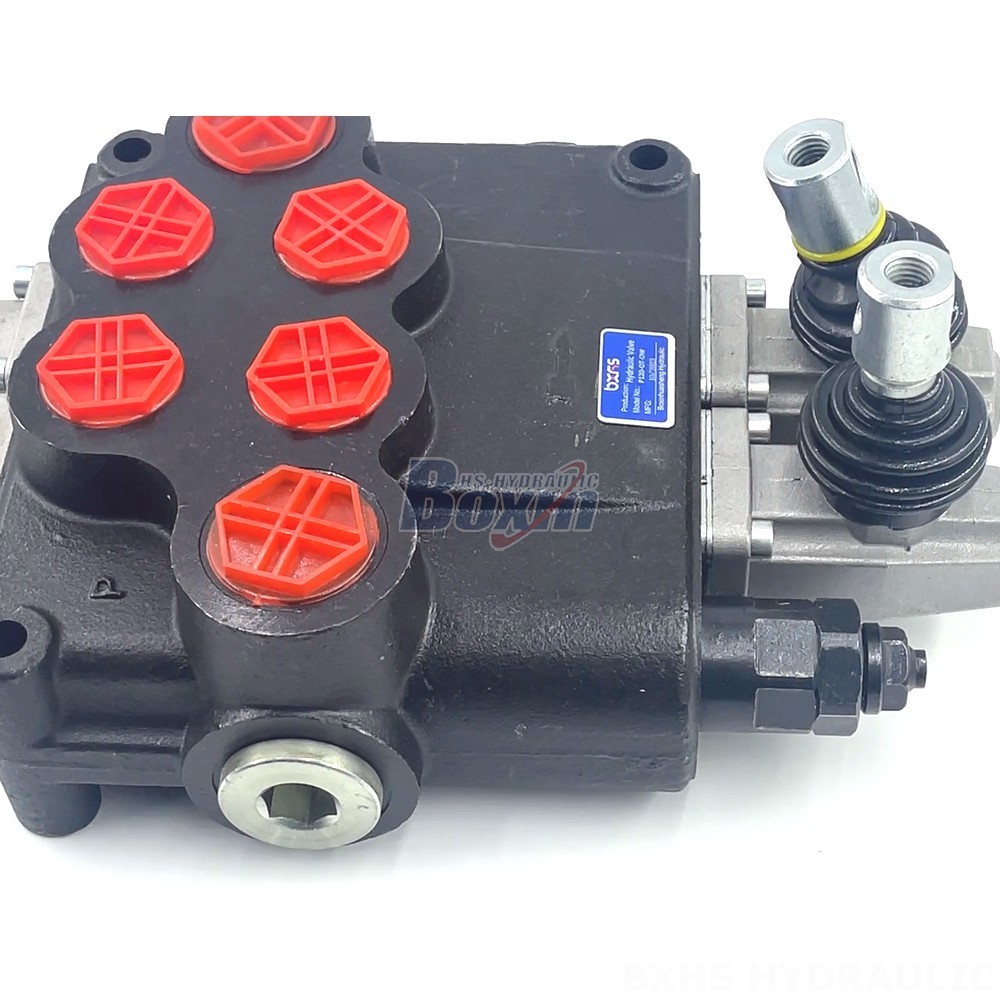

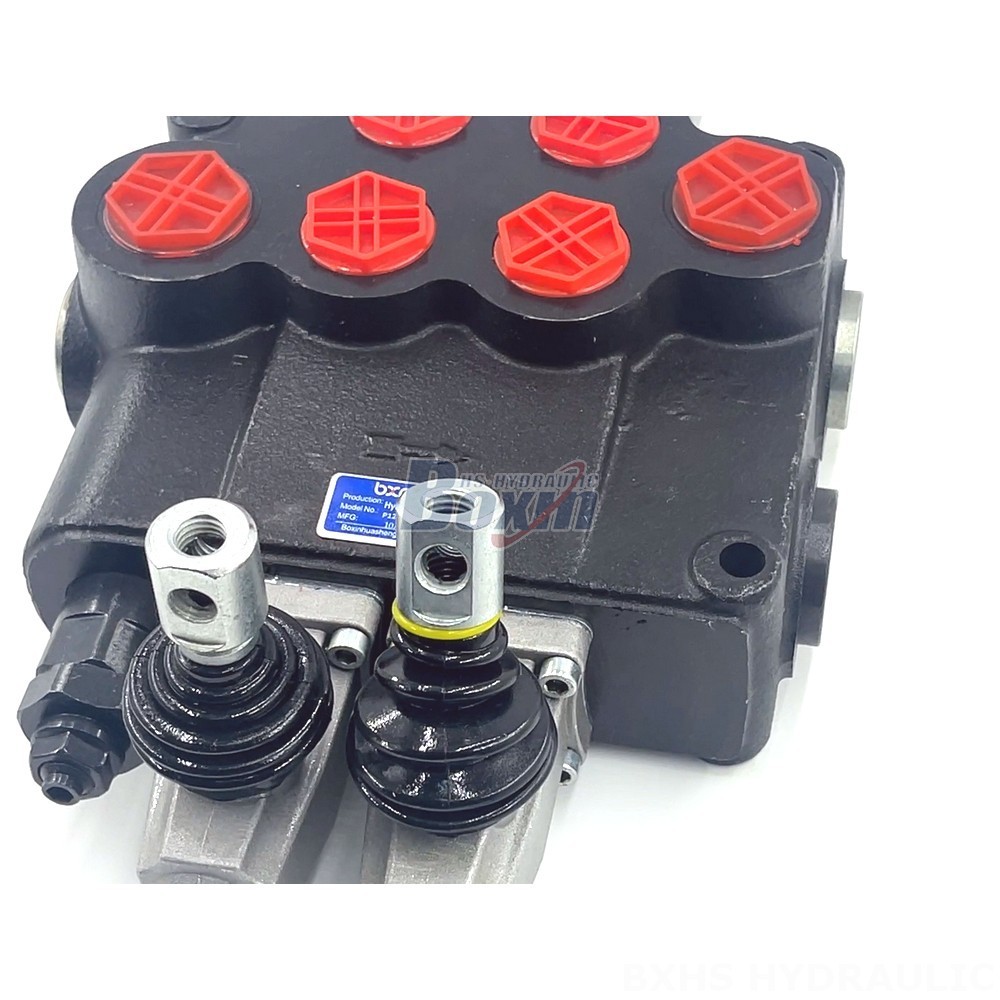

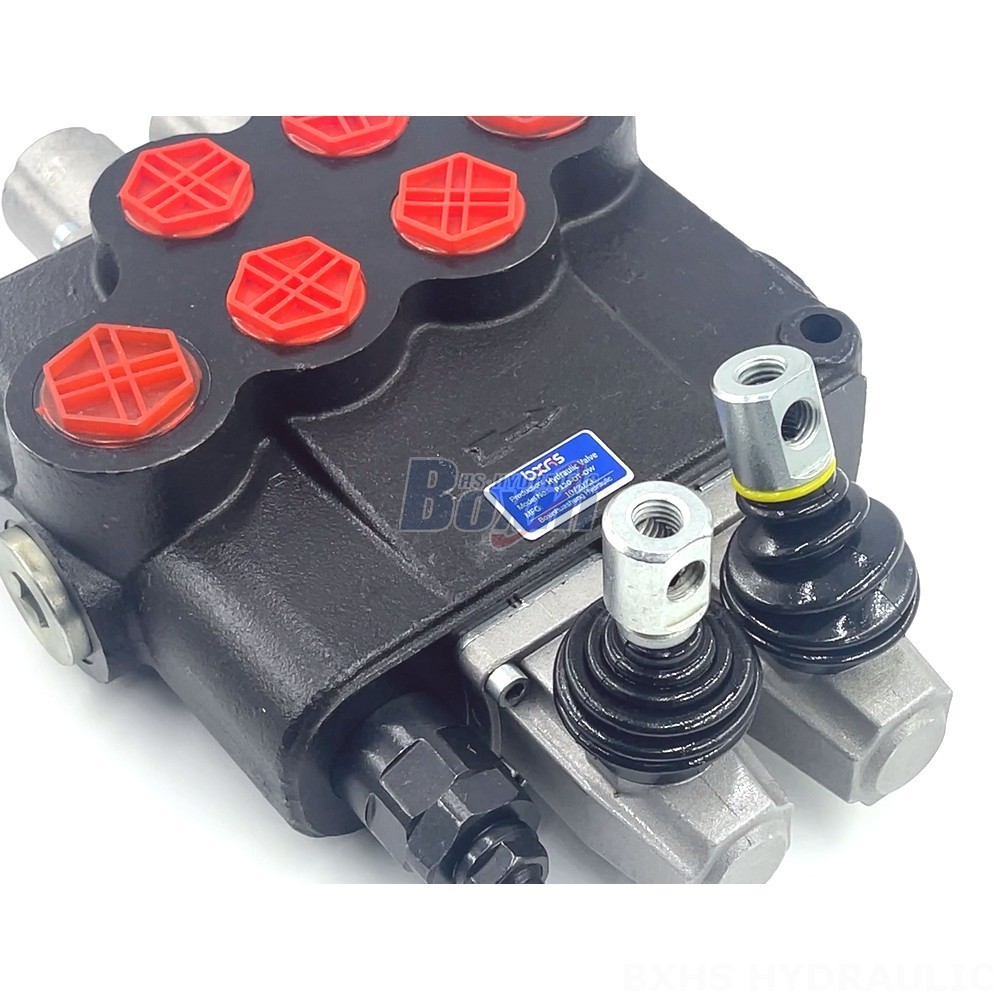

The Rexroth P120 Directional Spool Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This 2-section monoblock valve offers a rated flow of 120 L/min and a maximum pressure of 250 bar.
| P120系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 120 升/分钟 (31.7 美制加仑/分钟) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹 |
| 出油口 | G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The Rexroth P120 Directional Spool Valve is a robust and reliable hydraulic valve ideal for a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This high-performance valve features a manual control method, a 2-section design, and a monoblock structure for increased durability. With a rated flow of 120 L/min and a maximum pressure of 250 bar, the P120 valve is designed to handle demanding hydraulic applications. The valve also features a wide operating viscosity range (15-75 mm²/s) and an ambient temperature range of -40°C to +80°C, making it suitable for use in a variety of climates and environments.
