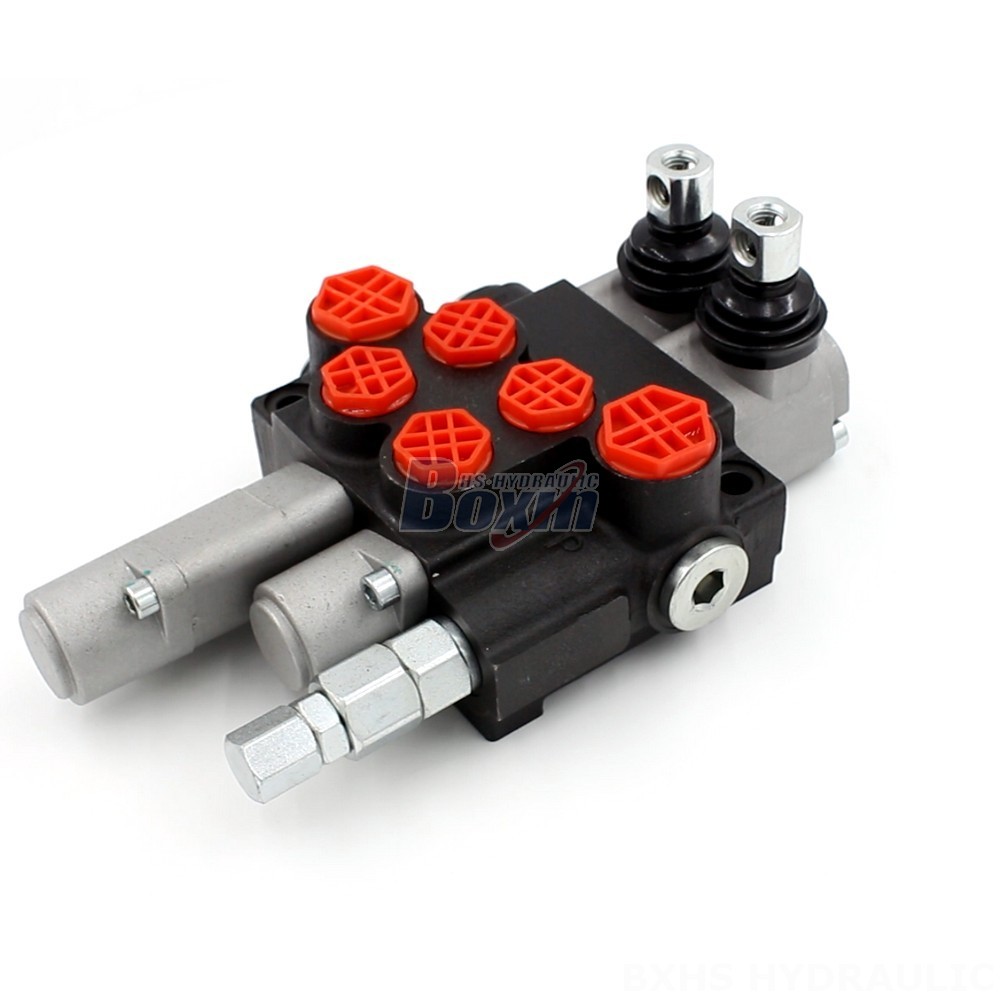

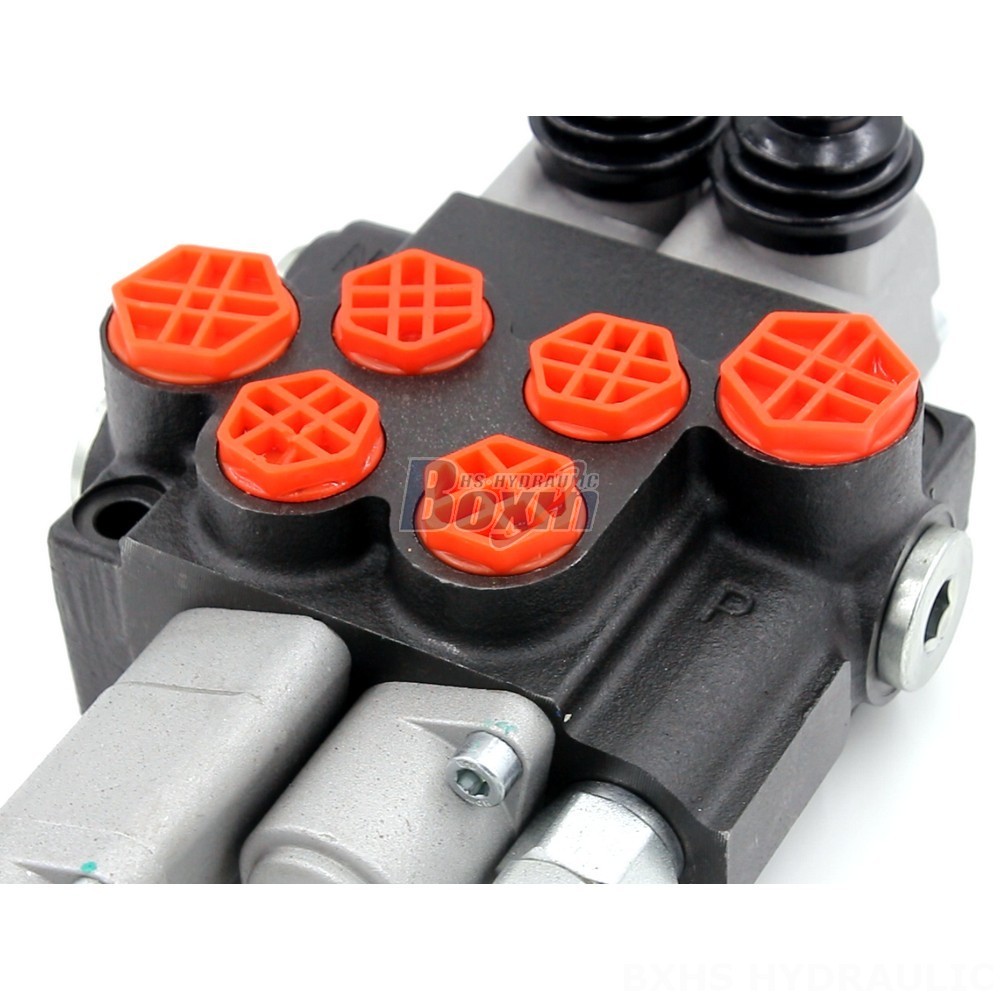

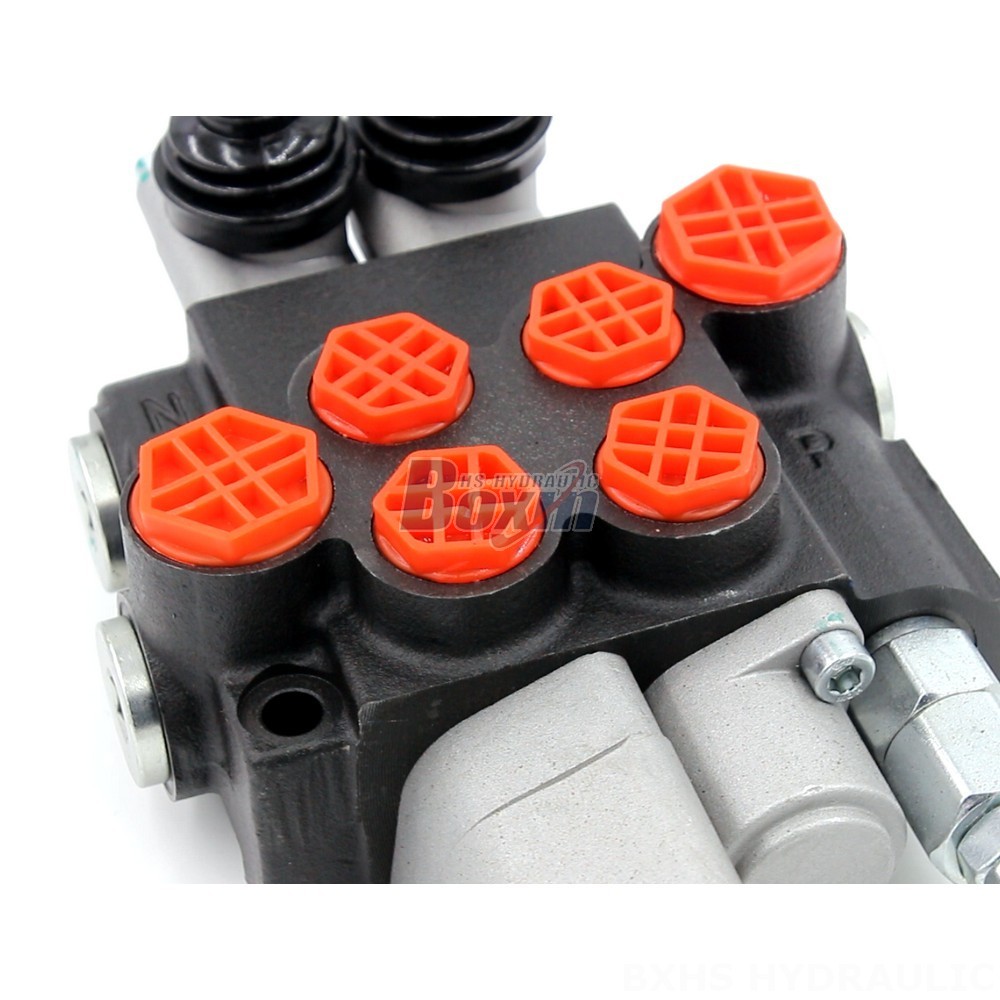

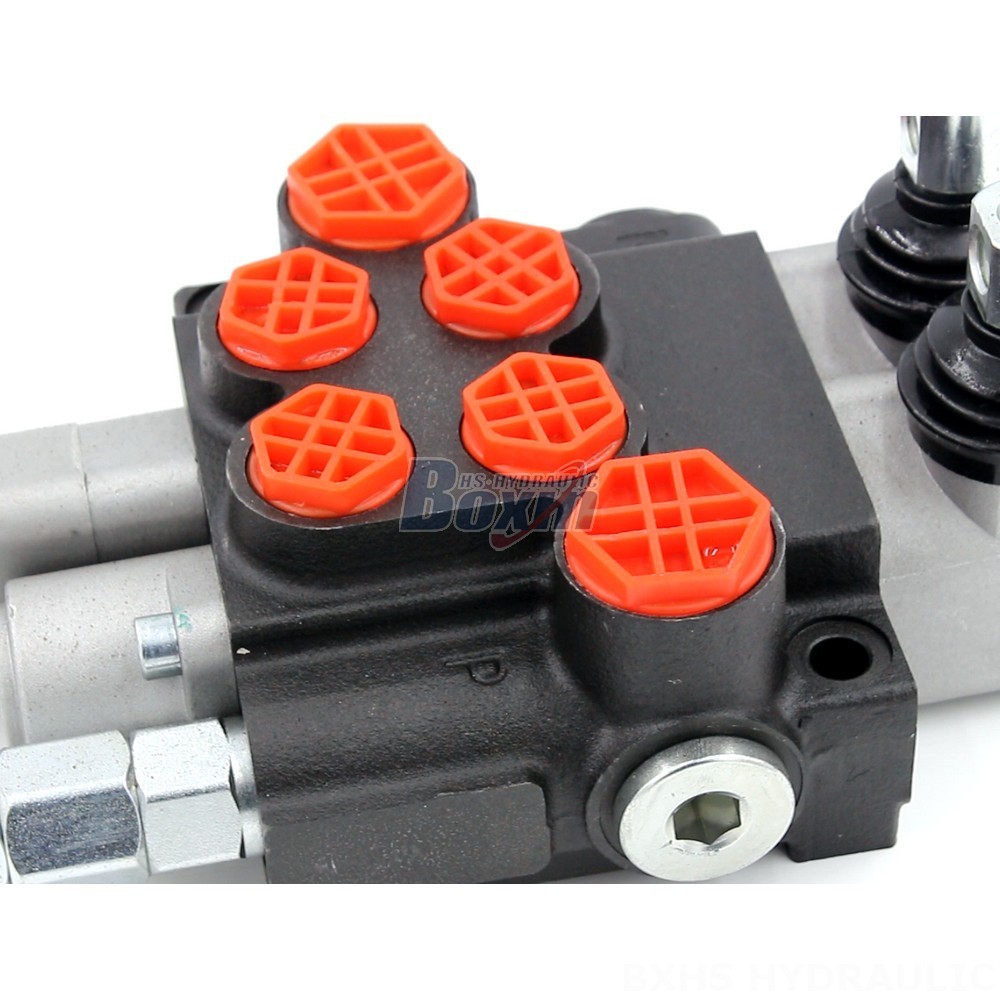

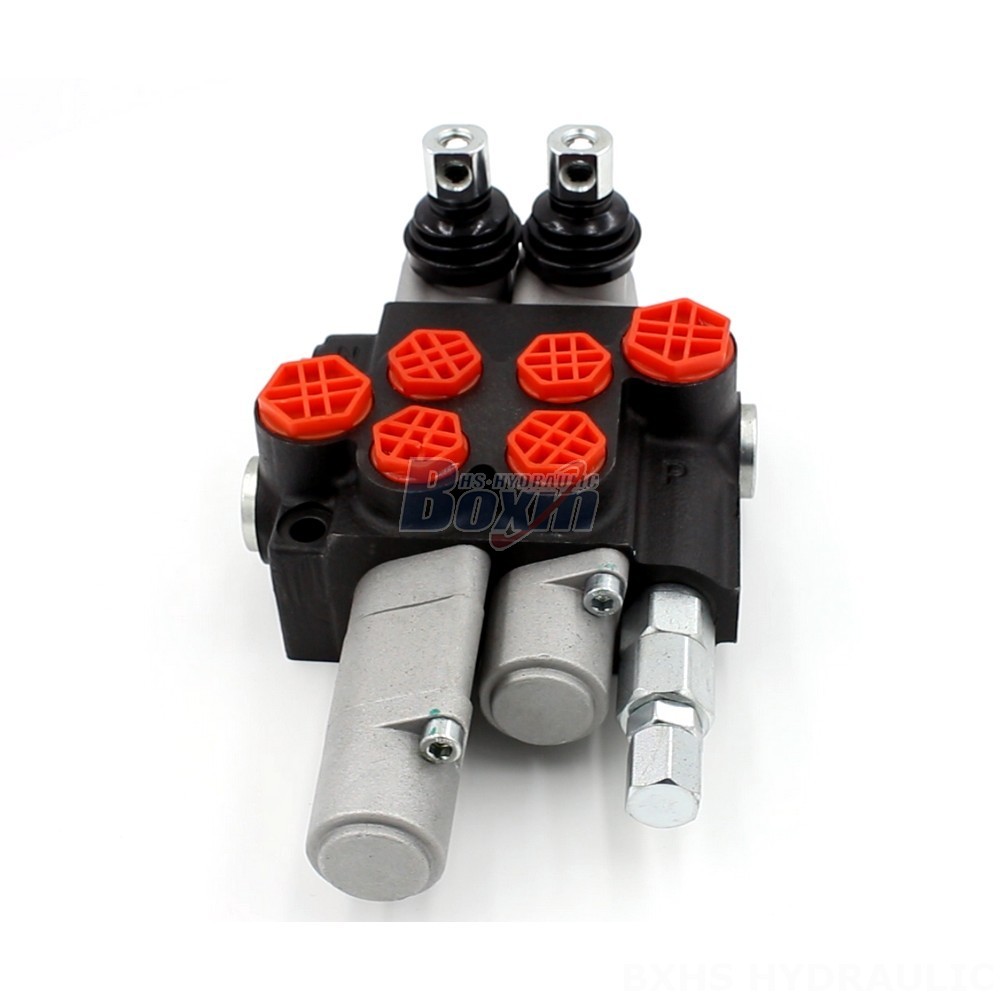

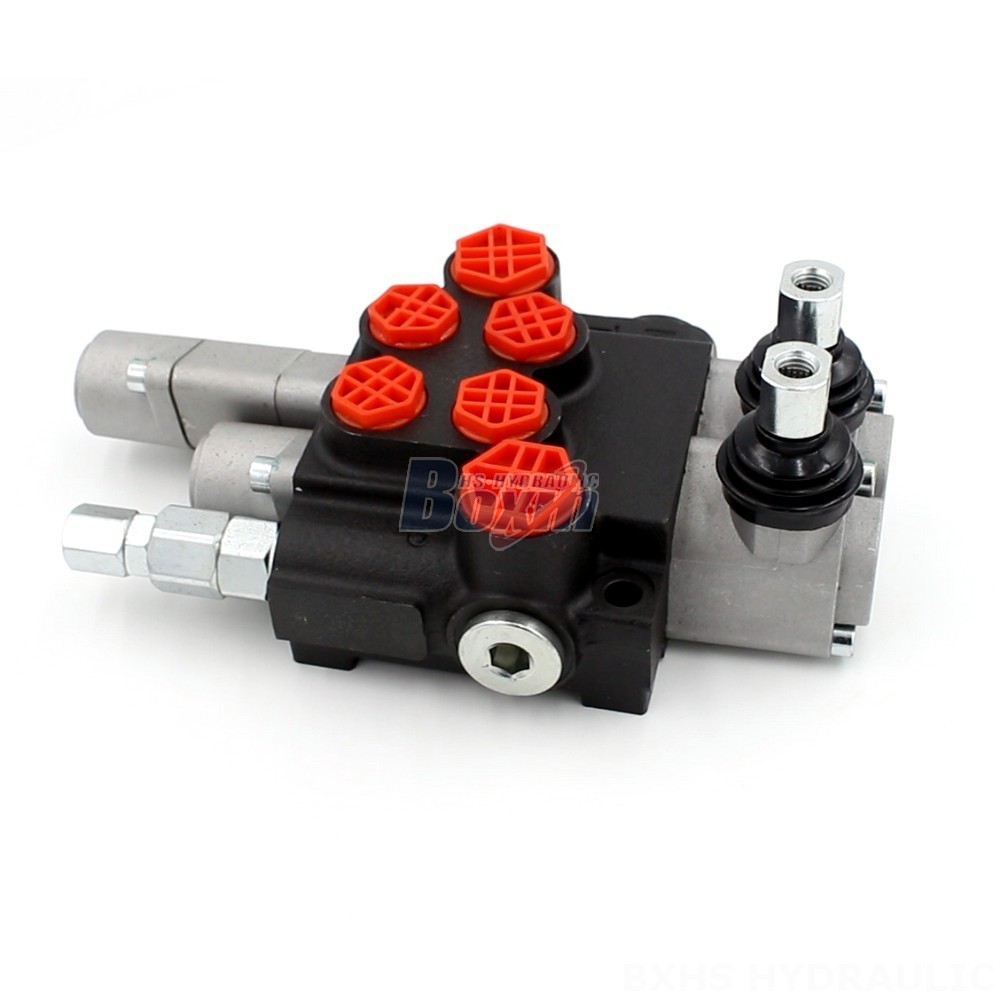

The P40-G12-G38-OT-QTW1 is a 2-section, monoblock valve with manual control. It has a rated flow of 40 L/min and a maximum pressure of 250 bar. The operating viscosity range is 15 - 75 mm²/s and the ambient temperature range is -40°C to +80°C. The valve is suitable for use in material handling, construction, agriculture, and industrial vehicles.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40-G12-G38-OT-QTW1 is a high-quality valve that is manufactured to the highest standards. It is made from durable materials and is designed to withstand even the most demanding applications. The valve is easy to install and maintain, and it comes with a comprehensive warranty.
As a leading manufacturer of hydraulic products, we offer a wide range of valves to choose from. We can also provide custom solutions to meet your specific needs. Contact us today to learn more about our products and services.
