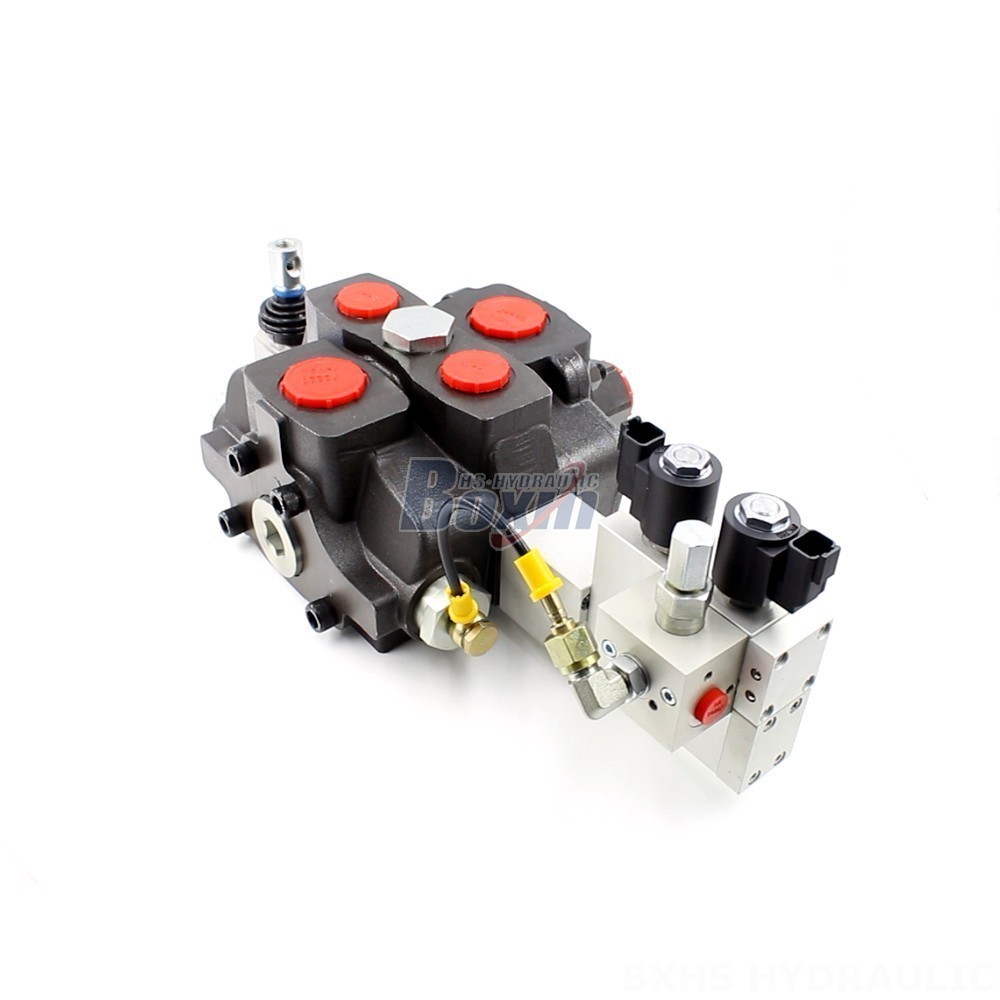

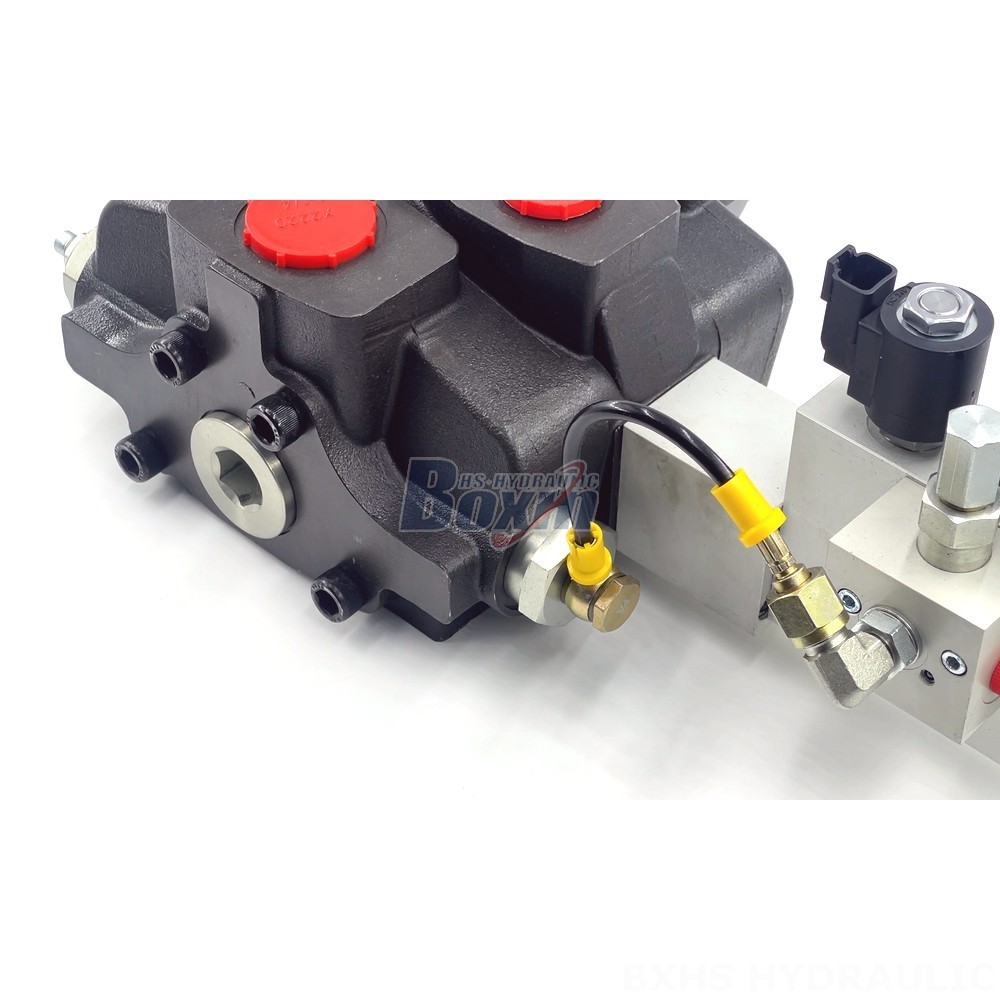

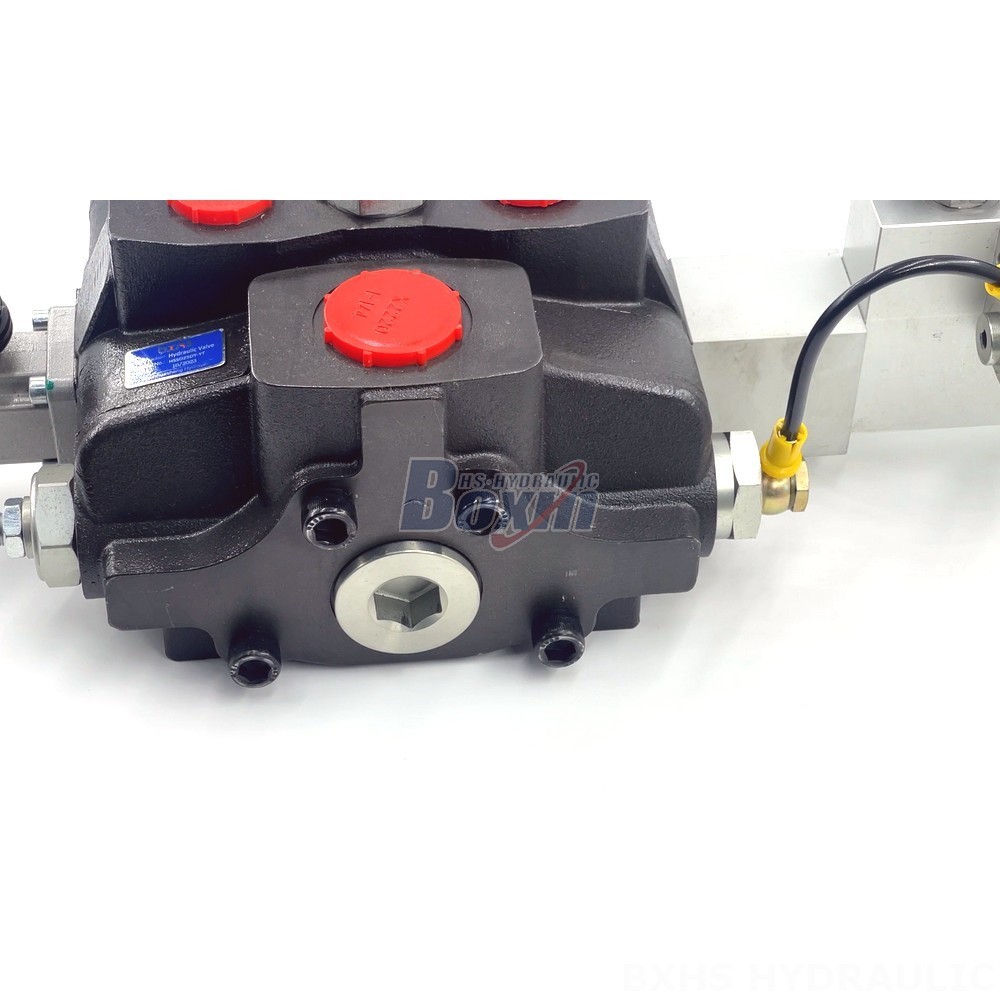

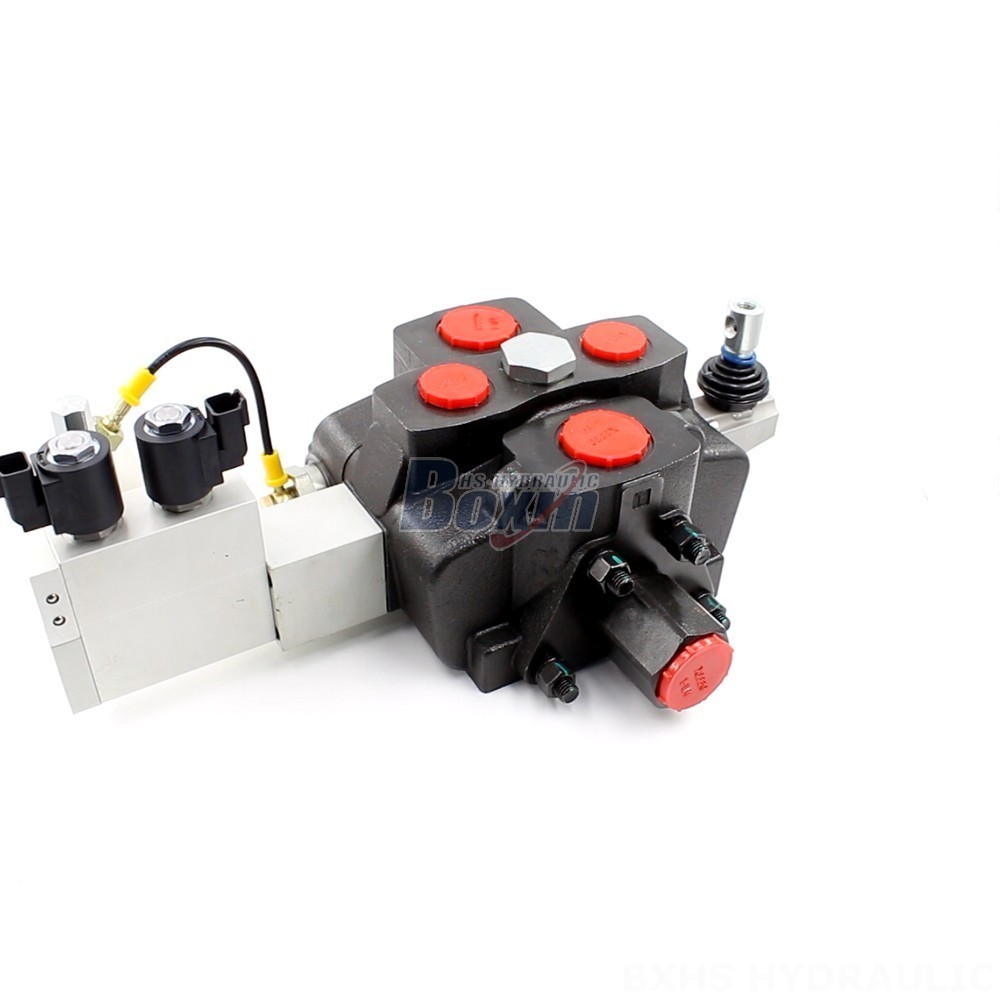

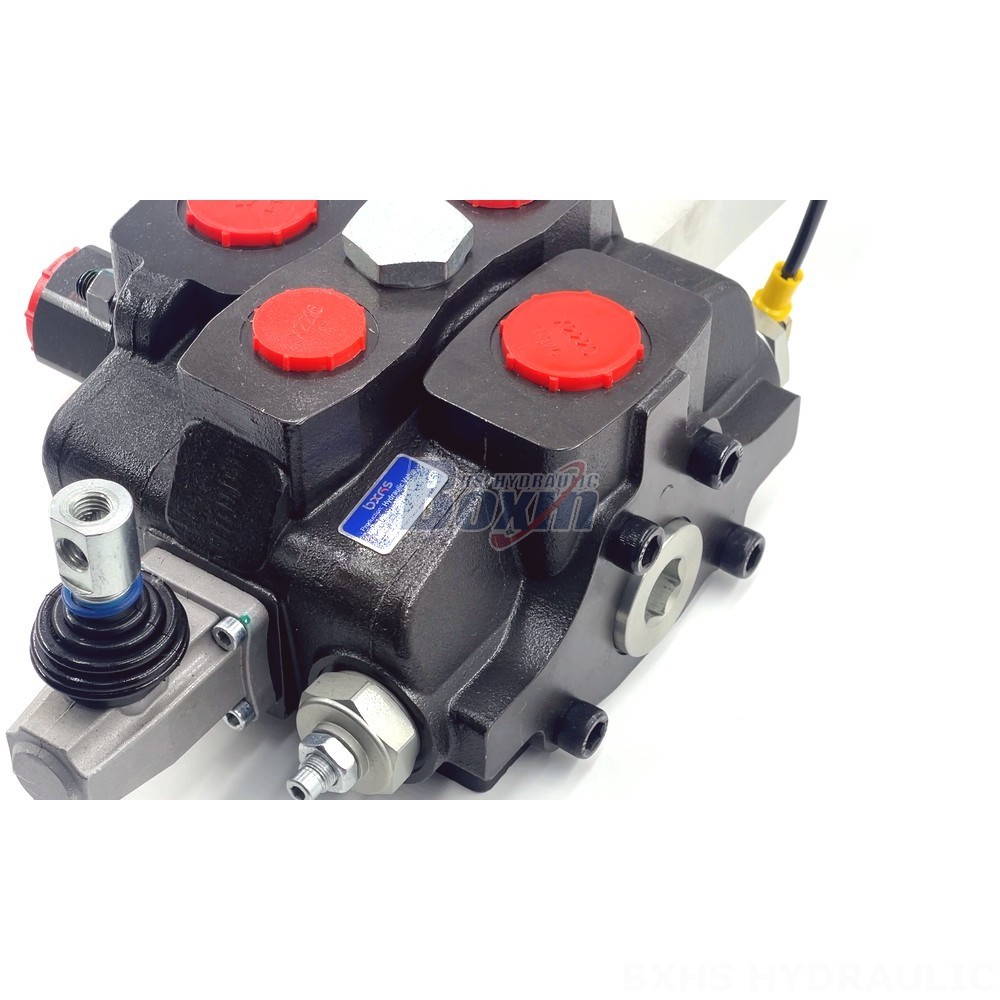

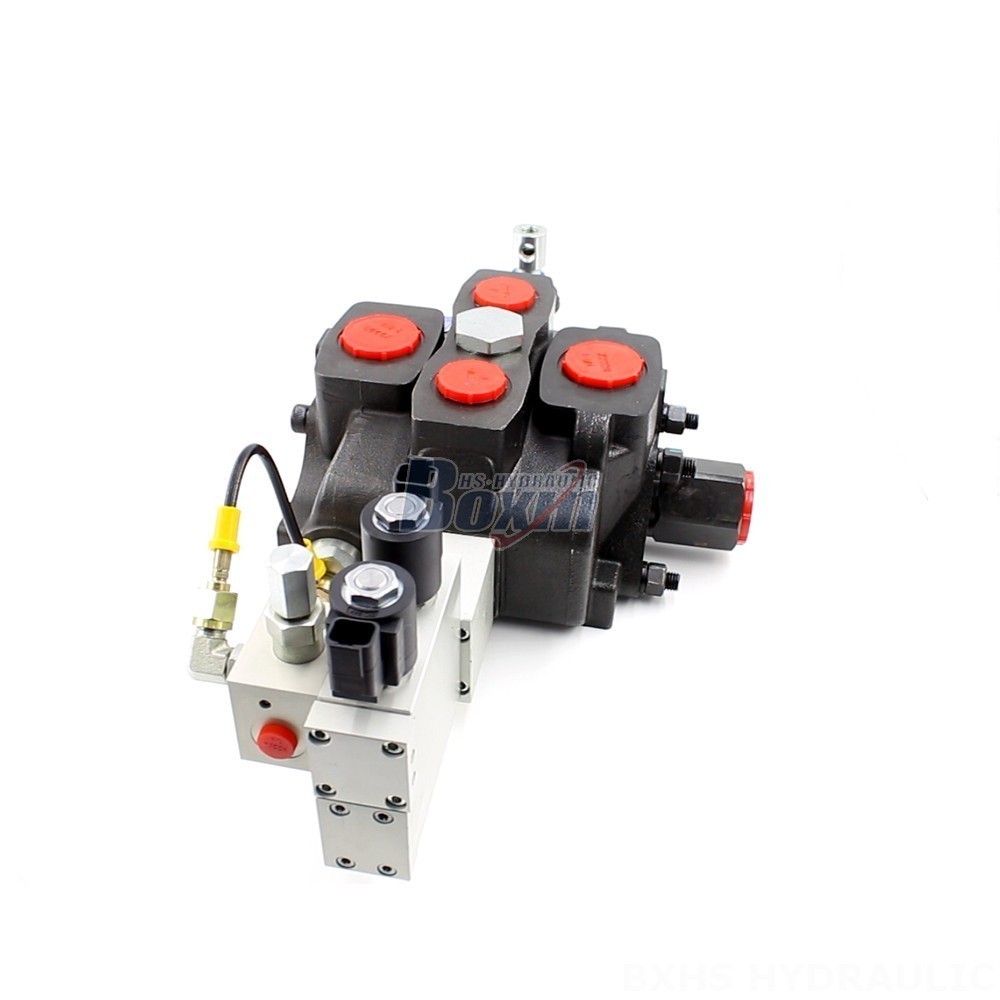

The Electro-hydraulic Valve for Industrial Applications (SD25 Model) is a high-performance valve designed for demanding industrial applications. With a rated flow of 240 L/min and a maximum pressure of 315 bar, it delivers exceptional flow and pressure capabilities. Its monoblock construction ensures durability and reliability, while its wide temperature range (-40°C to +80°C) allows for operation in various environments. The SD25 Series valve is ideal for material handling, construction, earth moving, agriculture, and industrial vehicle applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and excavators.
| SD25系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 电液控, 液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 240 L/min (63.4 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1接口, SAE 16接头 |
| 出油口 | G1-1/4接口, SAE 16接头 |
| 接口尺寸 | G1接口, G1-1/4接口, SAE 12接头 |
**Electro-hydraulic Valve for Industrial Applications (SD25 Model)**
**Control Method:** Electro-hydraulic
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 240 L/min (63.4 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** SD25 Series
**Key Features:**
* High flow capacity (240 L/min)
* High pressure capability (315 bar)
* Wide temperature range (-40°C to +80°C)
* Monoblock construction for durability
* Single spool for simple operation
**Applications:**
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Excavators
