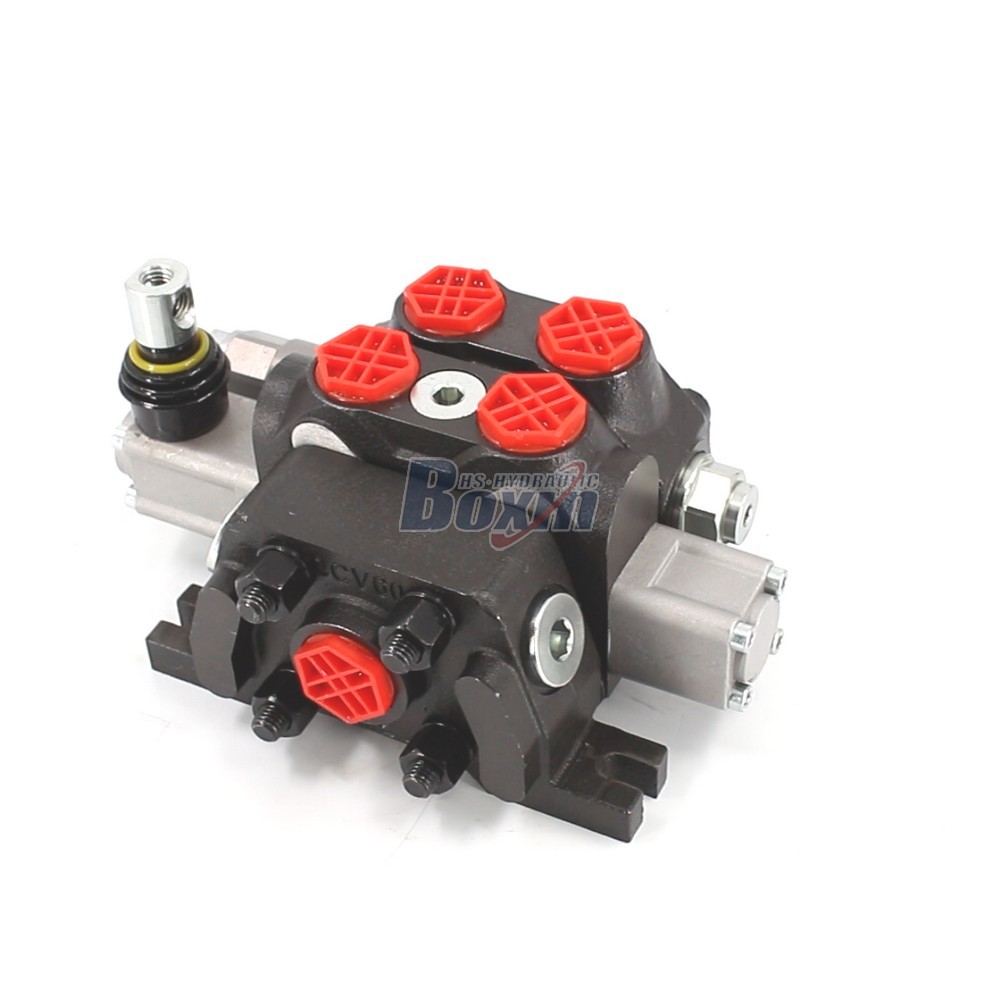

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type

控制方式:手控

路数:1 联

额定流量:60 L/min (15.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:分块式方向阀

产品系列:DCV60系列 分块式方向阀

Packagingsize:18*14*26

Grossweight:7.50 kg

库存: 有货

22 次查看了此产品

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type drawing image

The DCV60 Series is a high-performance 1-spool sectional manual directional control valve designed for versatile hydraulic systems, offering a rated flow of 60 L/min and operating pressures up to 350 bar. It is ideal for material handling, construction, and agricultural machinery, providing precise manual control and robust durability.

DCV60系列 分块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁和手动, 电磁+一控二, 手控+一控二, 电动马达
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 分片阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 60 L/min (15.8 US gpm)
最大压力 315 bar (4600 psi), 350 bar (5100 psi)
进油口 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹

As a leading manufacturer of hydraulic solutions, we present the DCV60 Series Manual Directional Control Valve. This 1-spool sectional type valve is engineered for high-pressure applications, reaching up to 350 bar (5100 psi) with a stable flow rate of 60 L/min (15.8 US gpm). Featuring G1/2 inlet and outlet ports, it is perfectly suited for equipment such as mini-excavators, skid steer loaders, tractors, and forklifts.

Our factory provides comprehensive services including OEM, private labeling (ODM), and tailored customization to meet specific technical requirements. We specialize in factory-direct wholesale and large-scale manufacturing, ensuring reliable supply chains and professional quality. We are actively seeking global partners, including distributors, wholesalers, regional agents, and international traders to expand our global market presence. Partner with us for competitive factory pricing and superior technical support in the hydraulic components sector.
