Our DCV58F Solenoid 2 Spool Sectional Directional Valve is a high-performance hydraulic component designed for various applications in construction, earth moving, agriculture, and industrial vehicles. This valve features solenoid control with a rated flow of 60 L/min and a maximum pressure capacity of 350 bar.
| DCV58F系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 电磁, 电磁和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 额定流量 | 60 L/min (15.8 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 结构类型 | 分片阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |

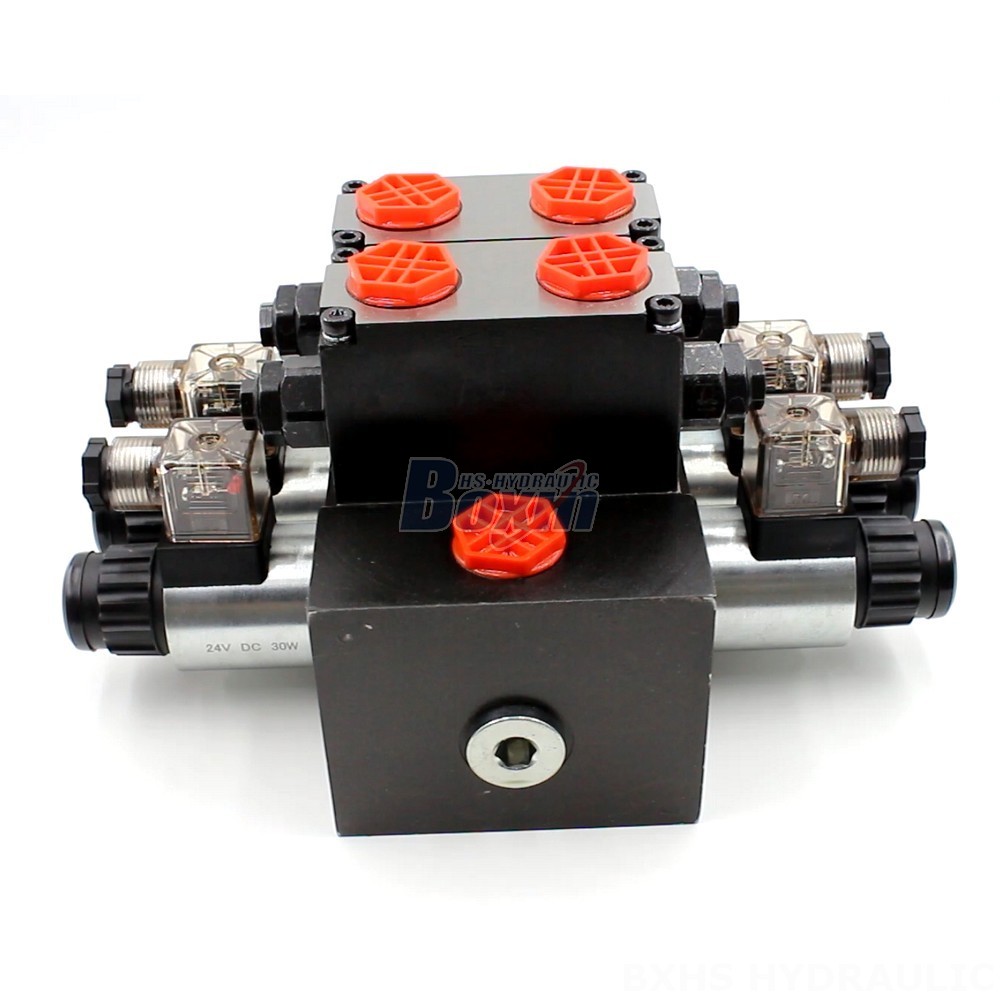

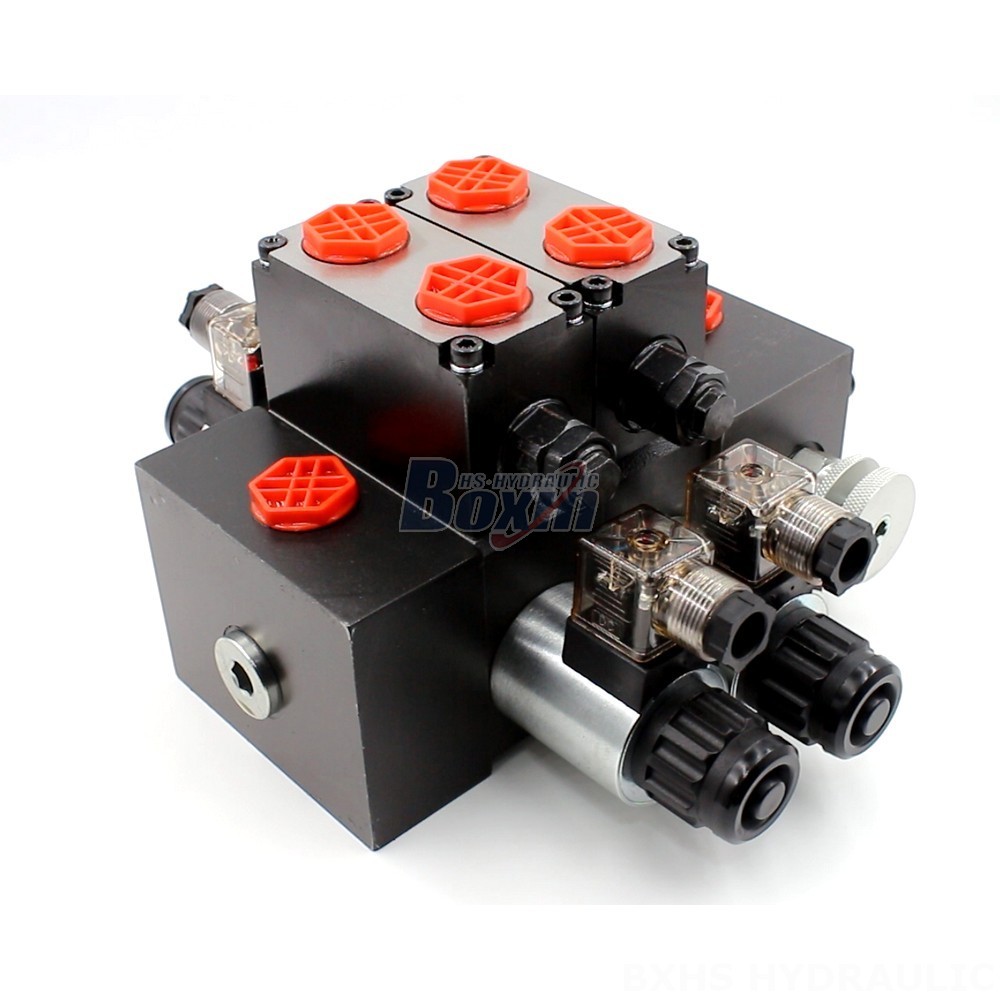

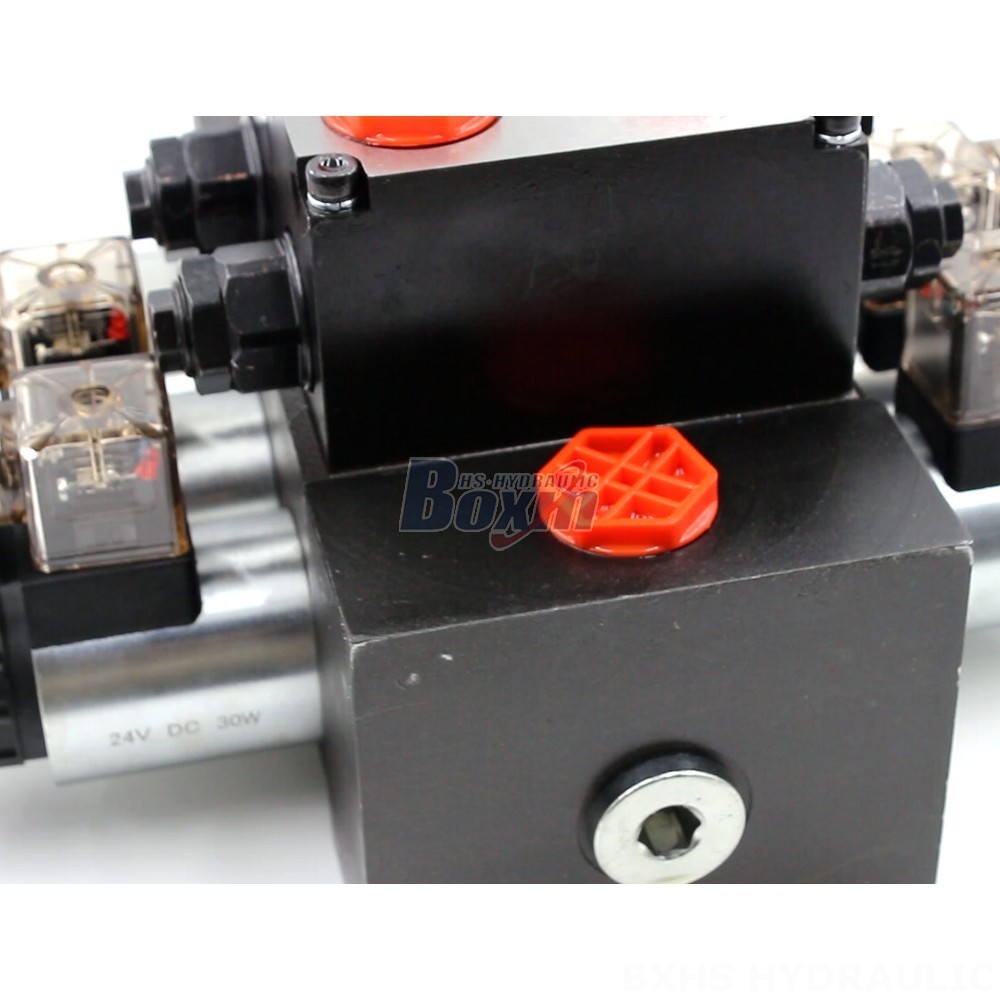

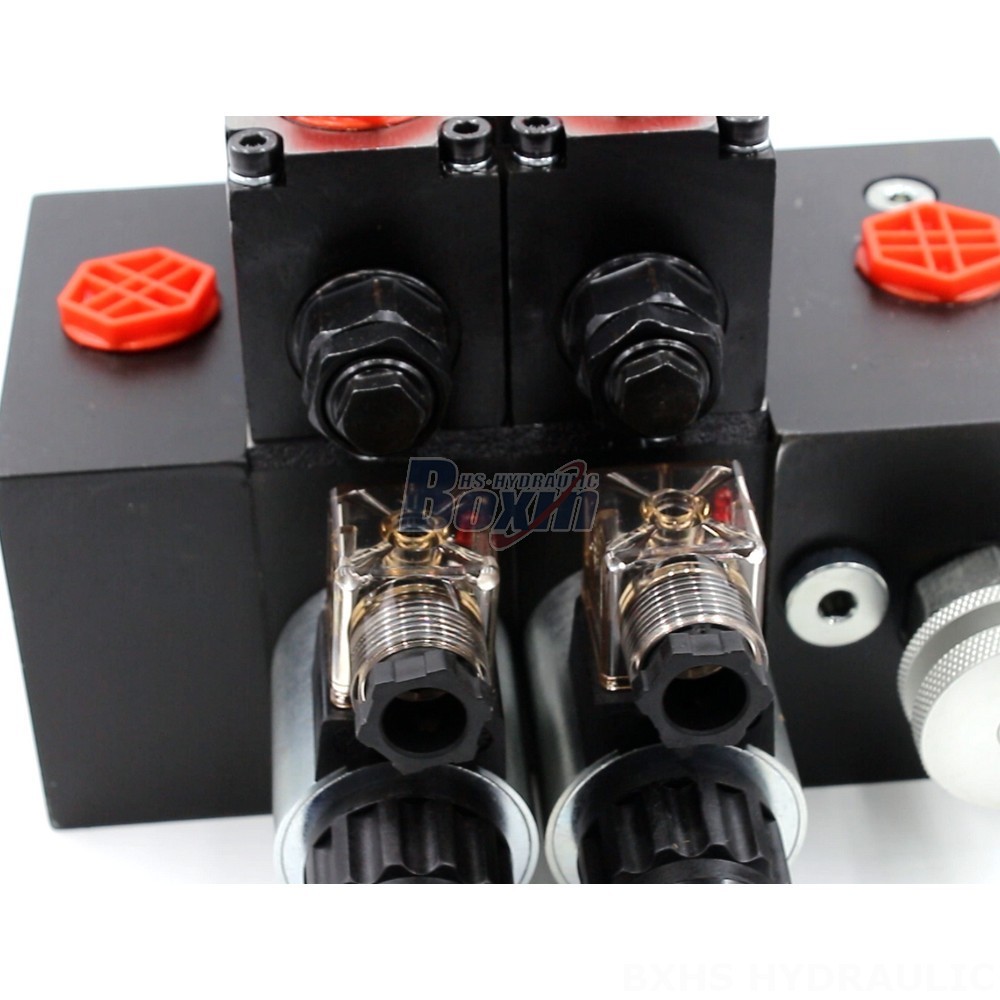

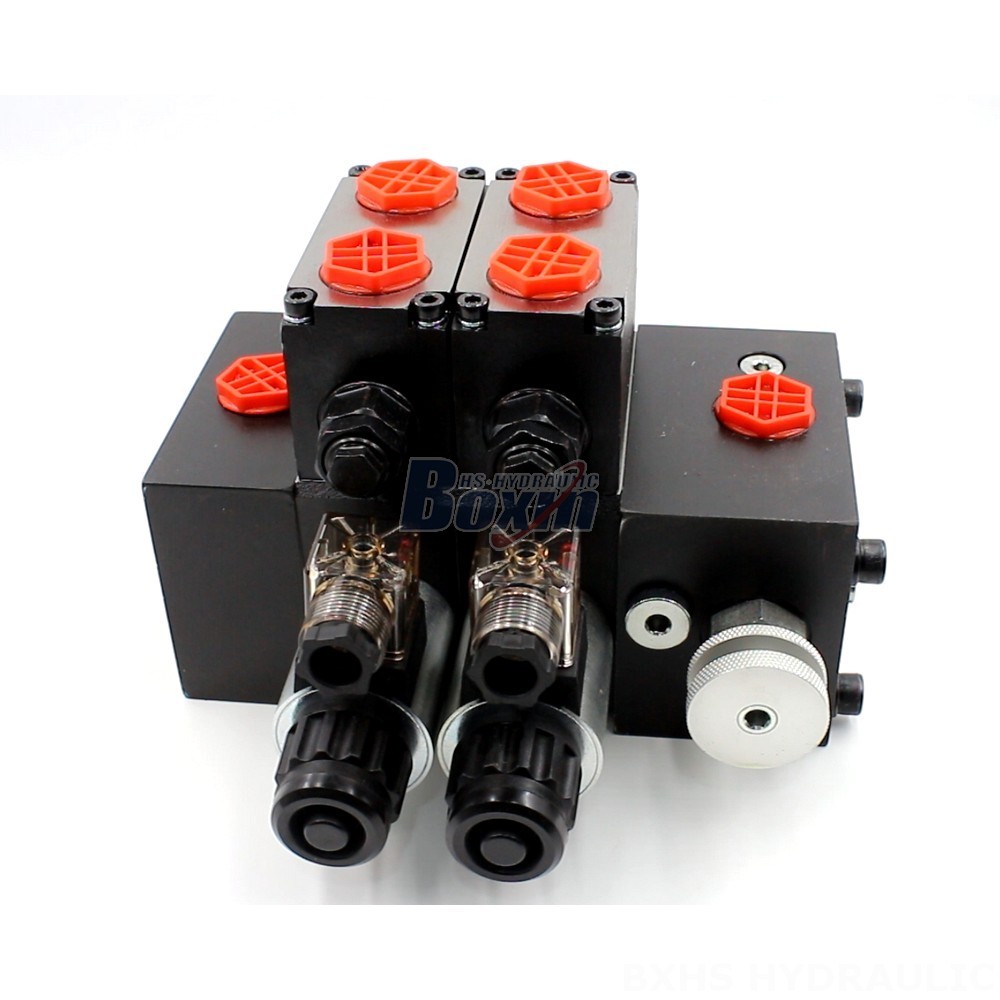

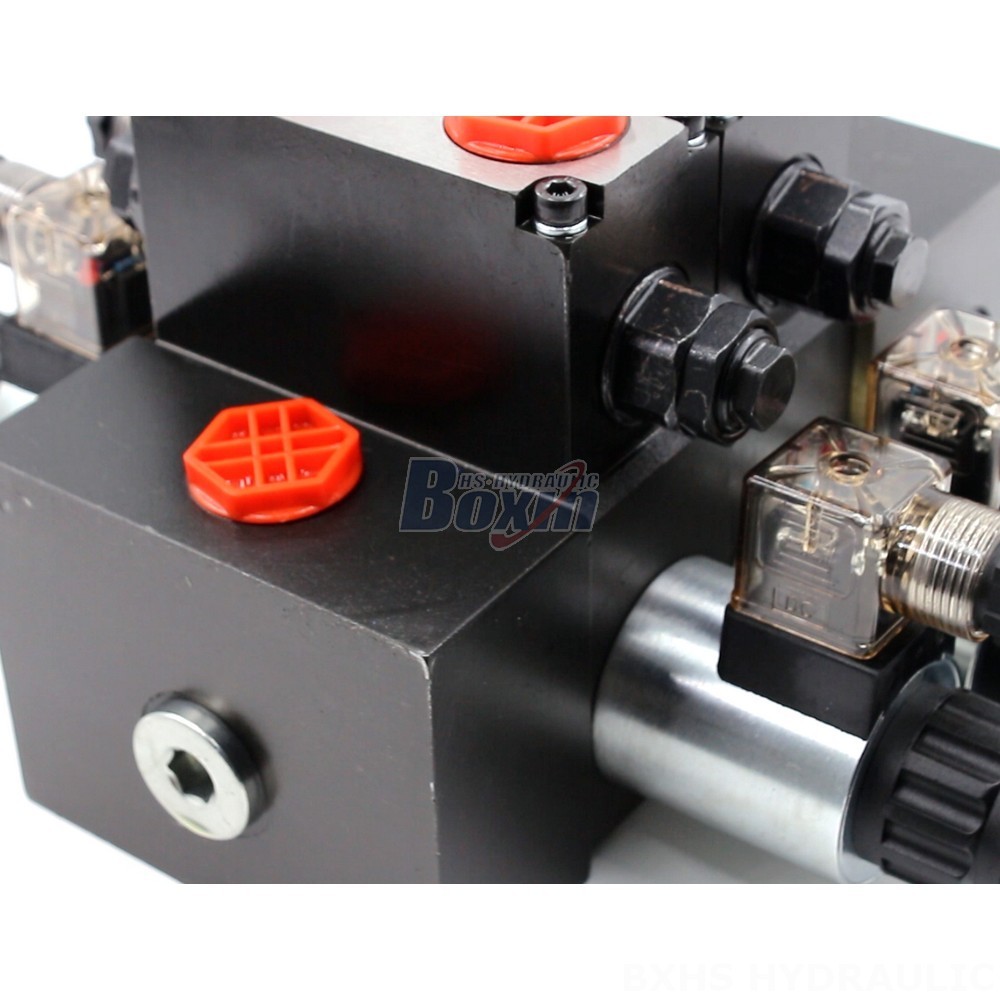

**DCV58F Solenoid 2 Spool Sectional Directional Valve**
**Control Method:** Solenoid
**Section:** 2 Section
**Structure Type:** Sectional valve
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** DCV58F Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
This valve is designed to provide precise and reliable directional control in hydraulic systems. Its modular design allows for easy integration into existing circuits, while its compact size and lightweight construction make it suitable for applications where space and weight are critical factors. The valve is constructed from high-quality materials and components to ensure durability and longevity in demanding operating conditions.
