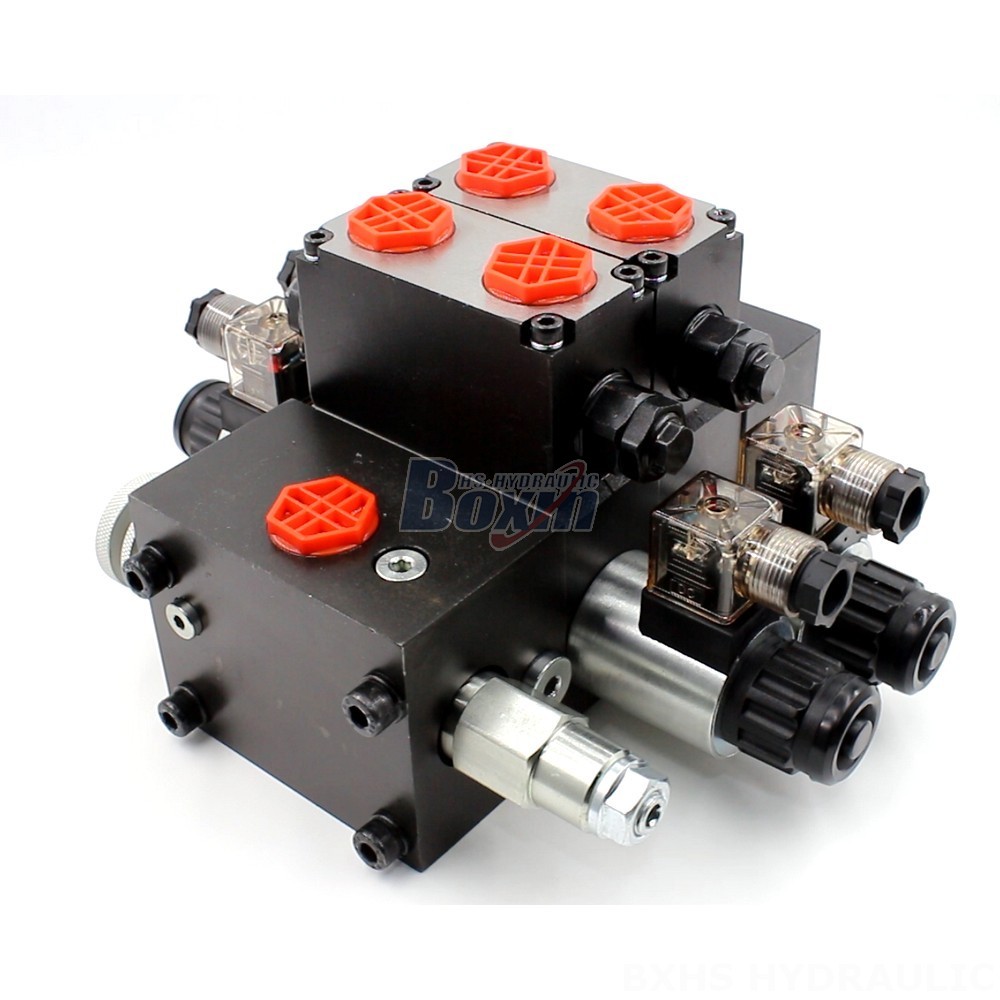

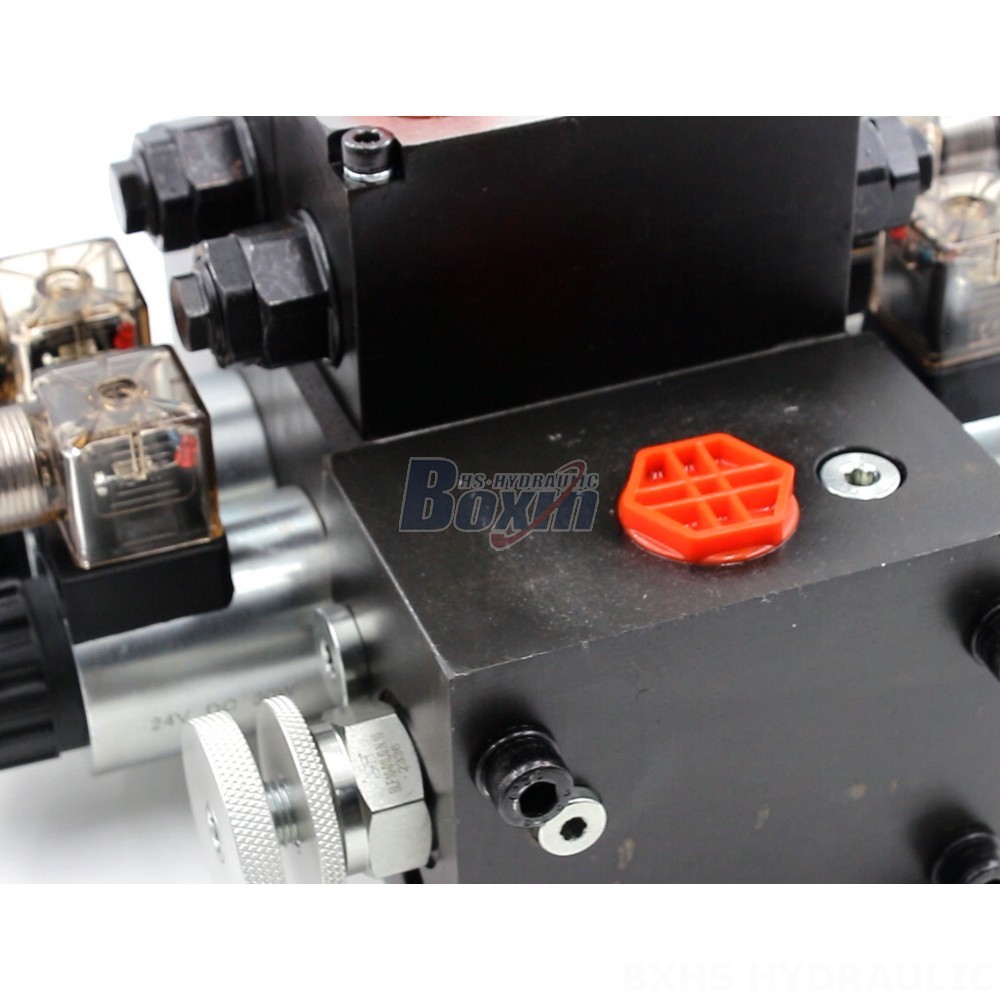

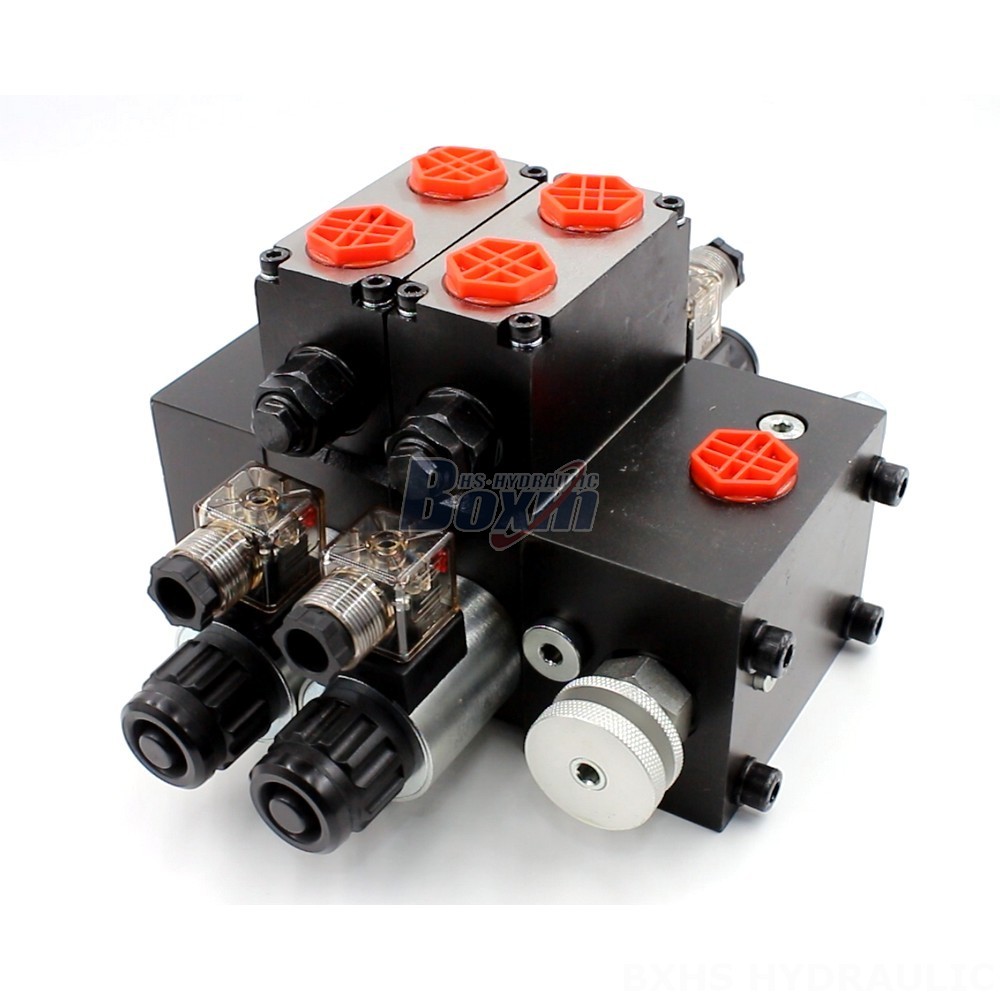

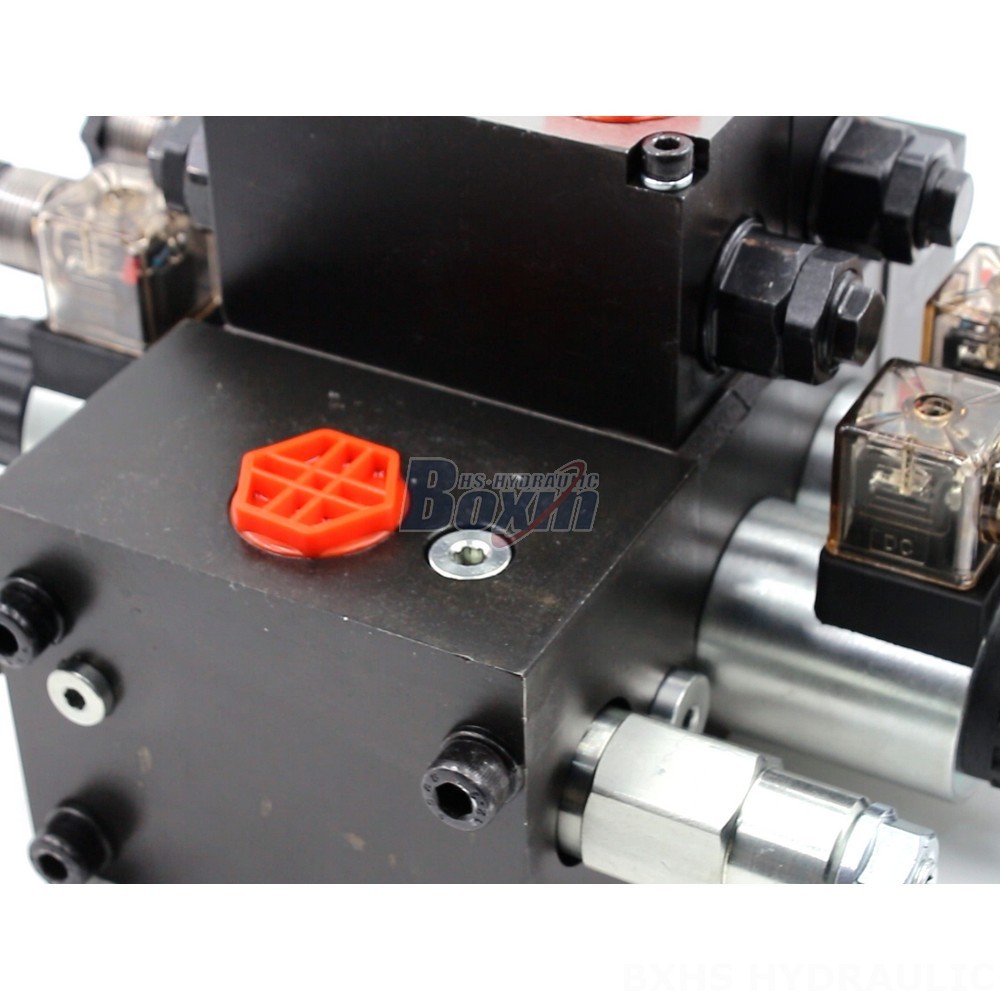

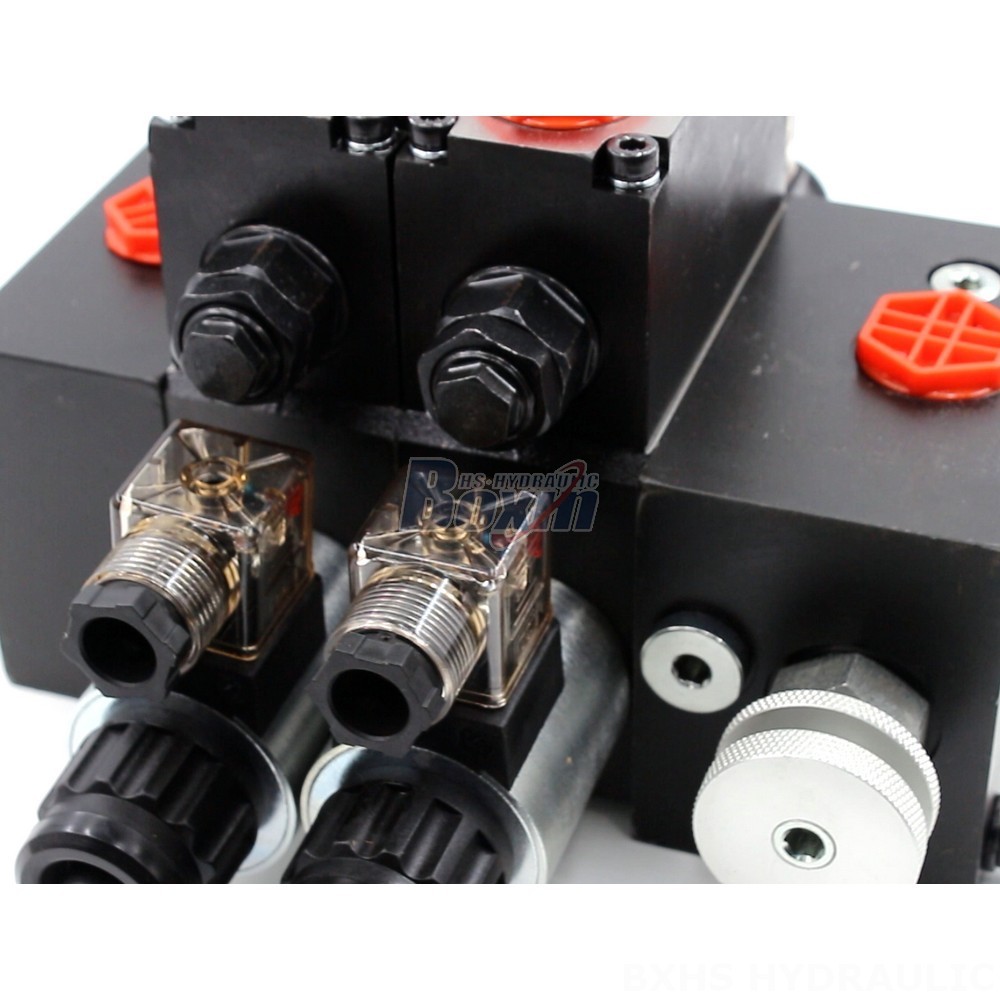

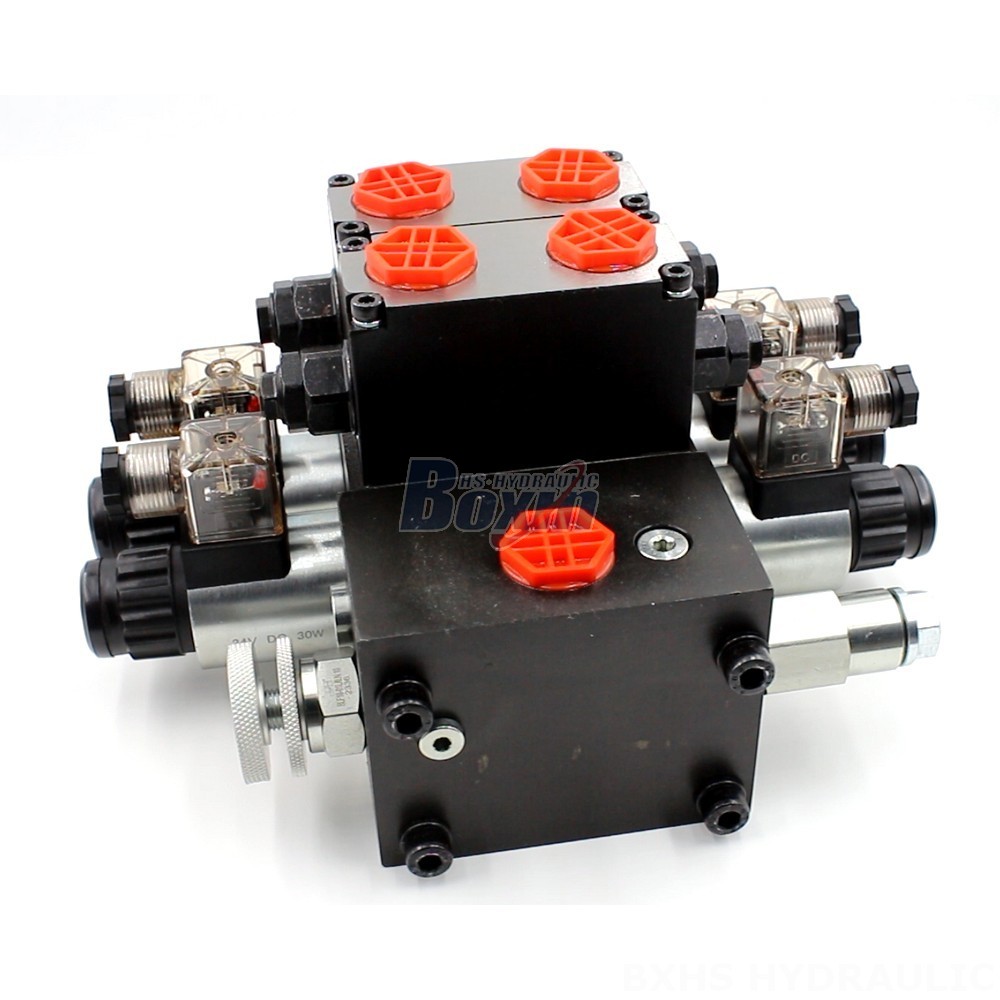

Meet your hydraulic valve needs with our DCV58F Hydraulic Valve. We offer OEM and ODM services, allowing customization to meet your specific requirements. This high-performance valve, with a rated flow of 60 L/min and a max pressure of 350 bar, is designed for various applications in material handling, construction, agriculture, and industrial vehicles.
| DCV58F系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 电磁, 电磁和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 额定流量 | 60 L/min (15.8 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 结构类型 | 分片阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**DCV58F Hydraulic Valve: Precision and Performance for Demanding Applications**
**Key Features and Benefits:**
- **Solenoid Control:** Precise and responsive valve operation
- **2 Section Design:** Manages multiple hydraulic functions efficiently
- **Sectional Valve Structure:** Modular design for easy maintenance and customization
- **High Flow Capacity:** 60 L/min rated flow for demanding hydraulic systems
- **Exceptional Pressure Handling:** Max pressure of 350 bar ensures reliable performance
- **Wide Viscosity Range:** Operates effectively within 15 - 75 mm²/s viscosity range
- **Temperature Versatility:** Handles extreme temperatures from -40°C to +80°C
- **Versatile Spool Options:** 2 spool configuration for precise flow control
- **Proven Applications:** Ideal for material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and skid steer loaders**
