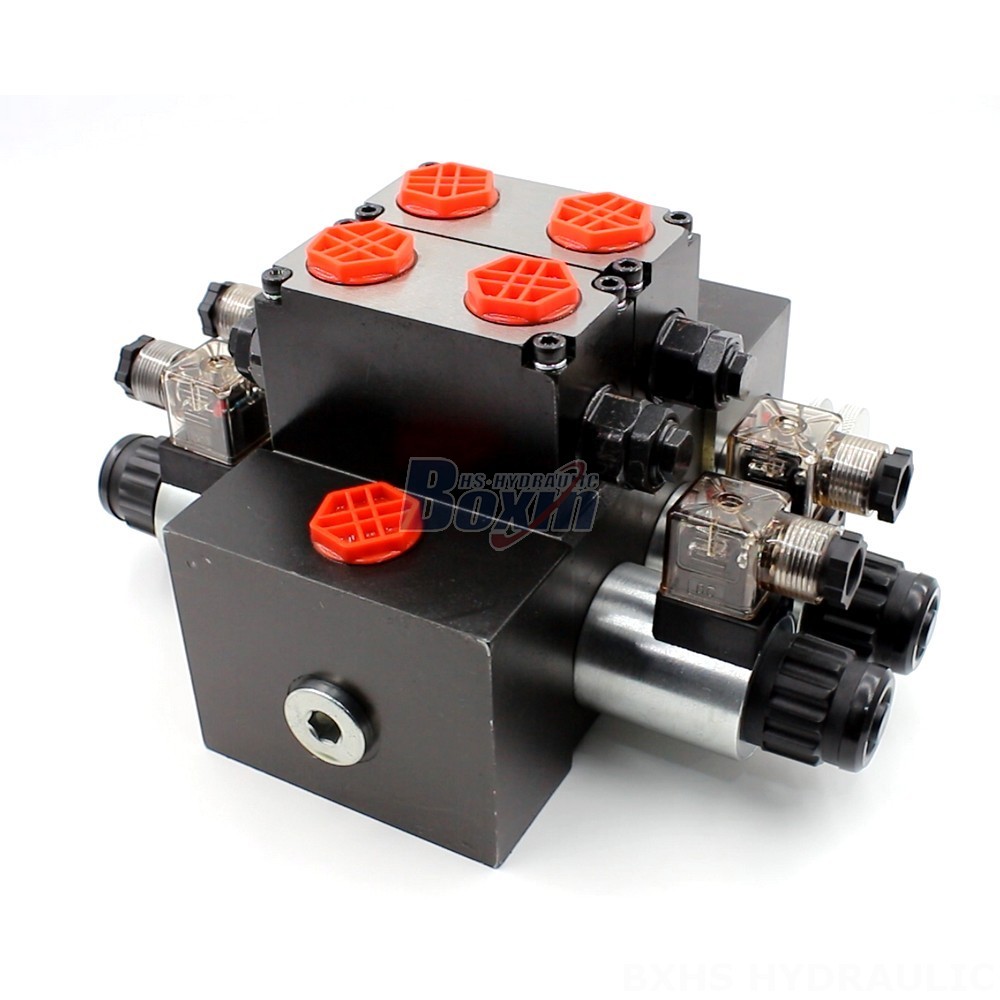

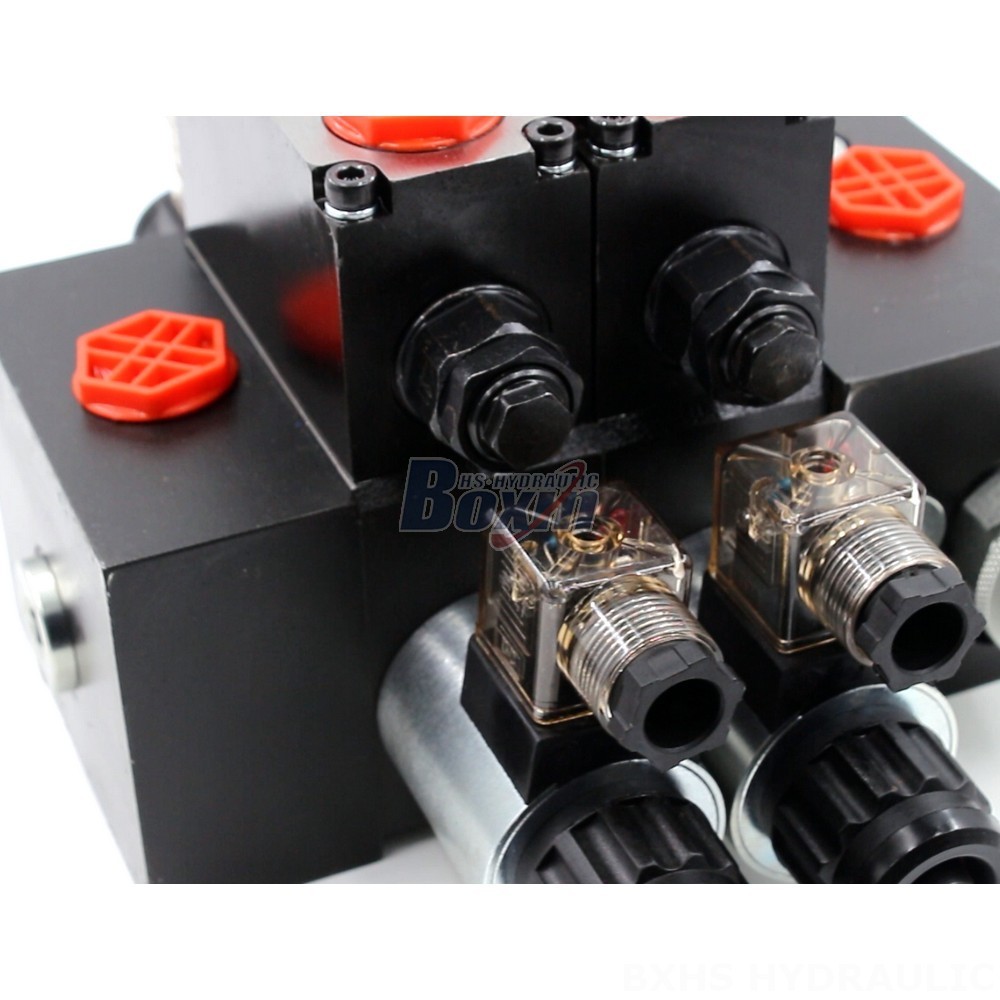

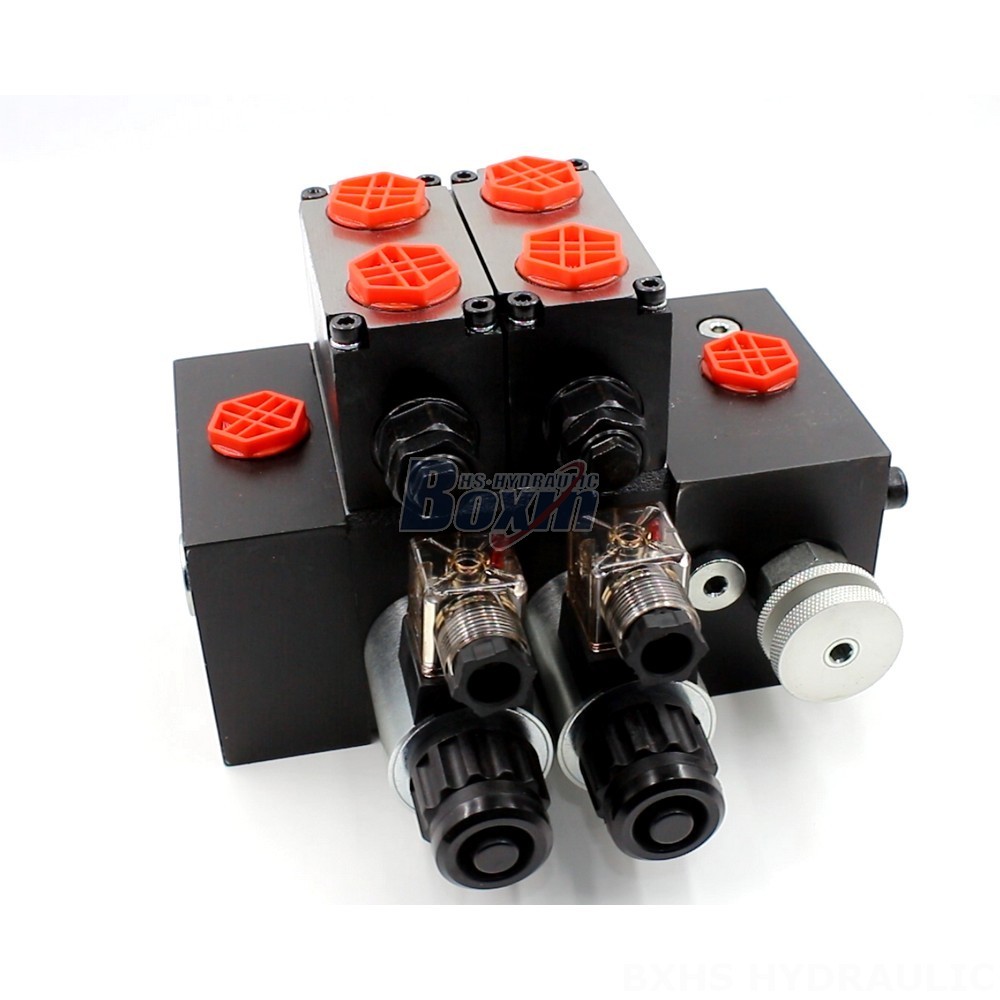

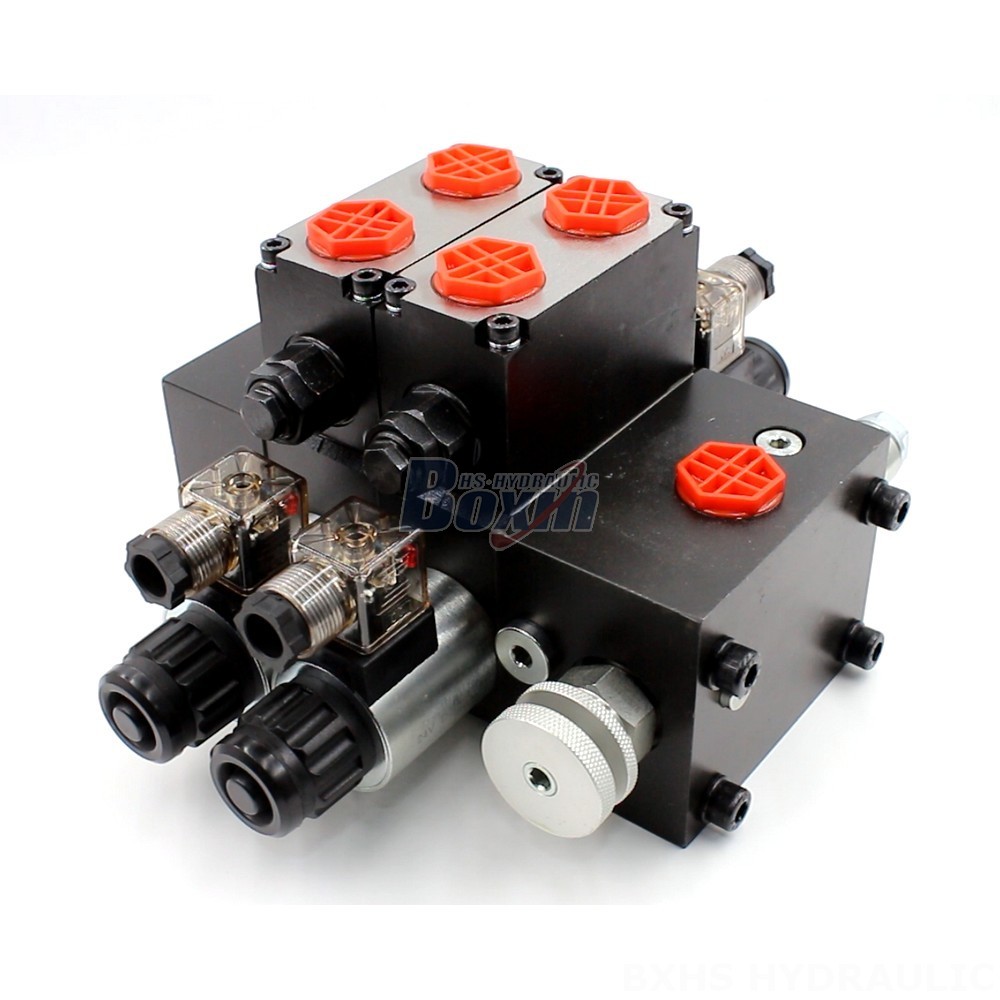

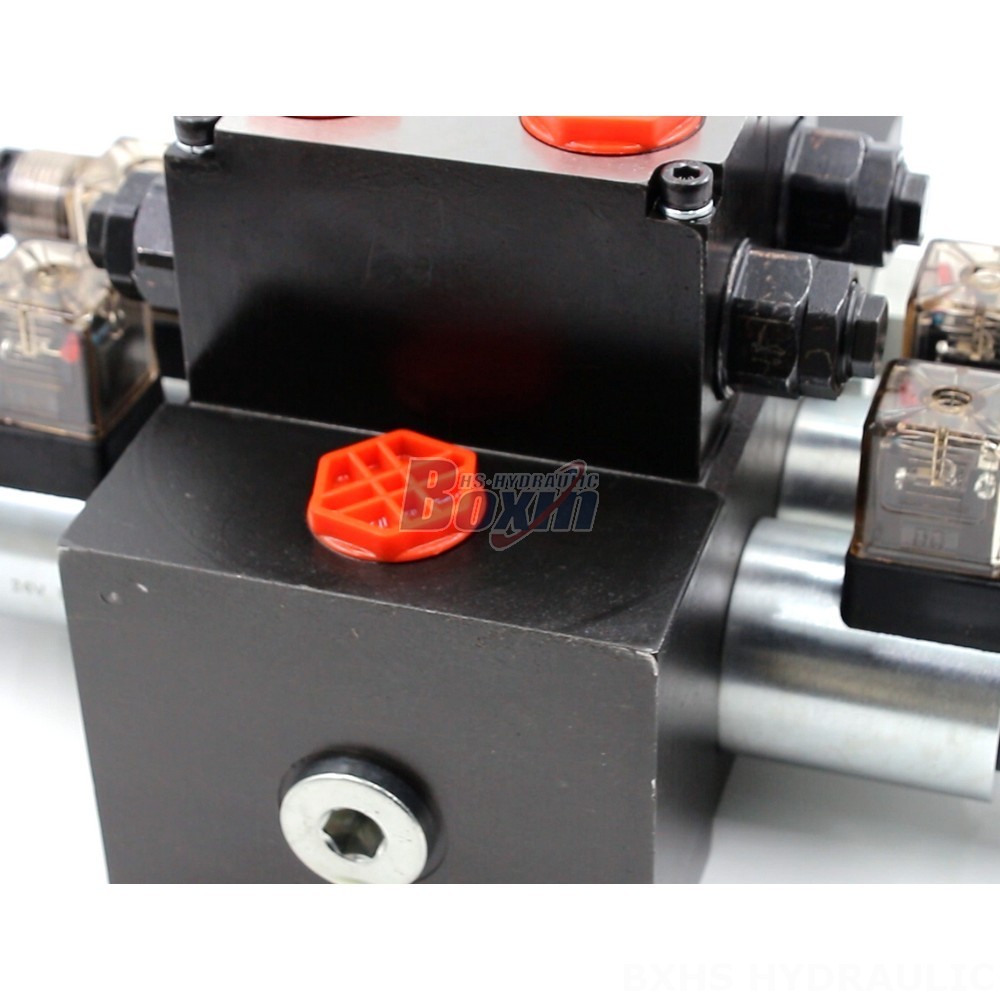

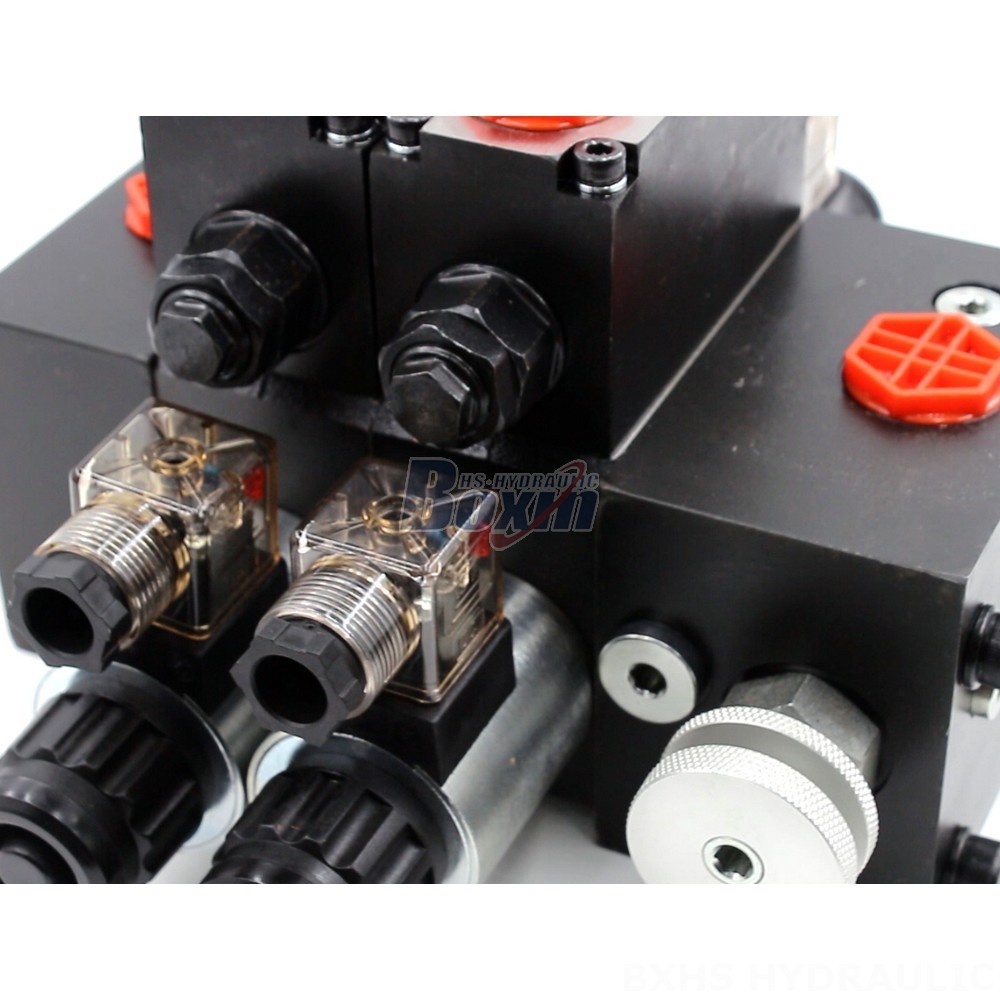

The DCV58F is a 2 Spool Directional Control Valve with a solenoid control method. This high-performance valve is designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It features a rated flow of 60 L/min, a maximum pressure of 350 bar, and a wide operating viscosity range.
| DCV58F系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 电磁, 电磁和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 额定流量 | 60 L/min (15.8 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 结构类型 | 分片阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The DCV58F is a sectional valve with a 2-section design and is part of the DCV58F series. It is suitable for use in a variety of applications including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, telehandlers, midi- excavators, mini-excavators, and skid steer loaders. This valve is available for wholesale and OEM purchase, offering flexibility to meet your specific needs.
