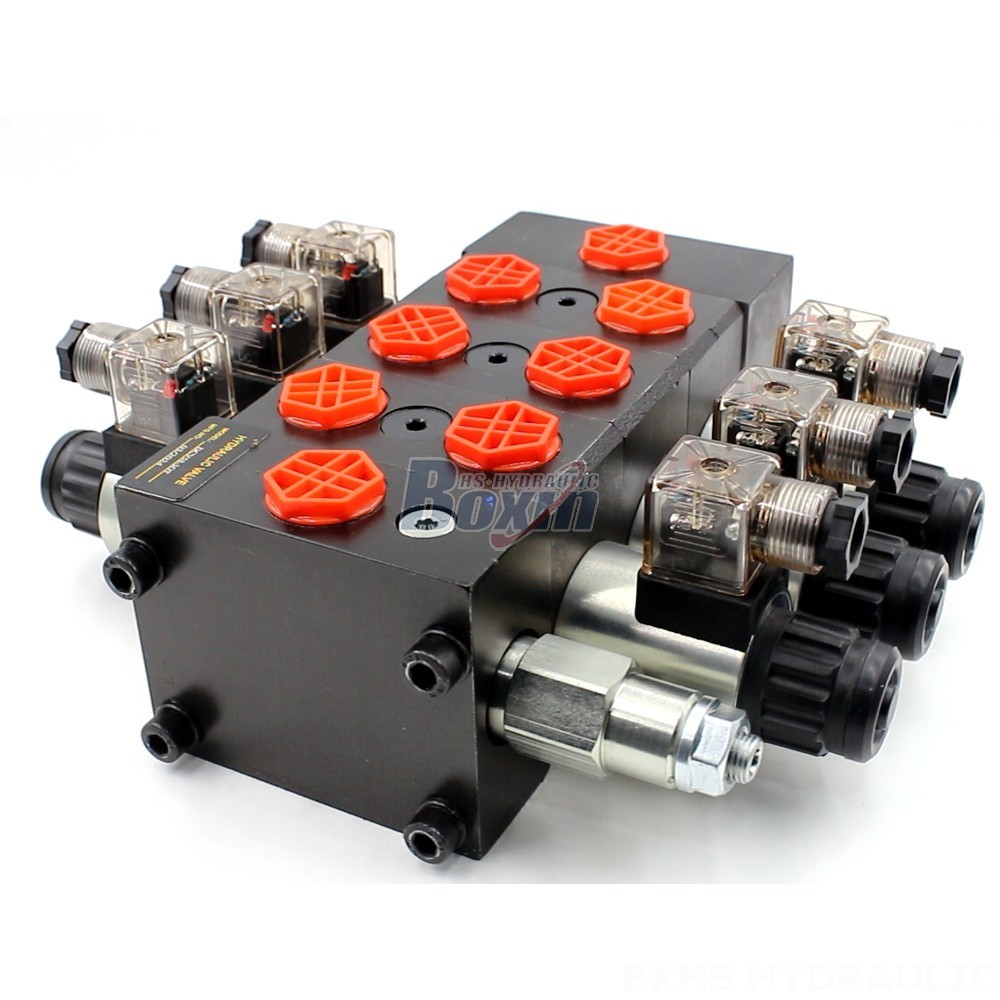

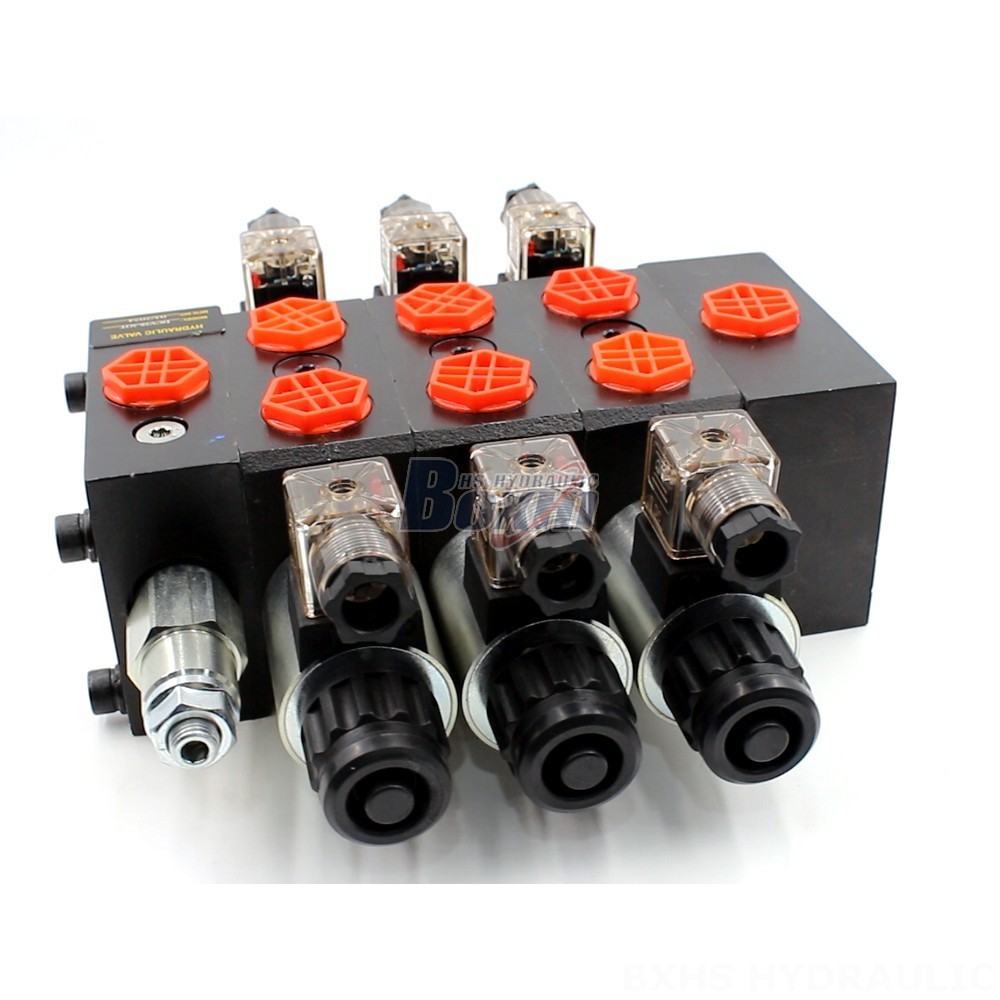

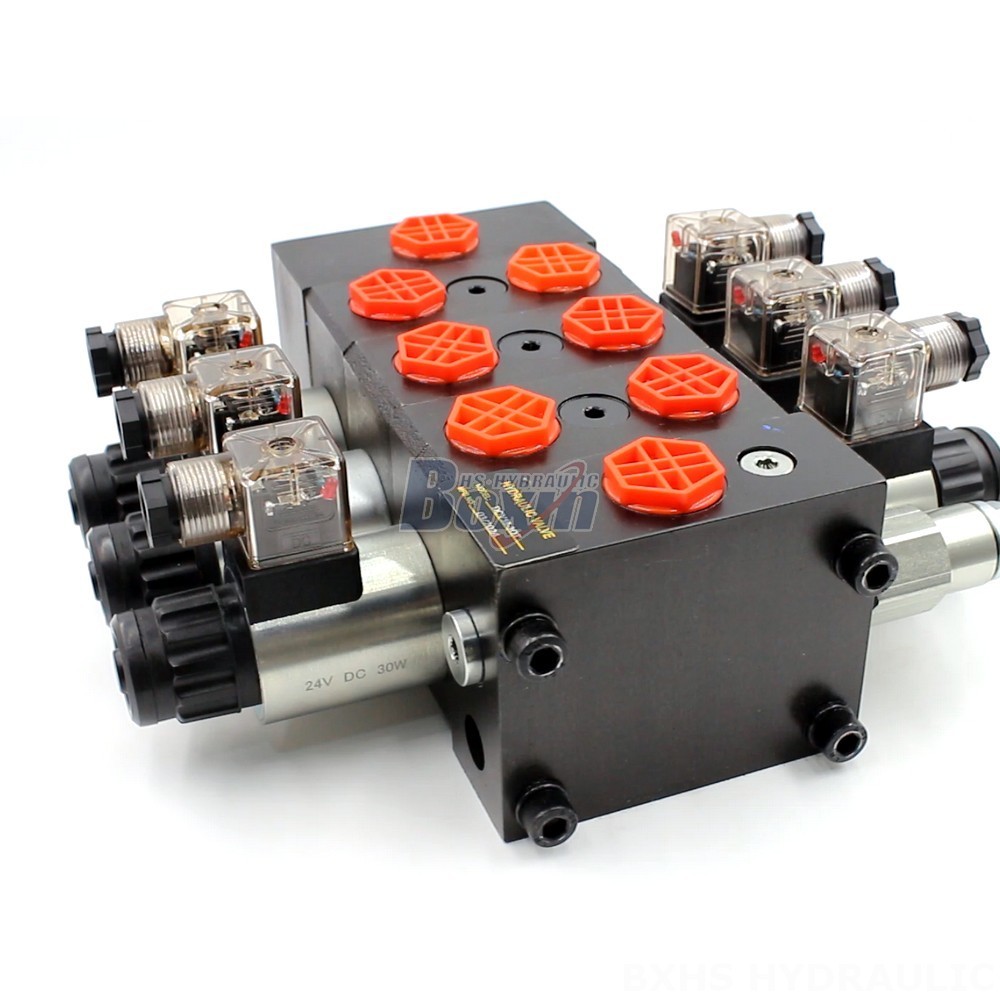

The DCV58 Solenoid 3 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries, including industrial vehicles, construction, agriculture, and material handling. With its advanced solenoid control and sectional design, it offers precise and reliable flow control, making it ideal for complex hydraulic systems requiring multiple spool operations.
| DCV58系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 电磁, 电磁和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
**Key Features:**
- Solenoid control for precise and responsive operation
- Sectional design allows for modular configuration and easy maintenance
- 3 spool design provides independent control of multiple hydraulic circuits
- High flow capacity of 60 L/min for efficient system operation
- Maximum pressure rating of 350 bar for demanding applications
- Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
- Durable construction and high-quality components ensure long service life
**Applications:**
- Industrial vehicles: forklifts, telehandlers, aerial platforms
- Construction equipment: excavators, skid steer loaders, motor graders
- Agricultural machinery: tractors, harvesters, sprayers
- Material handling equipment: cranes, stackers, conveyors
