The DCV58 2-Spool Directional Control Valve is a high-performance hydraulic valve designed for use in various industrial and mobile applications. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve provides precise and reliable control of hydraulic systems. Its sectional valve design allows for easy customization and integration into complex hydraulic systems. The DCV58 valve is suitable for applications such as material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, and excavators.
| DCV58系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 电磁, 电磁和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |

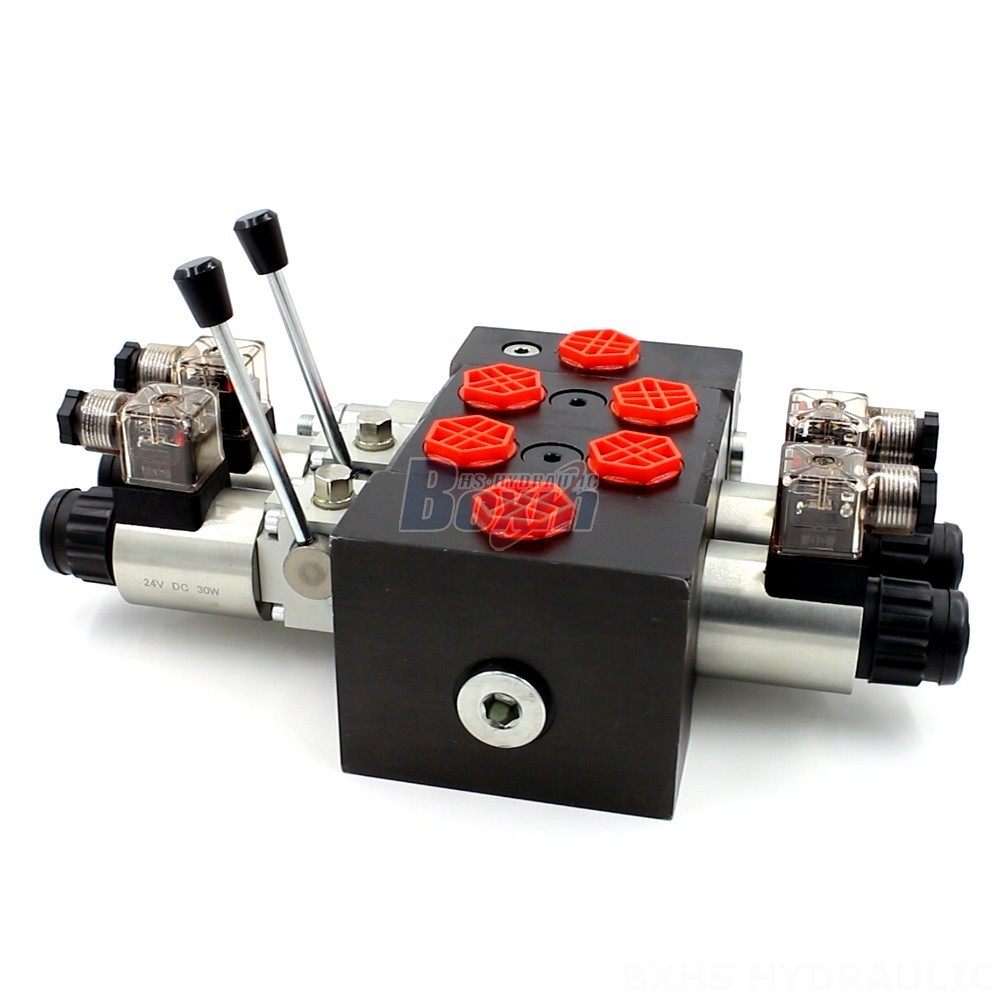

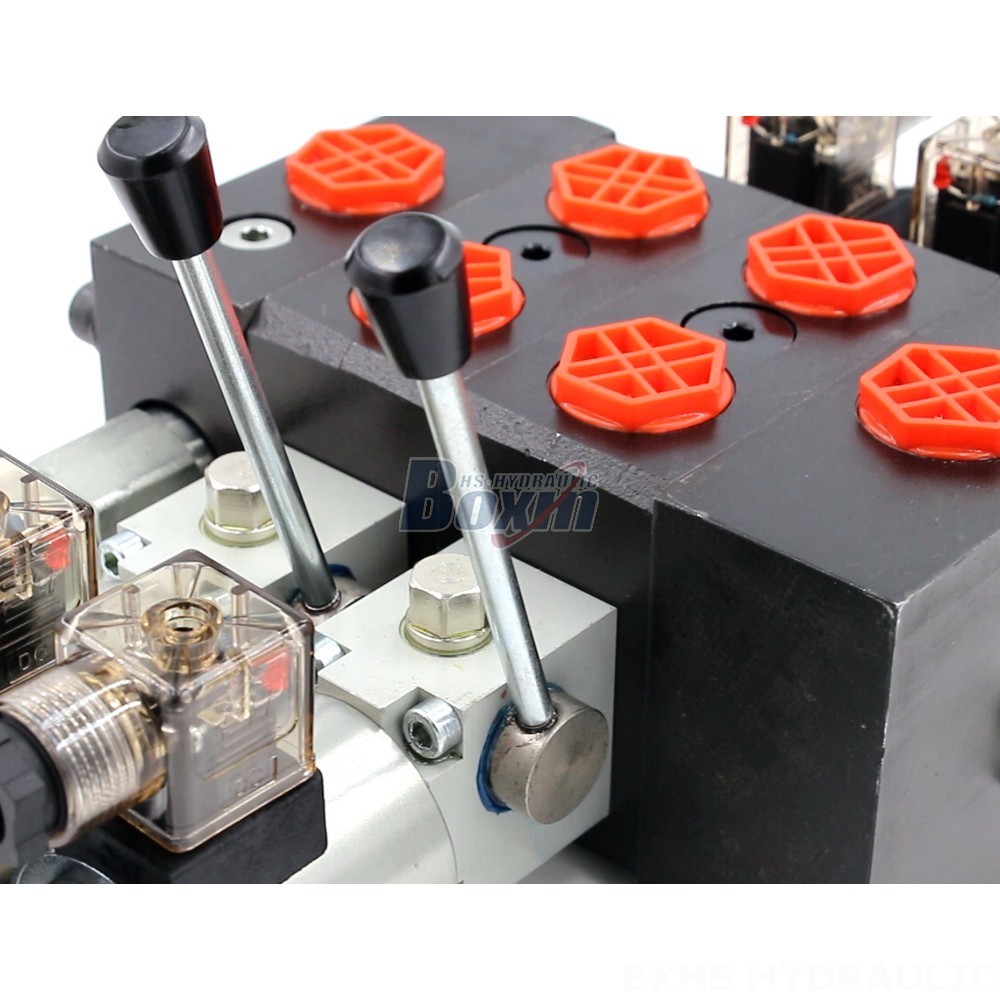

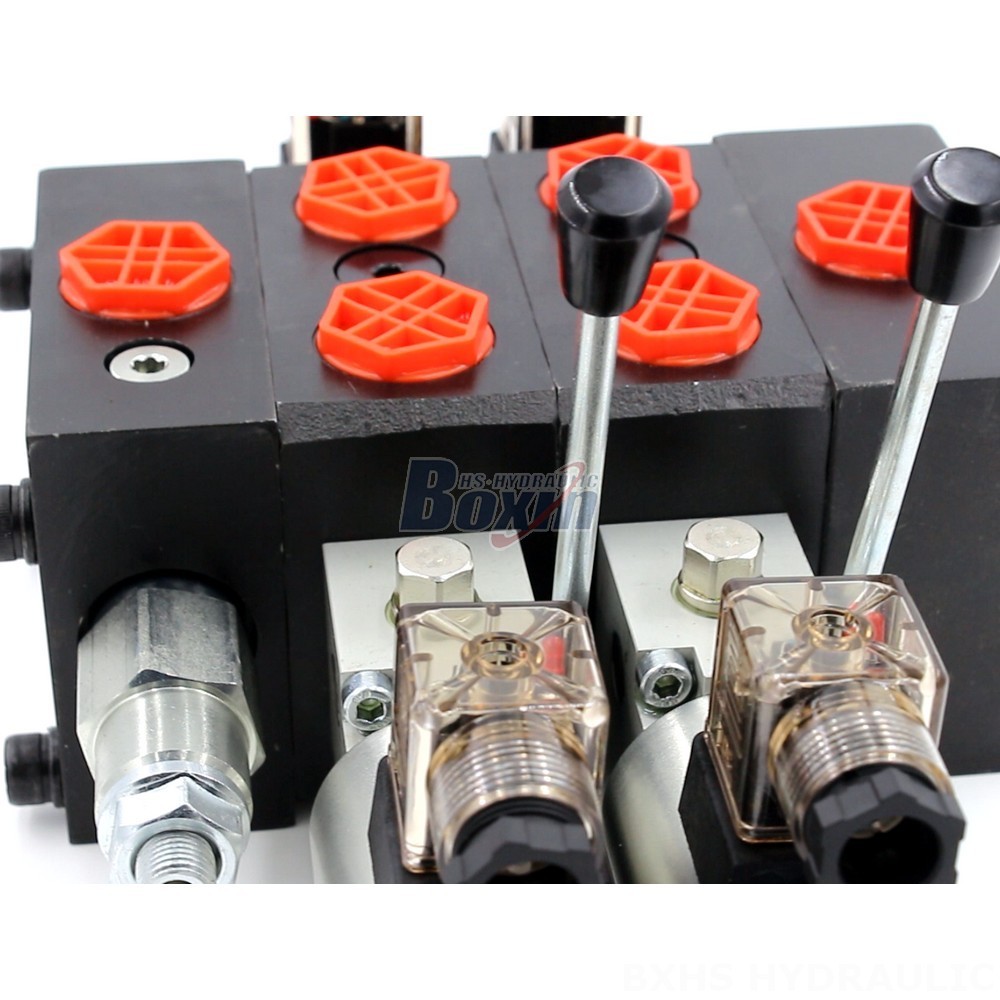

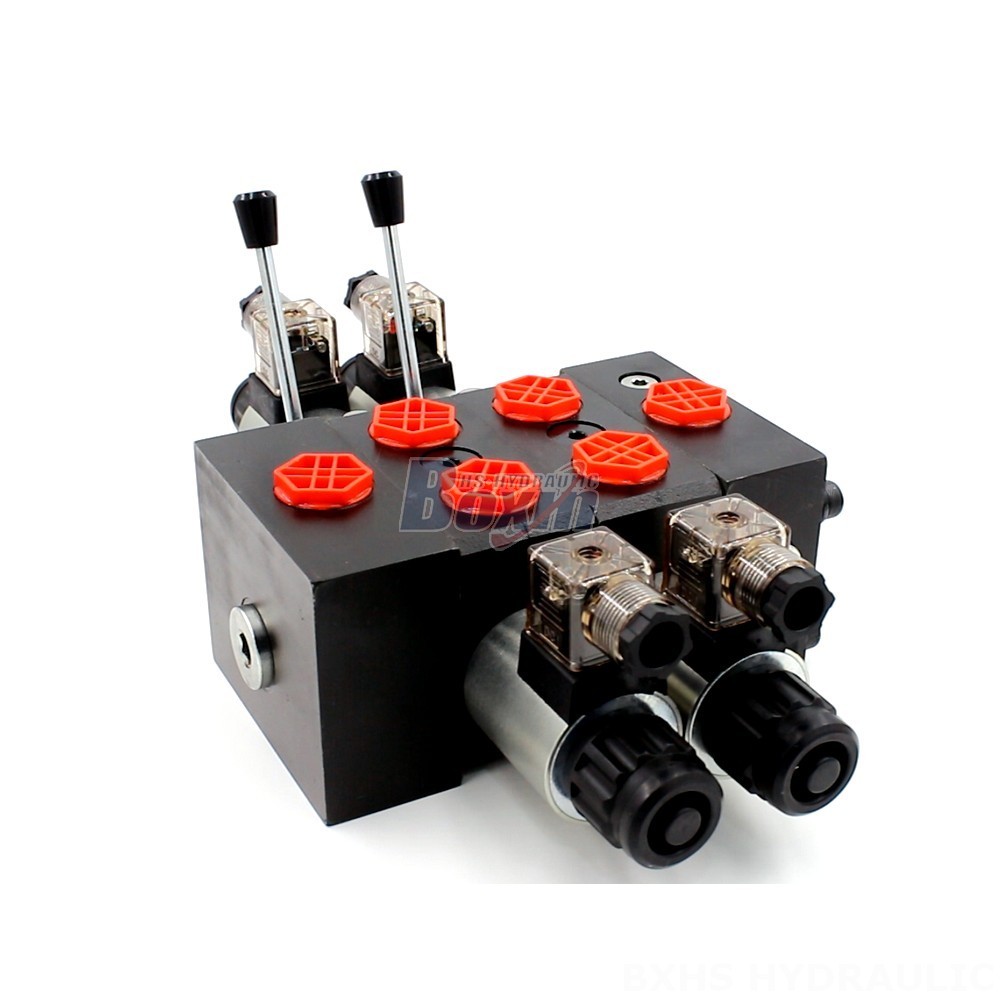

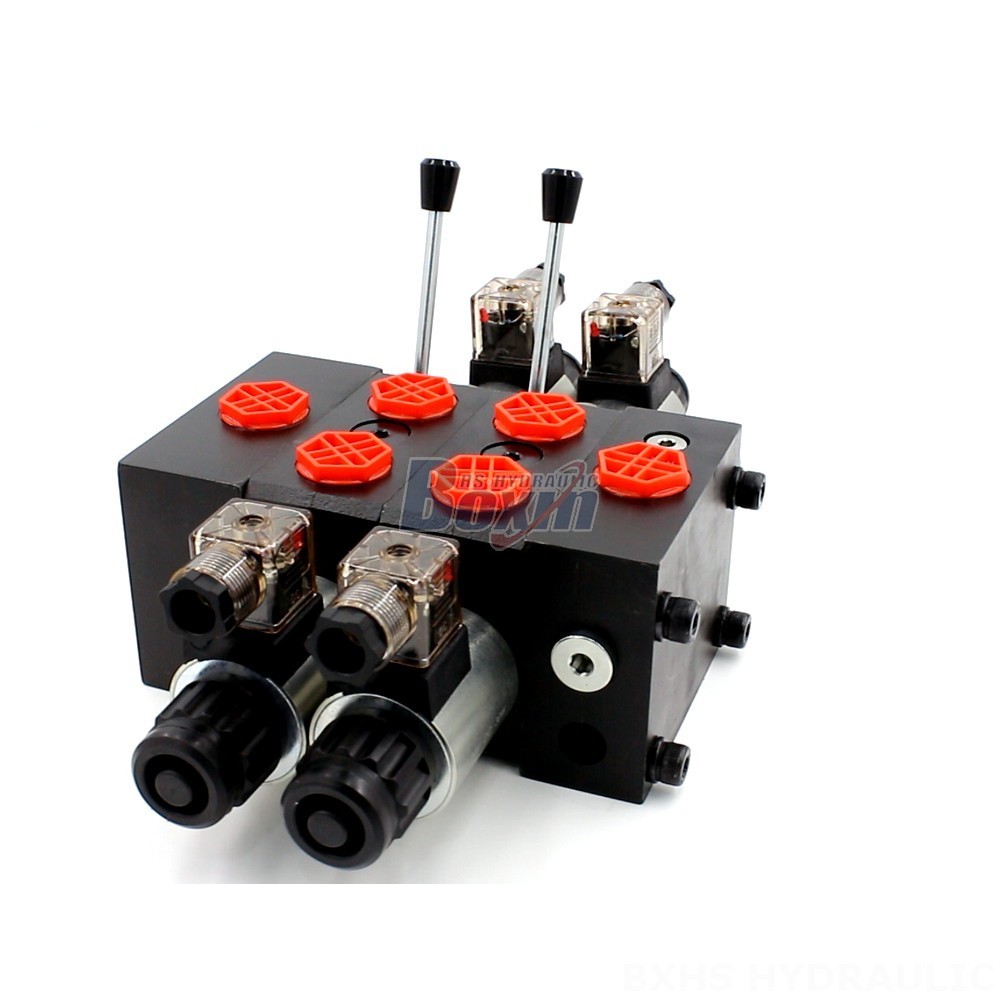

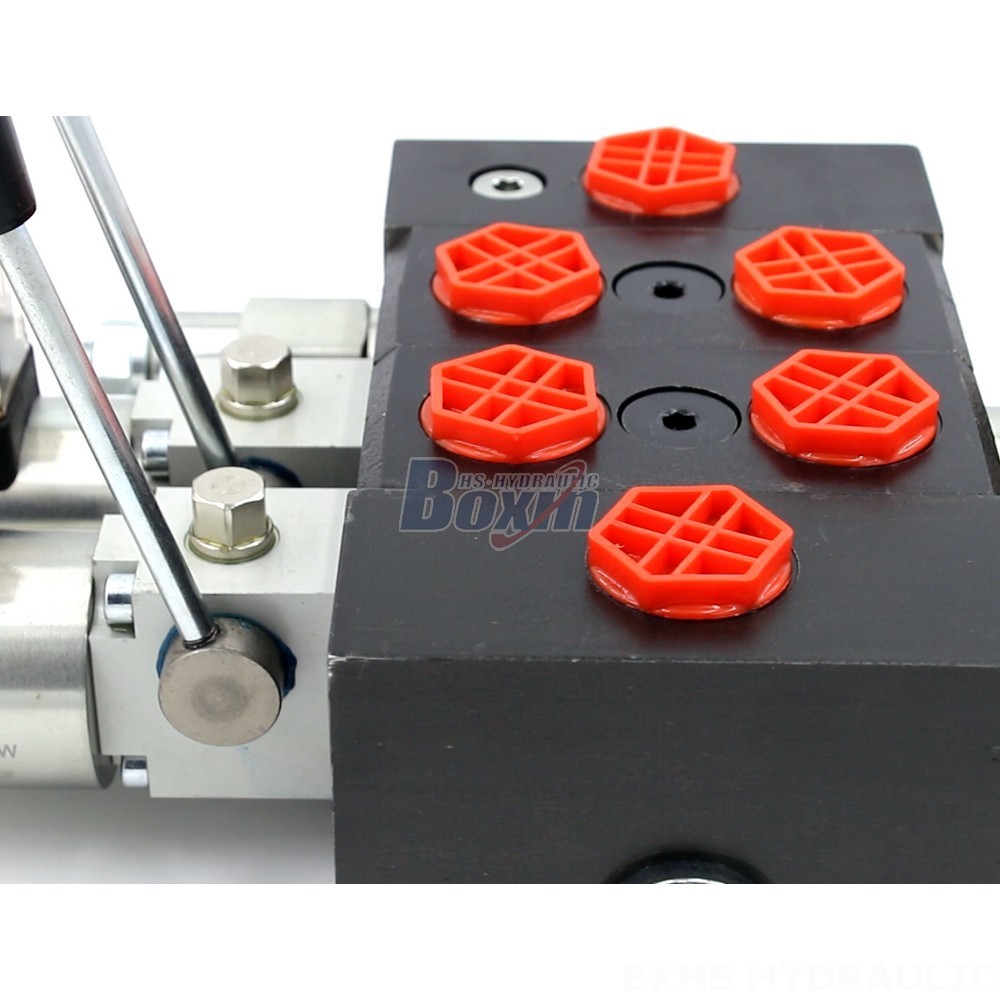

**DCV58 2-Spool Directional Control Valve**
**Control Method:** Solenoid
**Section:** 2 Section
**Structure Type:** Sectional valve
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** DCV58 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,WHEEL LOADER,BACKHOE LOADER
The DCV58 2-Spool Directional Control Valve is a versatile and robust hydraulic component ideal for demanding applications. Its sectional design enables easy customization and configuration to meet specific system requirements. With its high flow capacity, pressure rating, and wide operating temperature range, the DCV58 valve ensures reliable and efficient performance in various industrial and mobile hydraulic systems.
