The DCV200 Electro-hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With its compact size and lightweight design, the DCV200 is easy to install and maintain.
| DCV200系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二, 手动和电液控制, 电动马达 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 200 L/min (52 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口, G1接口, M33×2.0螺纹, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹 |
| 出油口 | G1接口, M33×2.0螺纹, SAE 16接头, 1 NPT螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M33×2.0螺纹, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹 |

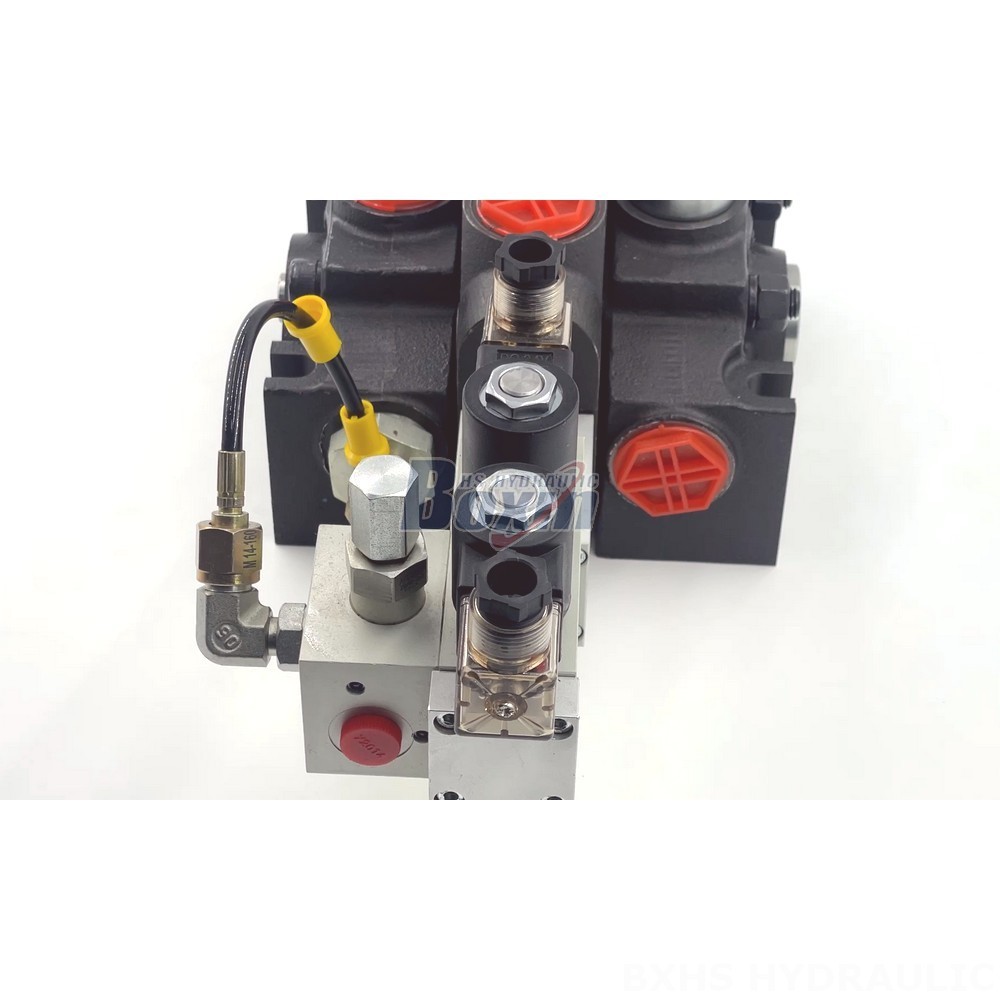

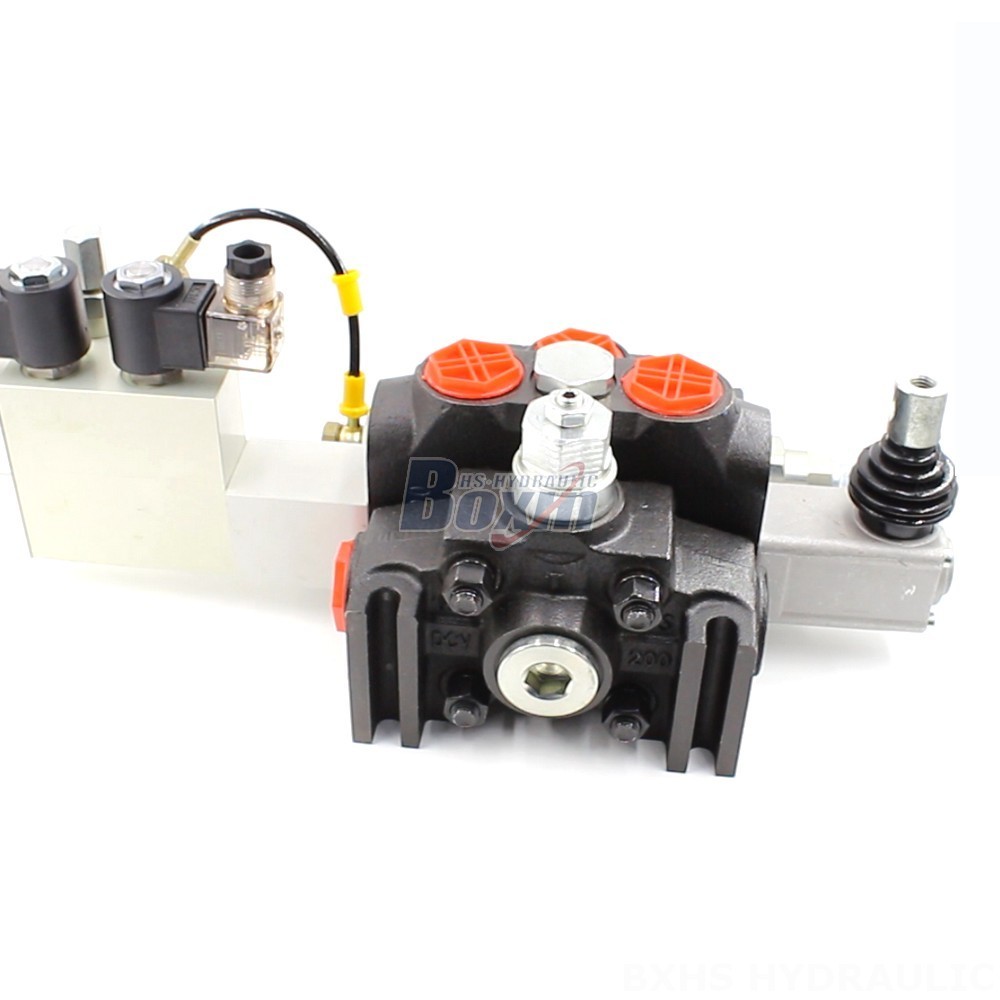

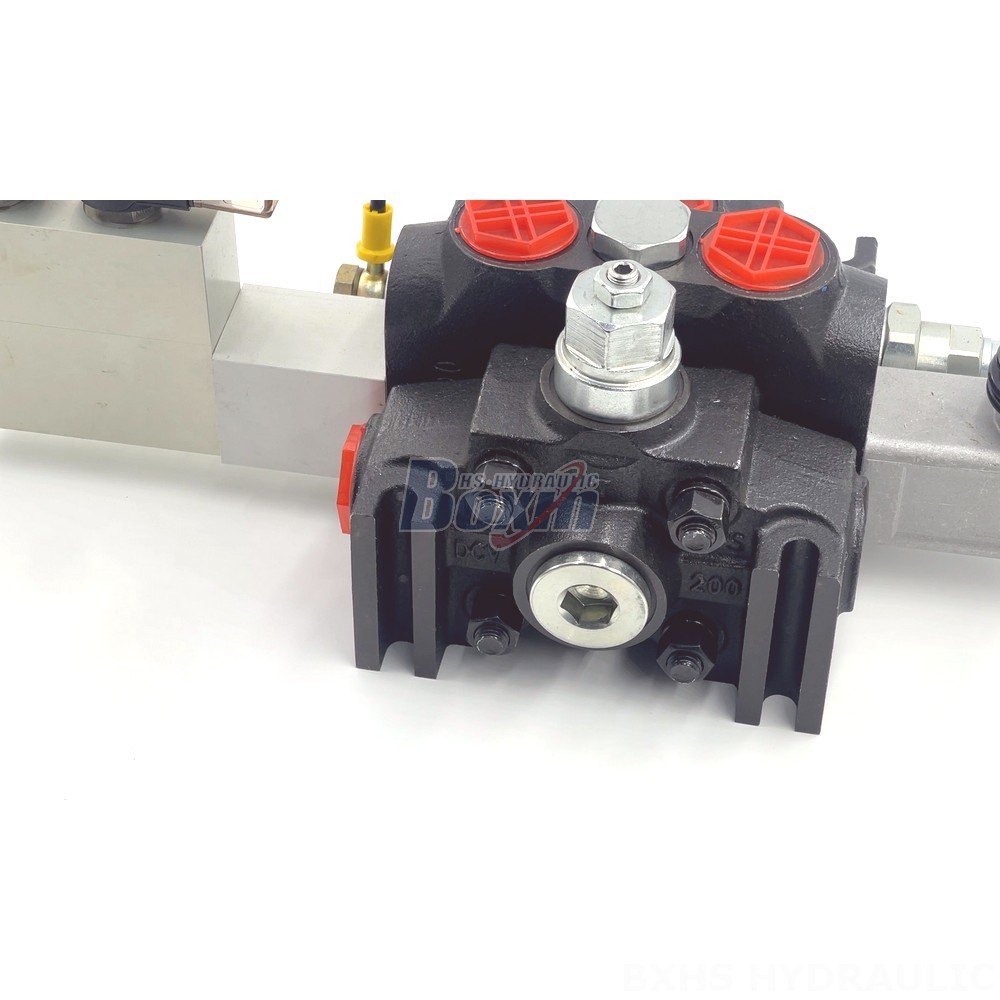

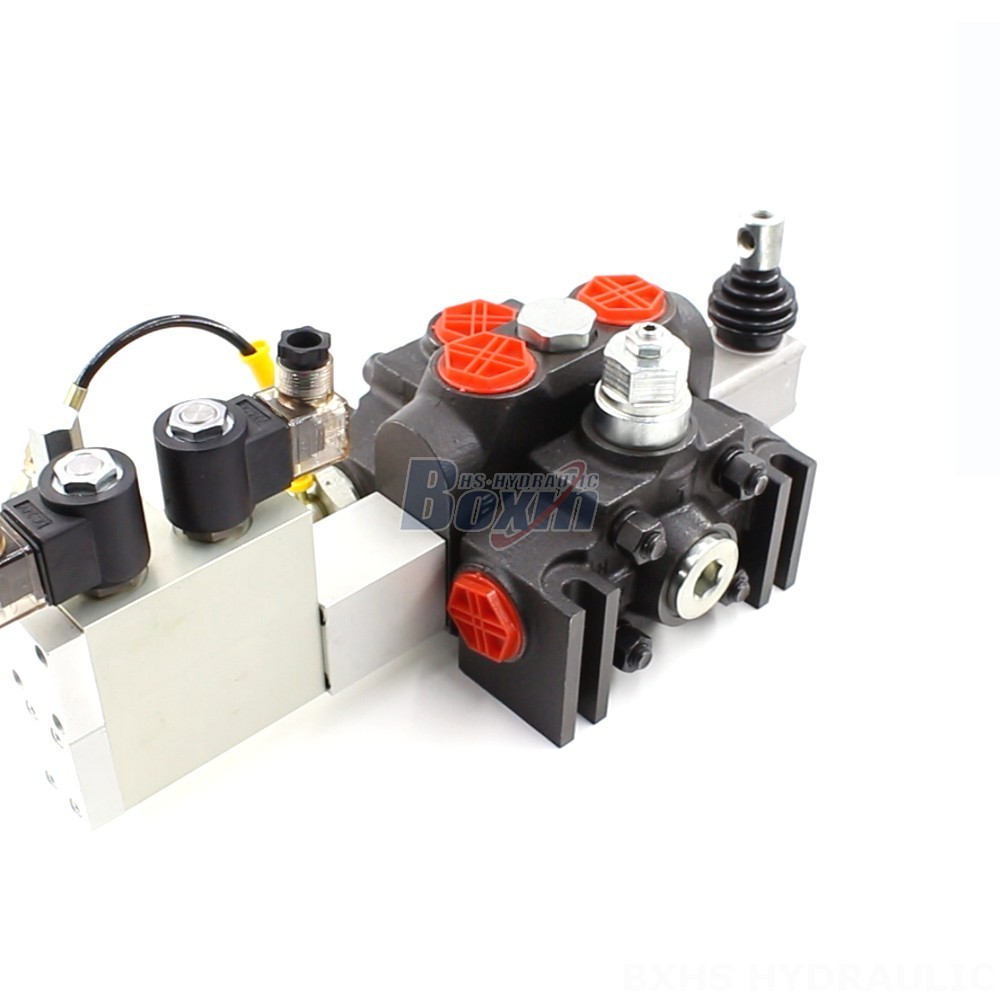

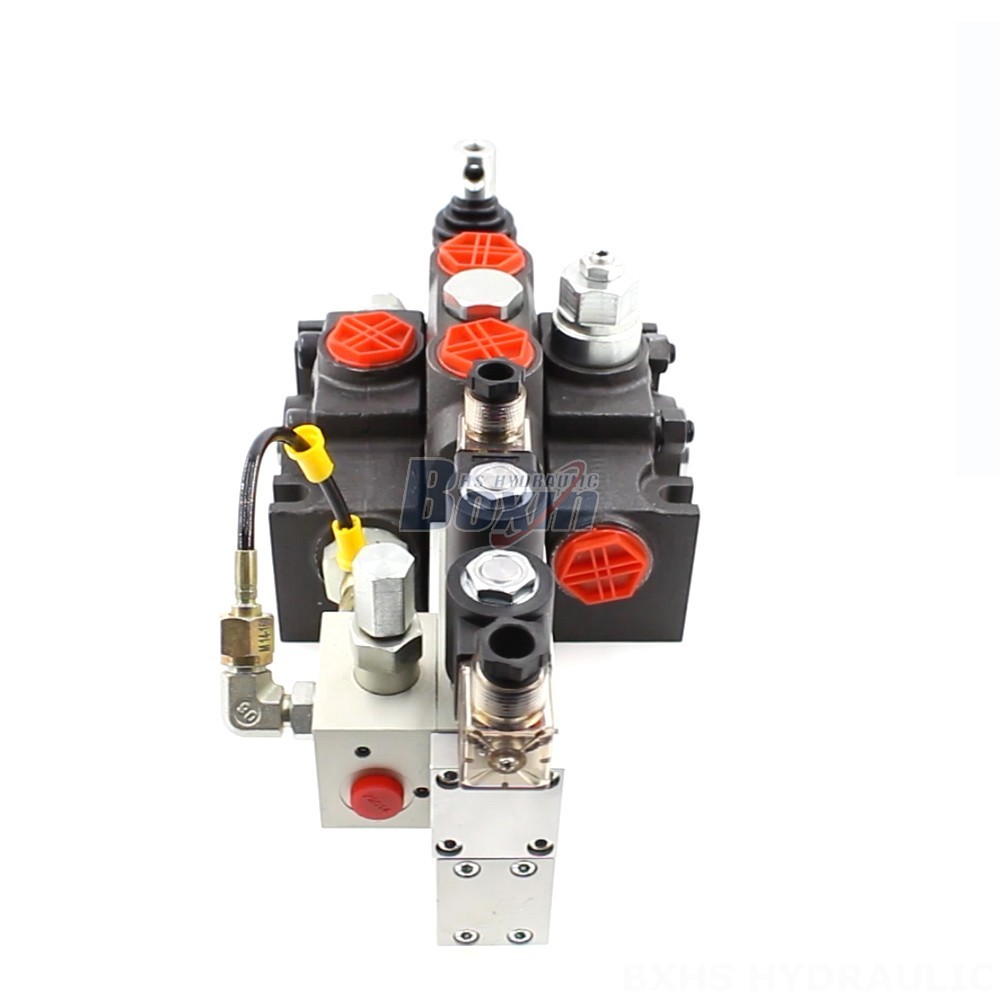

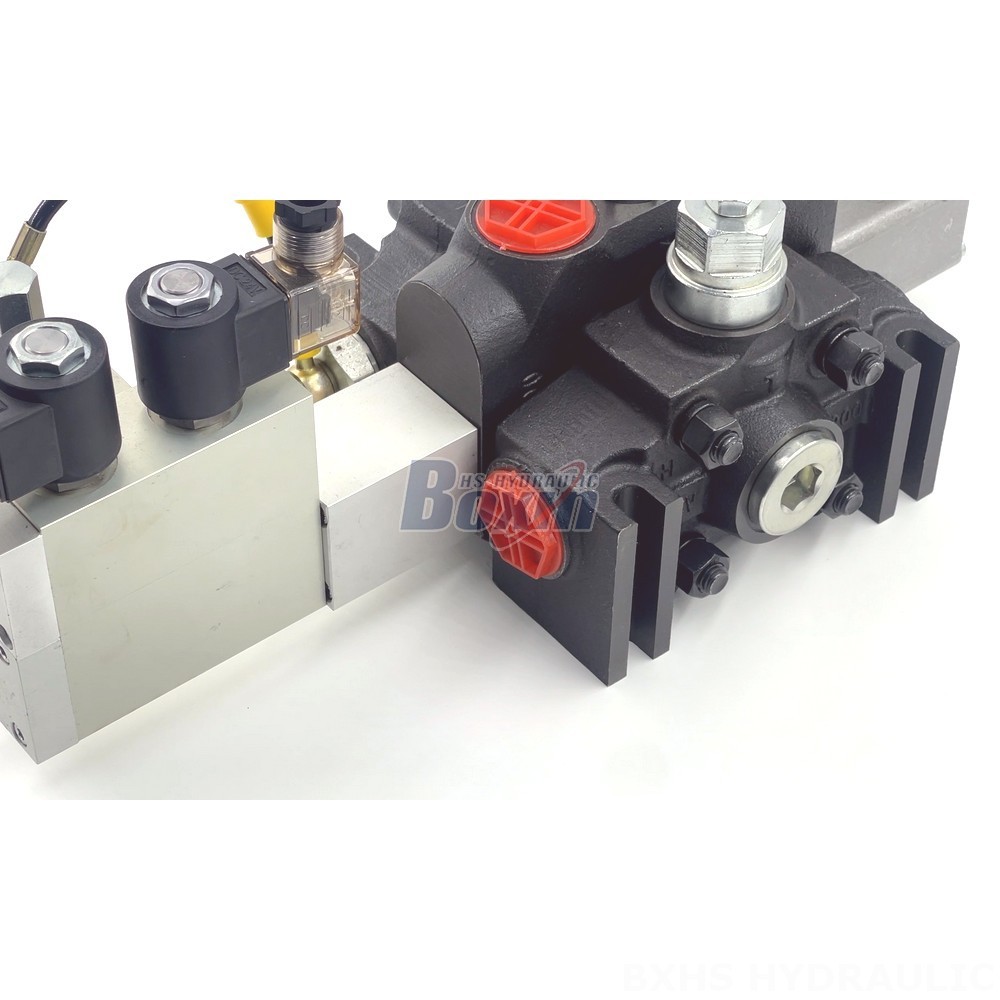

**DCV200 Electro-hydraulic Directional Control Valve**
The DCV200 Electro-hydraulic Directional Control Valve is a 1 section valve with a maximum pressure of 350 bar (5100 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It has an ambient temperature range of -40°C to +80°C (-40°F to +176°F) and is available with 1 spool. The DCV200 is designed for use in a wide range of applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
The DCV200 is also available in a variety of configurations to meet the specific needs of your application. Please contact us for more information.
