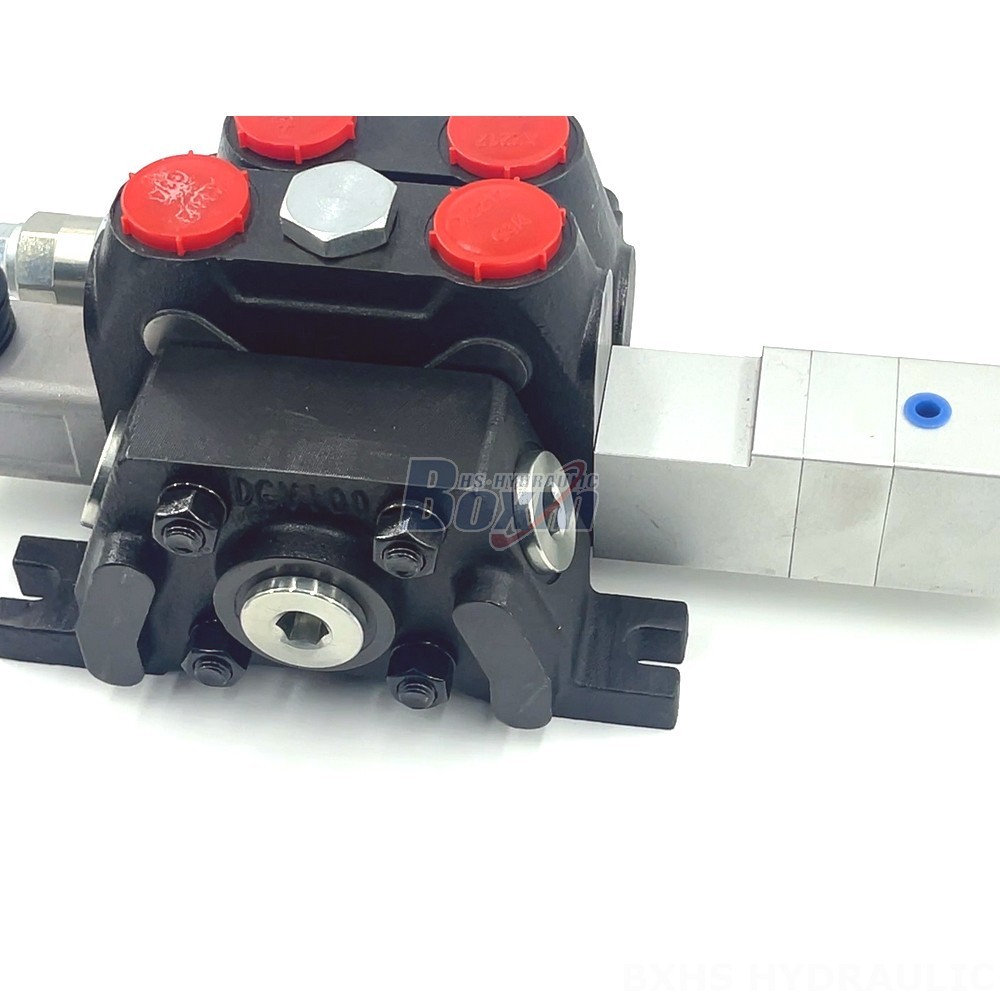

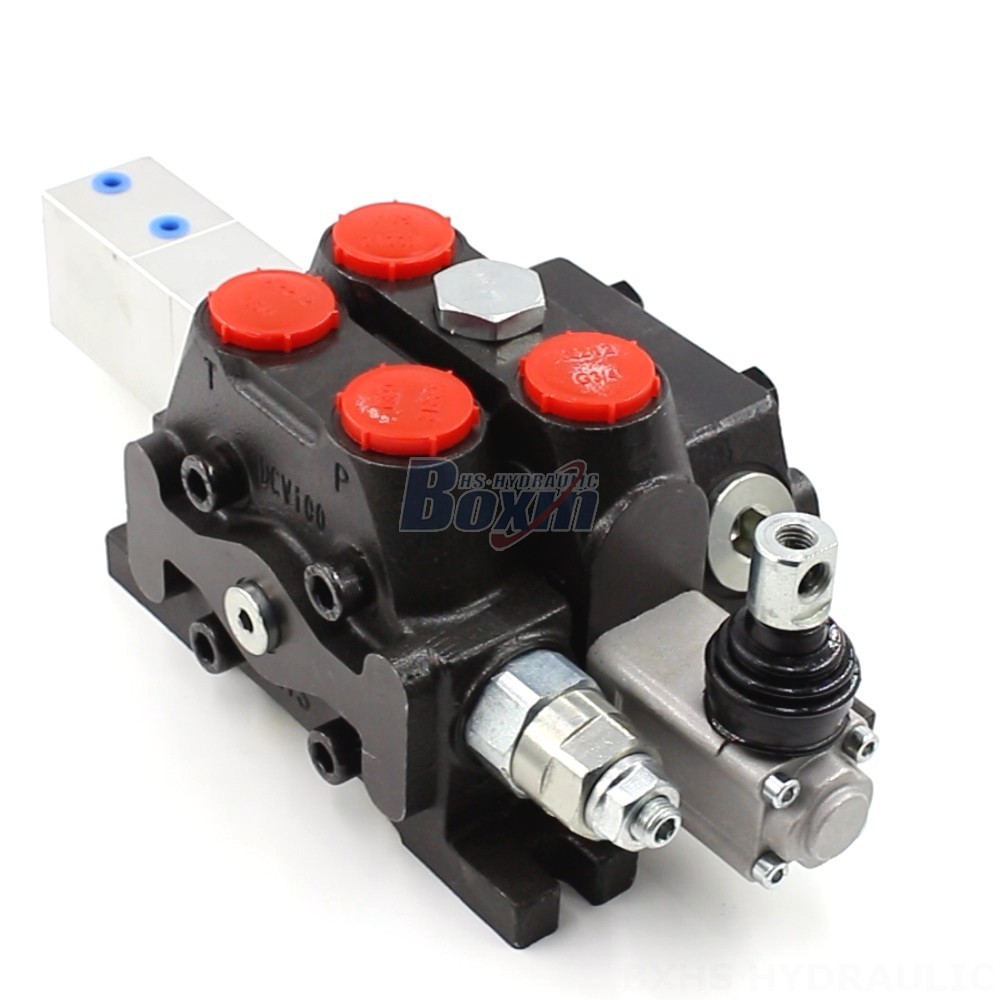

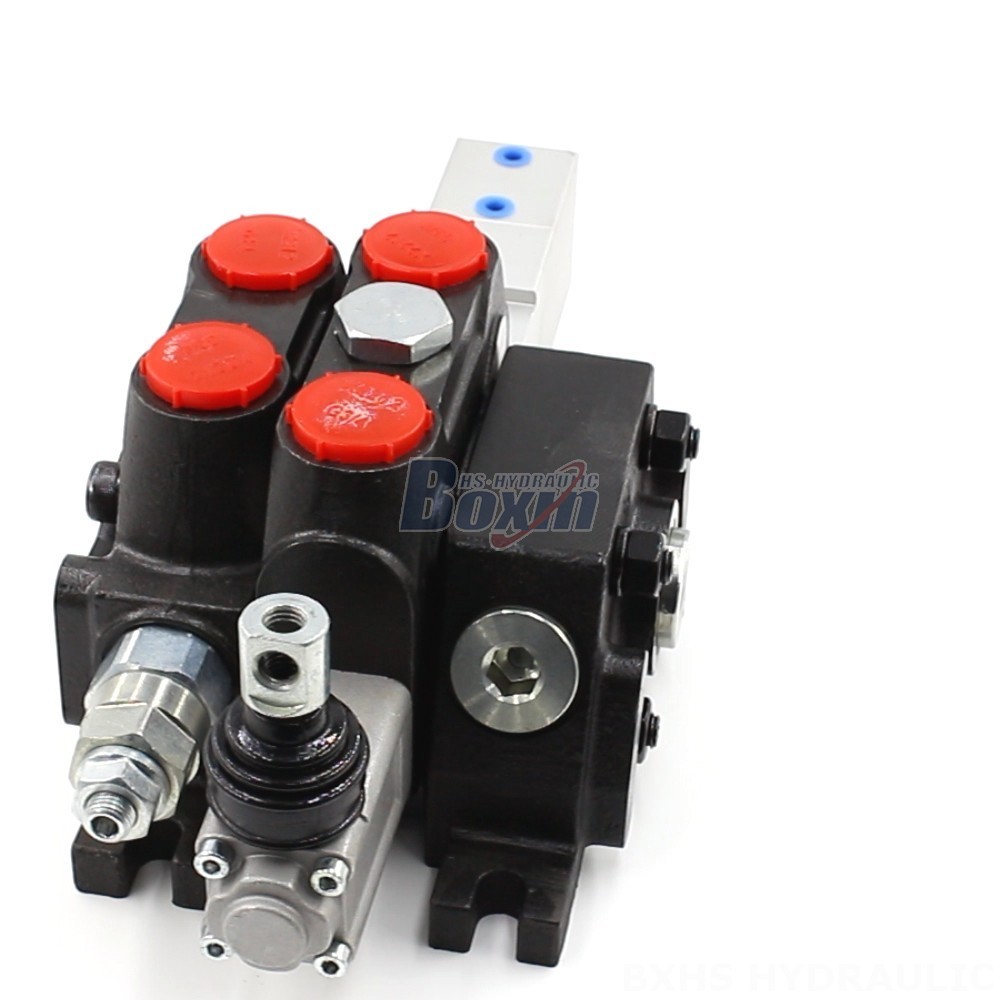

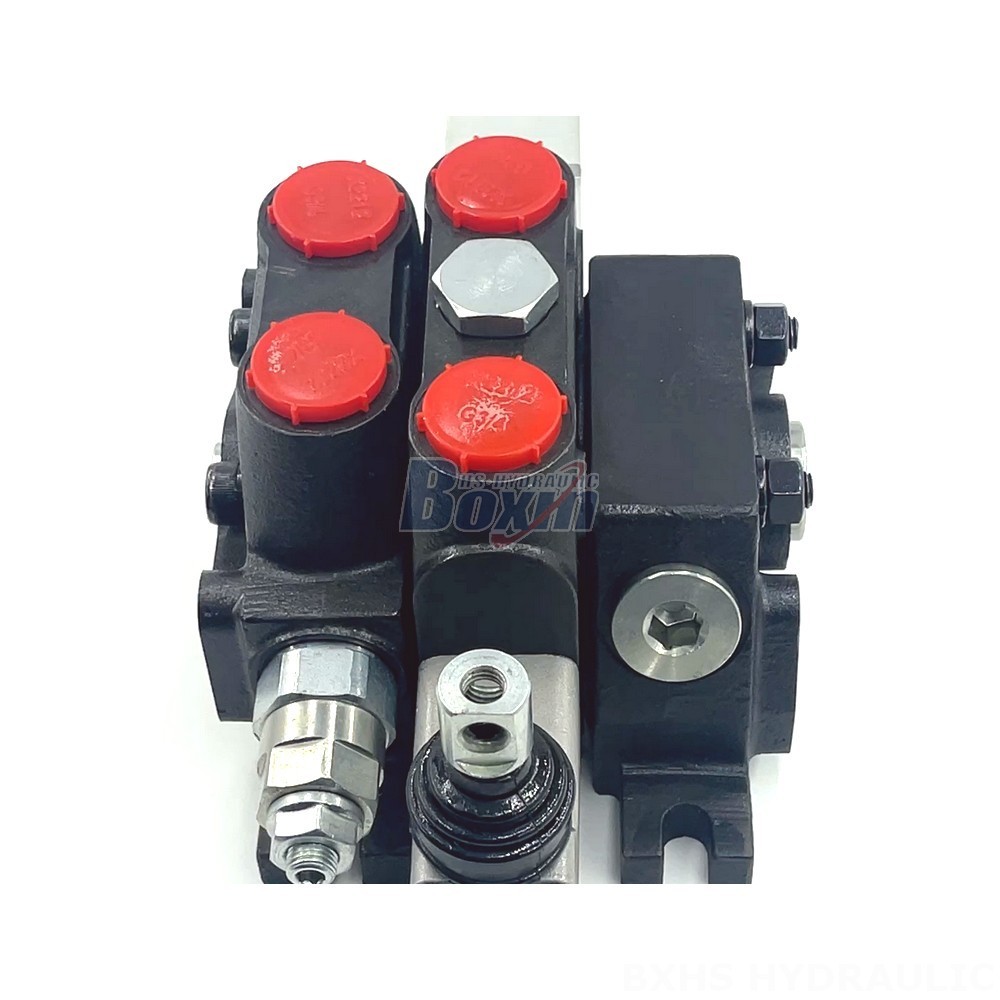

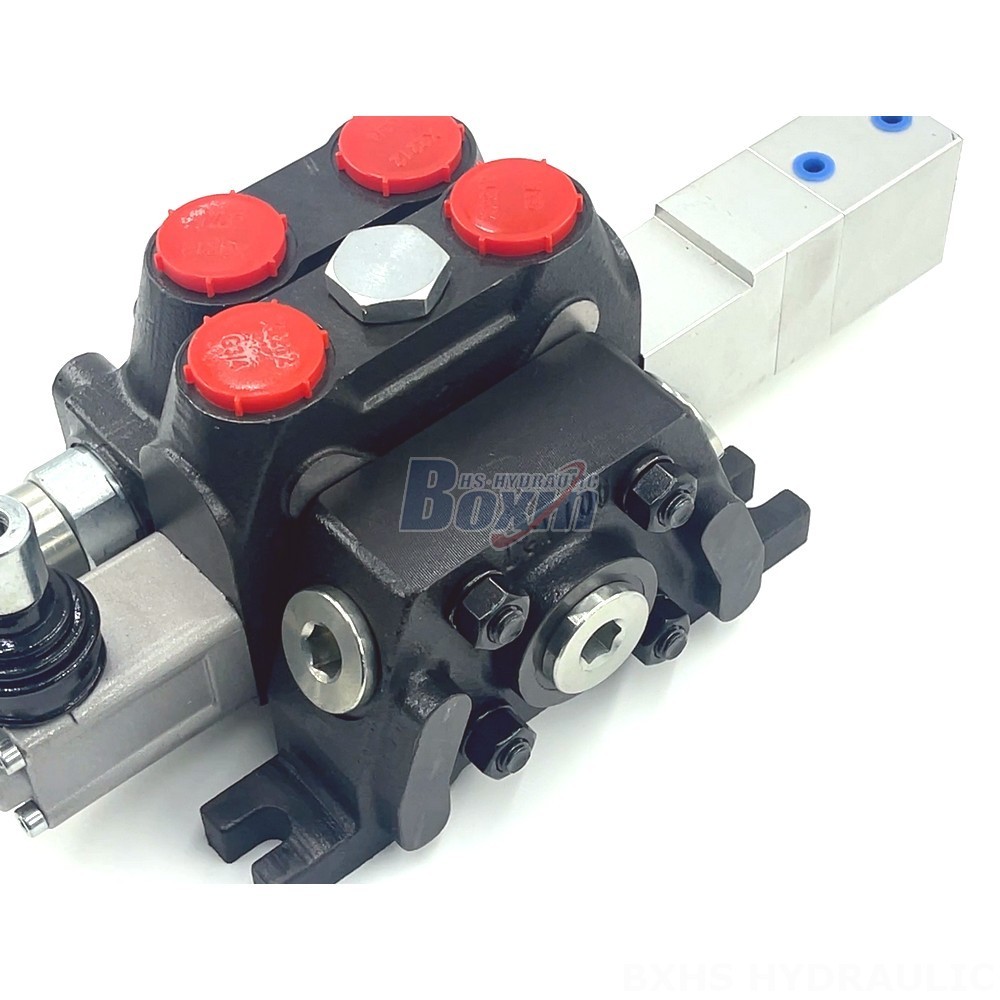

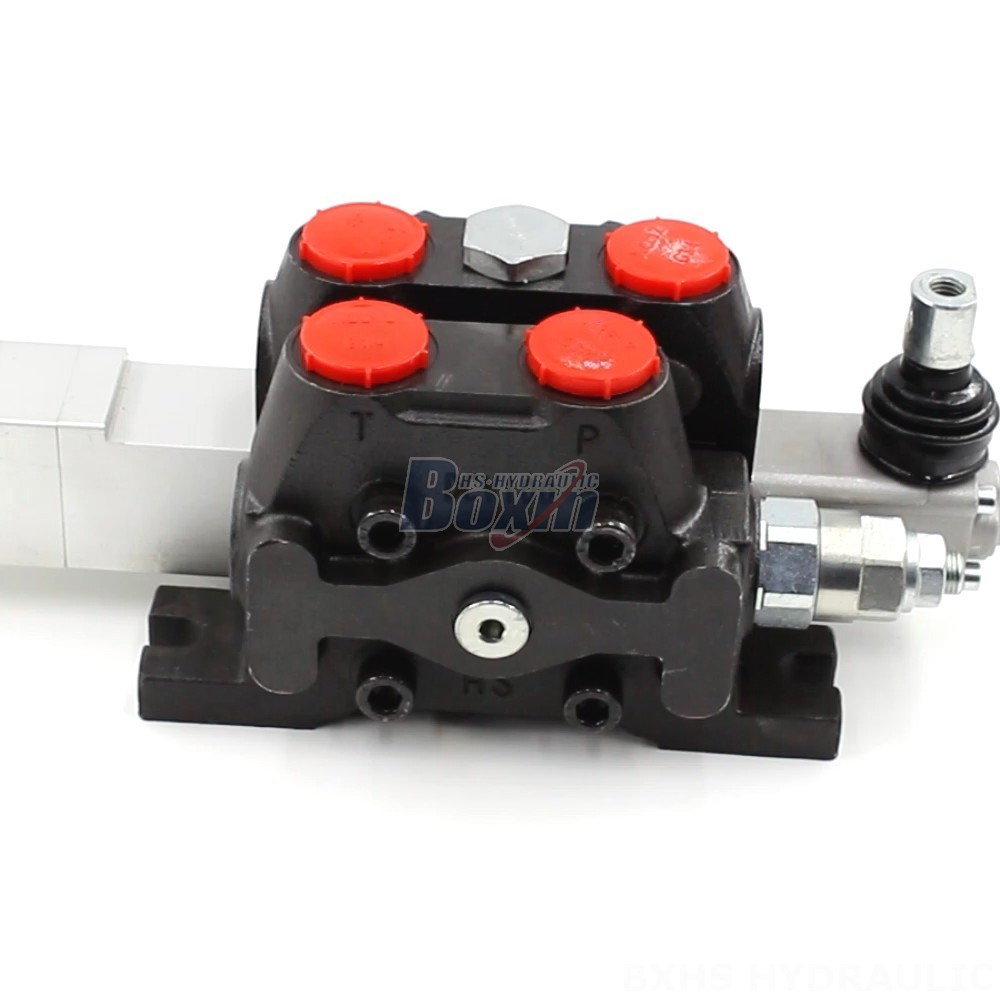

The DCV100 Pneumatic 1 Spool Sectional Directional Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 100 L/min and a maximum pressure of 350 bar, this valve provides reliable and efficient flow control in demanding applications.
| DCV100系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 软轴, 一控二手柄控制, 手控+一控二, 手动和电液控制, 电动马达, 电液比例与电磁控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 100 L/min (26.5 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 3/4 NPT螺纹 |
| 出油口 | G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 3/4 NPT螺纹 |
| 接口尺寸 | G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 3/4 NPT螺纹 |
**Key Features:**
* Pneumatic control method
* 1 spool design
* Sectional valve structure
* Rated flow: 100 L/min (26.5 US gpm)
* Max pressure: 350 bar (5100 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +60°C (-40°F to +140°F)
**Applications:**
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
