液压驱动世界 华盛智造未来
946 次查看了此产品

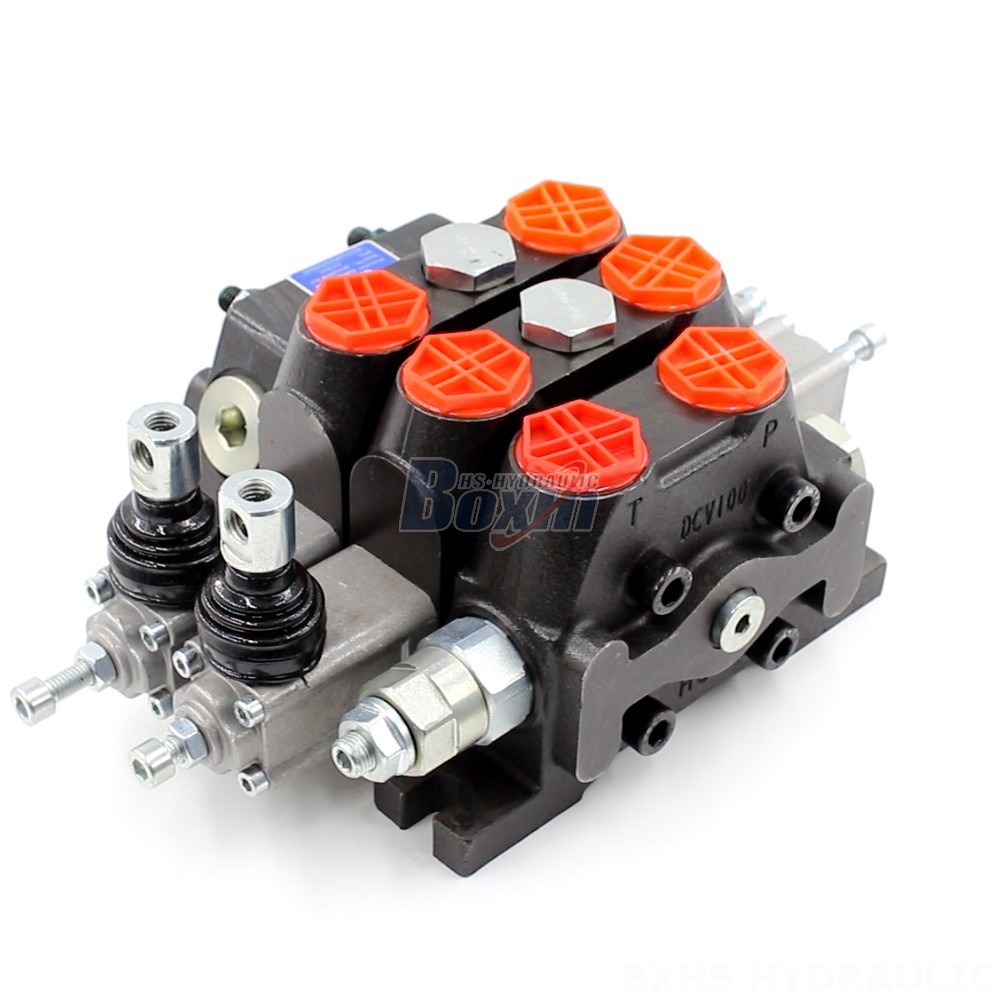

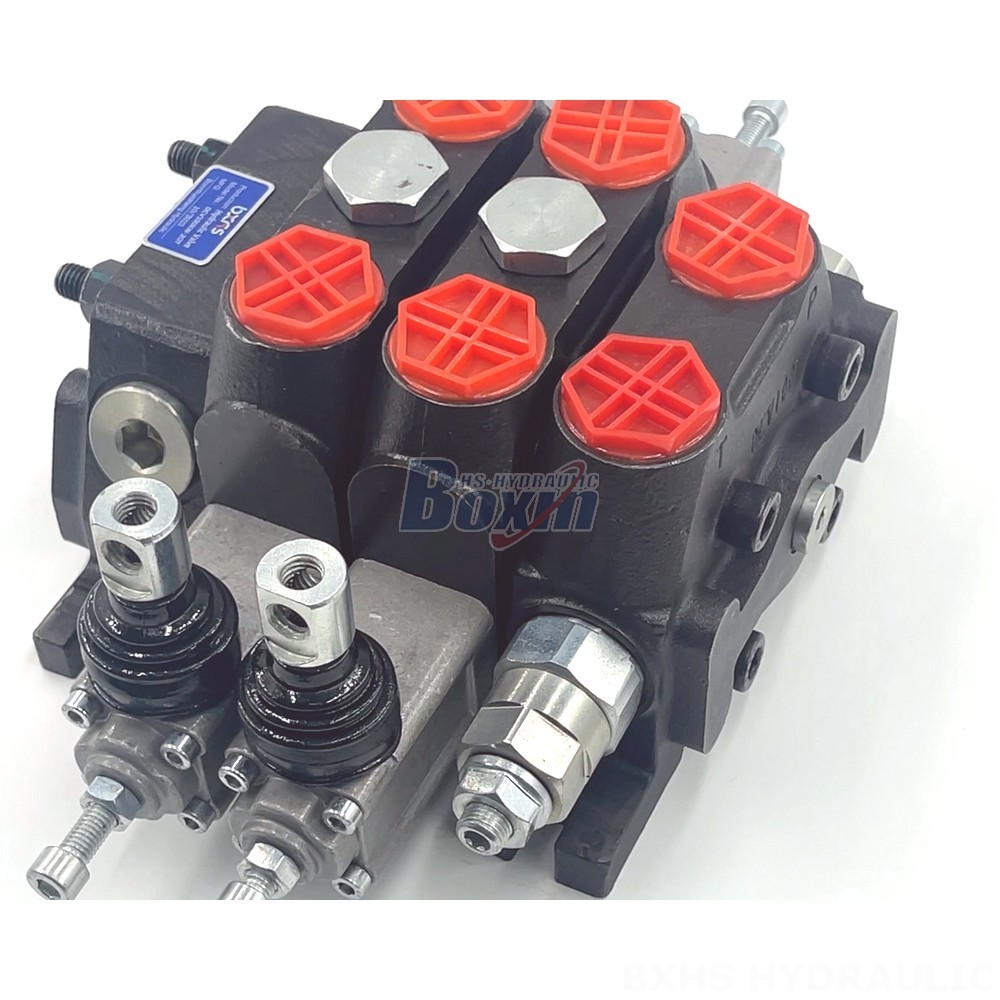

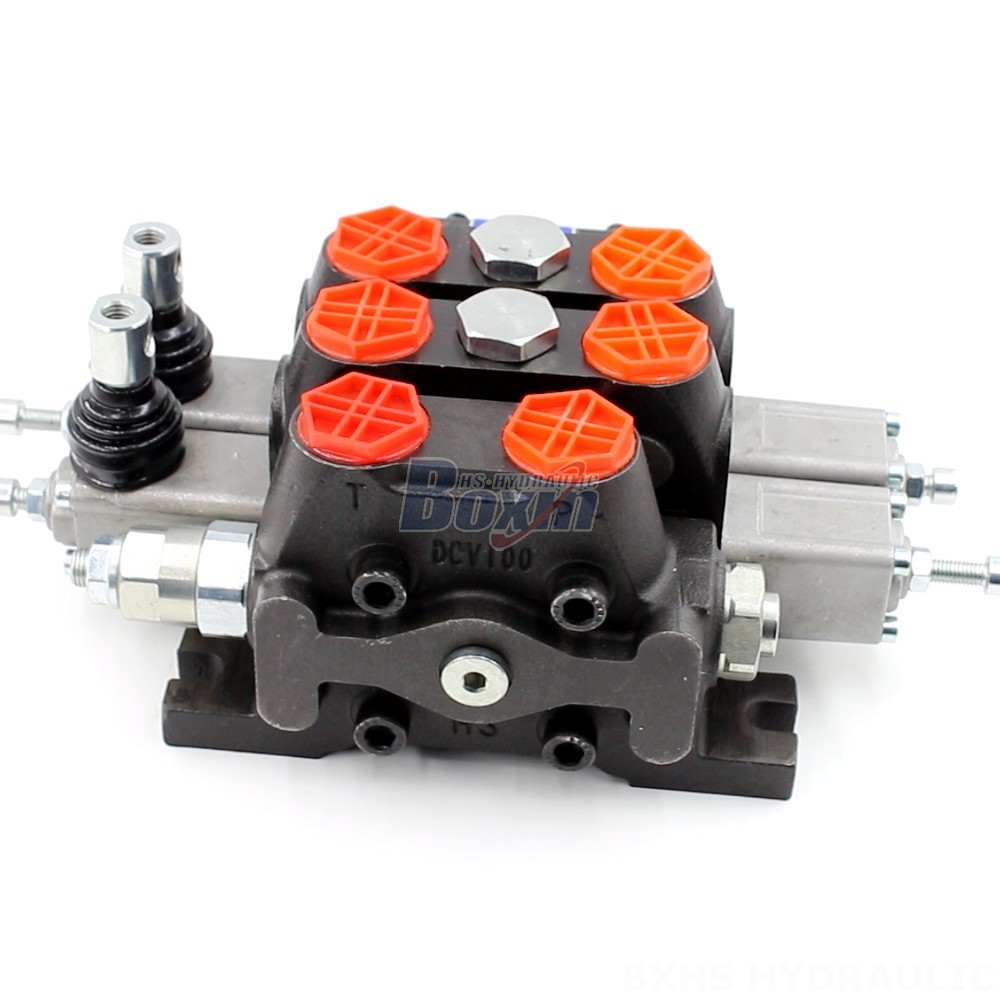

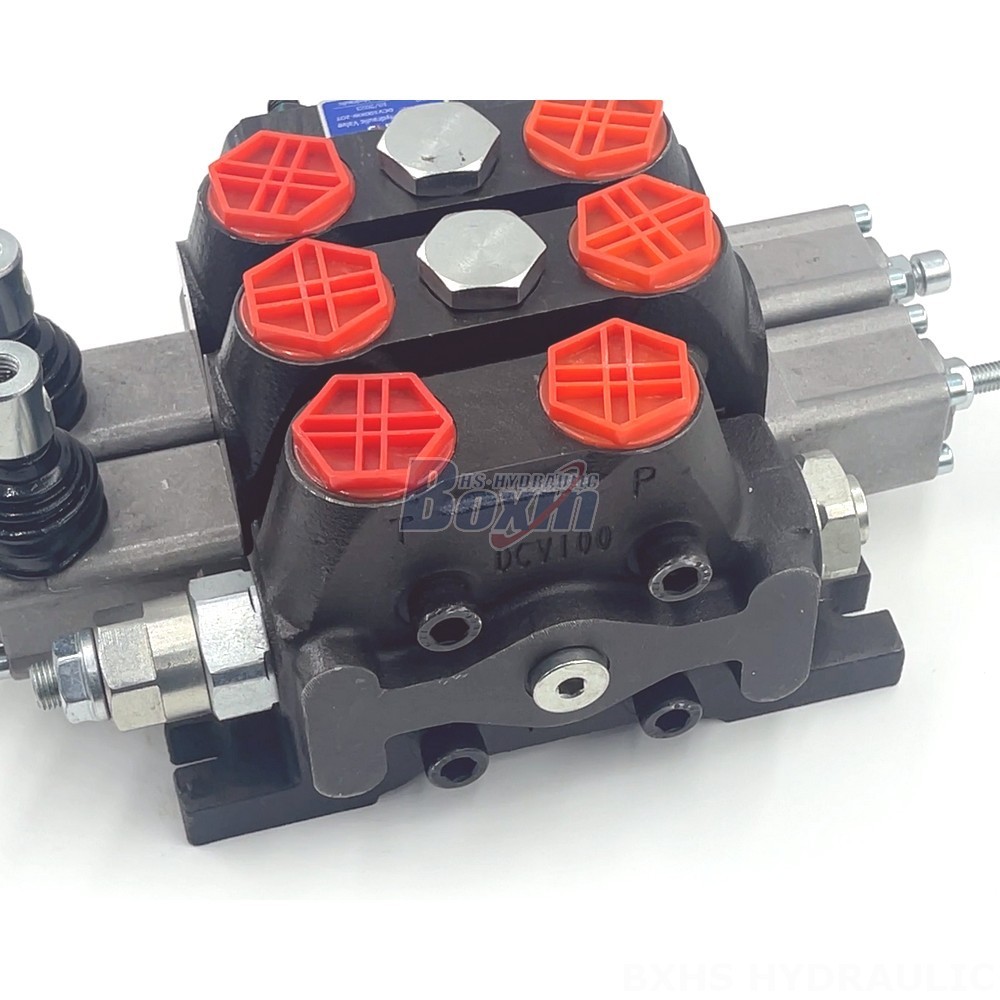

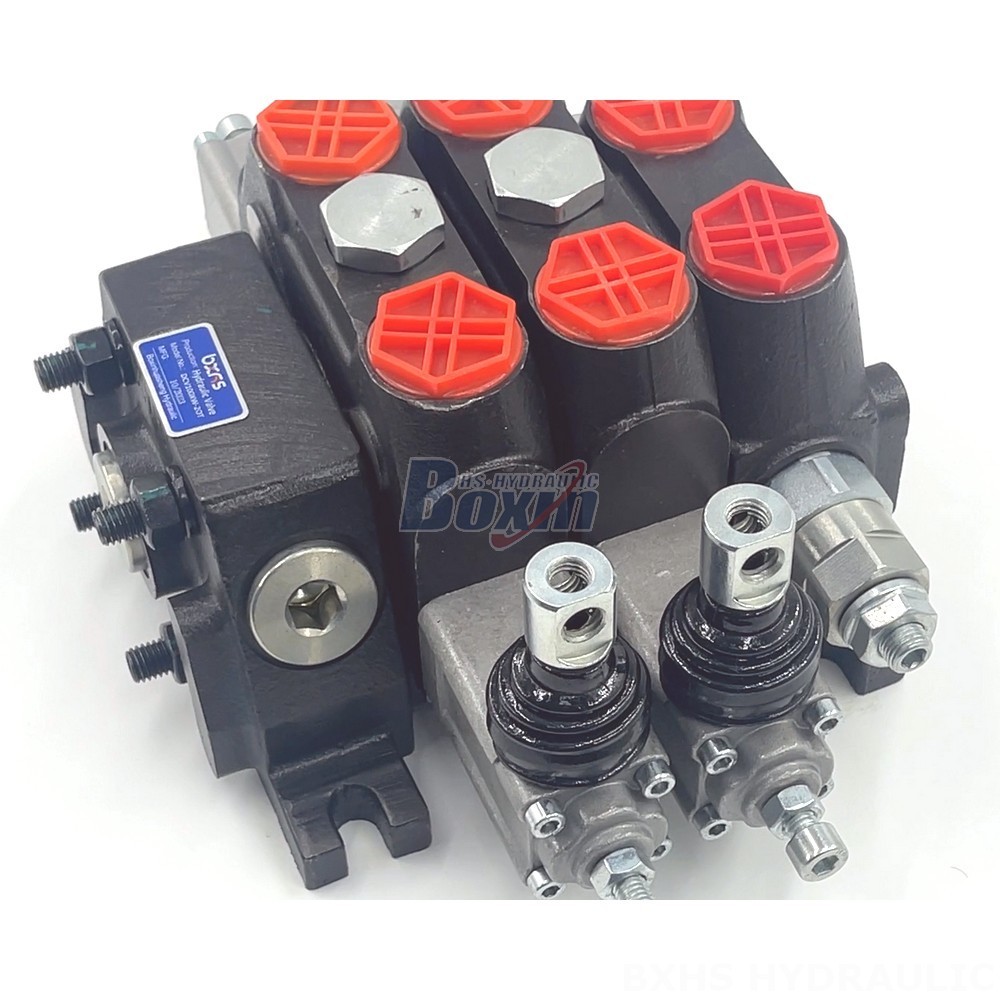

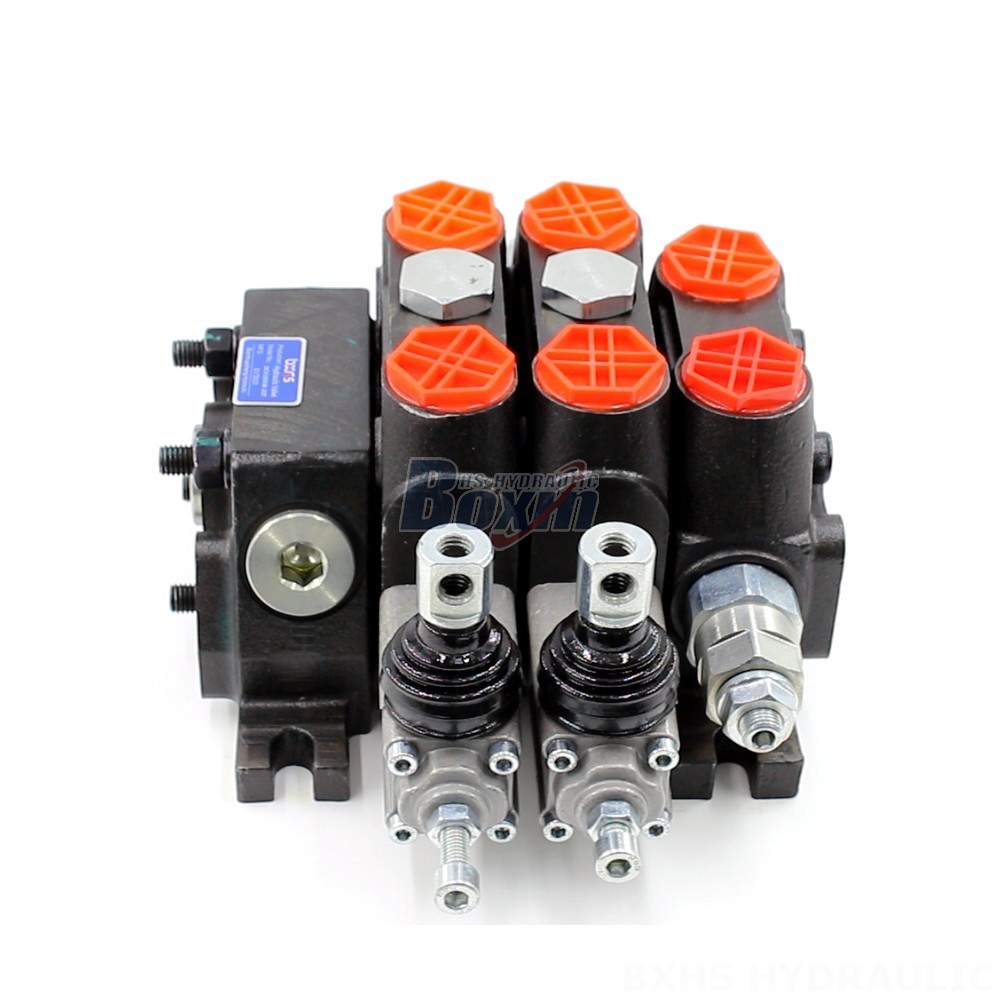

The DCV100 series 2 Spool Hydraulic Valve is a high-quality, reliable, and high-performance directional control valve designed for a variety of applications including material handling, construction, and agriculture. With a rated flow of 100 L/min and a maximum pressure of 350 bar, this valve is suitable for demanding applications in industrial vehicles.
| DCV100系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 软轴, 一控二手柄控制, 手控+一控二, 手动和电液控制, 电动马达, 电液比例与电磁控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 100 L/min (26.5 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 3/4 NPT螺纹 |
| 出油口 | G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 3/4 NPT螺纹 |
| 接口尺寸 | G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 3/4 NPT螺纹 |
This 2 Spool Hydraulic Valve with Detent (DCV100) is a manual, sectional valve featuring a robust design for reliable performance. It is ideal for controlling hydraulic systems in various applications including material handling, construction, and agriculture. Key features include:
* **Rated Flow:** 100 L/min (26.5 US gpm)
* **Max Pressure:** 350 bar (5100 psi)
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
* **Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
* **2 Spool Design:** Offers precise control for multiple hydraulic functions.
* **Sectional Valve:** Allows for easy maintenance and repair.
* **Detent Function:** Provides secure position holding.
* **Wide Application Area:** Suitable for telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, and motor graders.
The DCV100 series hydraulic valve is designed for reliability and durability, making it a reliable choice for demanding applications.
