控制方式:手控+一控二

路数:3 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列单块式方向阀

Packagingsize:24*21*13

Grossweight:7.00 kg

库存: 有货

描述

Directional Control Valve Schematic Customized Hydraulic Systems: Let Us Engineer Your Solution

Directional Control Valve Schematic Customized Hydraulic Systems: Let Us Engineer Your Solution drawing image

Our P40 Series directional control valve is a robust, high-performance solution for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This monoblock valve offers reliable control with customizable configurations to meet your specific needs.

P40系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +80°C (-40°F to +176°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	40 L/min (10.5 US gpm)
最大压力	250 bar (3600 psi)
进油口	G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口	G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸	G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

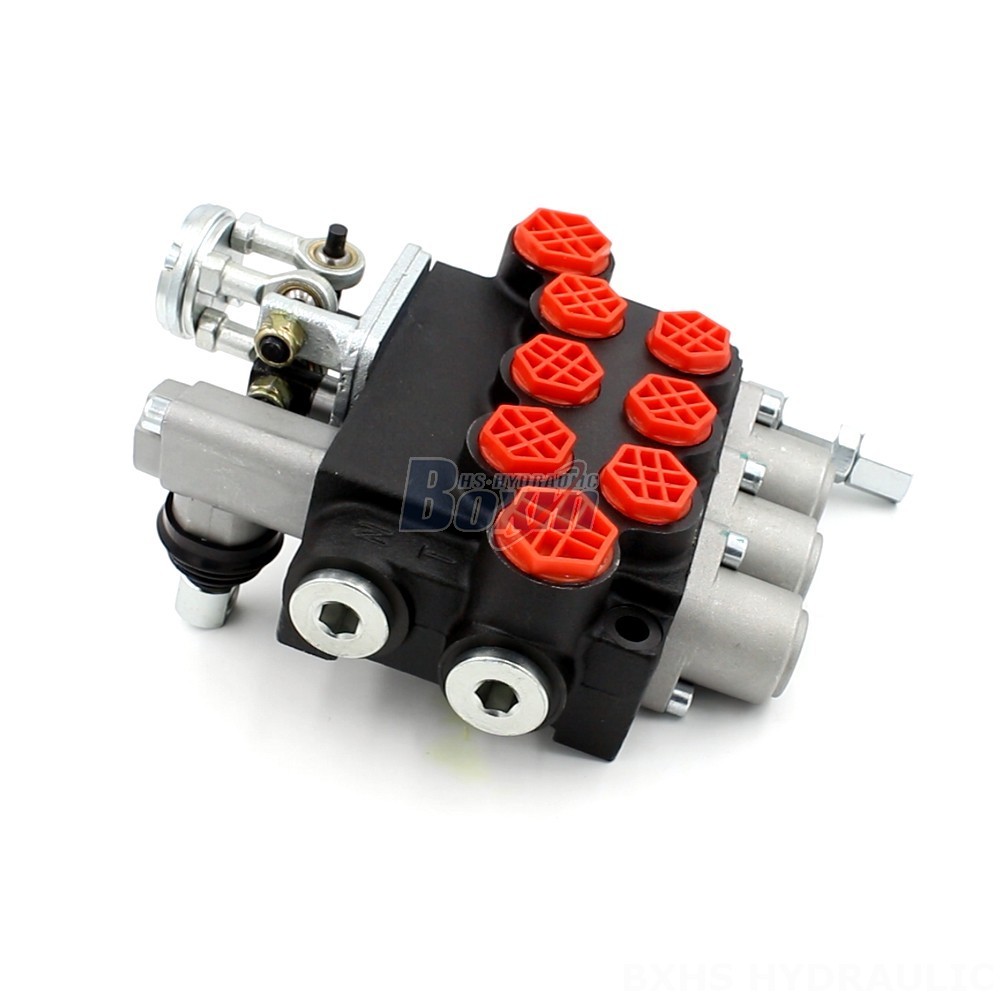

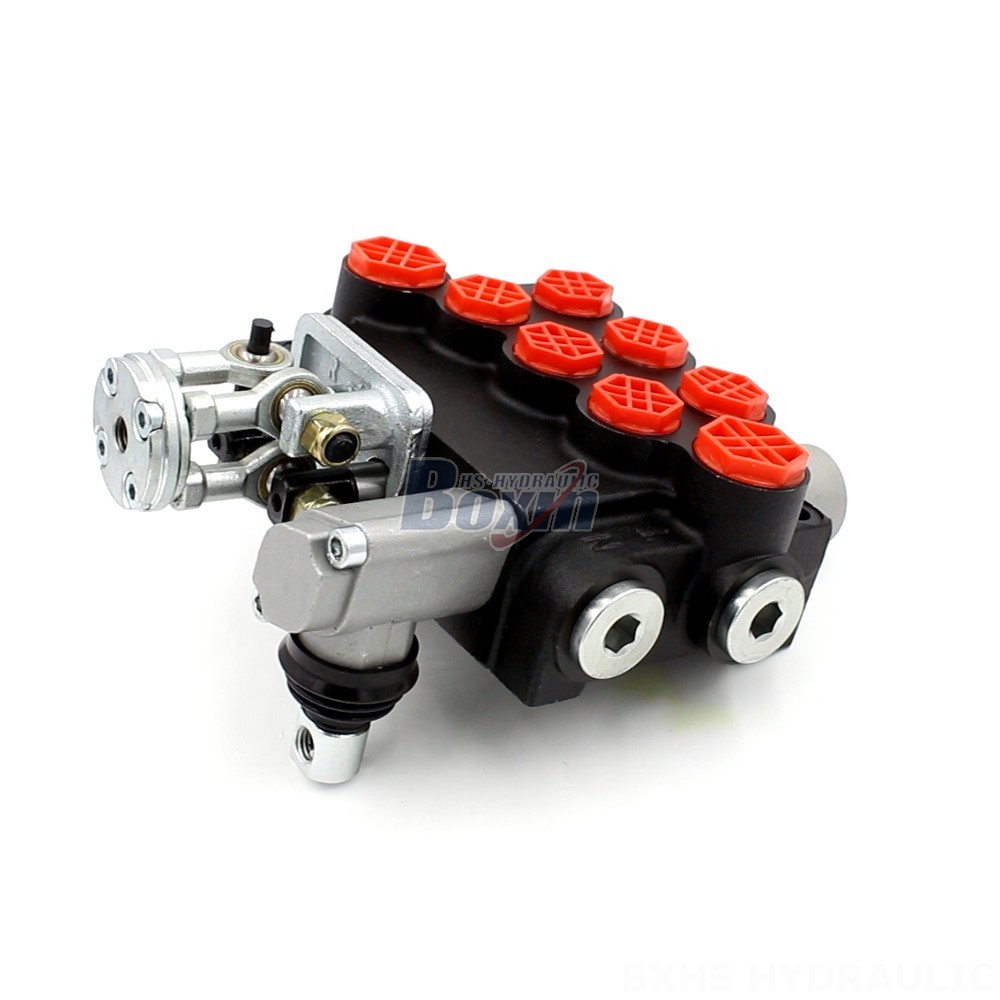

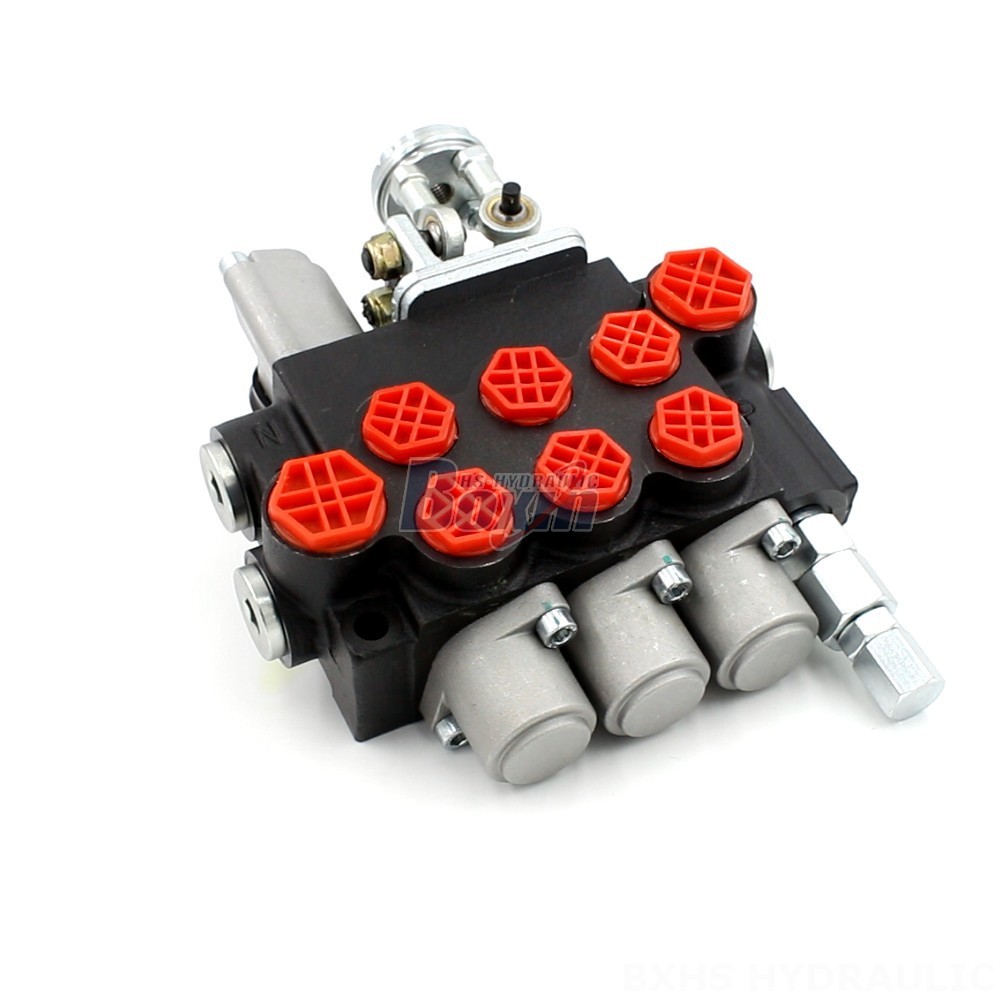

This 3-section, 3-spool directional control valve features a manual or joystick control method, a rated flow of 40 L/min, and a maximum pressure of 250 bar. Designed for demanding environments, it operates within a viscosity range of 15-75 mm²/s and an ambient temperature range of -40°C to +80°C. We offer OEM, ODM, and custom design options to meet your specific requirements. Contact us to discuss your project and let us engineer the perfect solution for your hydraulic system.
