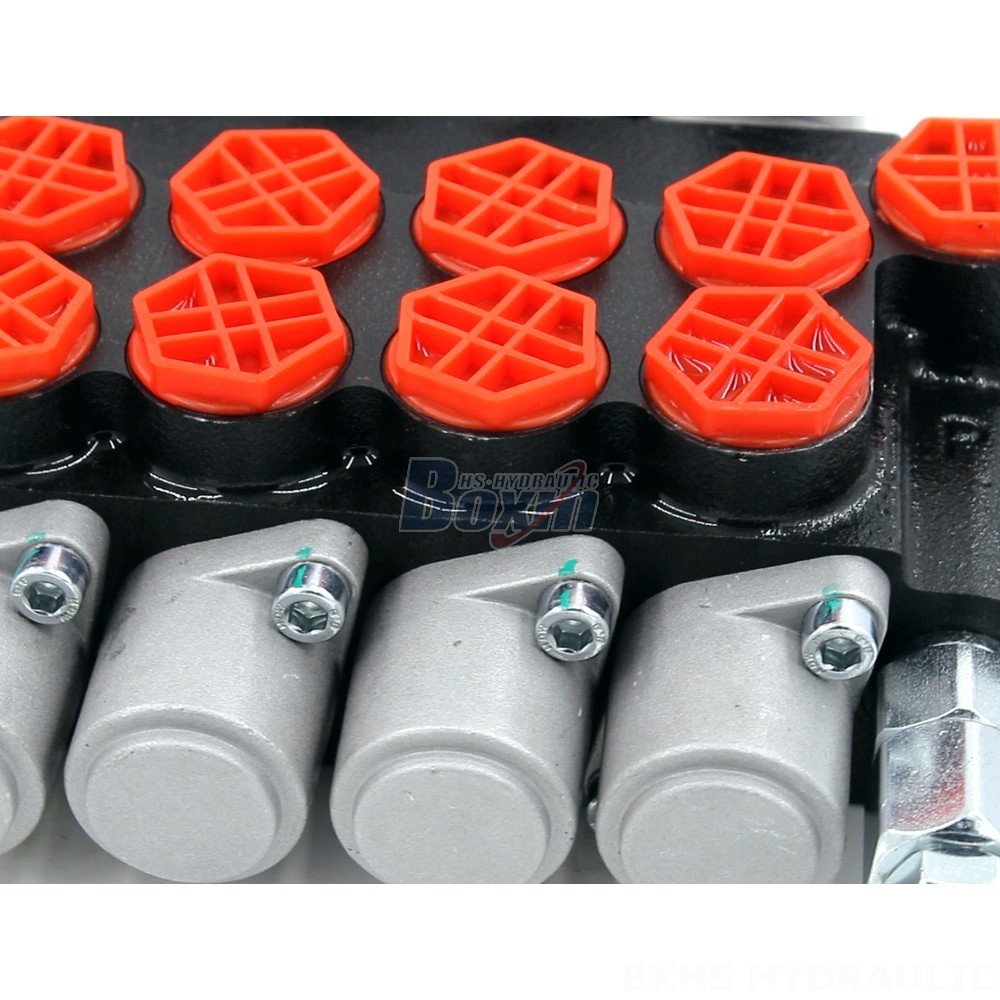

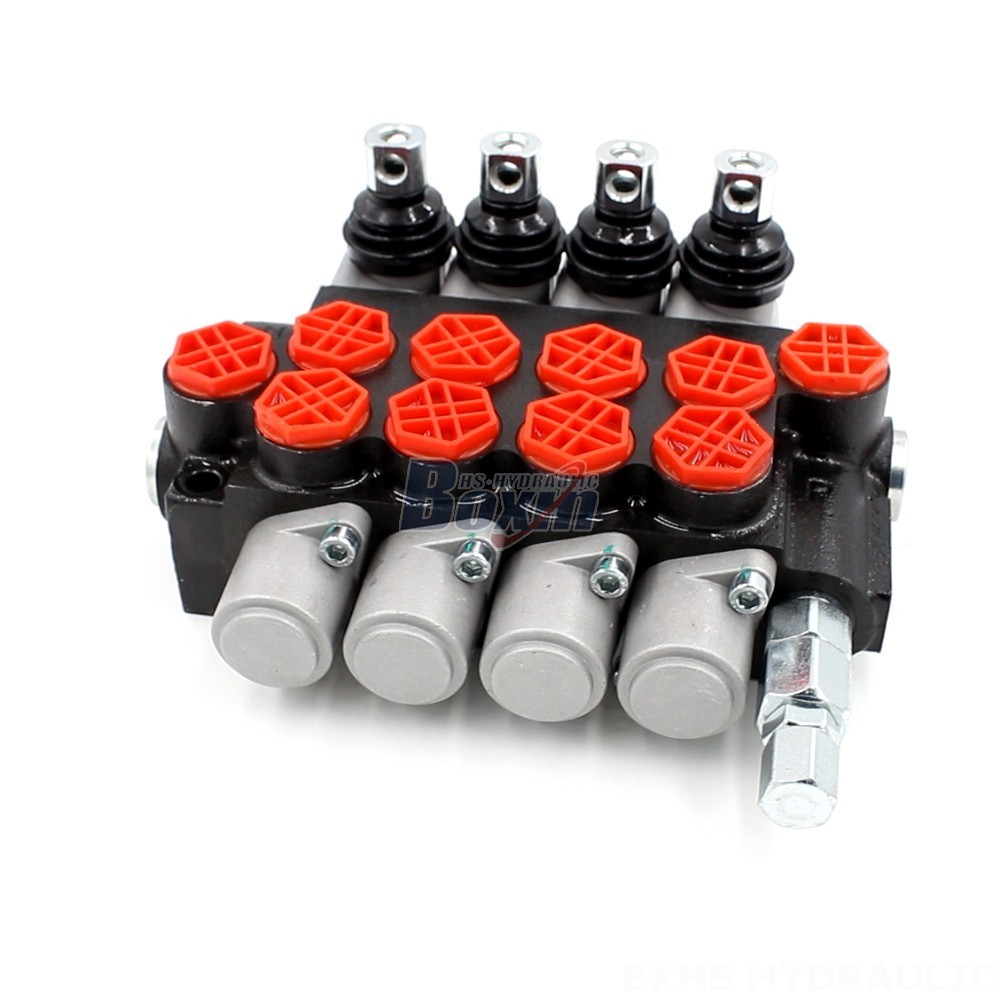

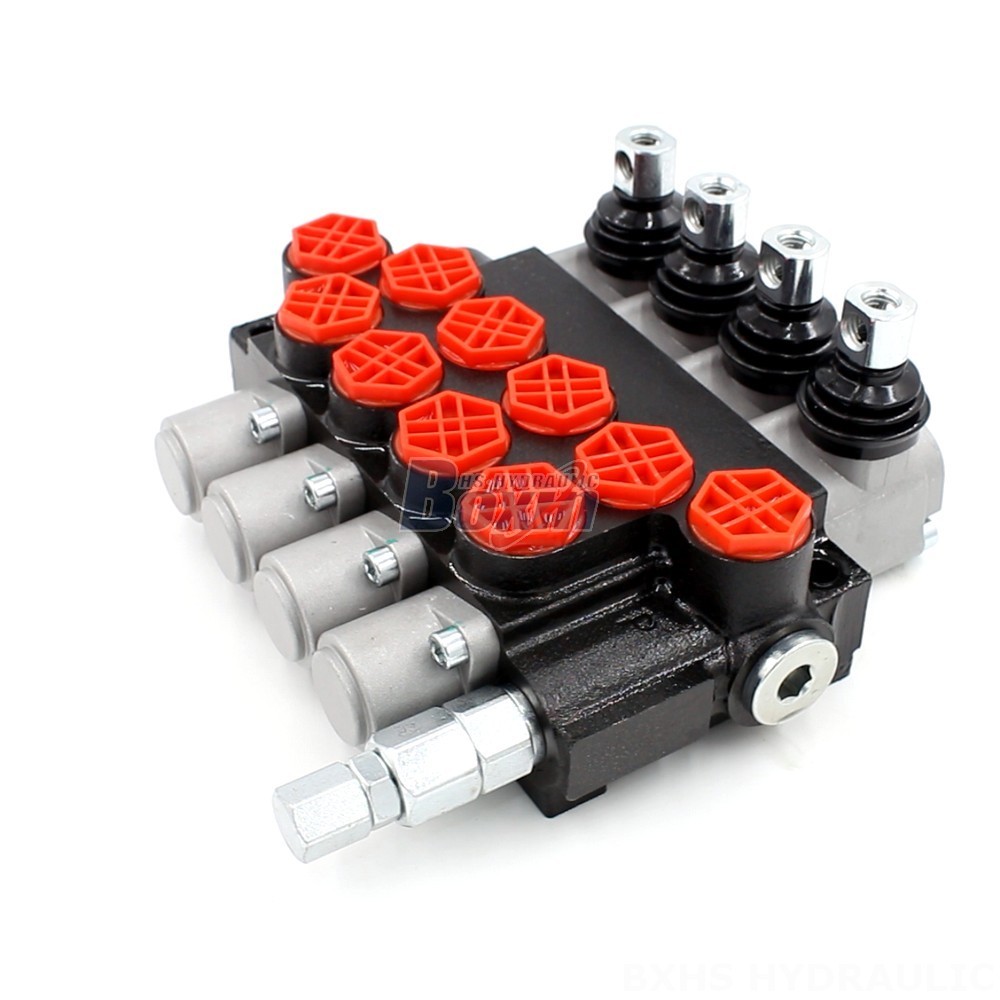

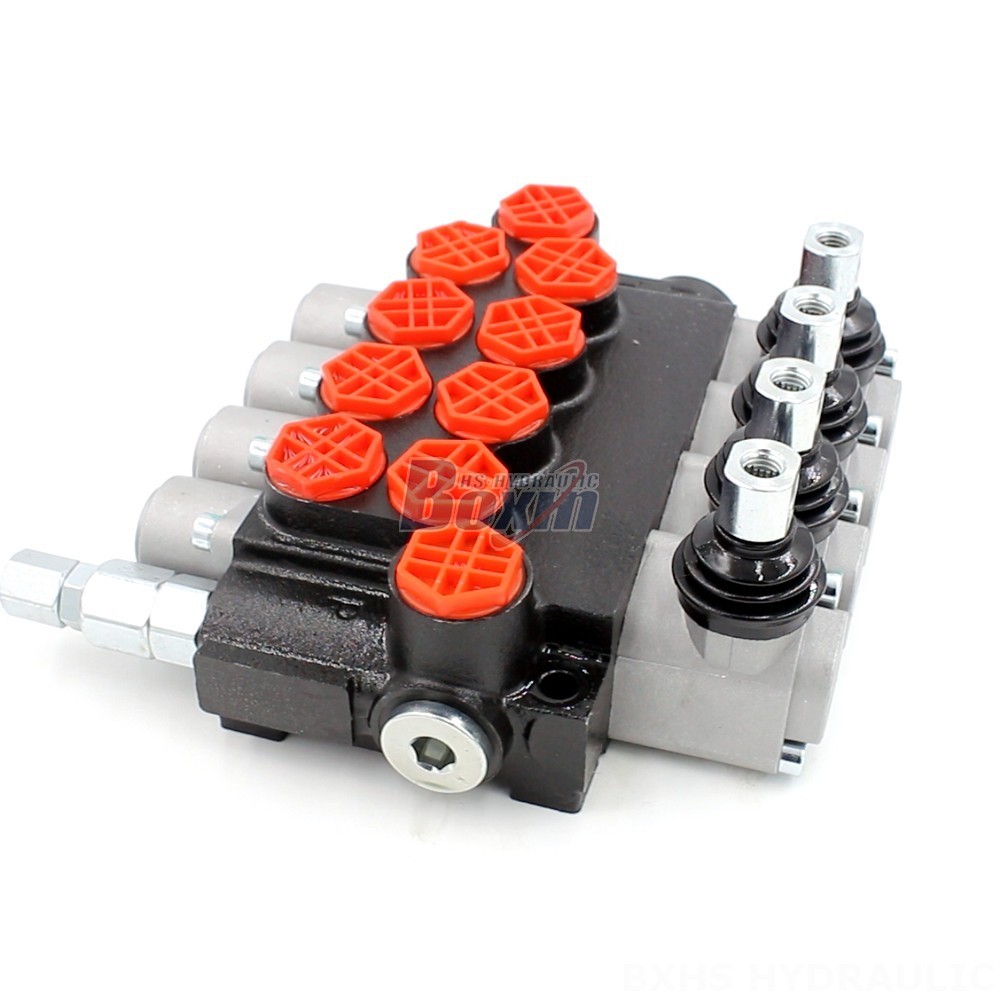

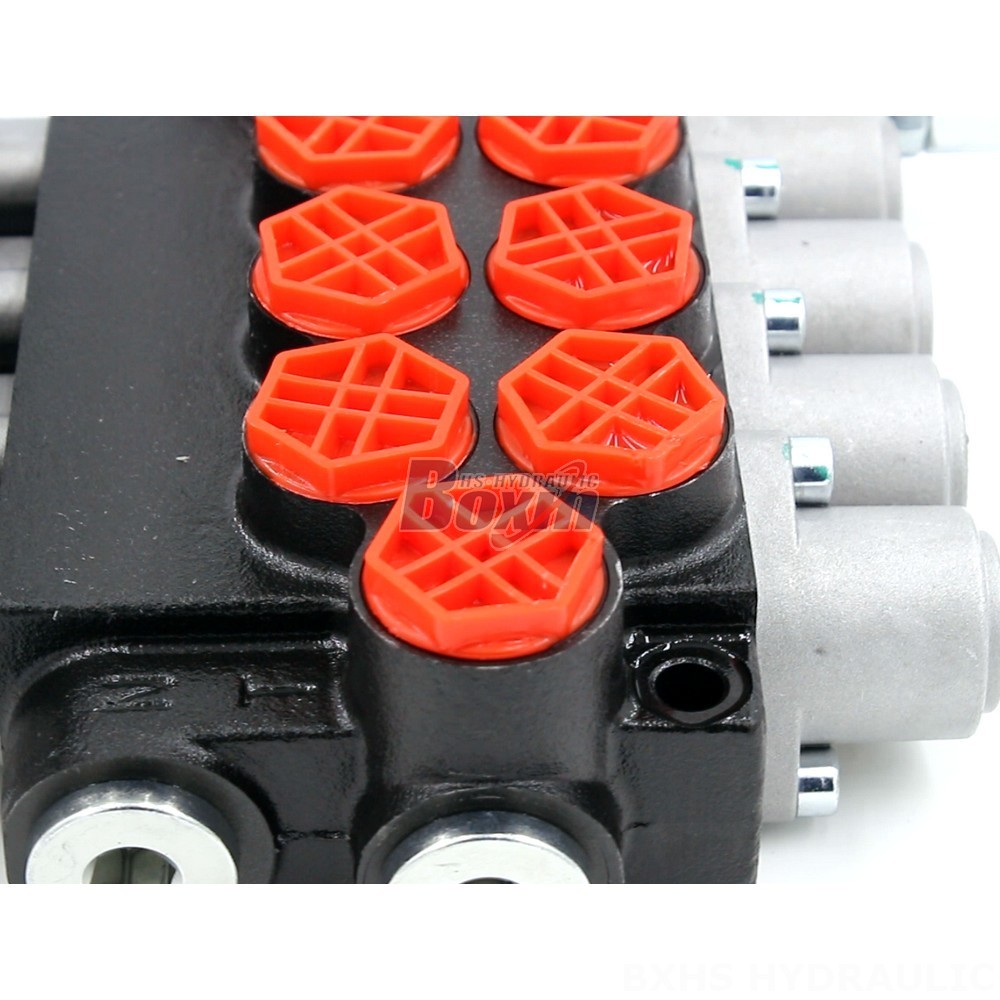

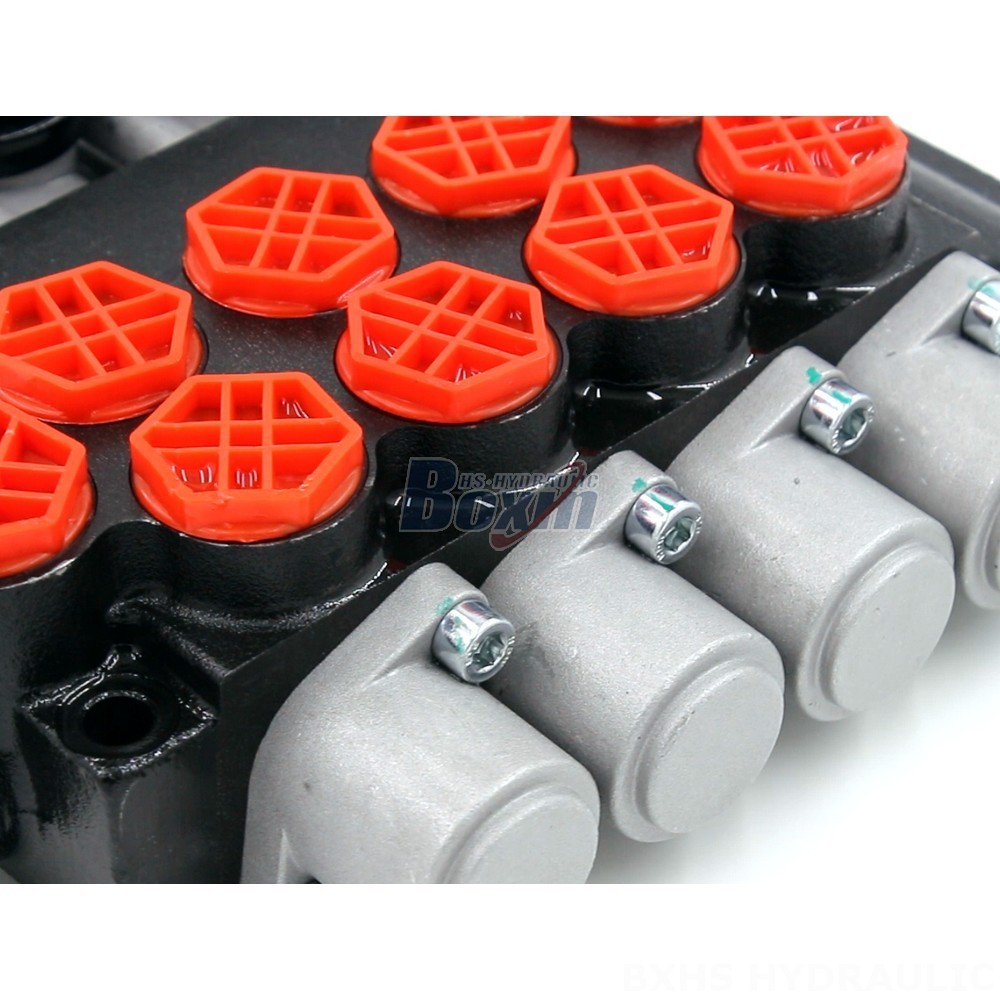

Introducing the P40-G12-G38-4OT Customizable Hydraulic Valve, designed and built to your specific requirements. This 4-section, monoblock valve offers a rated flow of 40 L/min (10.5 US gpm), a maximum pressure of 250 bar (3600 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). With its wide temperature range (-40°C to +80°C / -40°F to +176°F), this valve is suitable for various applications, including material handling, construction, earth moving, agriculture, and industrial vehicles.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
Our customizable hydraulic solutions allow you to tailor the P40-G12-G38-4OT valve to your exact specifications. As an OEM, ODM, and white label manufacturer, we offer flexible manufacturing options to meet your unique needs. Whether you require specific flow rates, pressure ranges, or customized spool configurations, our team of experts can assist you in developing the perfect solution for your application. Contact us today to discuss your custom hydraulic valve requirements and explore the possibilities of our advanced manufacturing capabilities.
