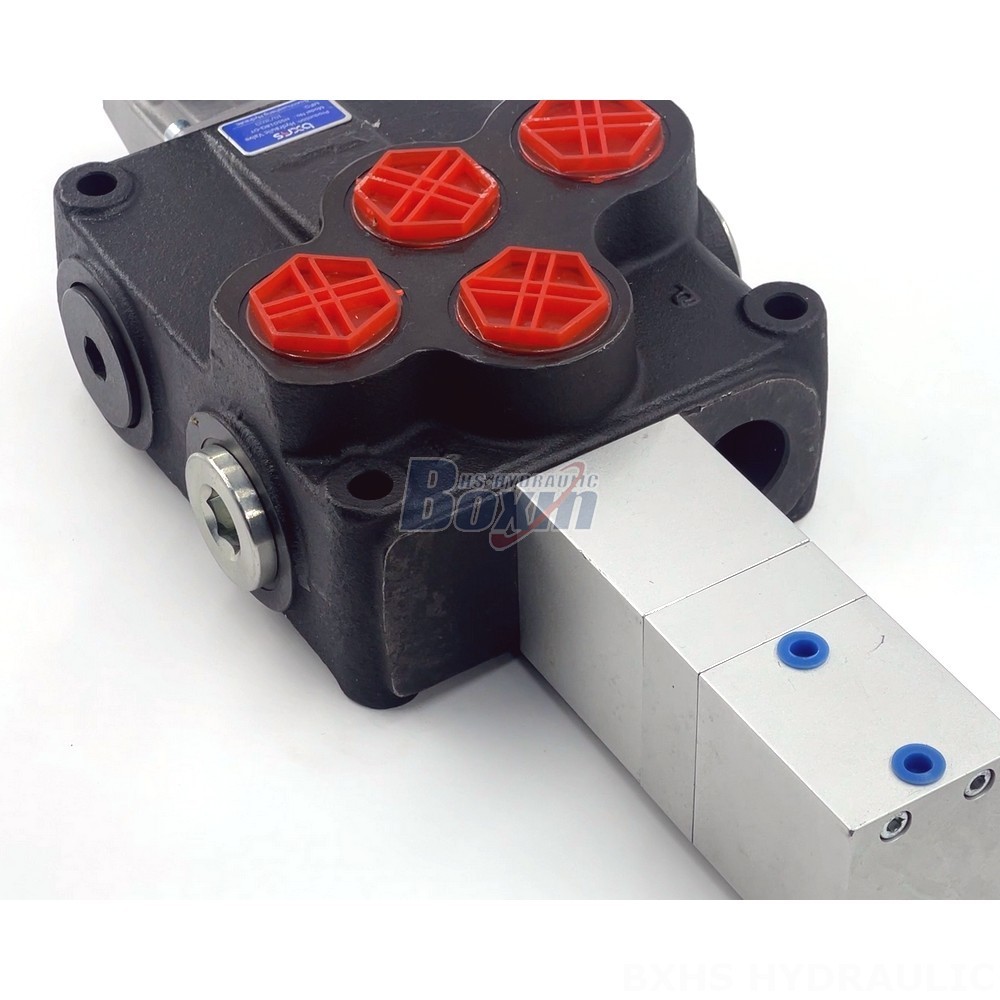

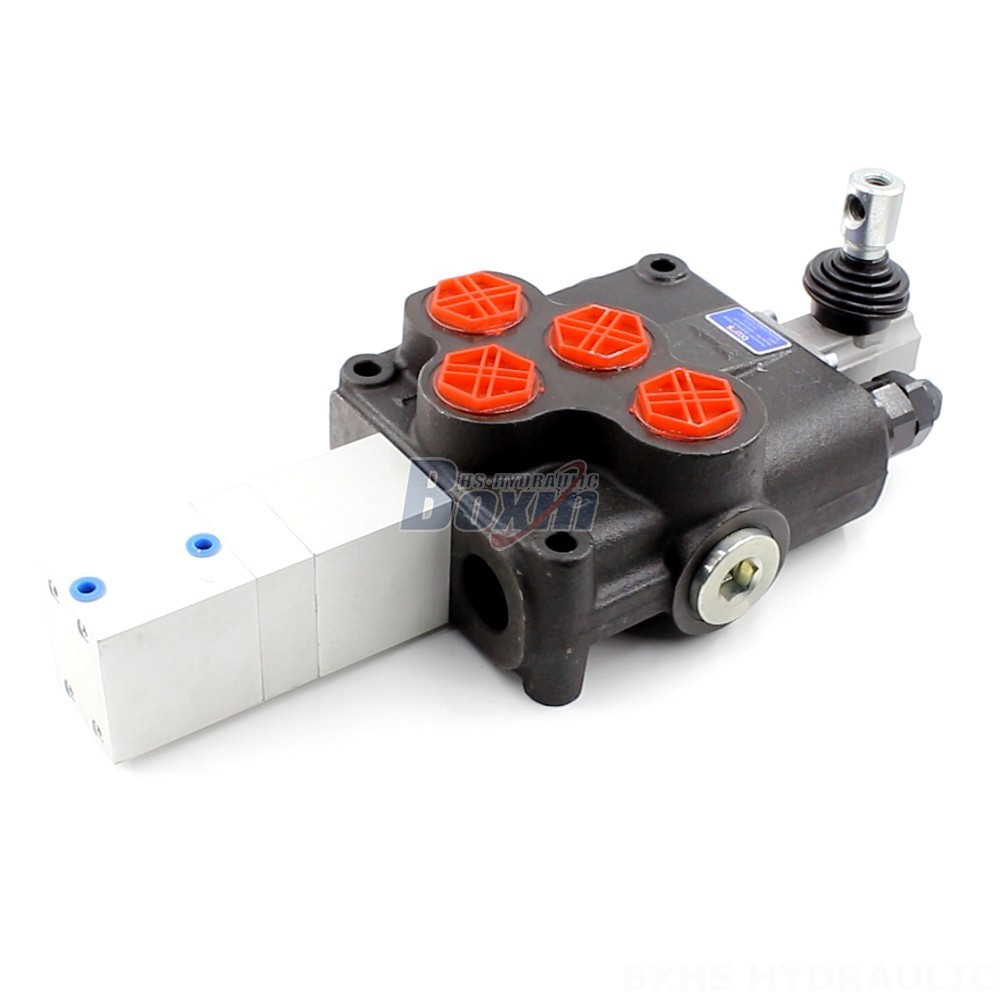

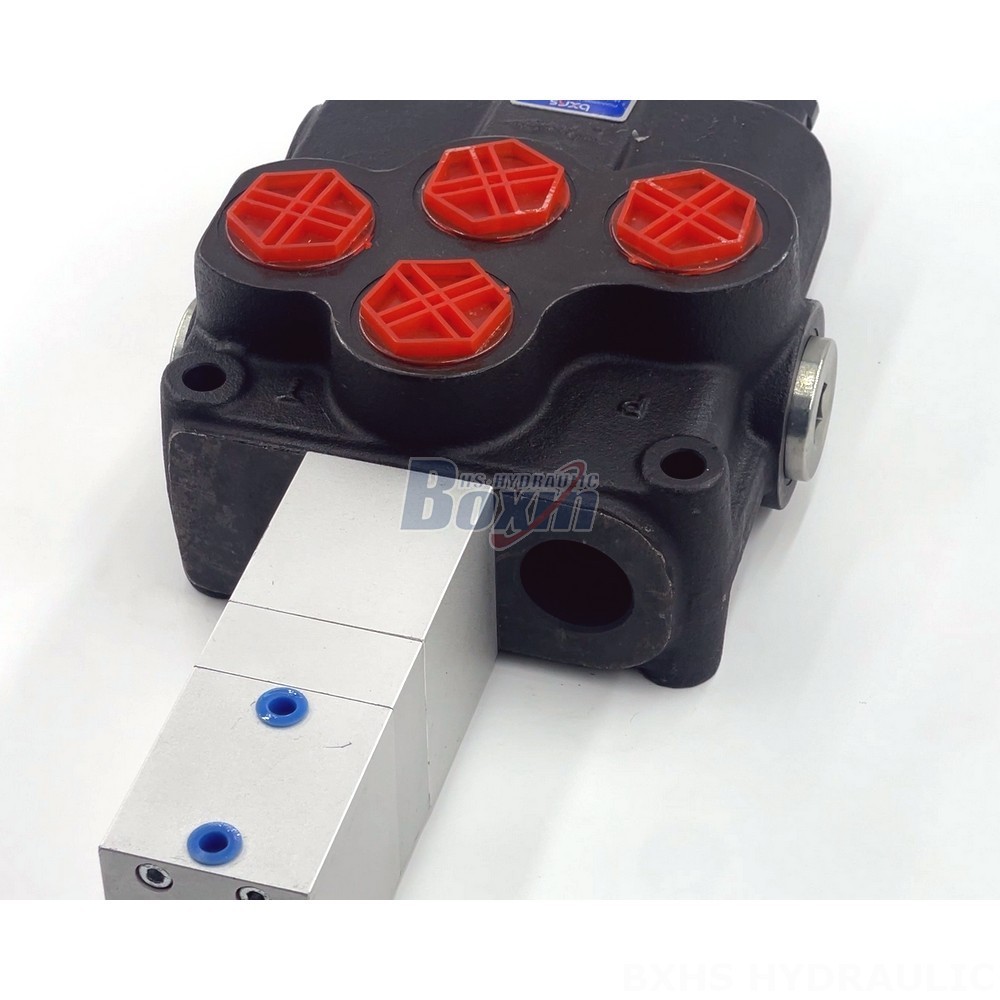

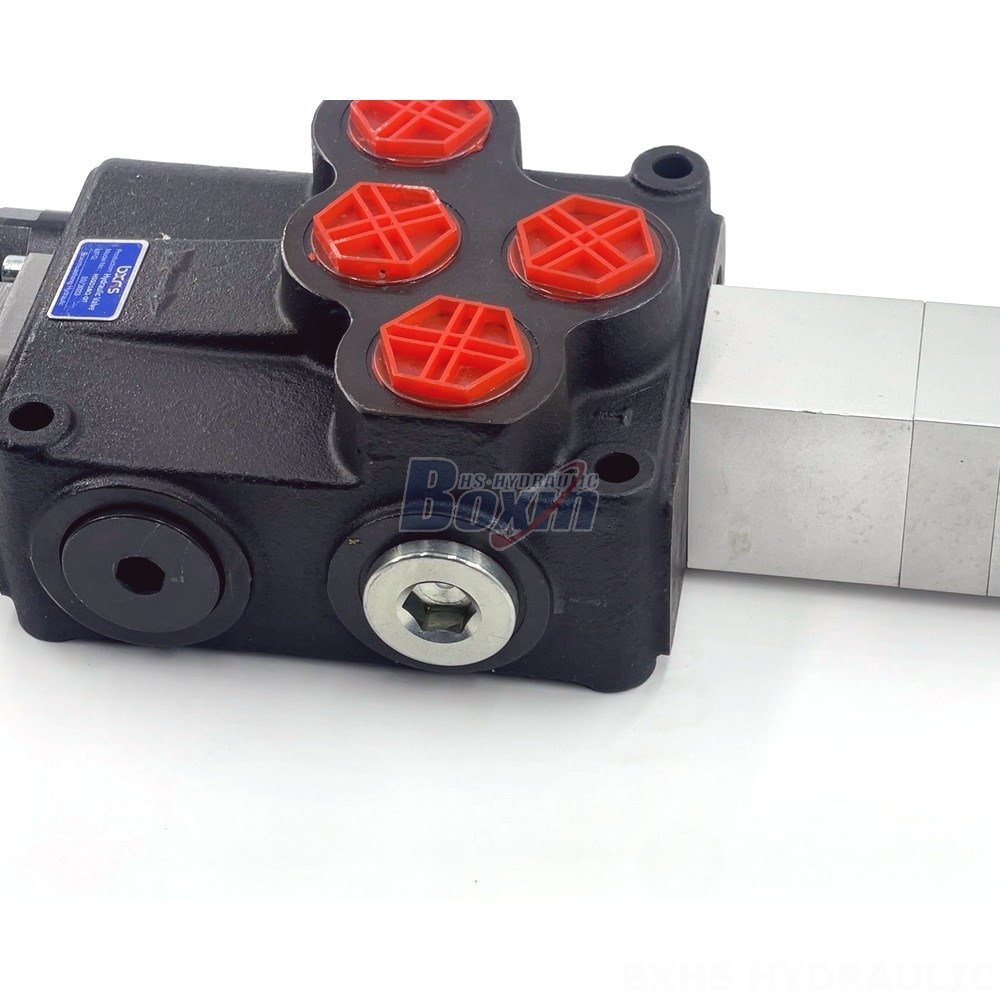

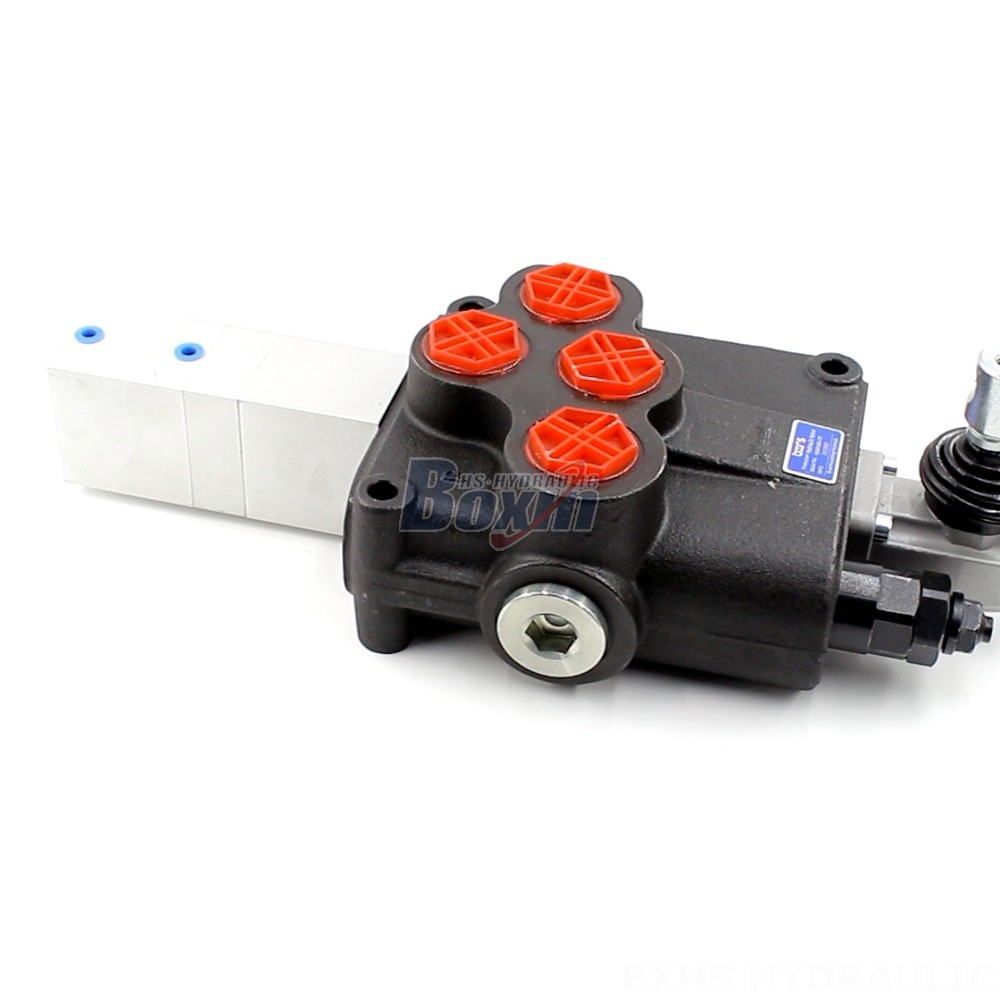

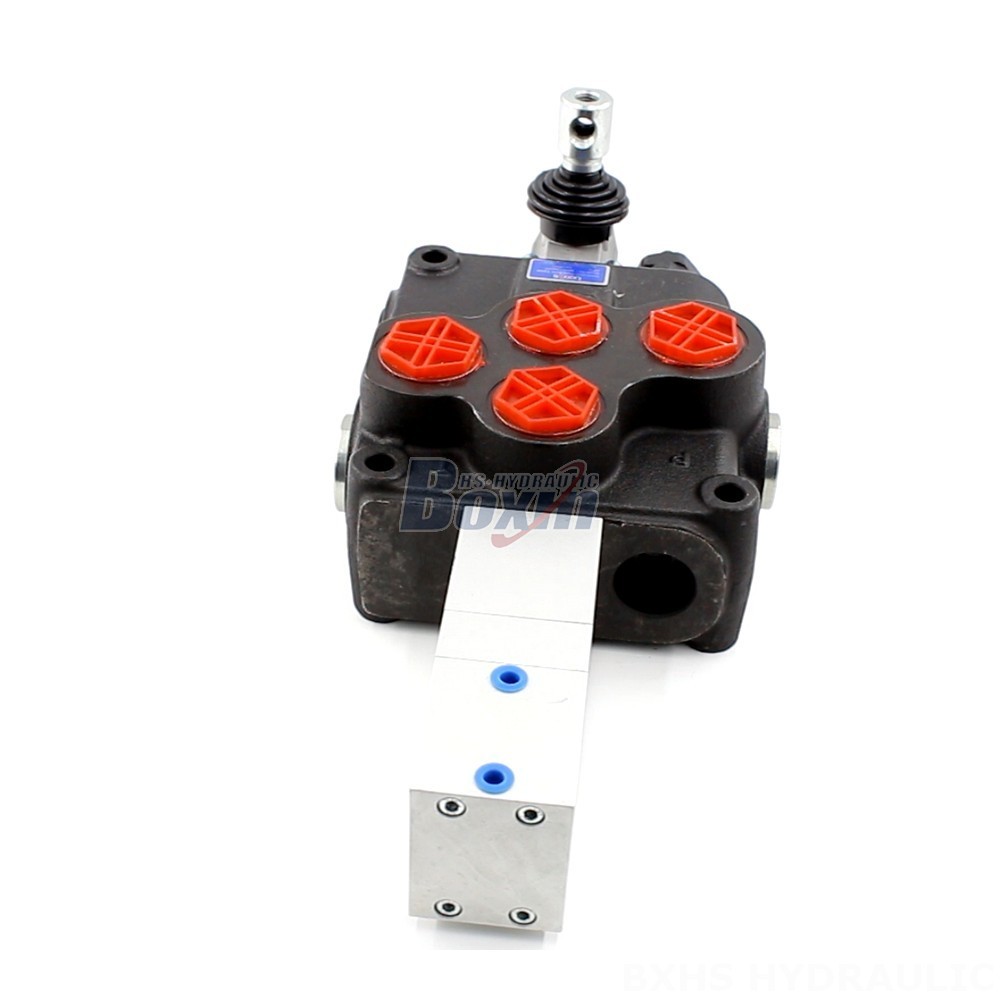

The Advanced Valve Technology SD18 Monoblock Directional Valve is a high-performance valve designed for demanding hydraulic systems. With its pneumatic control, monoblock construction, and impressive flow and pressure capabilities, this valve delivers reliable and efficient performance in various applications, including material handling, construction, agriculture, and industrial vehicles.
| SD18系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 160 L/min (42.2 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G1/2接口, G1接口, SAE 16接头 |
| 出油口 | G1接口, SAE 16接头 |
| 接口尺寸 | G1接口, SAE 16接头 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
**Key Features:**
- Pneumatic control for precise and responsive operation
- Monoblock construction for compact and robust design
- Rated flow of 120 L/min (31.7 US gpm) for efficient fluid handling
- Maximum pressure of 315 bar (4600 psi) for demanding applications
- Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F) for operation in diverse environments
- Available with 1 spool for versatile control options
- Part of the SD18 Series, known for its durability and reliability
**Applications:**
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi-excavators
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders
