The DCV200 Model 2-Spool Electro-hydraulic Valve is a high-performance valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. It features a control method of electro-hydraulic, a section of 2 section, a max pressure of 350 bar (5100 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt).
| DCV200系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二, 手动和电液控制, 电动马达 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 200 L/min (52 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口, G1接口, M33×2.0螺纹, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹 |
| 出油口 | G1接口, M33×2.0螺纹, SAE 16接头, 1 NPT螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M33×2.0螺纹, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹 |

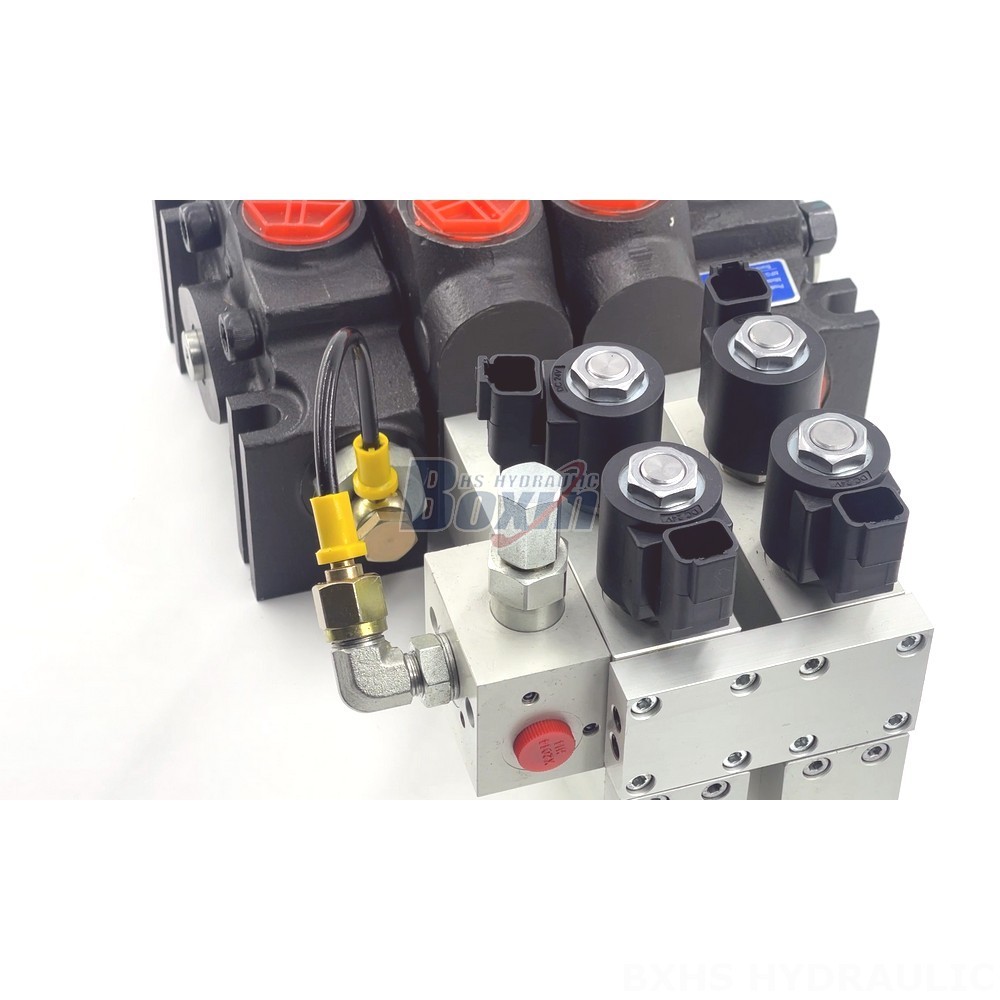

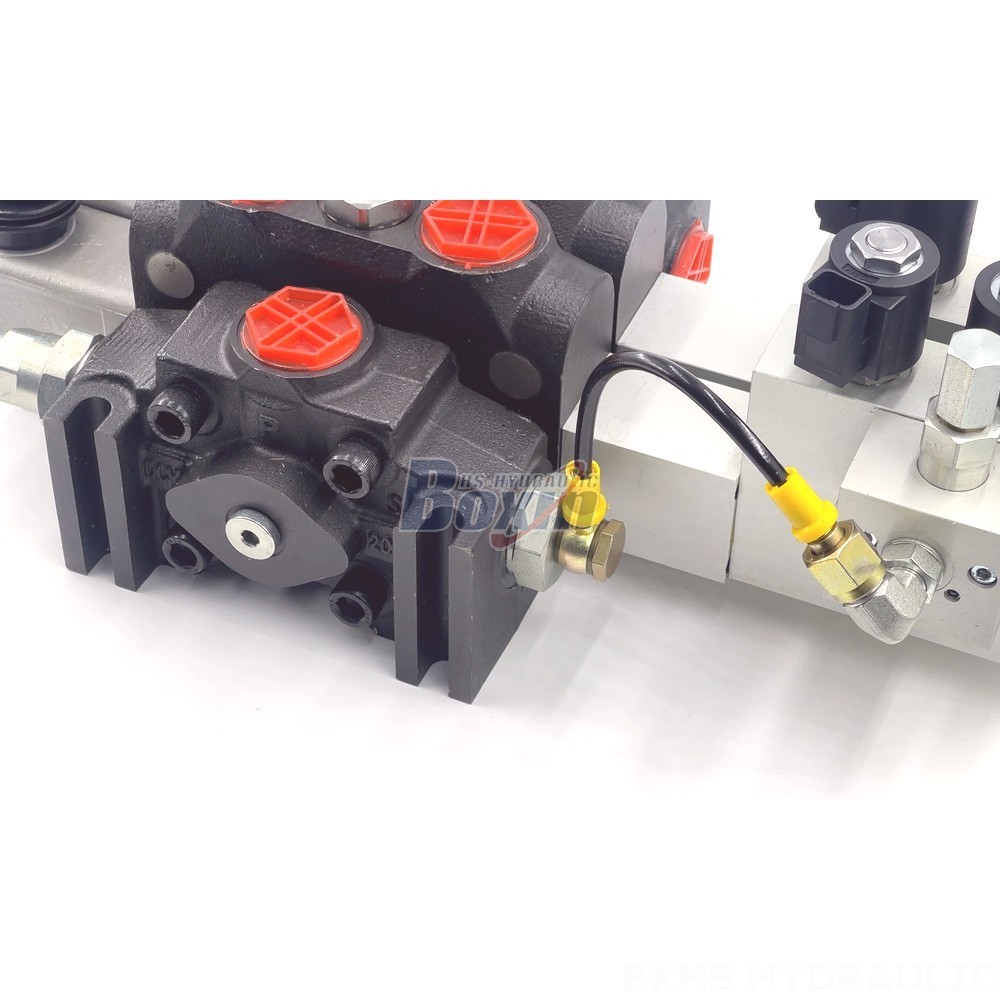

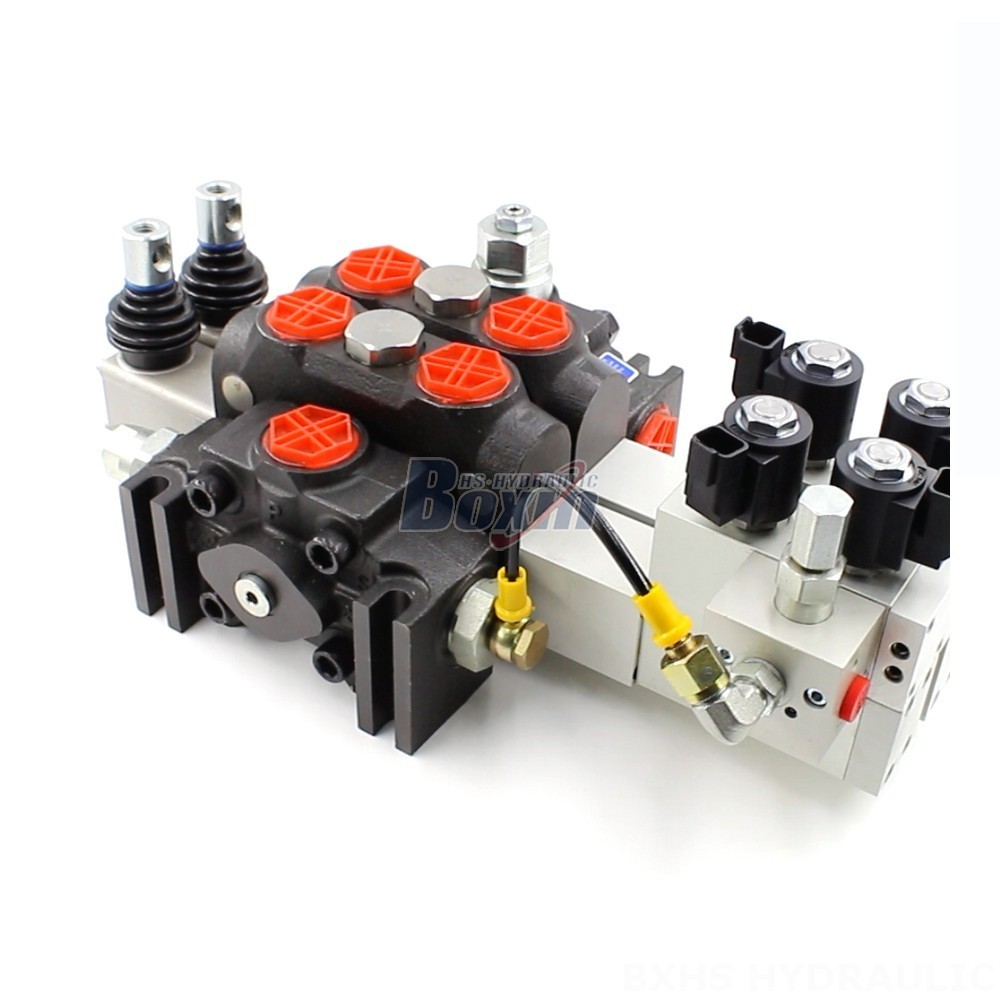

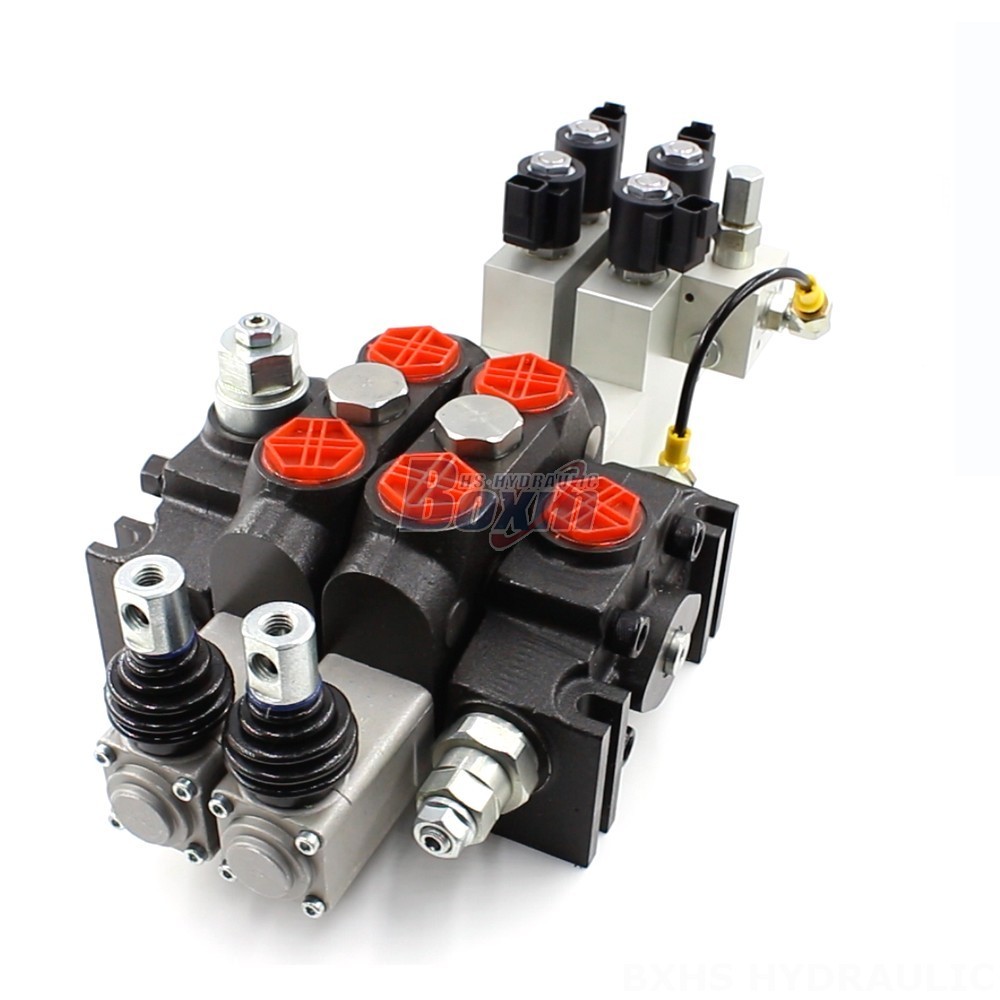

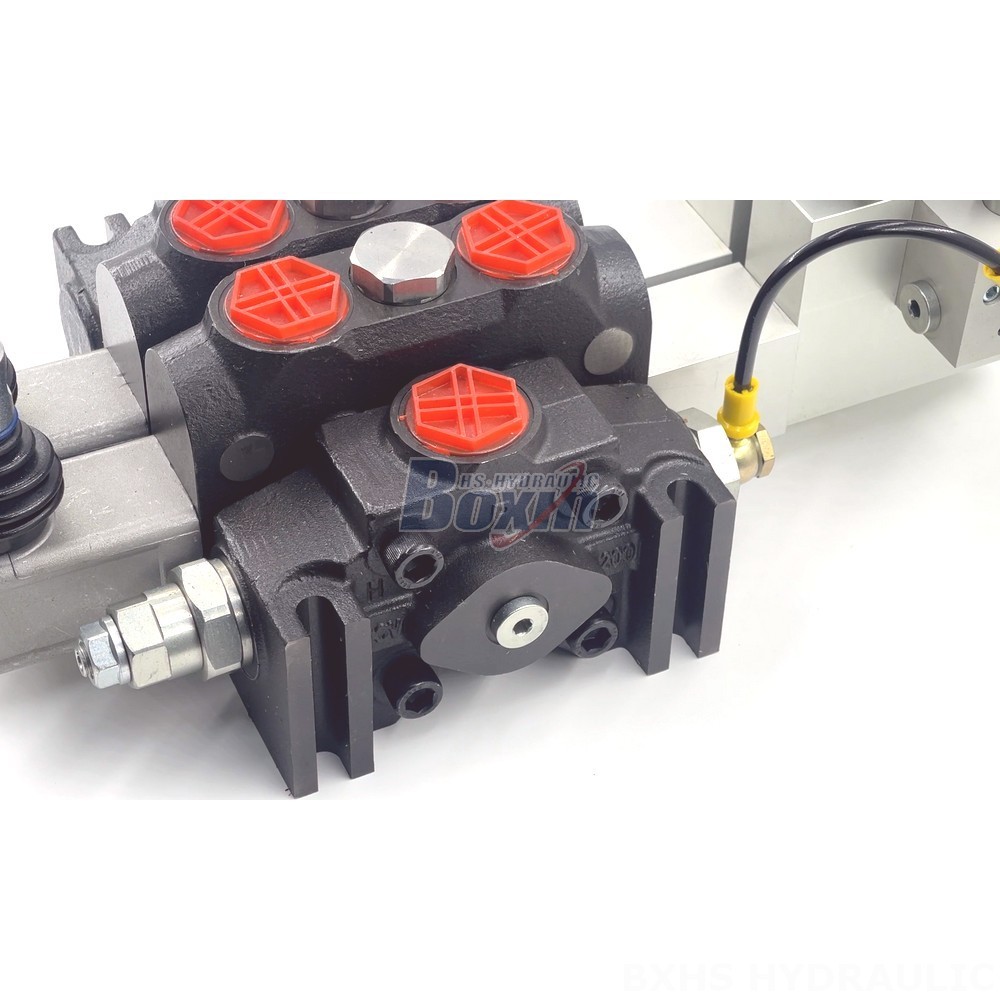

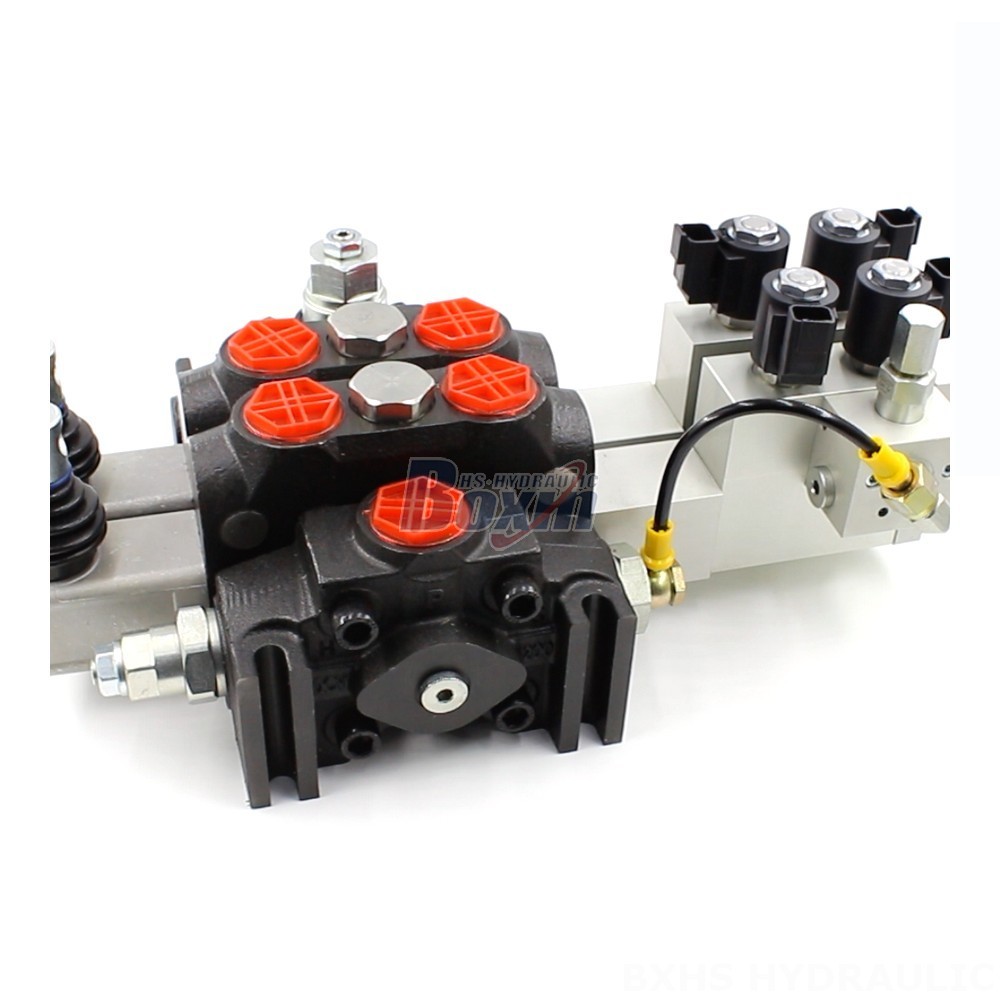

**2-Spool Electro-hydraulic Valve | DCV200 Model | Factory Direct & Customizable**
The DCV200 Model 2-Spool Electro-hydraulic Valve is a high-performance valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles.
**Key Features:**
* Control Method: Electro-hydraulic
* Section: 2 Section
* Max Pressure: 350 bar (5100 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
* Series: DCV200 Series
**Application Areas:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* TELEHANDLER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
