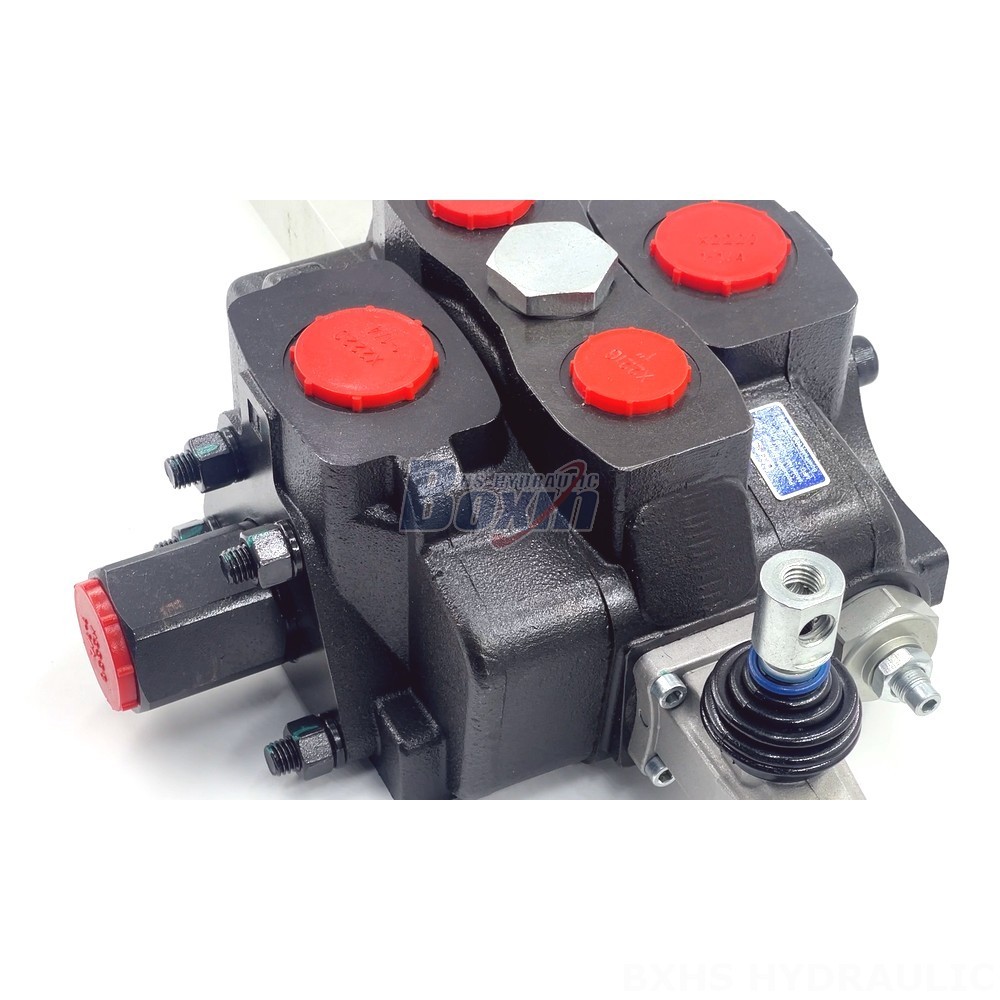

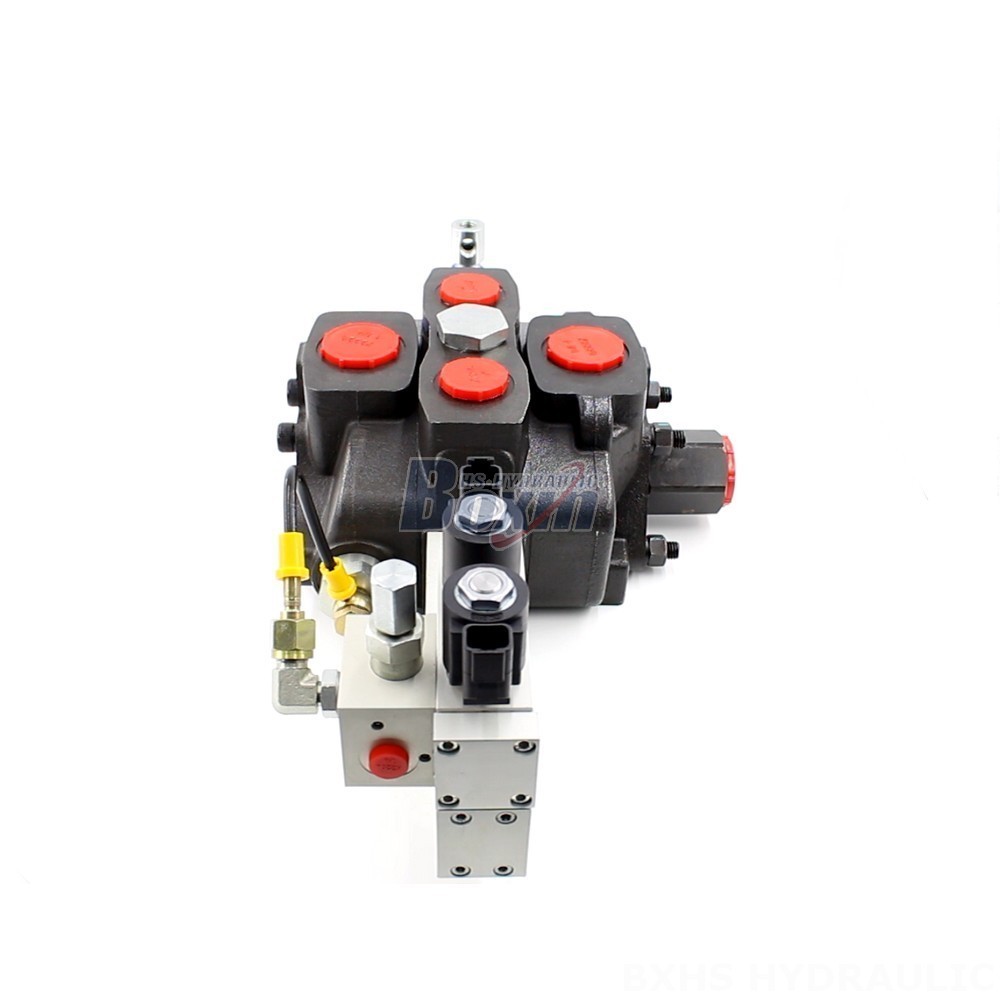

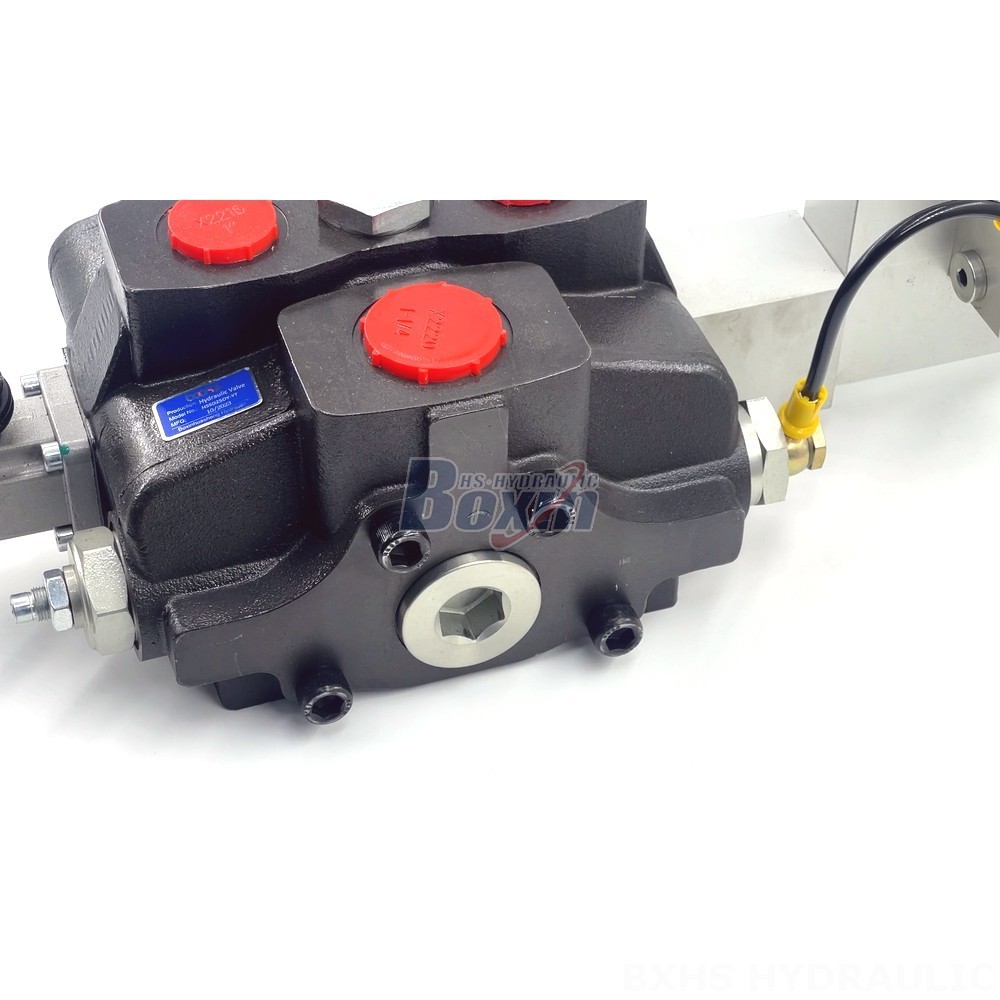

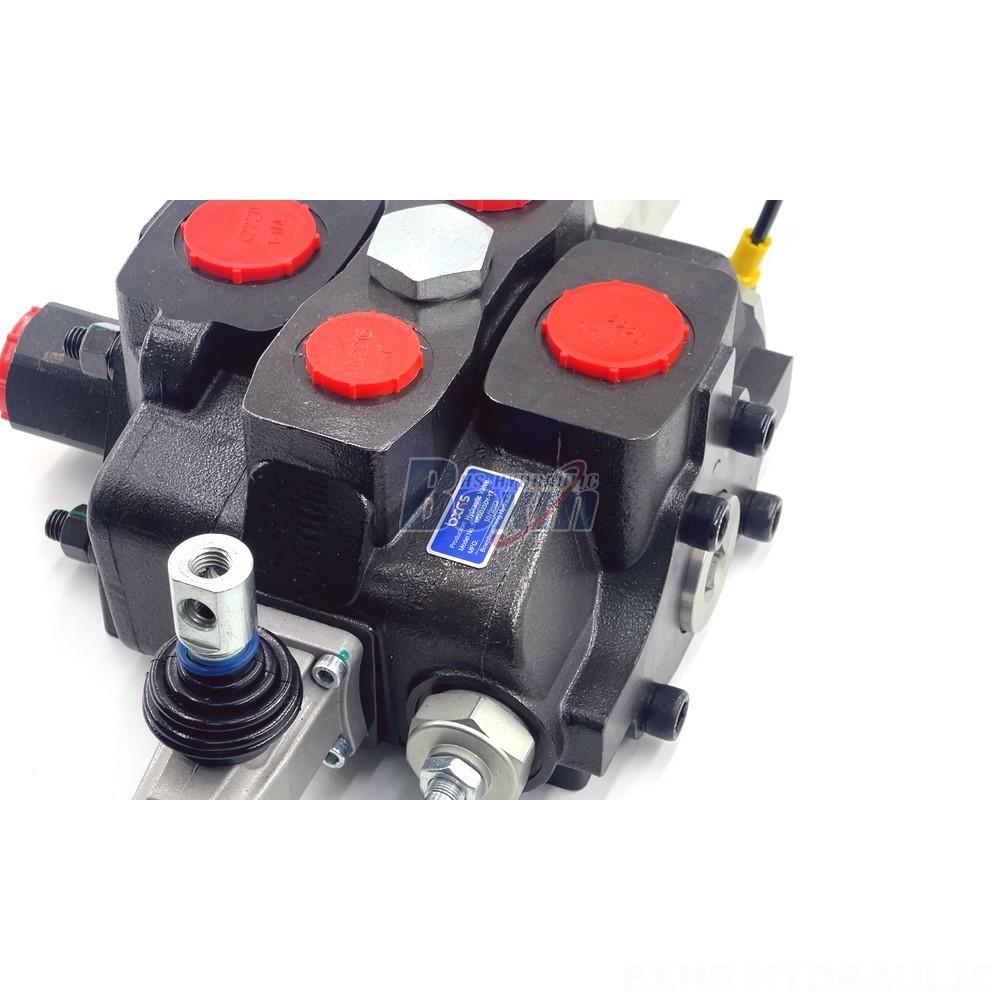

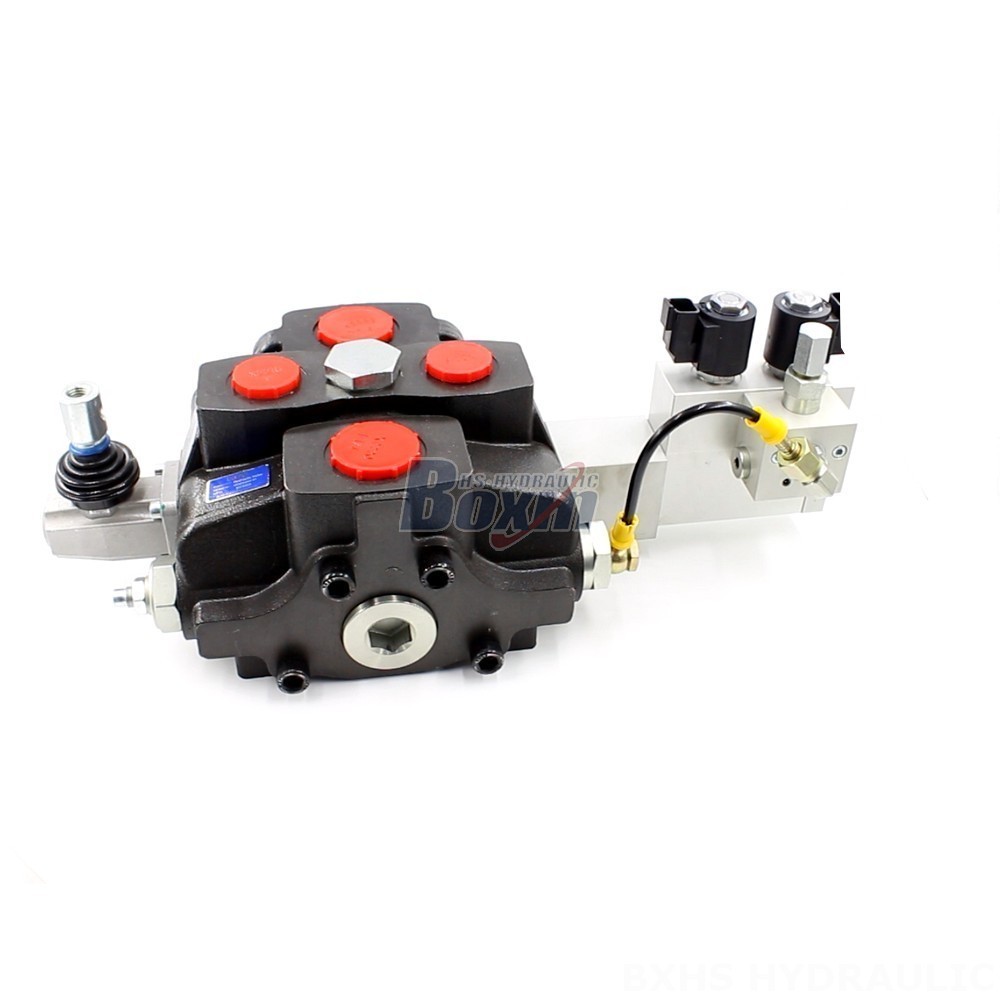

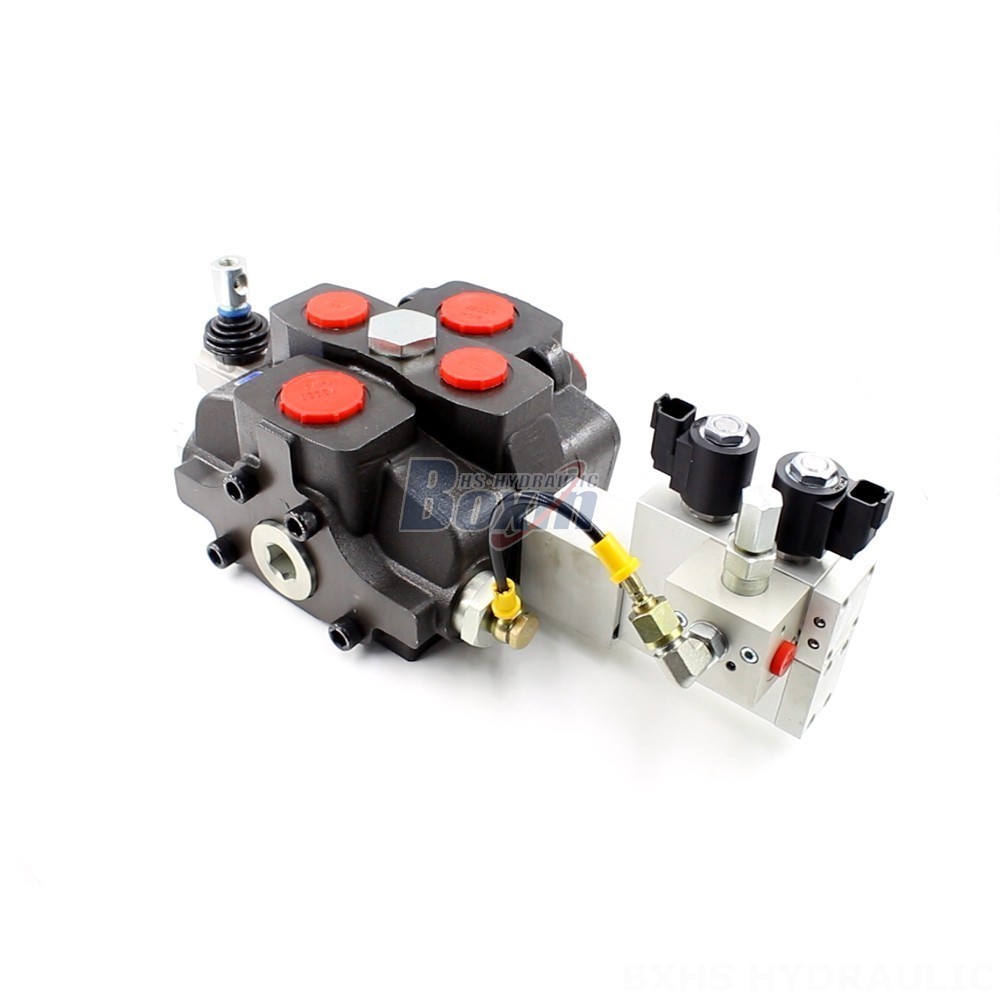

The SD25 Series 1 Spool Sectional Directional Valve is an electro-hydraulically controlled valve designed for use in a wide range of industrial applications. It features a compact monoblock design with a rated flow of 240 L/min (63.4 US gpm) and a maximum pressure of 315 bar (4600 psi).
| SD25系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 电液控, 液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 240 L/min (63.4 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1接口, SAE 16接头 |
| 出油口 | G1-1/4接口, SAE 16接头 |
| 接口尺寸 | G1接口, G1-1/4接口, SAE 12接头 |
The SD25 Series 1 Spool Sectional Directional Valve is available in a variety of configurations to meet the specific requirements of any application. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicle applications. Some typical applications include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
