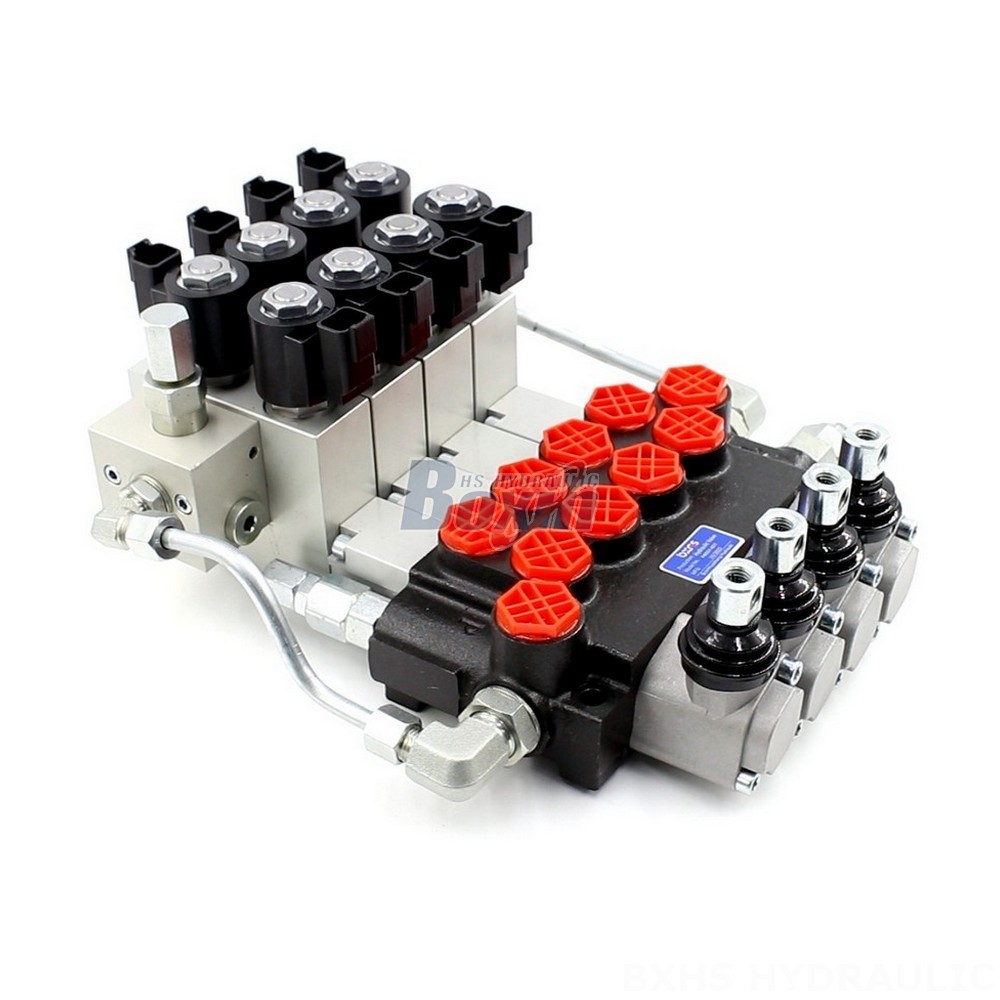

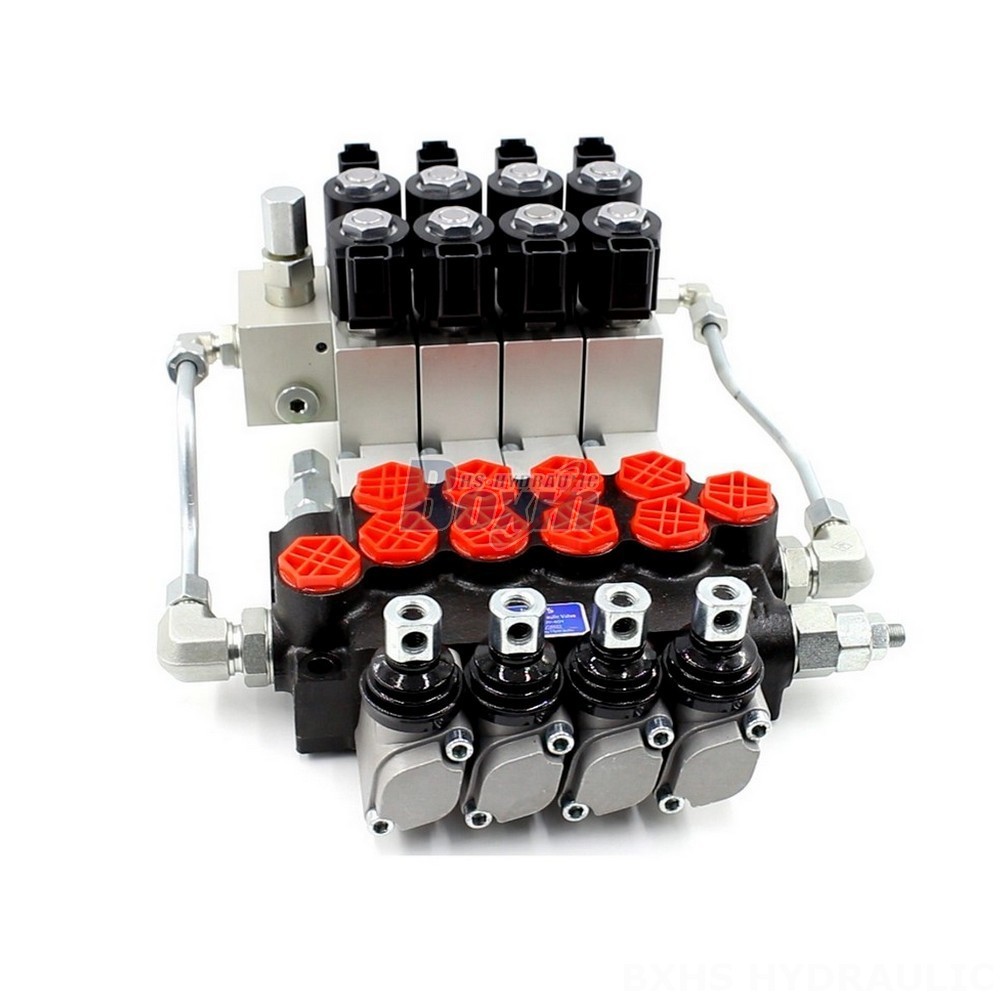

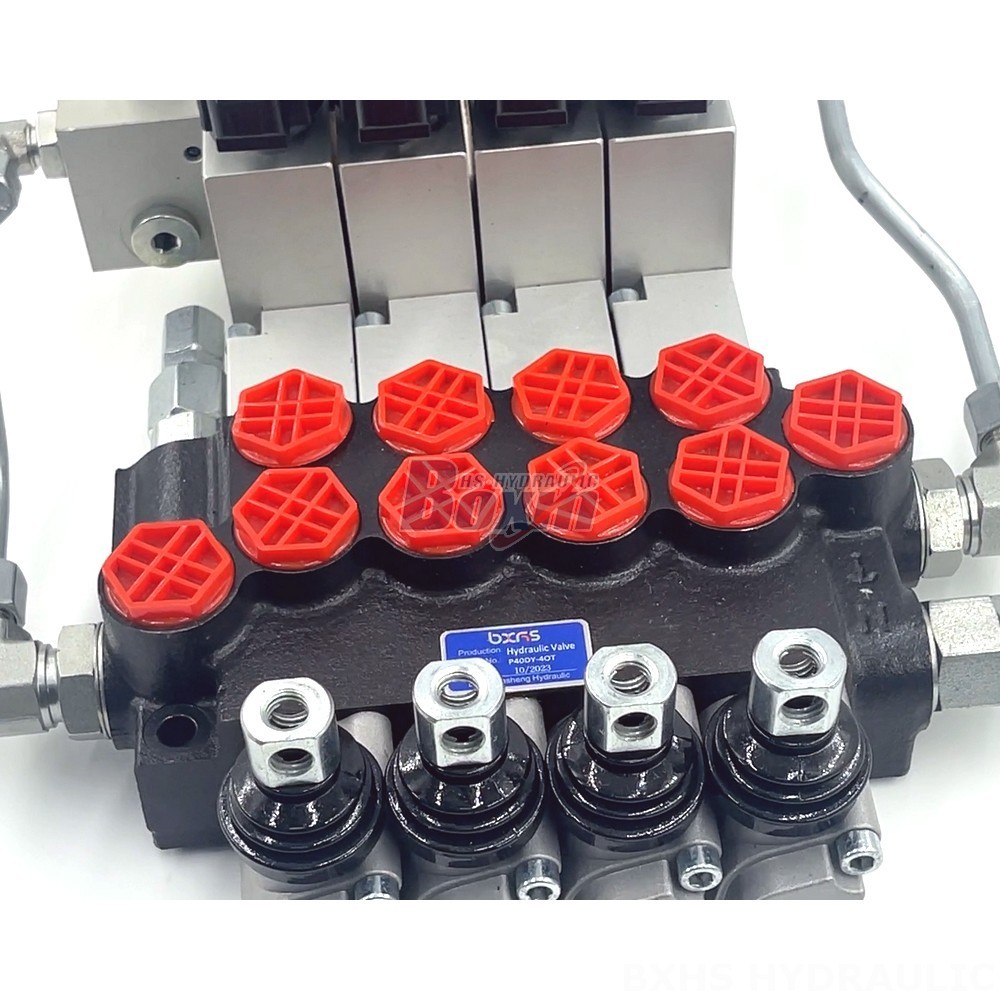

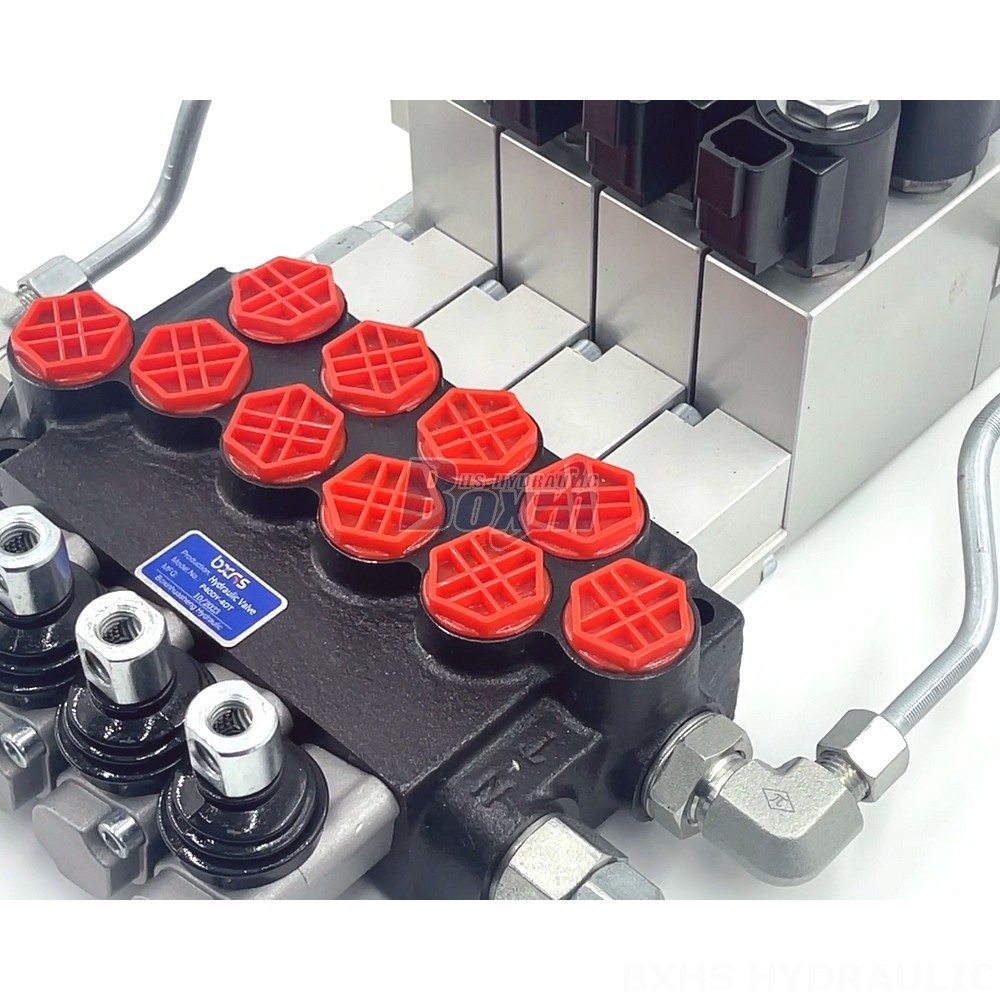

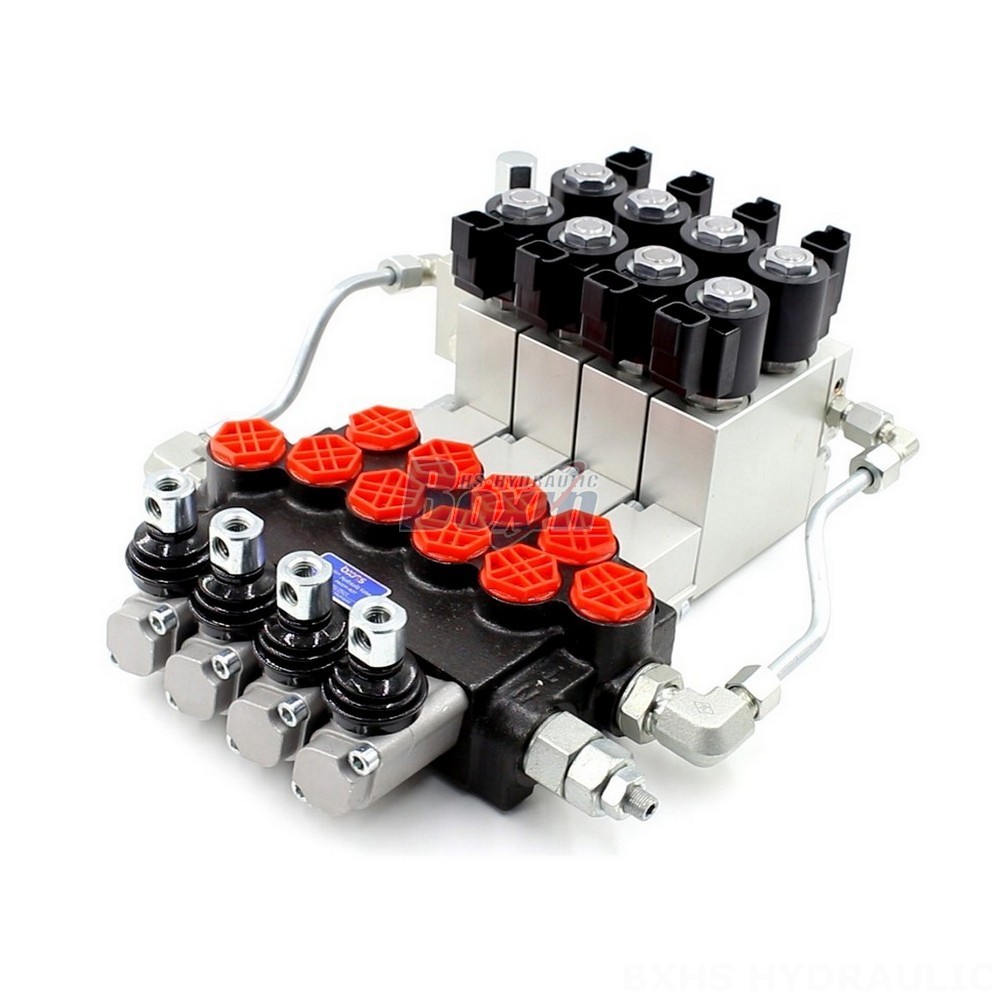

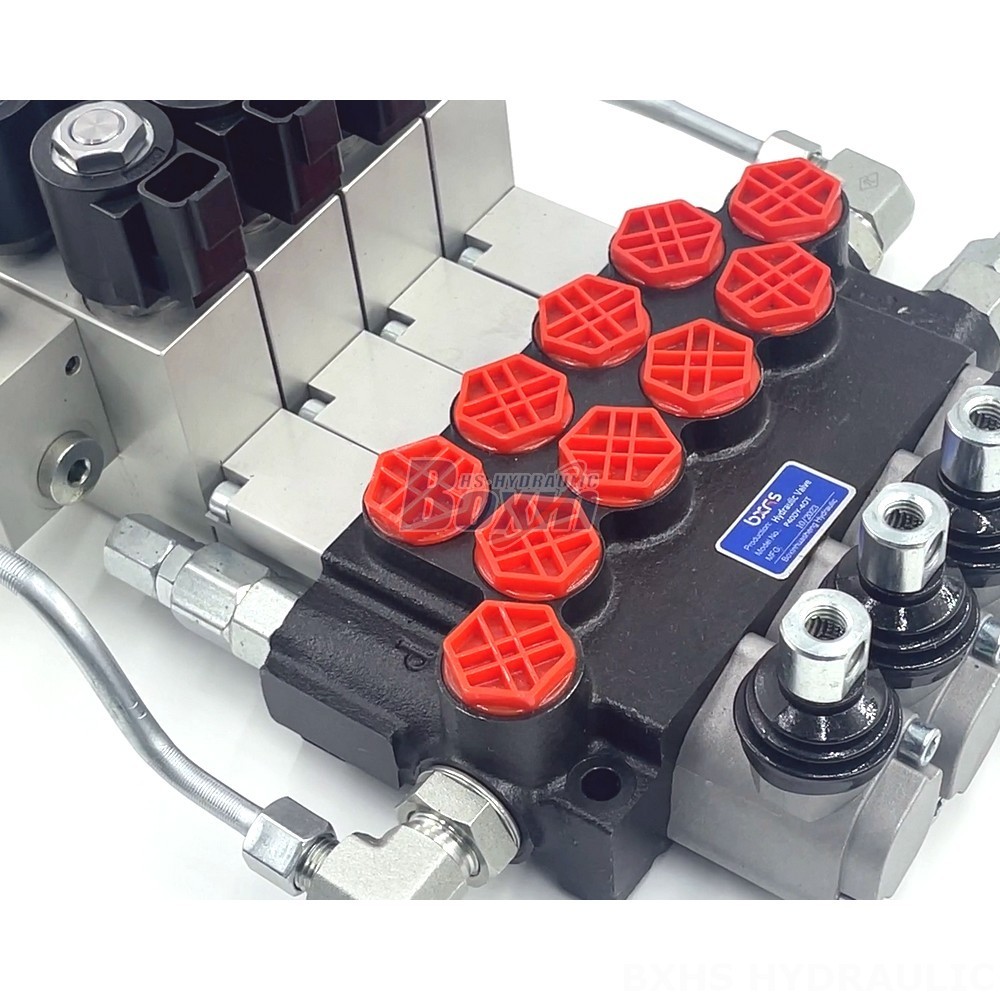

The P40 Series Hydraulic Control Valve is a 4-section, electro-hydraulic monoblock valve designed for use in various construction and industrial equipment, such as excavators, telehandlers, forklifts, and more. This valve is available for factory wholesale with bulk discounts.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
This high-performance P40 Series Hydraulic Control Valve is a 4-section, electro-hydraulic monoblock valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It is suitable for a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. The valve features a compact design, high reliability, and excellent performance. We are a manufacturer and factory outlet for this product, offering competitive prices and bulk discounts for wholesale orders. Contact us today to learn more about our P40 Series Hydraulic Control Valve and how it can benefit your equipment.
