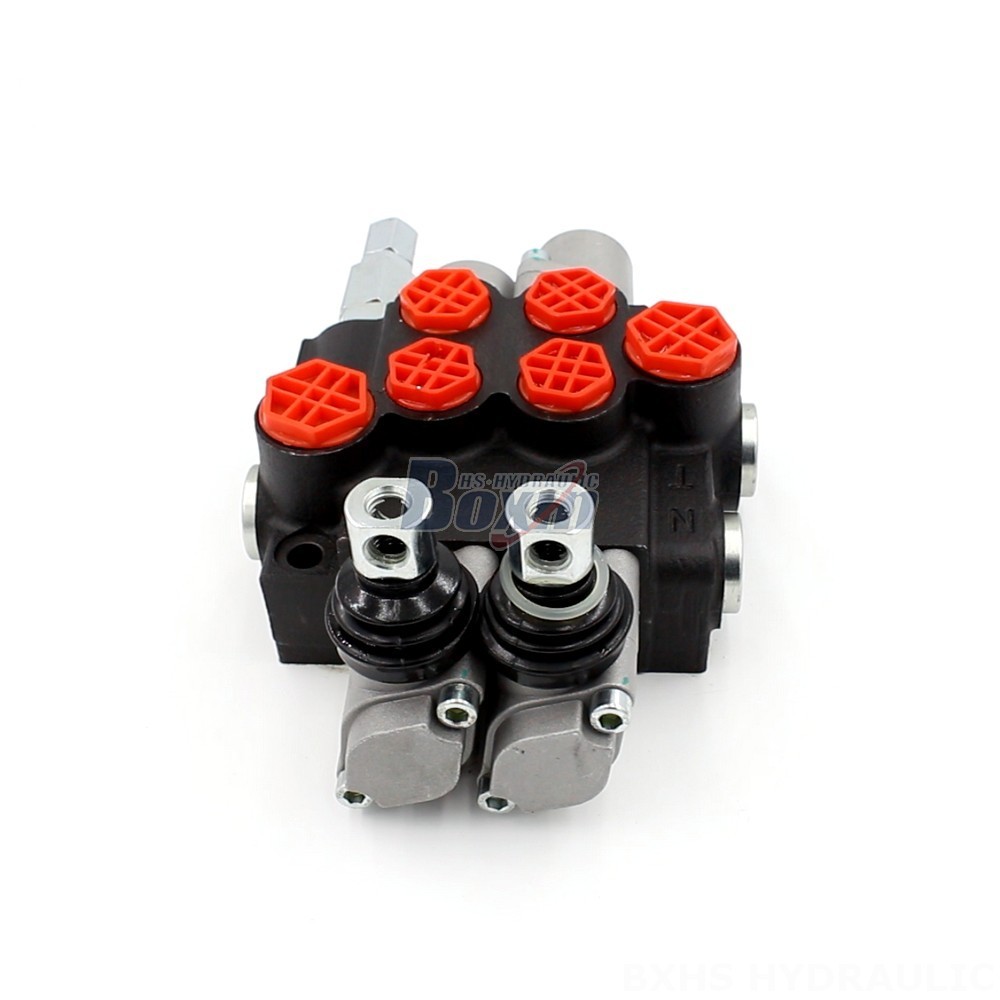

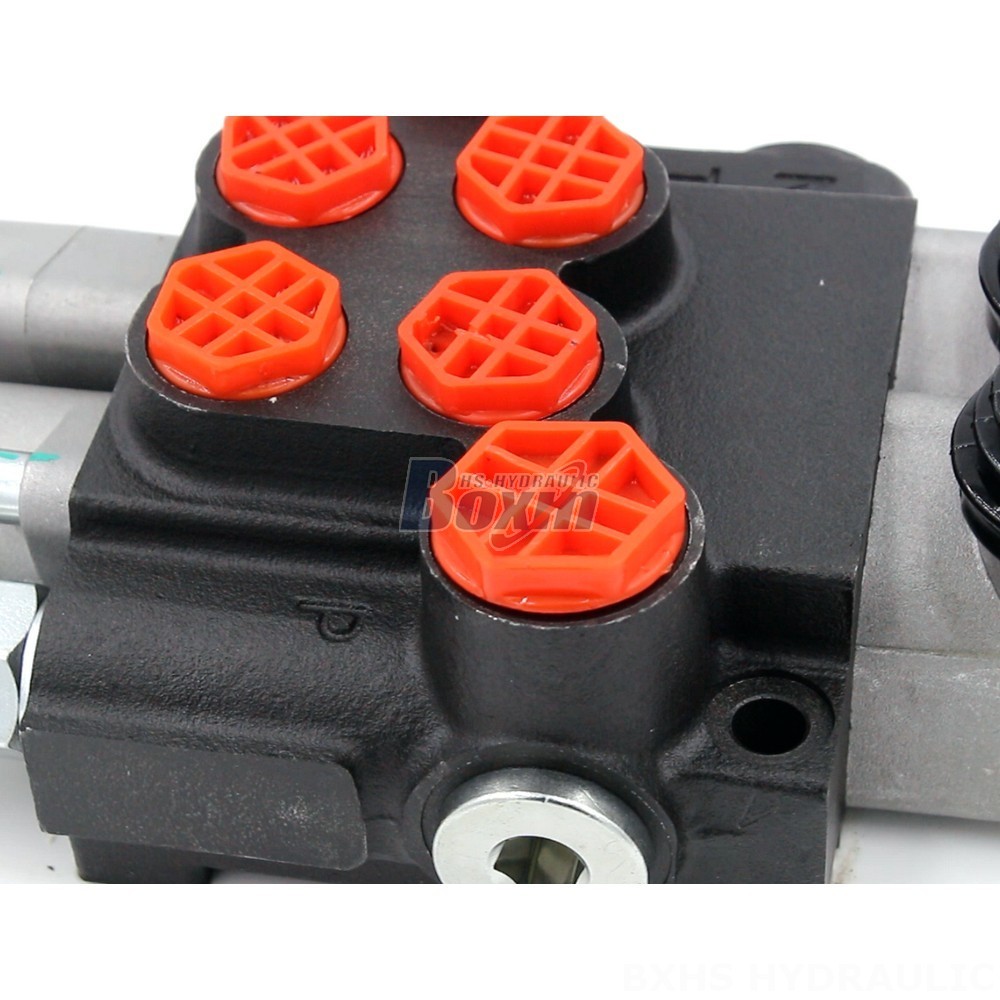

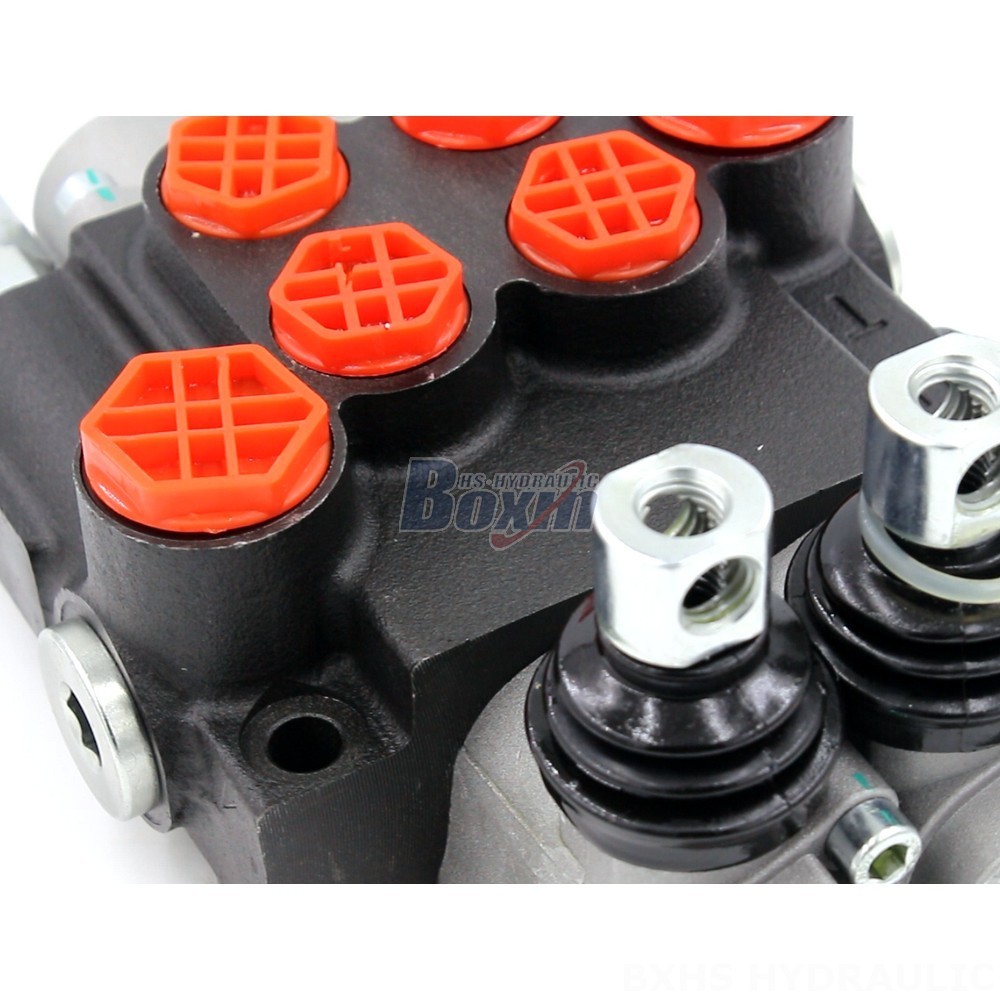

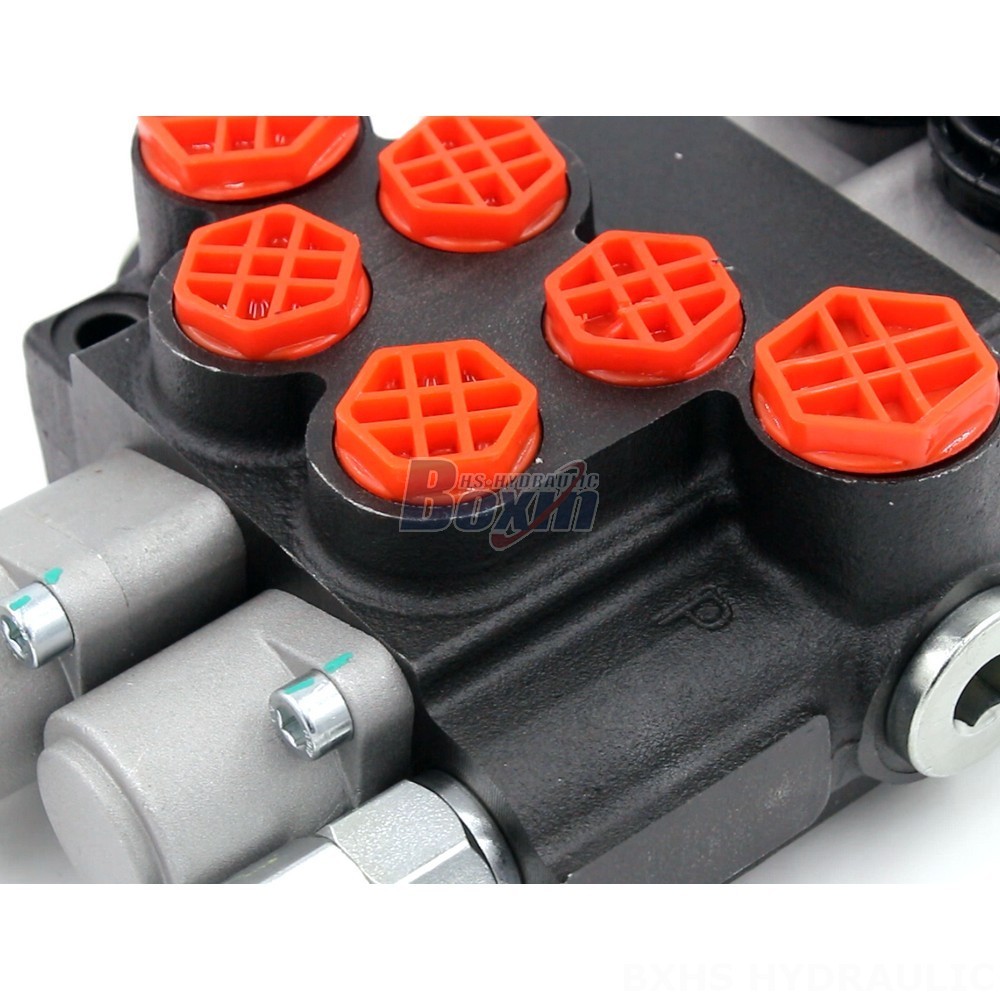

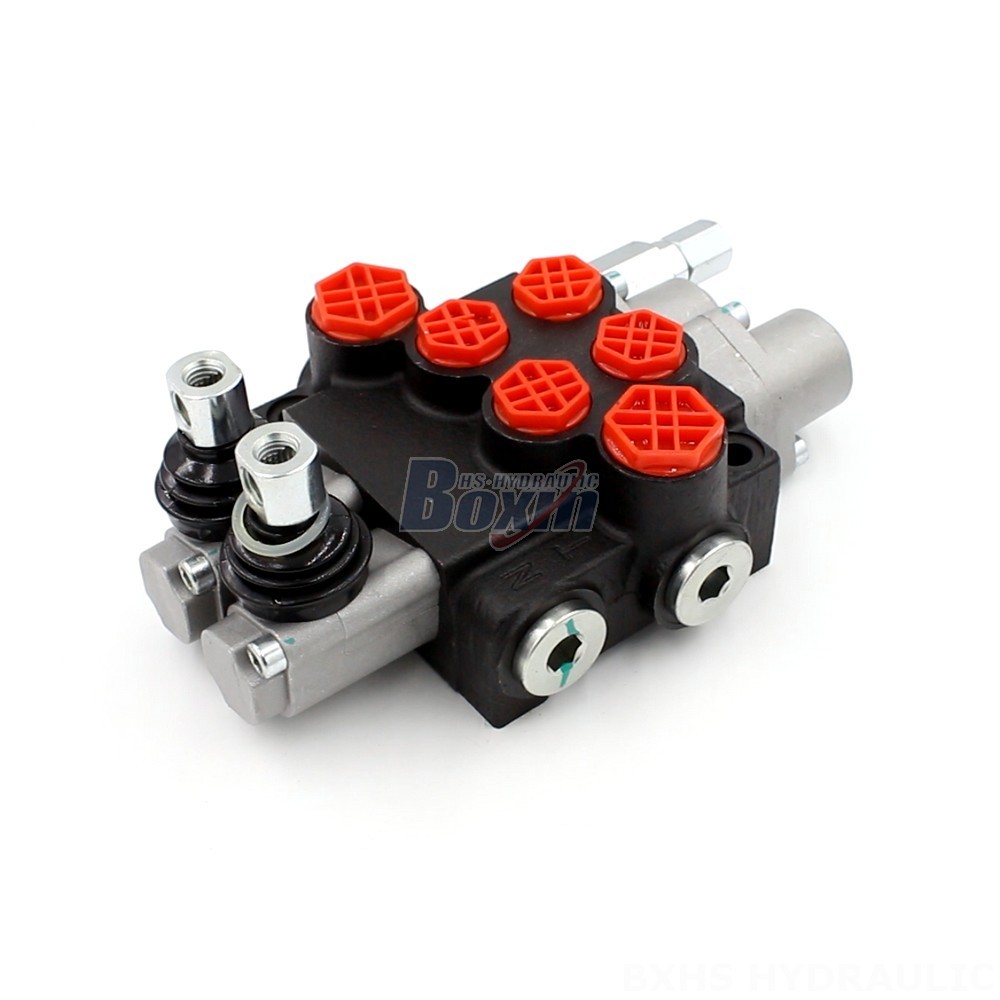

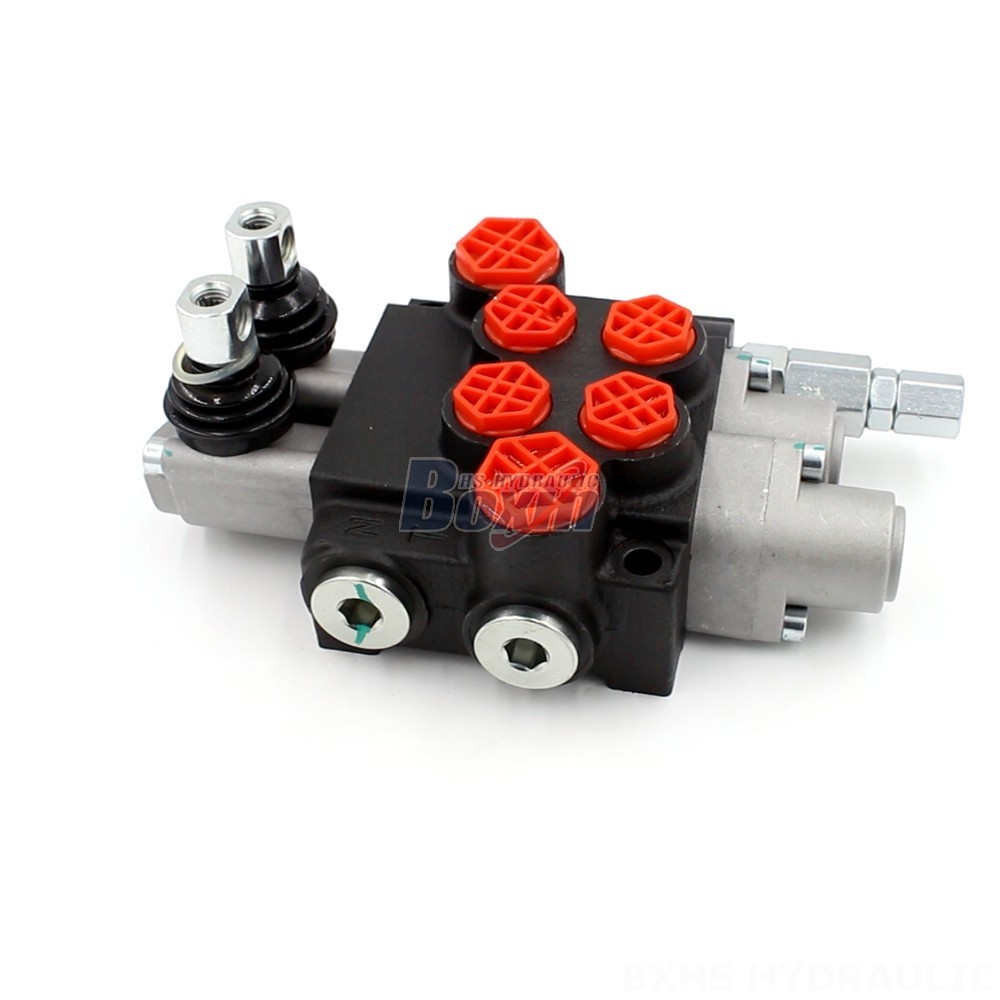

This Excavator Backup Valve is a high-quality directional valve designed for hydraulic breakers used in construction and earth moving equipment. It offers manual control, a robust monoblock design, and high flow rate, ensuring reliable operation for various applications.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40-G12-G38-OT-QTW Excavator Backup Valve is a 2-section, manual control directional valve specifically designed for hydraulic breakers. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is built to withstand demanding conditions in the construction, earth moving, and material handling industries. Its monoblock structure ensures durability and reliability, while the manual control provides precise operation. This valve is suitable for various equipment types including mini and midi excavators, skid steer loaders, telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, and motor graders.
