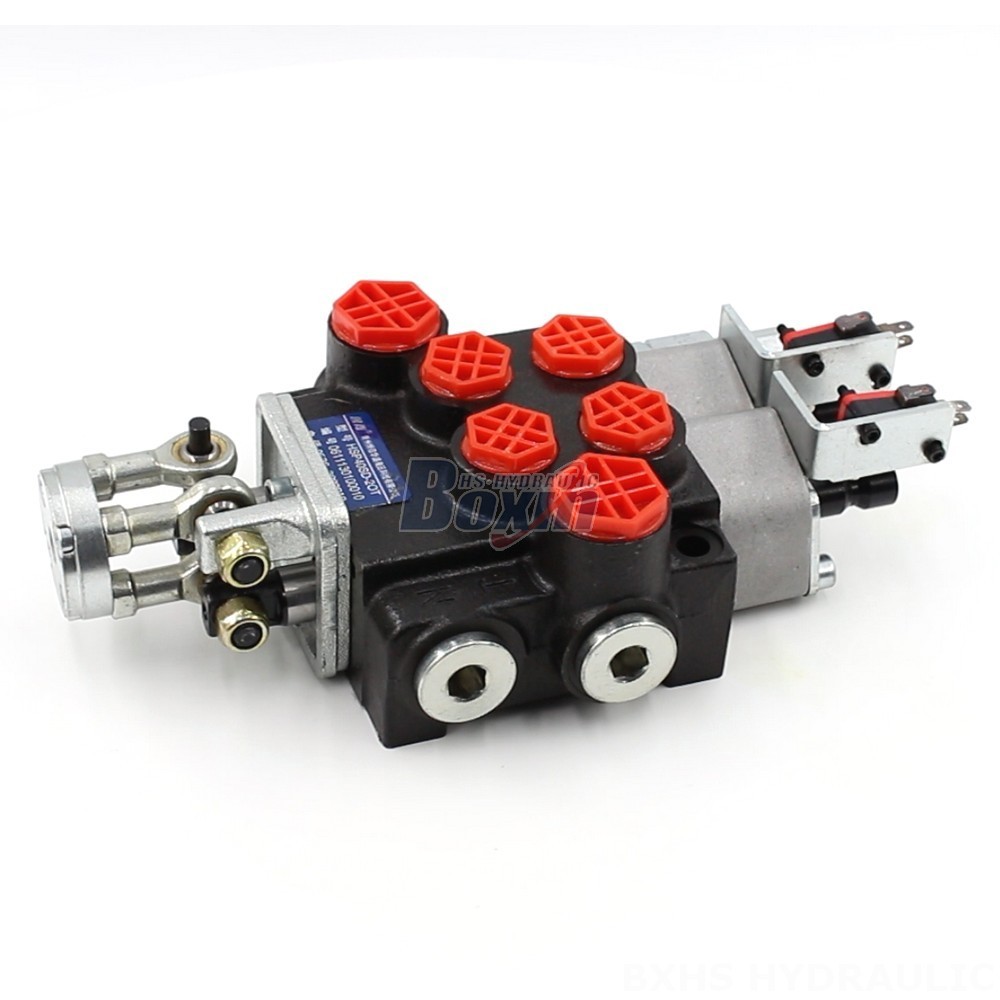

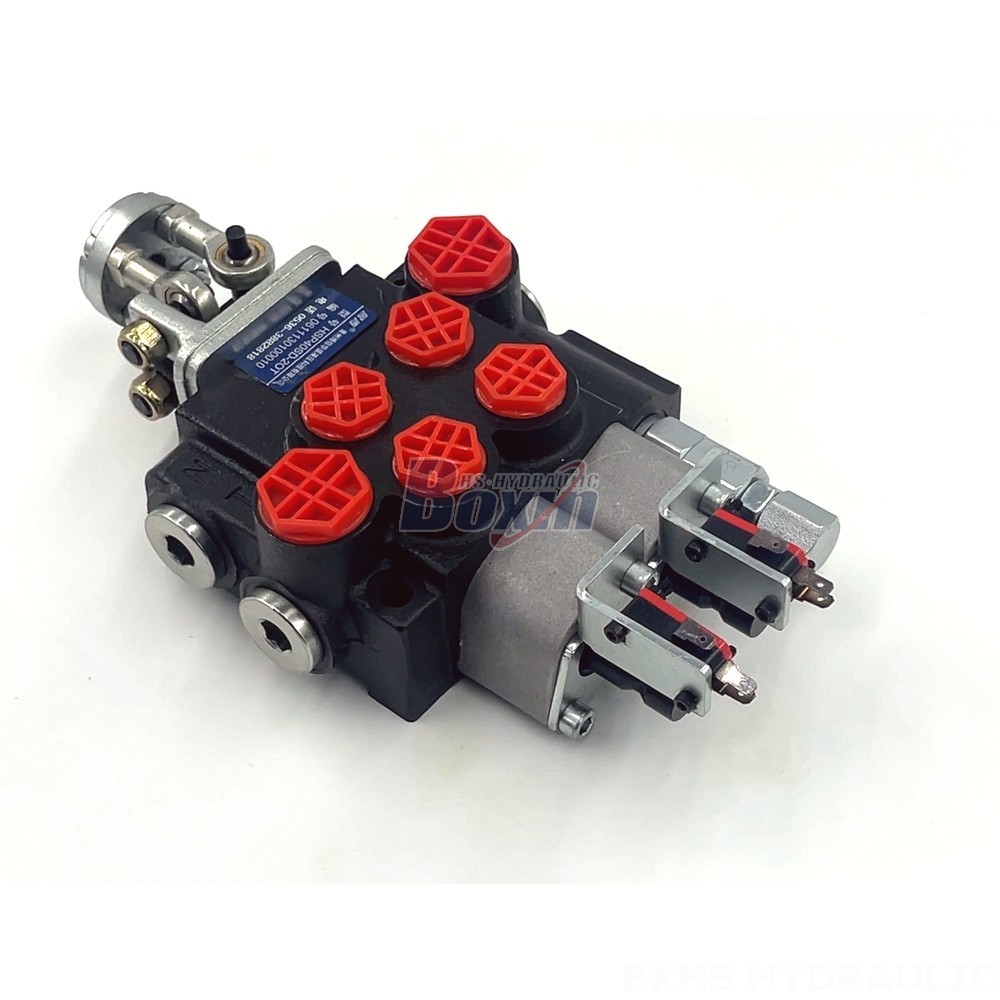

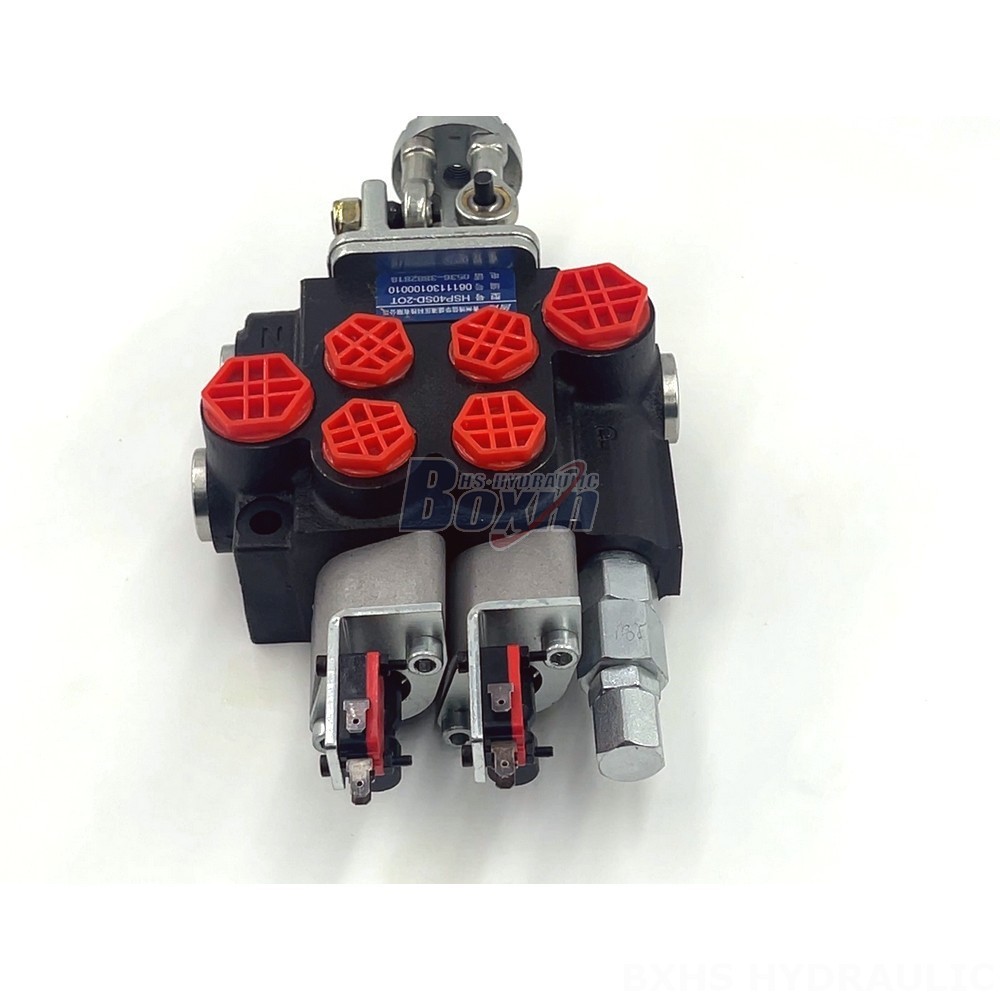

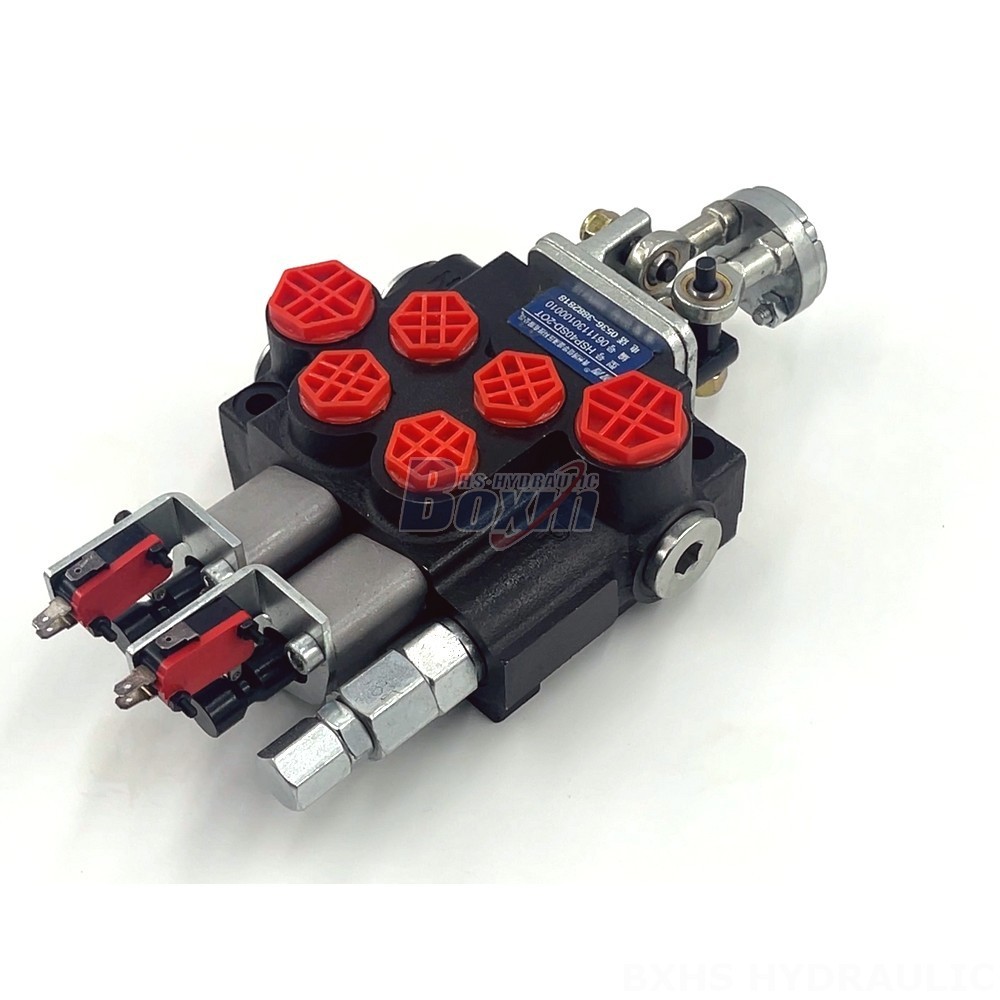

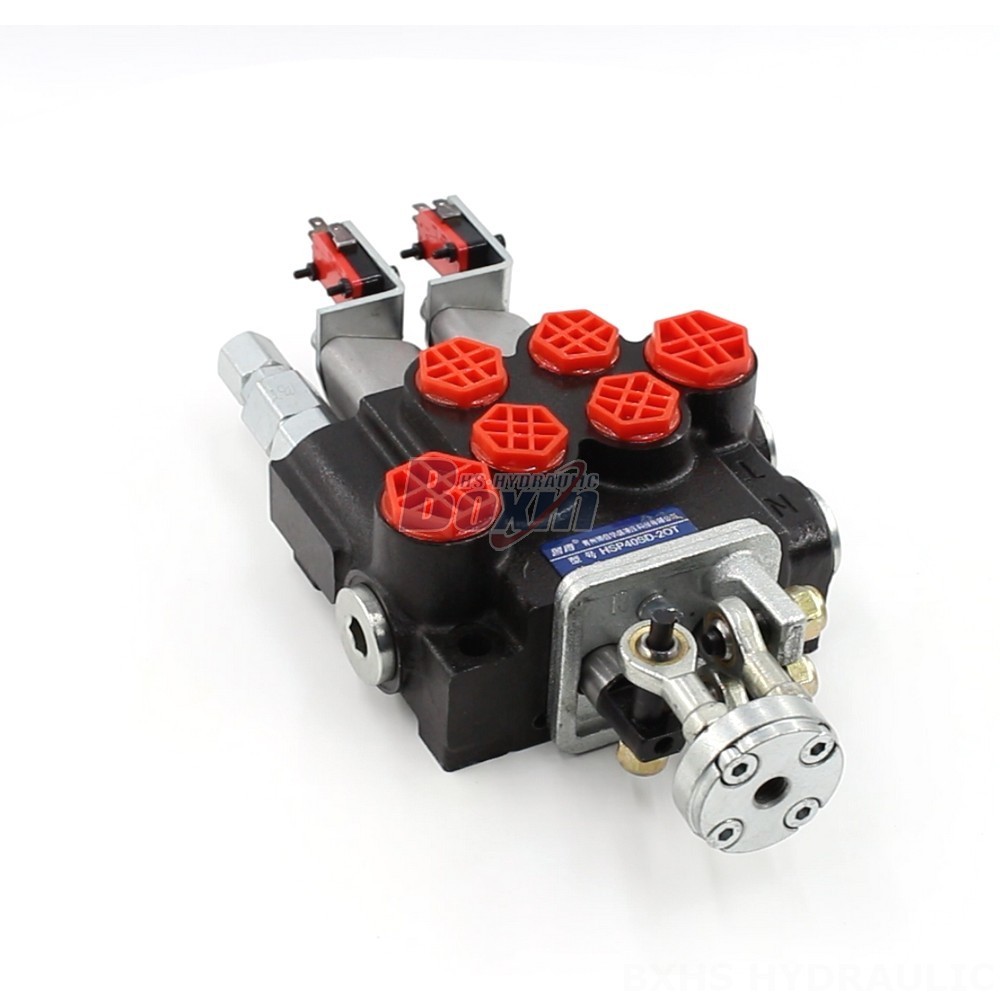

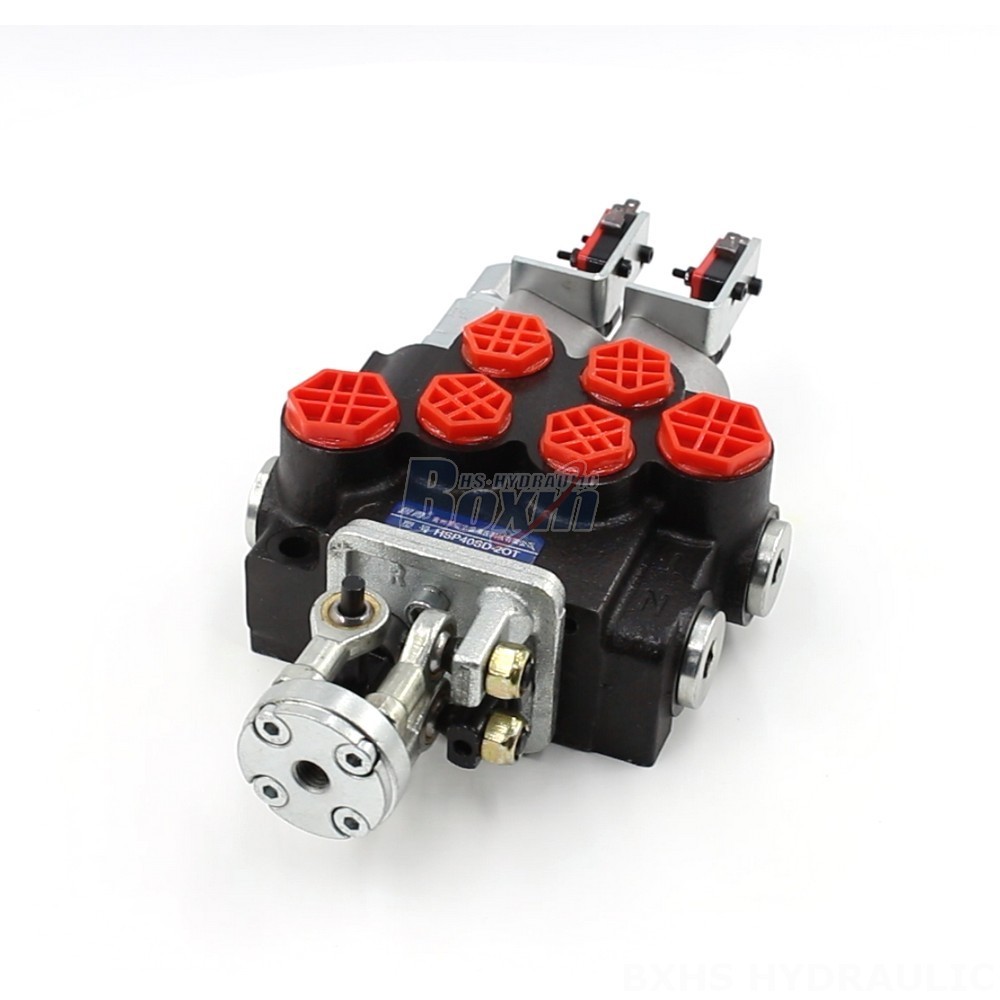

Unbeatable Prices: Factory Wholesale Pricing for P40 Micro Switch Joystick 2 Spool Monoblock Directional Valves

控制方式:一控二手柄控制

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:33*18*17

Grossweight:6.50 kg

库存: 有货

940 次查看了此产品

Unbeatable Prices: Factory Wholesale Pricing for P40 Micro Switch Joystick 2 Spool Monoblock Directional Valves

Unbeatable Prices: Factory Wholesale Pricing for P40 Micro Switch Joystick 2 Spool Monoblock Directional Valves

Unbeatable Prices: Factory Wholesale Pricing for P40 Micro Switch Joystick 2 Spool Monoblock Directional Valves drawing image

Introducing our Unbeatable Prices: Factory Wholesale Pricing for P40 Micro Switch Joystick 2 Spool Monoblock Directional Valves! As a leading hydraulic product manufacturer, we offer exceptional manufacturing, OEM, and customization services. Our valves are designed for various applications, including material handling, construction, earth moving, agriculture, and industrial vehicles.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

Our P40 Series 2 Spool Monoblock Directional Valves are engineered for precision and durability. Featuring a joystick control, these valves deliver precise flow control with a rated flow of 40 L/min and a maximum pressure of 250 bar. The operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures compatibility with a wide range of hydraulic fluids. These valves excel in extreme temperatures, with an ambient temperature range of -40°C to +80°C (-40°F to +176°F). As a manufacturer, we pride ourselves on providing factory wholesale pricing, ensuring competitive costs for our global customers. Whether you're a distributor, wholesaler, agent, or trader, we invite you to explore our Unbeatable Prices for P40 Micro Switch Joystick 2 Spool Monoblock Directional Valves and join our network of partners.
