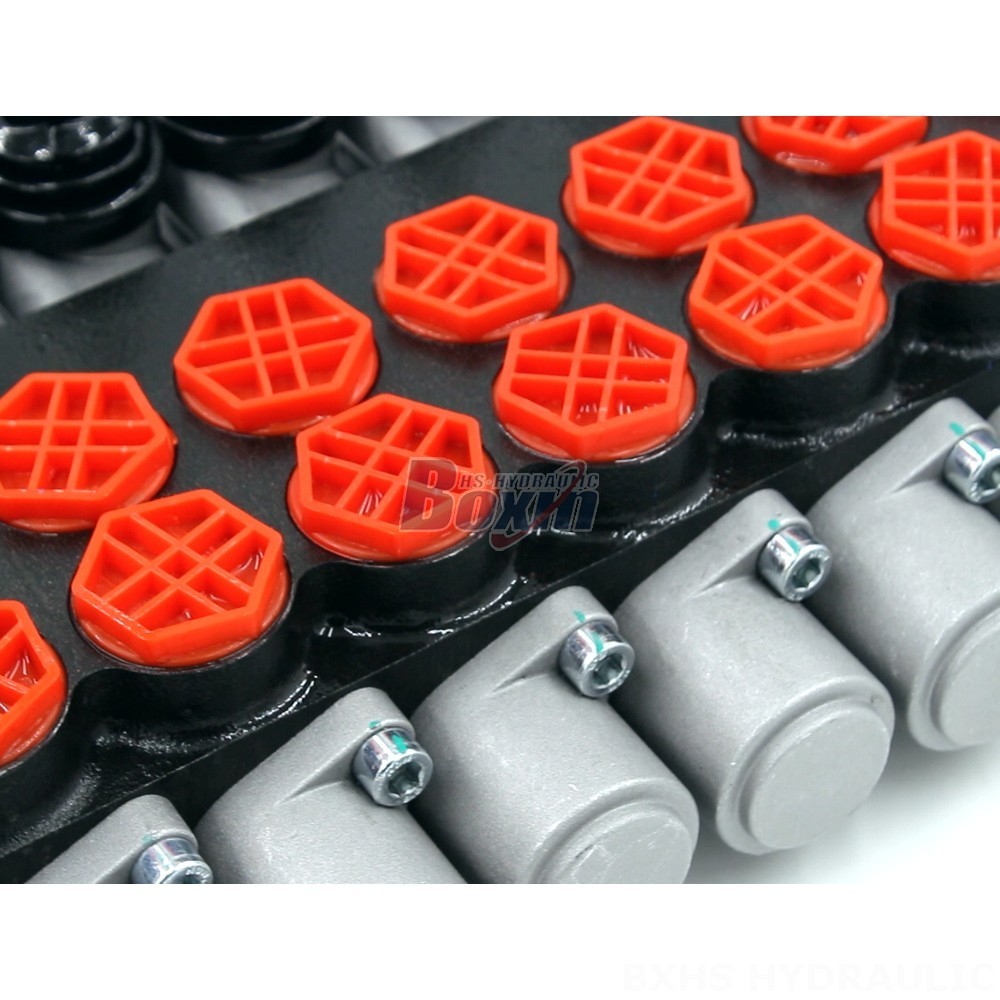

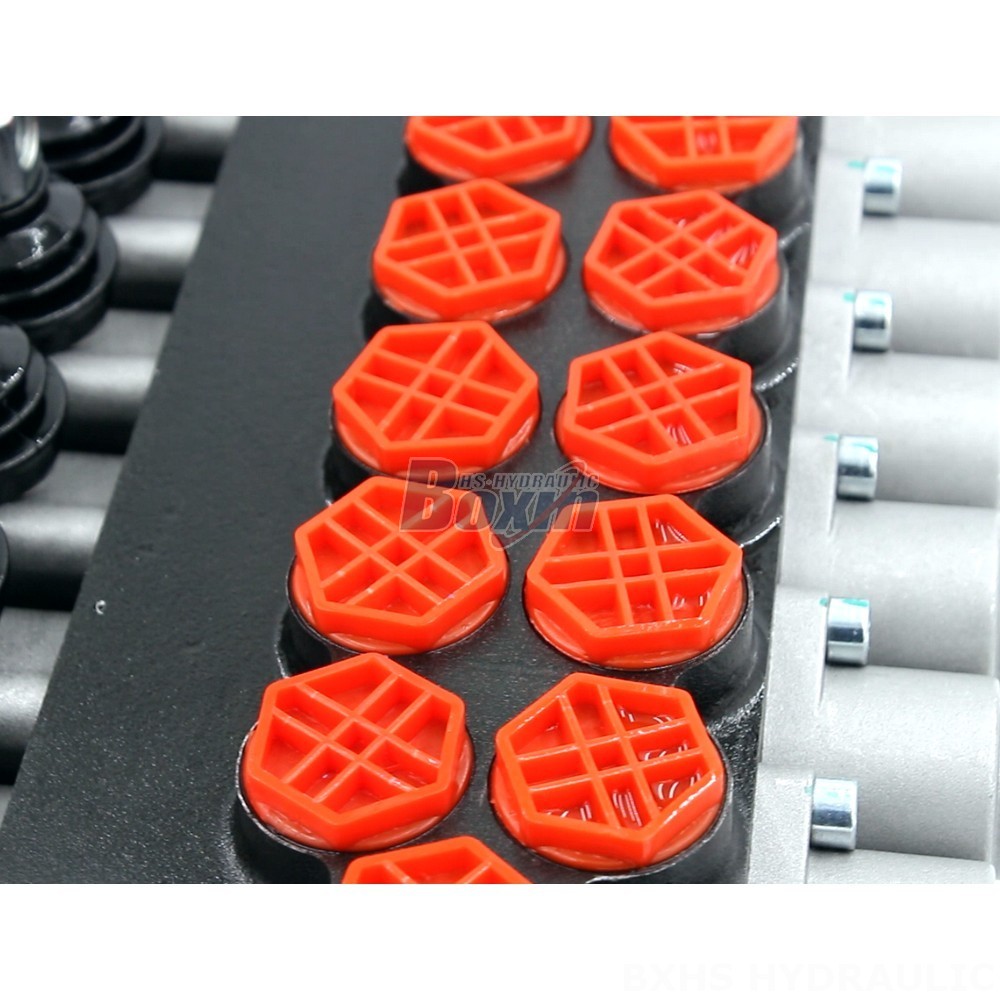

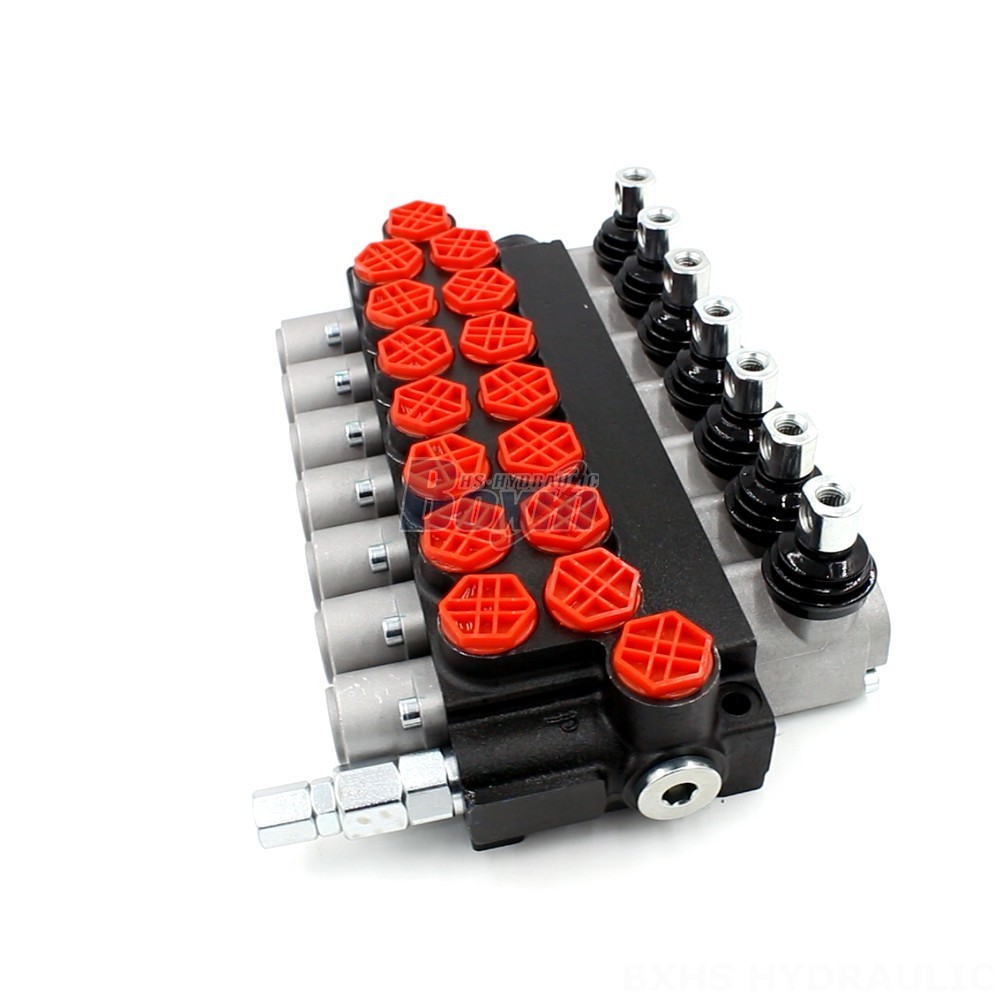

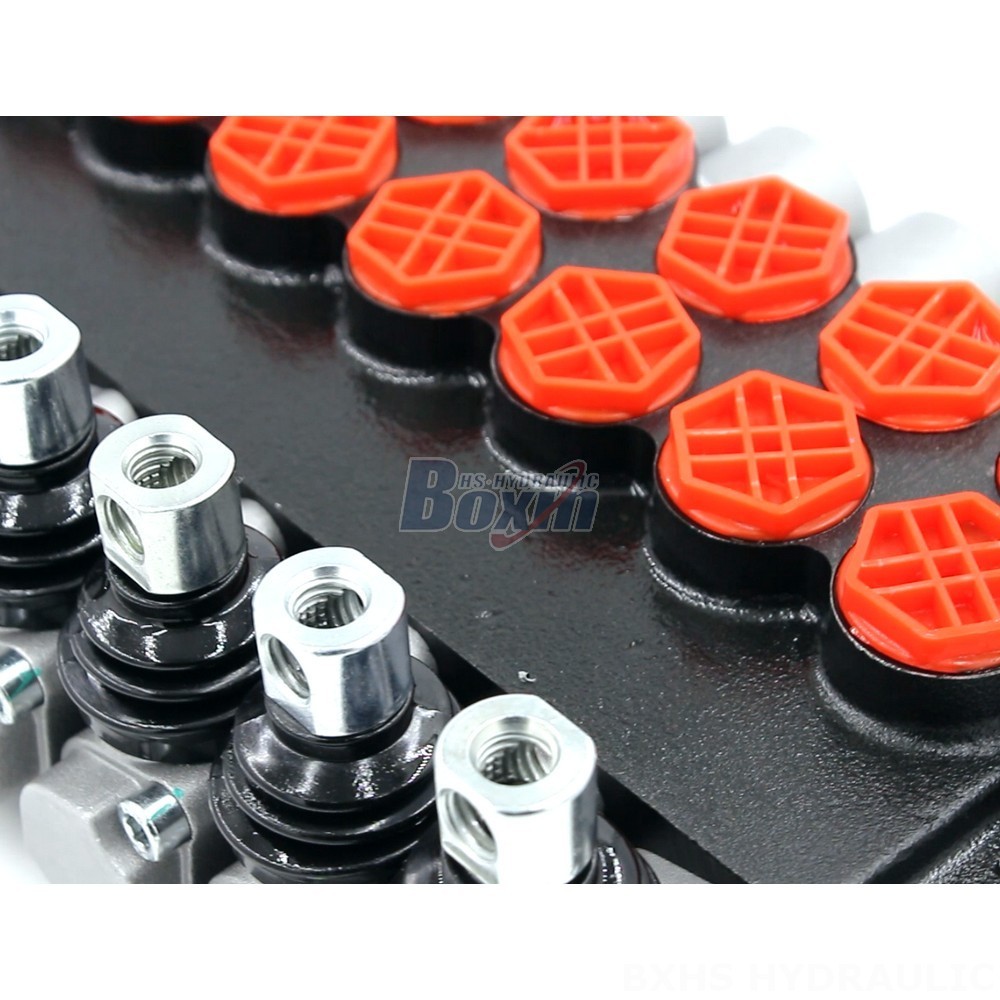

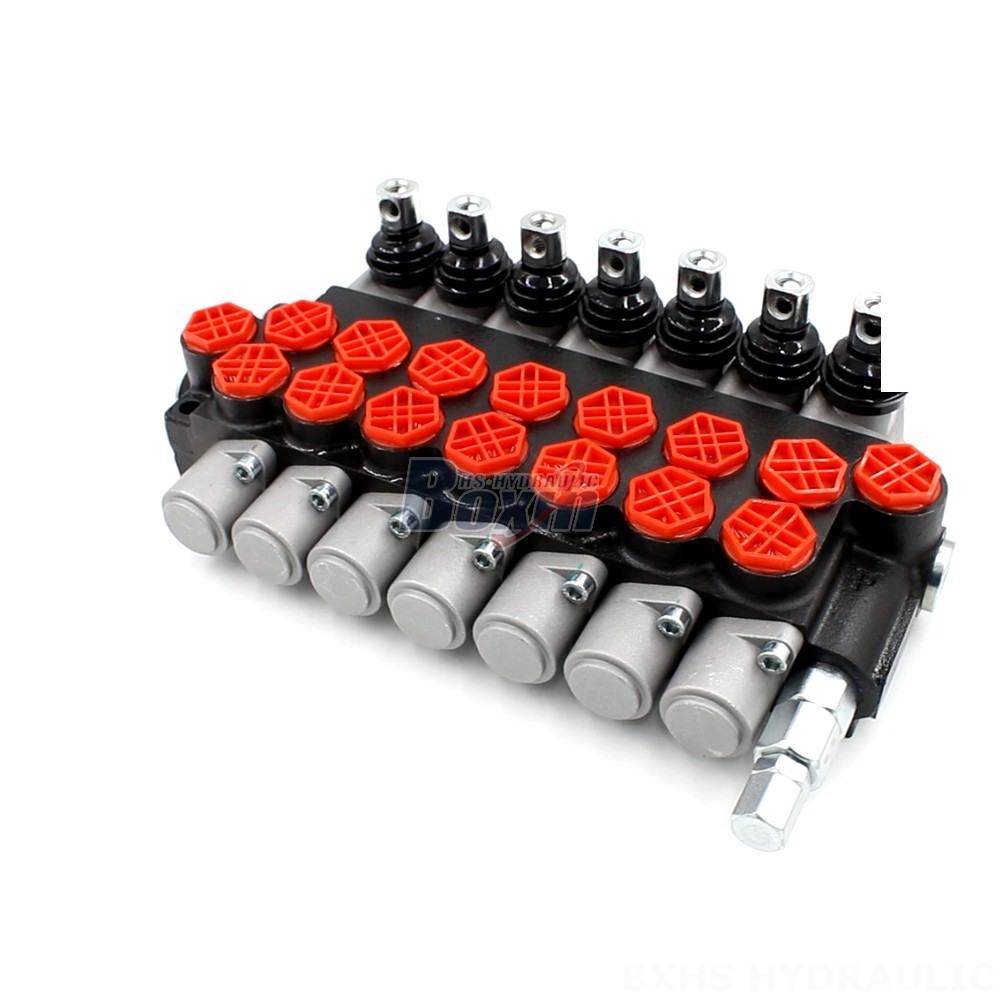

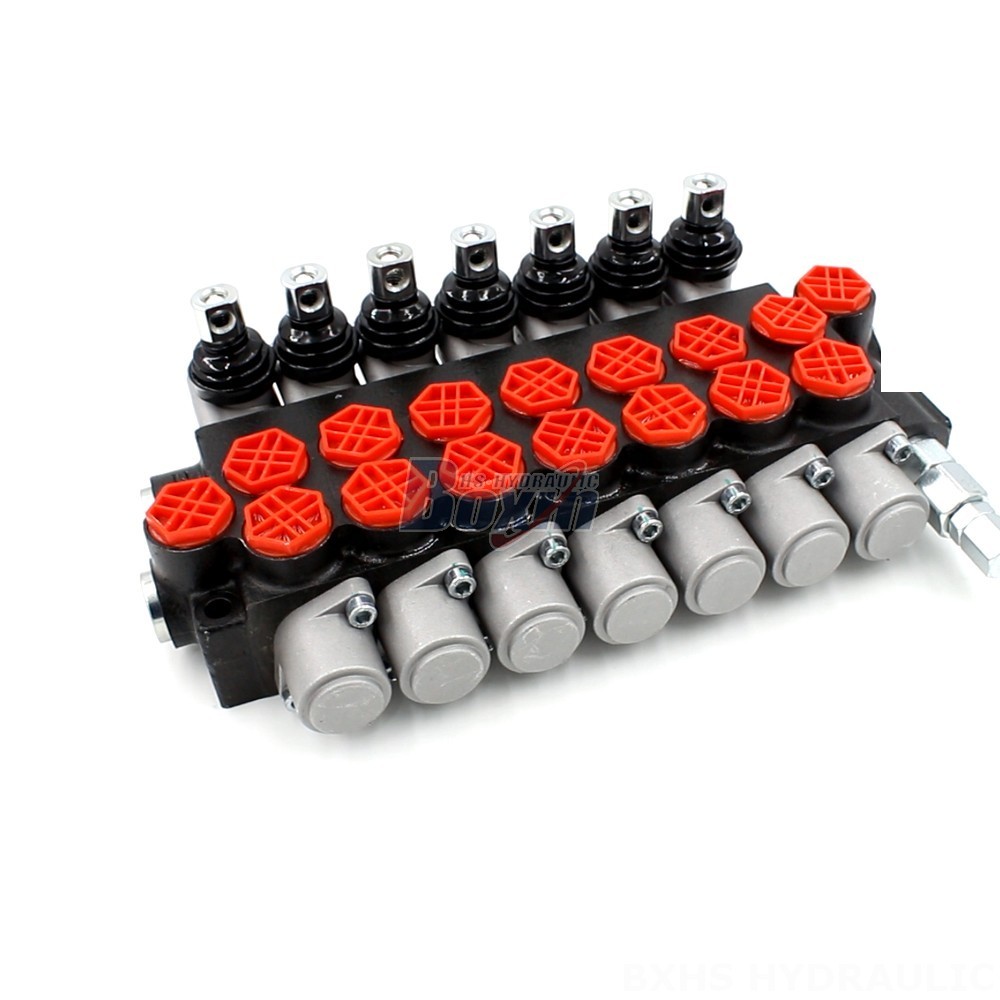

This 7-section monoblock directional control valve is designed for heavy-duty applications in various industries such as material handling, construction, and agriculture. It features a high flow rate, robust construction, and a wide operating temperature range, making it ideal for telehandlers, forklifts, and other industrial vehicles.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
This P40 series directional control valve is a high-performance hydraulic component designed for demanding applications. With a 7-section monoblock structure, it provides precise control over hydraulic fluid flow. Its rated flow of 40 L/min and maximum pressure of 250 bar ensure efficient operation in a wide range of applications. The valve features a manual control method, offering user-friendly operation. It is also highly customizable, allowing for various configurations and functionalities to meet specific needs. We offer OEM, ODM, and private label options to meet your unique requirements. Contact us for your custom hydraulic valve solutions.
