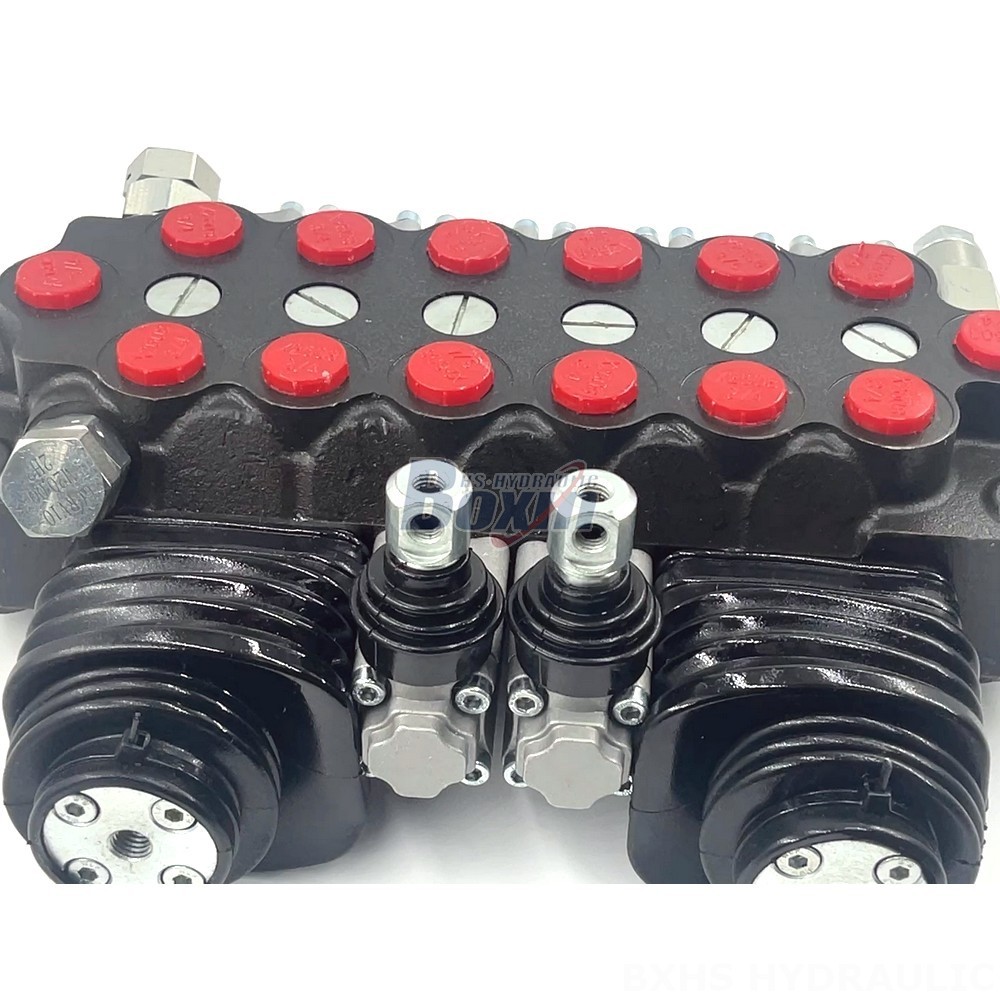

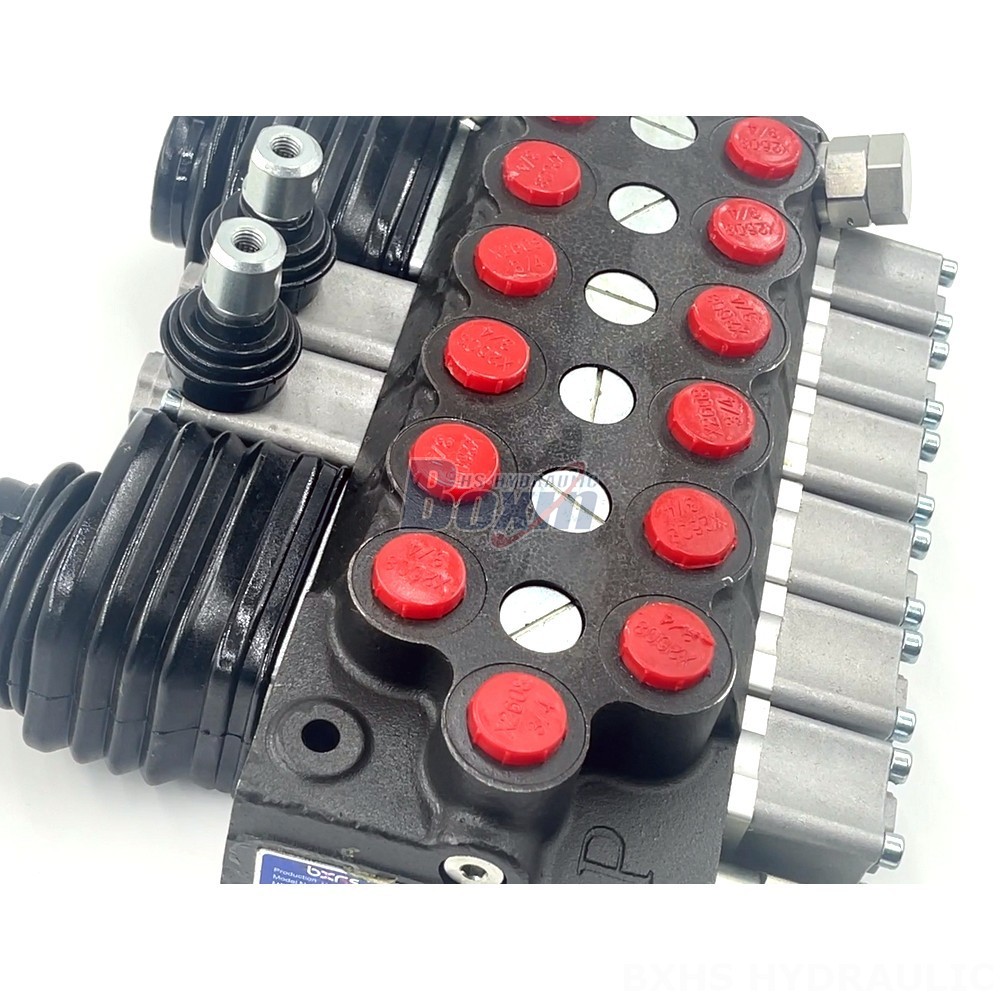

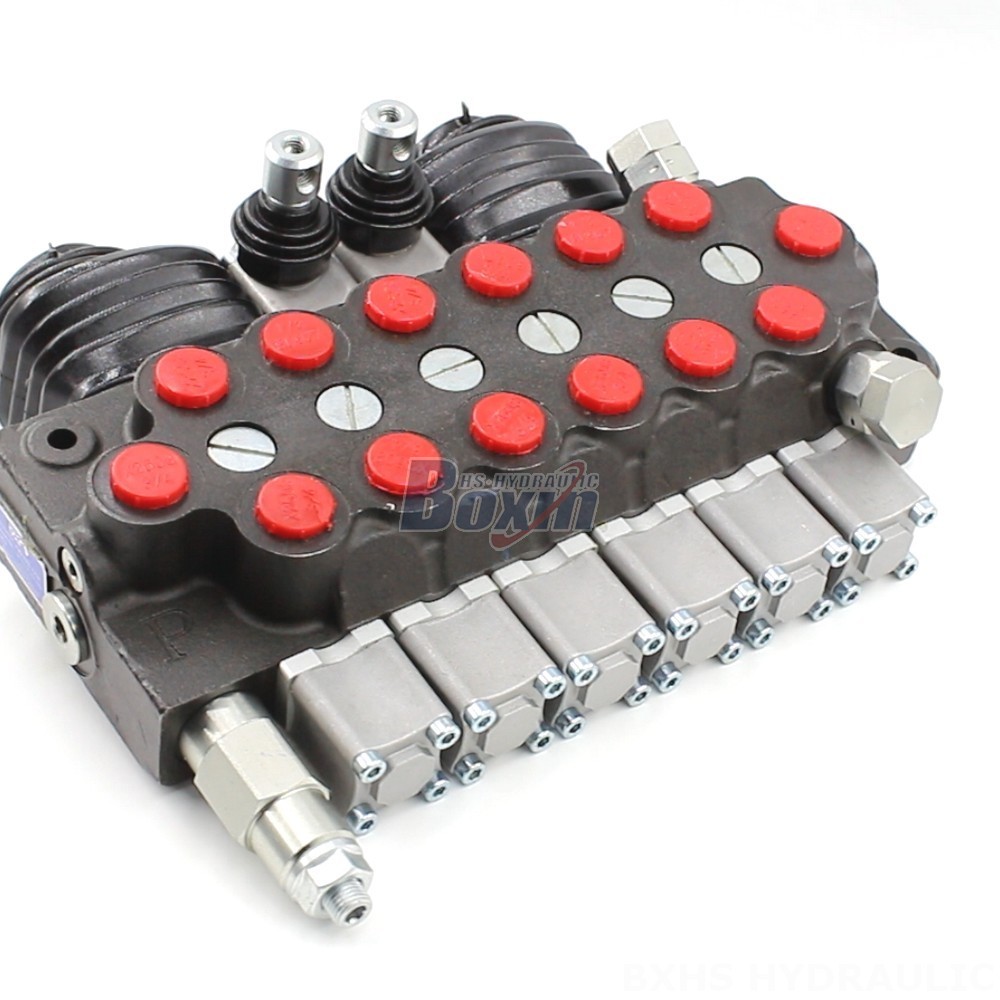

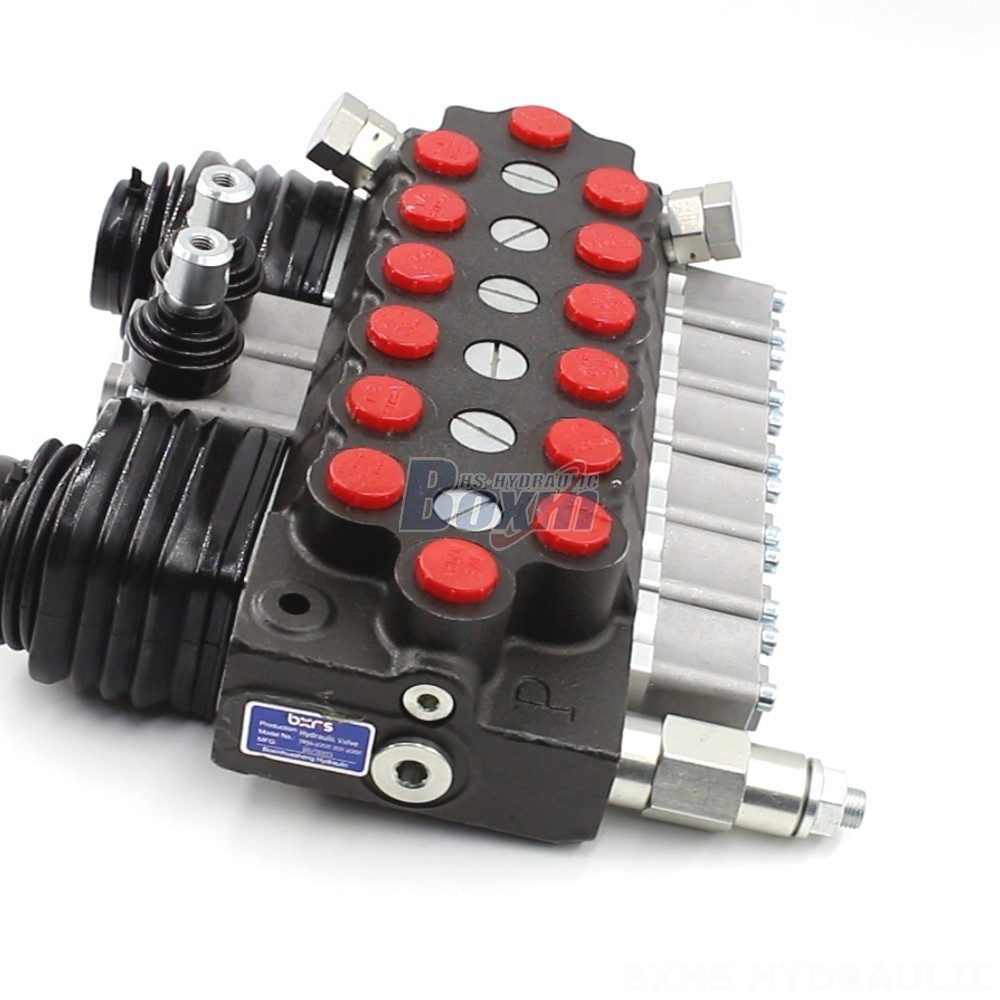

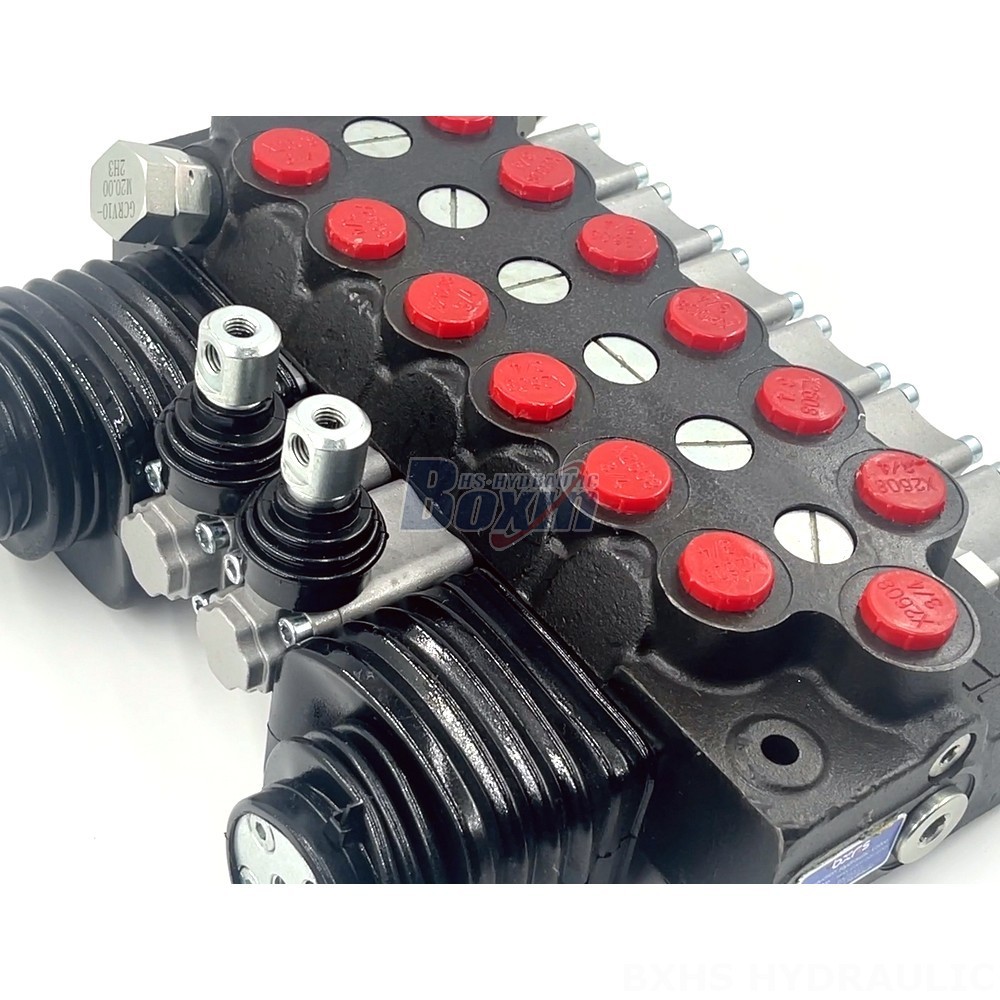

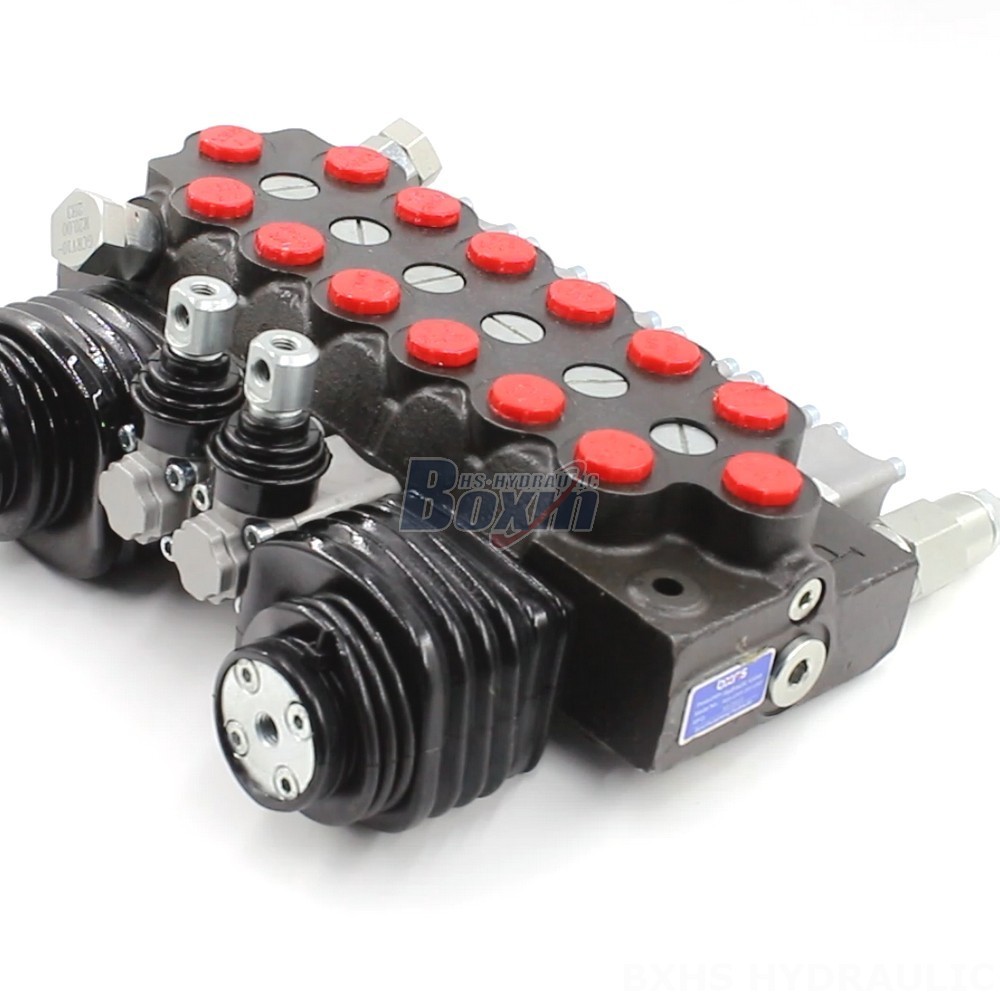

The TR55 Manual and Joystick Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its robust construction, precise control, and versatility, this valve is an ideal choice for controlling the flow of hydraulic fluid in systems requiring precise and efficient operation.
| TR55系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/8接口, G1/2接口 |
| 出油口 | G3/8接口, G1/2接口 |
| 接口尺寸 | G3/8接口, G1/2接口 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F), -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**TR55 Manual and Joystick Directional Valve**
**Control Method:** Manual and Joystick
**Section:** 6 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F), -40°C to +80°C (-40°F to +176°F)
**Spool:** 6 Spool
**Series:** TR55 Series
The TR55 Directional Valve is widely used in various applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
Specifically, it is commonly found in equipment such as:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
**Key Features and Benefits:**
* Precise and reliable flow control
* Durable construction for harsh environments
* Compact and modular design for easy integration
* Versatile control options with manual and joystick operation
* Wide range of applications in various industries
