Hydraulic Pressure Reduction Valve TR55 Joystick-Operated Valve | Factory Direct & Customizable

控制方式:手控+一控二

路数:6 联

额定流量:40 L/min (10.5 US gpm)

最大压力:315 bar (4600 psi)

进油口:SAE 8接头

出油口:SAE 8接头

接口尺寸:SAE 8接头

品牌:BXHS

所属类别:单块式方向阀

产品系列:TR55系列 单块式方向阀

Packagingsize:33*35*16

Grossweight:17.00 kg

库存: 有货

834 次查看了此产品

Hydraulic Pressure Reduction Valve TR55 Joystick-Operated Valve | Factory Direct & Customizable

Hydraulic Pressure Reduction Valve TR55 Joystick-Operated Valve | Factory Direct & Customizable

Hydraulic Pressure Reduction Valve TR55 Joystick-Operated Valve | Factory Direct & Customizable drawing image

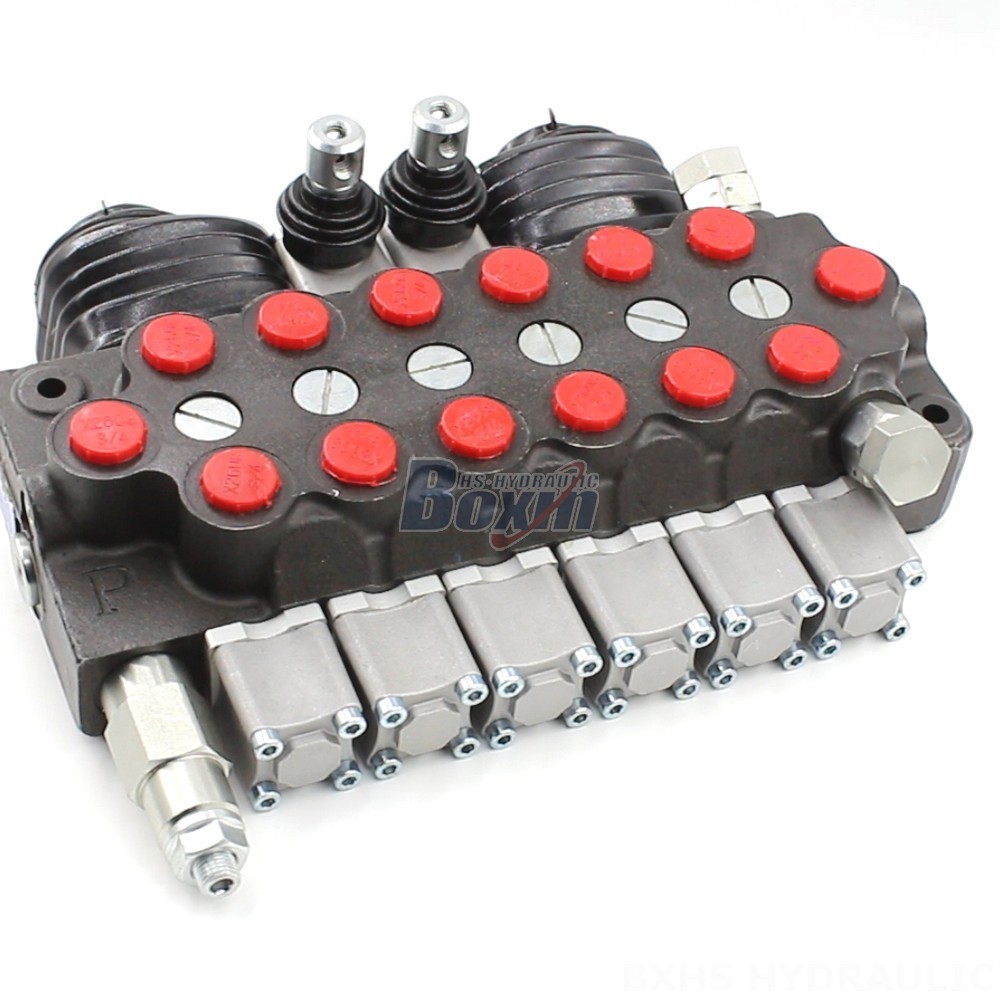

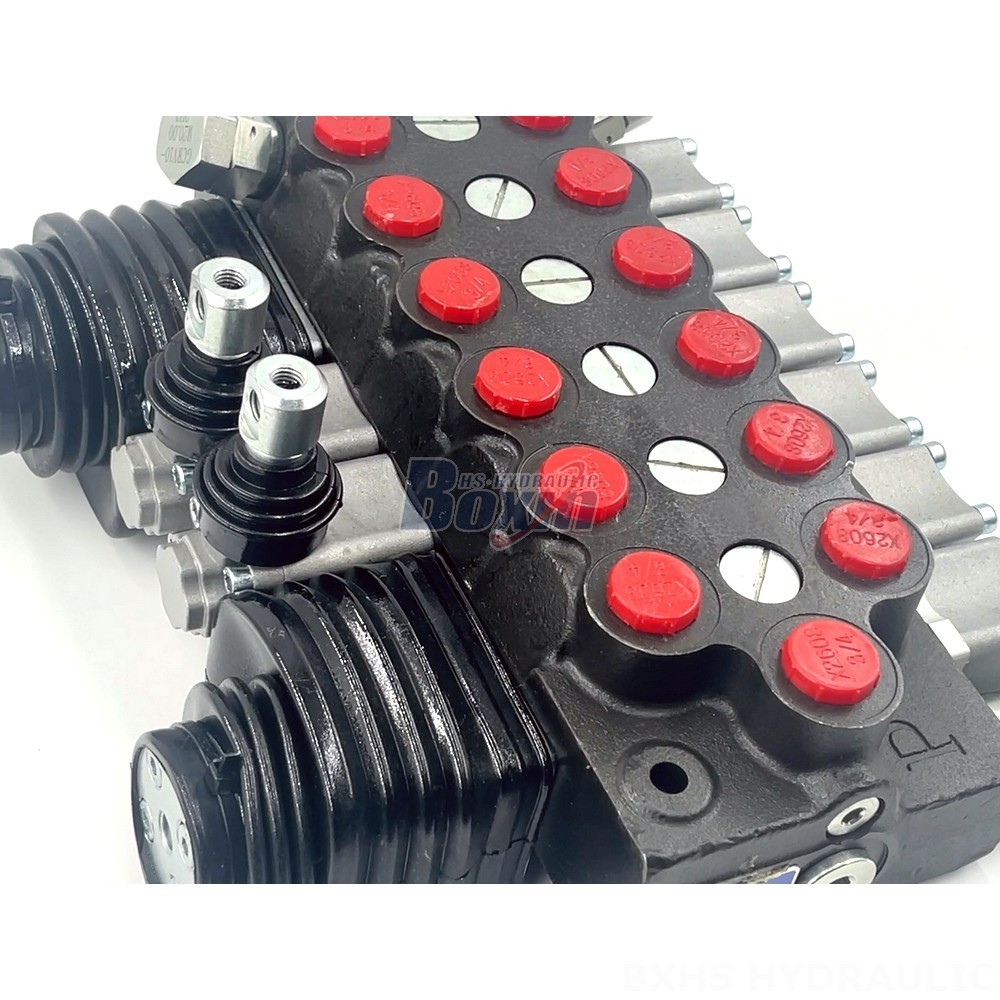

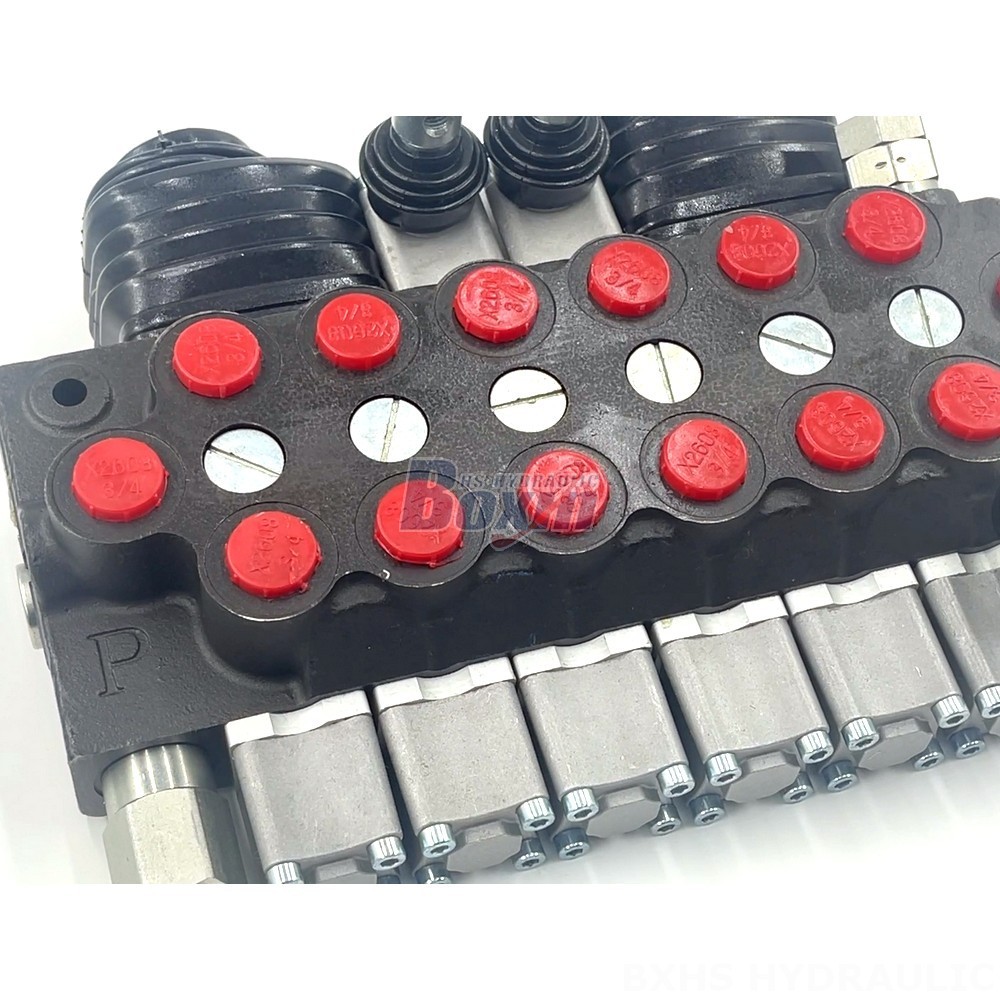

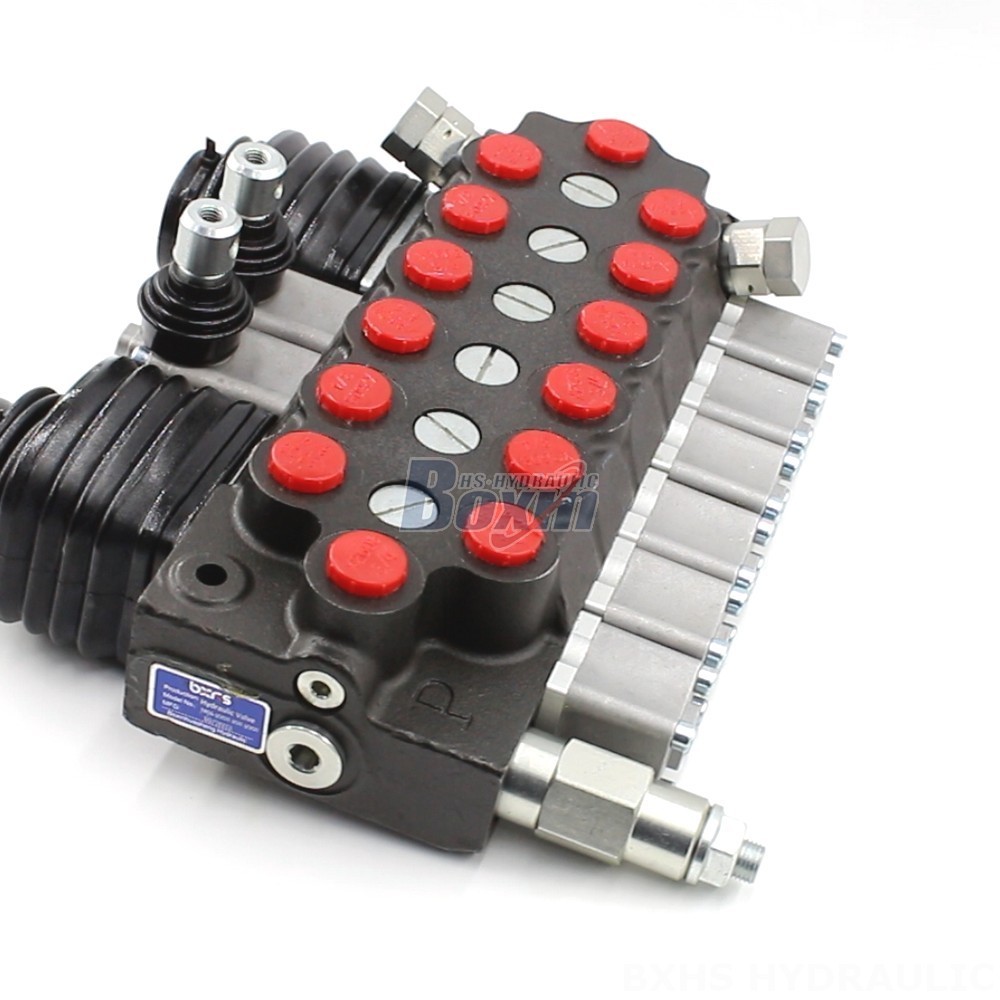

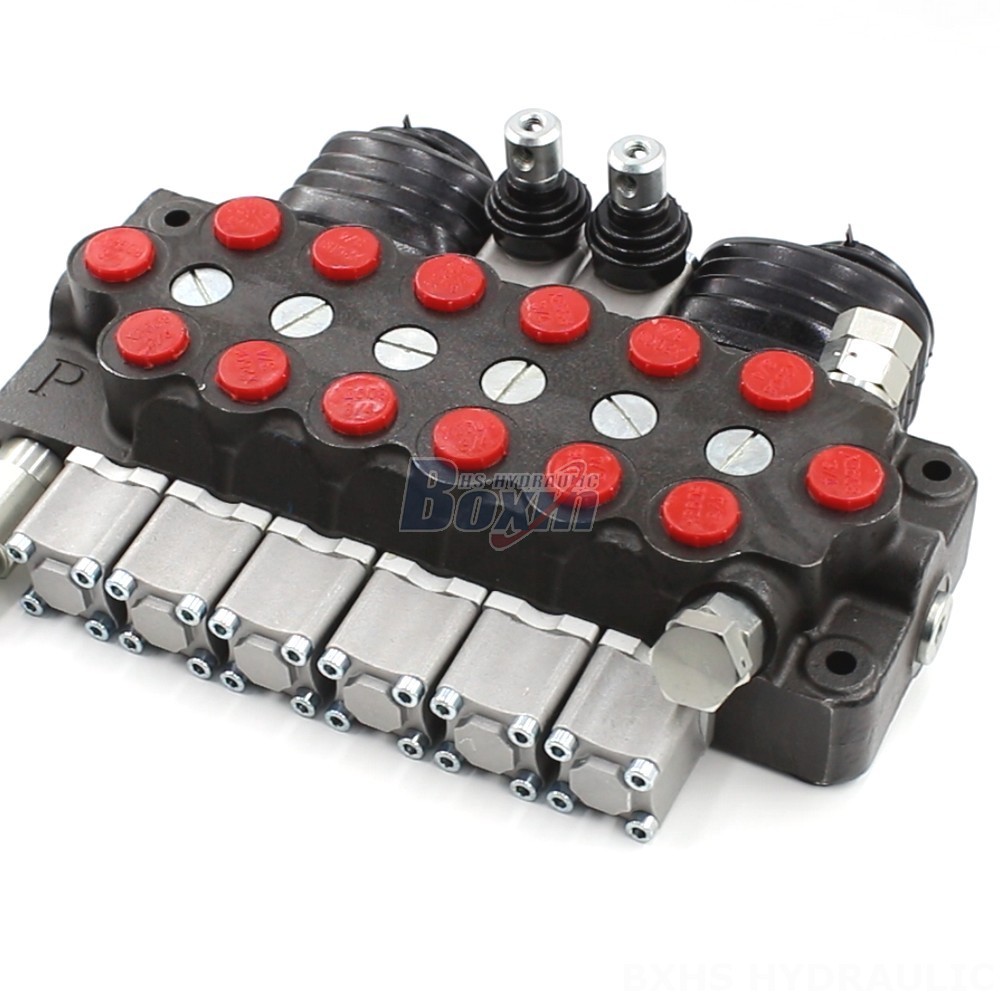

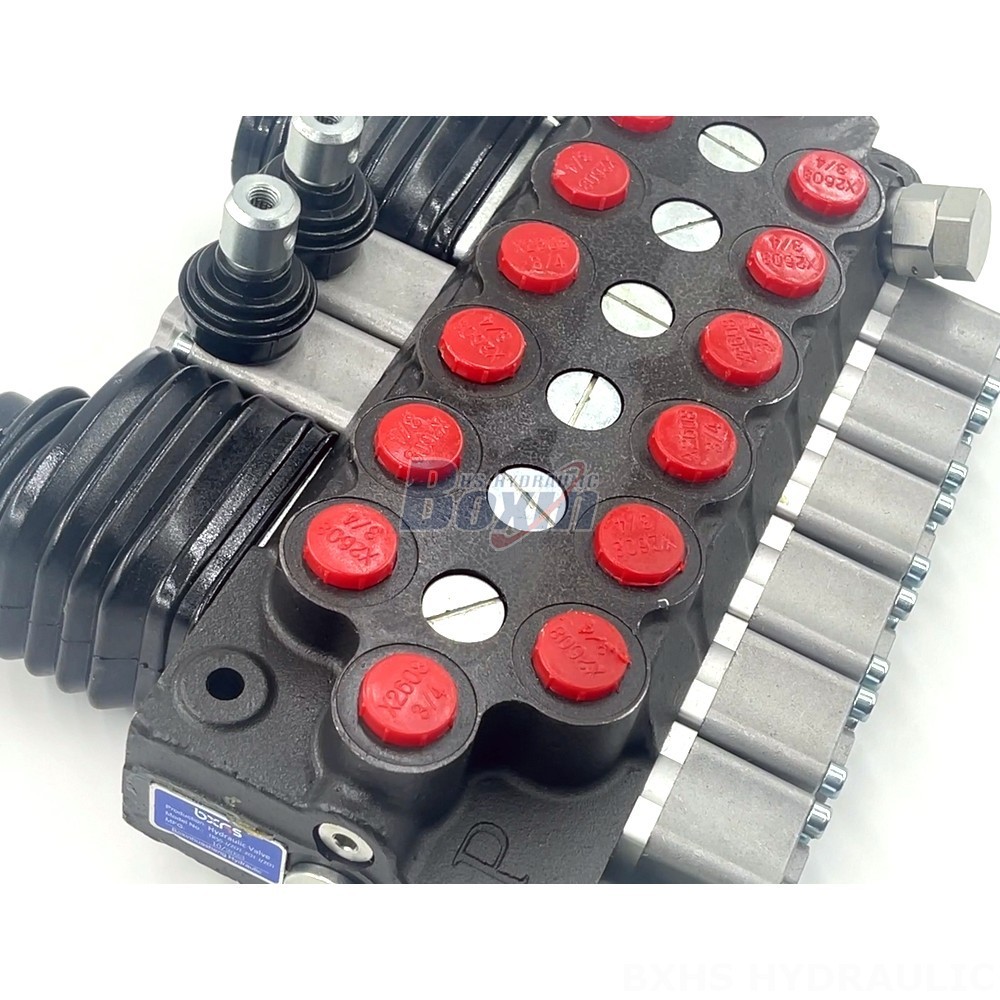

The TR55 Series Hydraulic Pressure Reduction Valve is a robust and reliable valve designed for various applications in construction, material handling, agriculture, and industrial vehicles. It features manual and joystick control, a 6-section monoblock design, and a maximum pressure rating of 315 bar (4600 psi).

TR55系列 单块式方向阀 参数
控制方式 手控, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联
额定流量 40 L/min (10.5 US gpm)
最大压力 315 bar (4600 psi)
进油口 G3/8接口, G1/2接口
出油口 G3/8接口, G1/2接口
接口尺寸 G3/8接口, G1/2接口
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联
结构类型 整体阀
环境温度范围 -40°C to +60°C (-40°F to +140°F), -40°C to +80°C (-40°F to +176°F)
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)

The TR55 Series Hydraulic Pressure Reduction Valve is a high-performance valve suitable for demanding applications in construction, material handling, agriculture, and industrial vehicles. This 6-section monoblock valve offers both manual and joystick control options, enabling precise and efficient operation. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 315 bar (4600 psi), this valve provides exceptional performance for various equipment types, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The TR55 Series is designed for reliable operation in a wide range of ambient temperatures, from -40°C to +60°C (-40°F to +140°F) for standard versions and from -40°C to +80°C (-40°F to +176°F) for high-temperature versions. The valve's robust construction and high-quality materials ensure long-lasting performance and reliability. This valve is available for direct purchase, OEM, private label, customization, and wholesale distribution.
