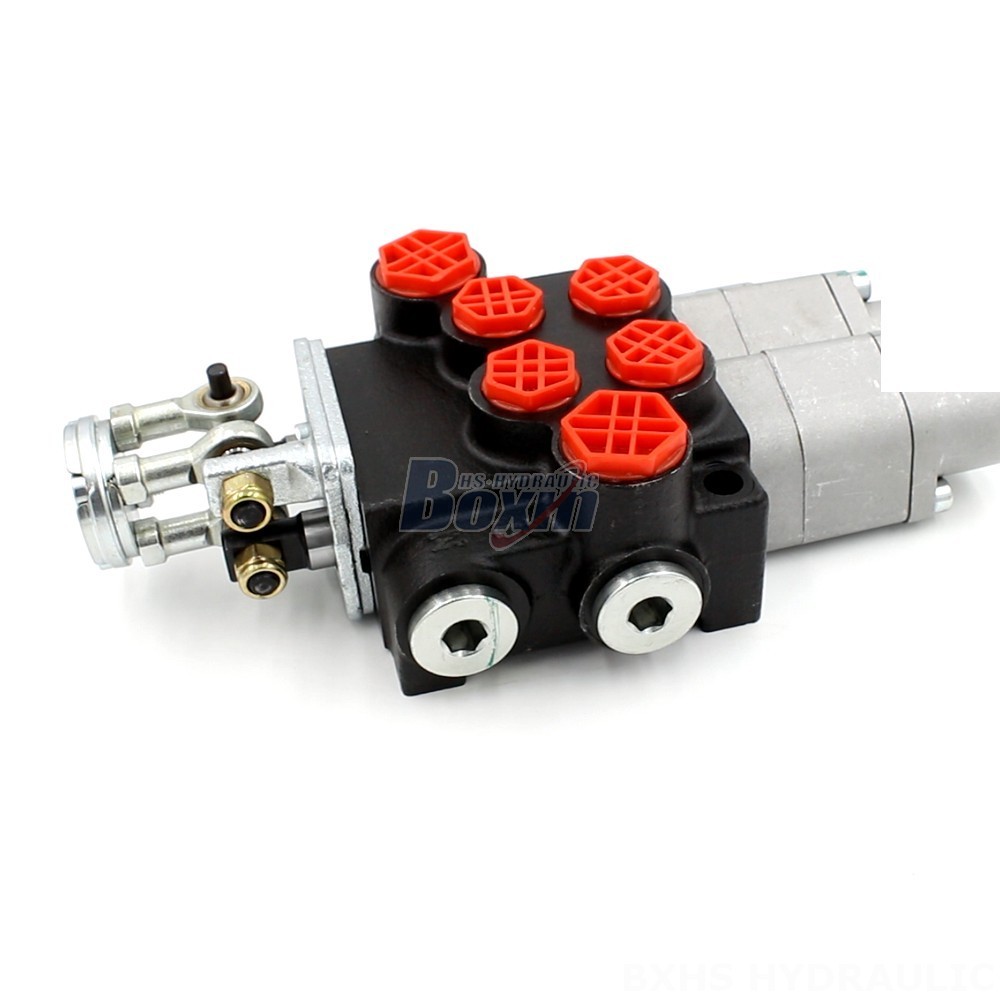

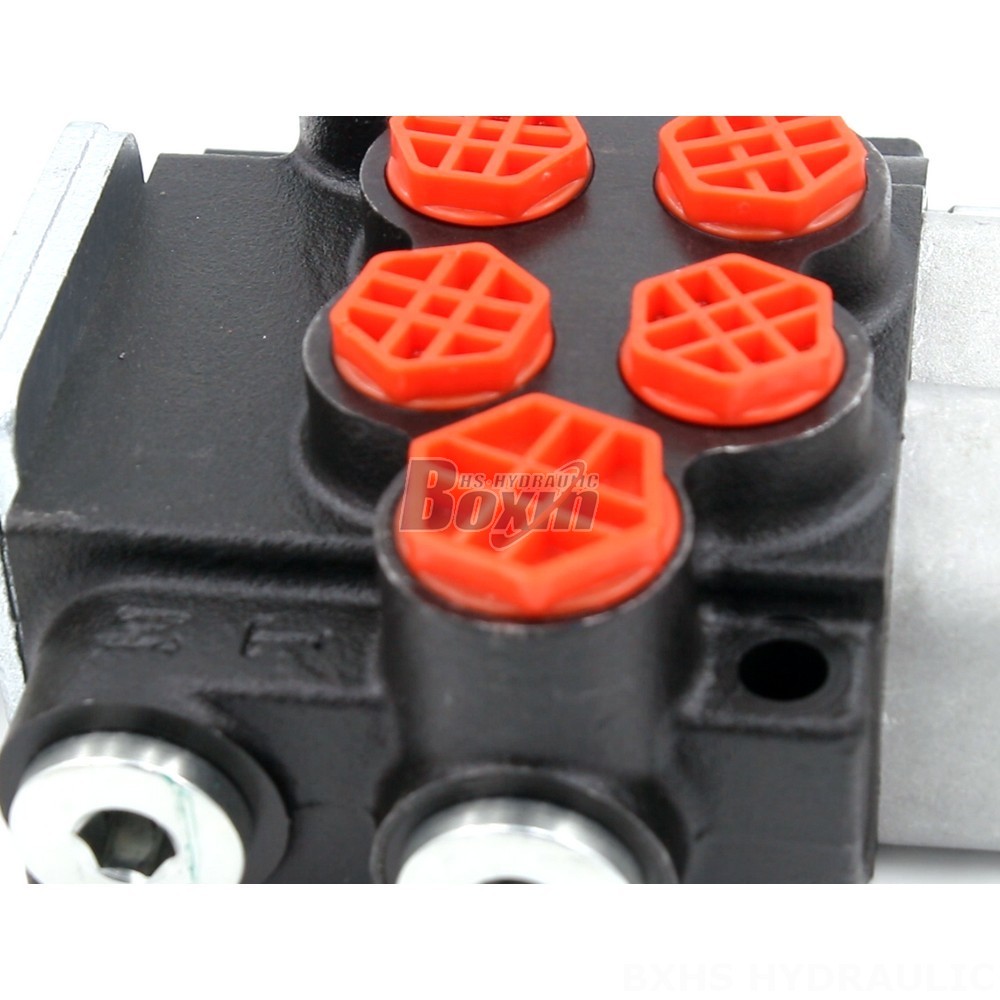

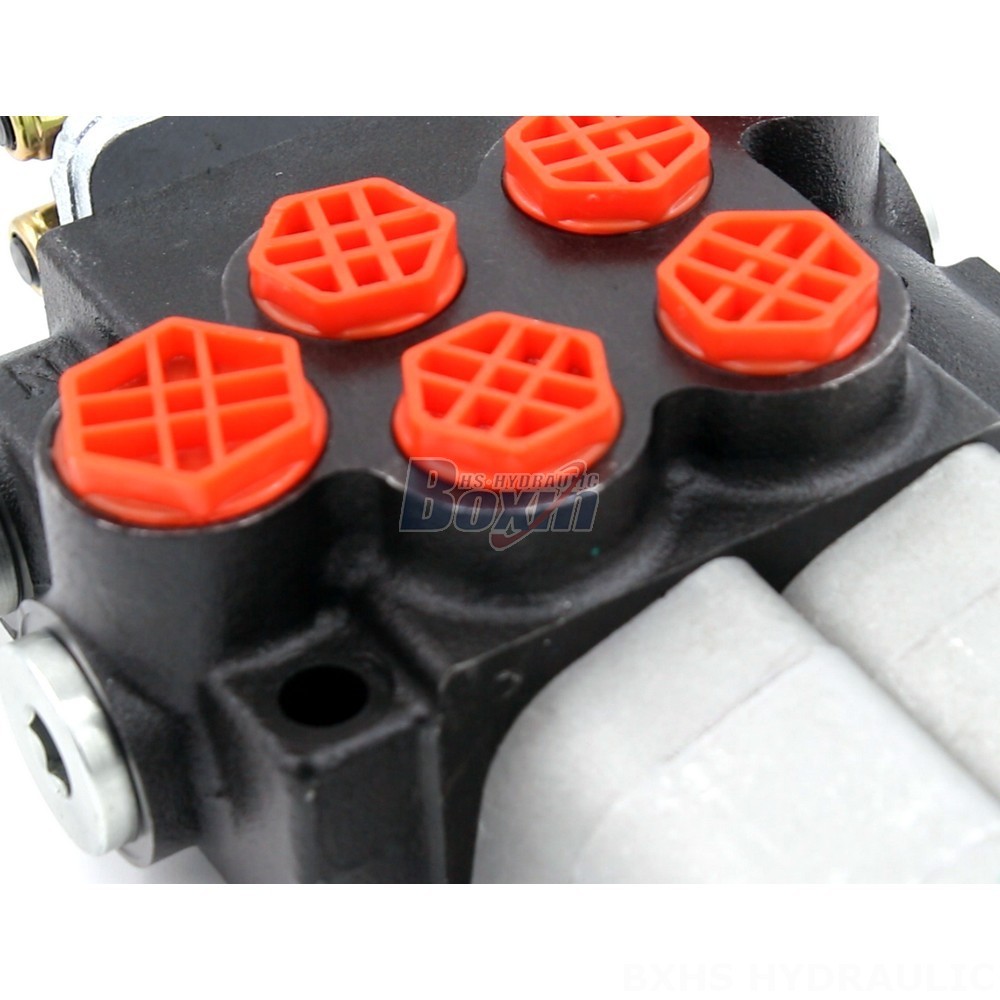

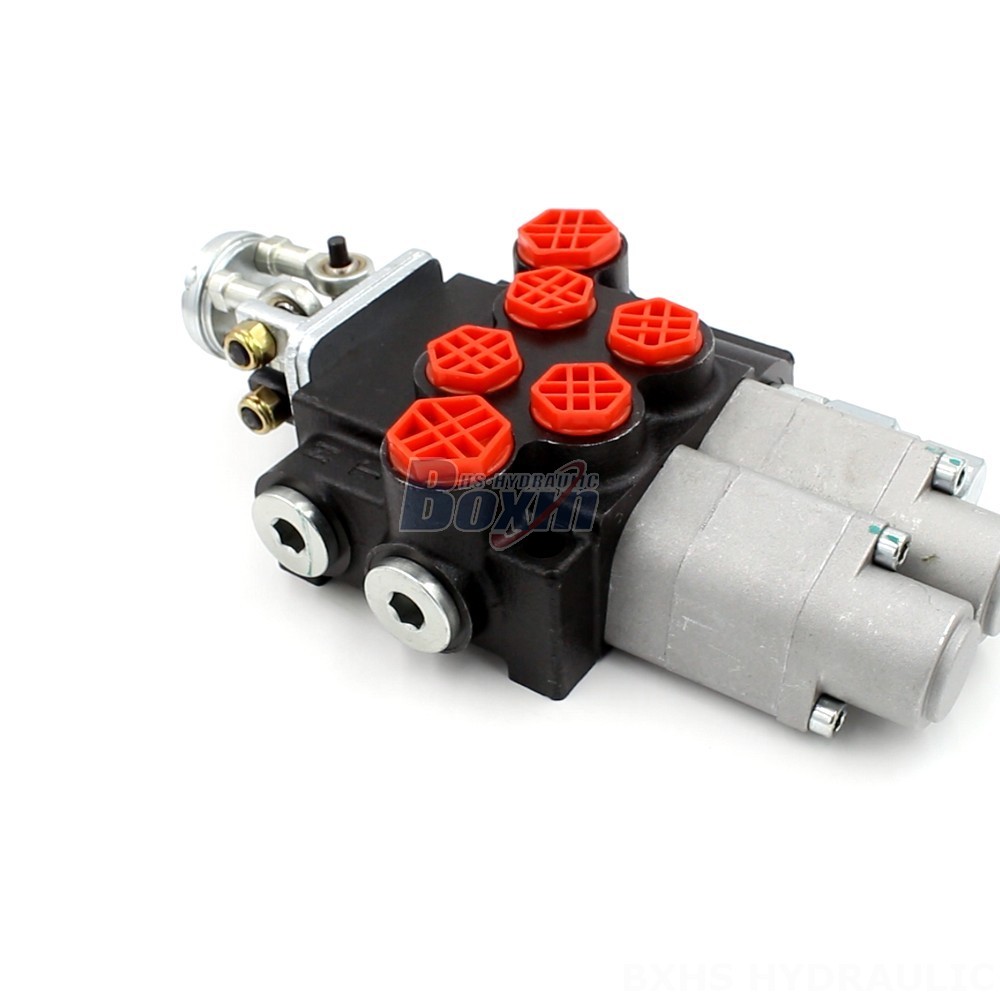

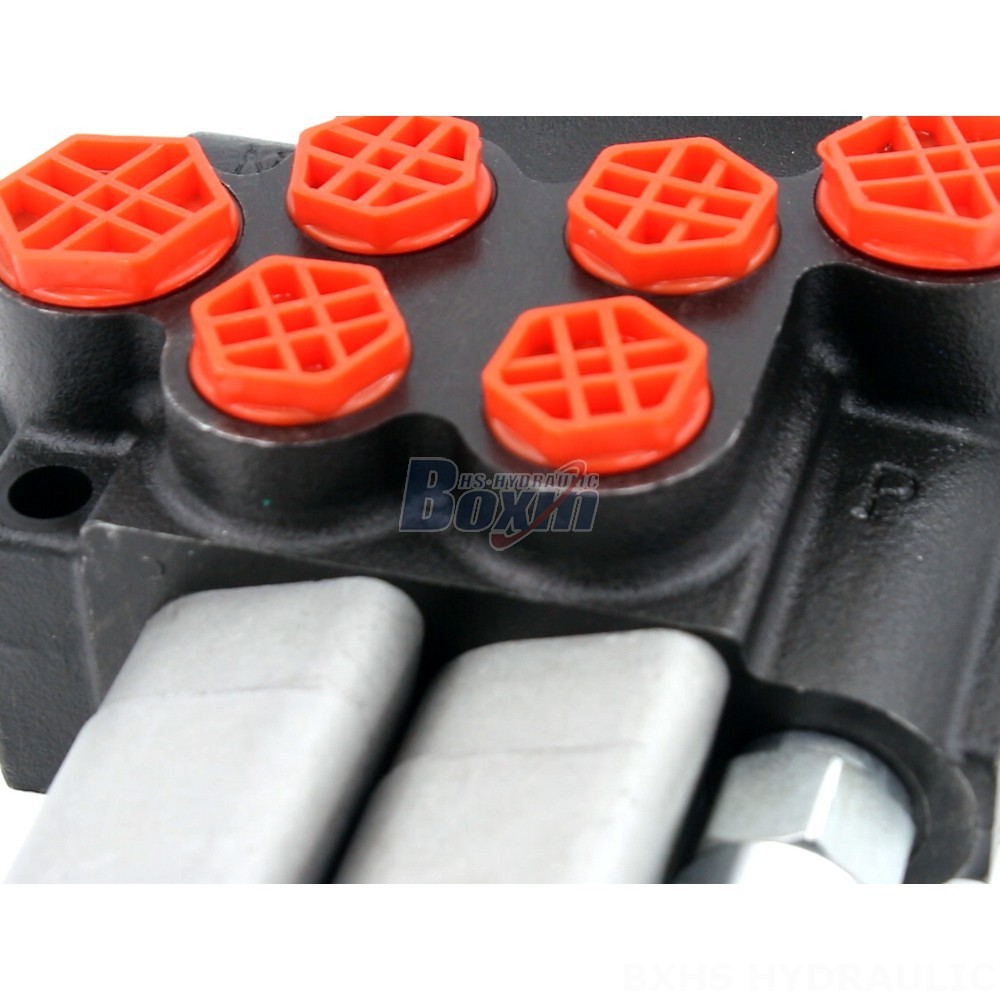

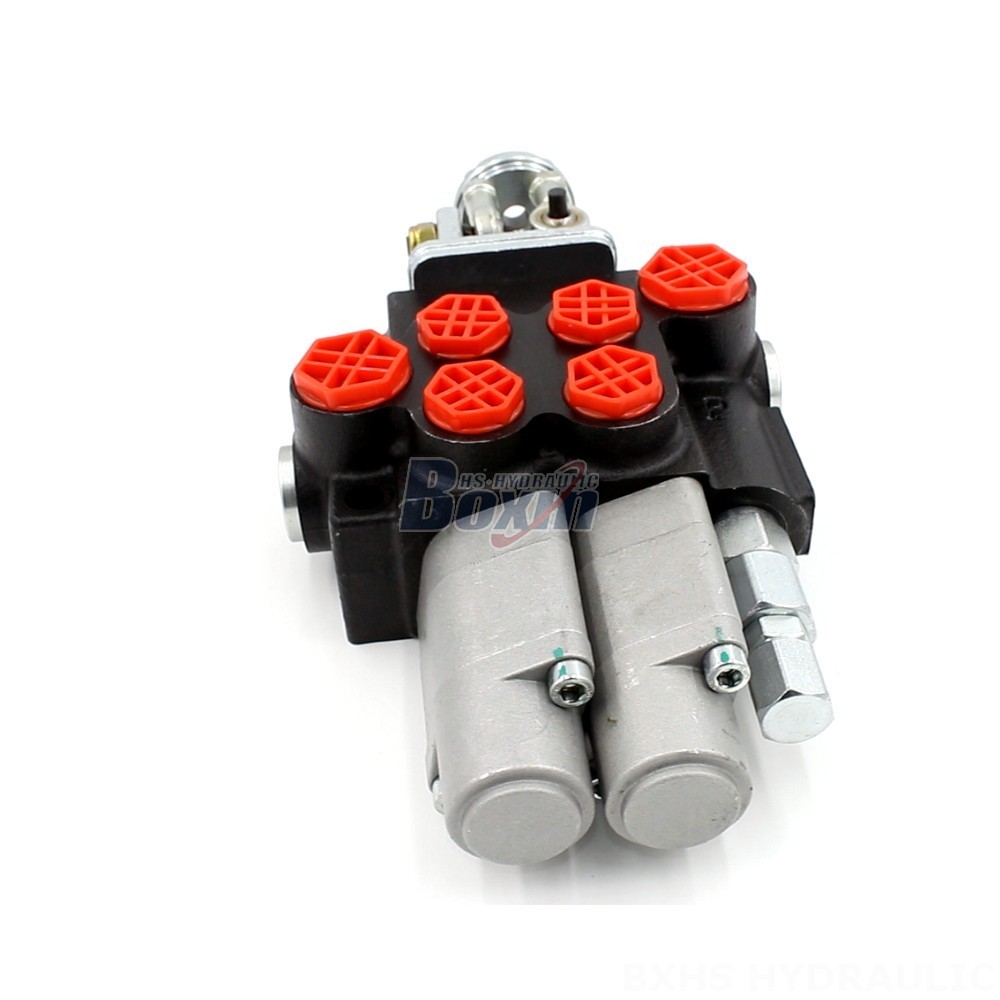

Our Hydraulic Pressure Casting Valves are tailor-made to your specific requirements. Available in the P40 series with manual or joystick control, these monoblock valves offer reliable performance for a variety of applications in material handling, construction, agriculture, and industrial vehicles. We offer manufacturing, OEM, ODM, and private label services.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
These bespoke Hydraulic Pressure Casting Valves are designed with a 2-section, monoblock structure and feature a 2-spool design. They are capable of handling flow rates up to 40 L/min (10.5 US gpm) and pressures up to 250 bar (3600 psi). The valves are suitable for operating viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt) and operate within an ambient temperature range of -40°C to +80°C (-40°F to +176°F). We offer a variety of customization options to meet your specific needs, including control methods (manual or joystick), section configuration, and spool type. We are your trusted partner for OEM, ODM, and private label solutions, ensuring high-quality products and reliable performance. Contact us today to discuss your specific project requirements.
