This P40 series hydraulic control valve is a versatile and reliable solution for various applications. We offer OEM and ODM manufacturing services, allowing you to customize your valves to meet your specific needs. Our expertise and experience guarantee high quality and performance for your hydraulic systems.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |

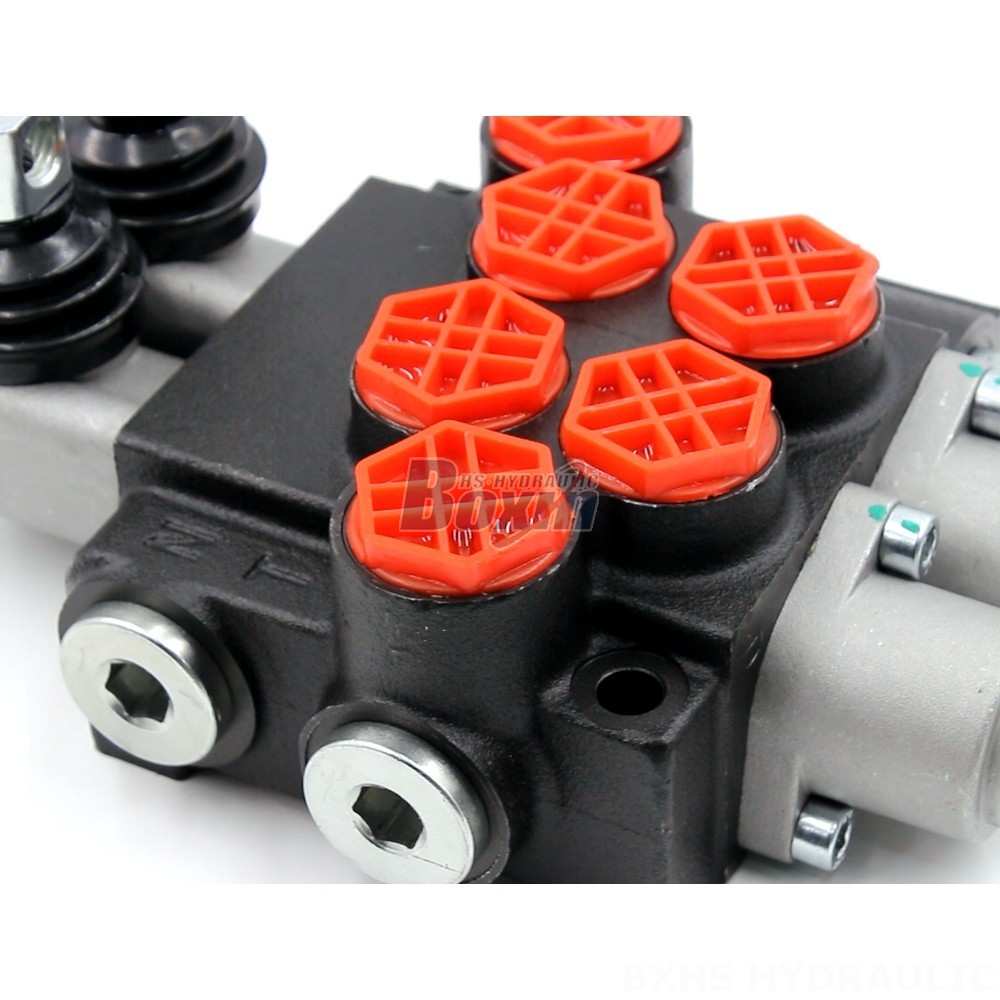

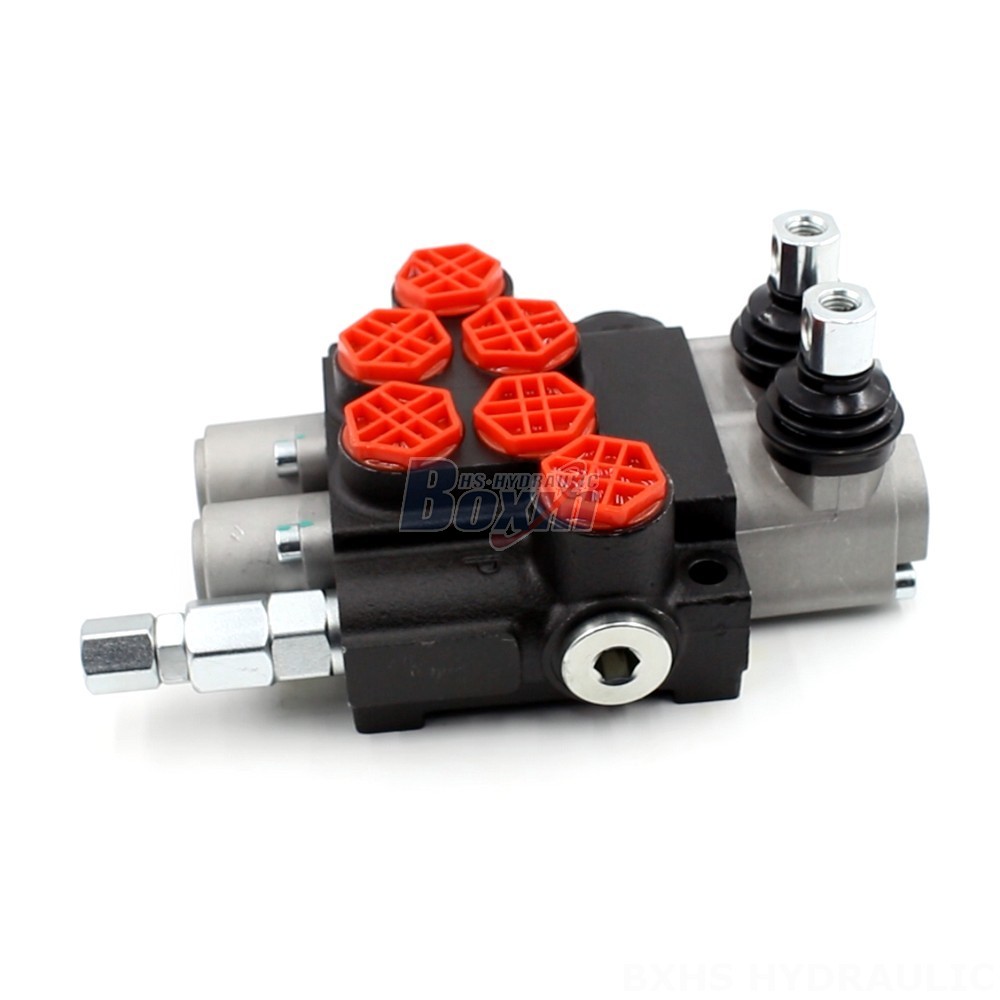

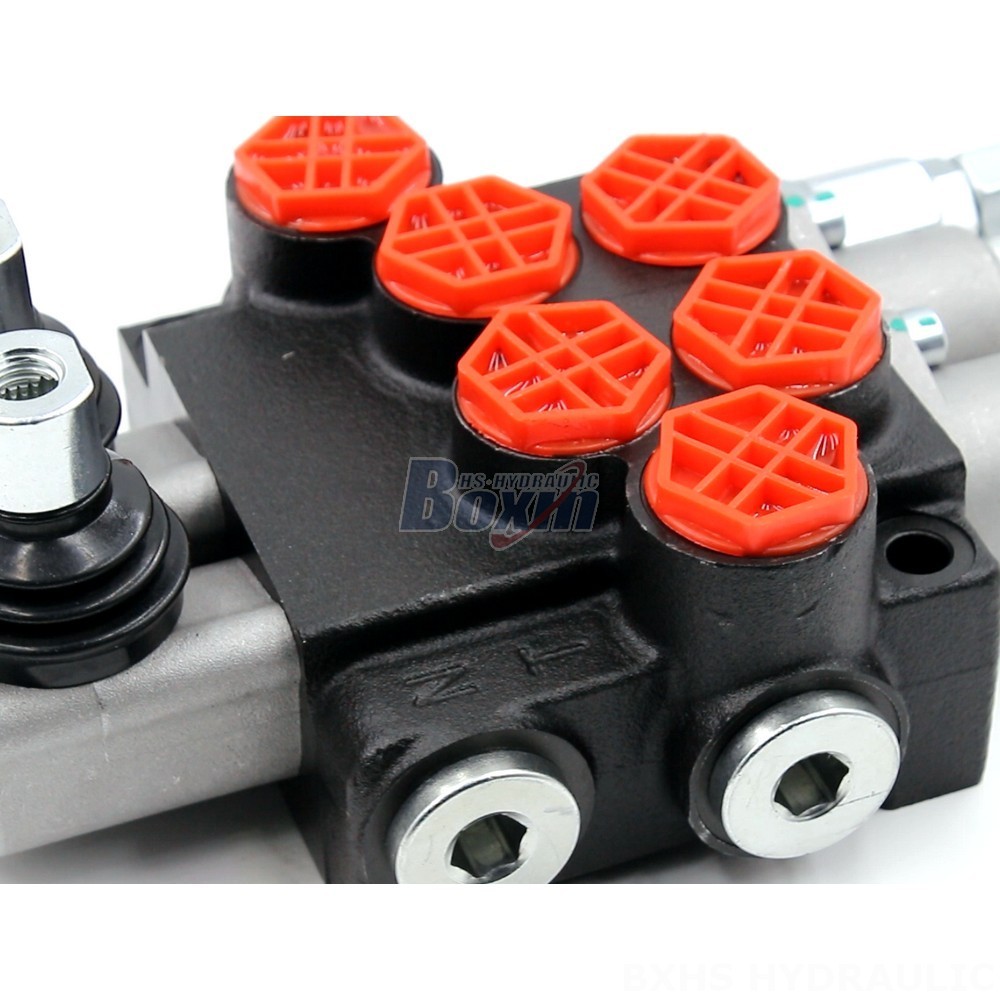

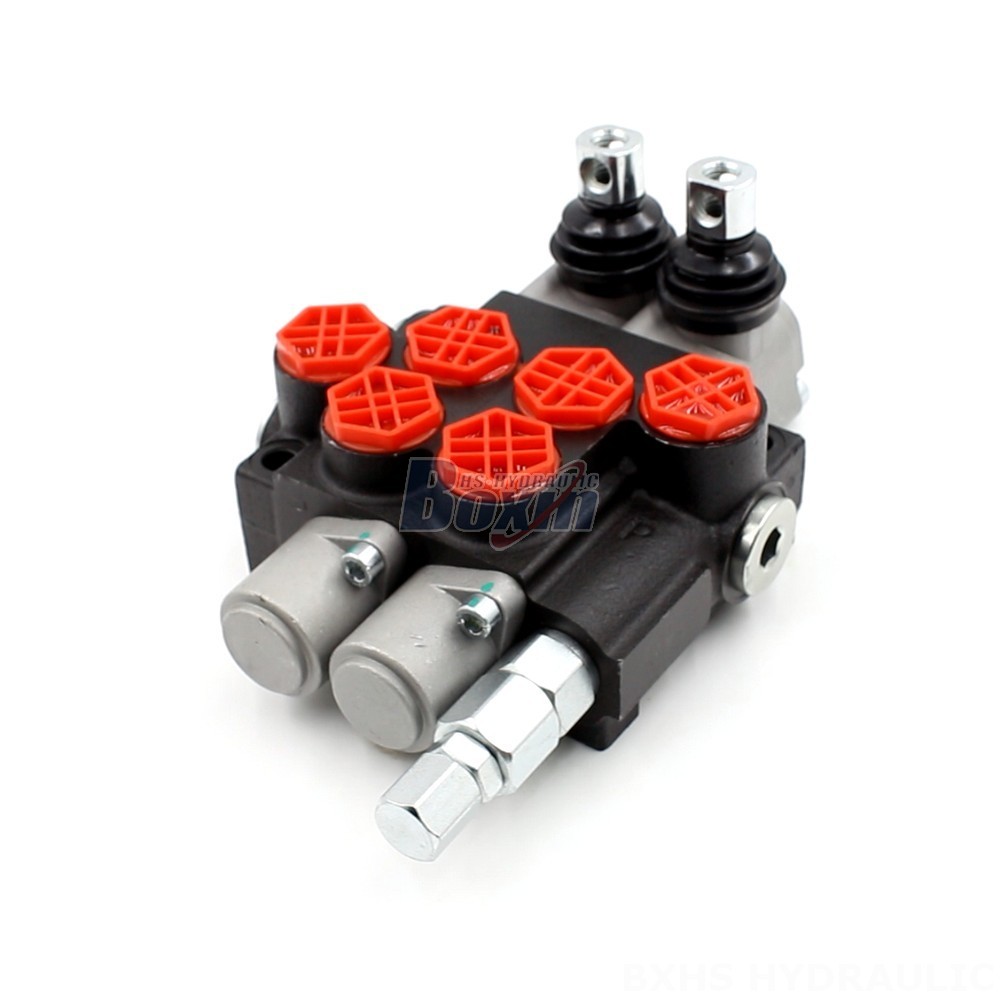

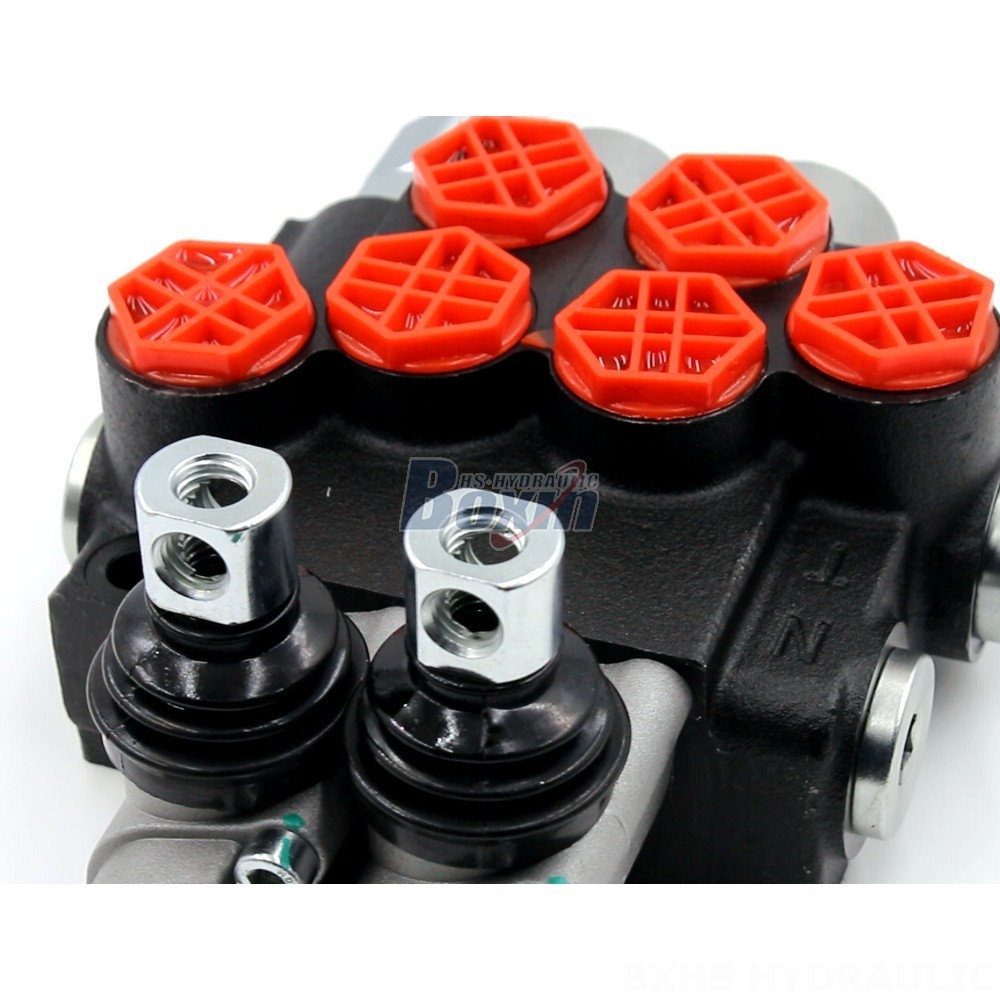

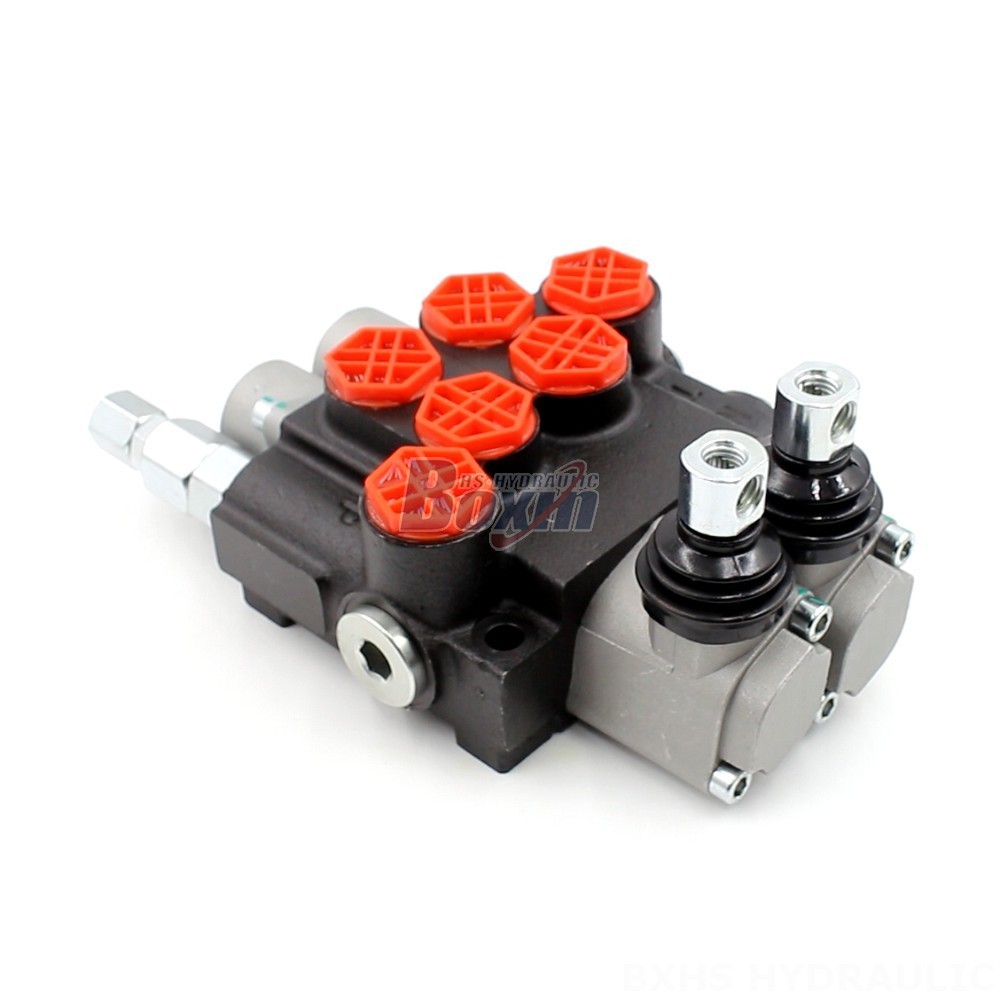

The P40 series hydraulic control valve is a manual, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It features a 2-section design and a 2-spool configuration, providing precise control over your hydraulic system. This valve is suitable for various applications in material handling, construction, earthmoving, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, excavators, and loaders. We offer flexible manufacturing options, including OEM, ODM, and private labeling, allowing you to tailor the valve to your specific requirements. Contact us today to discuss your custom hydraulic valve needs.
