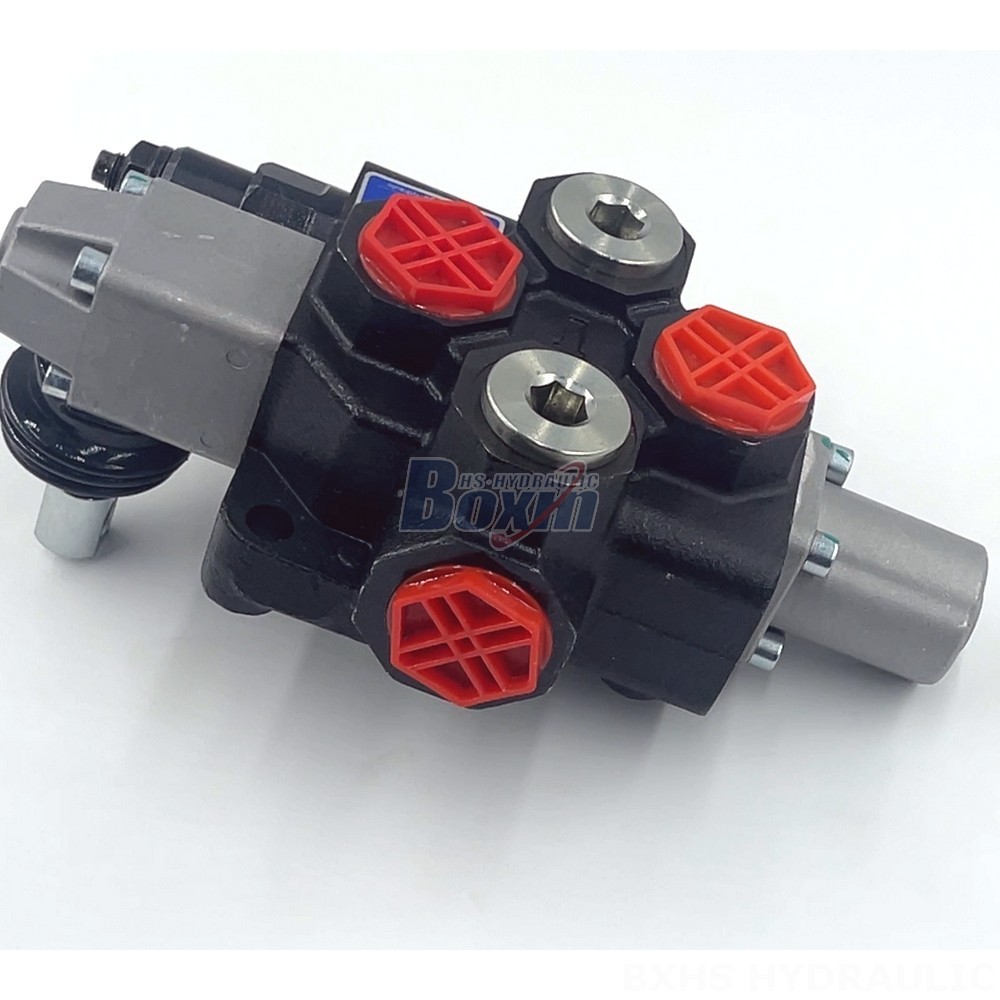

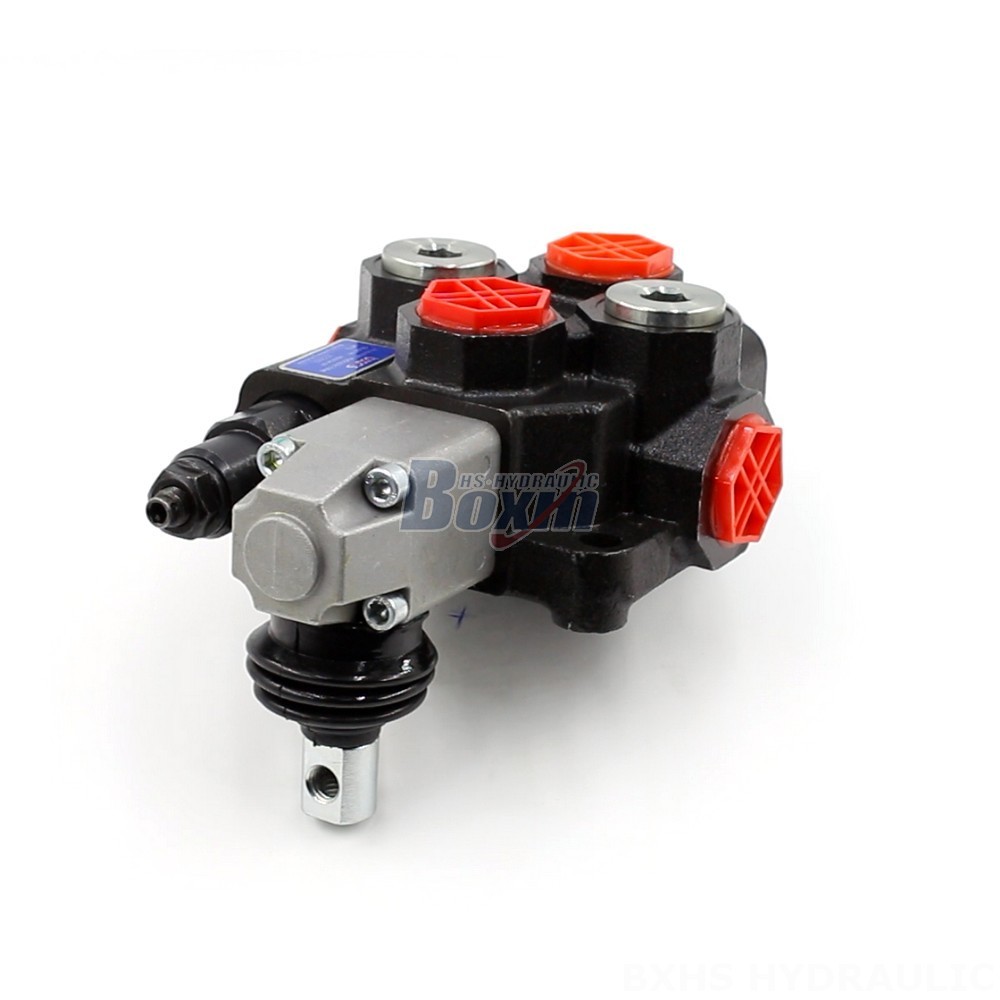

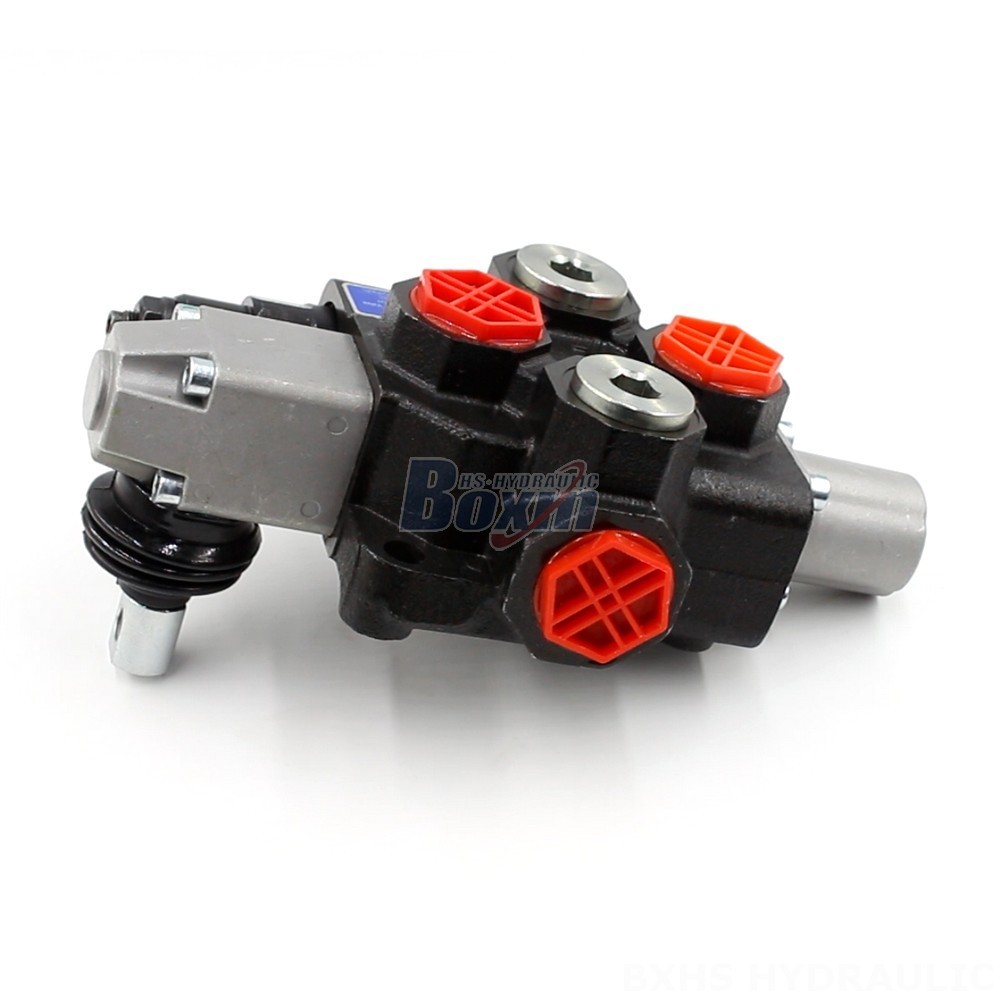

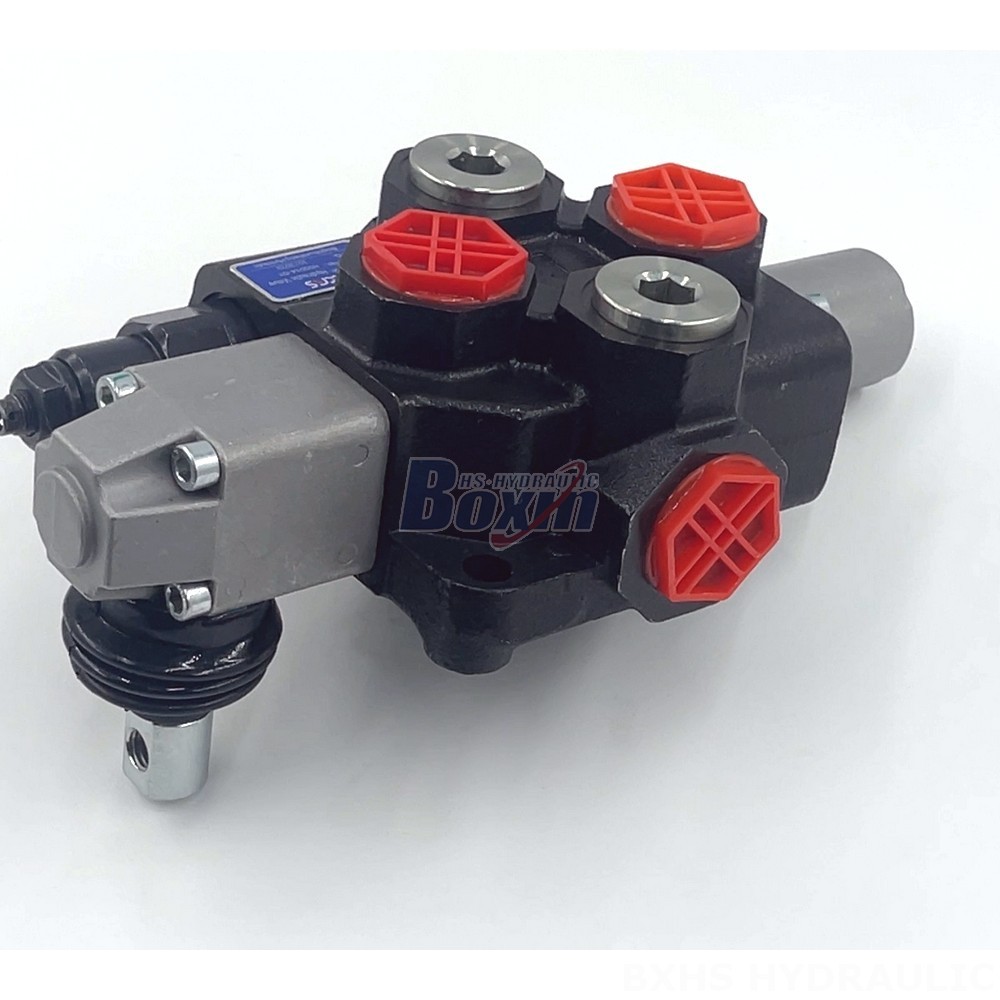

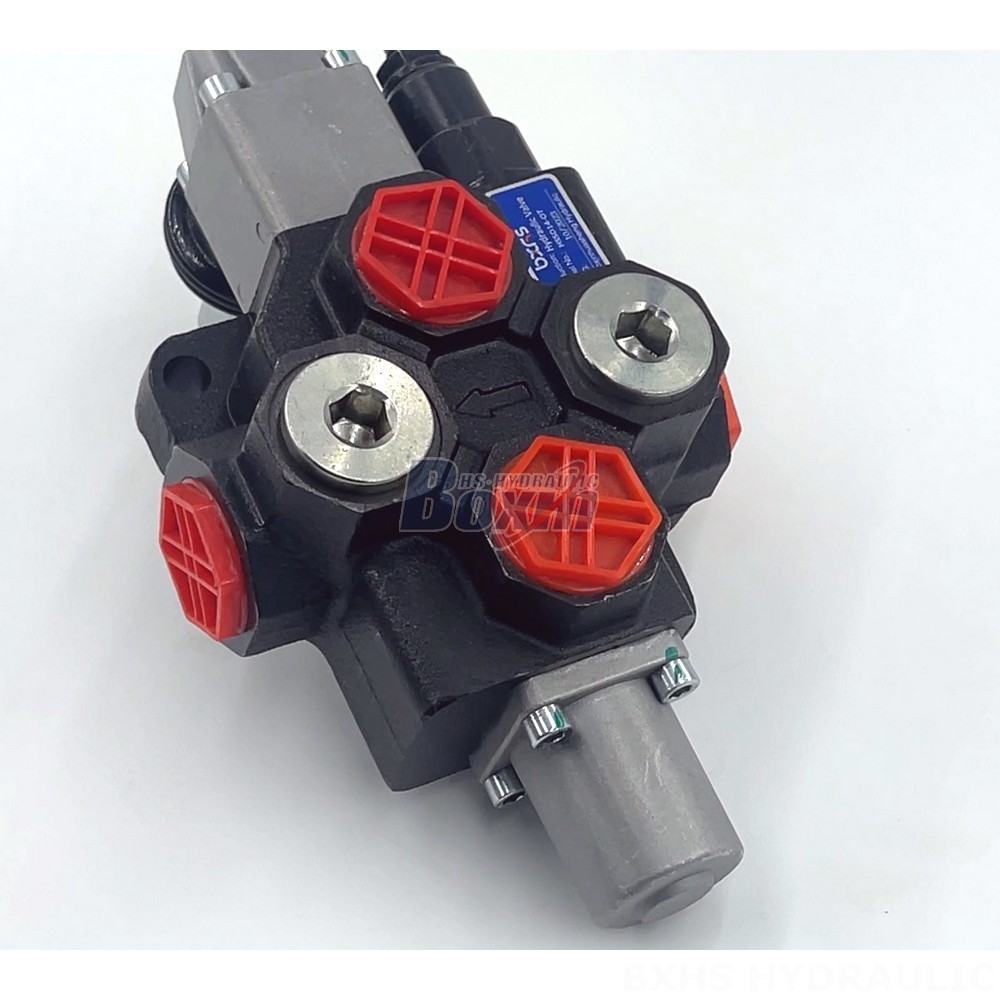

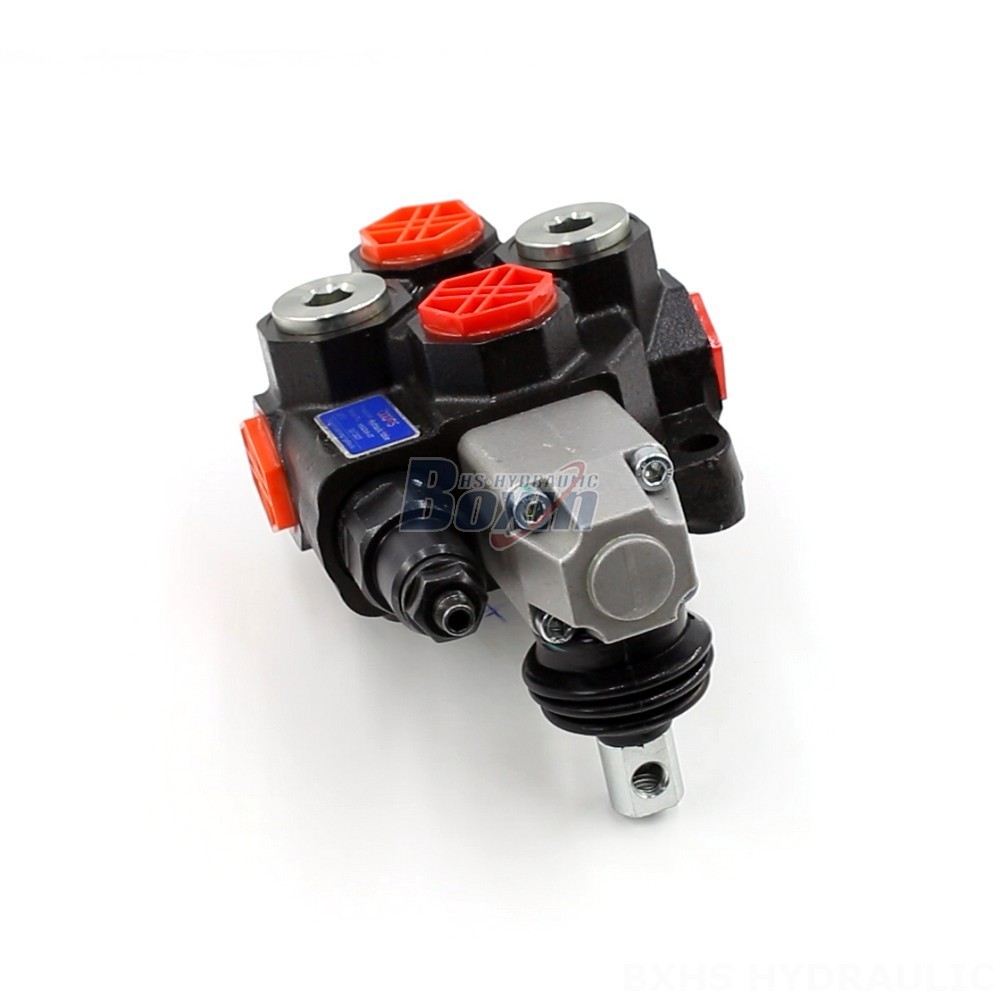

The SD14 Directional Control Valve is a reliable and robust manual control valve designed for use in a wide range of applications including construction, material handling, agriculture and industrial vehicles. This monoblock valve features a compact design with a 120 L/min flow rate and a maximum pressure rating of 315 bar.
| SD14系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 液控 |
| 路数 | 1 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 120 升/分钟 (31.7 美制加仑/分钟) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口 |
| 出油口 | G3/4接口 |
| 接口尺寸 | G3/4接口 |
The SD14 Series Directional Control Valve is a high-quality, manual control valve manufactured for durability and performance. It features a compact monoblock design with a single spool and offers a flow rate of 120 L/min at a maximum pressure of 315 bar. Designed for a wide range of operating temperatures (-40°C to +60°C), this valve is ideal for use in demanding applications involving construction equipment, material handling machinery, agricultural equipment, and industrial vehicles. Specific applications include telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini- and midi- excavators, skid steer loaders, and compact wheel loaders.
