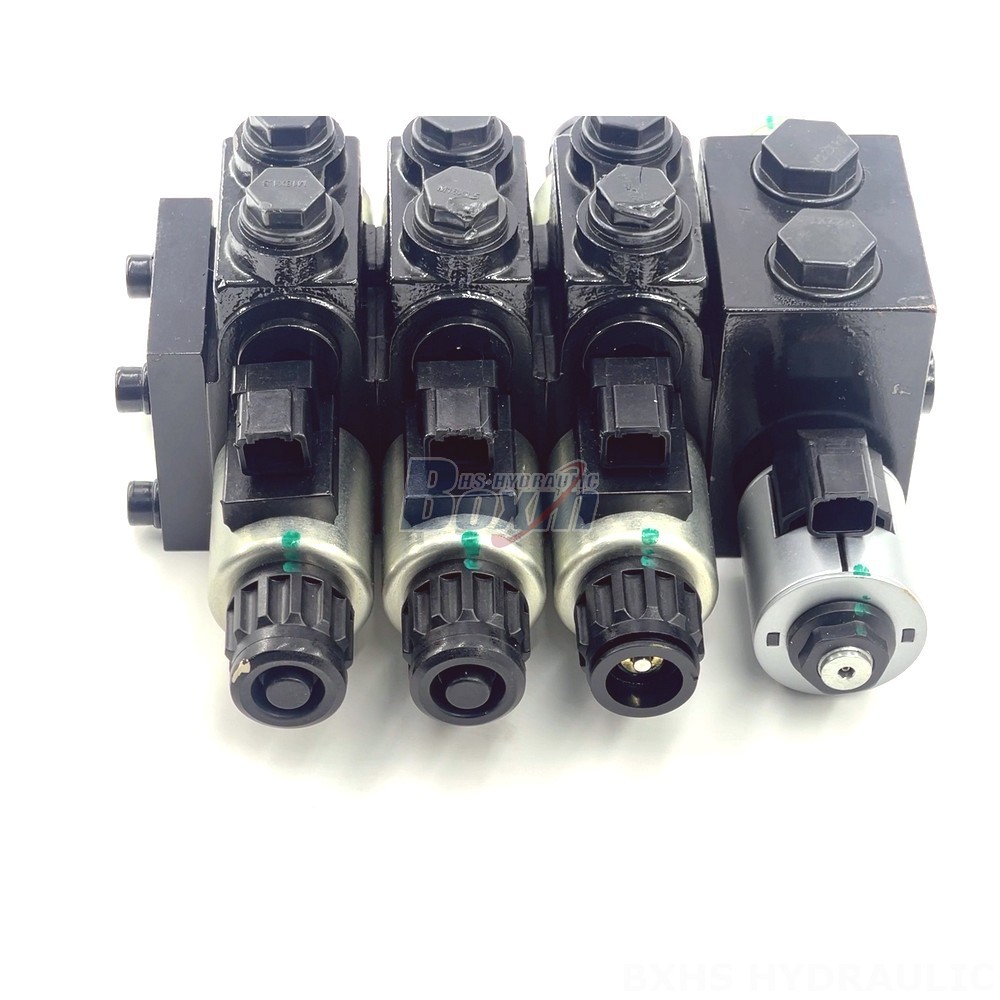

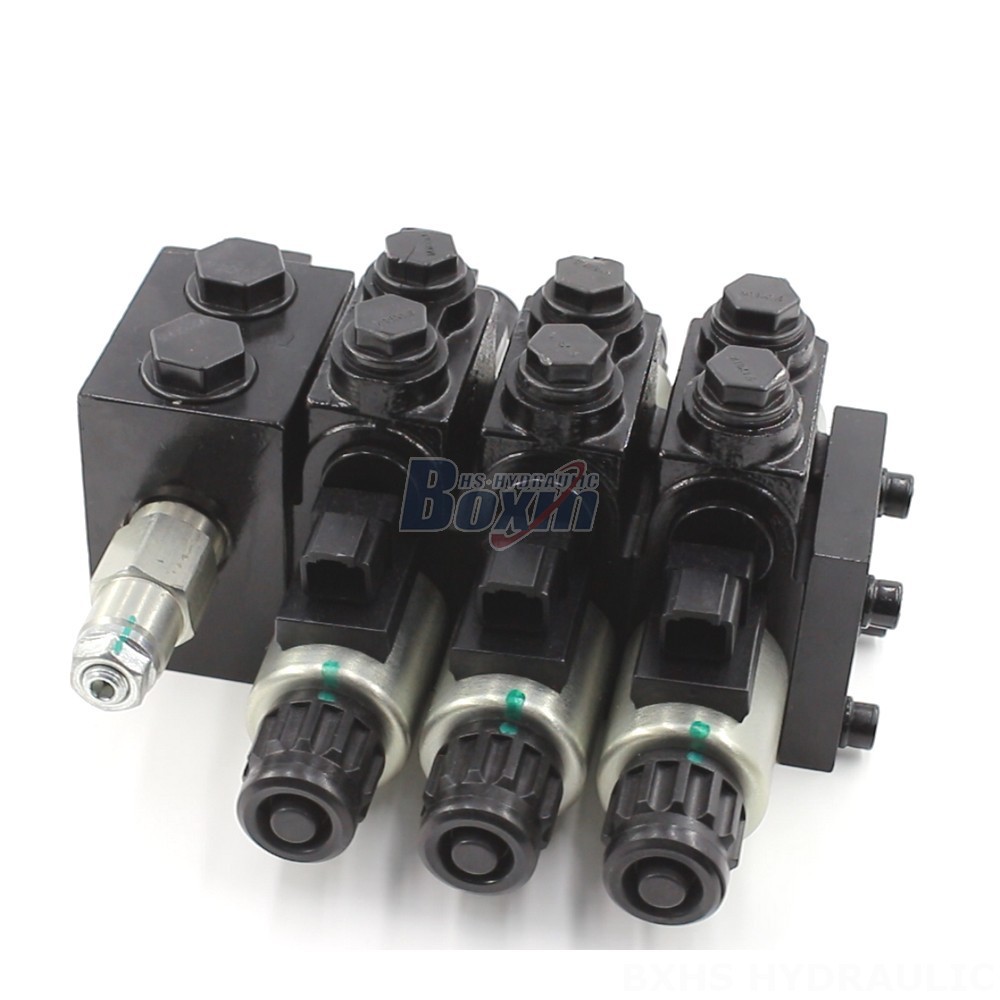

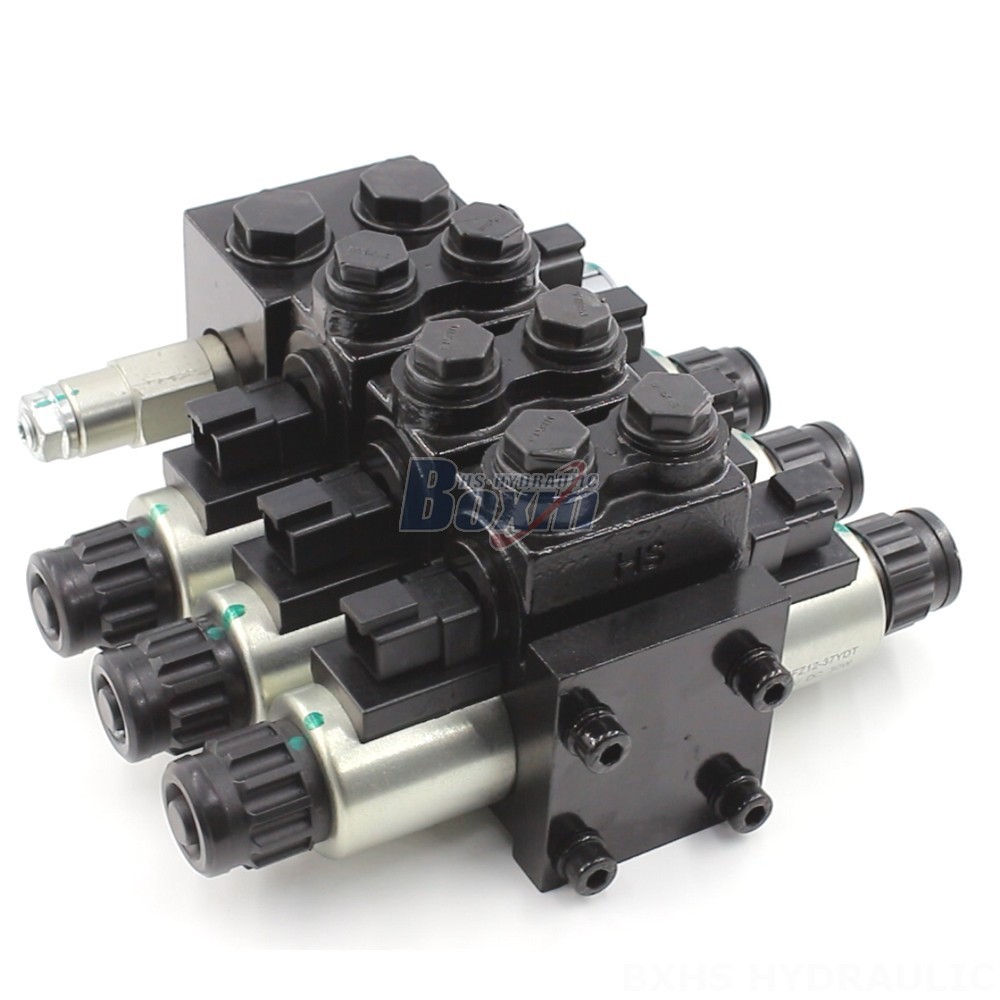

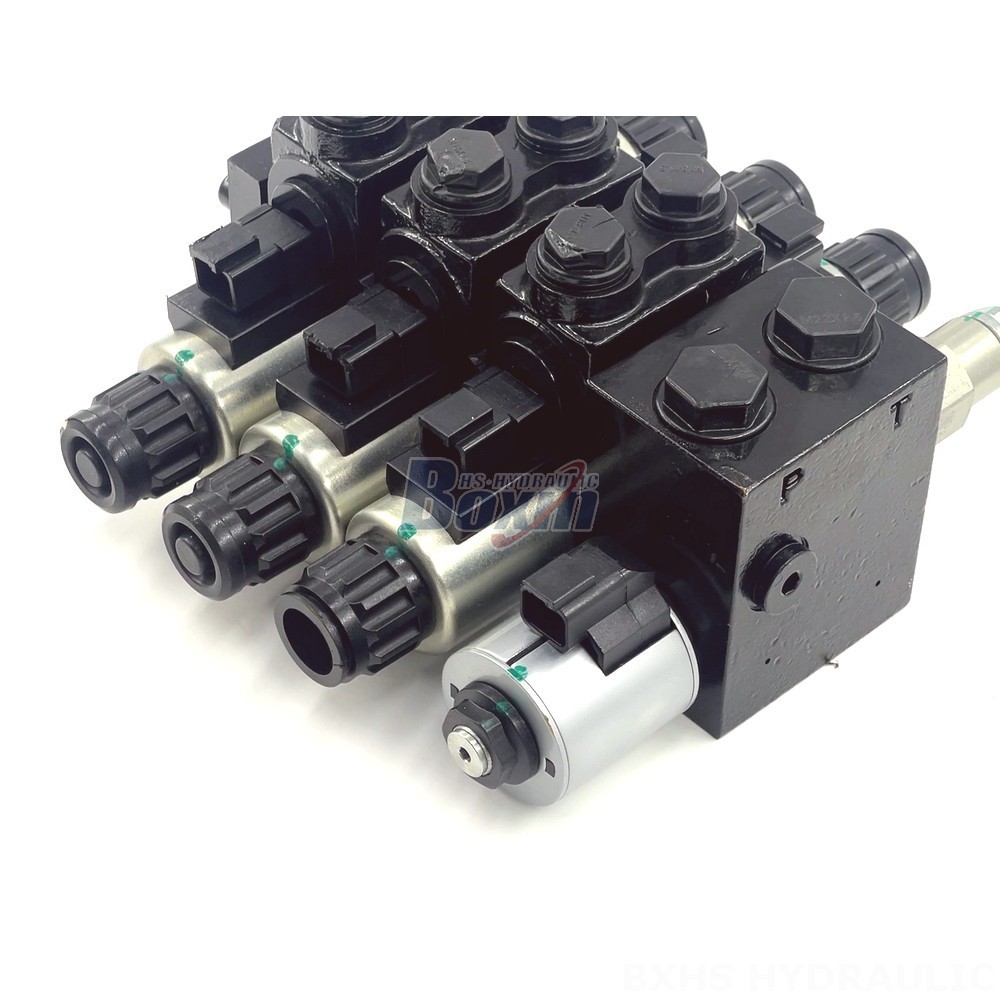

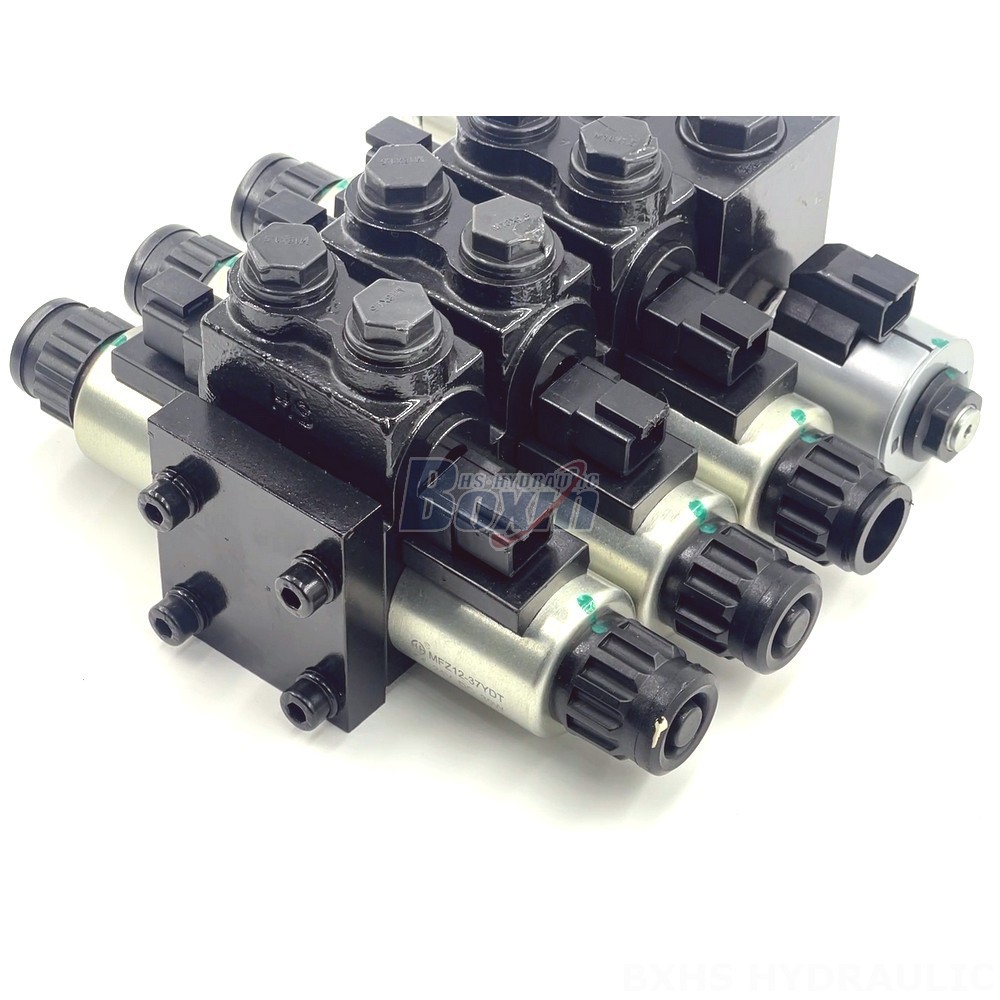

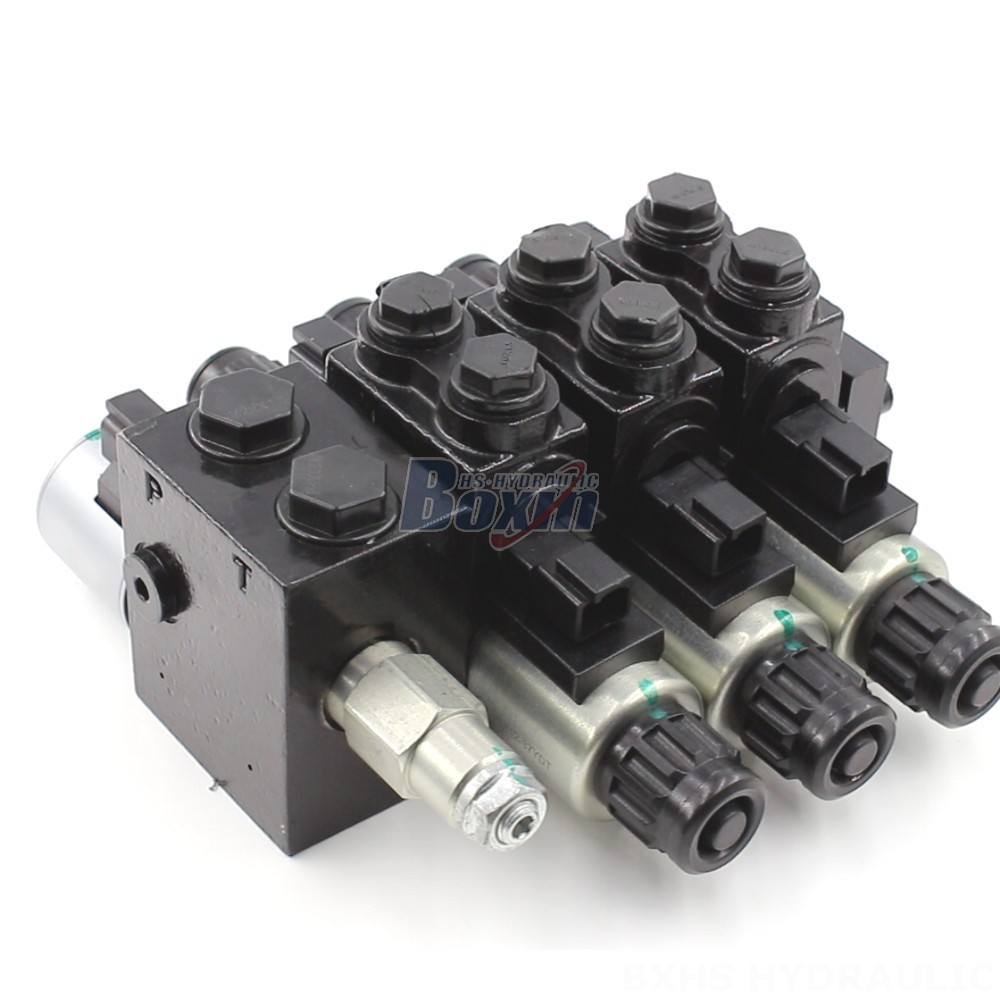

The HDCF50 series hydraulic block valve is a 3-section solenoid controlled valve designed for heavy-duty applications in construction, agriculture, and industrial vehicles. It offers a rated flow of 50 L/min and a maximum pressure of 160 bar, making it suitable for various equipment like forklifts, telehandlers, and excavators.
| HDCF50系列 电磁控制阀 参数 | |
|---|---|
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 控制方式 | 电磁 |
| 接口尺寸 | M22×1.5螺纹, SAE 8接头 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 出油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |
| 最大压力 | 160 bar (2300 psi) |
| 额定流量 | 50 L/min (13.2 US gpm) |
| 结构类型 | 分片阀 |
| 进油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |
This HDCF50 series hydraulic block valve is a reliable and durable solution for demanding applications. Featuring a 3-section design and solenoid control, it provides precise and efficient hydraulic control. With a rated flow of 50 L/min and a maximum pressure of 160 bar, it is suitable for a wide range of equipment in construction, agriculture, and industrial vehicles. Its compact size and robust construction make it ideal for tight spaces and demanding environments. The HDCF50 valve is available in 12V and 24V versions for compatibility with various electrical systems. It is also designed for a wide operating viscosity range and ambient temperature range, ensuring reliable performance in diverse conditions.
