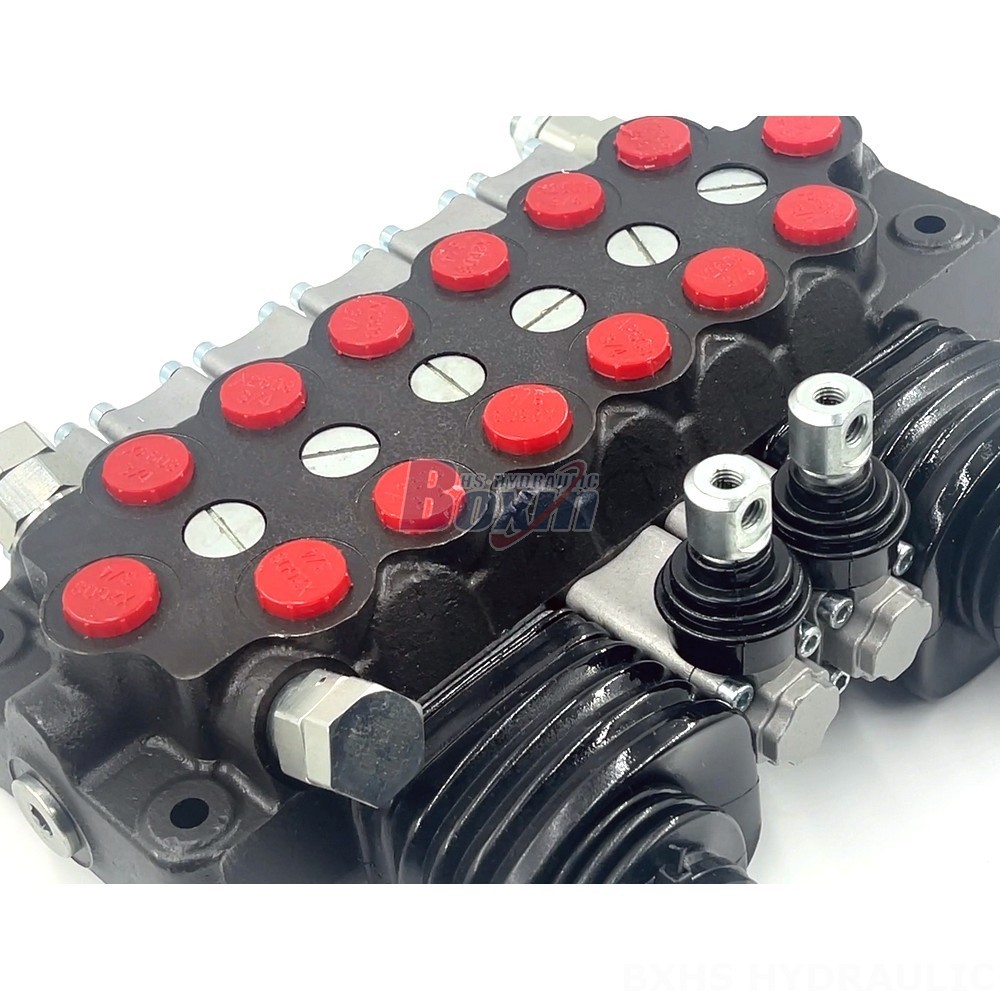

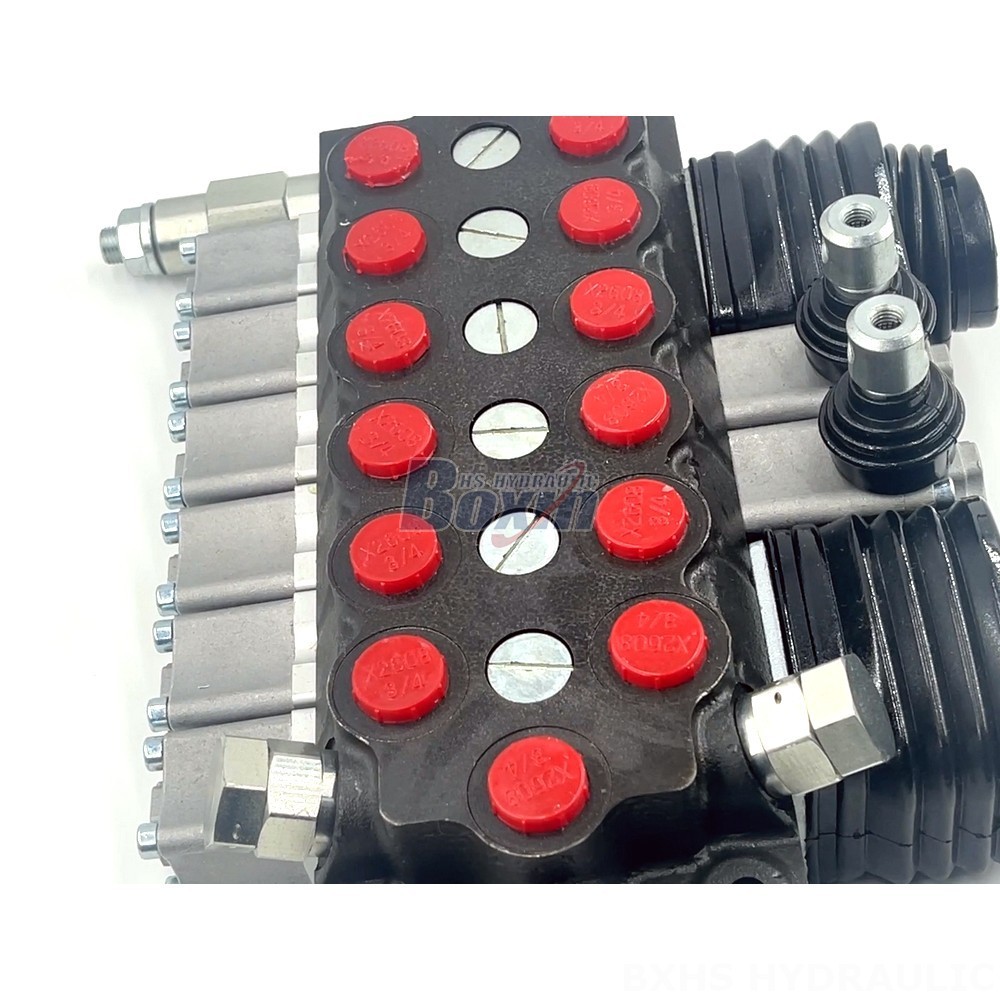

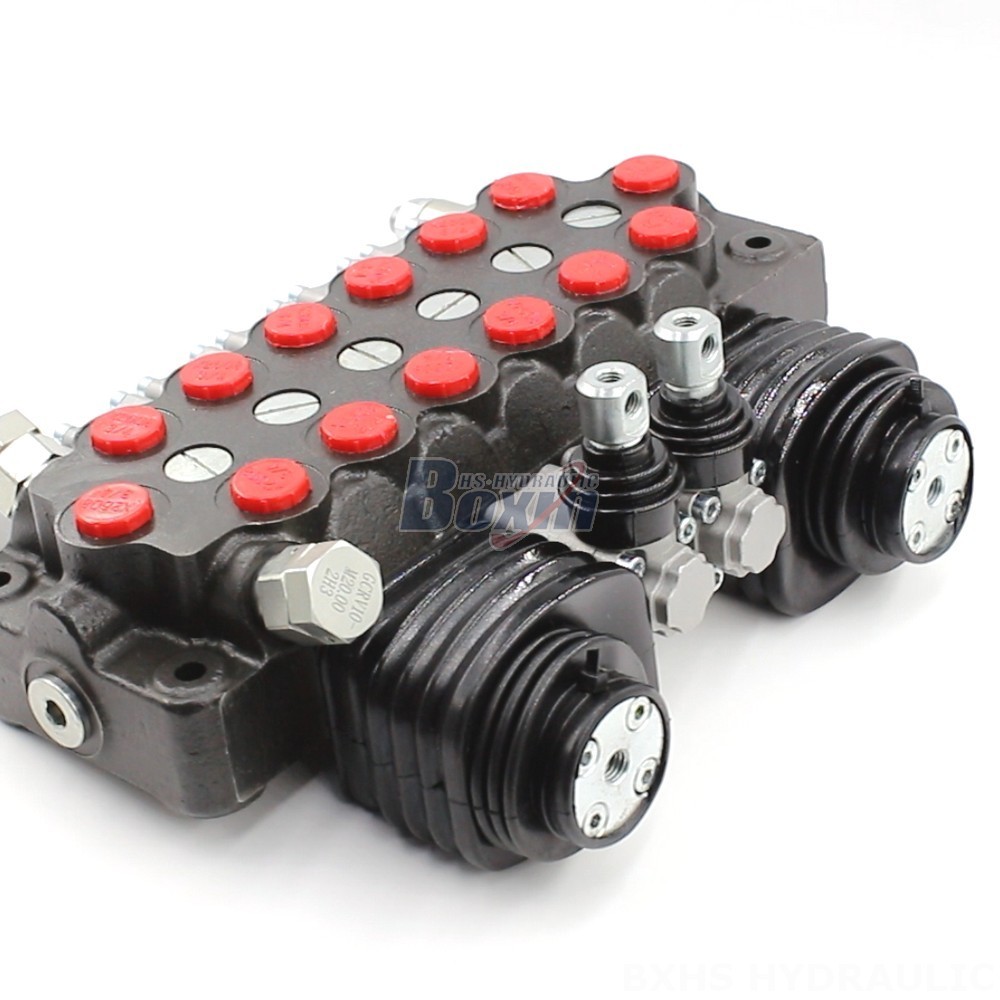

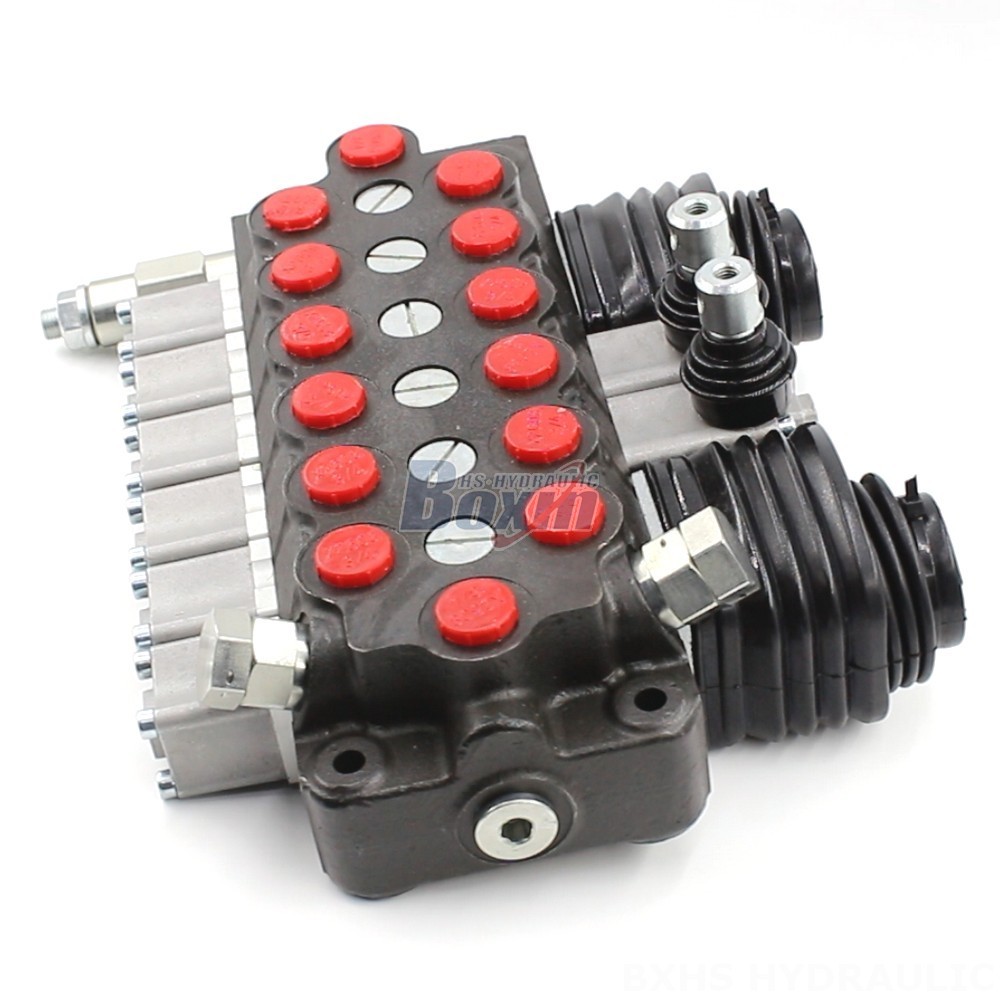

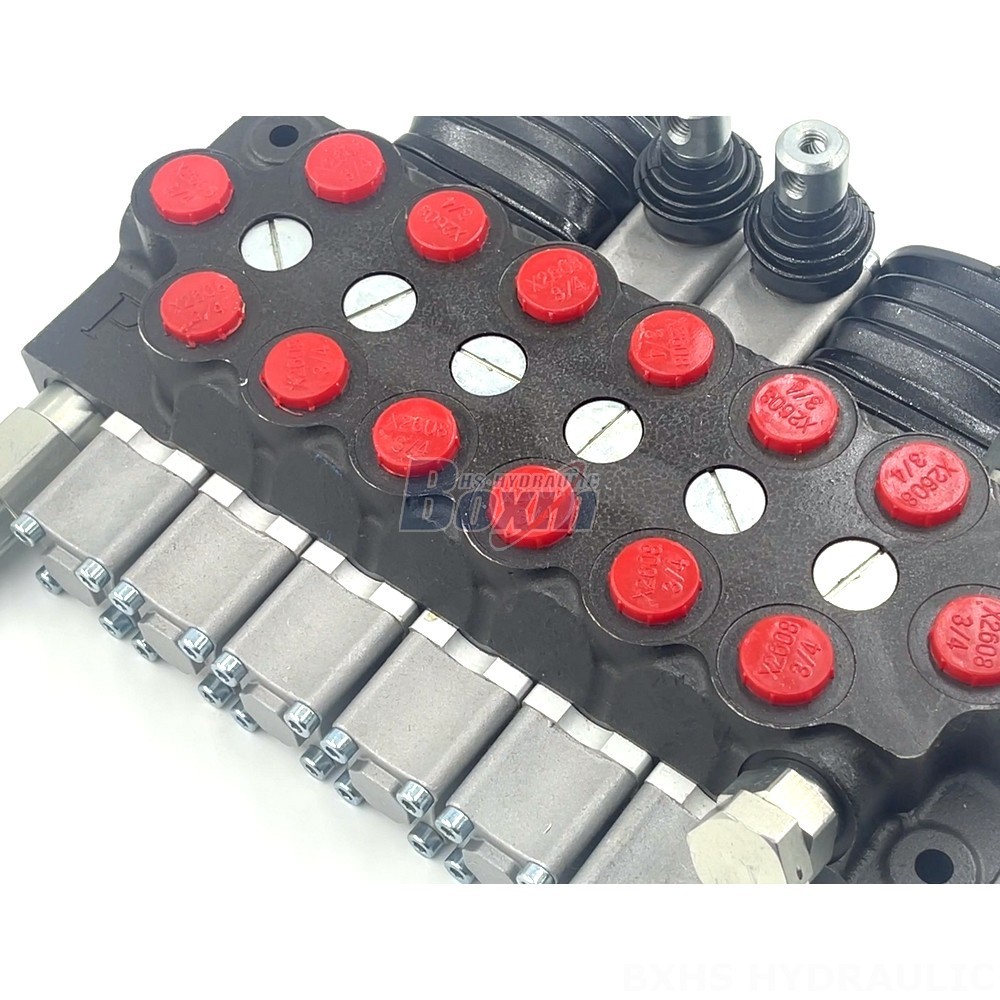

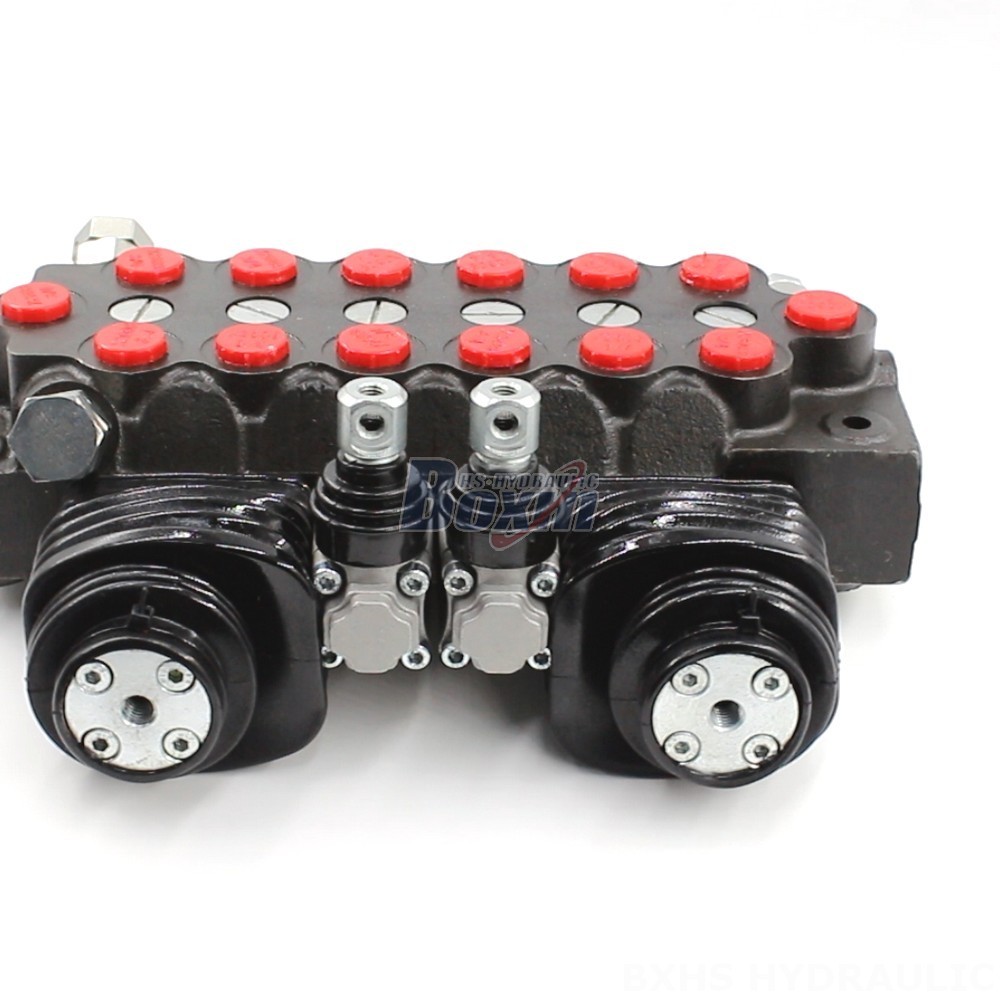

The TR55 Hydraulic Valve is a high-performance, 6-section monoblock valve designed for various applications including material handling, construction, and agriculture. It offers a rated flow of 40 L/min and a maximum pressure of 315 bar. Available with manual or joystick control, this valve is directly sourced from the manufacturer, ensuring quality and competitive pricing.
| TR55系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/8接口, G1/2接口 |
| 出油口 | G3/8接口, G1/2接口 |
| 接口尺寸 | G3/8接口, G1/2接口 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F), -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The TR55 Series Hydraulic Valve is a robust and reliable solution for various machinery applications. This 6-section monoblock valve features a rated flow of 40 L/min and a maximum pressure of 315 bar. It operates with a viscosity range of 15 - 75 mm²/s and withstands ambient temperatures ranging from -40°C to +60°C. The valve is available with both manual and joystick control options, providing flexibility for different operating needs. Direct sourcing from the manufacturer ensures high quality and competitive prices. Our factory offers wholesale options for bulk purchases, making the TR55 Series an ideal choice for businesses seeking reliable and cost-effective hydraulic valves.
