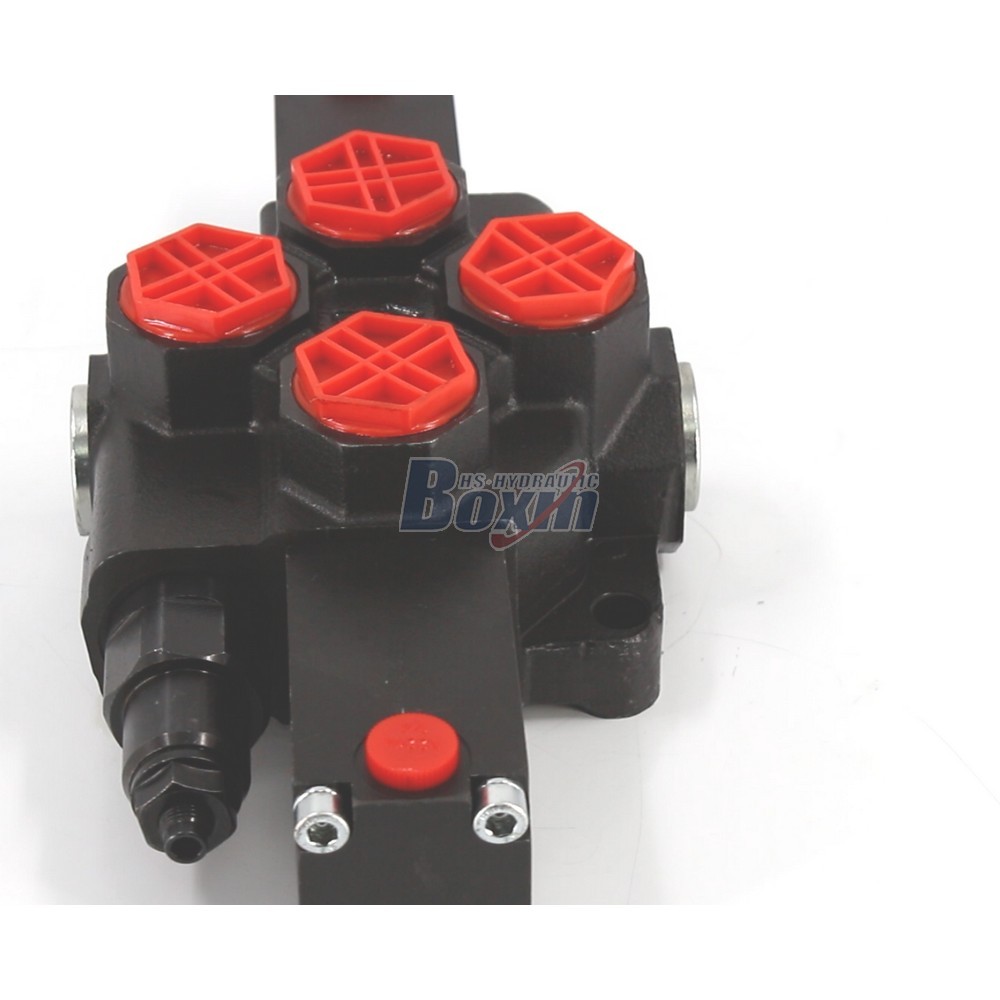

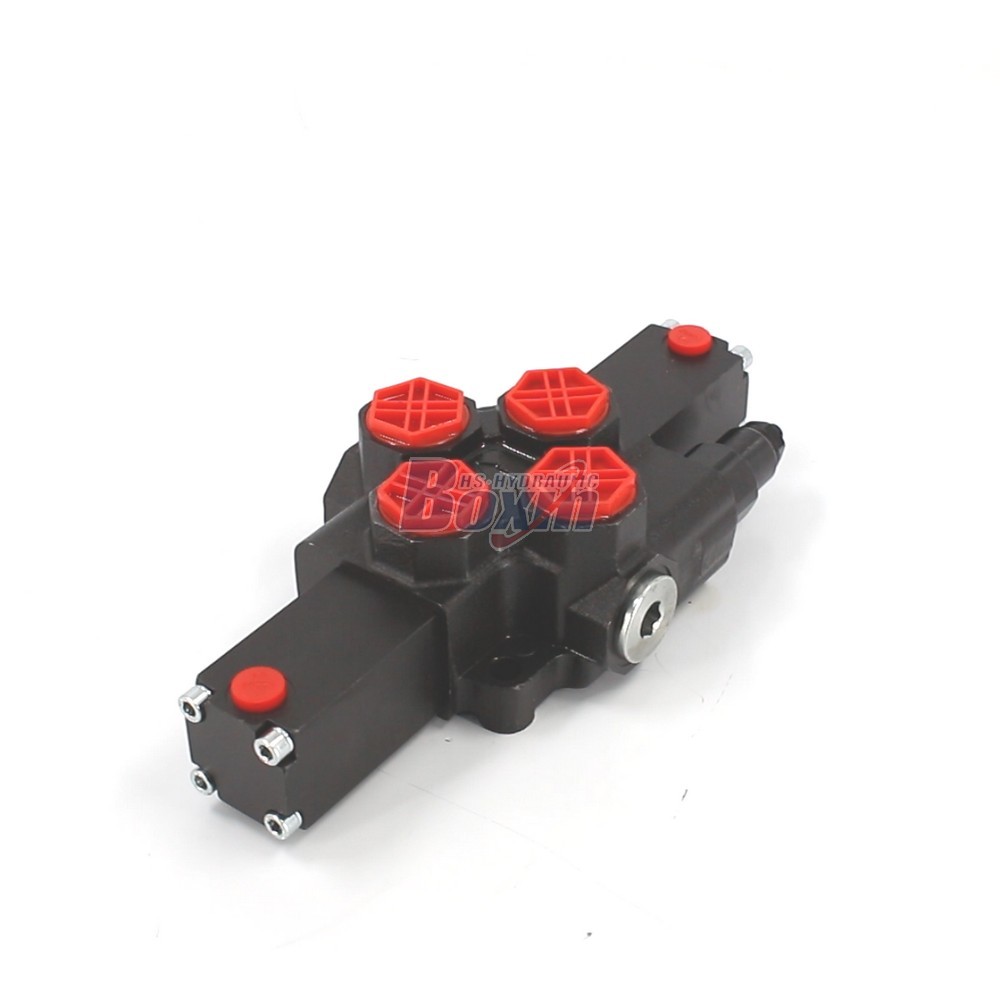

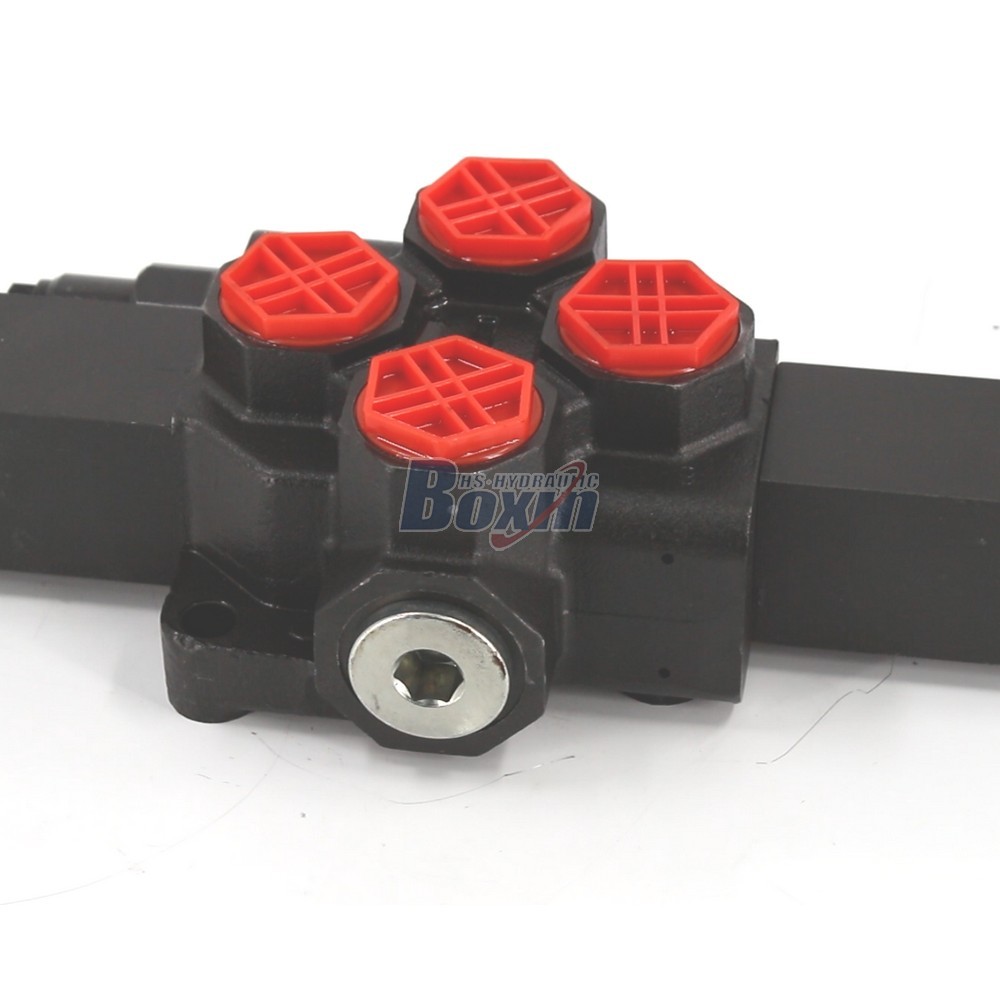

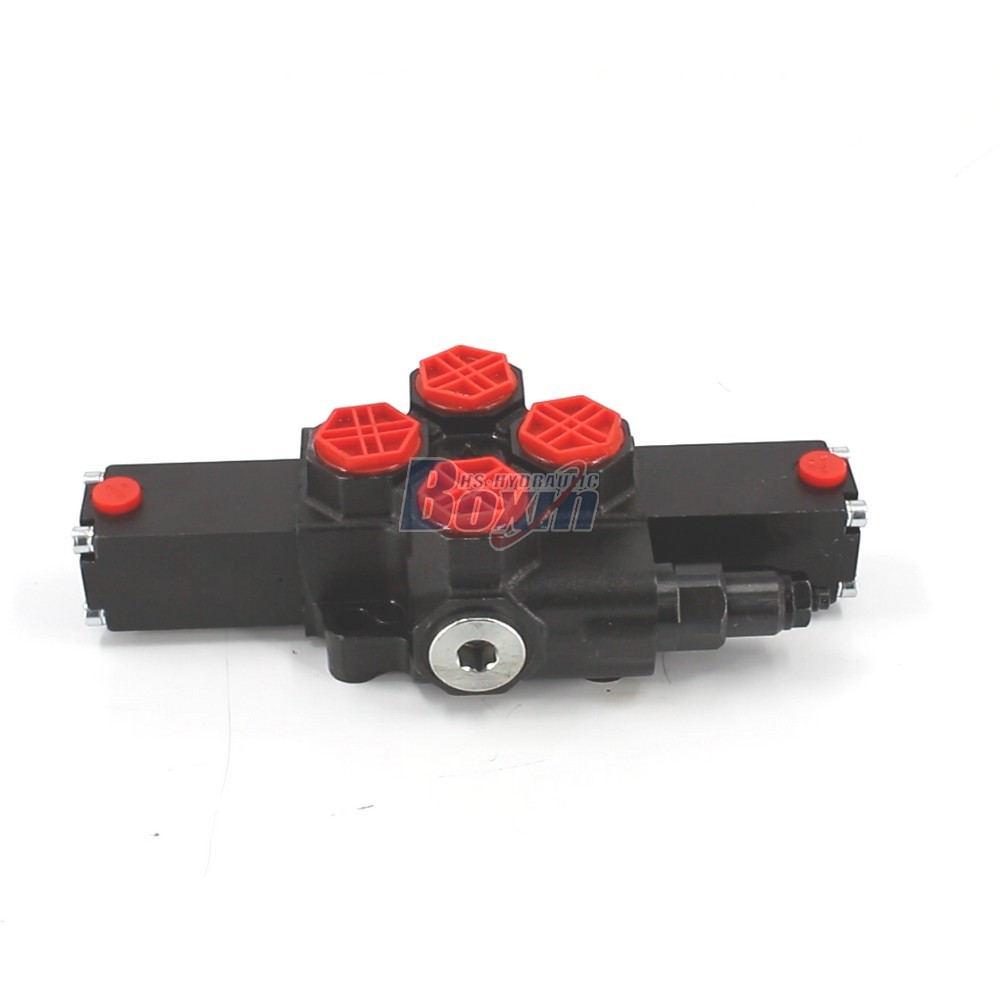

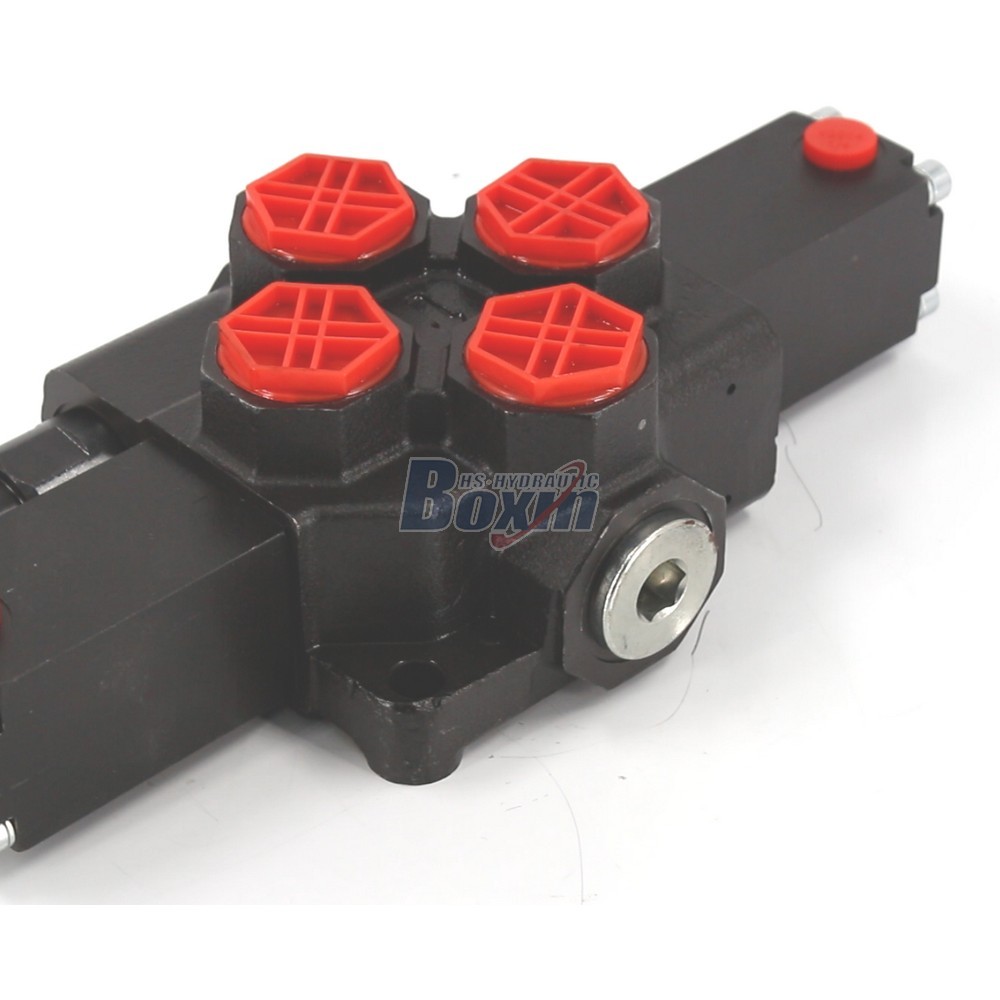

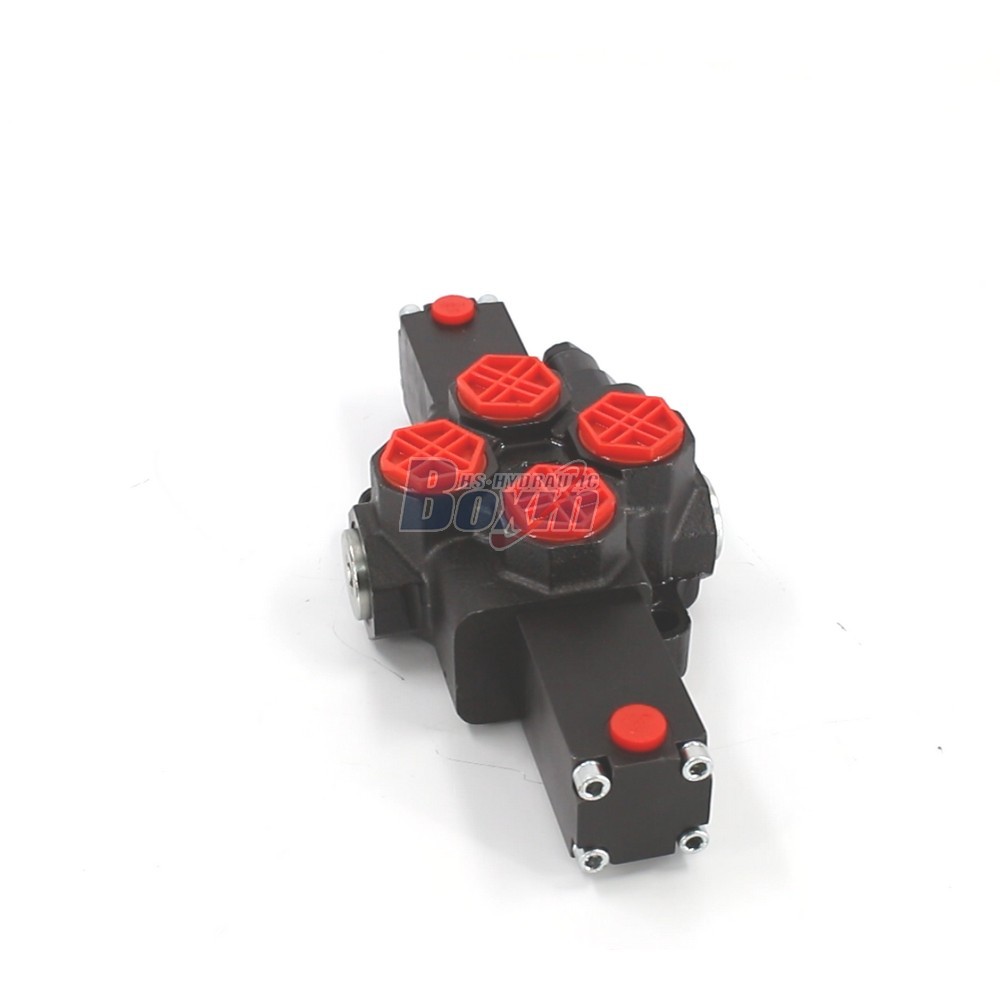

Single Spool Hydraulic Monoblock Control Valve SD14Y-OT

控制方式:液控

路数:1 联

额定流量:120 升/分钟 (31.7 美制加仑/分钟)

最大压力:315 bar (4600 psi)

进油口:G3/4接口

出油口:G3/4接口

接口尺寸:G3/4接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:SD14系列 单块式方向阀

Packagingsize:12.5*23.8*7.1

Grossweight:5.50 kg

库存: 有货

28 次查看了此产品

Single Spool Hydraulic Monoblock Control Valve SD14Y-OT

Single Spool Hydraulic Monoblock Control Valve SD14Y-OT

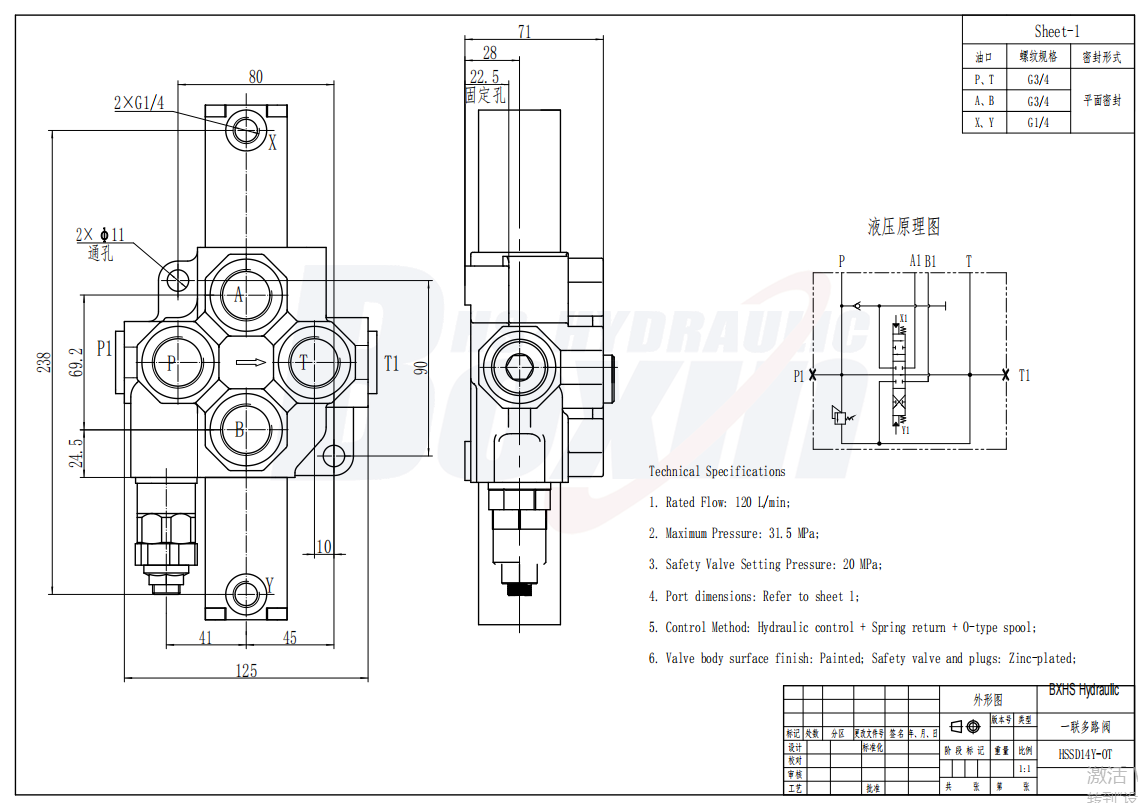

Single Spool Hydraulic Monoblock Control Valve SD14Y-OT drawing image

The SD14Y-OT is a high-performance single spool hydraulic monoblock control valve designed for heavy-duty applications. Featuring a hydraulic control method and a rated flow of 120 L/min at 315 bar, it provides precise fluid management for construction, agricultural, and industrial machinery.

SD14系列 单块式方向阀 参数
控制方式 手控, 气控, 液控
路数 1 联
环境温度范围 -40°C to +60°C (-40°F to +140°F)
结构类型 整体阀
联数 1联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 120 升/分钟 (31.7 美制加仑/分钟)
最大压力 315 bar (4600 psi)
进油口 G3/4接口
出油口 G3/4接口
接口尺寸 G3/4接口

Our factory is a leading manufacturer of hydraulic components, offering the SD14Y-OT Single Spool Hydraulic Monoblock Control Valve for the global market. Engineered for reliability, this SD14 series valve supports a high flow rate of 120 L/min (31.7 US gpm) and pressures up to 315 bar (4600 psi) with G3/4 porting. It is extensively used in wheel loaders, backhoe loaders, tractors, and forklifts. We provide comprehensive manufacturing services including OEM, ODM, private labeling, and custom engineering to meet specific technical requirements. As a direct factory supplier, we offer competitive wholesale pricing and are actively seeking global partners, including distributors, wholesalers, agents, and traders. Our large-scale production capacity ensures stable supply for industrial vehicle manufacturers and material handling equipment providers worldwide.
