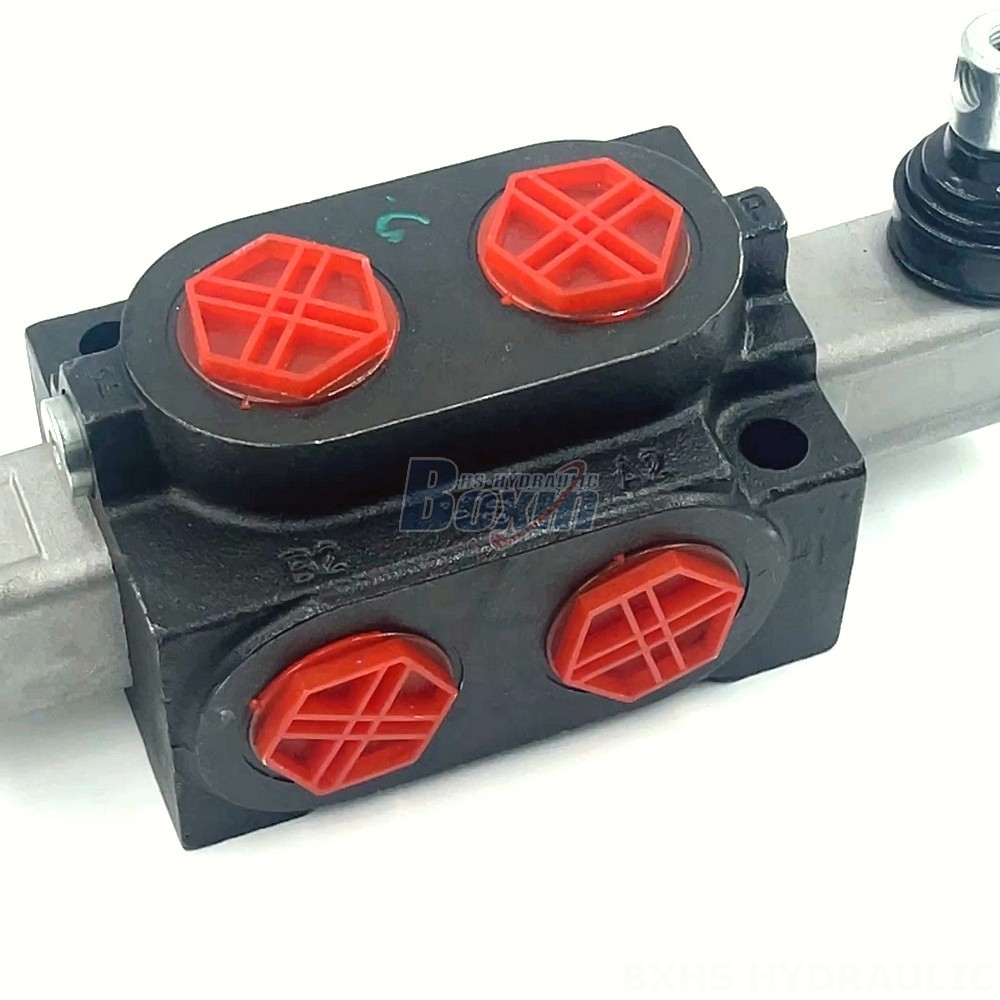

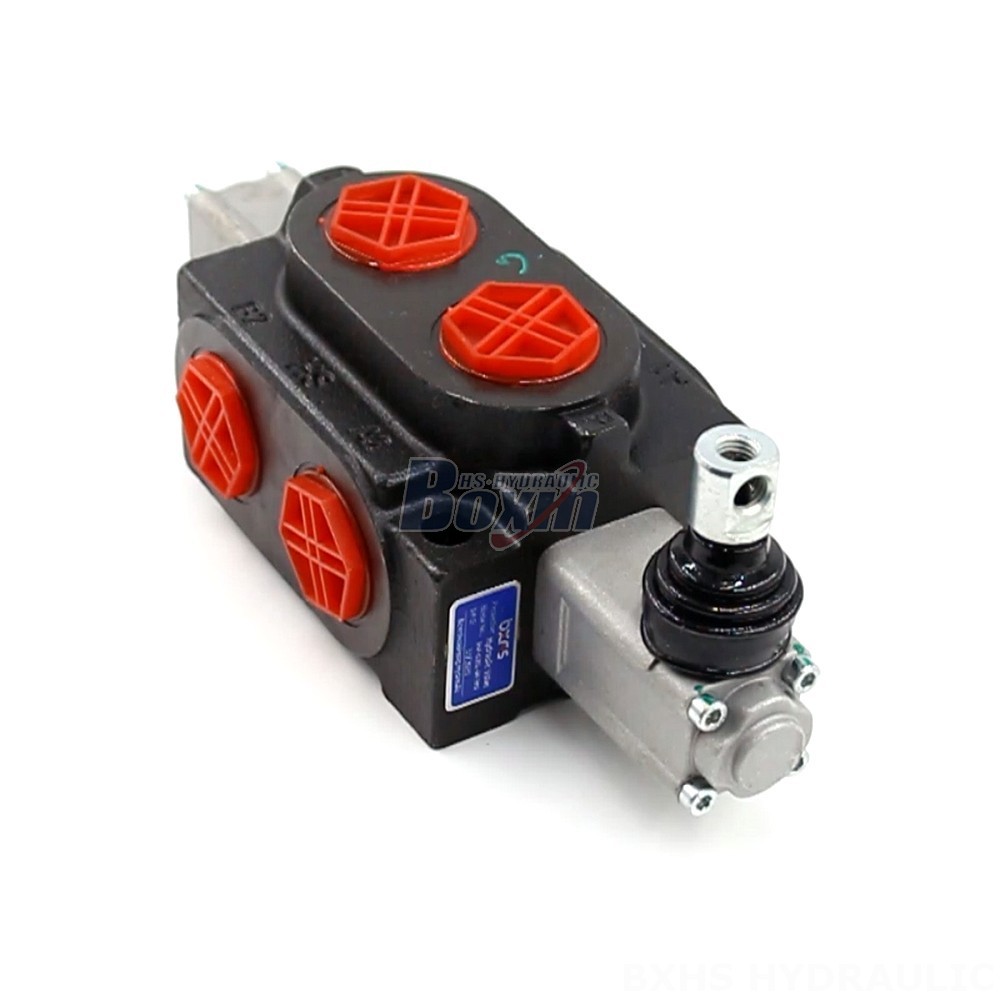

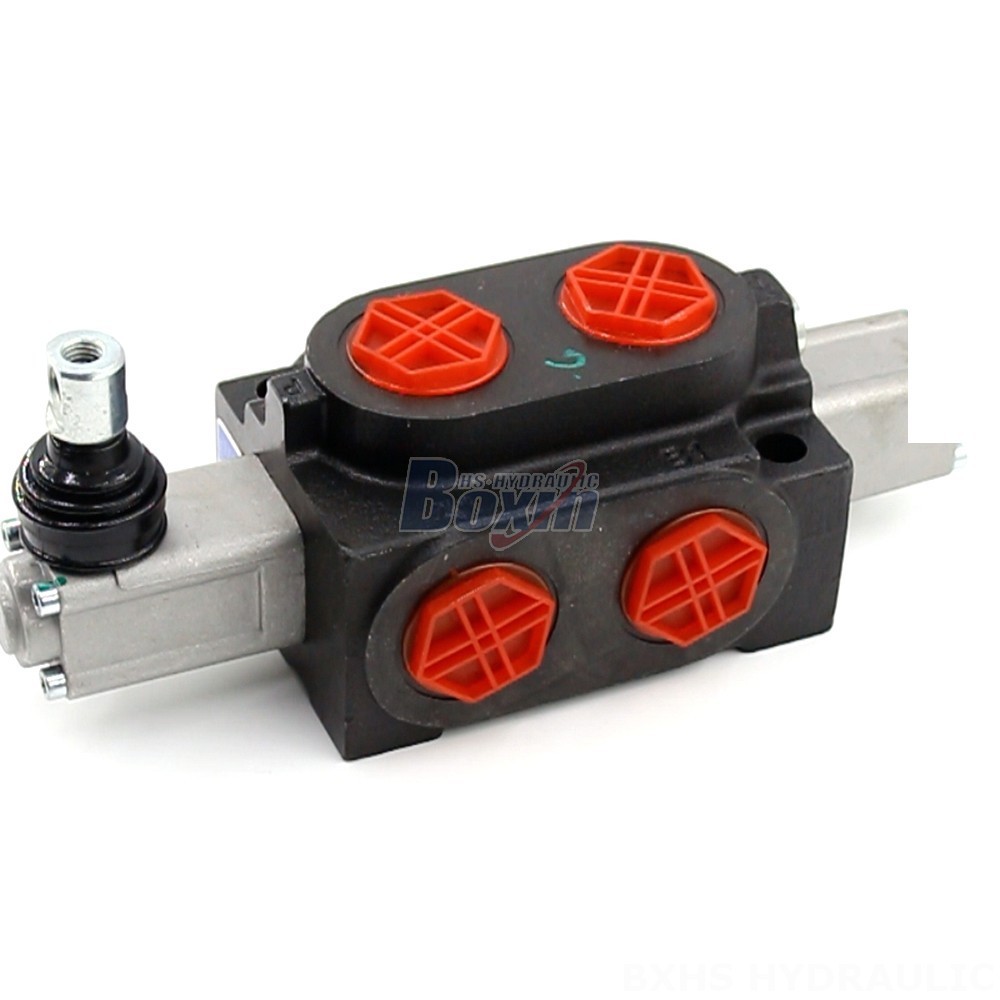

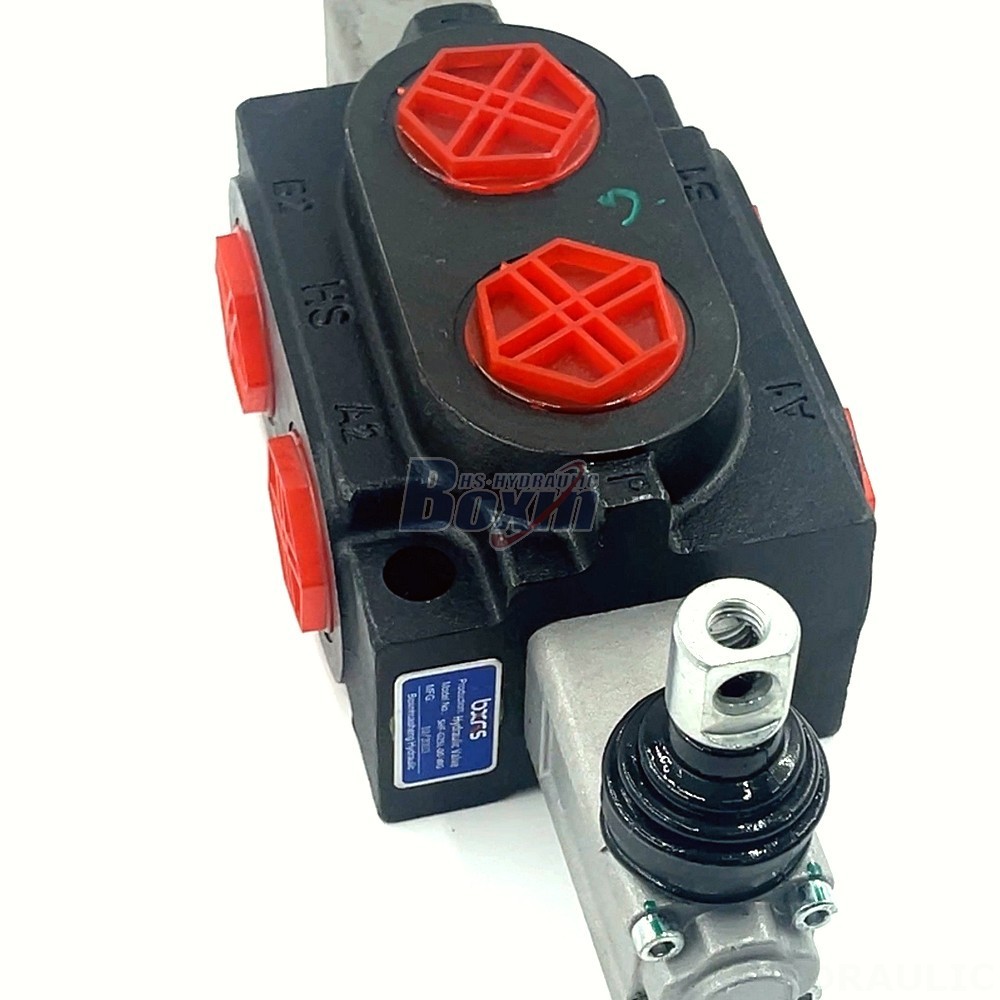

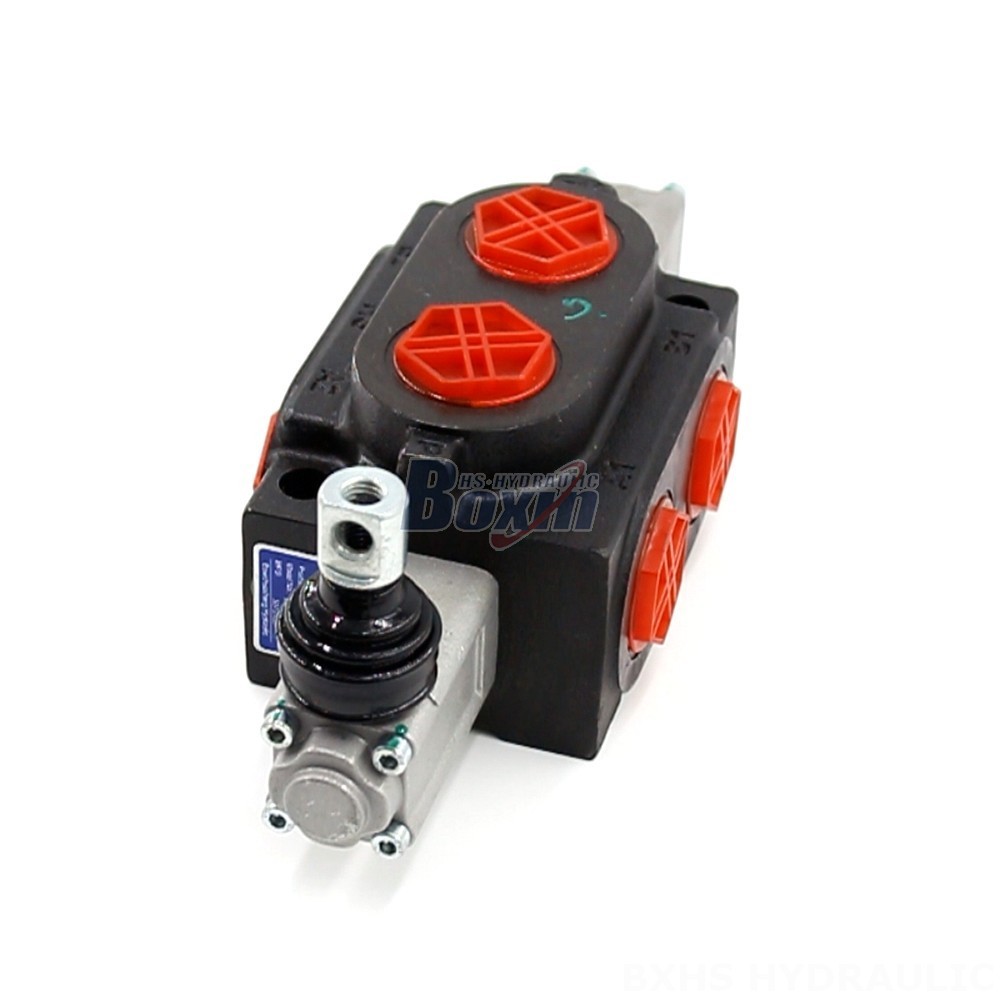

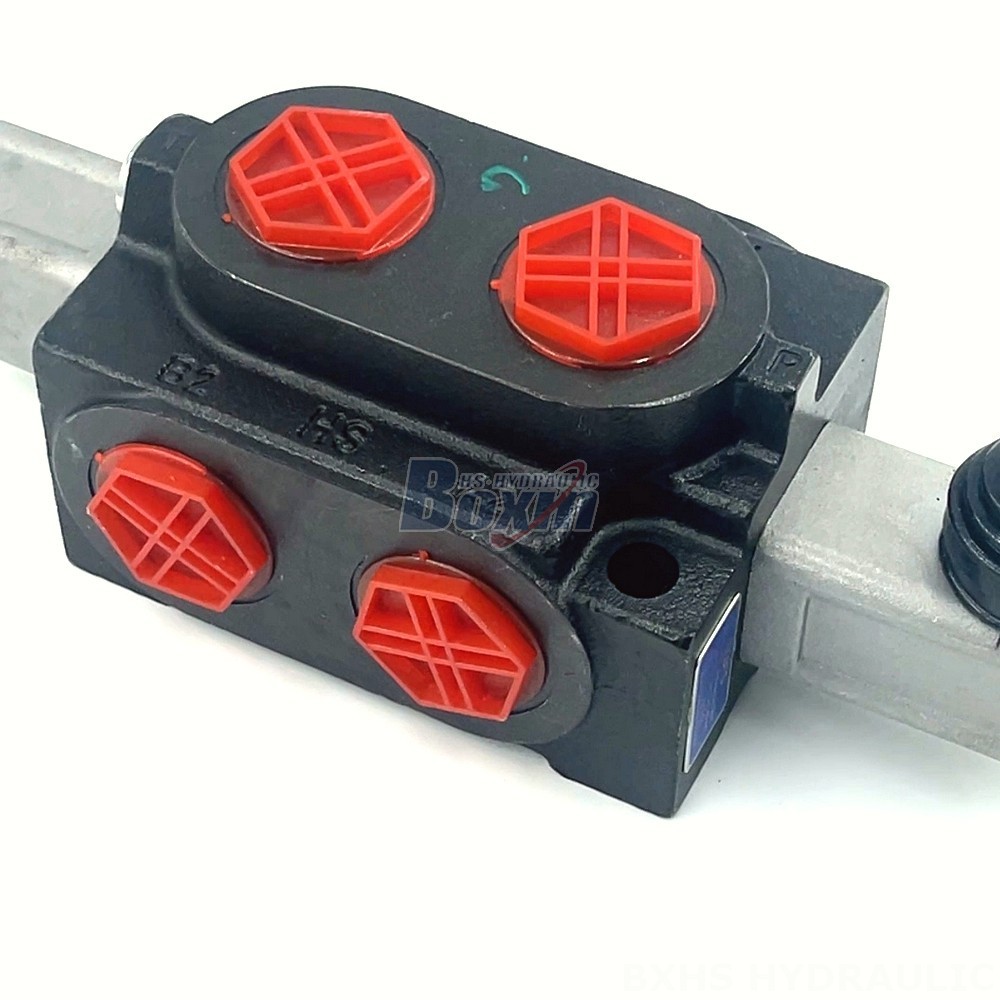

The SHFY-G25L-00 is a 12V hydraulic solenoid valve designed for directional control in various applications such as material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, a rated flow of 200 L/min, and a maximum pressure rating of 315 bar, making it ideal for demanding operations.
| SHFY-G25L-00系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 液控 |
| 路数 | 1 联 |
| 额定流量 | 200 L/min (52 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | M33×2.0螺纹 |
| 出油口 | M33×2.0螺纹 |
| 接口尺寸 | M33×2.0螺纹 |
| 联数 | 1联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
This 12V hydraulic solenoid valve is a reliable and efficient solution for directional control in a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, and balers. The SHFY-G25L-00 is a monoblock sectional valve with a single spool, offering a rated flow of 200 L/min and a maximum pressure of 315 bar. It operates with a viscosity range of 12 to 400 mm²/s and is suitable for ambient temperatures between -40°C and +80°C. With its robust design and high performance, this valve is a versatile choice for demanding hydraulic systems.
