Hydraulic Control Valves With Remote Seeking Global Distributorship for P40-U78 Monoblock Valve

控制方式:手控

路数:3 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:SAE 10接头

出油口:SAE 10接头

接口尺寸:SAE 10接头

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:24*21*13

Grossweight:6.60 kg

库存: 有货

827 次查看了此产品

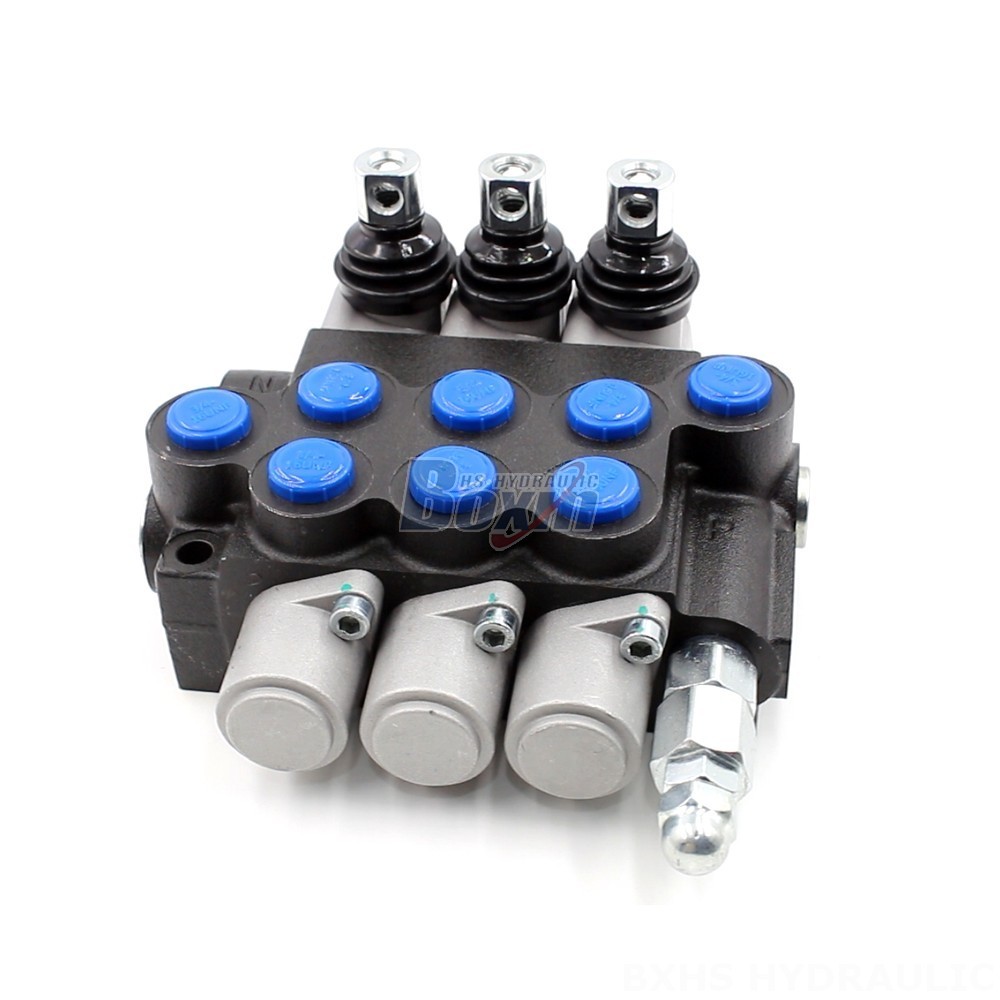

Hydraulic Control Valves With Remote Seeking Global Distributorship for P40-U78 Monoblock Valve

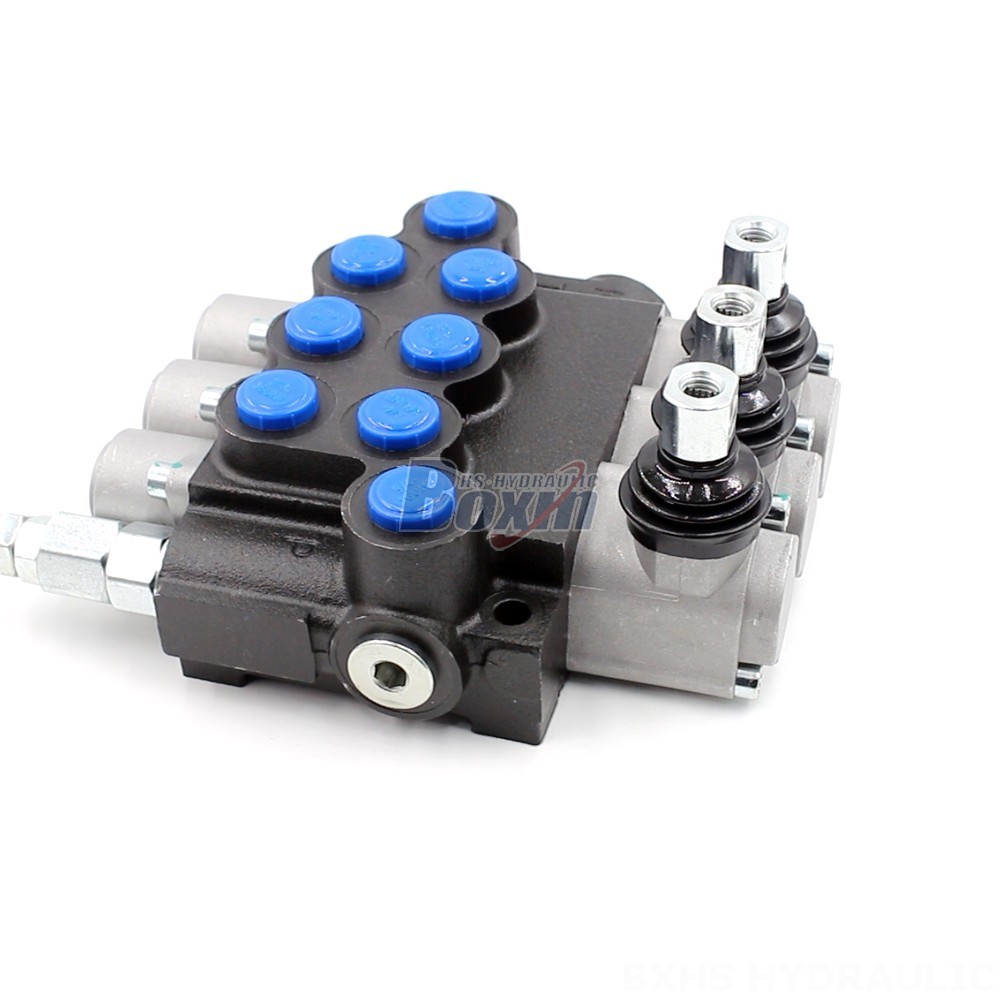

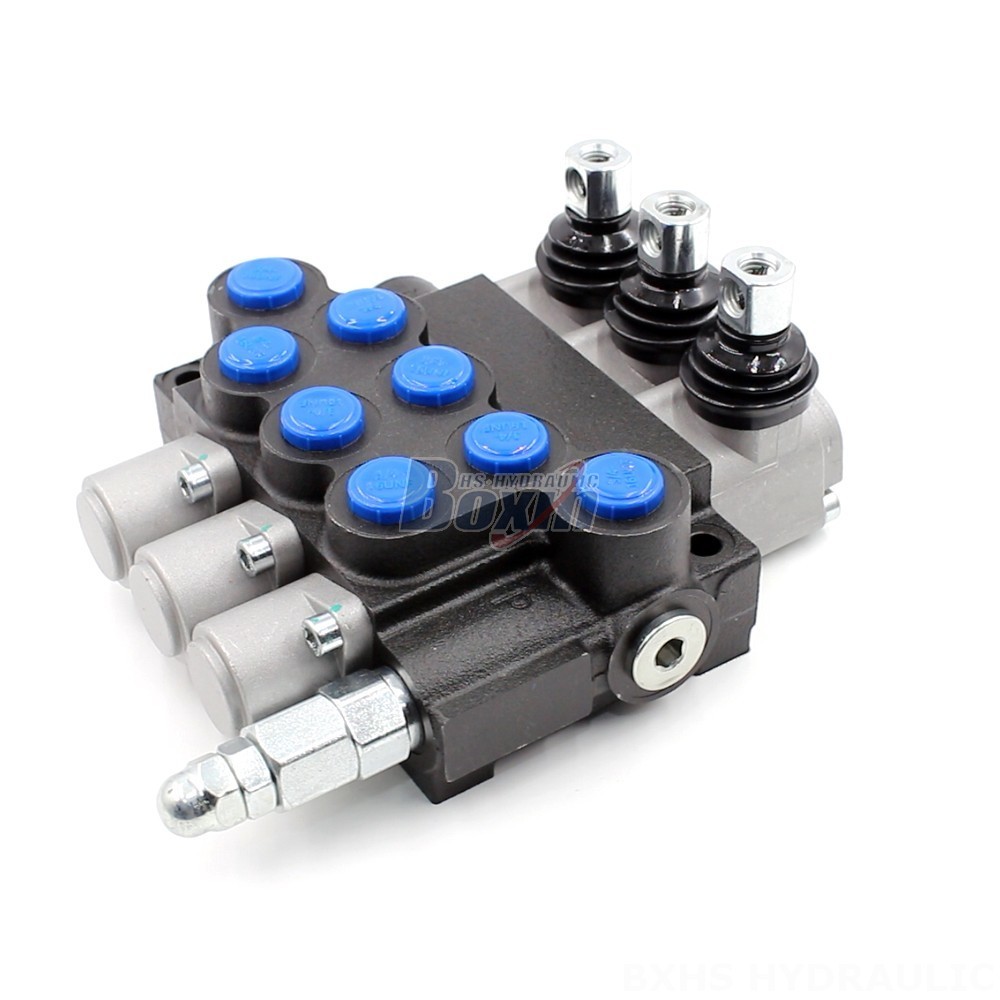

Hydraulic Control Valves With Remote Seeking Global Distributorship for P40-U78 Monoblock Valve

Hydraulic Control Valves With Remote Seeking Global Distributorship for P40-U78 Monoblock Valve drawing image

The P40-U78 Monoblock Valve is a high-performance, remote-controlled hydraulic control valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring a compact design, 3 sections, and a 40 L/min flow rate, this valve is built to withstand high pressures (up to 250 bar) and challenging environments.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

This P40 Series hydraulic control valve boasts a robust monoblock construction, offering superior durability and reliability. The valve's remote control capability provides for convenient operation, while its 3-section design ensures versatility in controlling hydraulic systems. With a rated flow of 40 L/min and a maximum pressure rating of 250 bar, this valve is well-suited for various heavy-duty applications. It is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and more. The P40-U78 Monoblock Valve operates within a viscosity range of 15-75 mm²/s and can withstand ambient temperatures from -40°C to +80°C, ensuring optimal performance across a variety of operating conditions.

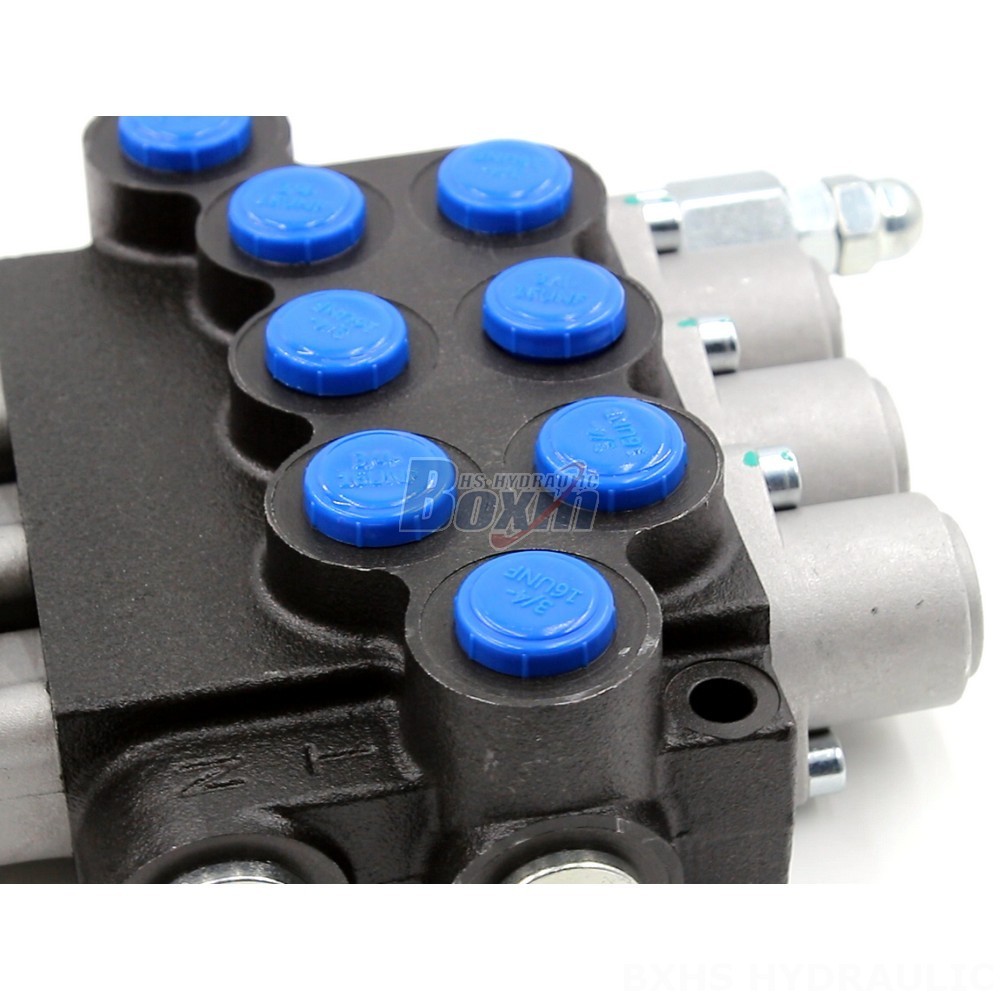

Hydraulic Control Valves With Remote Seeking Global Distributorship for P40-U78 Monoblock Valve

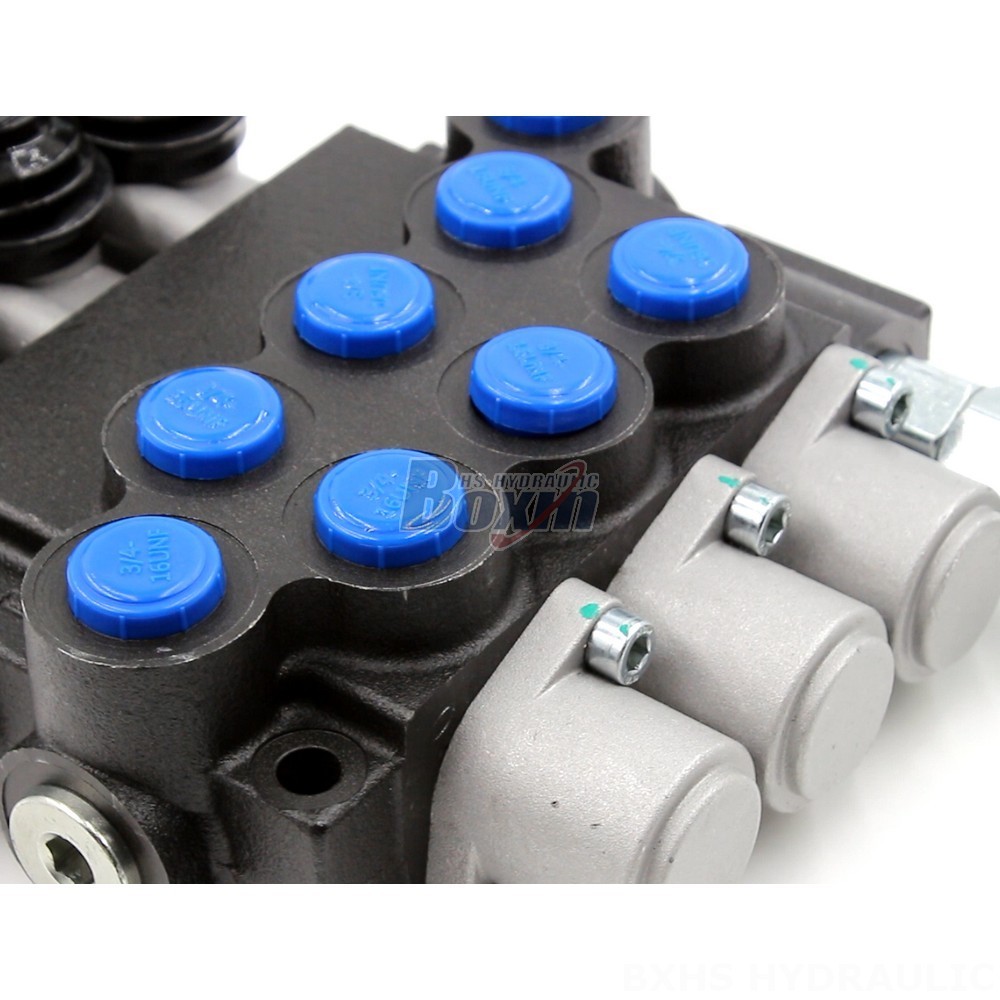

Hydraulic Control Valves With Remote Seeking Global Distributorship for P40-U78 Monoblock Valve

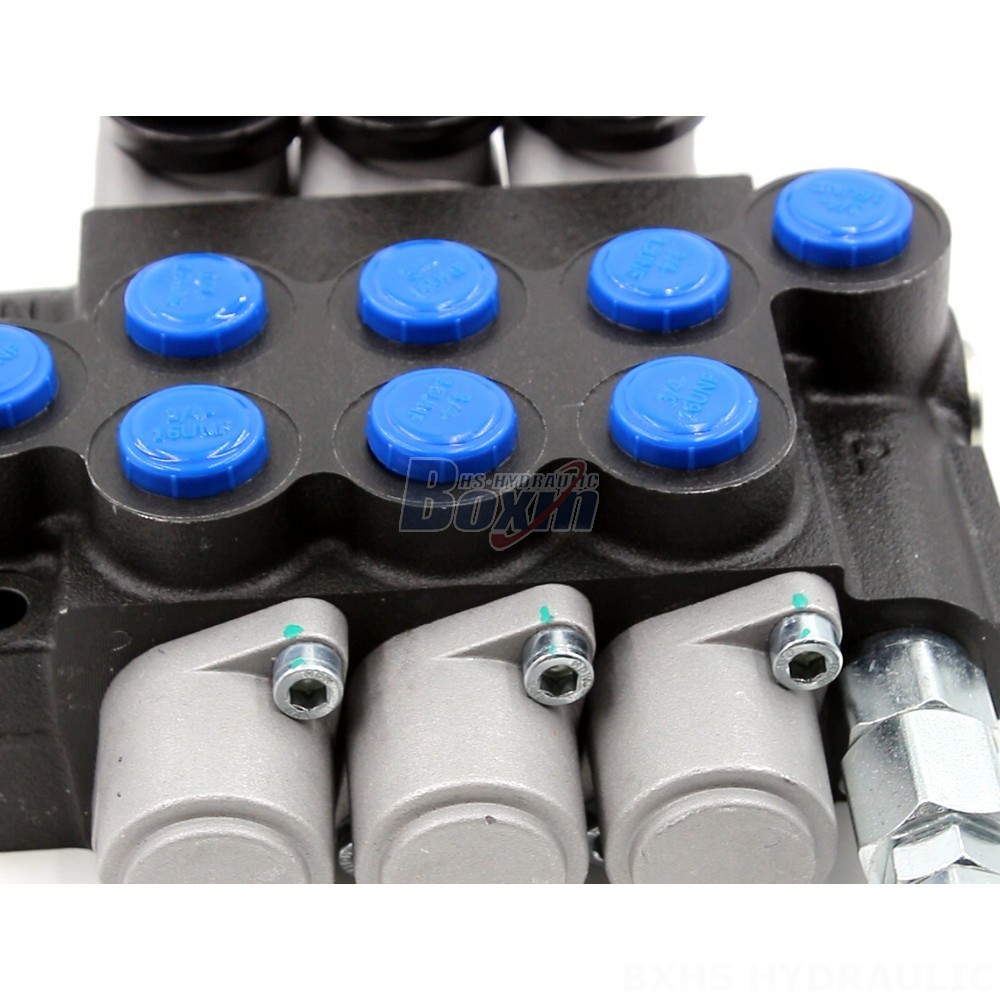

Hydraulic Control Valves With Remote Seeking Global Distributorship for P40-U78 Monoblock Valve
