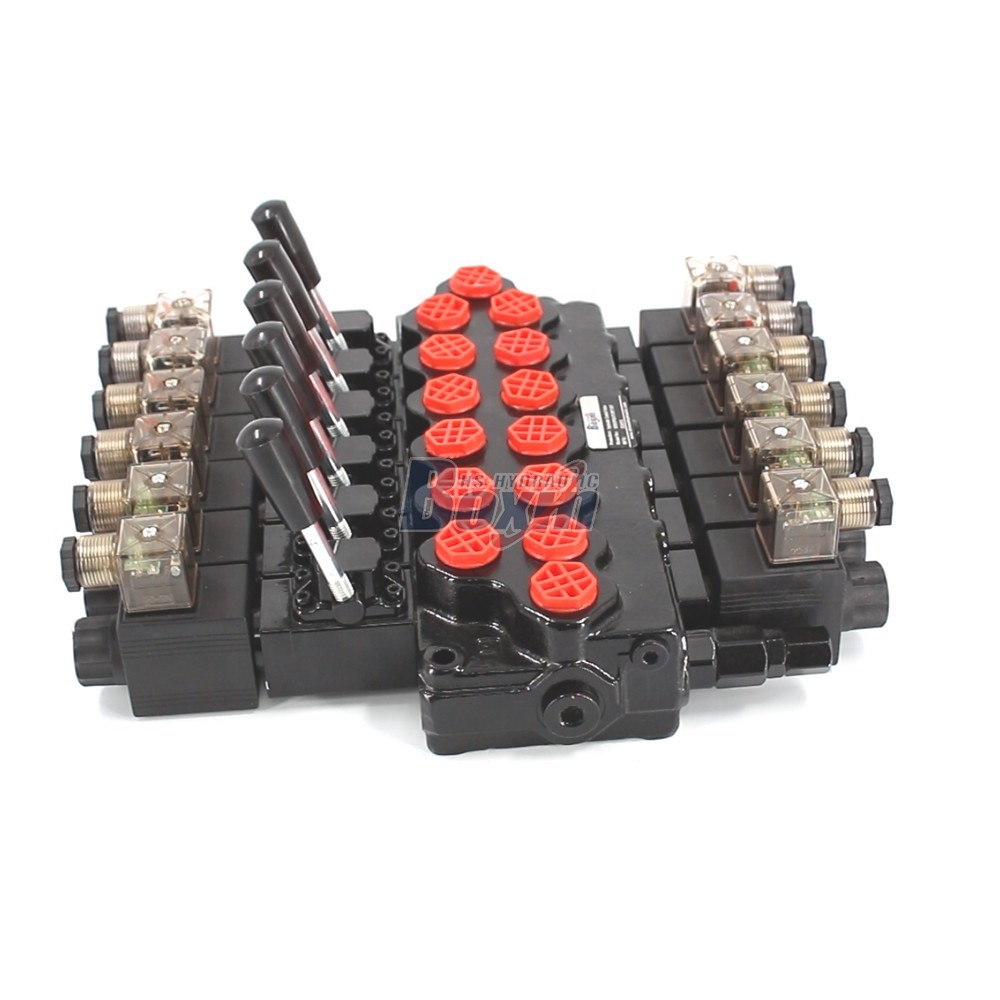

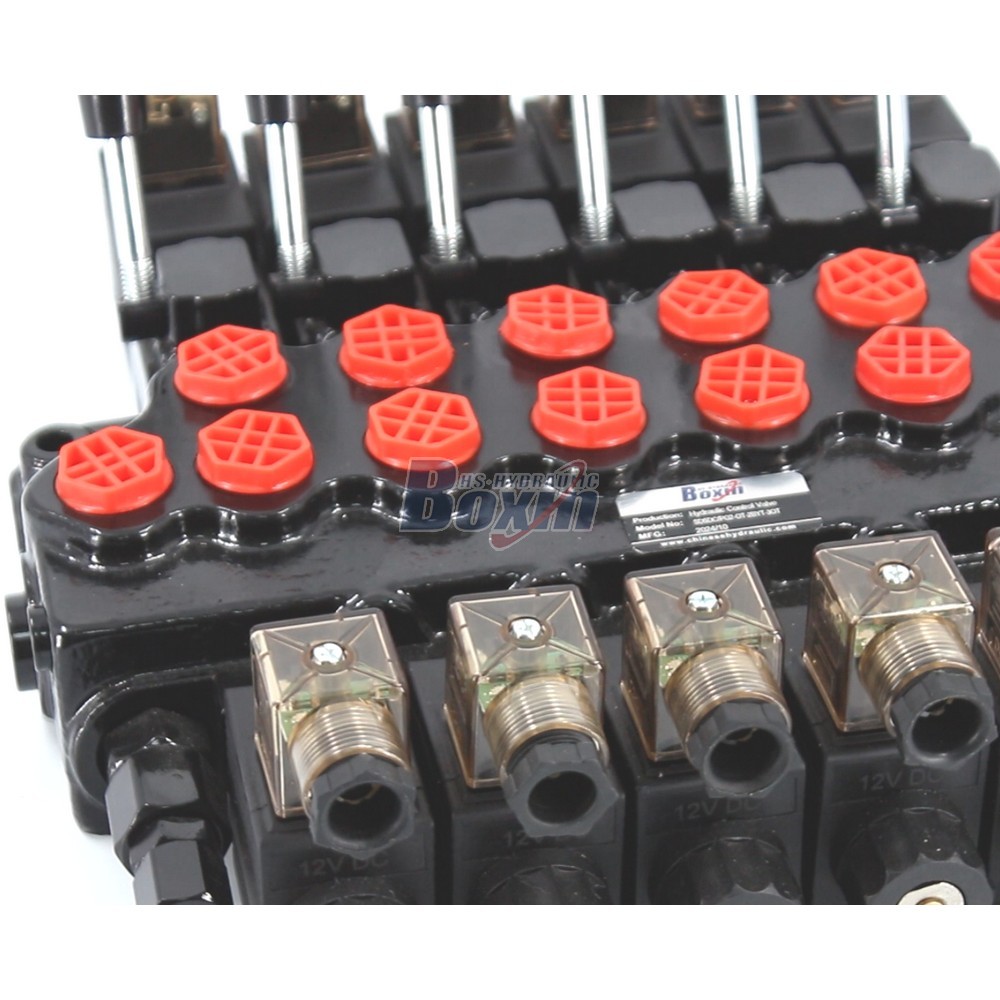

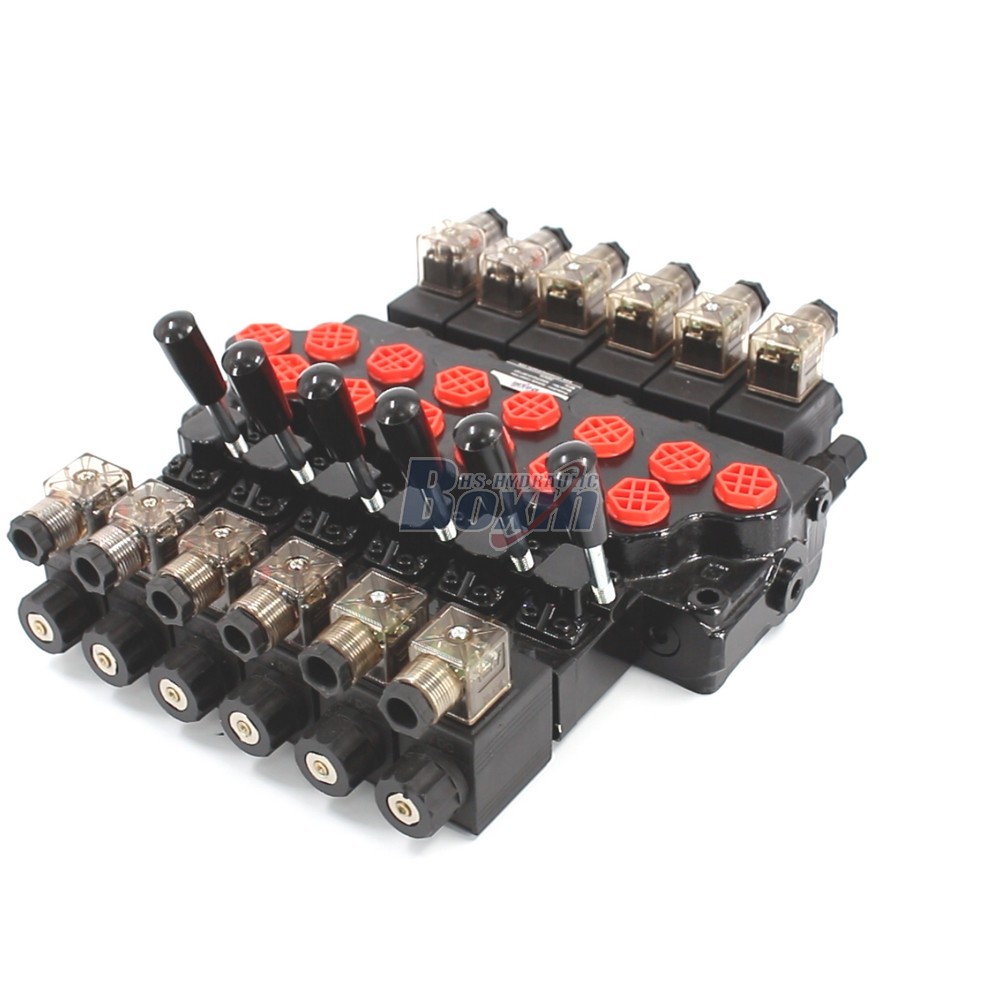

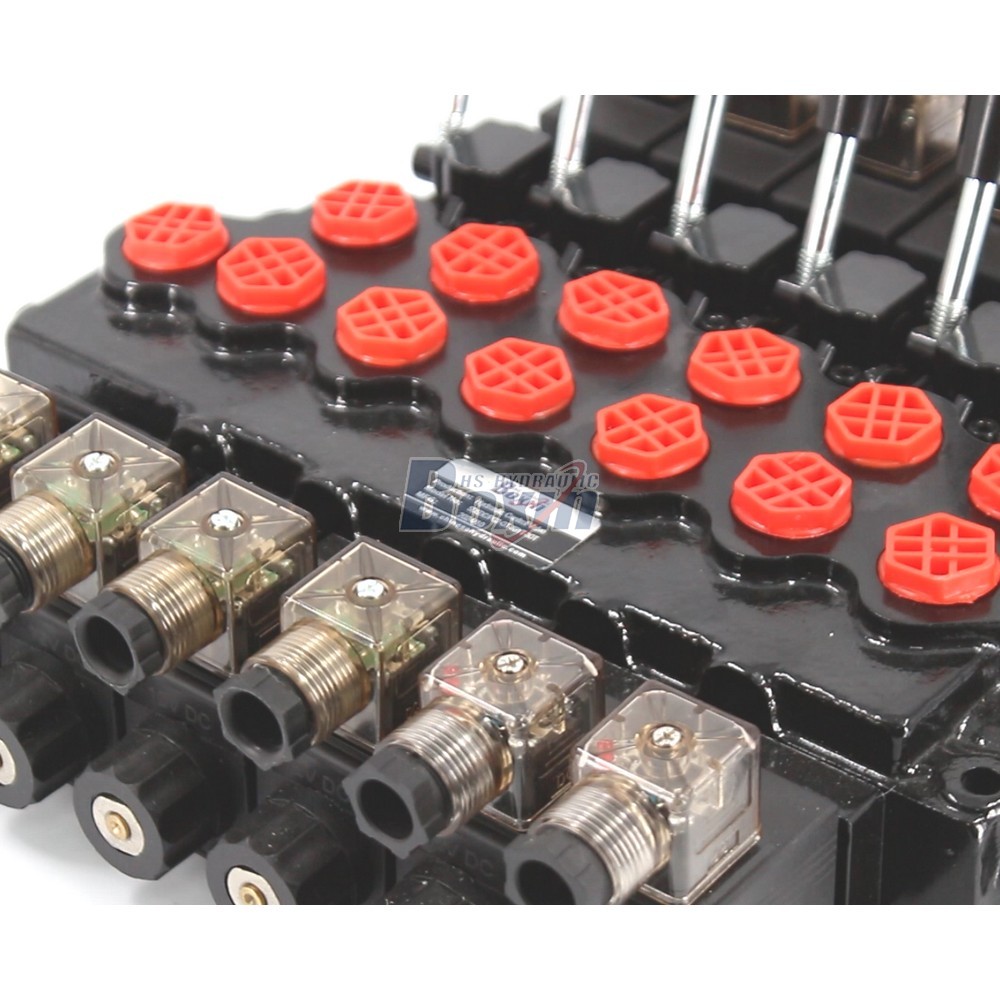

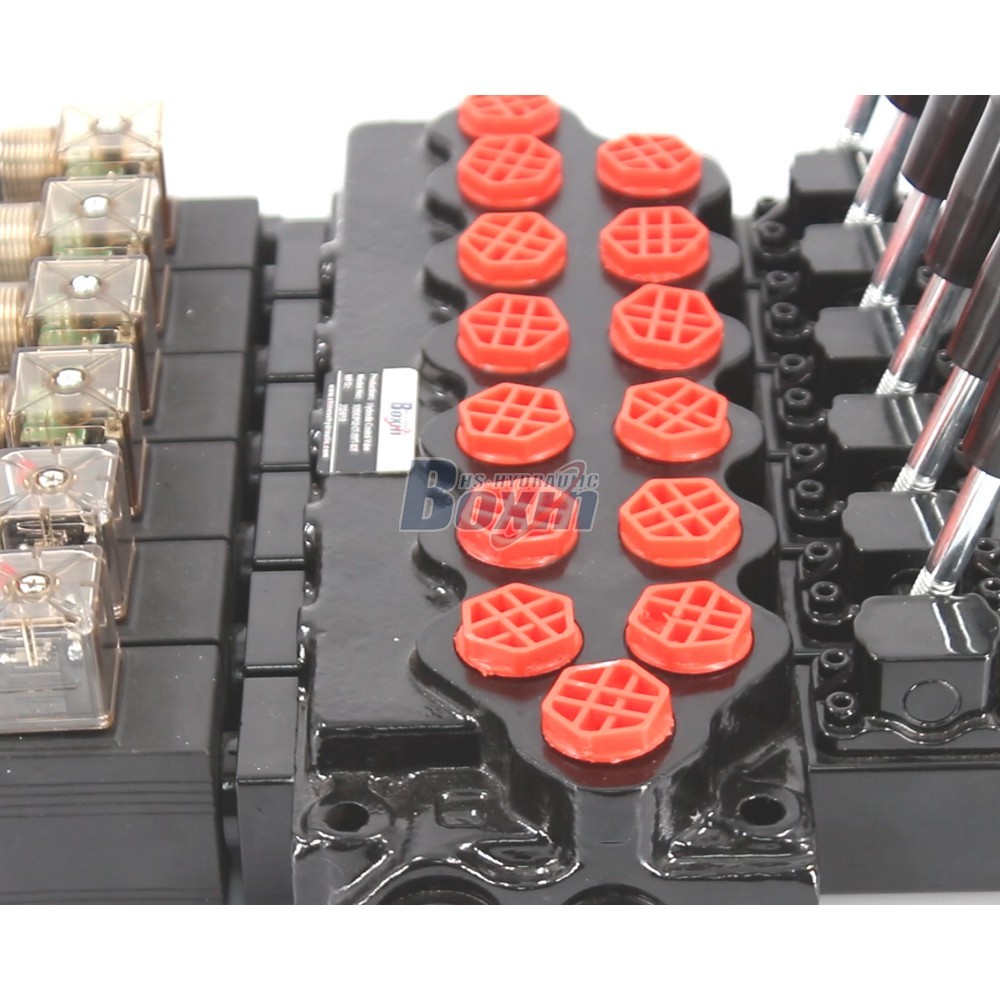

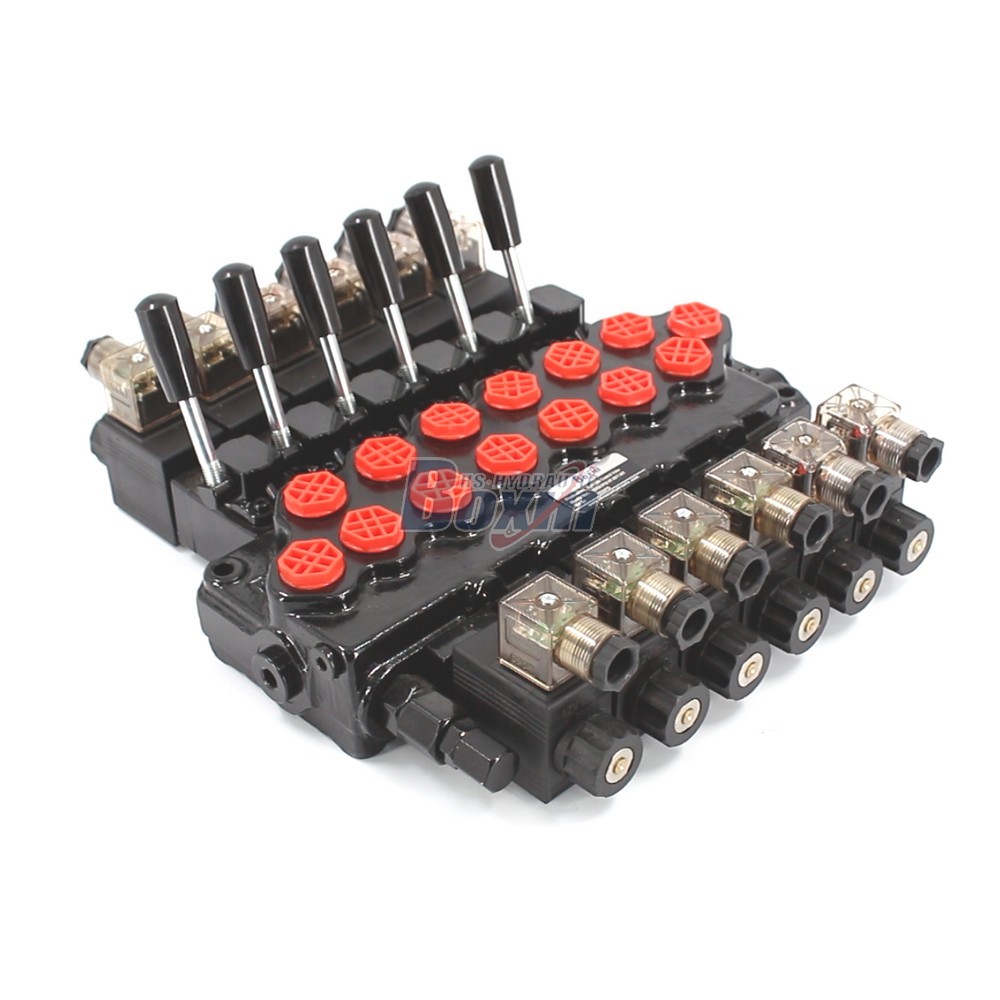

The SD5-PG2 is a high-performance, 6-spool solenoid-controlled monoblock hydraulic valve designed for versatile mobile applications. With a rated flow of 45 L/min and pressure handling up to 315 bar, it provides precise fluid control for demanding tasks in construction, agriculture, and material handling machinery.
| SD5系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
As a large-scale manufacturer, we specialize in providing high-quality SD5-PG2 solenoid-controlled monoblock valves. Engineered for efficiency and durability, this 6-spool valve is ideal for tractors, forklifts, mini-excavators, and skid steer loaders. We offer comprehensive solutions including OEM/ODM services, private labeling, and custom manufacturing to meet your specific technical requirements. Our factory-direct supply chain ensures competitive wholesale pricing for global distributors, wholesalers, and trade partners. We are actively seeking long-term partnerships with distributors, agents, and traders who require reliable, high-pressure hydraulic components. Benefit from our extensive production capacity, rigorous quality control, and dedication to supply chain excellence. Contact us to discuss bulk orders, custom engineering, or partnership opportunities to support your market growth.
