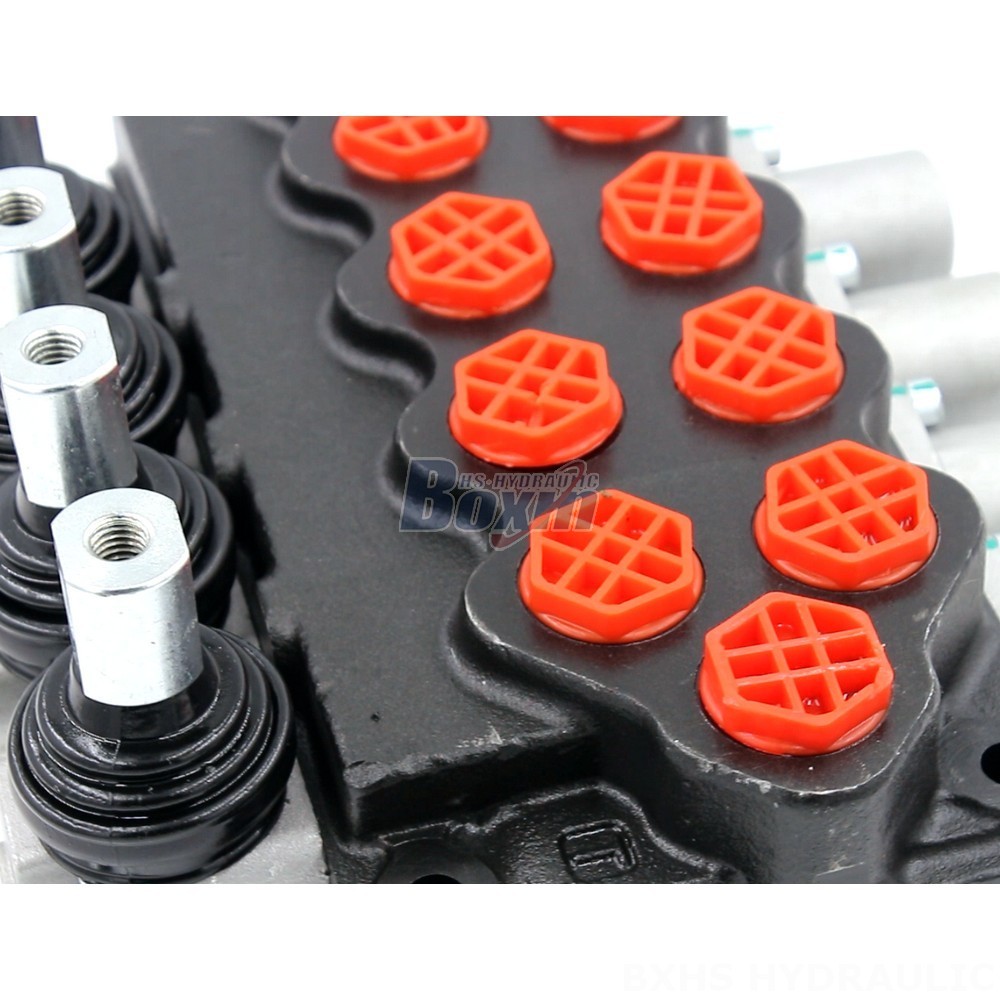

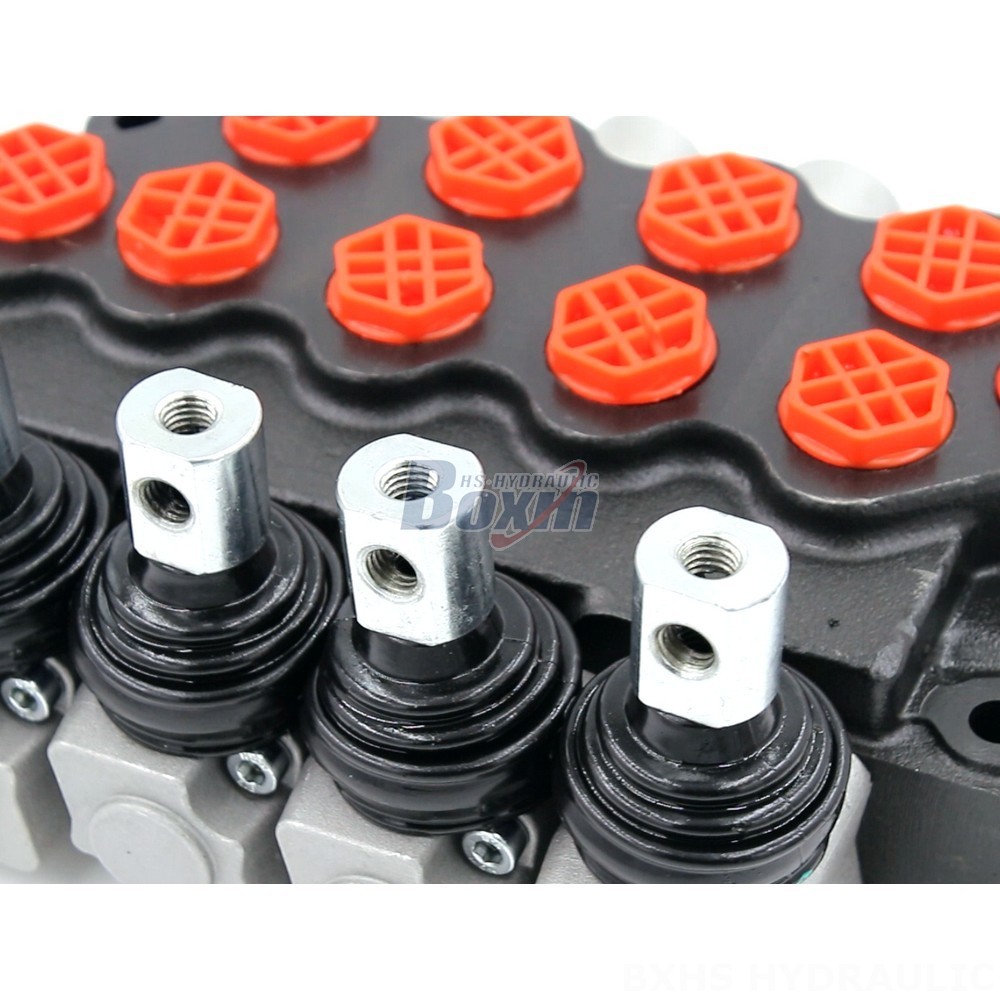

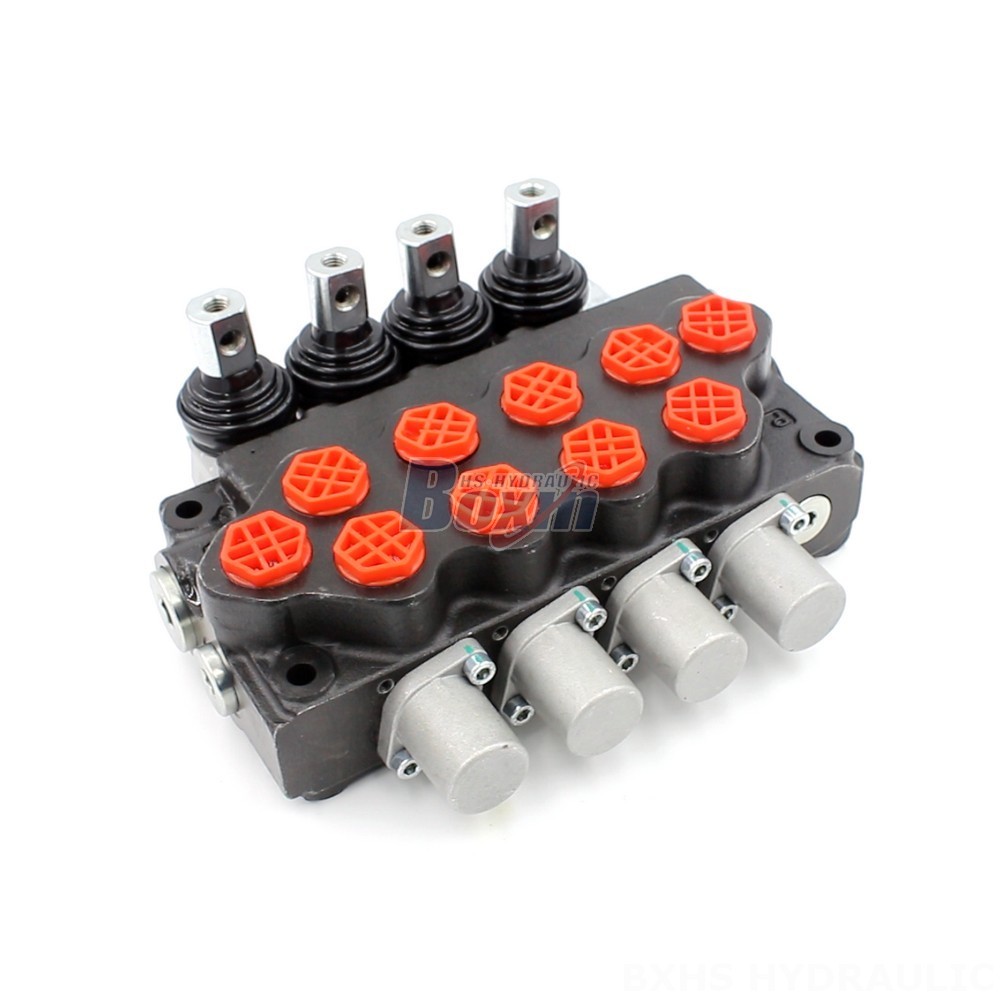

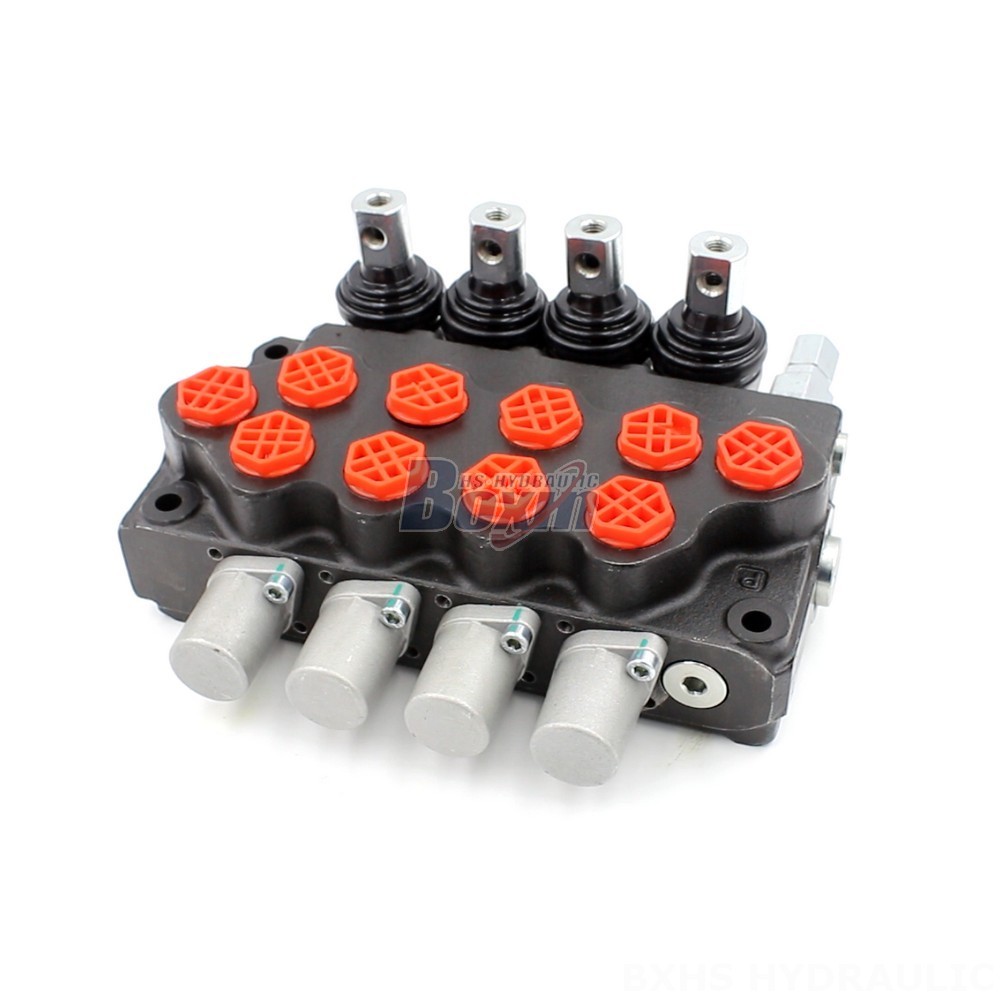

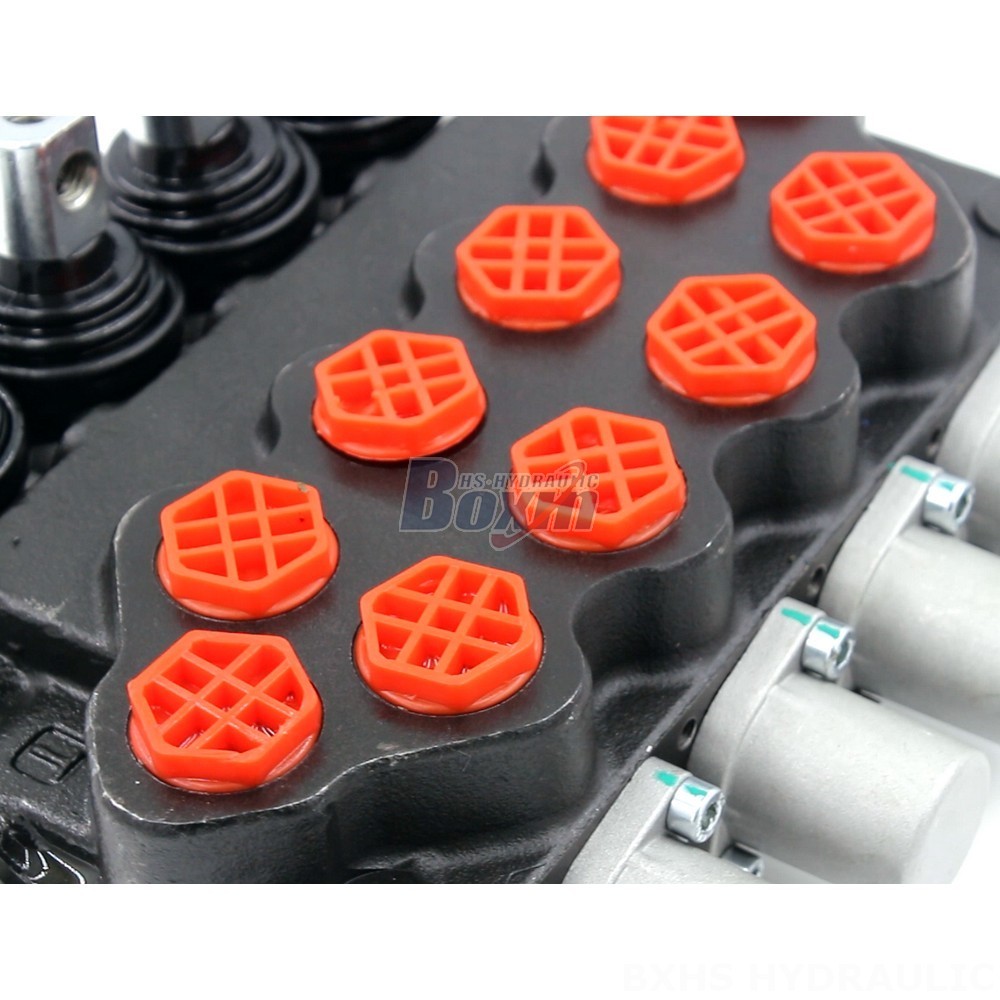

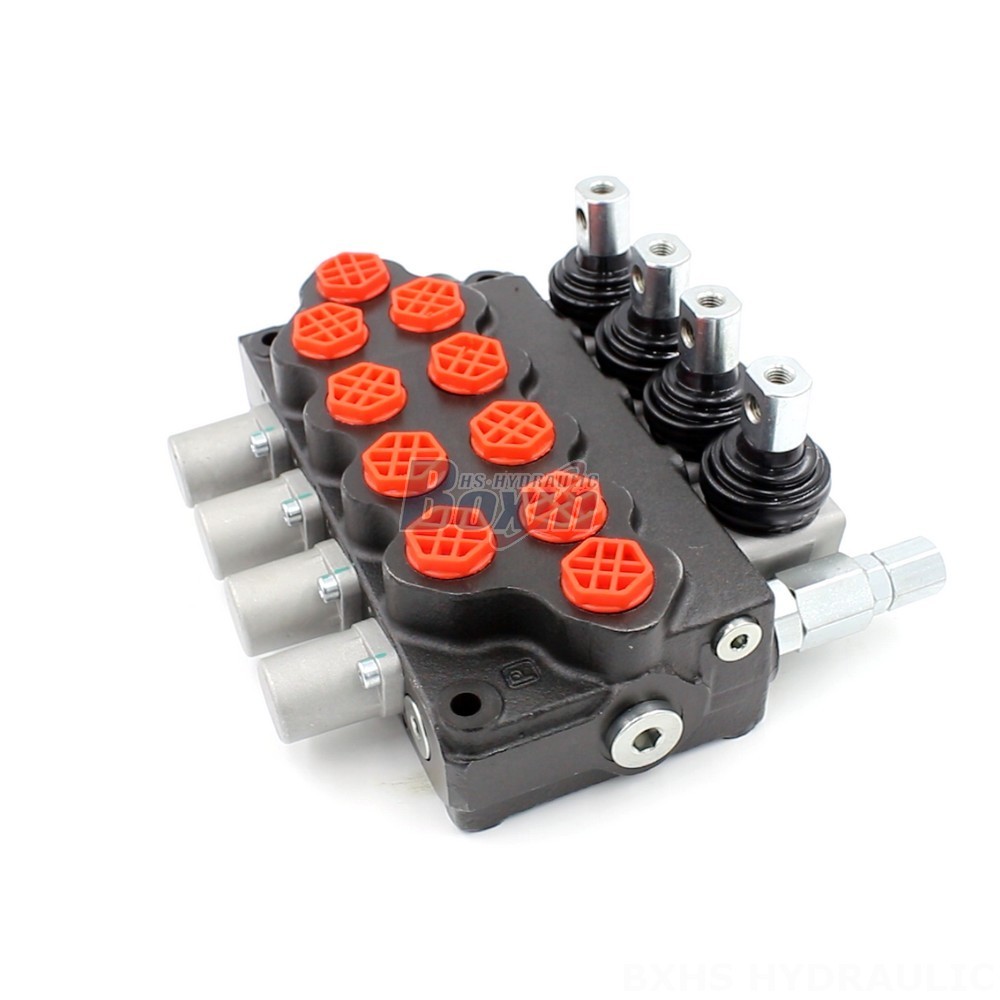

The SD5-G38 4-Spool Hydraulic Valve is a premium hydraulic solution designed for demanding applications in various industries. Its robust construction, high flow capacity, and exceptional pressure handling capabilities make it ideal for heavy-duty machinery and equipment.
| SD5系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
**Key Features:**
* **4-Spool Design:** Provides precise control over multiple hydraulic circuits.
* **Monoblock Construction:** Ensures durability and leak-free operation.
* **Manual Control:** Offers intuitive and responsive operation.
* **High Flow Rate (40 L/min):** Supports efficient operation of hydraulic systems.
* **High Pressure Capacity (305 bar):** Handles demanding pressure requirements with ease.
* **Versatile Temperature Range (-40°C to +60°C):** Suitable for operation in extreme environments.
* **Wide Application Area:** Ideal for material handling, construction, earth moving, agriculture, and industrial vehicles.
* **Compatible Models:** Telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, MIDI-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
