The SD18 Manual 1 Spool Monoblock Directional Valve is a high-performance valve designed for use in a wide range of hydraulic applications. It features a manual control method, a 1-section structure, and a monoblock design. With a rated flow of 120 L/min and a max pressure of 315 bar, this valve is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.
| SD18系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 160 L/min (42.2 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G1/2接口, G1接口, SAE 16接头 |
| 出油口 | G1接口, SAE 16接头 |
| 接口尺寸 | G1接口, SAE 16接头 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |

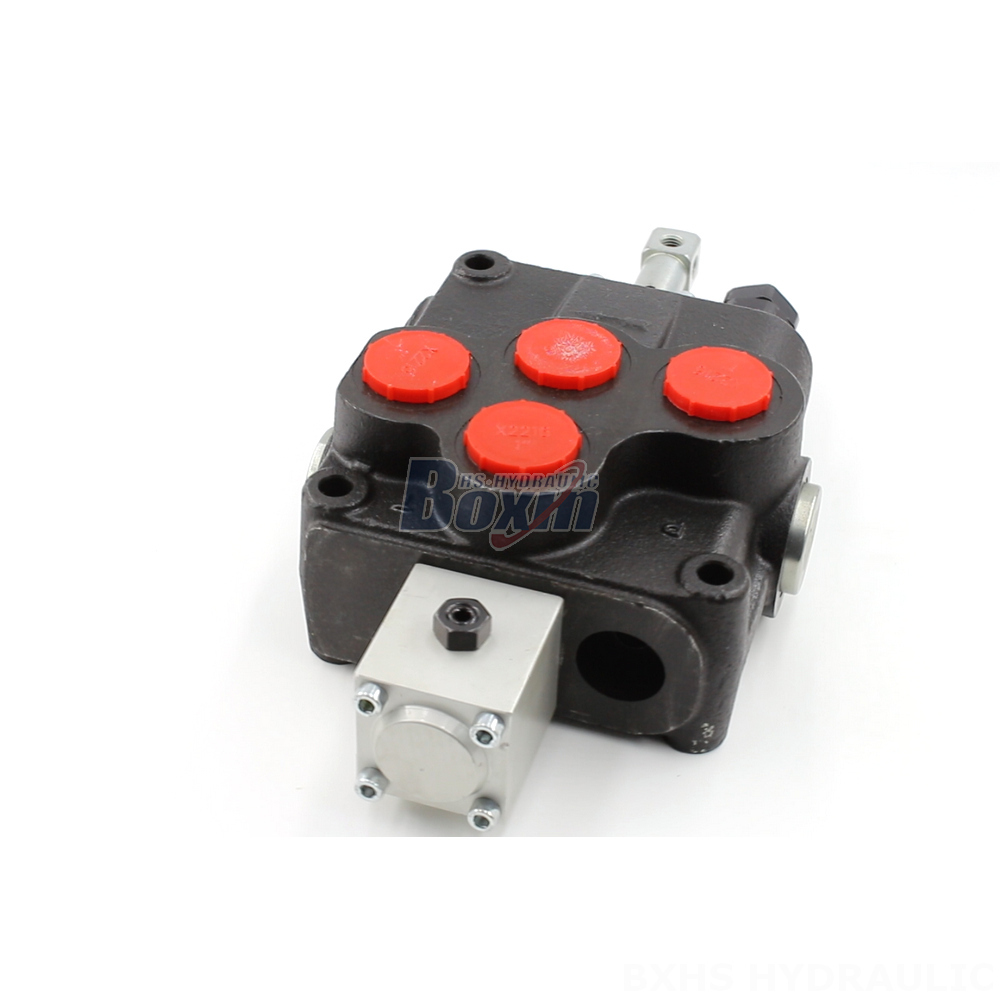

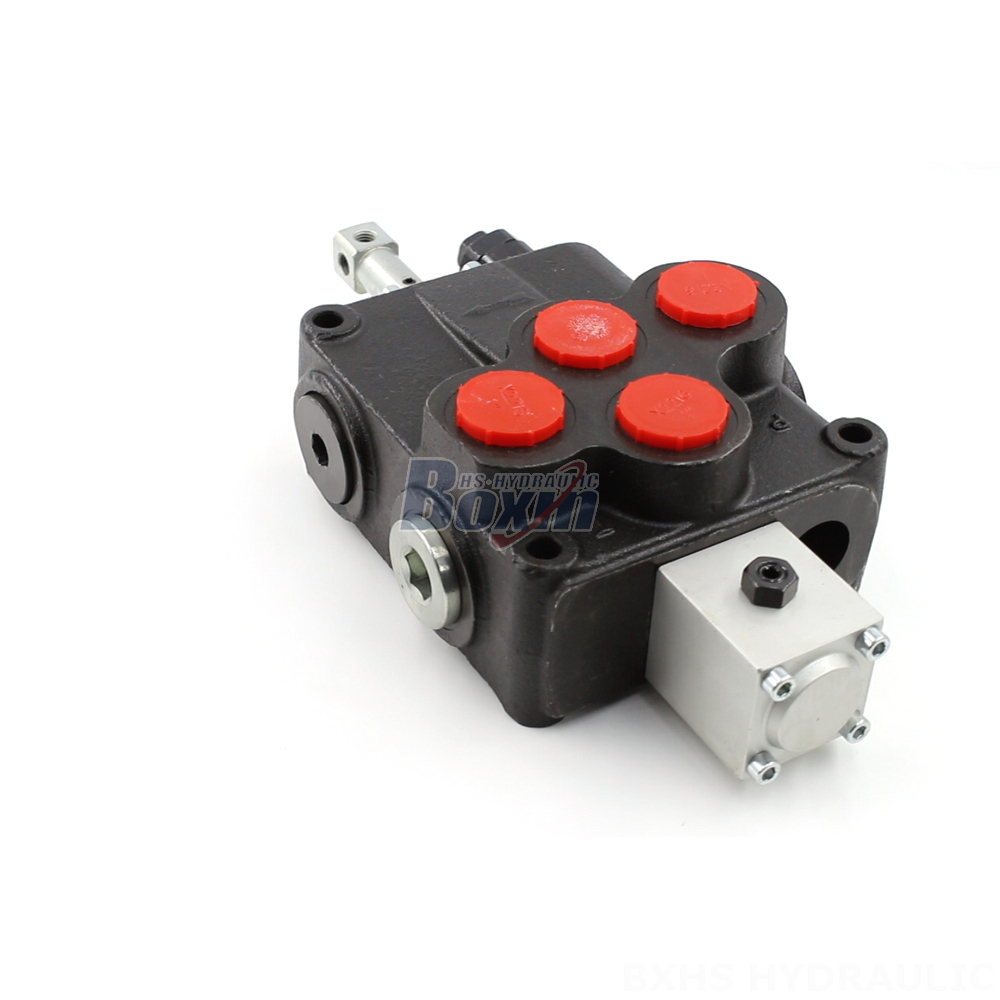

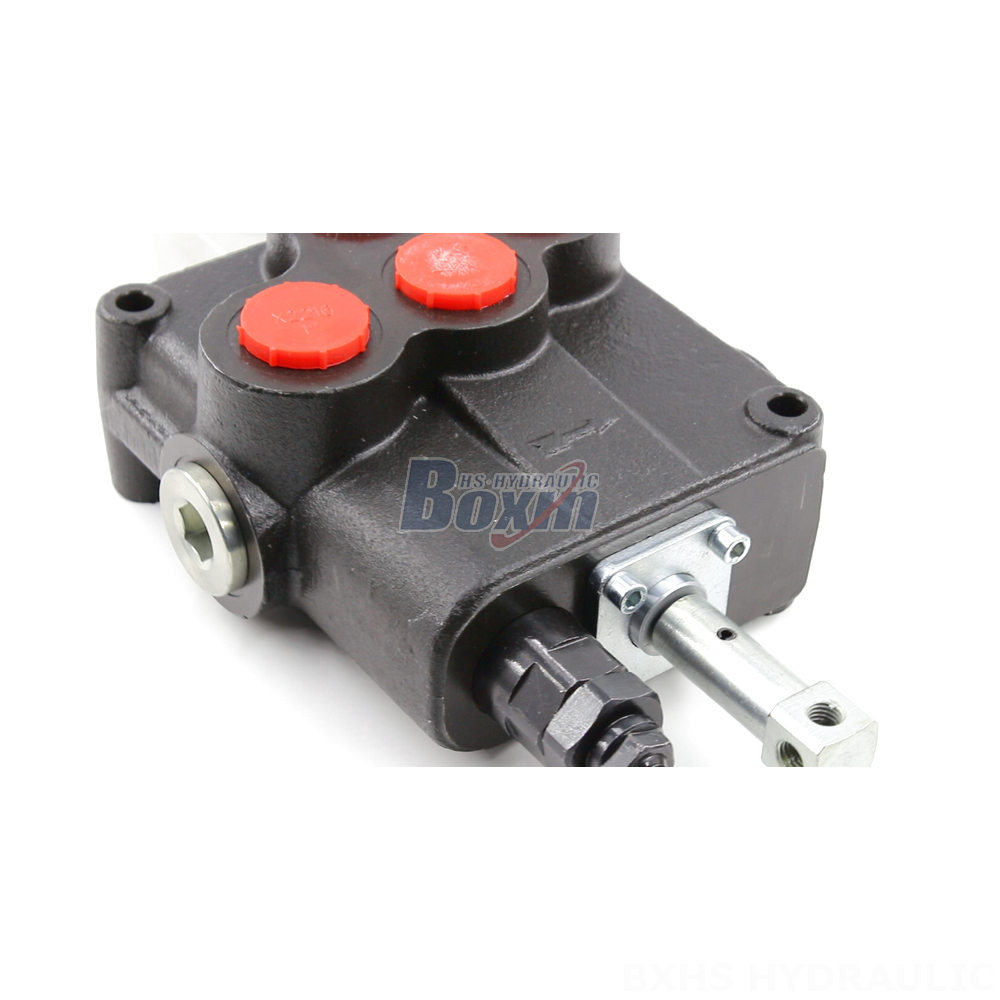

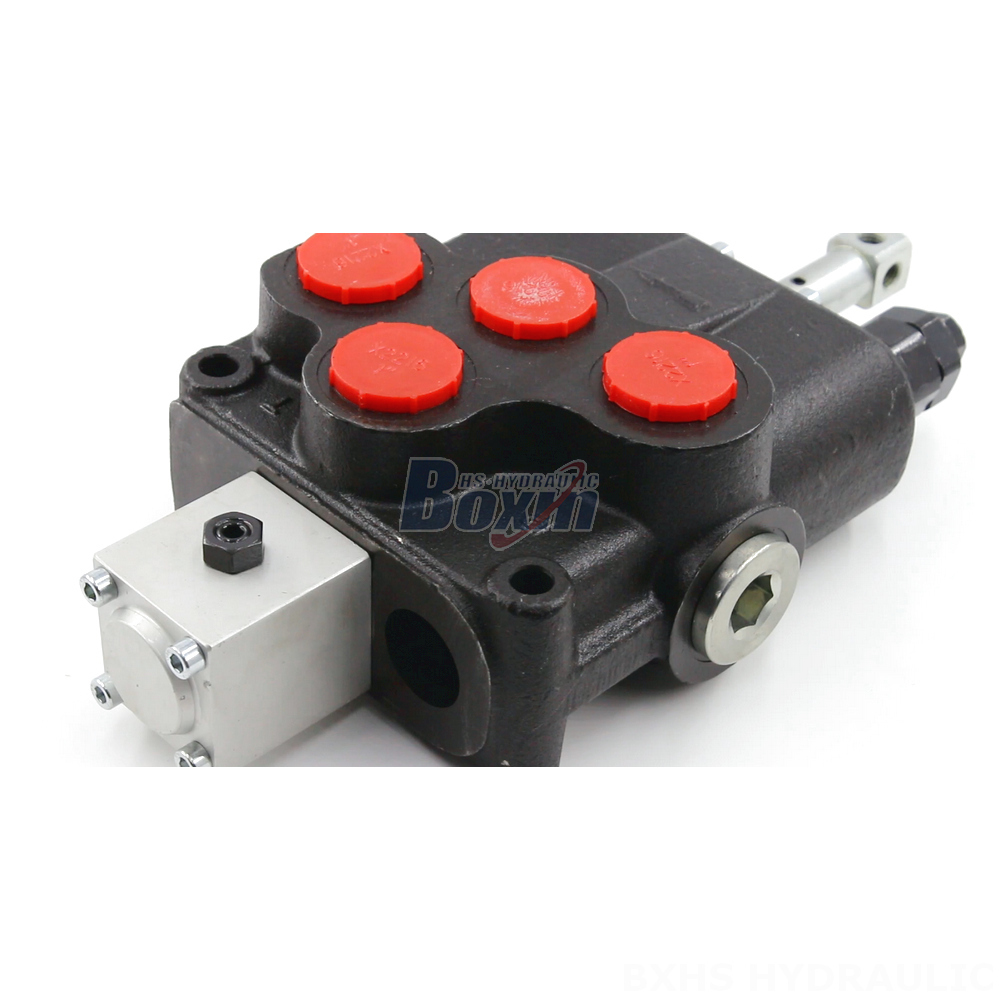

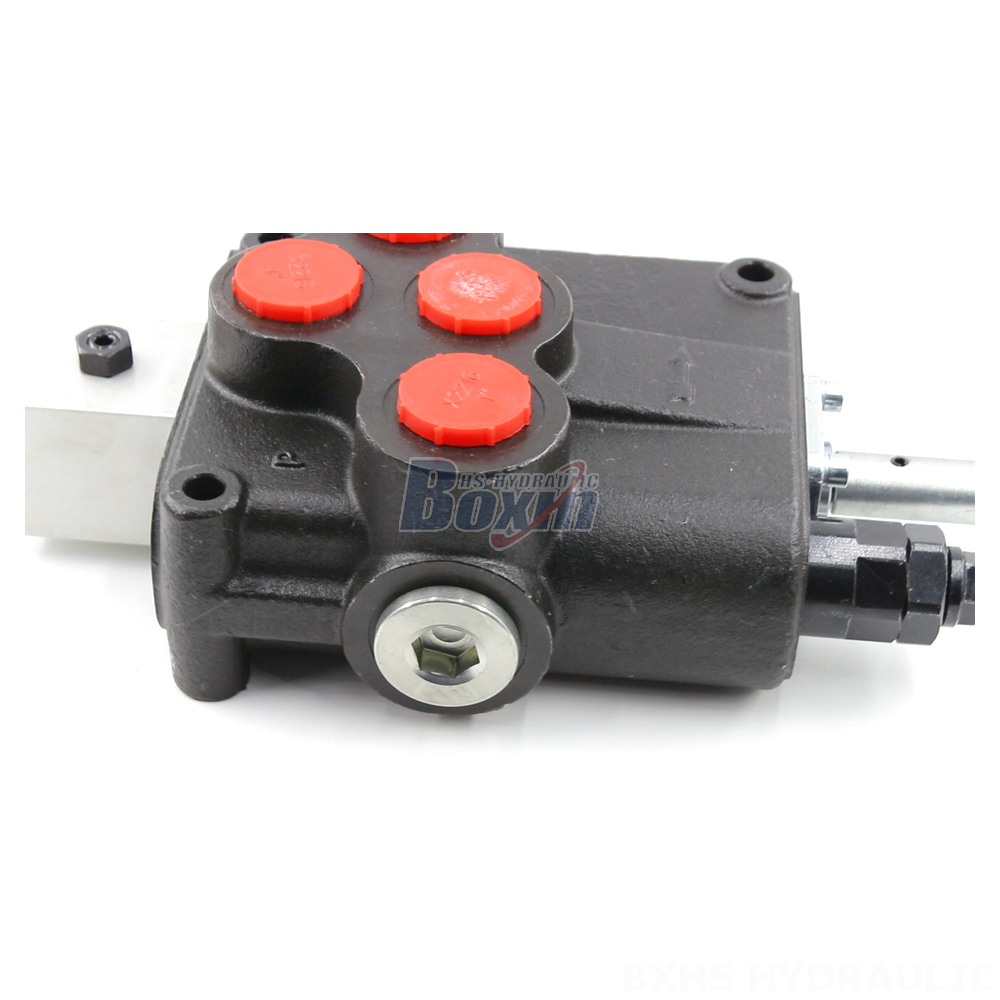

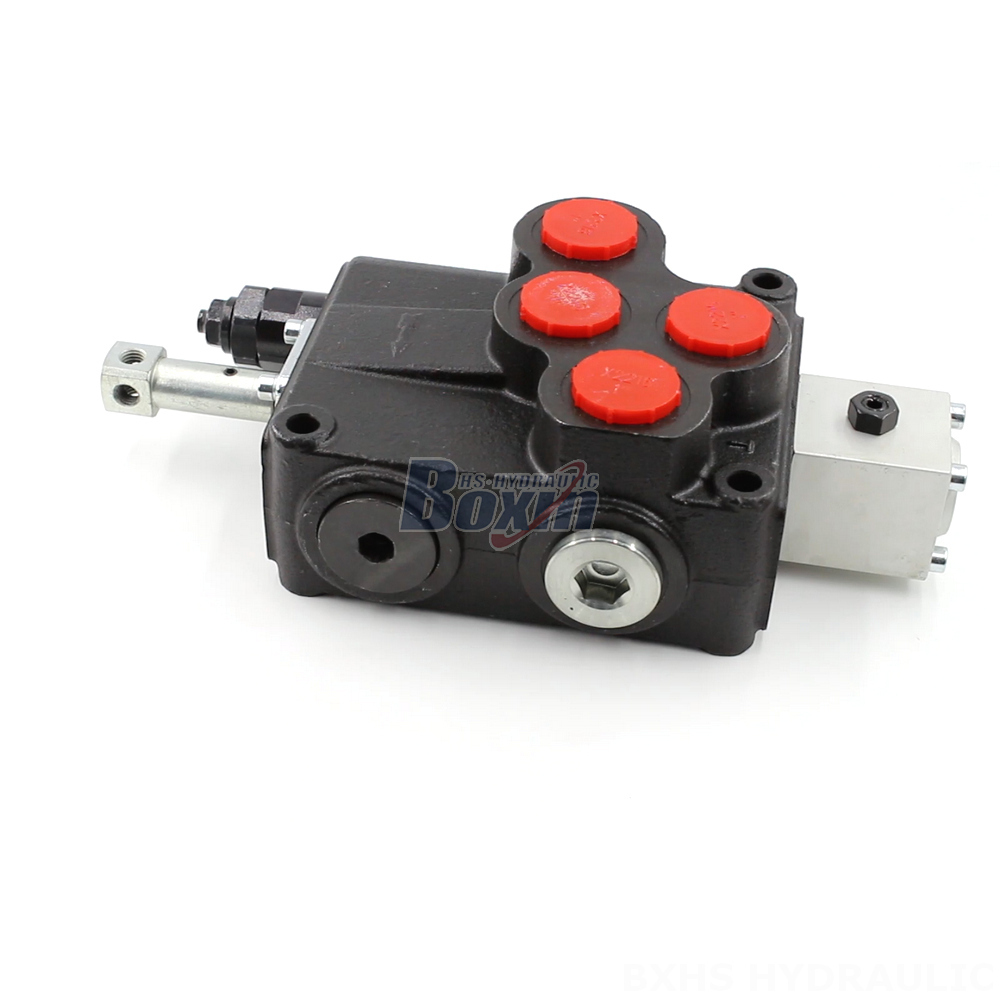

**SD18 Manual 1 Spool Monoblock Directional Valve**
**Product Features:**
* Manual control method
* 1-section structure
* Monoblock design
* Rated flow: 120 L/min (31.7 US gpm)
* Max pressure: 315 bar (4600 psi)
* Operating viscosity range: 12 - 400 mm²/s (12 cSt to 400 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
* Spool: 1 Spool
* Series: SD18 Series
**Application Areas:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* BACKHOE
* SEEDING MACHINE
* HARVESTER
* BALER
* SKIP LOADER
* WOOD SPLITTER
