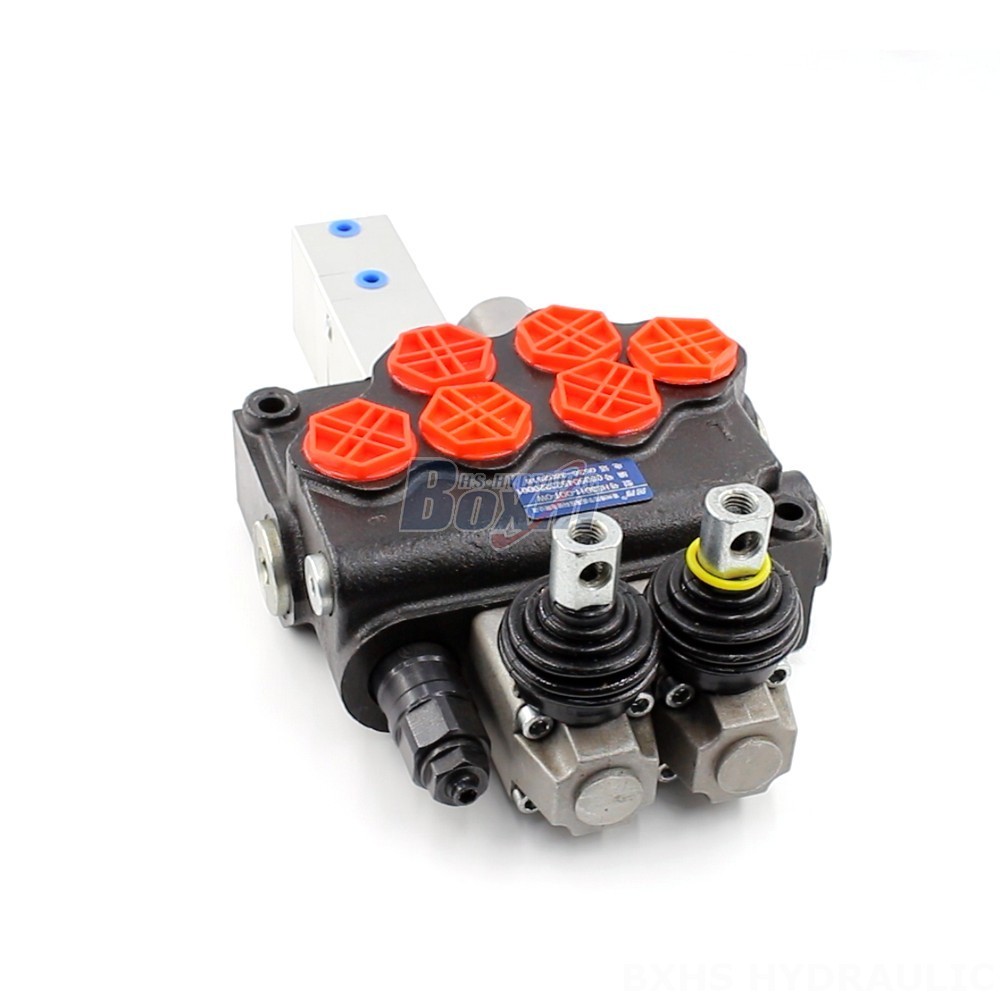

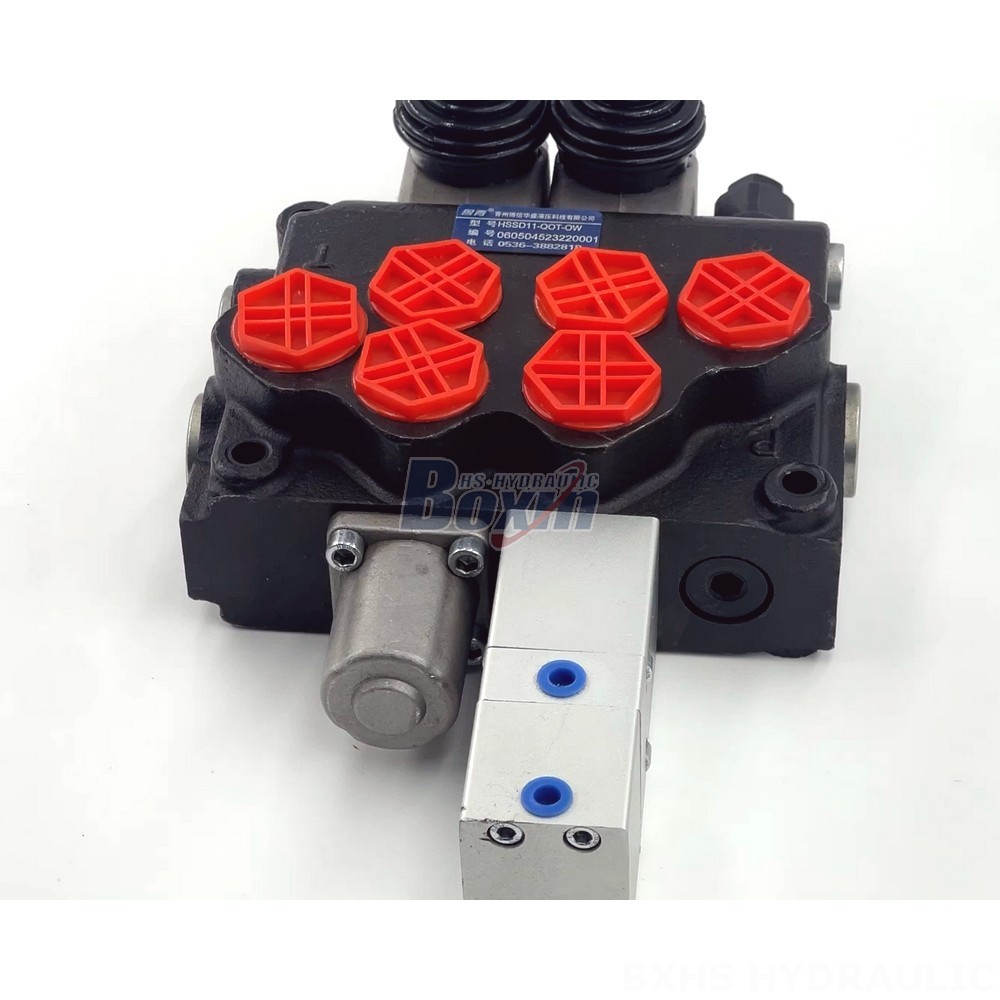

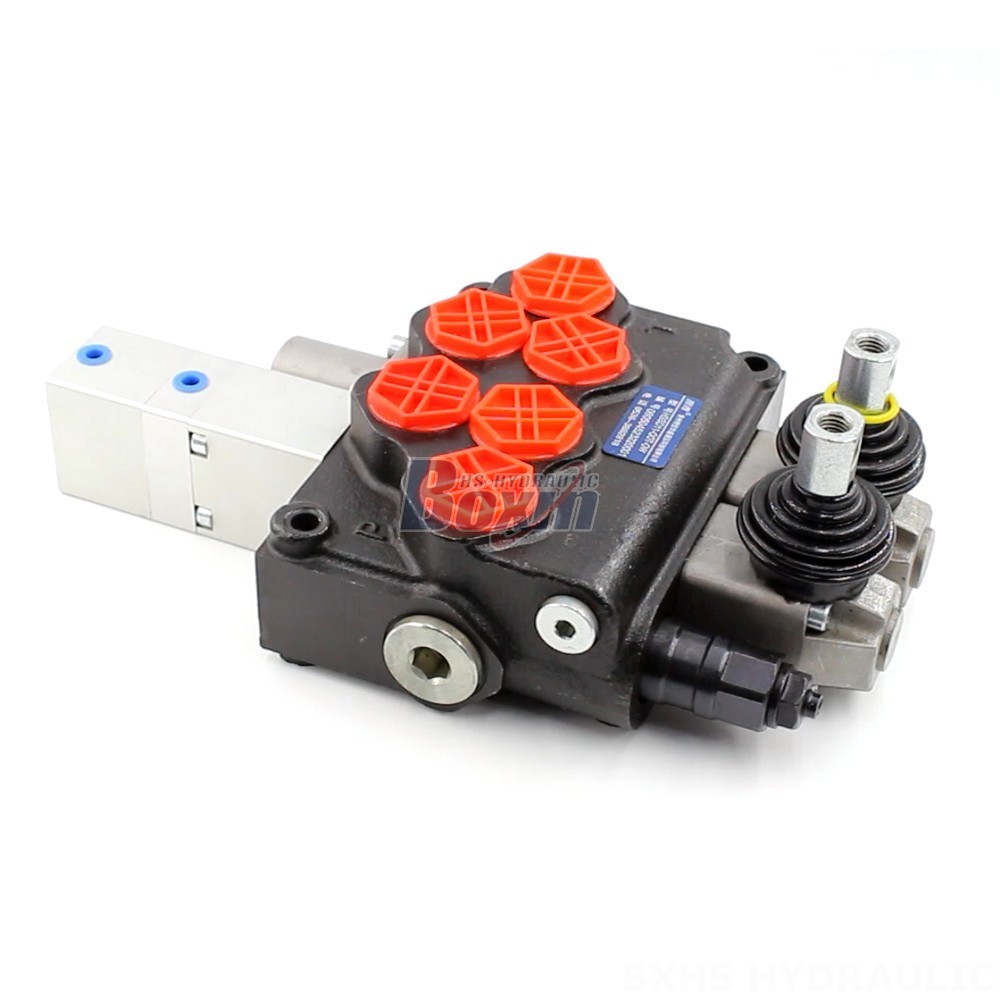

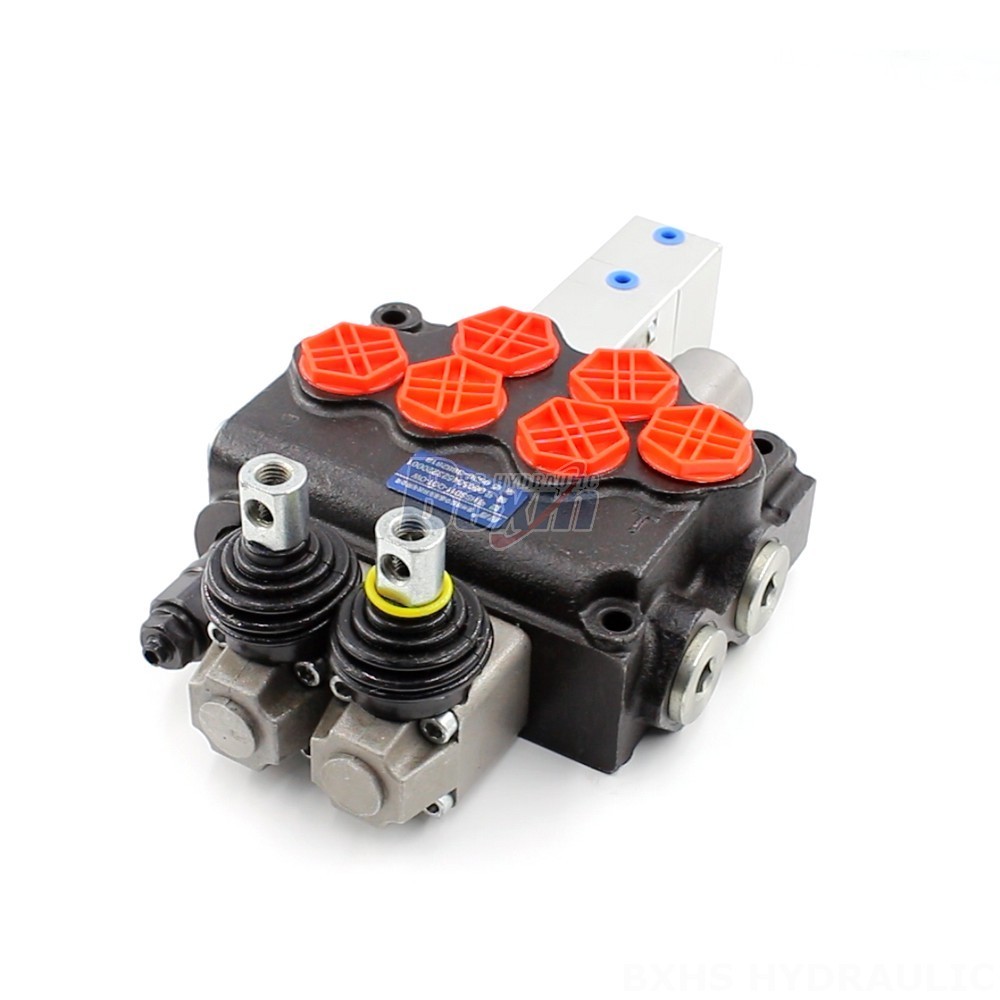

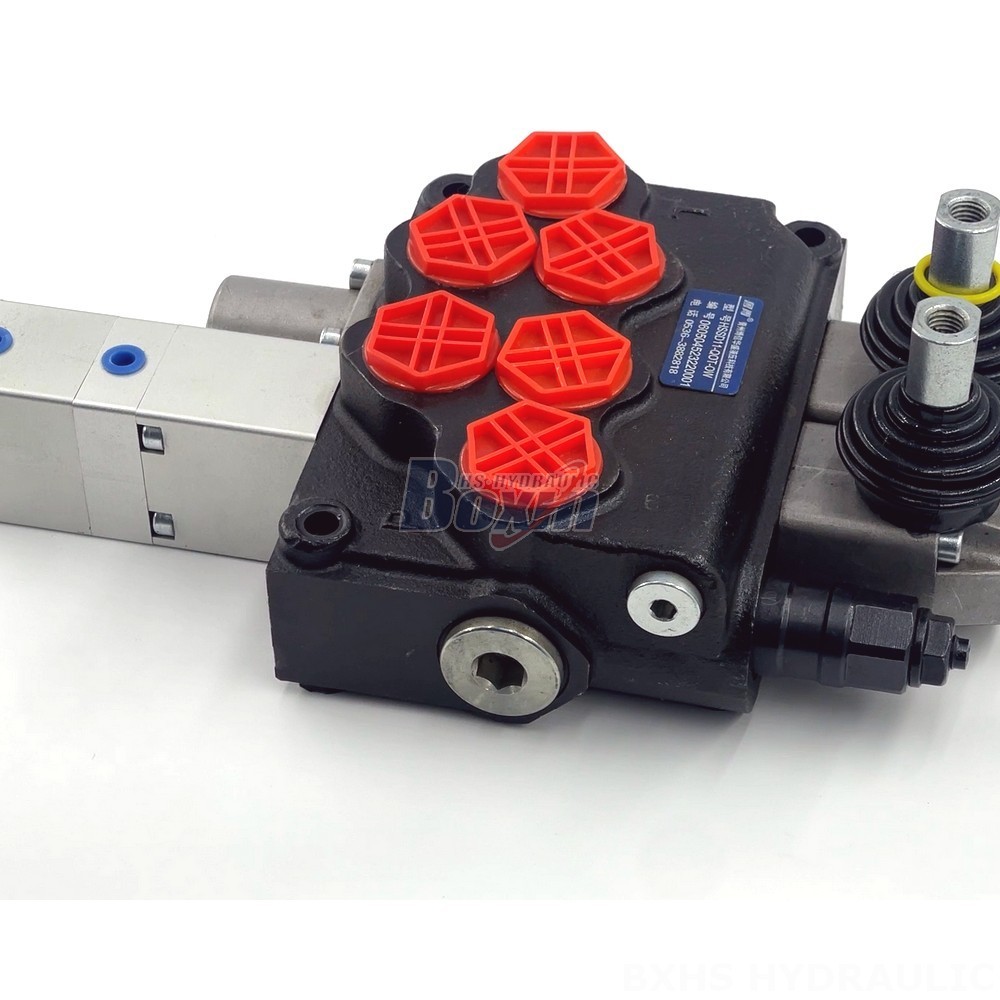

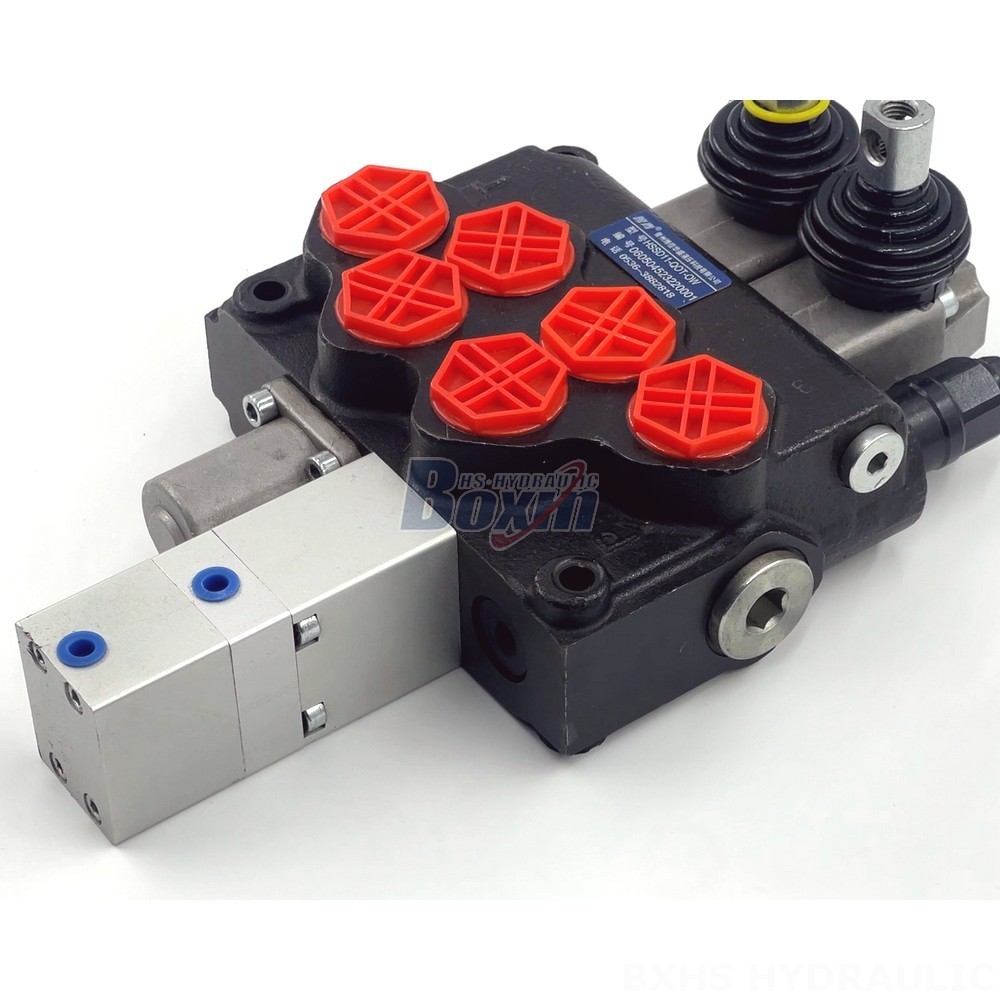

The SD11 Manual Monoblock Directional Valve is a reliable and efficient hydraulic solution for a wide range of applications. With its 1 section, 70 L/min rated flow, and 250 bar max pressure, this valve is designed to deliver optimal performance in demanding hydraulic systems.
| SD11系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁, 气动和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 70 L/min (18.5 US gpm) |
| 最大压力 | 305 bar (4400 psi), 315 bar (4600 psi) |
| 进油口 | G3/4接口, SAE 12接头 |
| 出油口 | G3/4接口, SAE 12接头 |
| 接口尺寸 | G3/4接口, SAE 12接头 |
**Product Name:** SD11 Manual Monoblock Directional Valve
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 70 L/min (18.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** SD11 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, WHEEL LOADER, BACKHOE LOADER, DUMP TRUCK, FACE DRILL RIG, CONCRETE BOOM PUMP, PAVE ROLLER, ROTARY DRILLING, CRUSHER - STONE CUTTER, SCREENER, TRACTOR AND FRONT-END LOADER
