The HSDVG32 Electric Proportional Valves are reliable and efficient hydraulic control valves designed for various applications in material handling, construction, agriculture, and industrial vehicles. These 4-section, sectional valves offer precise electric proportional and manual control, providing a flow rate of up to 140 L/min and a maximum pressure of 315 bar. With an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, these valves ensure optimal performance in demanding operating conditions.
| HSDVG32系列 比例控制阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电液控, 电磁, 液控和手控, 软轴, 电比例, 电磁和手动, 电比例+手控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 140 L/min (37 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口 |
| 出油口 | G3/4接口 |
| 接口尺寸 | G1/2接口, G3/4接口 |

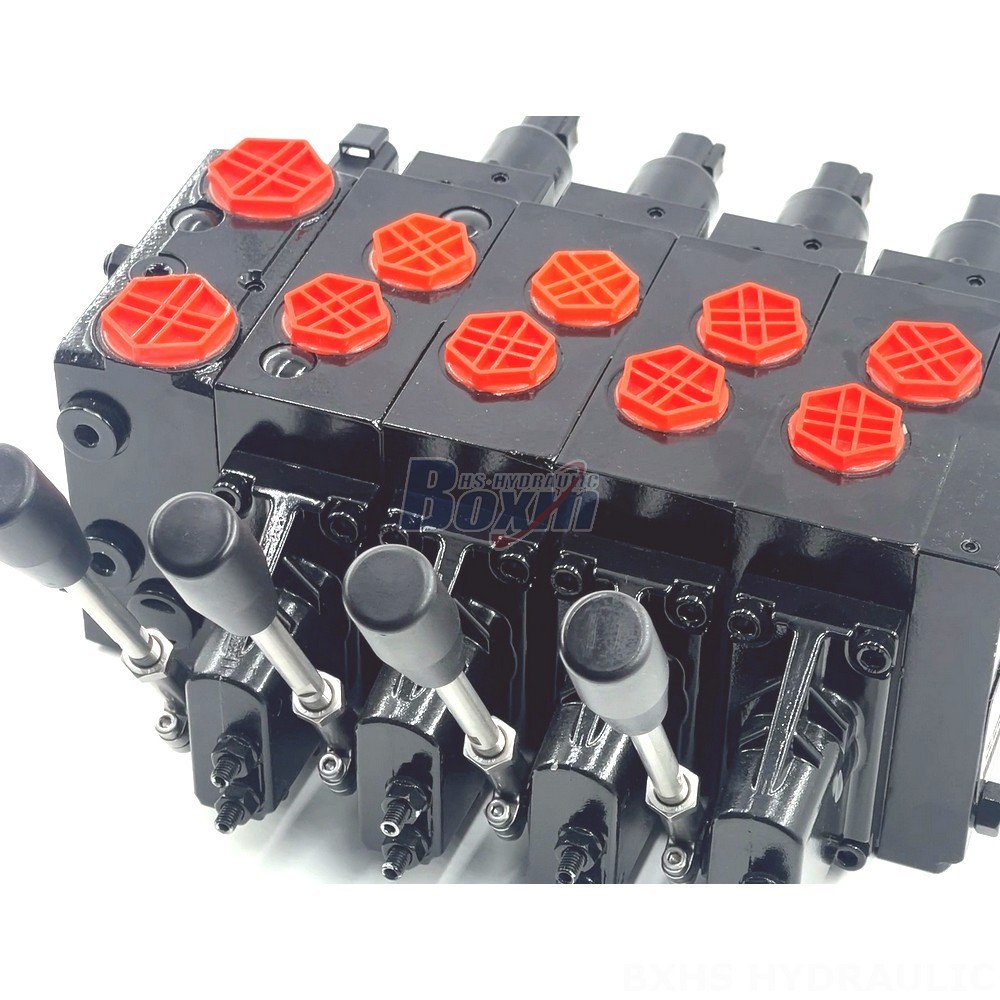

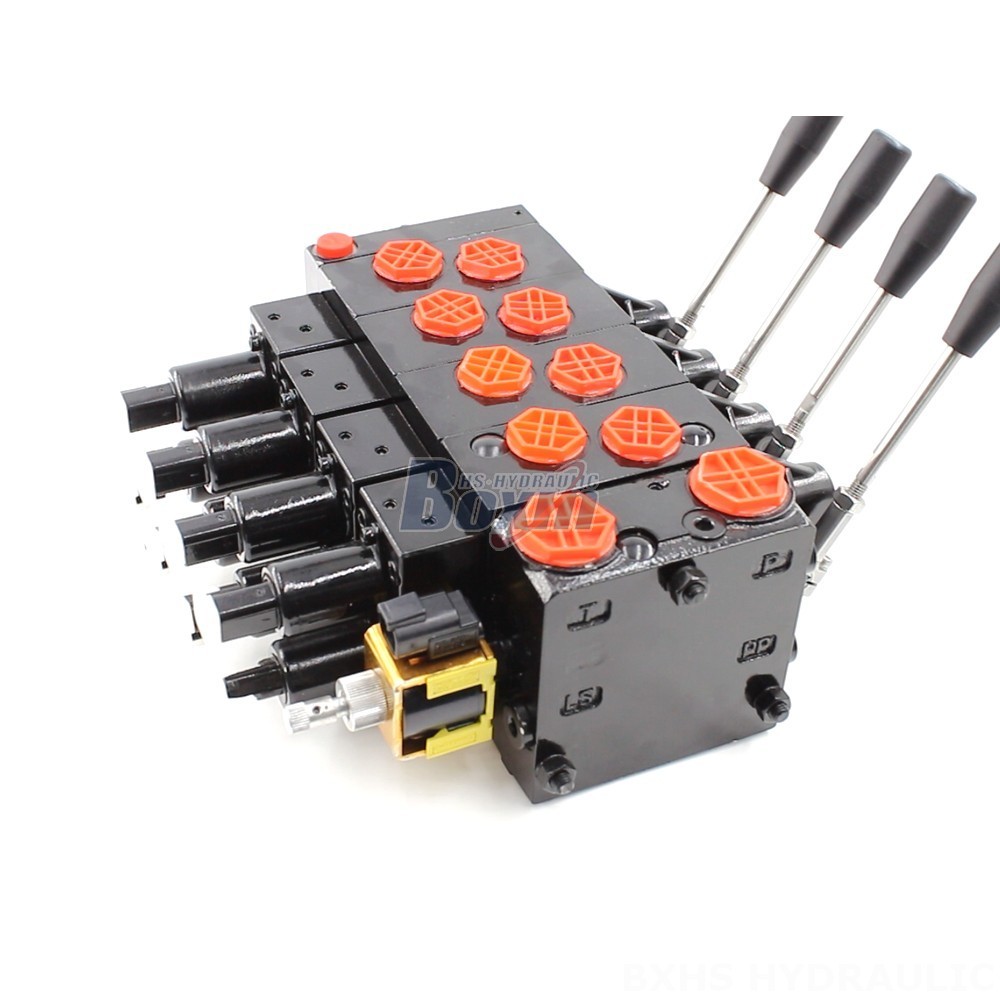

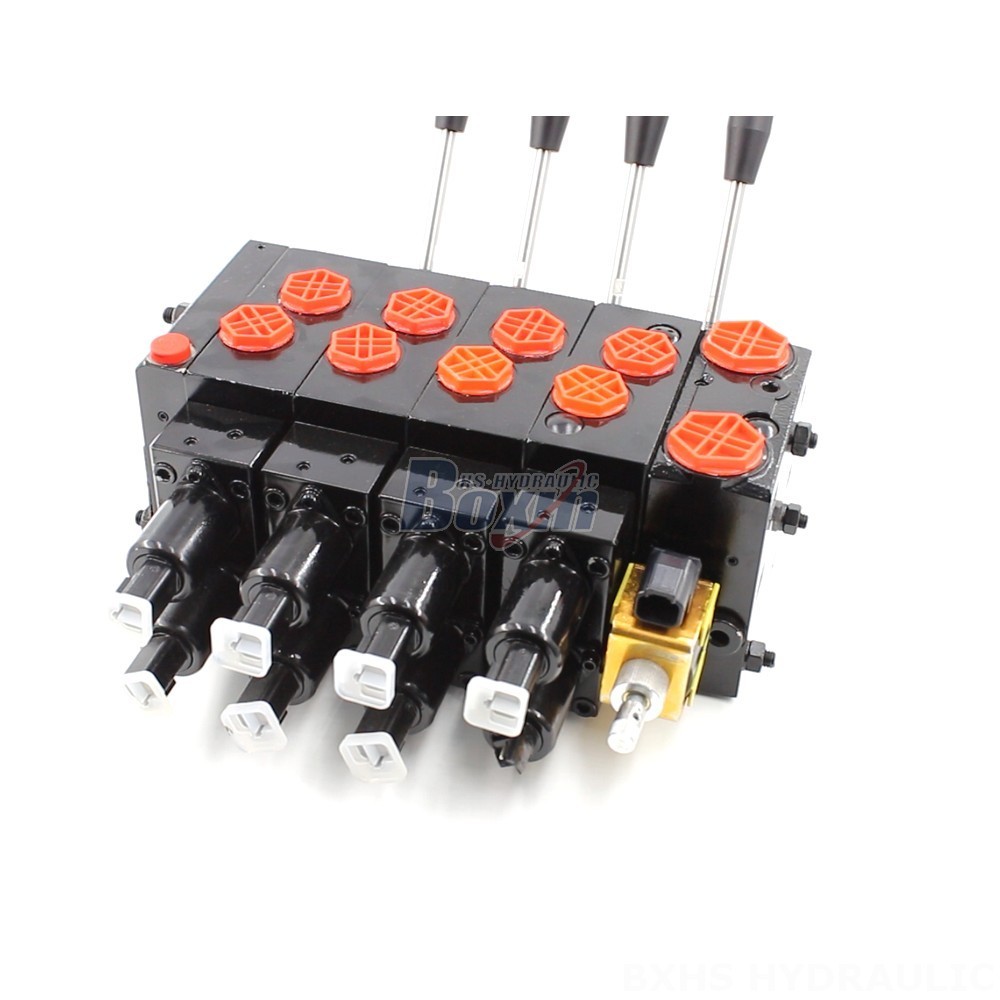

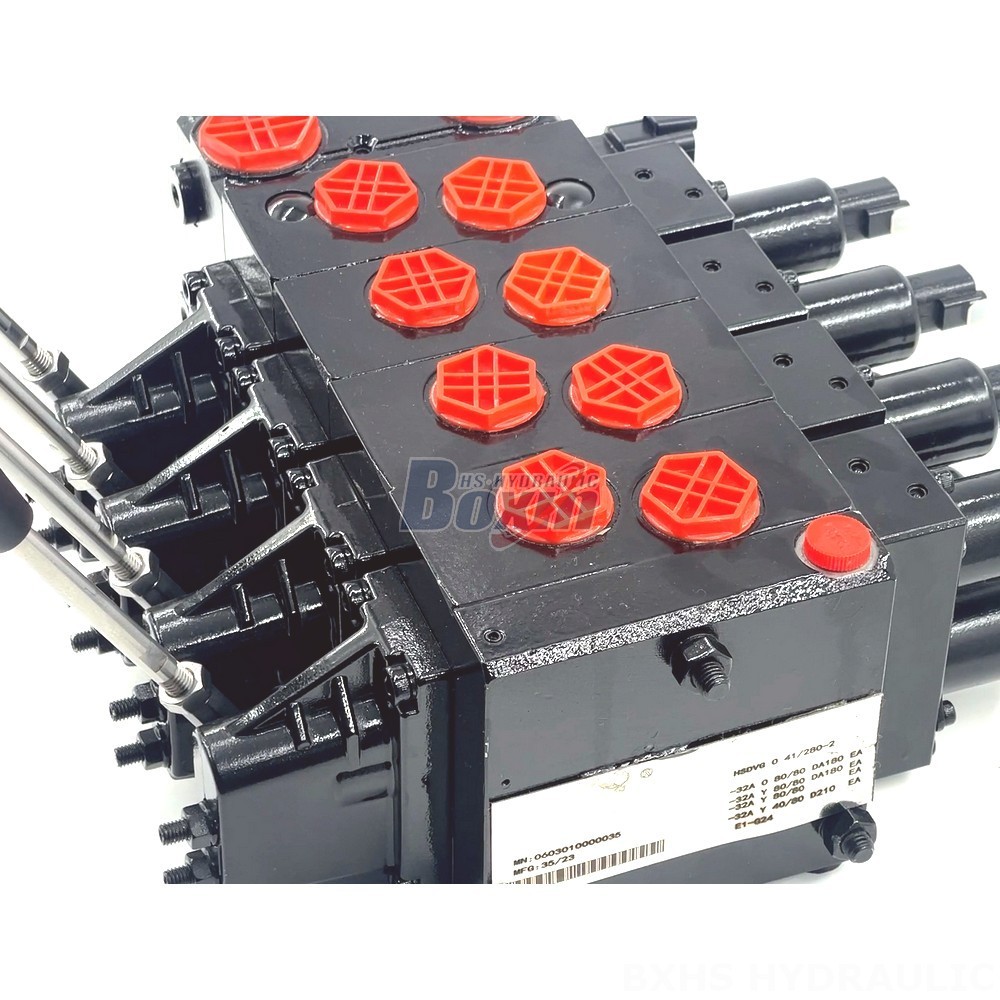

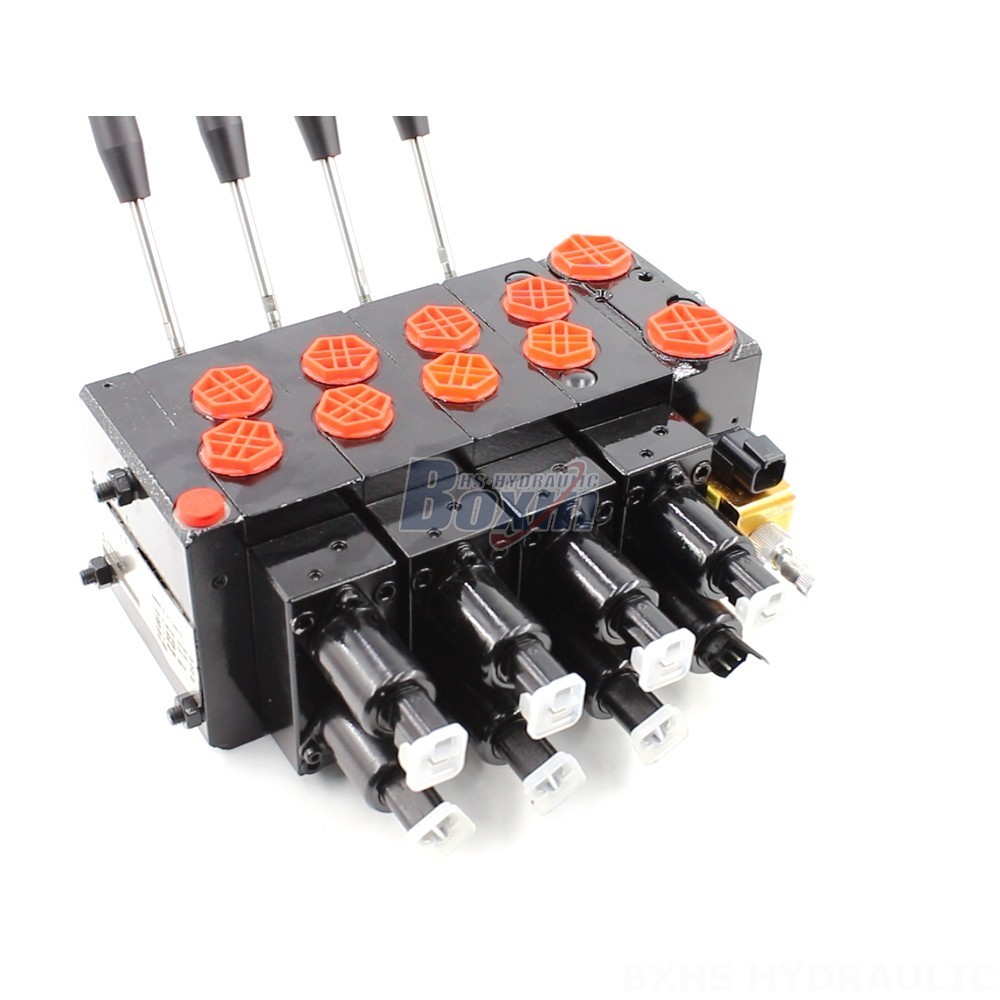

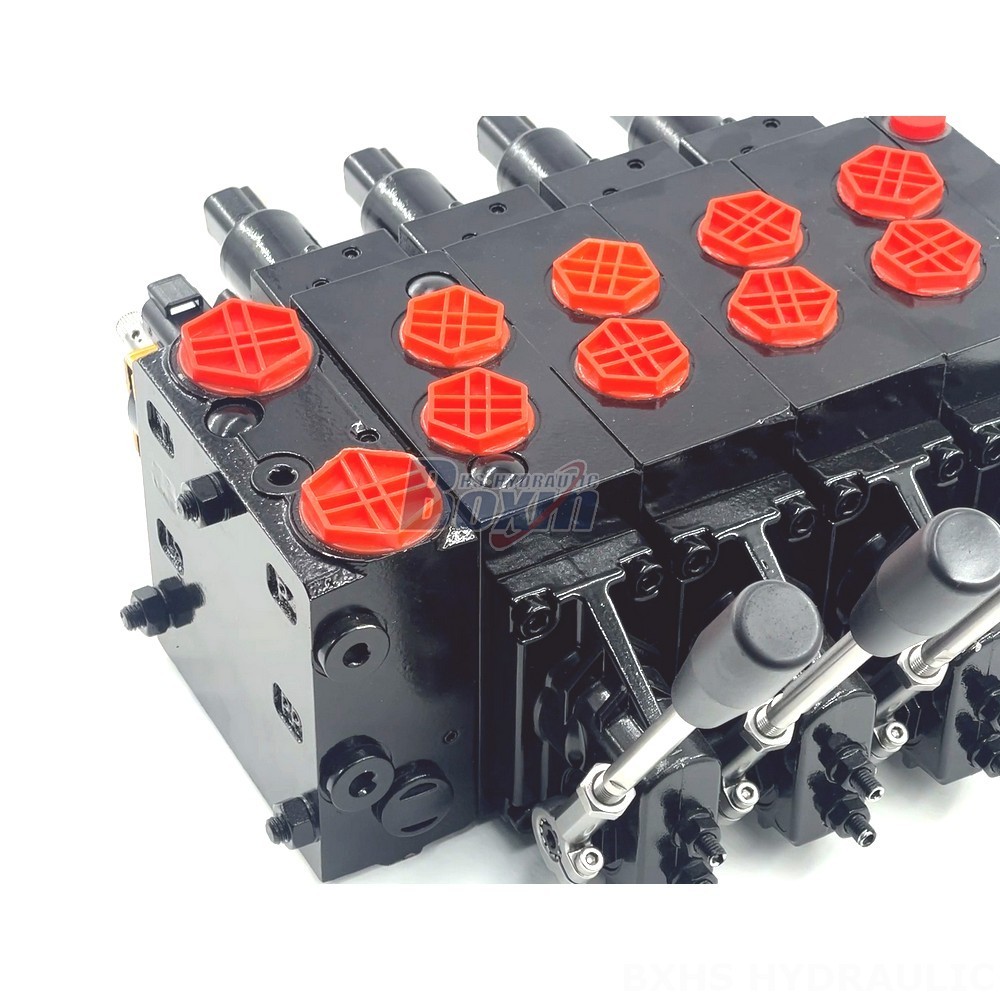

**HSDVG32 Electric Proportional Valves**
**Control Method:** Electric proportional and Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 140 L/min (37 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** HSDVG32 Series
**Application Area:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Model:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- TELEHANDLER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
