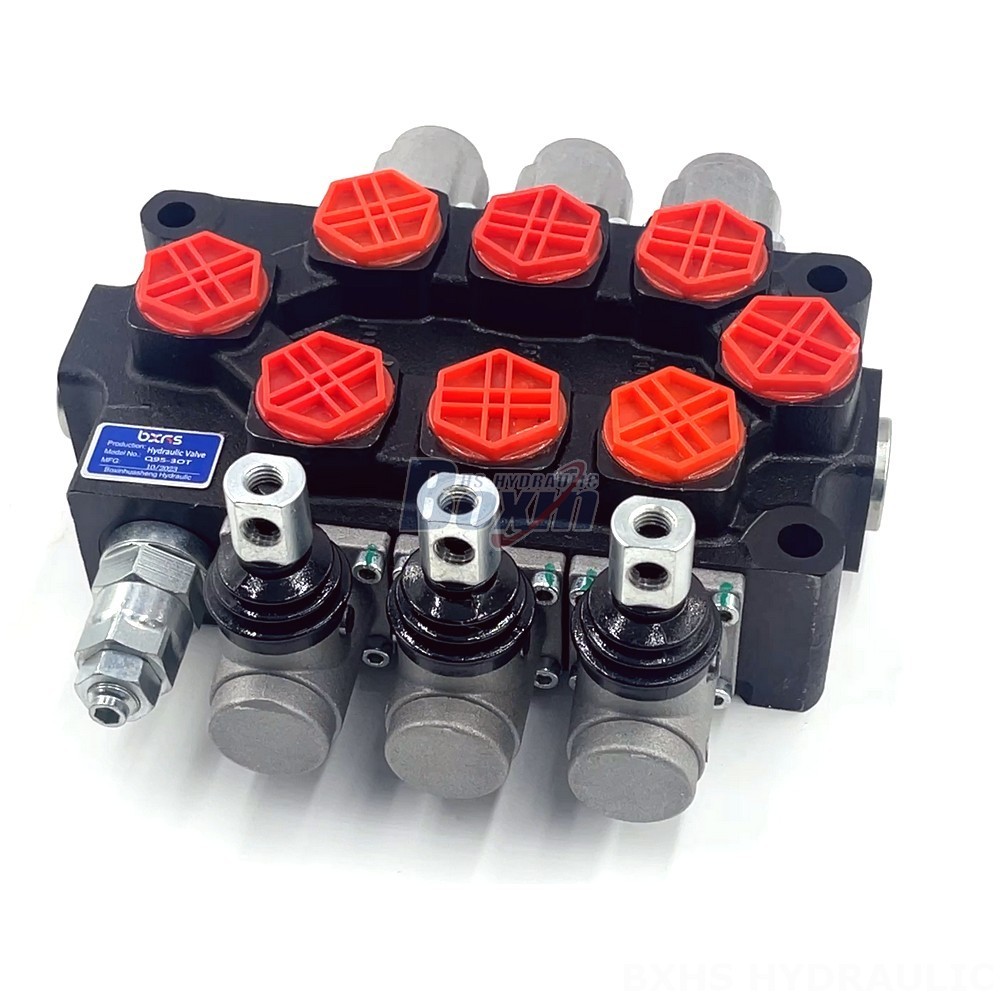

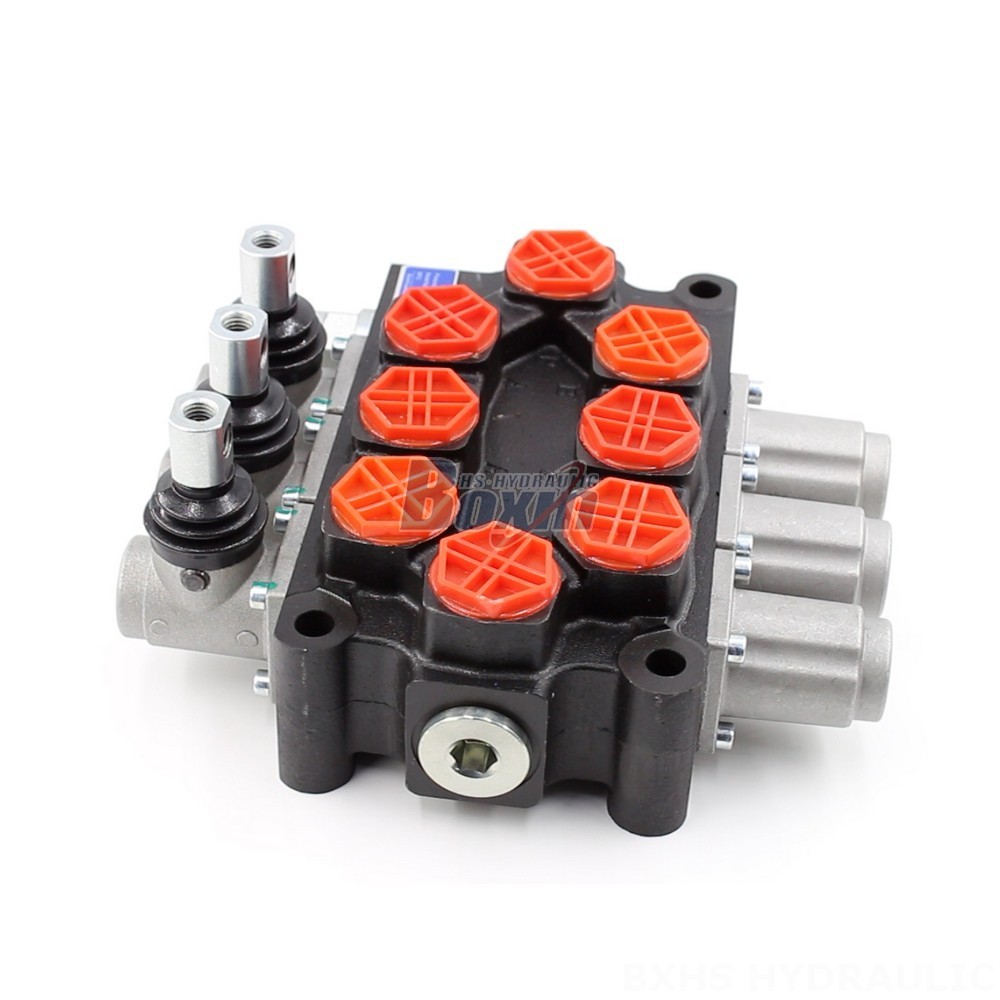

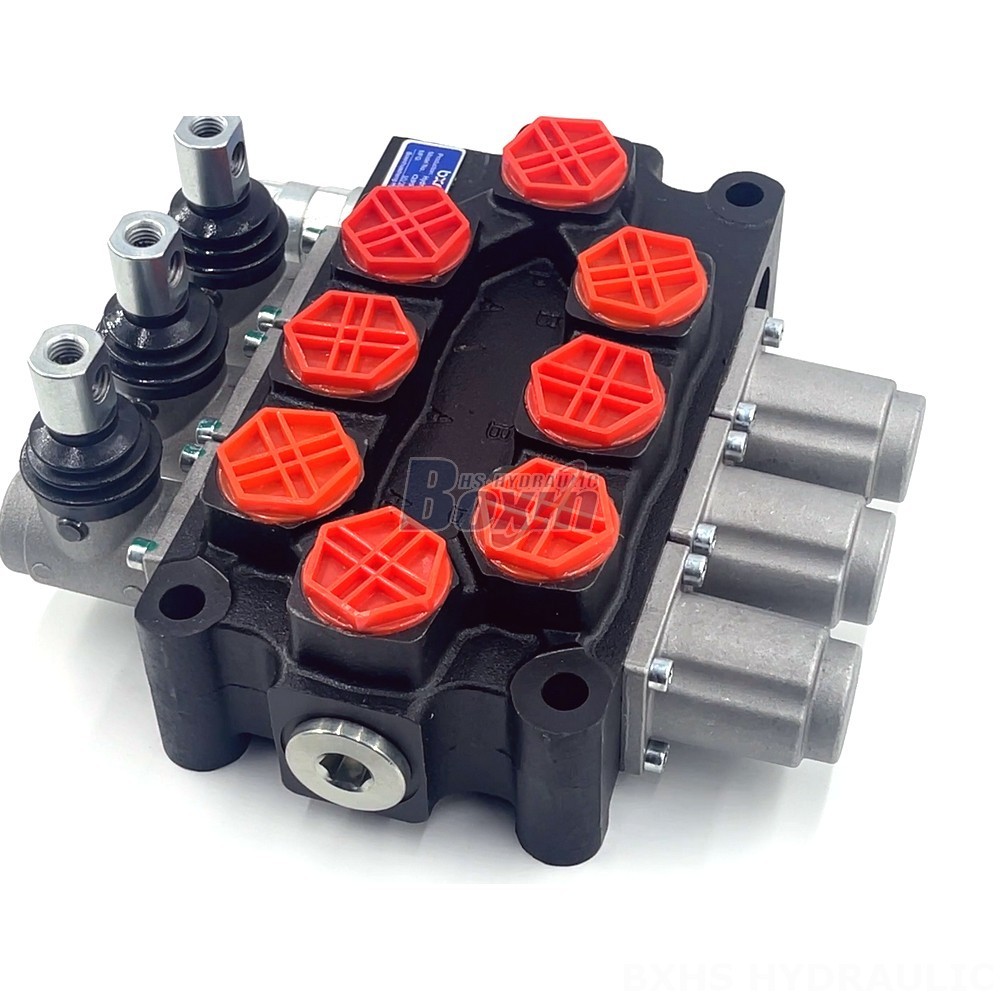

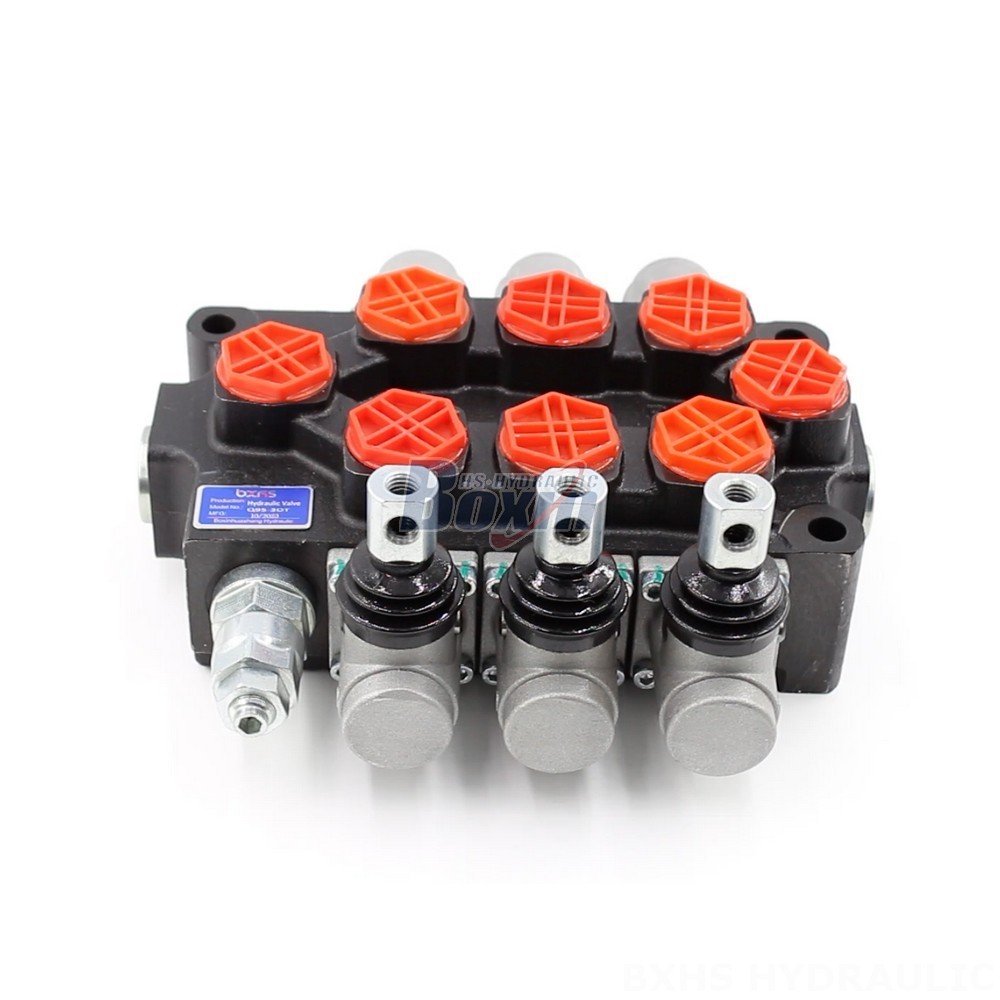

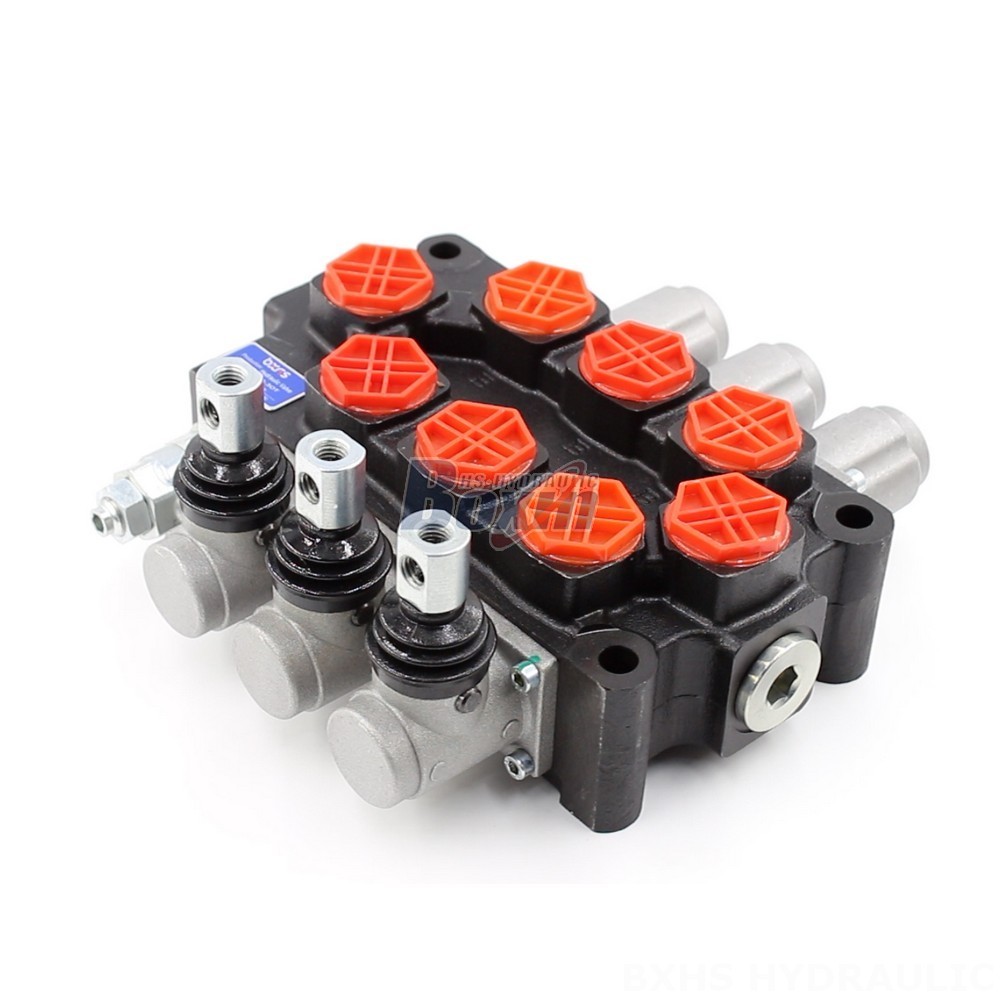

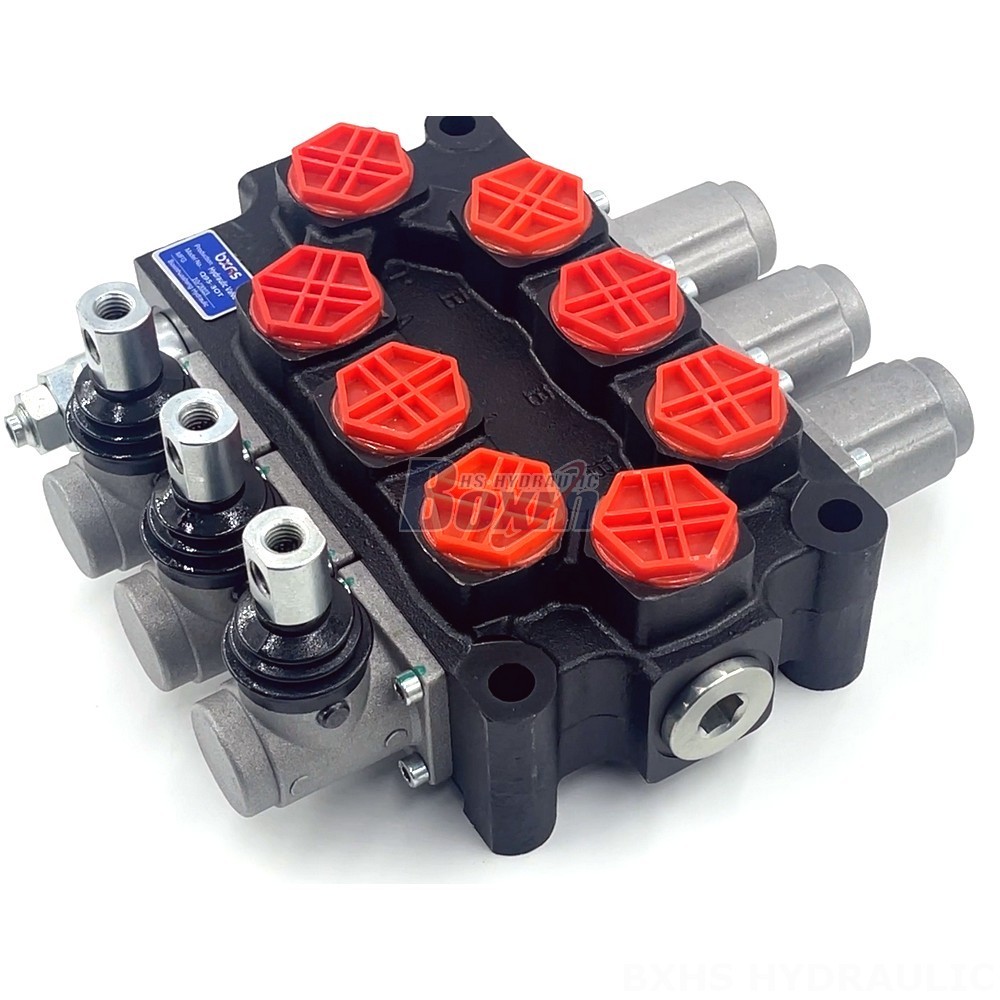

The Q95 Manual 3 Spool Monoblock Directional Valve is a precision-engineered hydraulic component designed for optimal fluid control in demanding applications. Its robust monoblock construction and high-quality materials ensure durability and reliability.
| Q95系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 95 L/min (25.1 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口 |
| 出油口 | G3/4接口 |
| 接口尺寸 | G3/4接口 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Key Features of the Q95 Manual 3 Spool Monoblock Directional Valve:**
* Manual control for precise fluid flow regulation
* Monoblock design for compact and leak-proof operation
* 3-spool configuration for versatility and control of multiple fluid paths
* Rated flow of 95 L/min (25.1 US gpm) for efficient fluid transfer
* Max pressure of 315 bar (4600 psi) for handling high-pressure hydraulic systems
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in diverse environments
* Wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles
