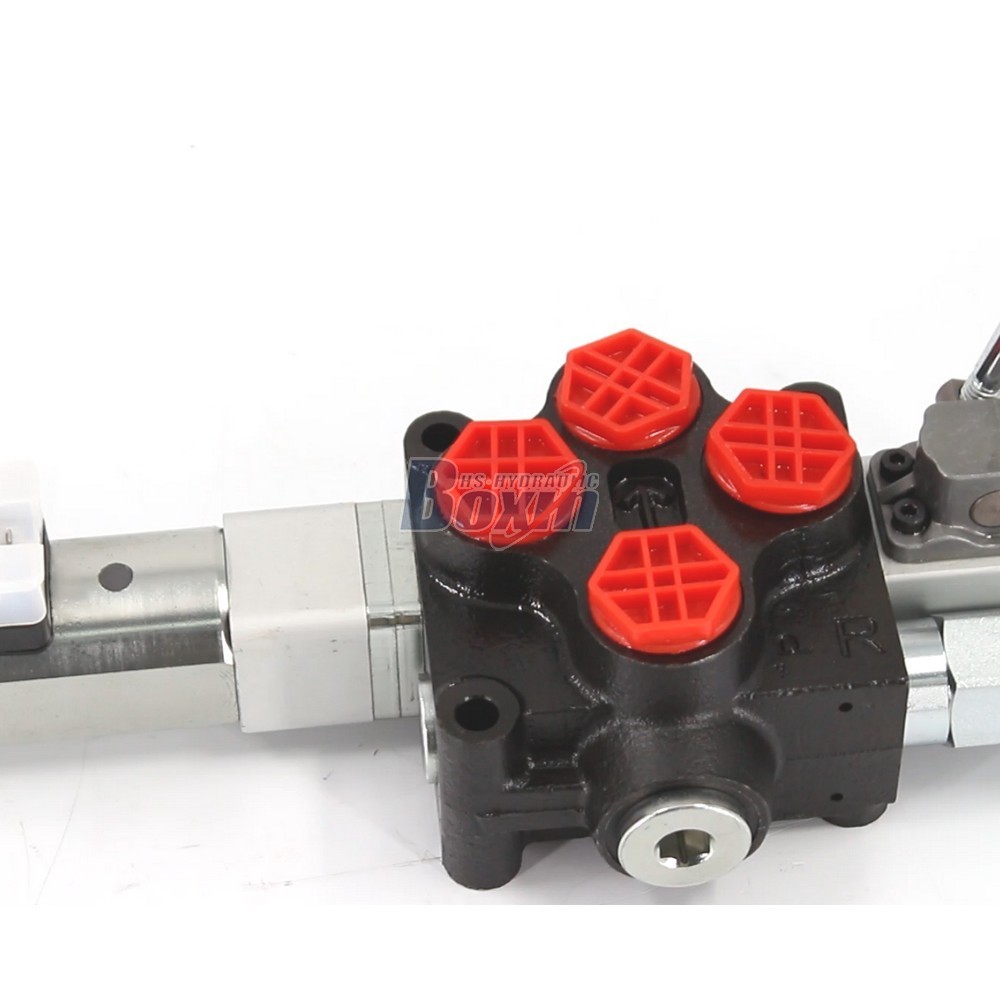

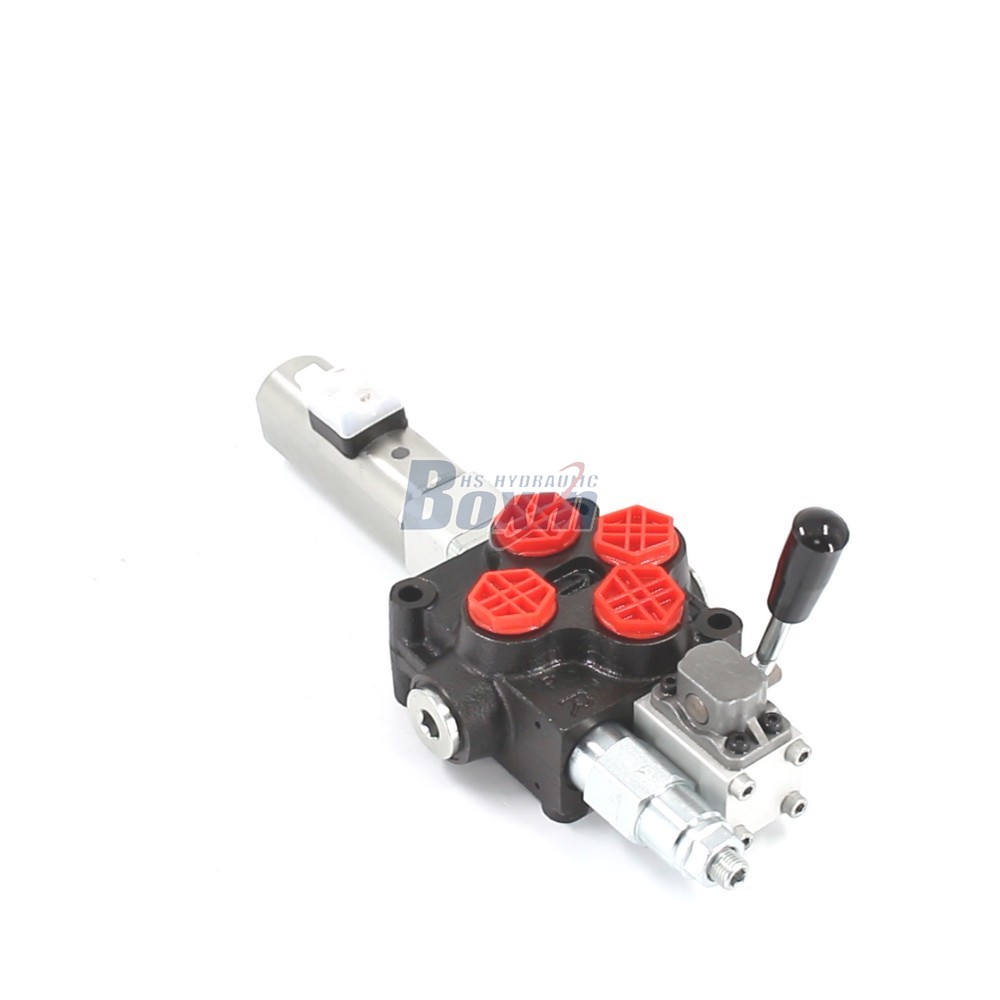

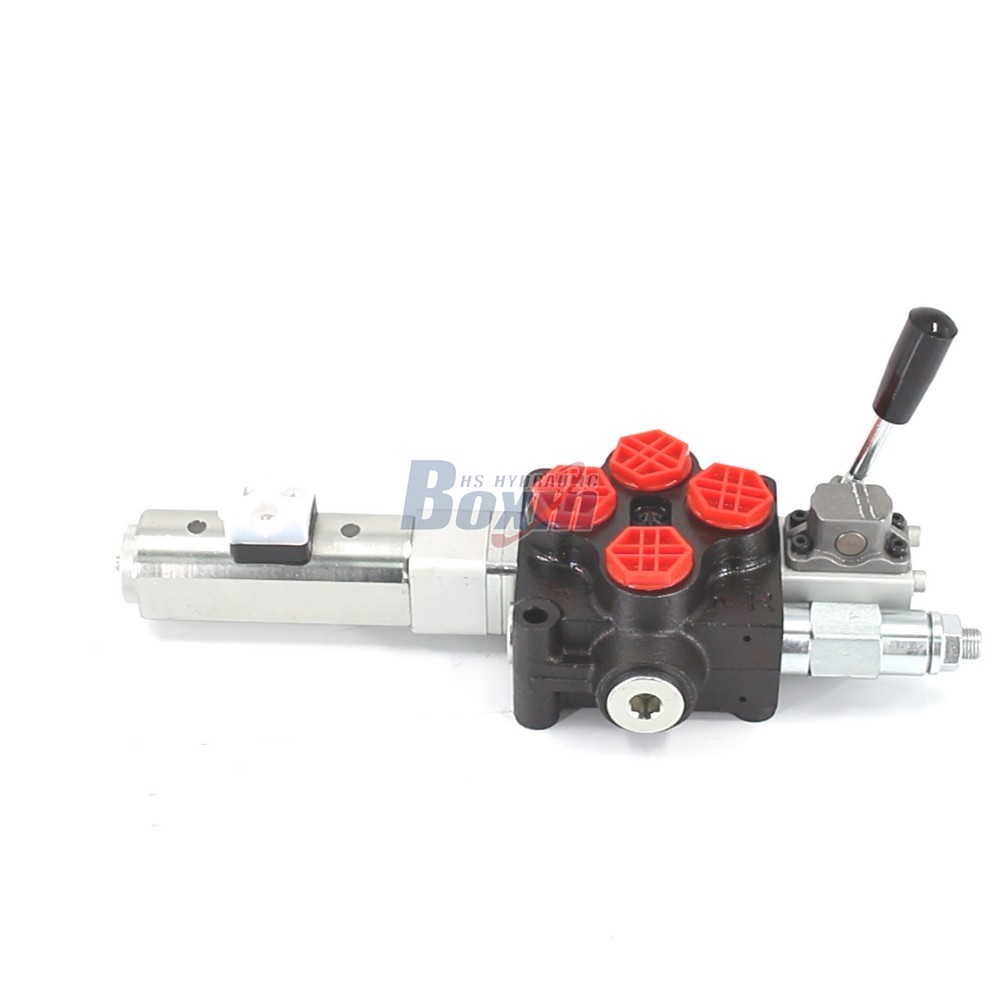

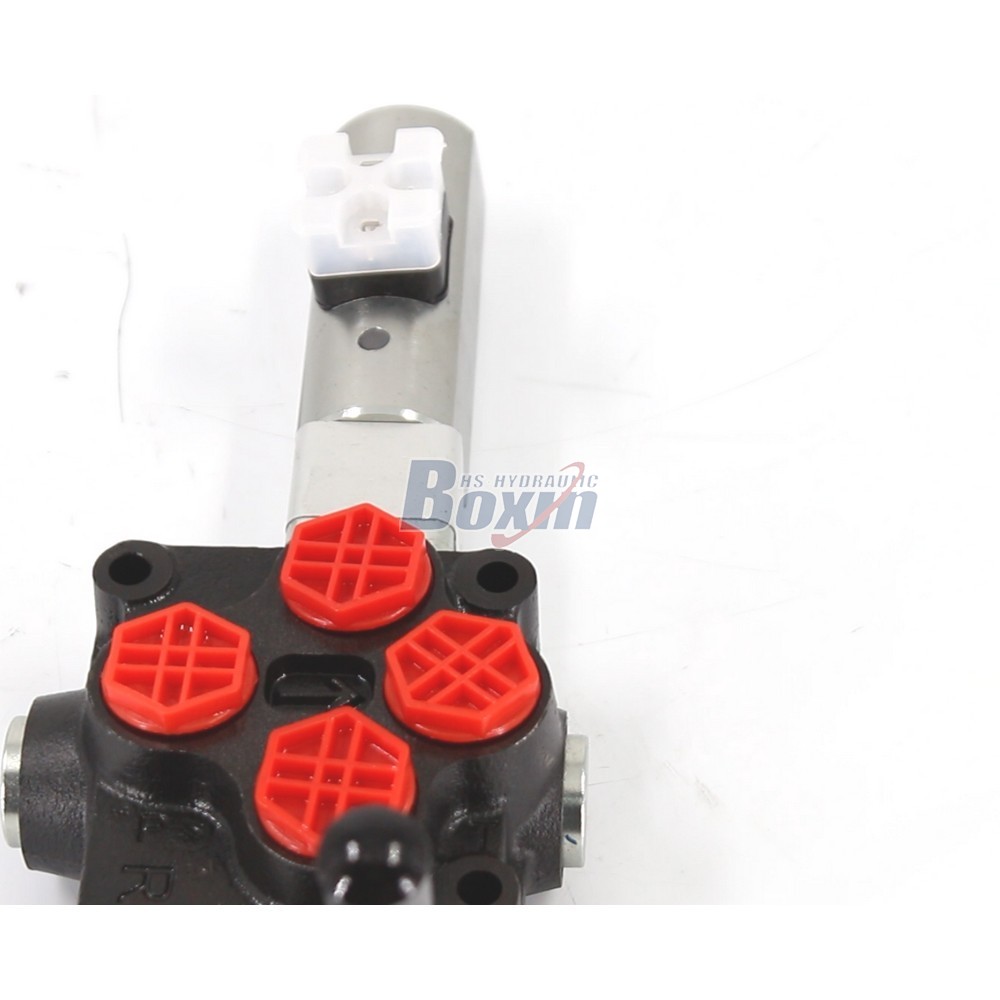

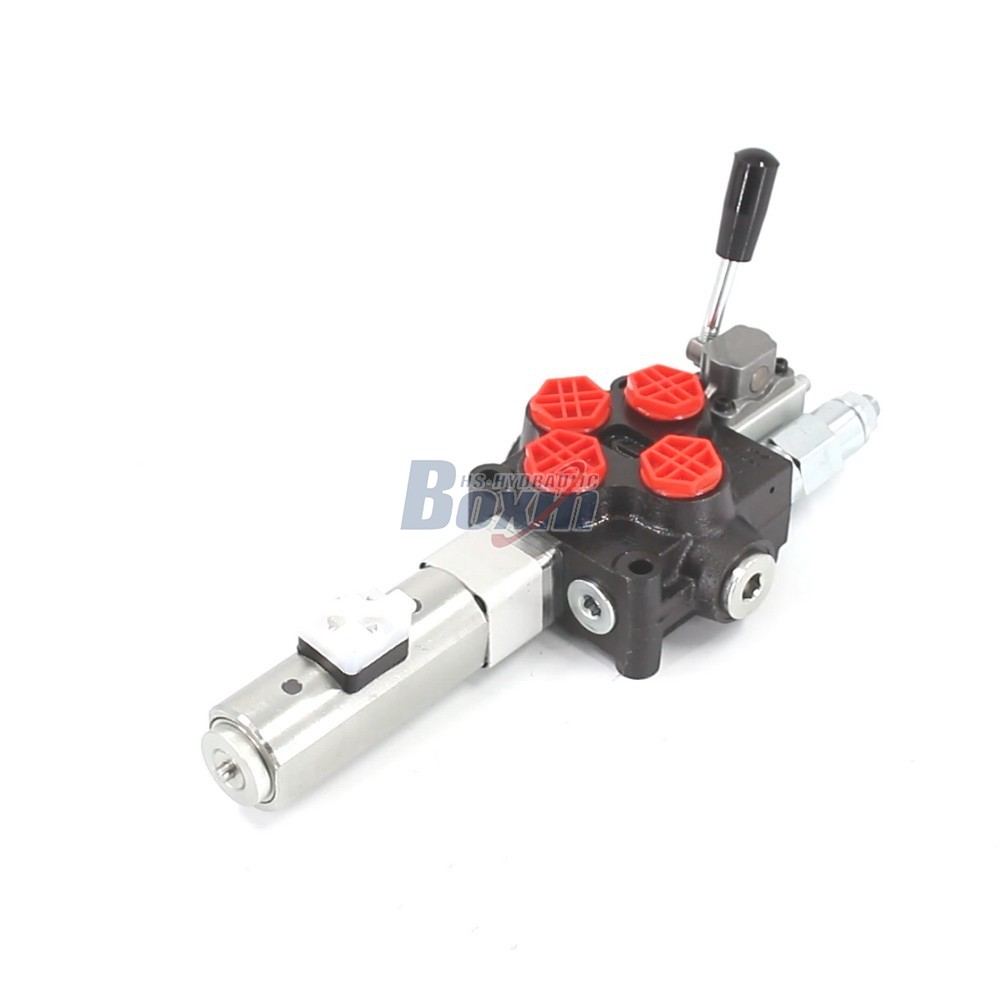

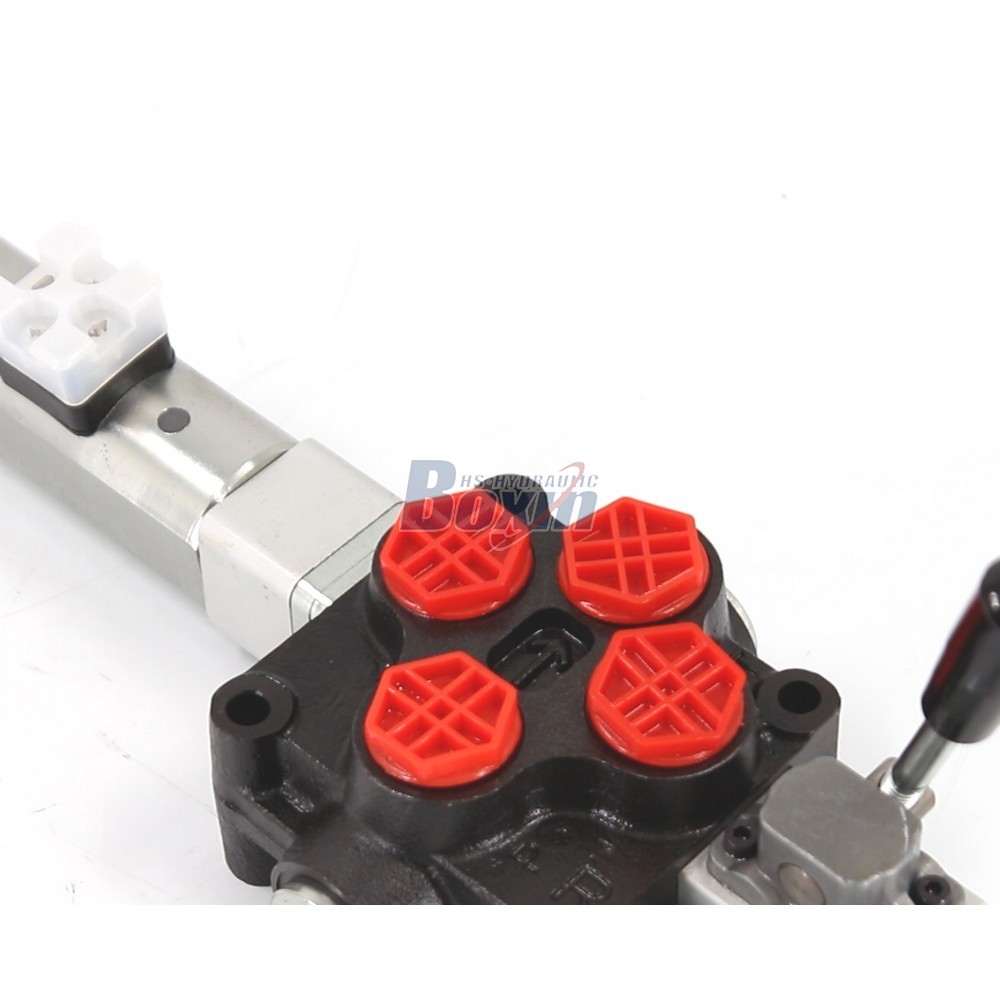

Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve for Hydraulic Systems

控制方式:手动及推拉式电磁铁

路数:1 联

额定流量:45 L/min (11.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:Q45系列 单块式方向阀

Packagingsize:28* 18*16

Grossweight:8.00 kg

库存: 有货

12 次查看了此产品

Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve for Hydraulic Systems

Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve for Hydraulic Systems

Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve for Hydraulic Systems drawing image

The Q45 Series is a versatile 1-spool monoblock directional control valve designed for hydraulic systems requiring dual solenoid and manual control. With a rated flow of 45 L/min and a maximum pressure rating of 315 bar, this high-performance valve is engineered for durability and precision across material handling, construction, and agricultural machinery.

Q45系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 一控二手柄控制, 电磁和手动, 手动及推拉式电磁铁, 推拉式电磁铁
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -20°C to +80°C (-4°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 45 L/min (11.8 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口
出油口 G1/2接口
接口尺寸 G1/2接口

As a leading manufacturer of premium hydraulic components, we proudly present the Q45 Series Solenoid and Manual 1 Spool Monoblock Directional Valve. This robust valve offers exceptional control for various applications including forklifts, tractors, mini-excavators, and aerial platforms. Featuring G1/2 inlet and outlet ports, it supports a flow capacity of 45 L/min (11.8 US gpm) and operates effectively up to 315 bar (4600 psi). We provide comprehensive manufacturing services, including professional OEM and ODM solutions, private labeling (branding), and bespoke customization to meet specific technical requirements. Our factory is fully equipped for large-scale production, offering competitive wholesale pricing and reliable supply chains. We are actively seeking global partners, including distributors, wholesalers, regional agents, and international traders to expand our market reach. Whether you need a trusted factory supplier for bulk orders or a partner for specialized hydraulic valve development, our team provides the technical expertise and manufacturing excellence required for long-term success in the hydraulic industry.
