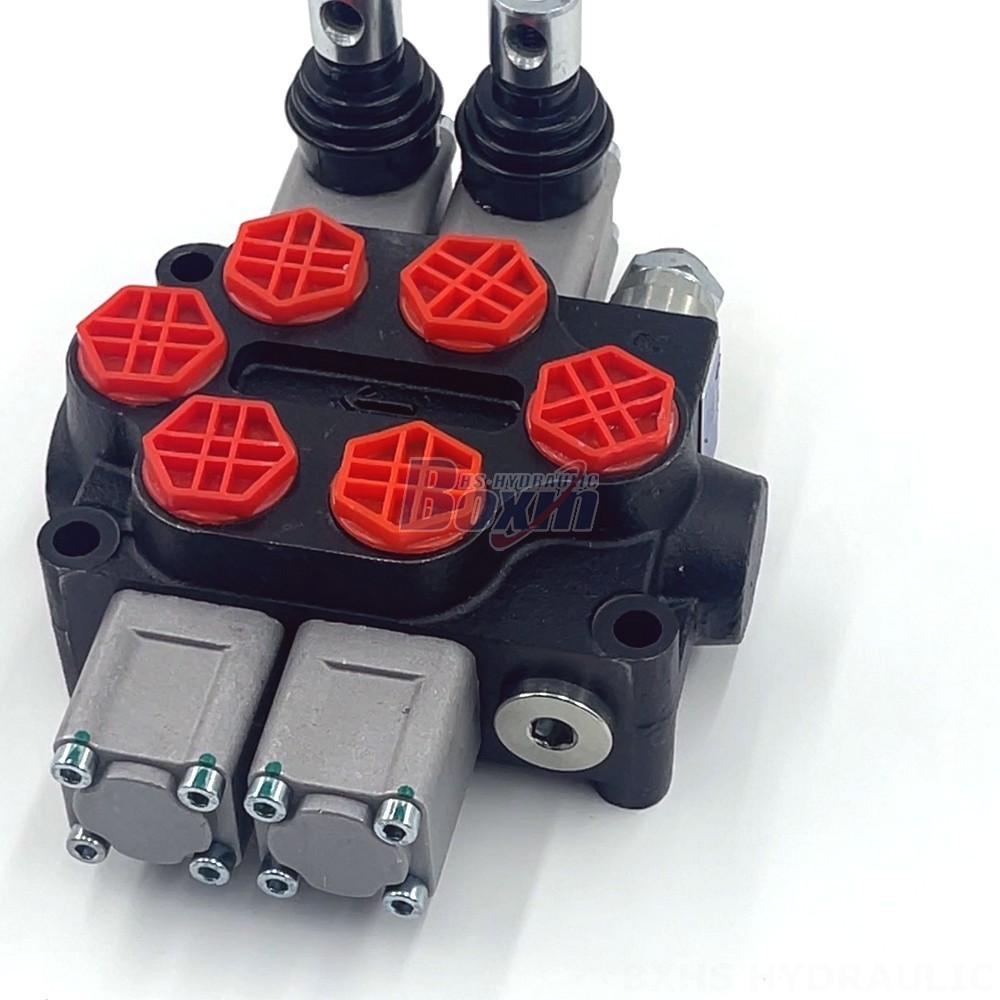

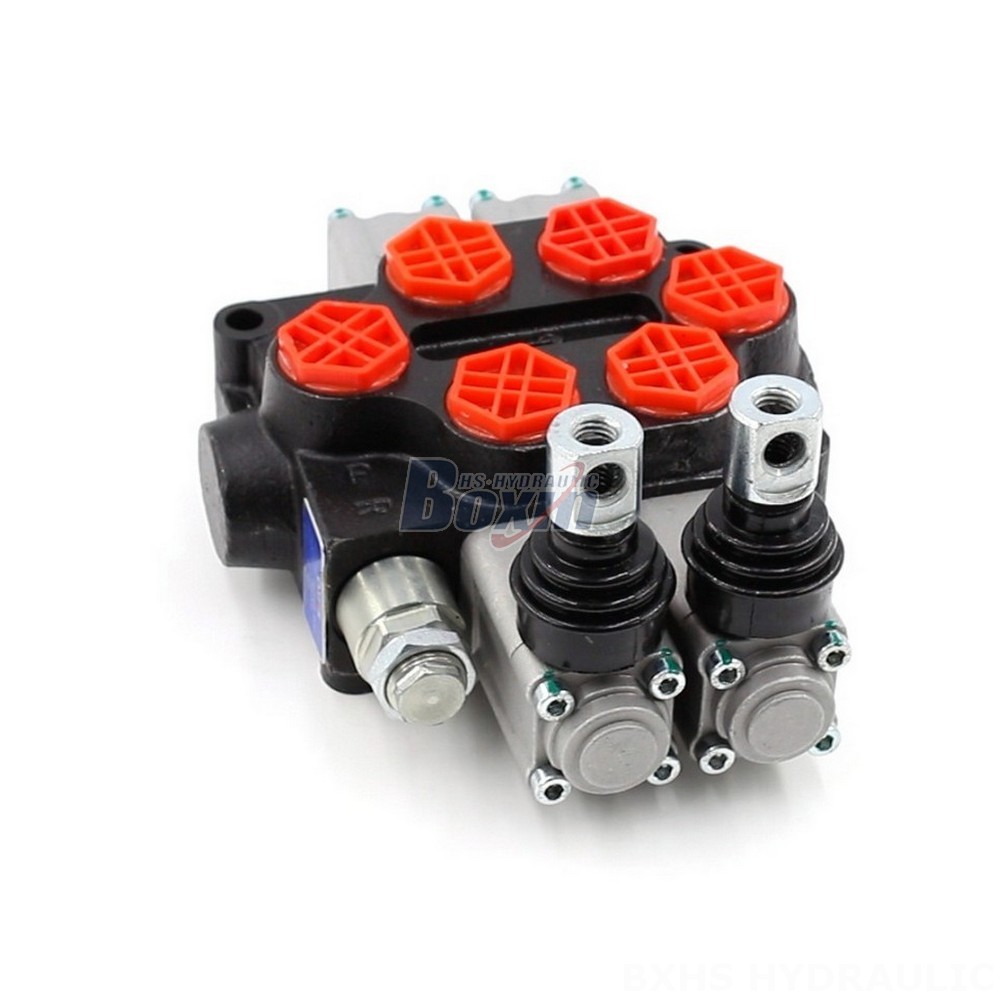

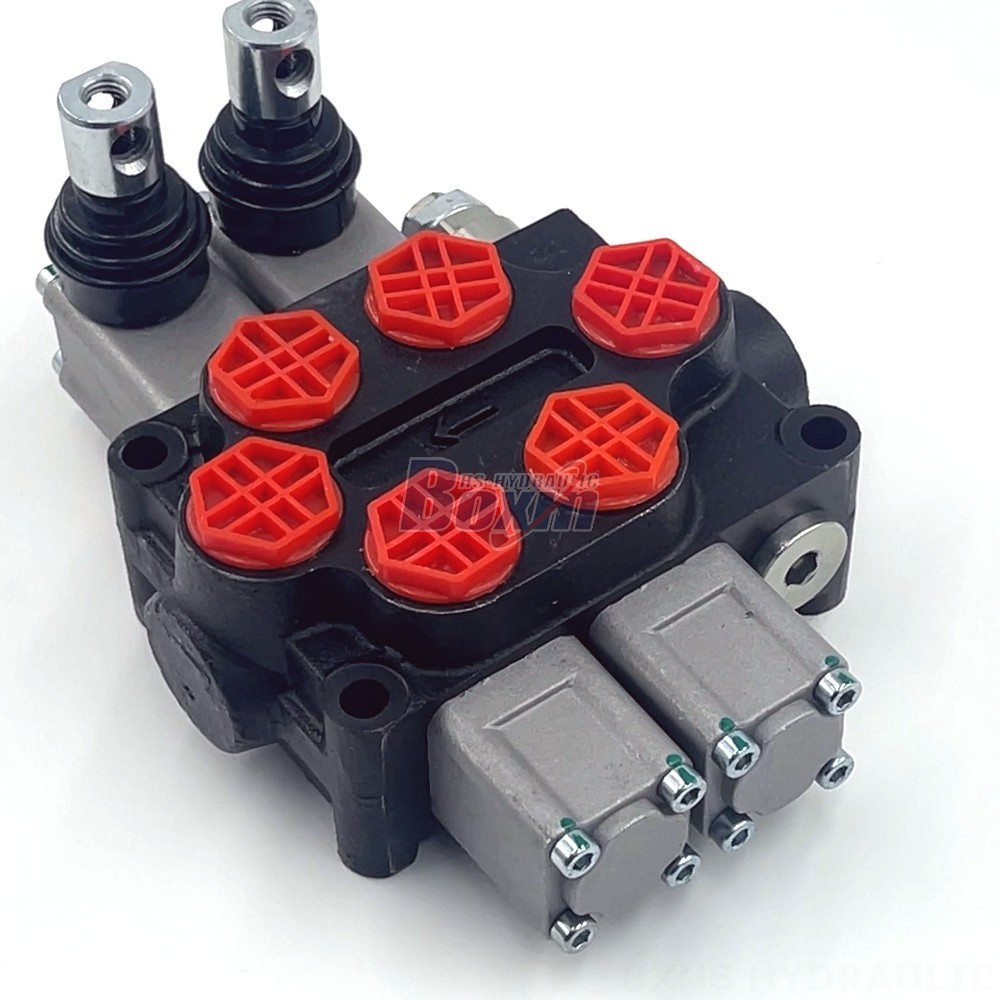

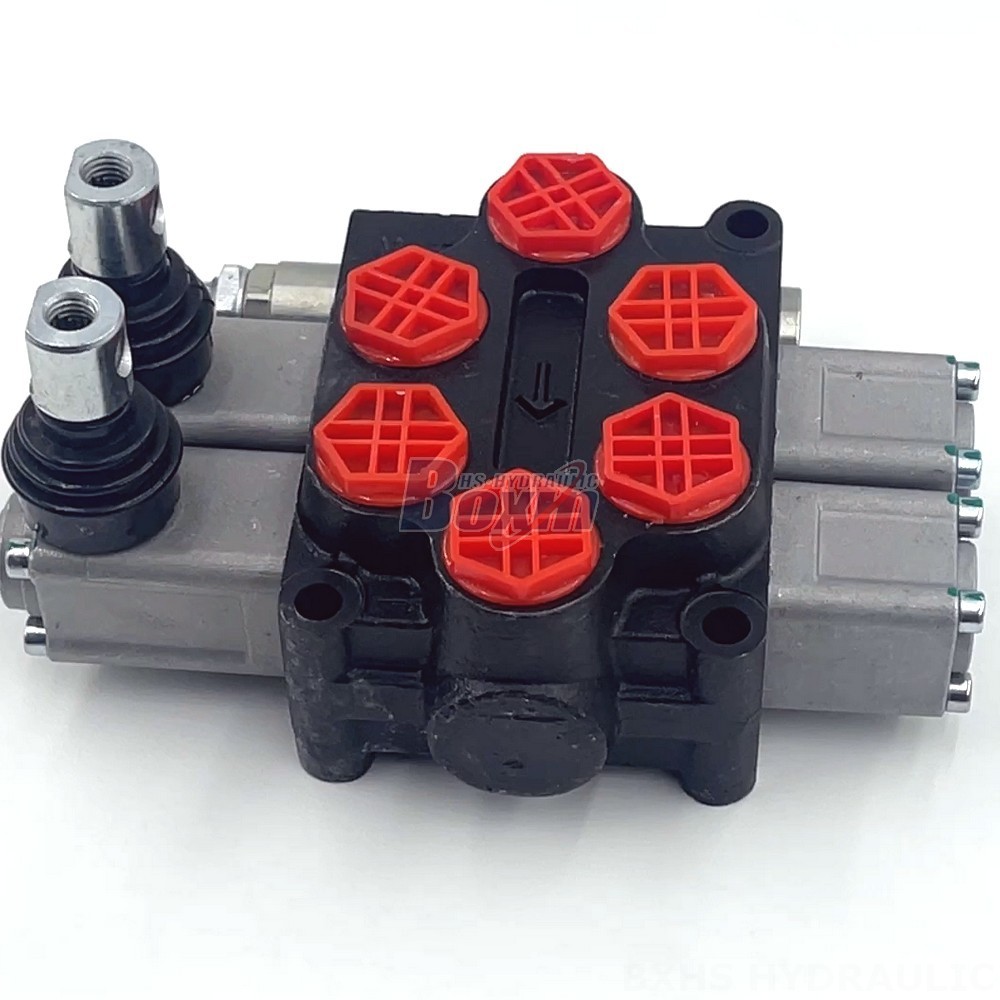

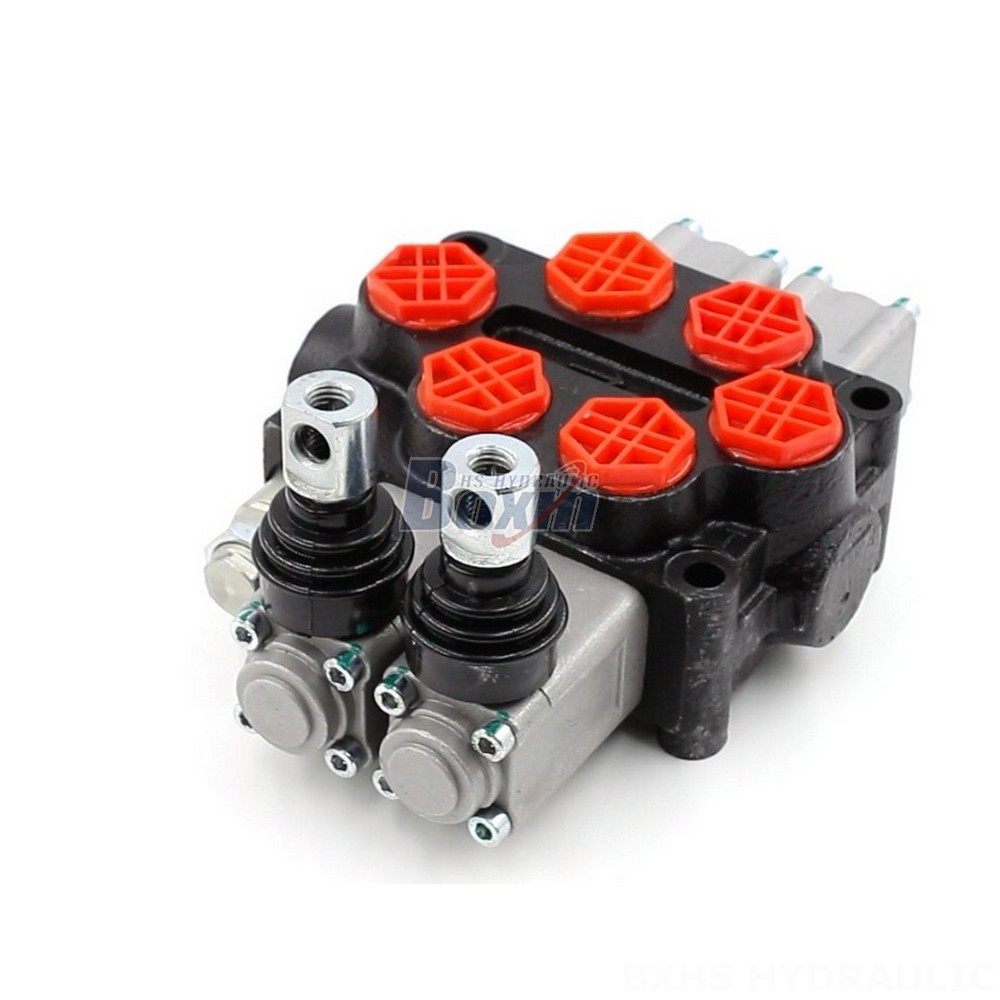

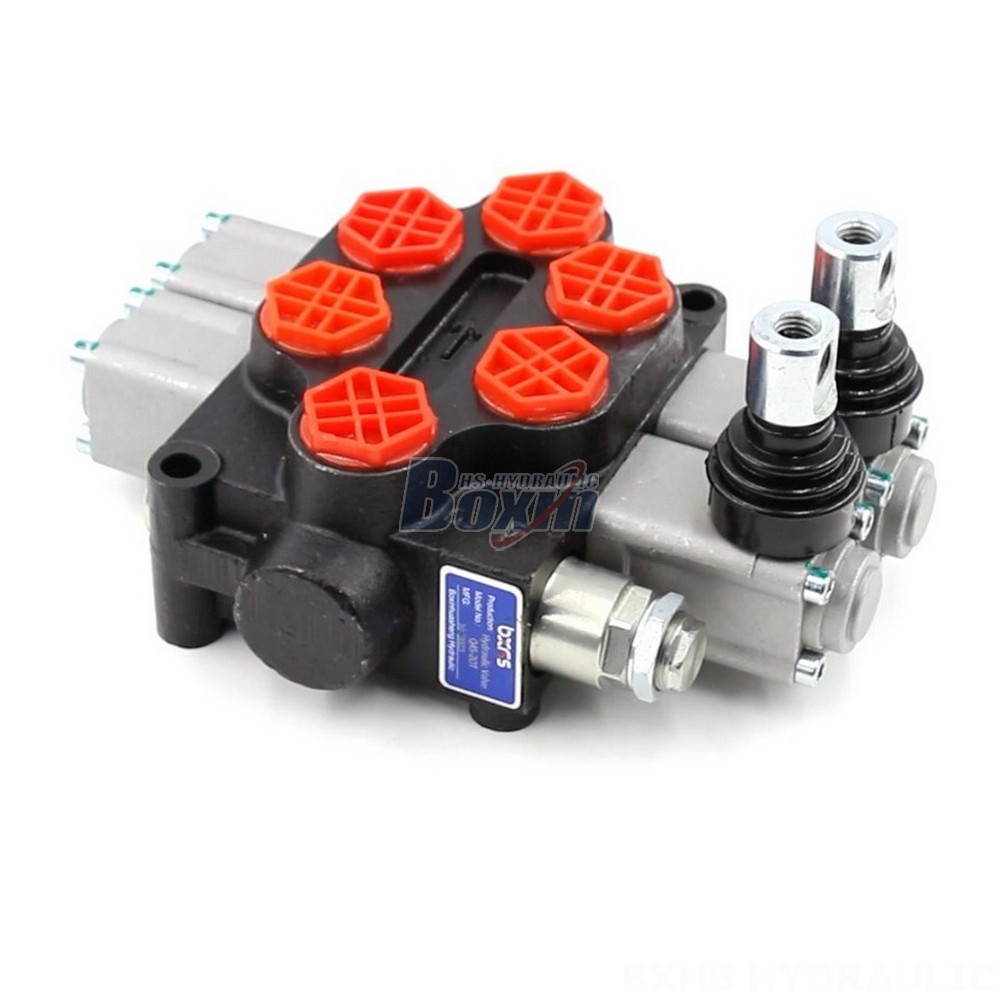

This is a high-performance Q45 Series Dual Spool Hydraulic Valve, designed for manual control in various applications. This 2-section monoblock valve offers a rated flow of 45 L/min and a maximum pressure of 315 bar. It is perfect for material handling, construction, agriculture, and industrial vehicles like telehandlers, forklifts, and excavators.
| Q45系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 一控二手柄控制, 电磁和手动, 手动及推拉式电磁铁, 推拉式电磁铁 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 45 L/min (11.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口 |
| 出油口 | G1/2接口 |
| 接口尺寸 | G1/2接口 |
This Dual Spool Hydraulic Valve, part of the Q45 series, is a manually controlled, 2-section monoblock directional valve. It offers a robust design with a rated flow of 45 liters per minute and a maximum operating pressure of 315 bar (4600 psi). This valve is specifically engineered for applications requiring precise control in material handling, construction, agriculture, and industrial vehicles. Ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
