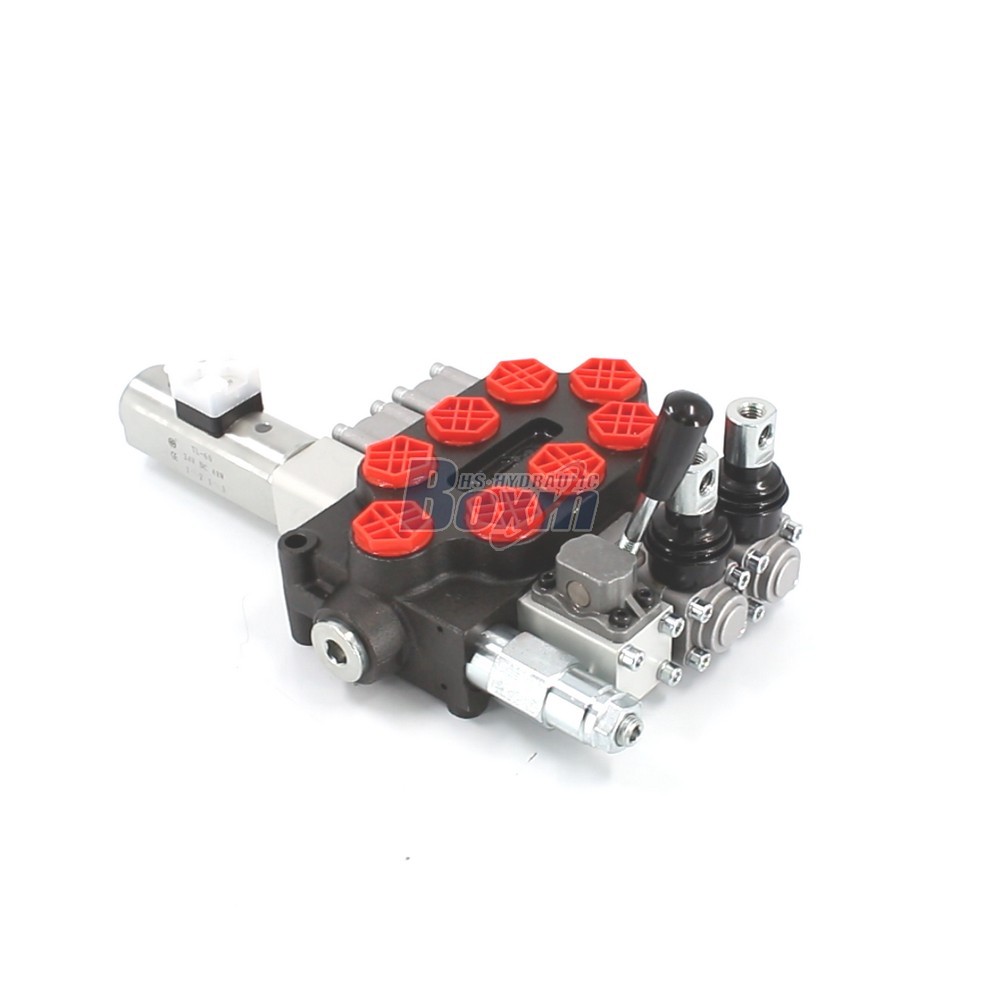

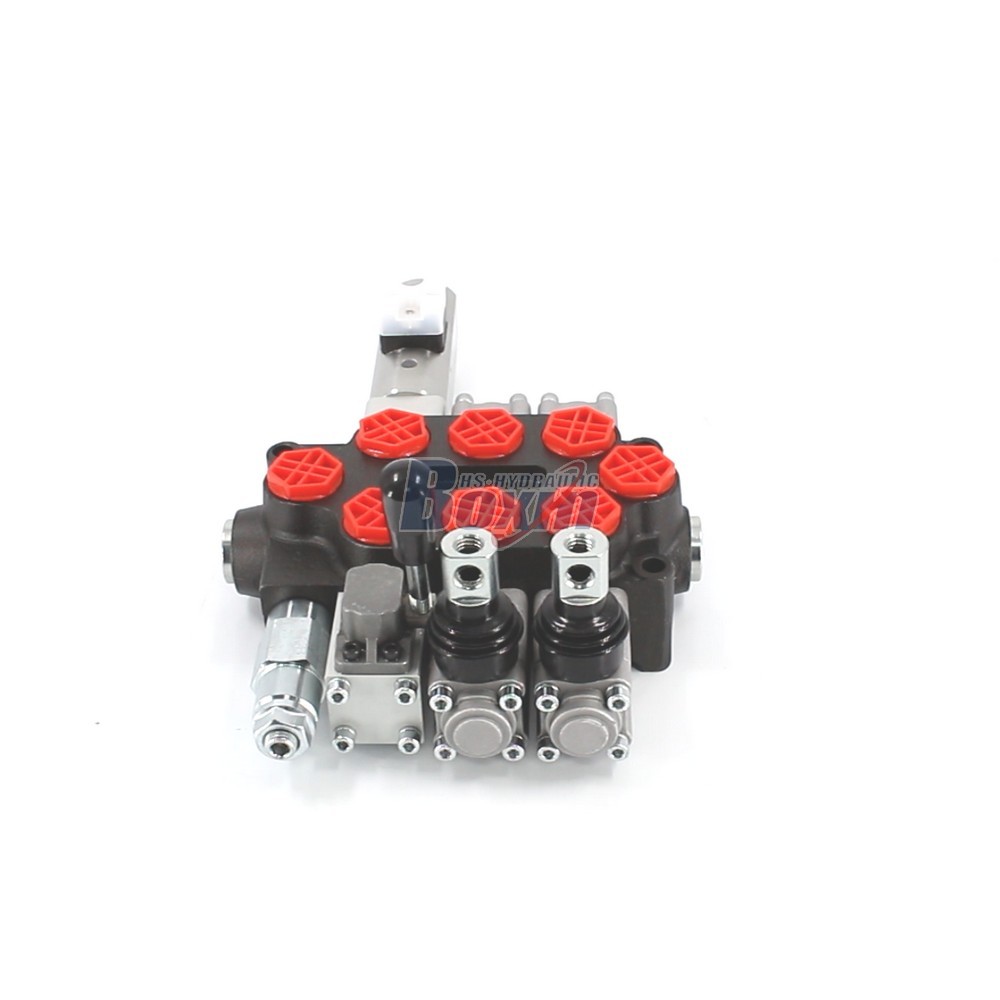

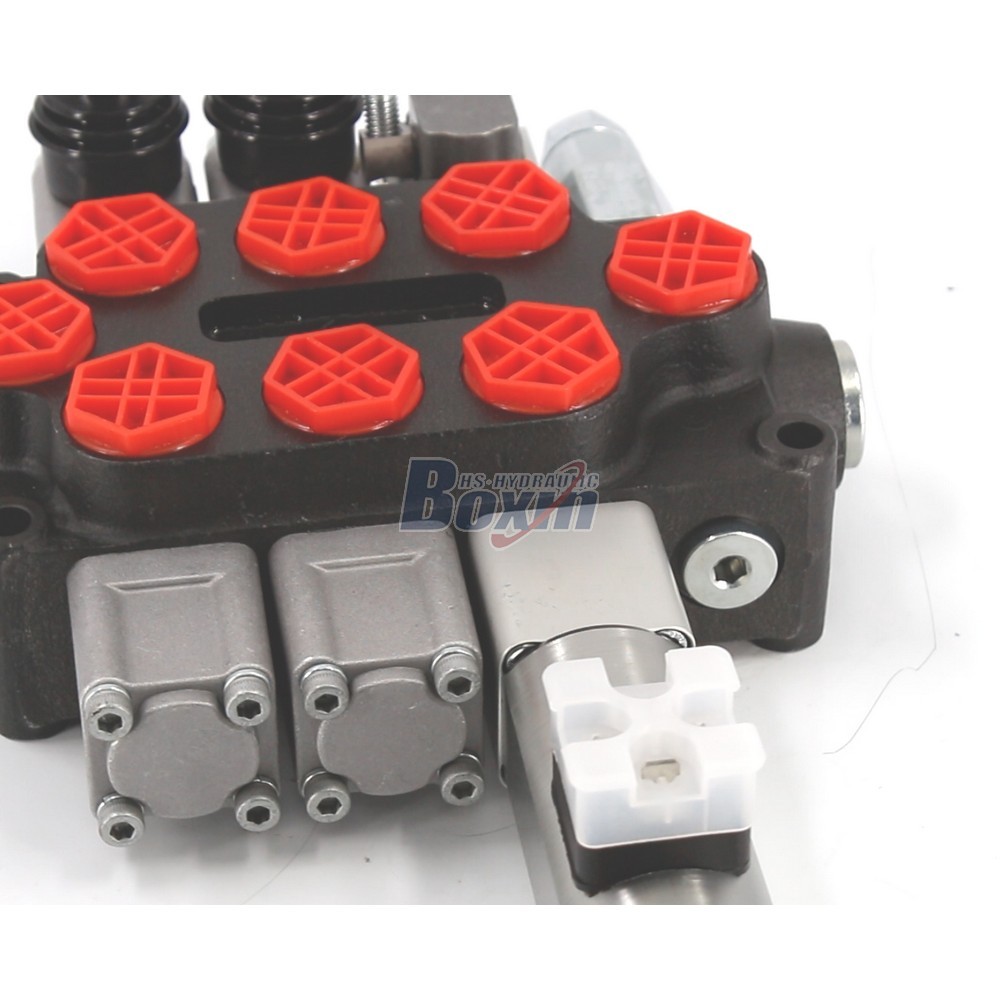

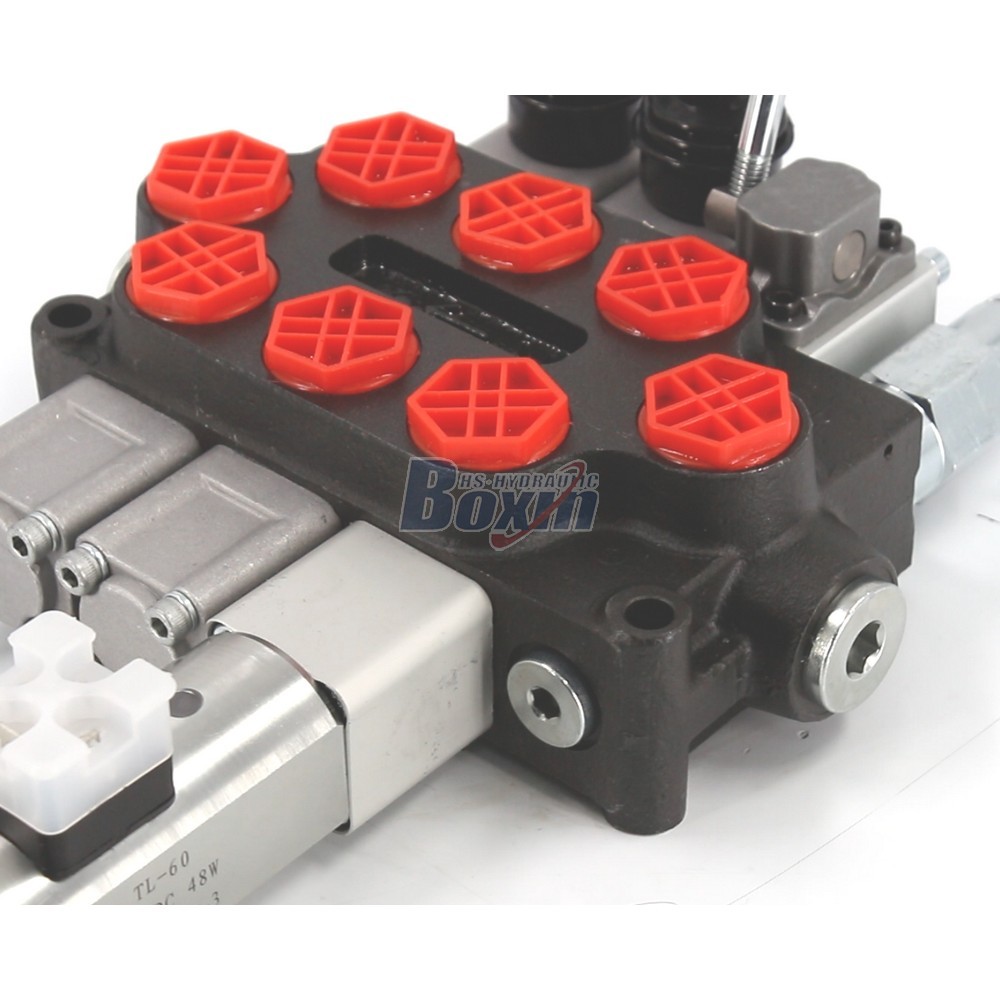

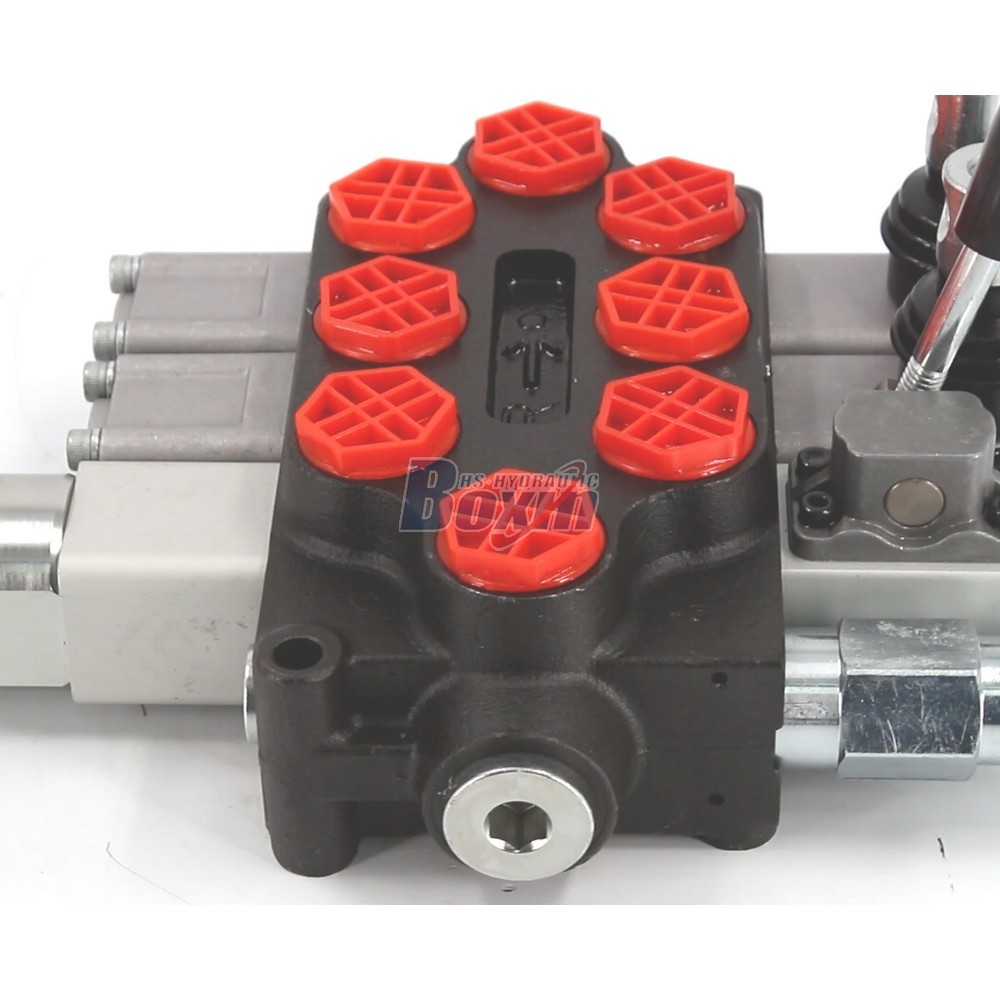

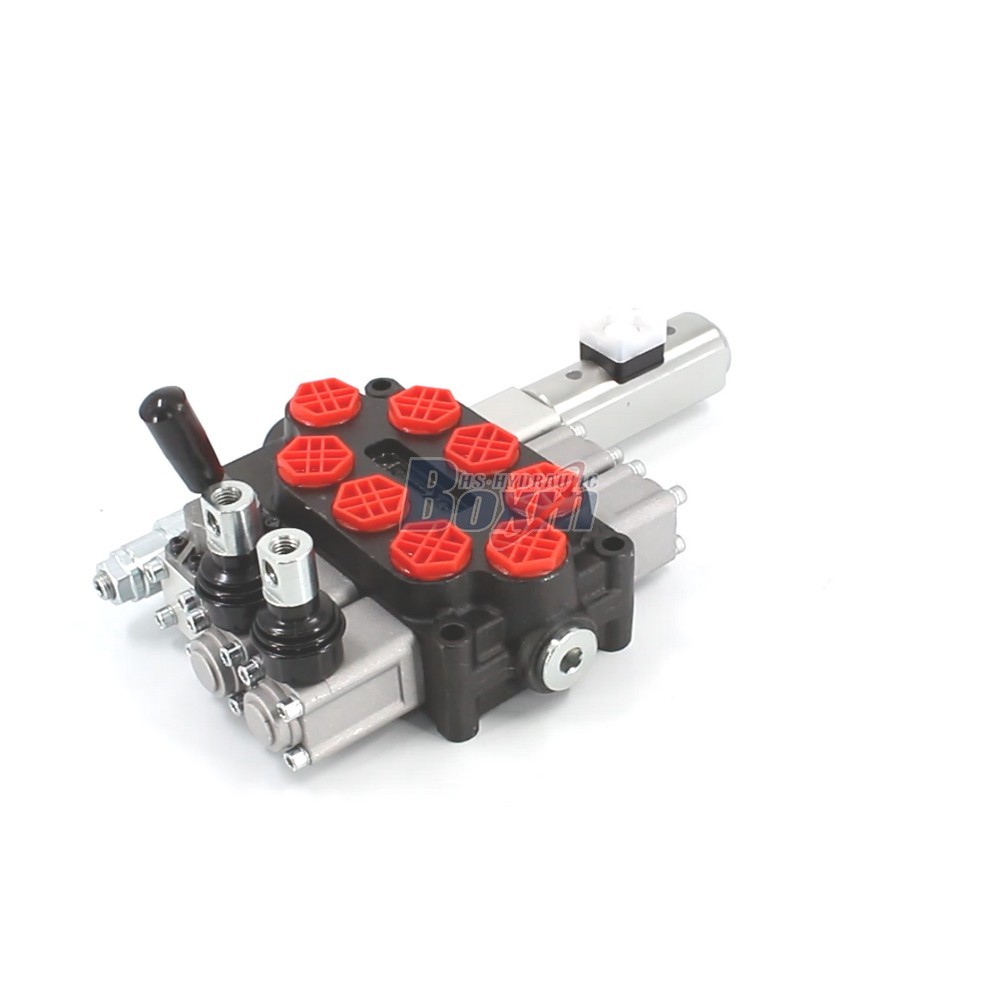

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve

控制方式:手动及推拉式电磁铁

路数:3 联

额定流量:45 L/min (11.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:Q45系列 单块式方向阀

Packagingsize:22.0*36.5*19.0

Grossweight:9.00 kg

库存: 有货

13 次查看了此产品

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve drawing image

The Q45-DT-2OT is a versatile 3-spool monoblock directional control valve featuring both manual and push-pull electromagnet control. With a rated flow of 45 L/min and a maximum pressure of 315 bar, it is designed for precision and reliability in demanding mobile applications.

Q45系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 一控二手柄控制, 电磁和手动, 手动及推拉式电磁铁, 推拉式电磁铁
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -20°C to +80°C (-4°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 45 L/min (11.8 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口
出油口 G1/2接口
接口尺寸 G1/2接口

As a leading manufacturer of high-performance hydraulic solutions, we offer the Q45-DT-2OT 3 Spool Monoblock Directional Valve for global markets. This valve integrates manual and push-pull electromagnet control methods, ensuring flexible operation for material handling, construction, and agricultural machinery. It handles a rated flow of 45 L/min (11.8 US gpm) and pressures up to 315 bar (4600 psi), featuring standard G1/2 ports. We provide comprehensive OEM, ODM, and customized manufacturing services to meet specific technical requirements. Our factory provides direct wholesale pricing and high-volume supply capabilities. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need reliable components for tractors, mini-excavators, or forklifts, our Q45 series offers robust quality and versatile functionality for industrial vehicle manufacturers and aftermarket suppliers.
