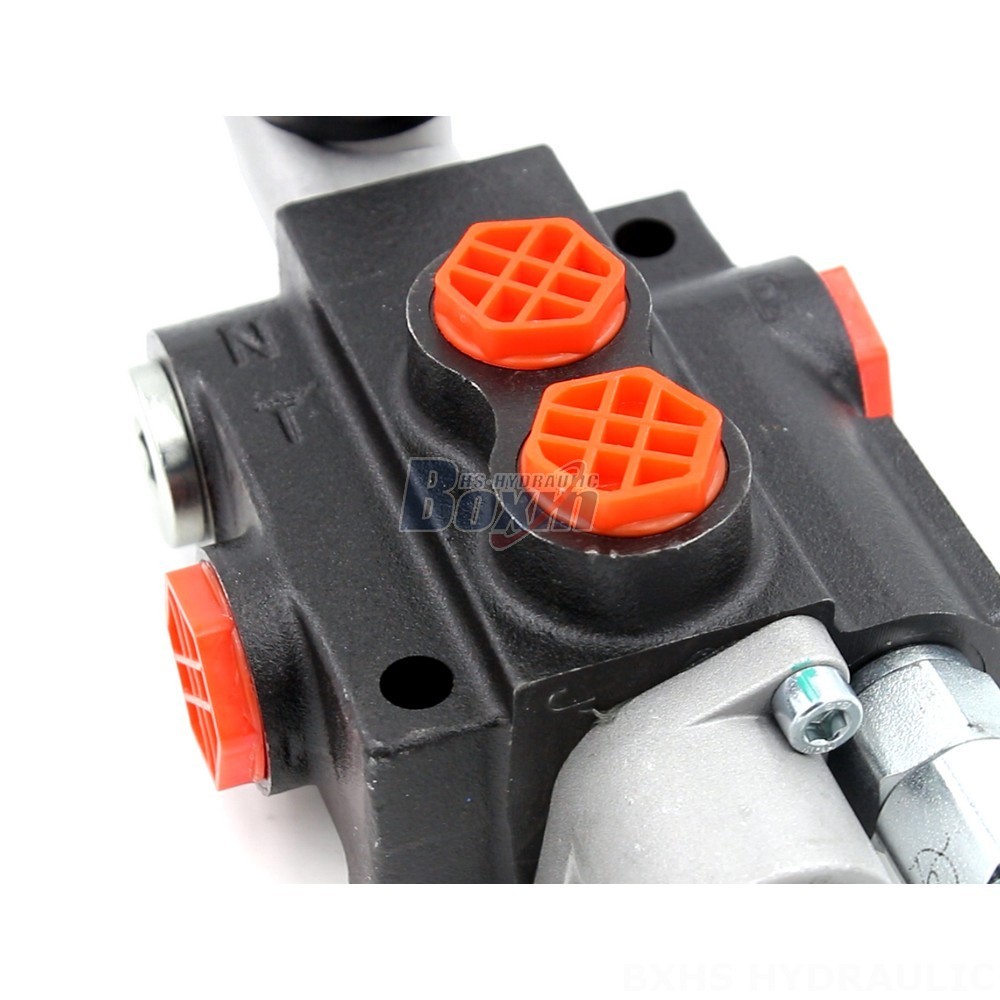

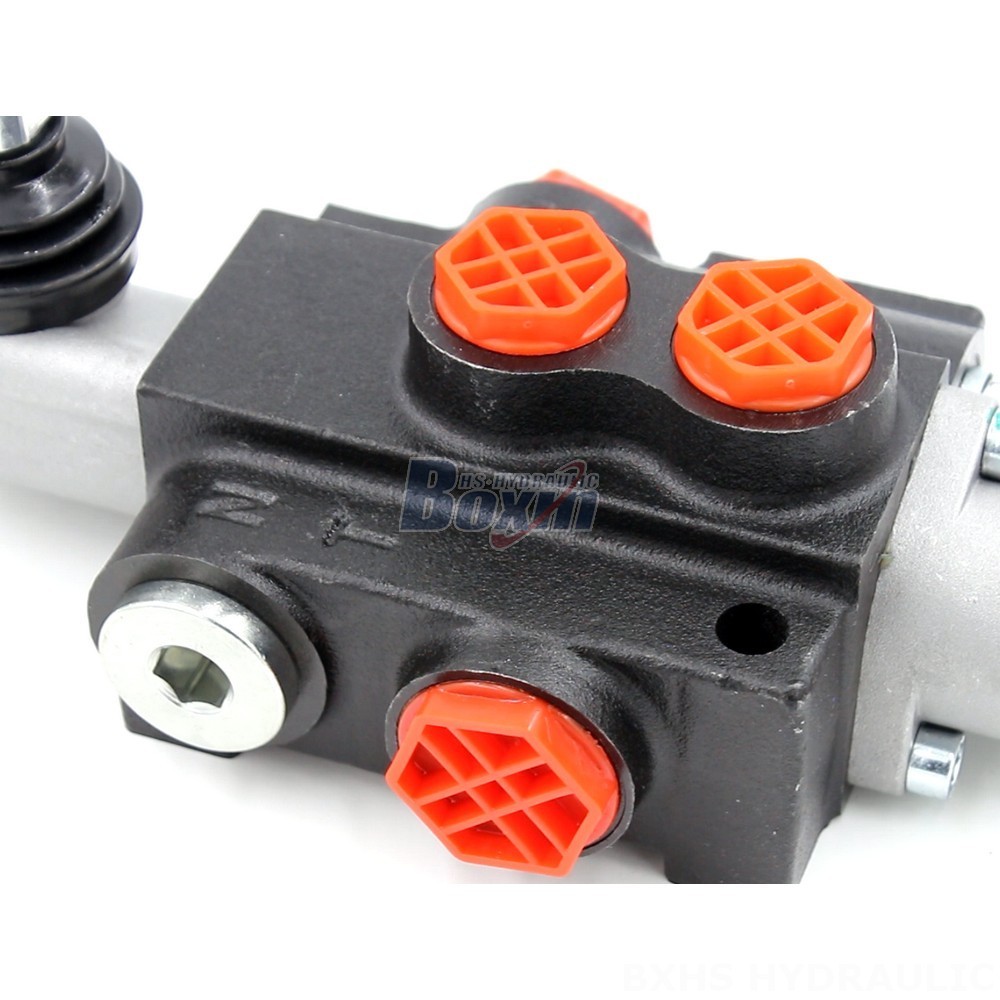

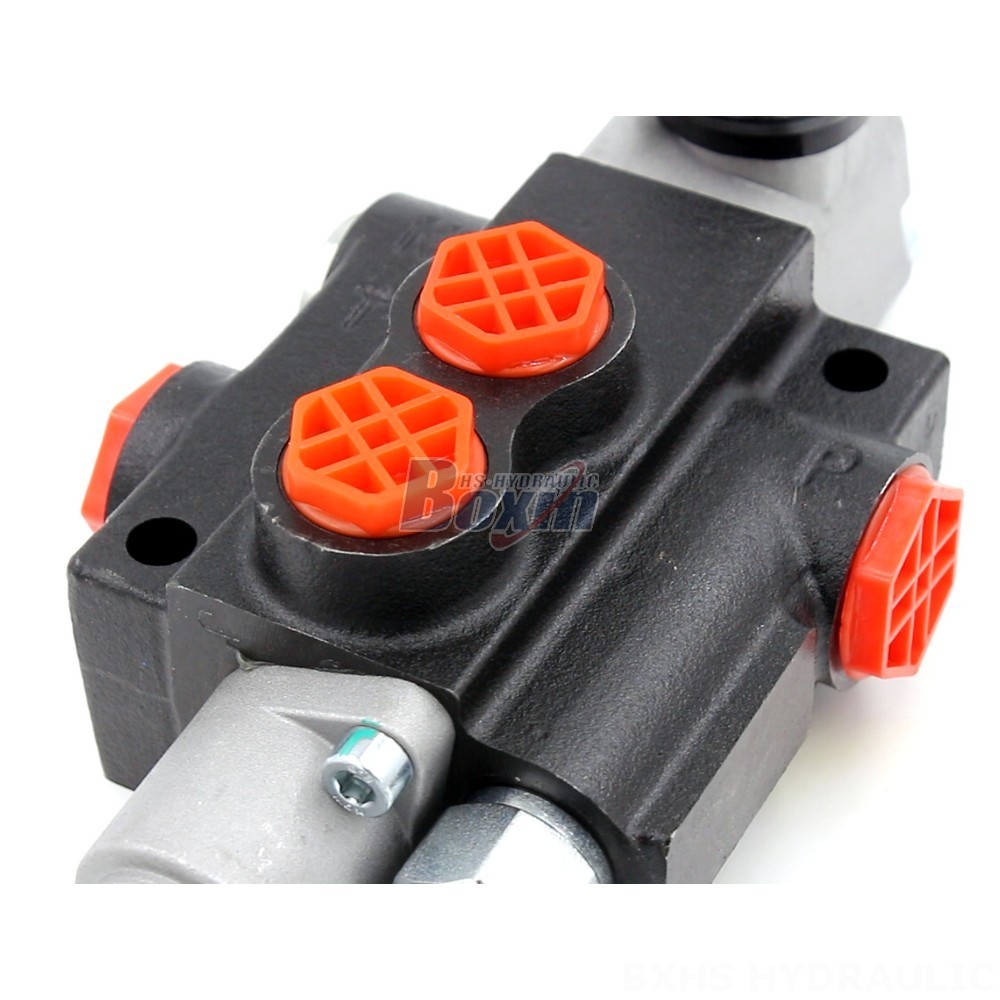

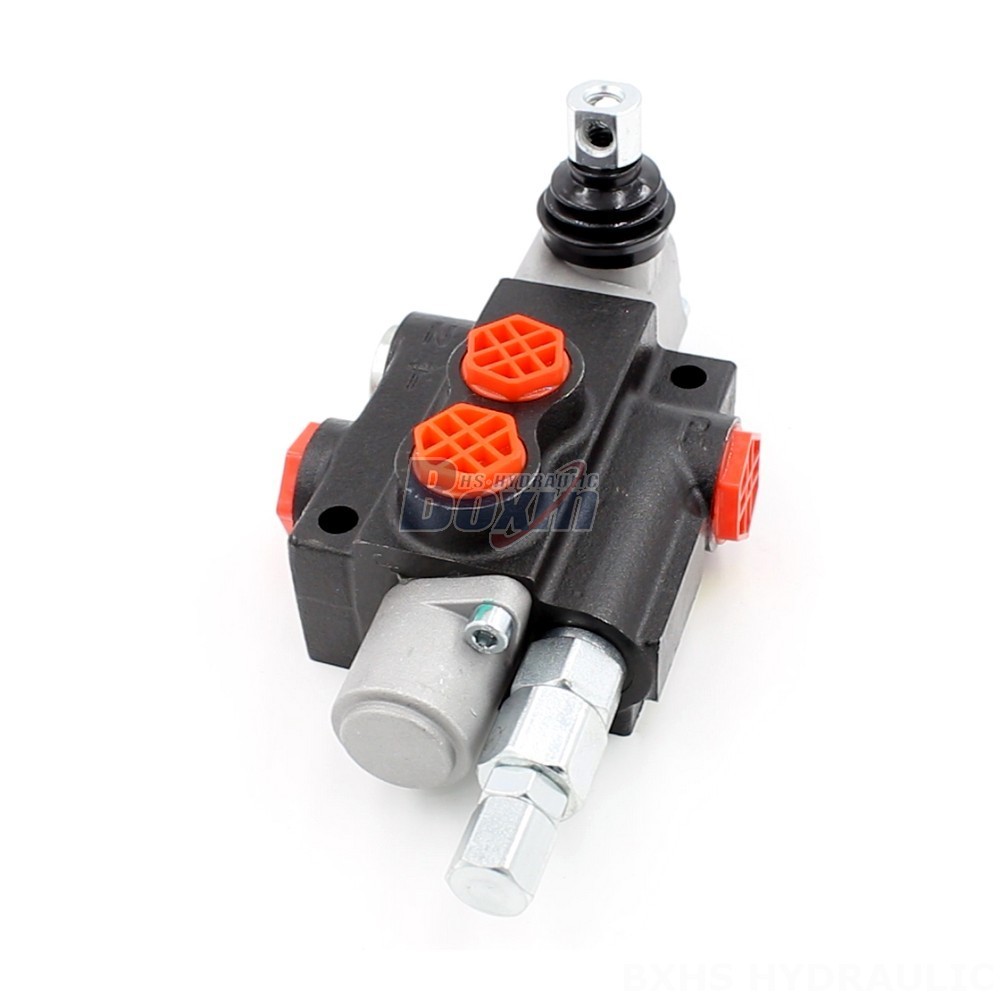

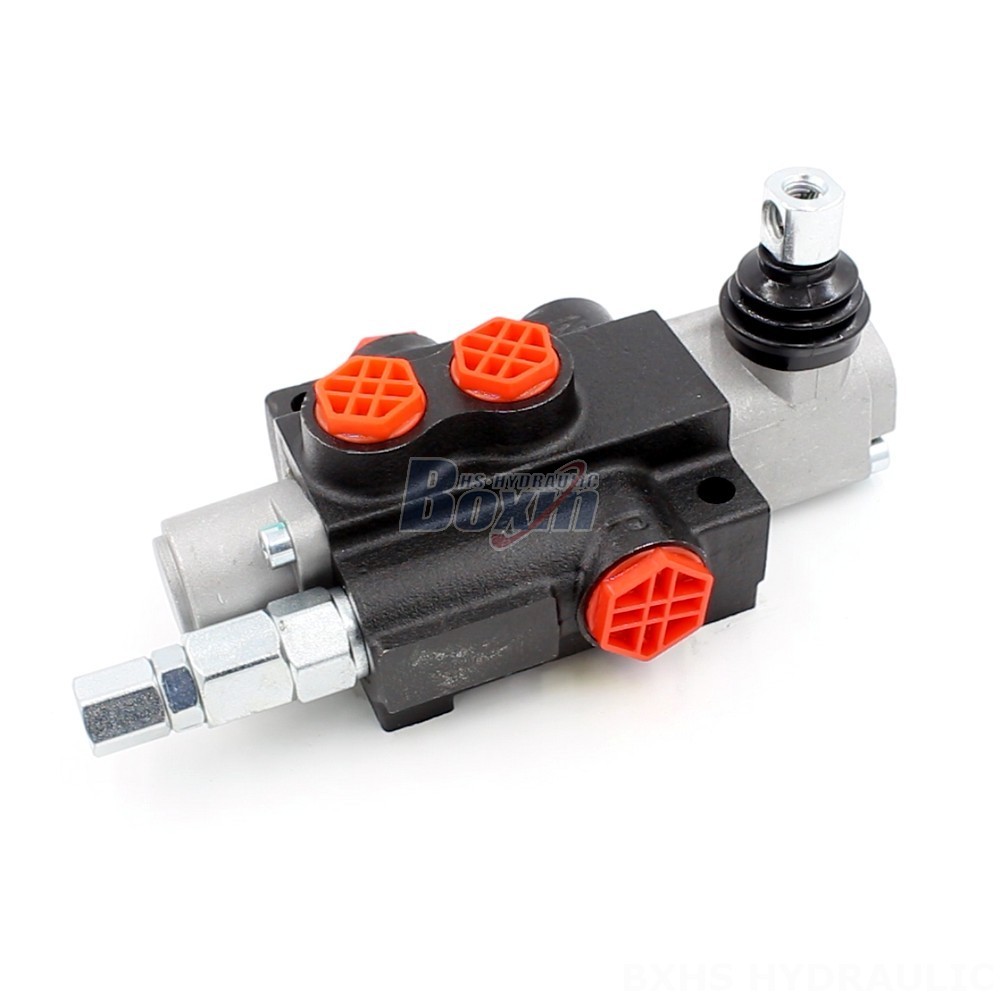

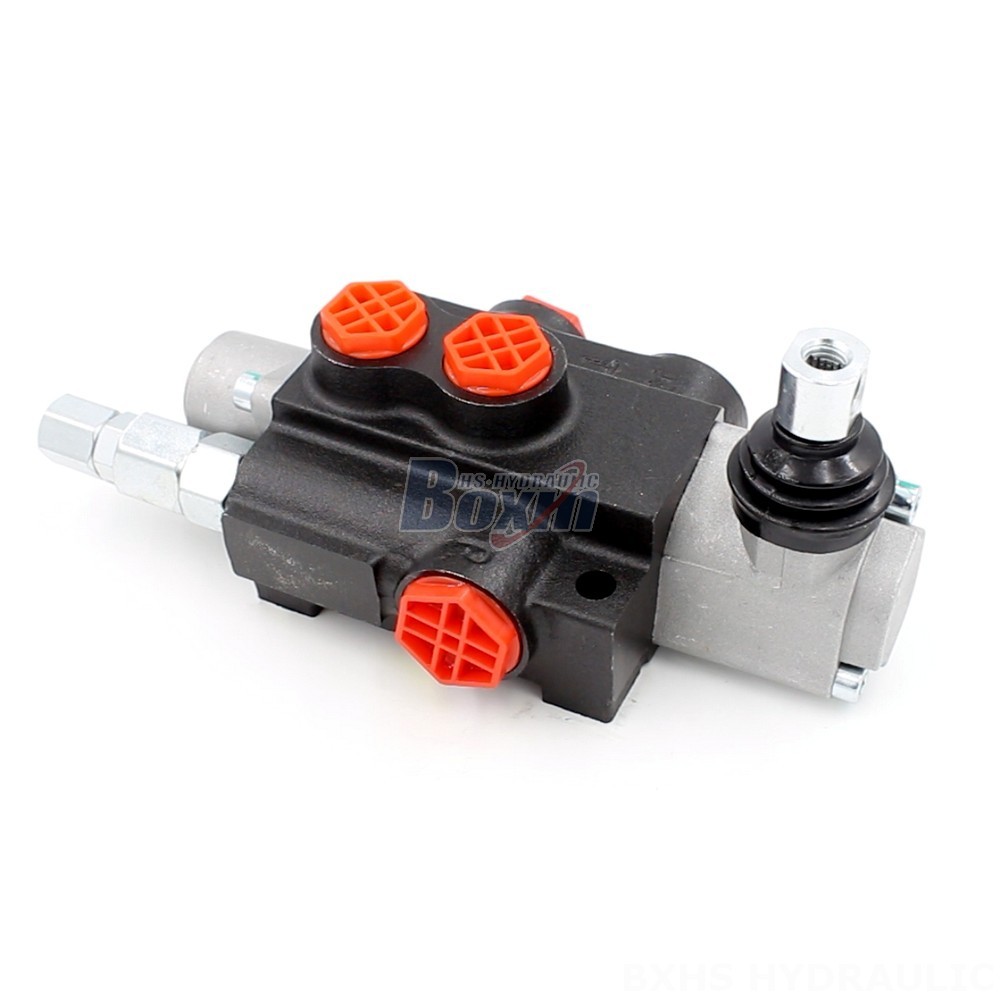

The P40-OT Series is a high-performance hydraulic joystick control valve designed for OEM partners. This manual control valve features a monoblock structure, 40 L/min rated flow, and 250 bar maximum pressure. Suitable for a wide range of applications in construction, material handling, agriculture, and industrial vehicles.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
This P40-OT Series hydraulic joystick control valve offers a reliable and efficient solution for controlling hydraulic systems. It is a robust monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is designed for manual control and is suitable for a wide range of operating temperatures. We offer private label and OEM options, allowing you to customize the valve to meet your specific needs. We also provide manufacturing, contract manufacturing, and wholesale services. Our team is ready to collaborate with you to develop a tailored solution that meets your unique requirements. Contact us today to learn more.
