P40-G12-G38 Hydraulic Valves offer private labeling options to enhance your brand value. These valves are designed for various applications in material handling, construction, agriculture, and industrial vehicles.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |

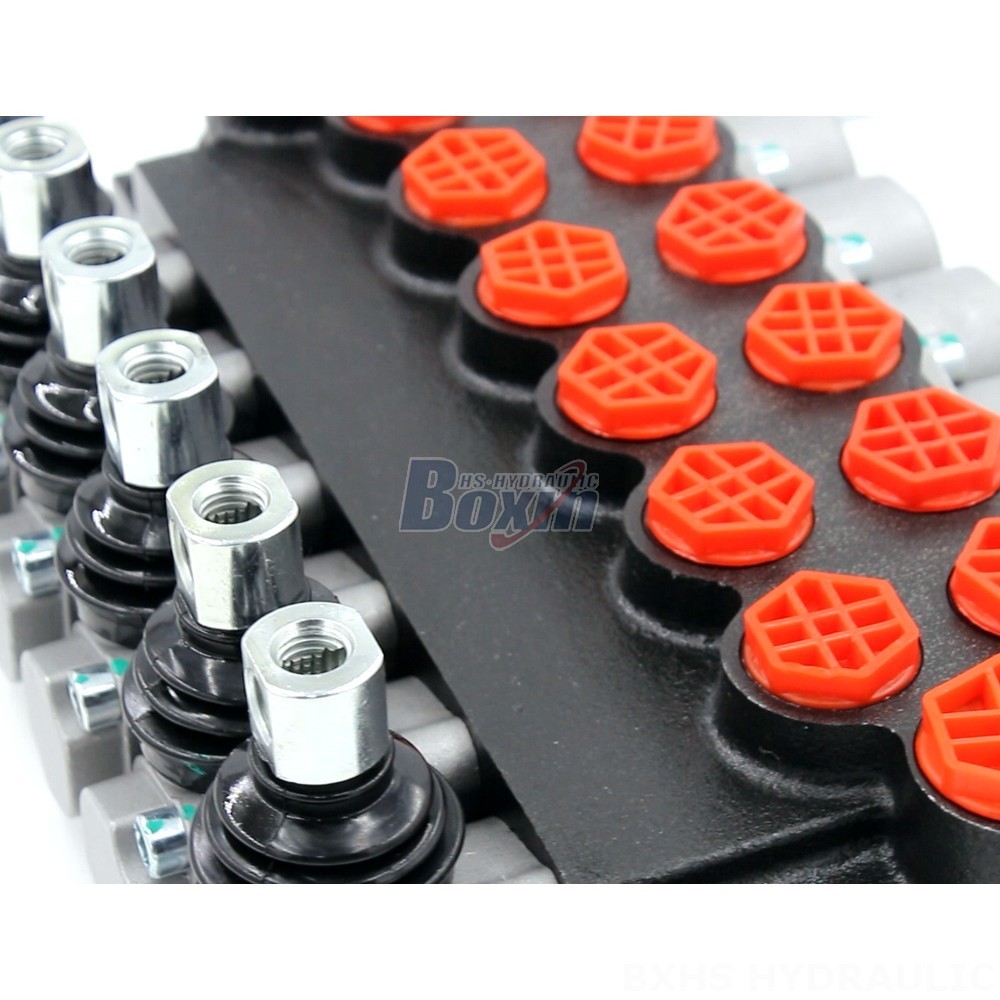

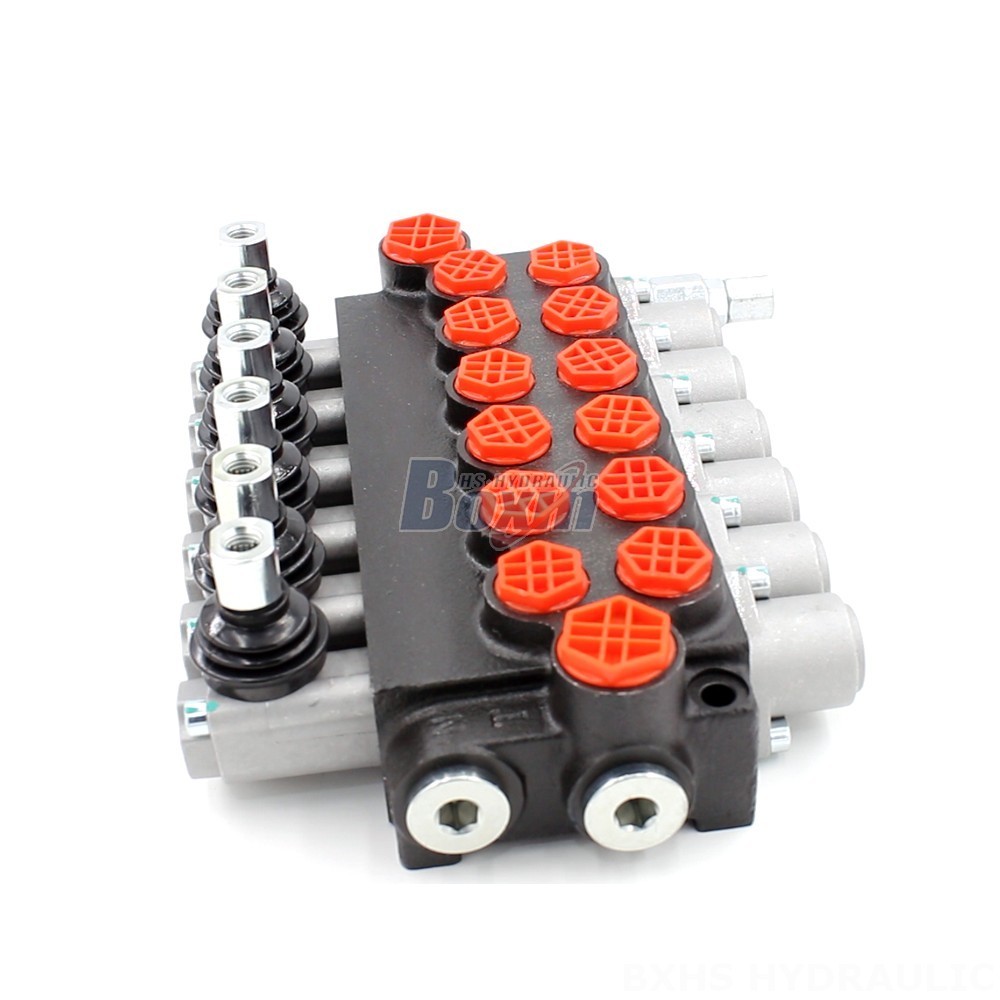

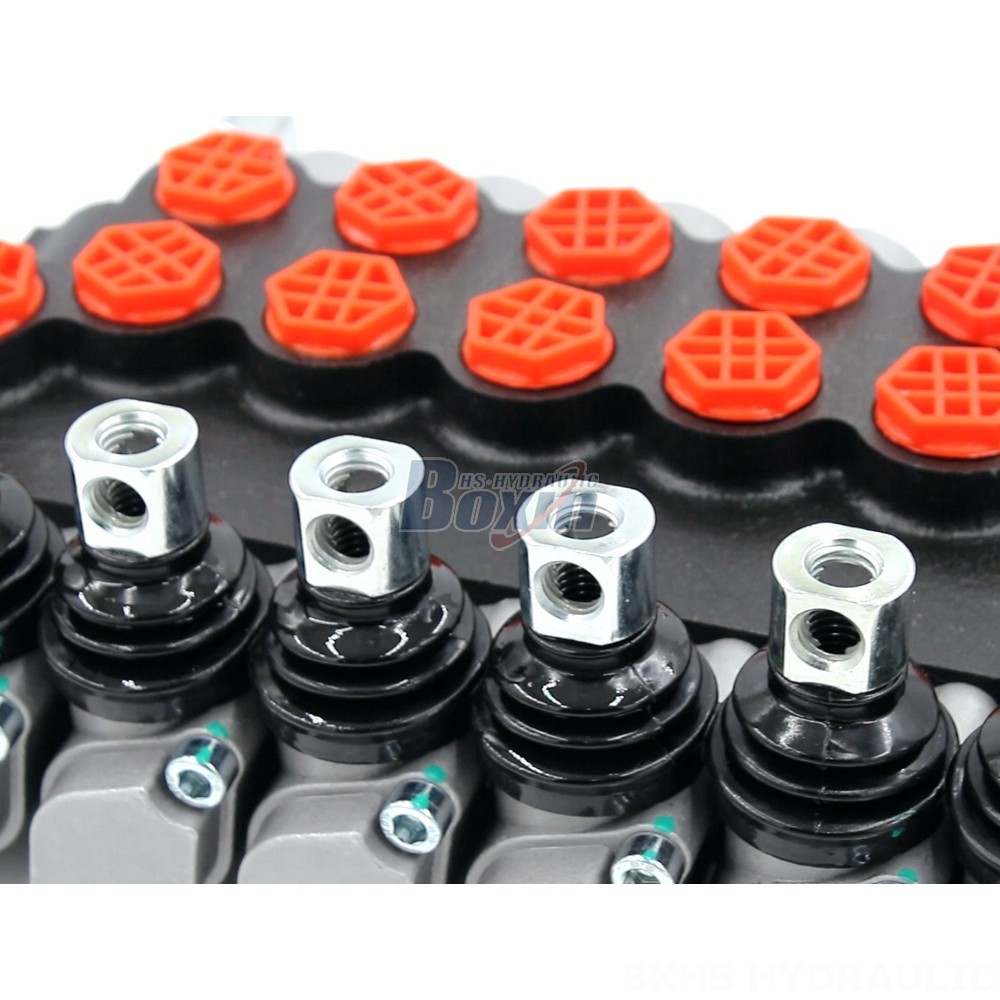

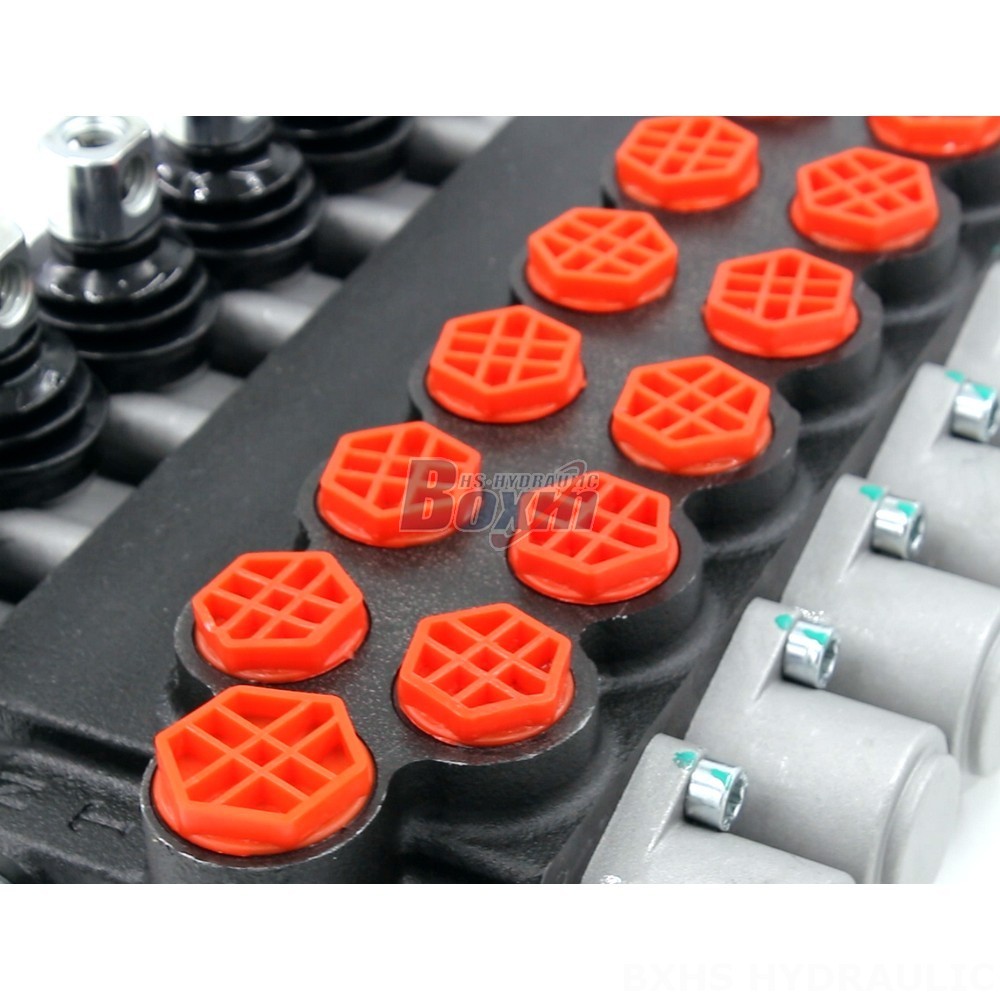

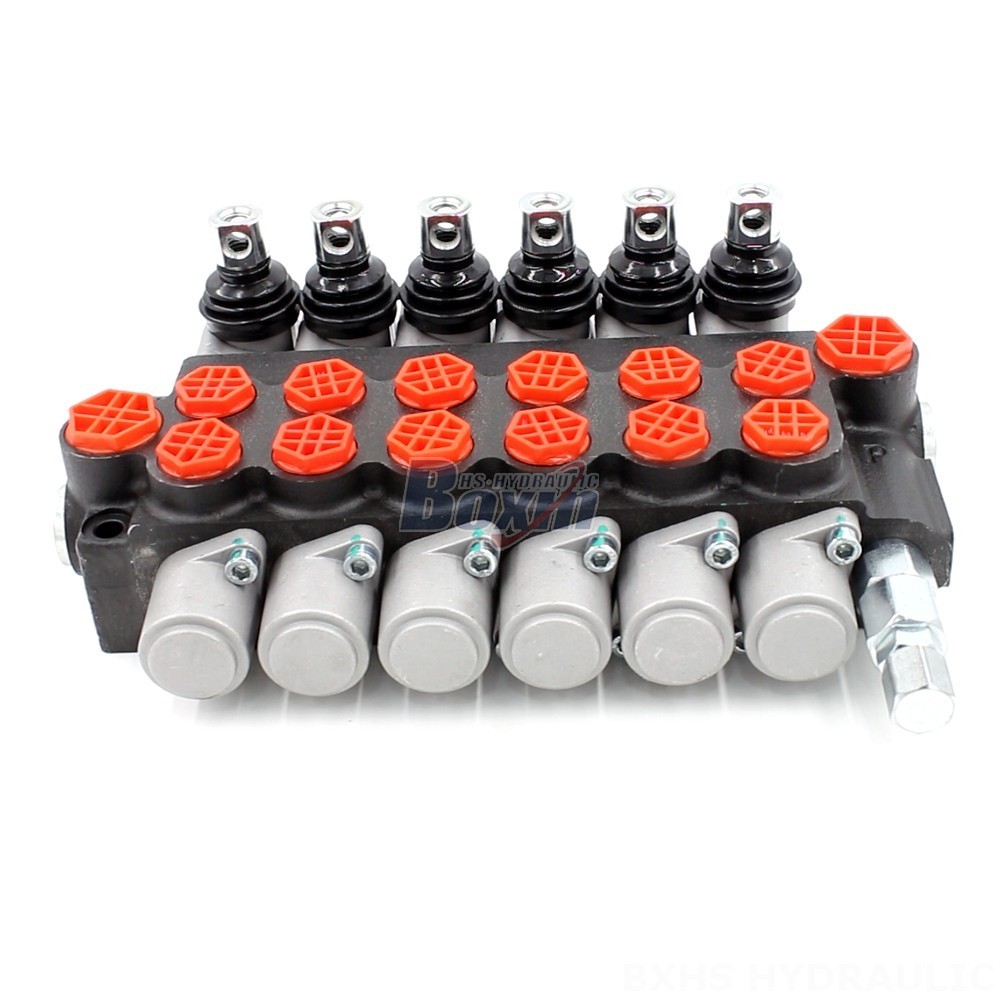

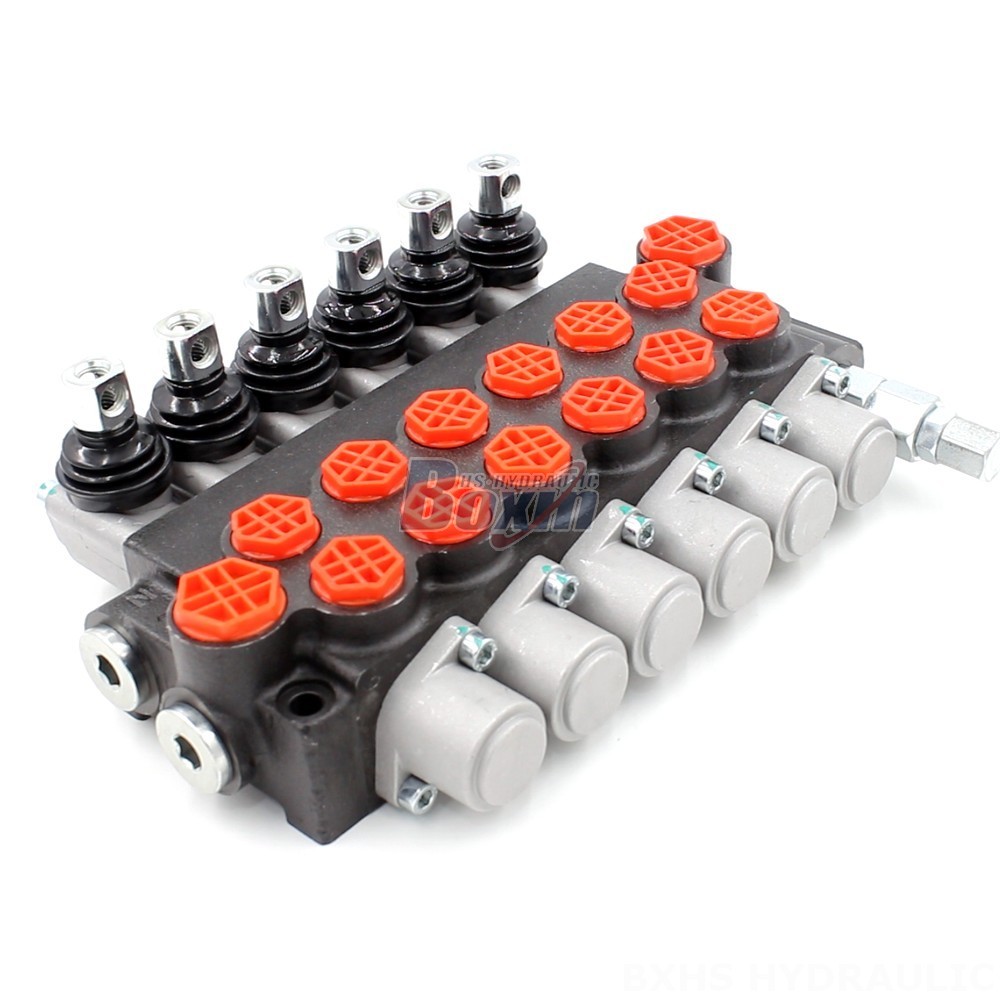

**Private Label Hydraulic Valves: P40-G12-G38**
**Features:**
- Manual Control
- 6 Section
- Monoblock Valve Structure
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Spool: 6 Spool
- Series: P40 Series
**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- Midi-Excavator
- Mini-Excavator
- Skid Steer Loader
**Benefits of Private Labeling:**
- Enhance brand recognition and loyalty
- Control product design and specifications
- Differentiate your products in the market
We offer OEM, ODM, and customization services to meet your specific requirements. Contact us today to discuss your private label hydraulic valve needs.
