Spool Control Valve Premium Hydraulic Components: P40-DKL Valve from a Trusted Manufacturer

控制方式:电磁

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40-DKL系列 单块式方向阀

Packagingsize:31*18*17

Grossweight:6.50 kg

库存: 有货

794 次查看了此产品

Spool Control Valve Premium Hydraulic Components: P40-DKL Valve from a Trusted Manufacturer

Spool Control Valve Premium Hydraulic Components: P40-DKL Valve from a Trusted Manufacturer

Spool Control Valve Premium Hydraulic Components: P40-DKL Valve from a Trusted Manufacturer drawing image

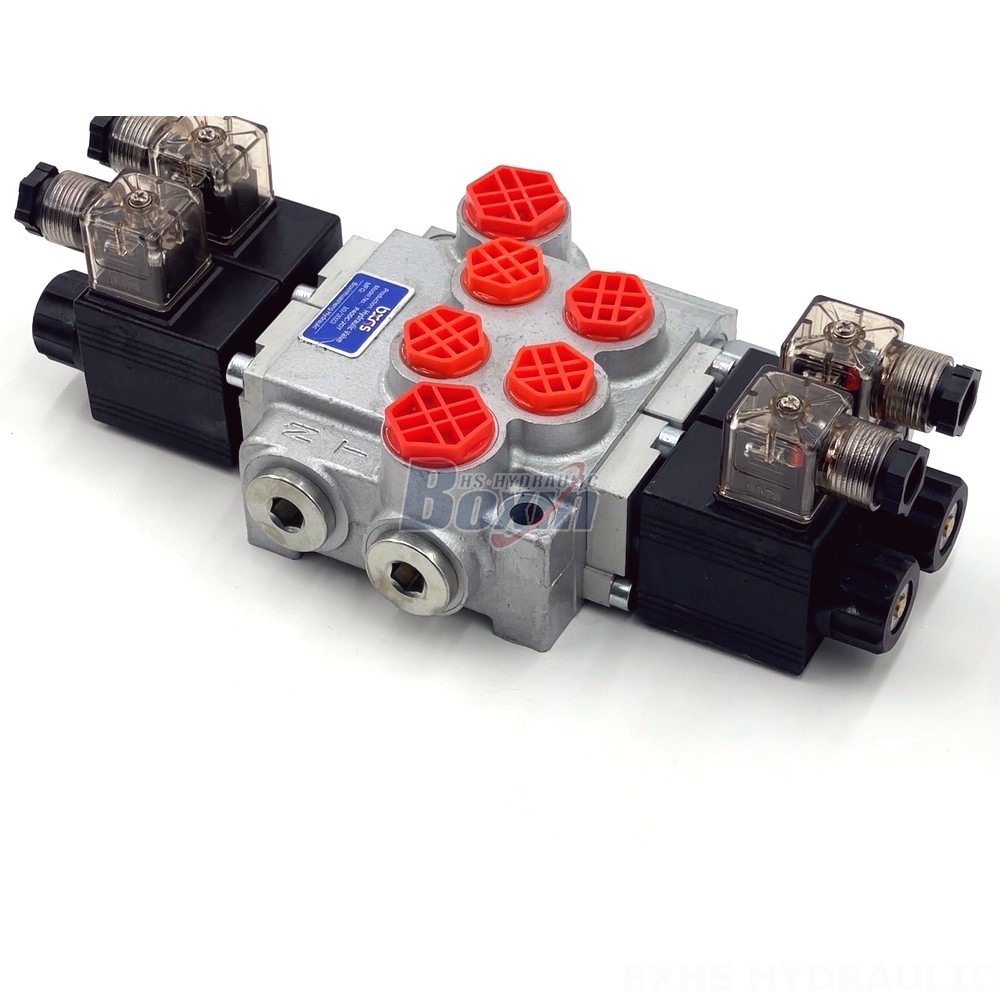

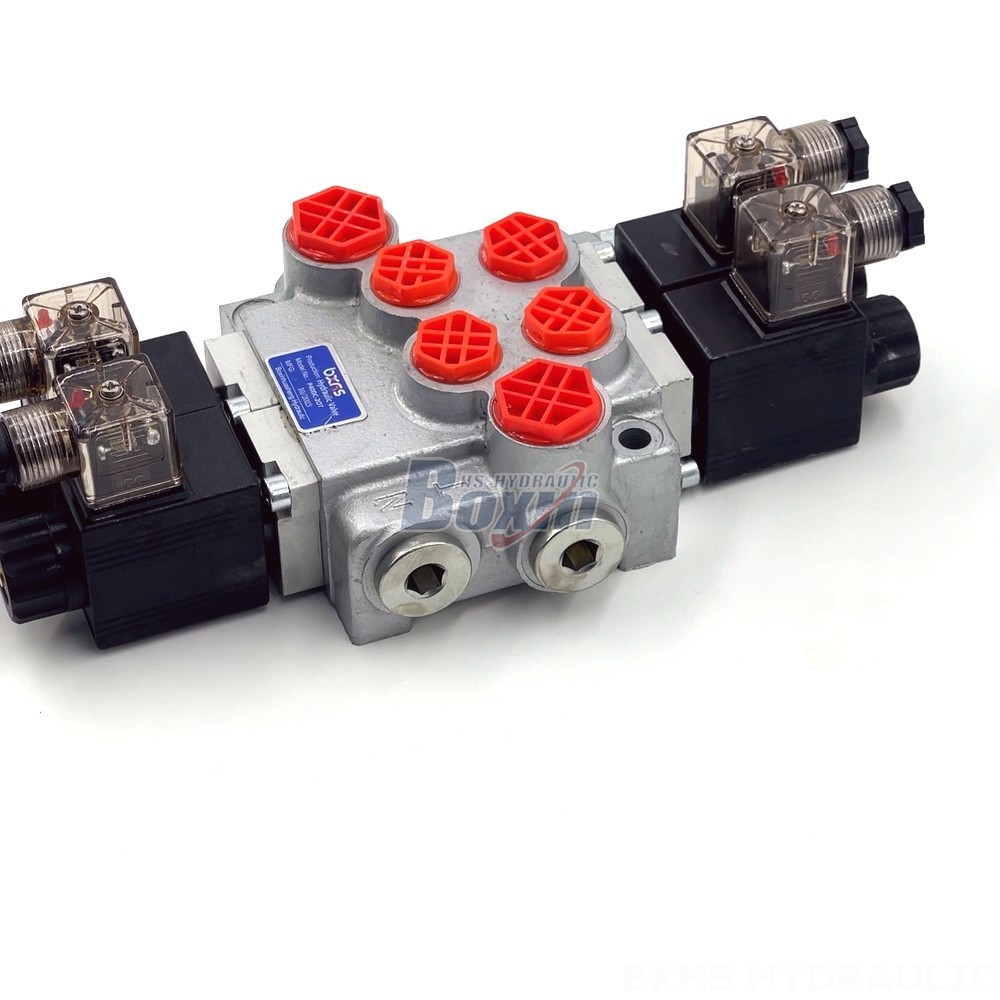

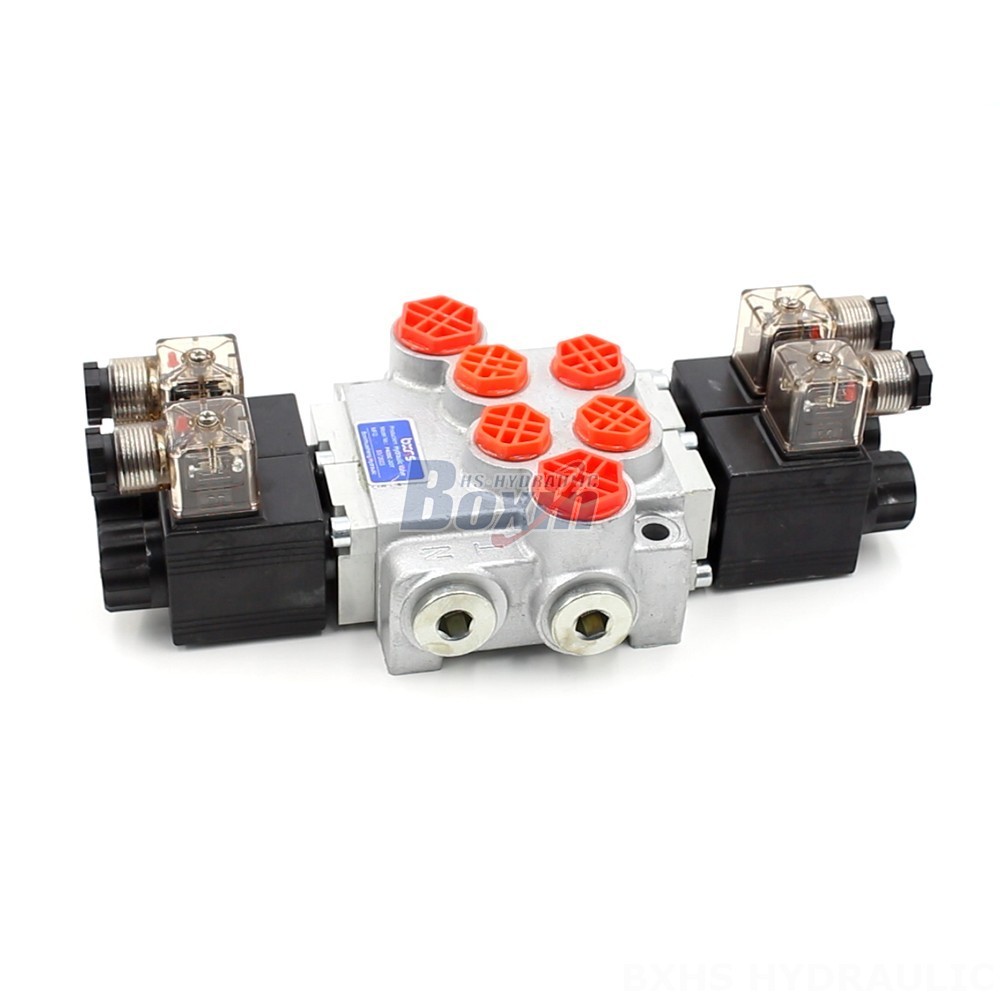

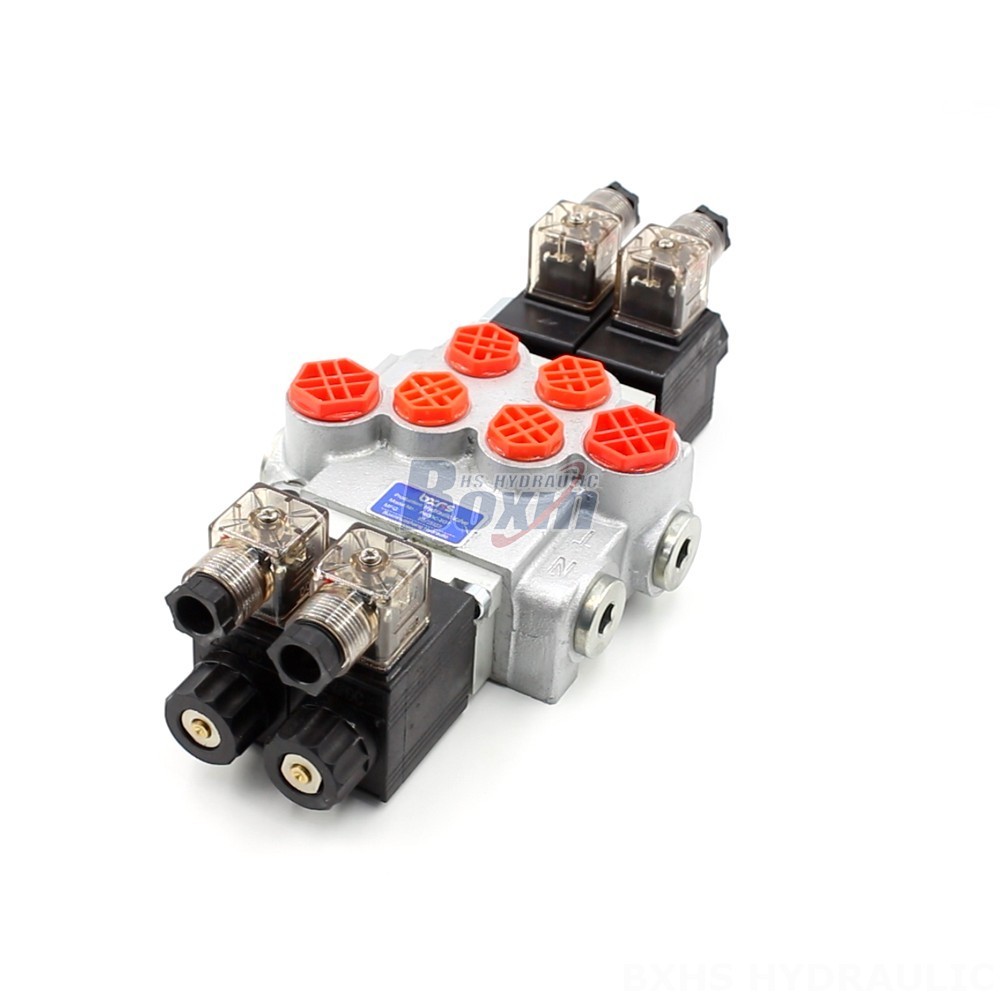

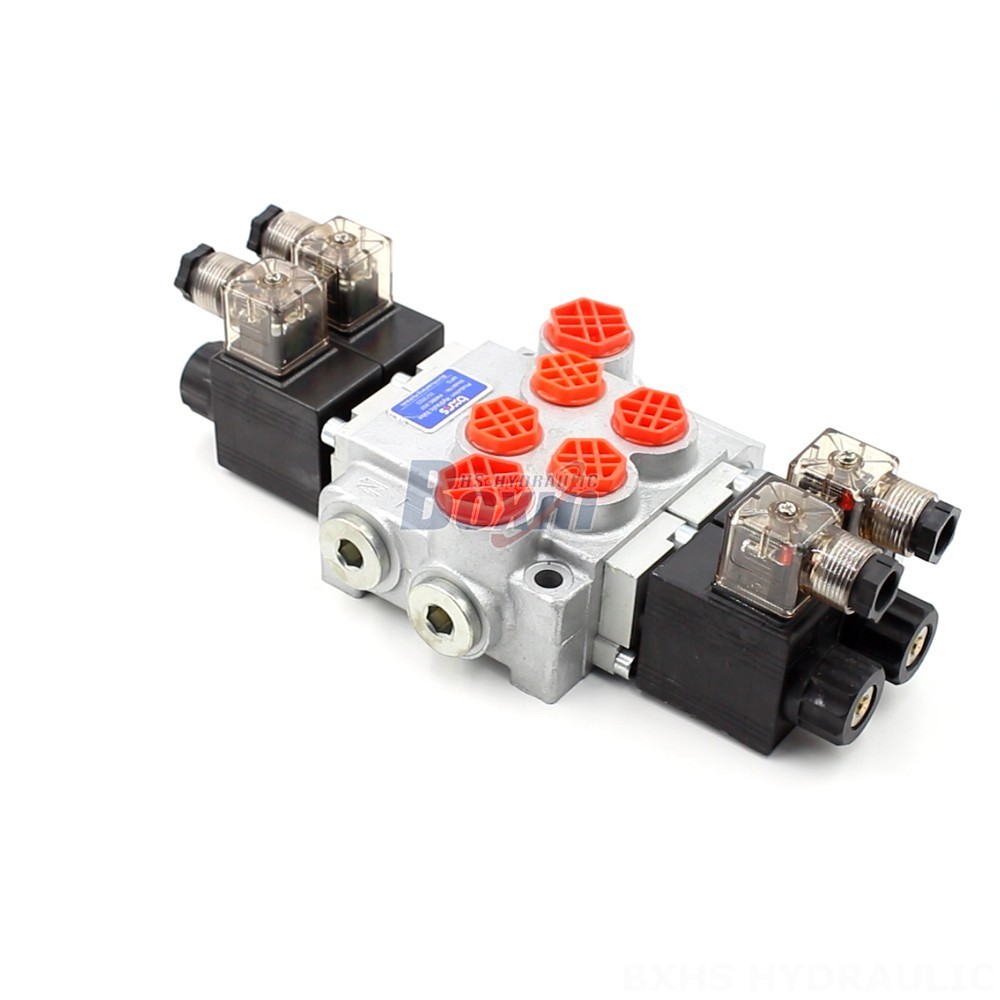

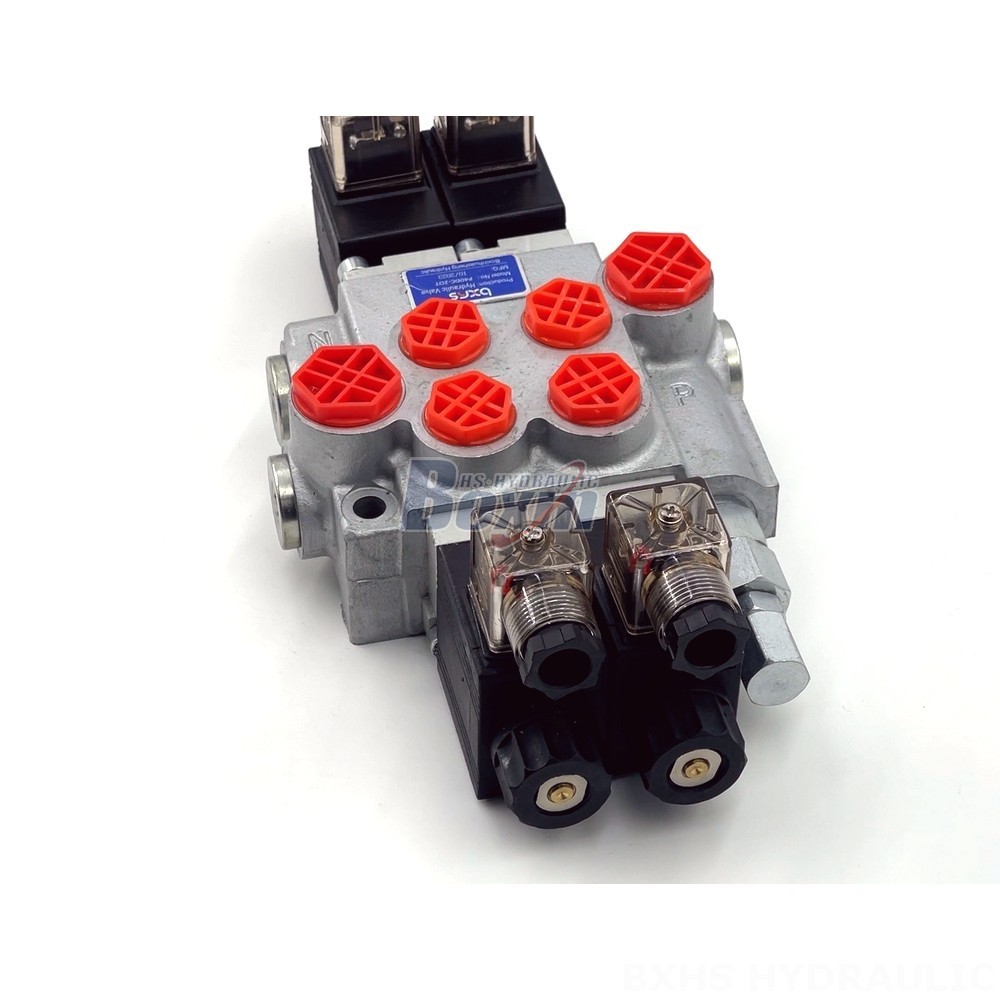

The P40-DKL series spool control valve is a premium hydraulic component designed for use in a wide range of construction and material handling equipment. This 2-section monoblock valve features a solenoid control method, 40 L/min rated flow, and 250 bar maximum pressure. It is a reliable and durable solution for demanding applications.

P40-DKL系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
结构类型 整体阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)

The P40-DKL series spool control valve is a high-quality hydraulic component manufactured by a trusted supplier. This valve is designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. The P40-DKL features a solenoid control method and a monoblock structure, offering a compact and efficient design. It is rated for a flow of 40 L/min and a maximum pressure of 250 bar. The valve is suitable for use with a variety of fluids, including hydraulic oils with viscosities ranging from 15 to 75 mm²/s. The P40-DKL series is ideal for use in a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
