Precision Engineered: The P40 Hydraulic Valve for Unmatched Accuracy and Reliability

控制方式:液控和手控

路数:4 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列单块式方向阀

Packagingsize:33*35*17

Grossweight:14.50 kg

库存: 有货

描述

Precision Engineered: The P40 Hydraulic Valve for Unmatched Accuracy and Reliability

Precision Engineered: The P40 Hydraulic Valve for Unmatched Accuracy and Reliability drawing image

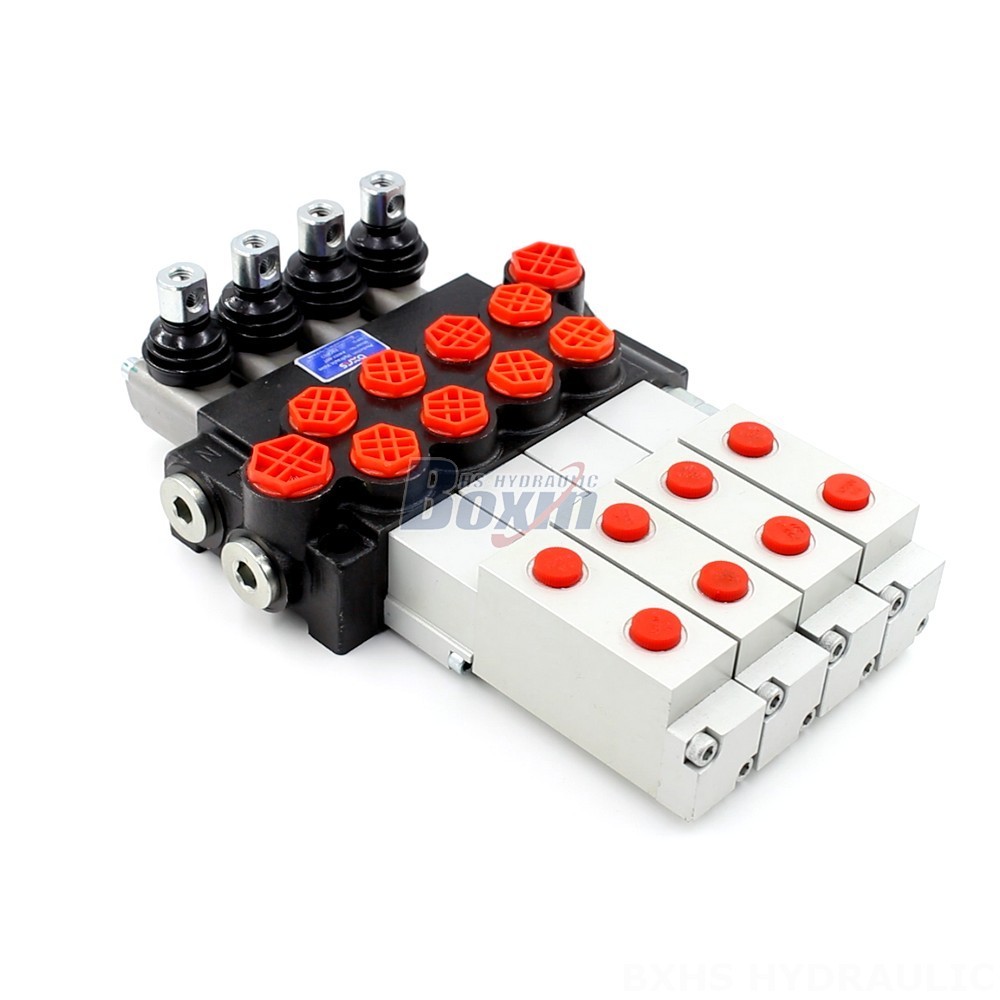

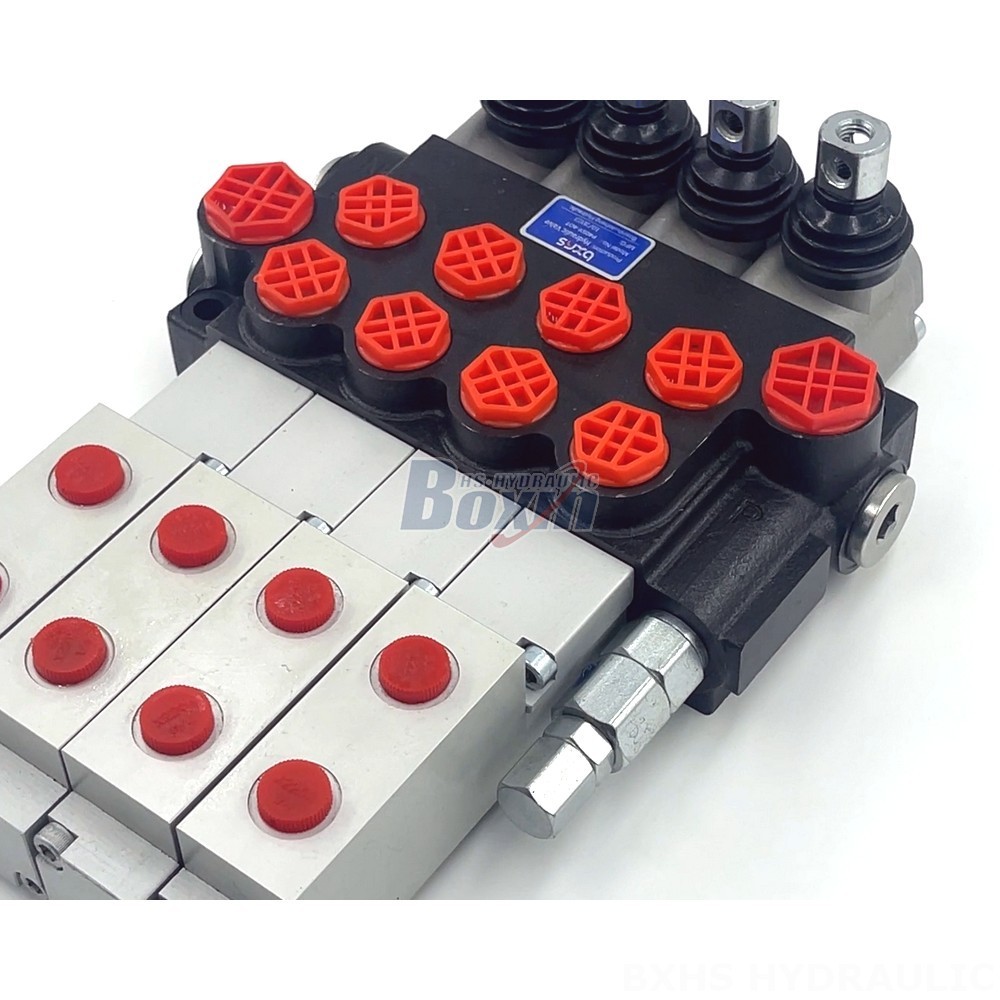

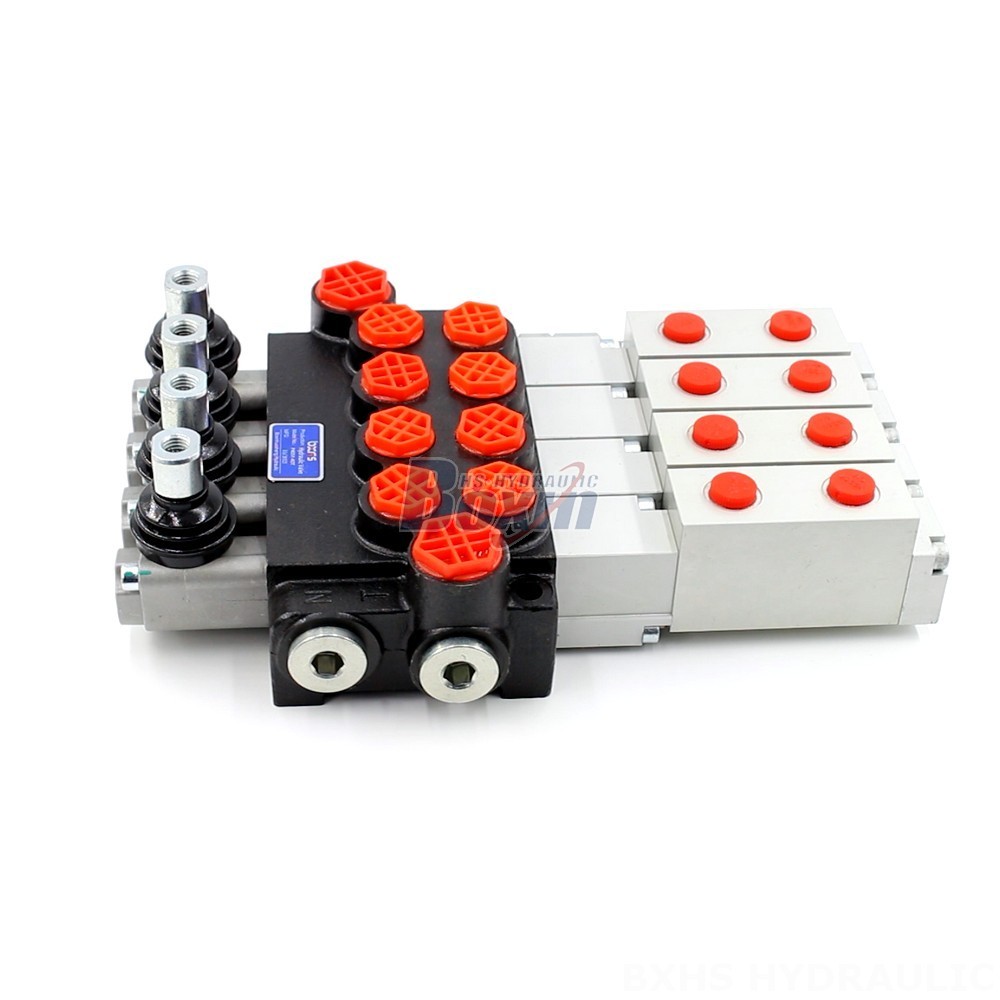

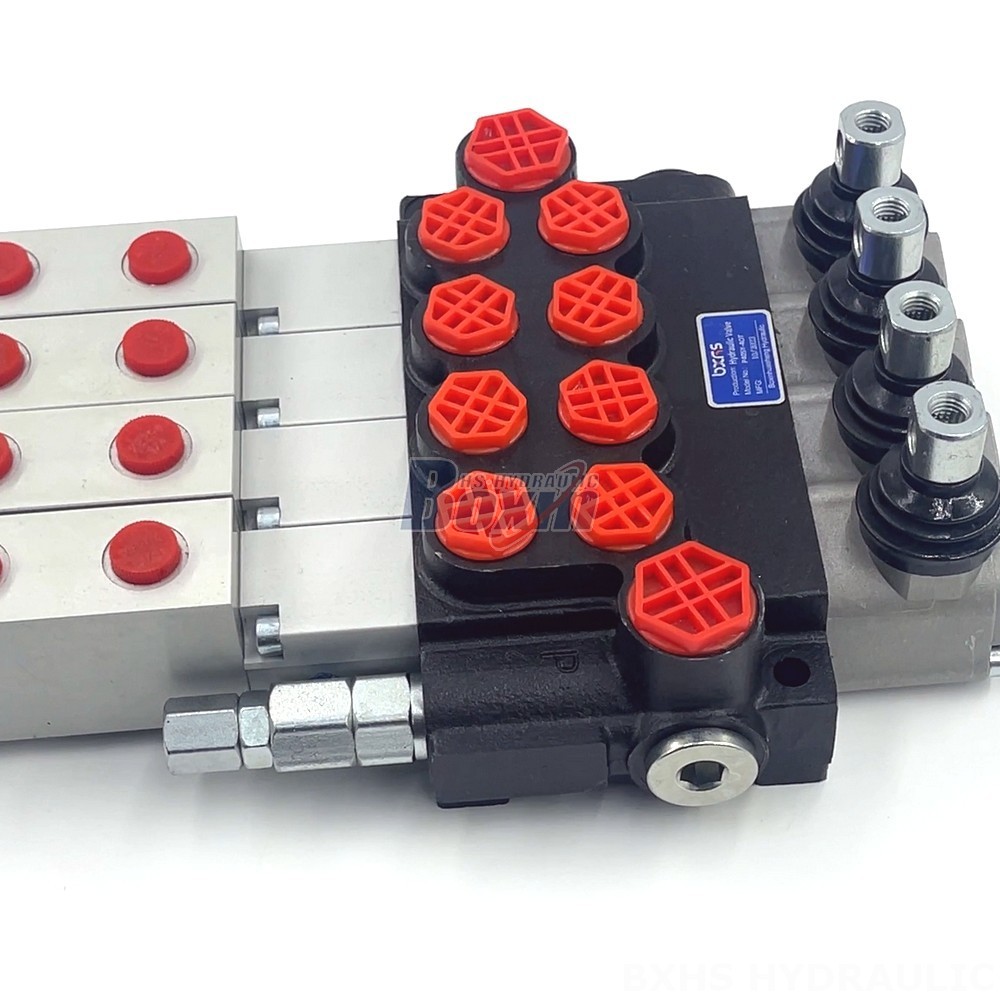

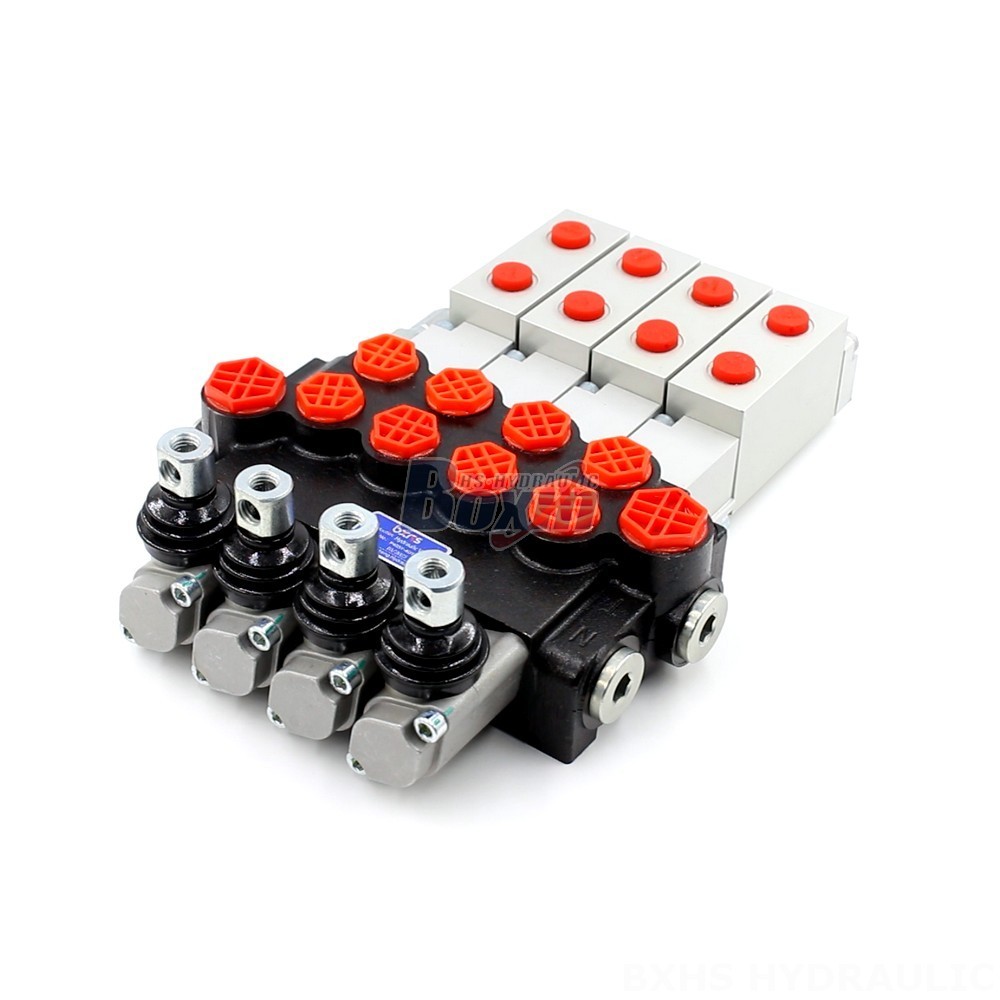

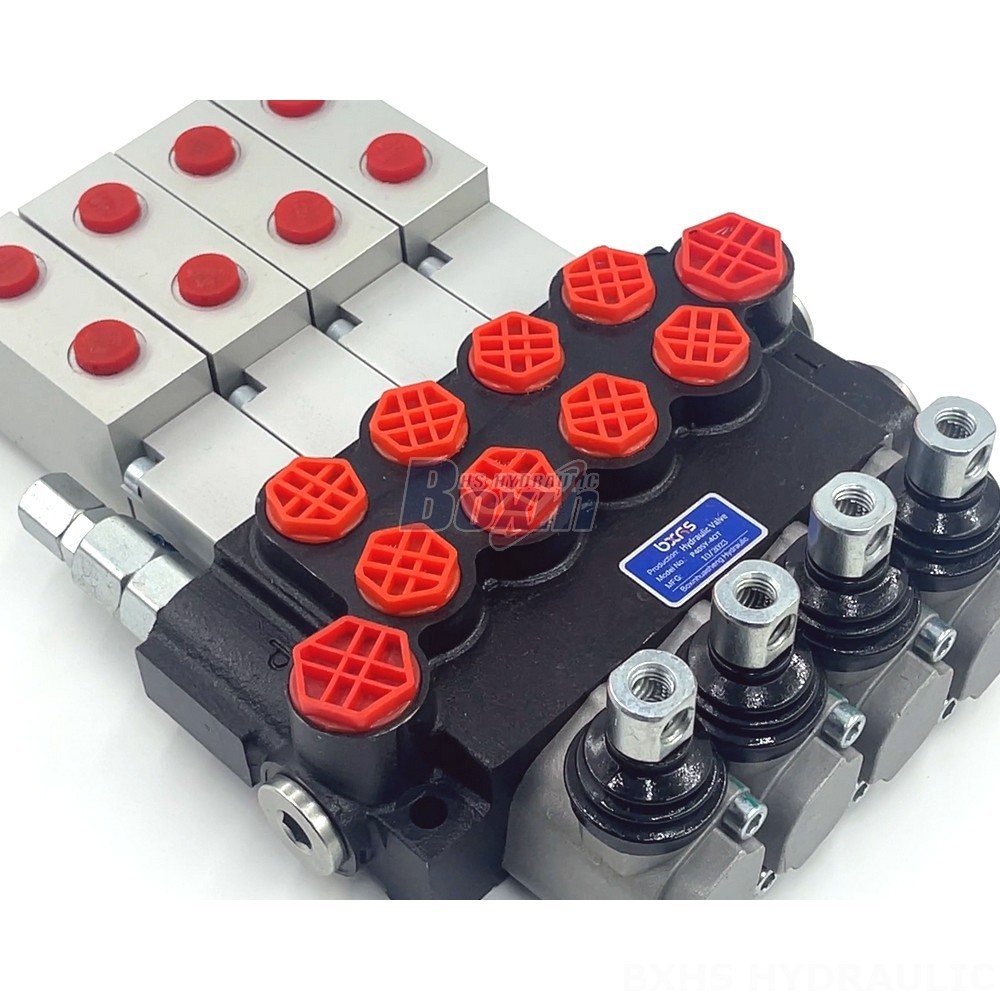

The P40 Hydraulic Valve is a precision-engineered monoblock valve designed for unmatched accuracy and reliability in various hydraulic applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it ensures efficient and precise control in demanding operating conditions.

P40系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +80°C (-40°F to +176°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	40 L/min (10.5 US gpm)
最大压力	250 bar (3600 psi)
进油口	G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口	G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸	G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40 Hydraulic Valve features a 4-section, 4-spool design, providing versatile control options for complex hydraulic systems. Its wide operating viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C) make it suitable for a wide range of applications. The valve is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
