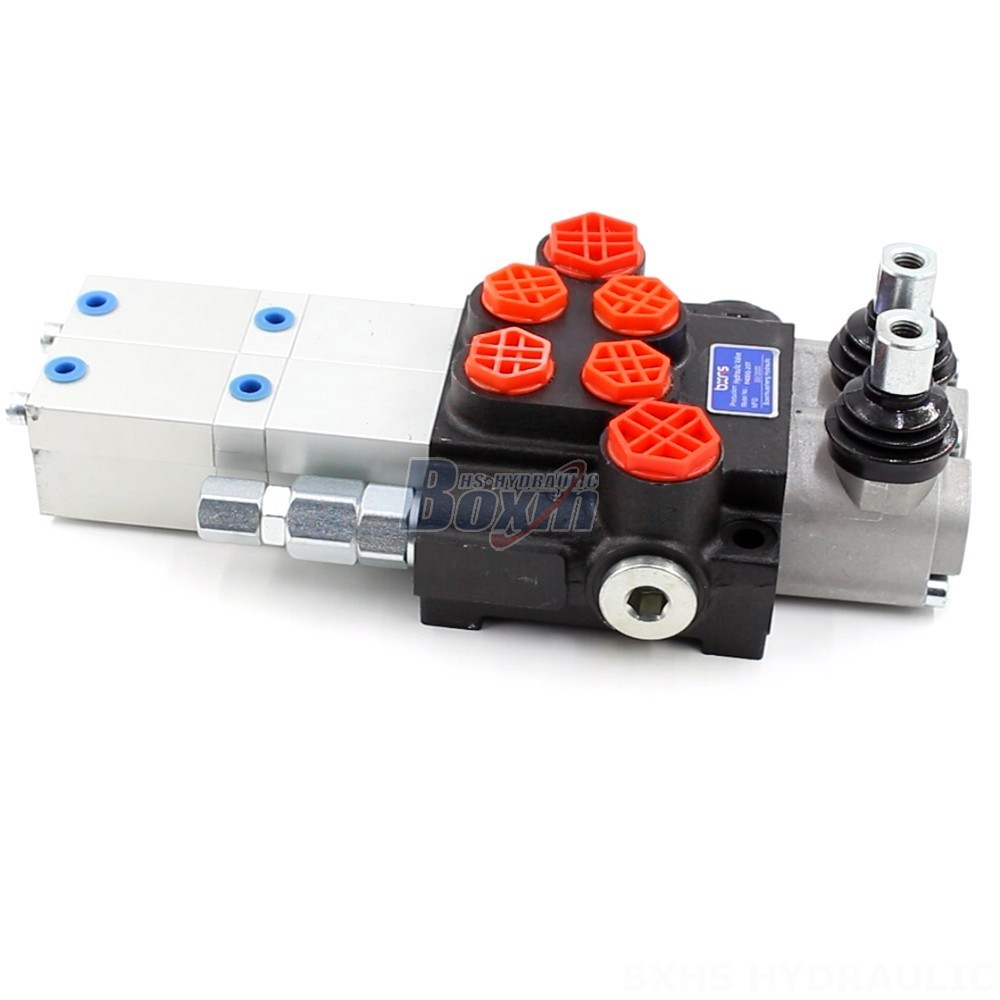

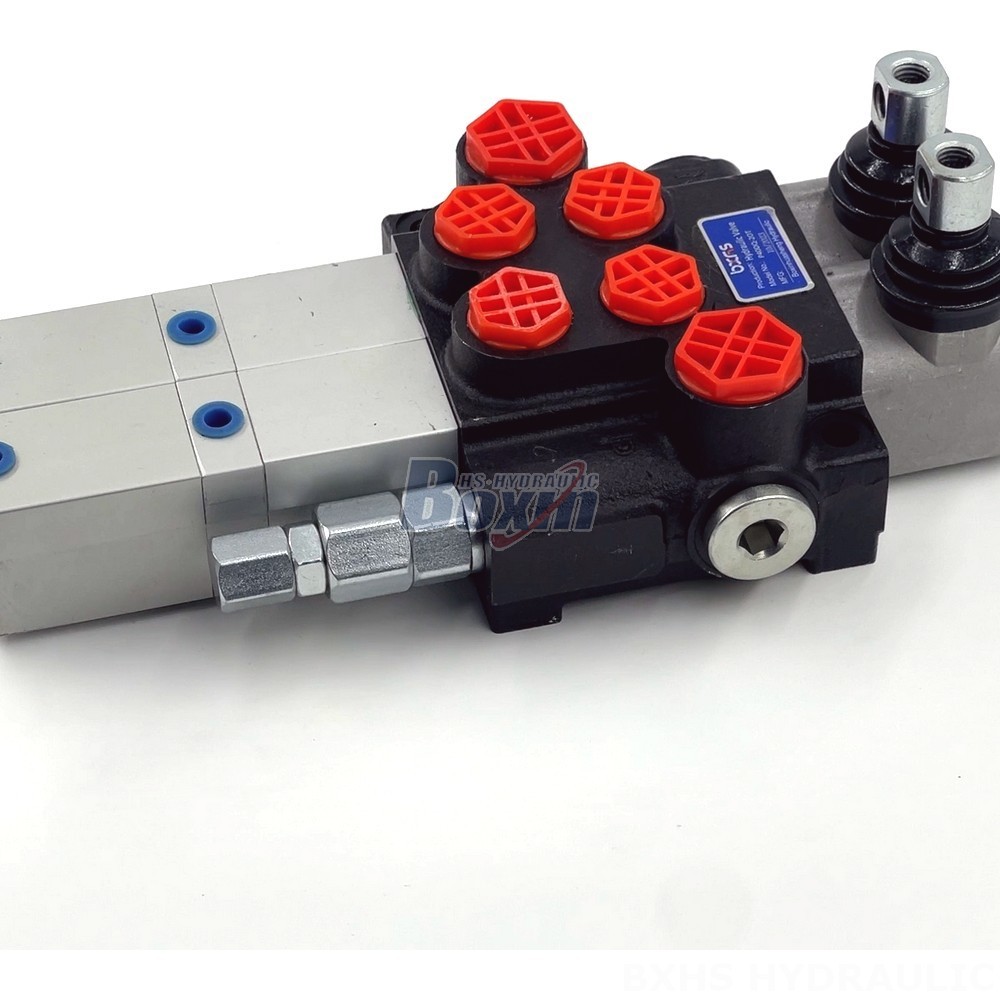

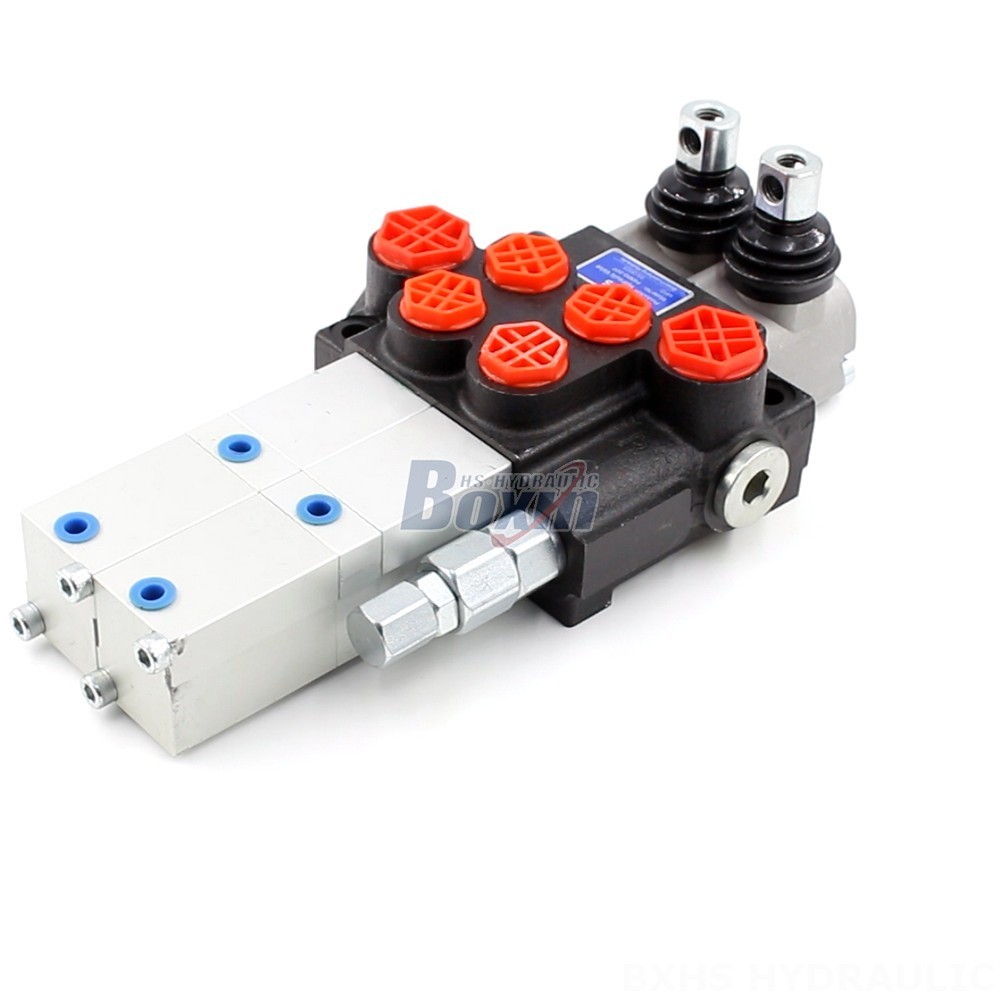

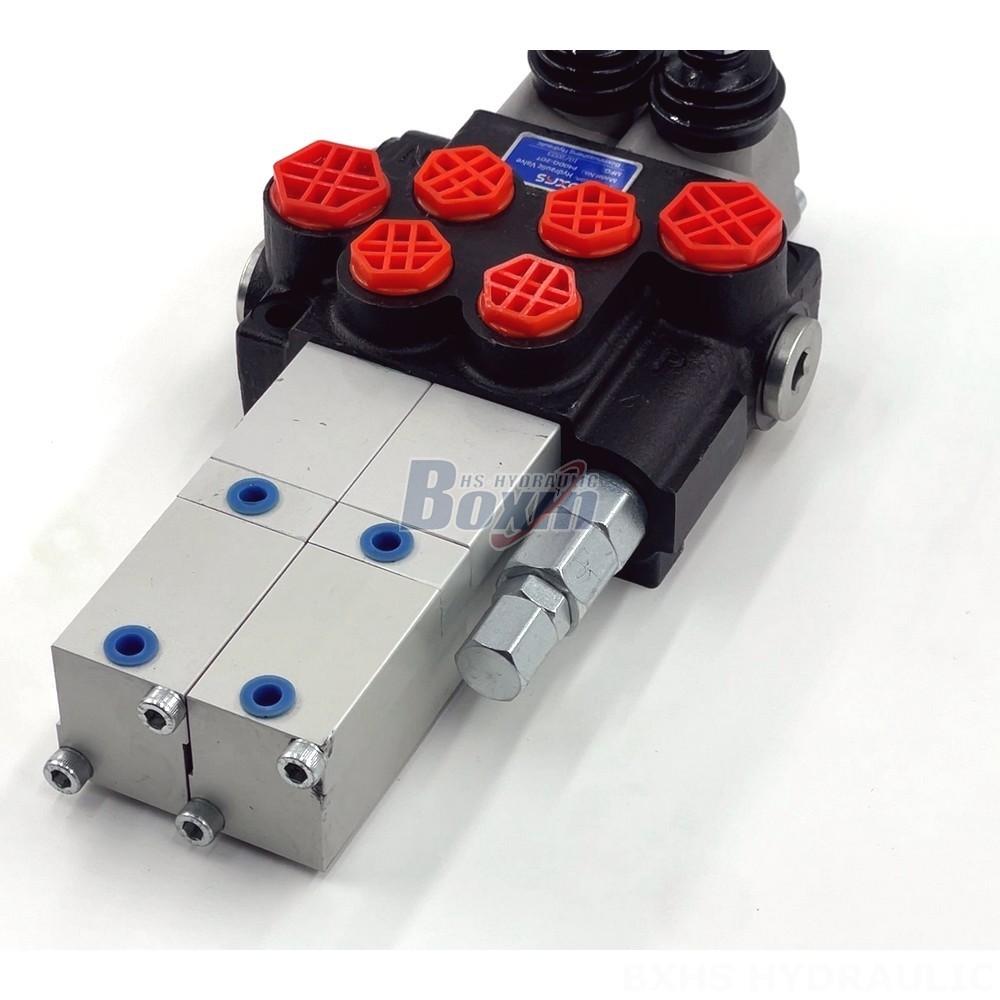

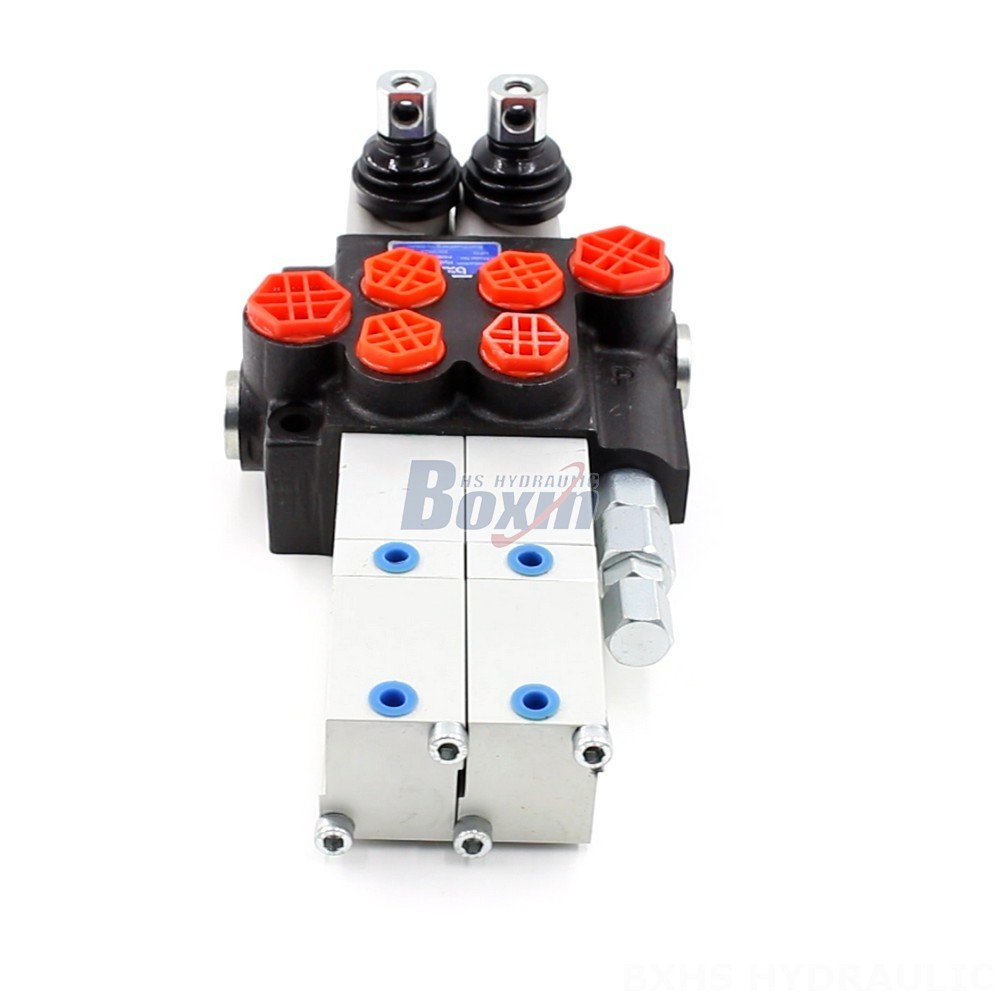

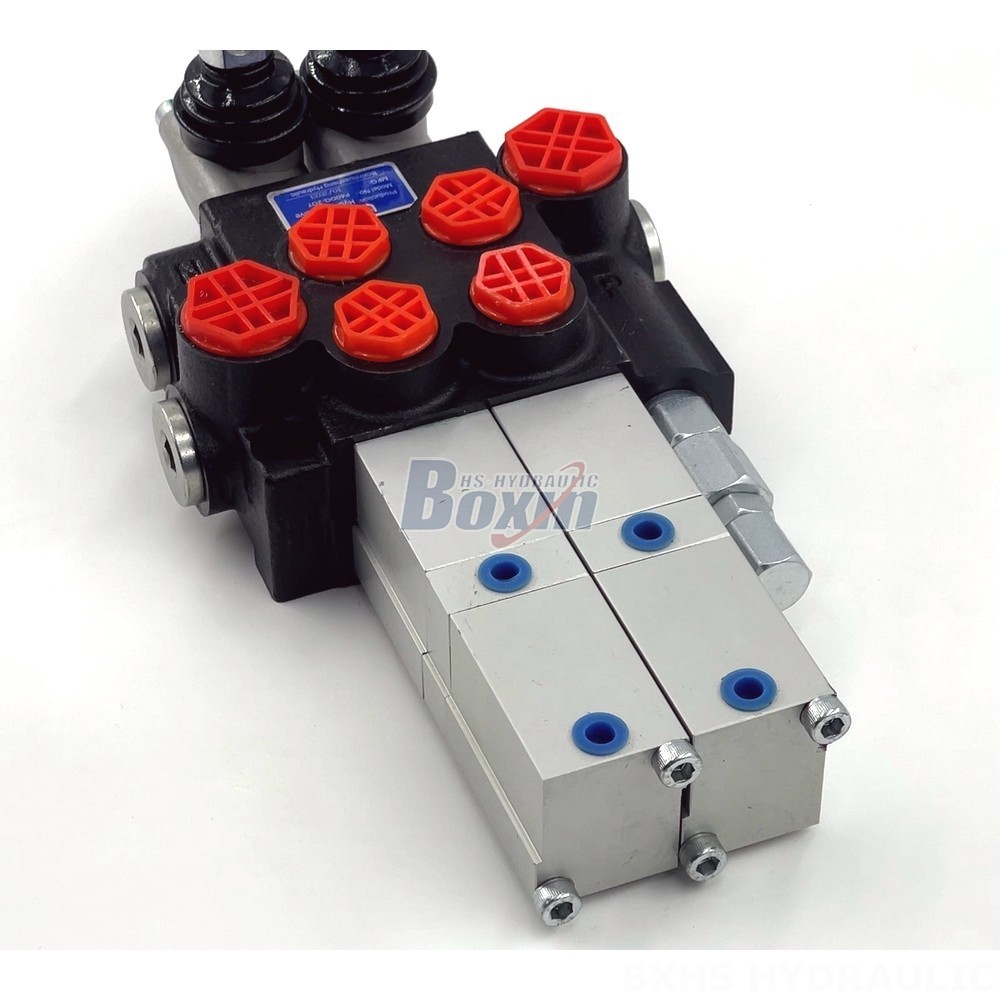

The P40 Series Proportional Directional Control Valve is a high-performance, 2 spool valve designed for use in a variety of material handling, construction and industrial applications. It features pneumatic control, a monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm).
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
This P40 Series Proportional Directional Control Valve is a 2 spool, monoblock valve designed for precise and reliable control of hydraulic circuits in a variety of applications. It features pneumatic control, allowing for smooth and responsive actuation. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum operating pressure of 250 bar (3600 psi). It is designed to operate in a wide range of temperatures, from -40°C to +80°C (-40°F to +176°F). This robust valve is ideally suited for use in material handling, construction, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
