1683 次查看了此产品
Introducing the HDCF50 Series Solenoid Valve from a leading manufacturer. This high-performance valve boasts a rated flow of 50 L/min, max pressure of 160 bar, and is suitable for a wide range of applications in industries such as material handling, construction, agriculture, and more.
| HDCF50系列 电磁控制阀 参数 | |
|---|---|
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 控制方式 | 电磁 |
| 接口尺寸 | M22×1.5螺纹, SAE 8接头 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 出油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |
| 最大压力 | 160 bar (2300 psi) |
| 额定流量 | 50 L/min (13.2 US gpm) |
| 结构类型 | 分片阀 |
| 进油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |

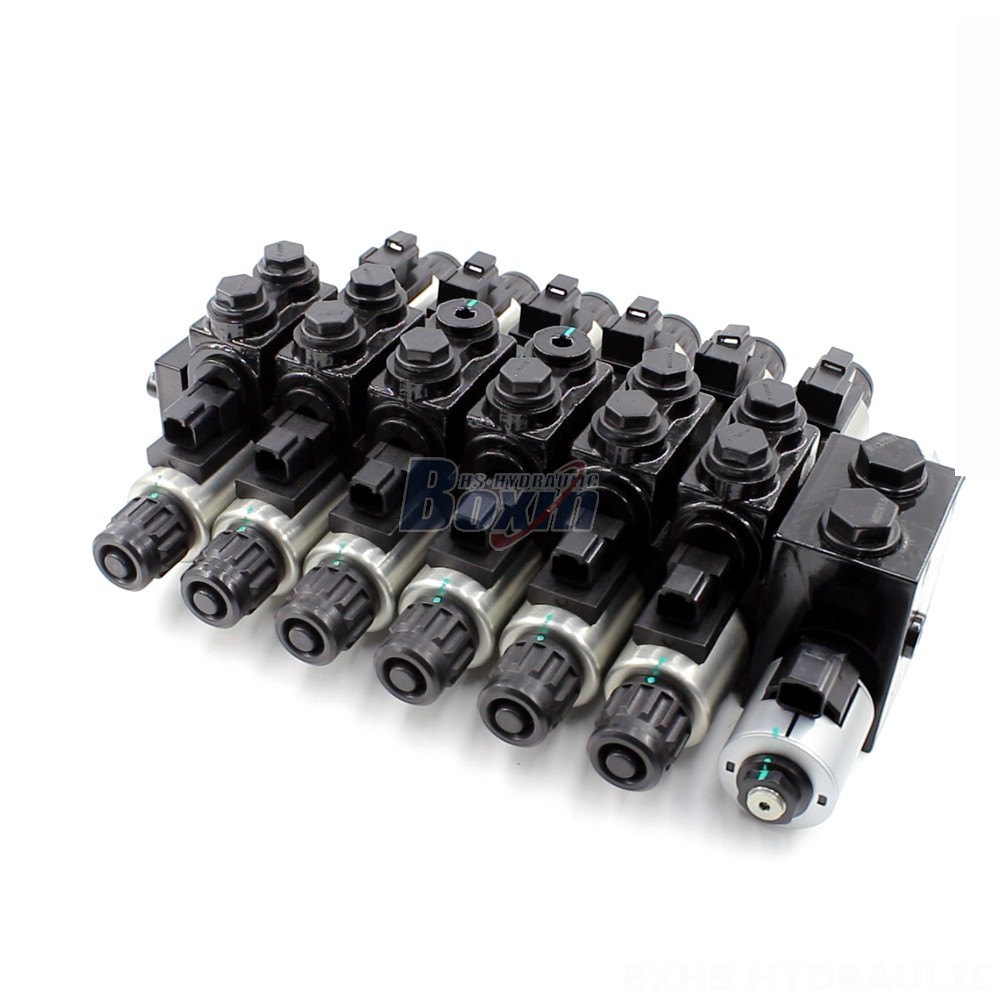

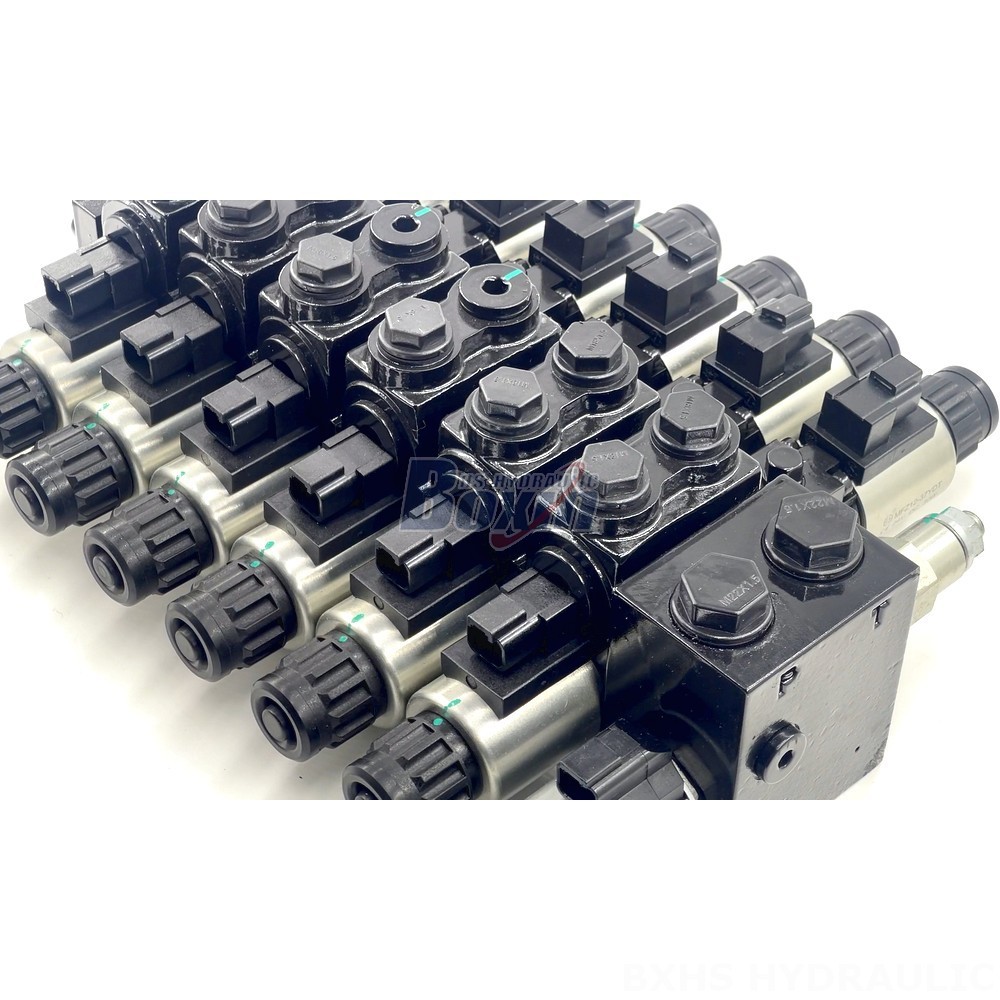

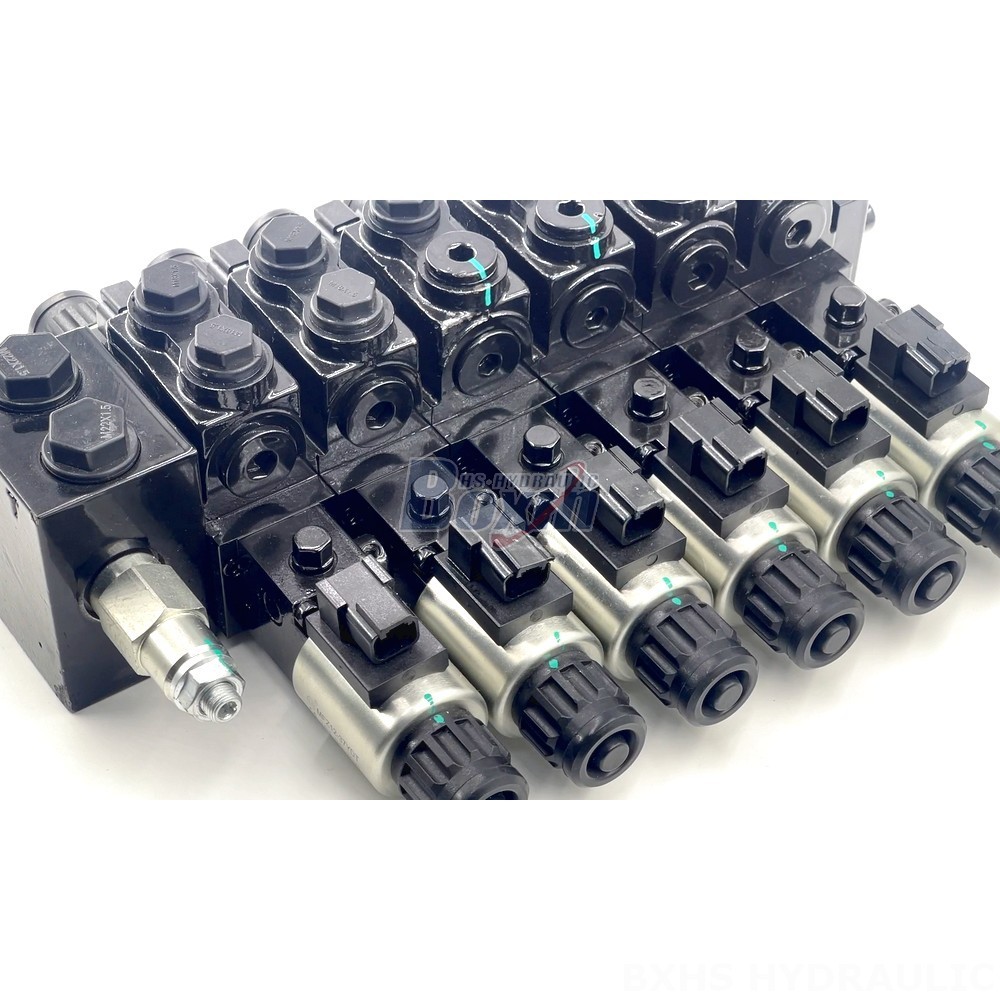

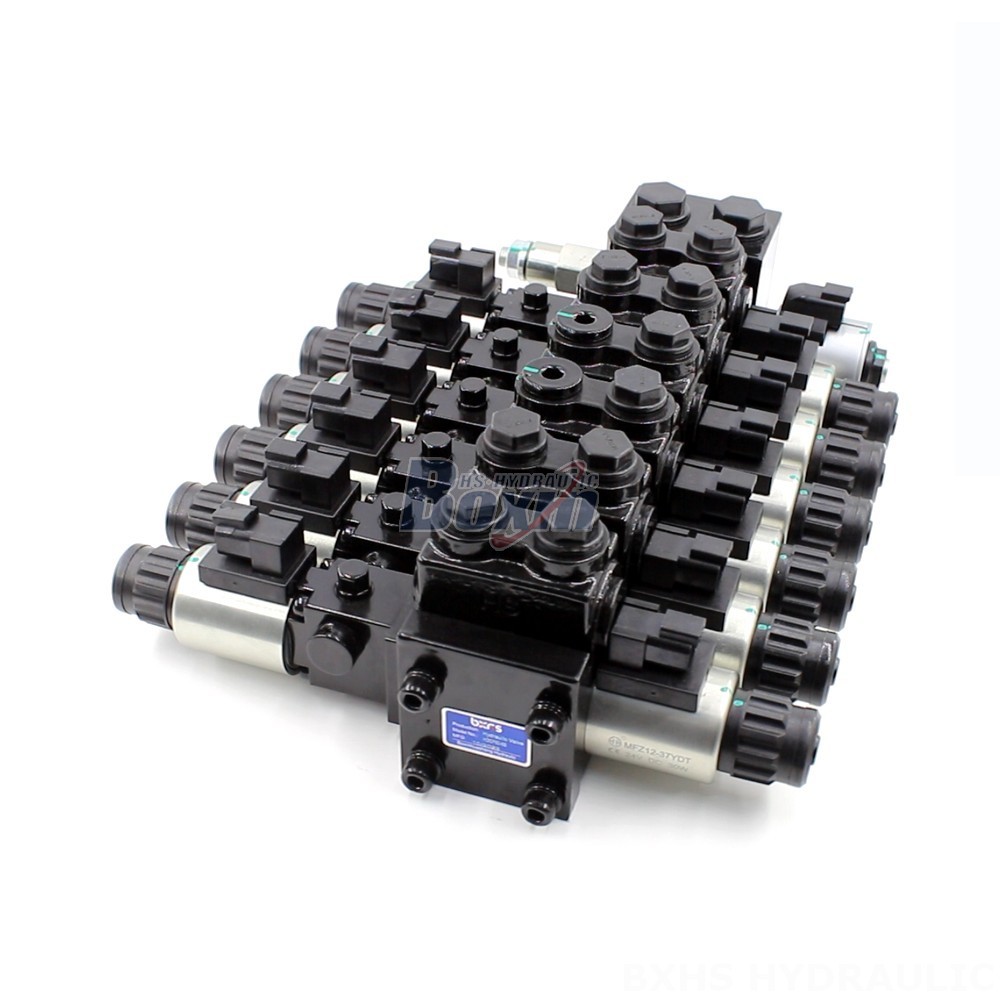

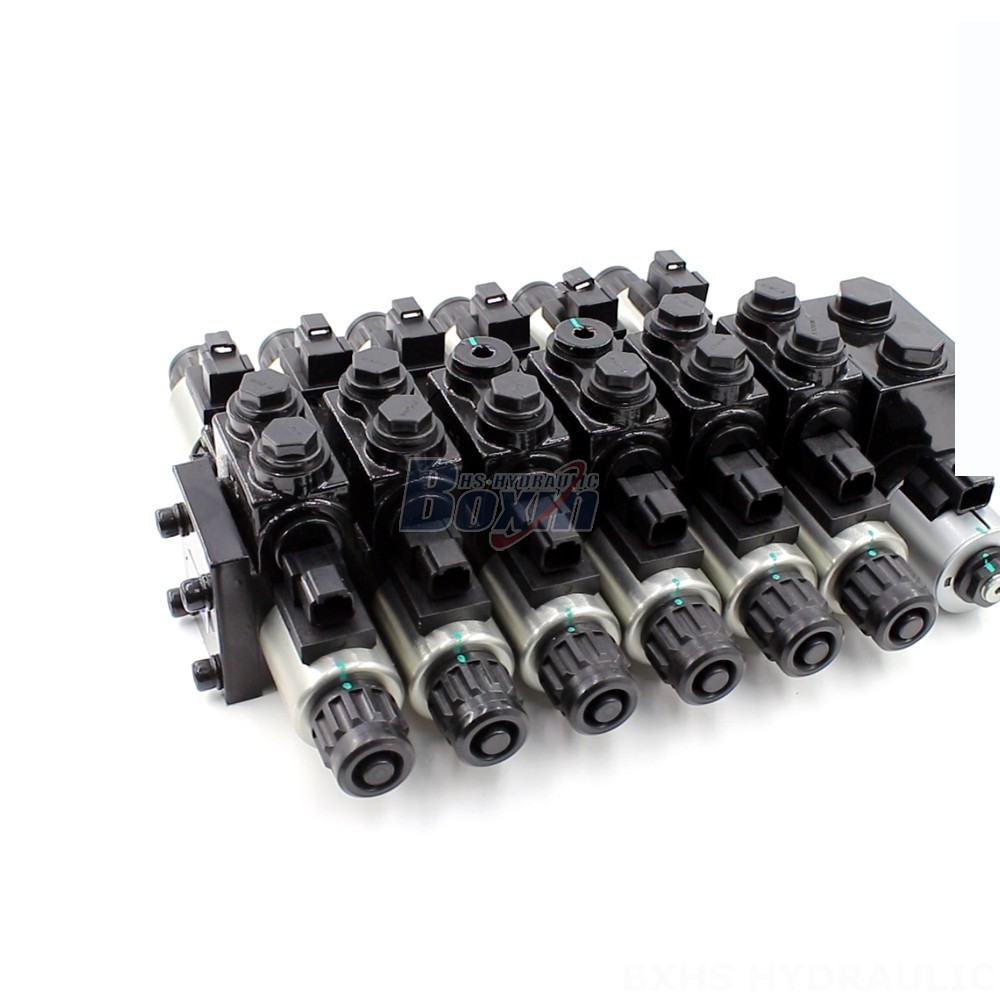

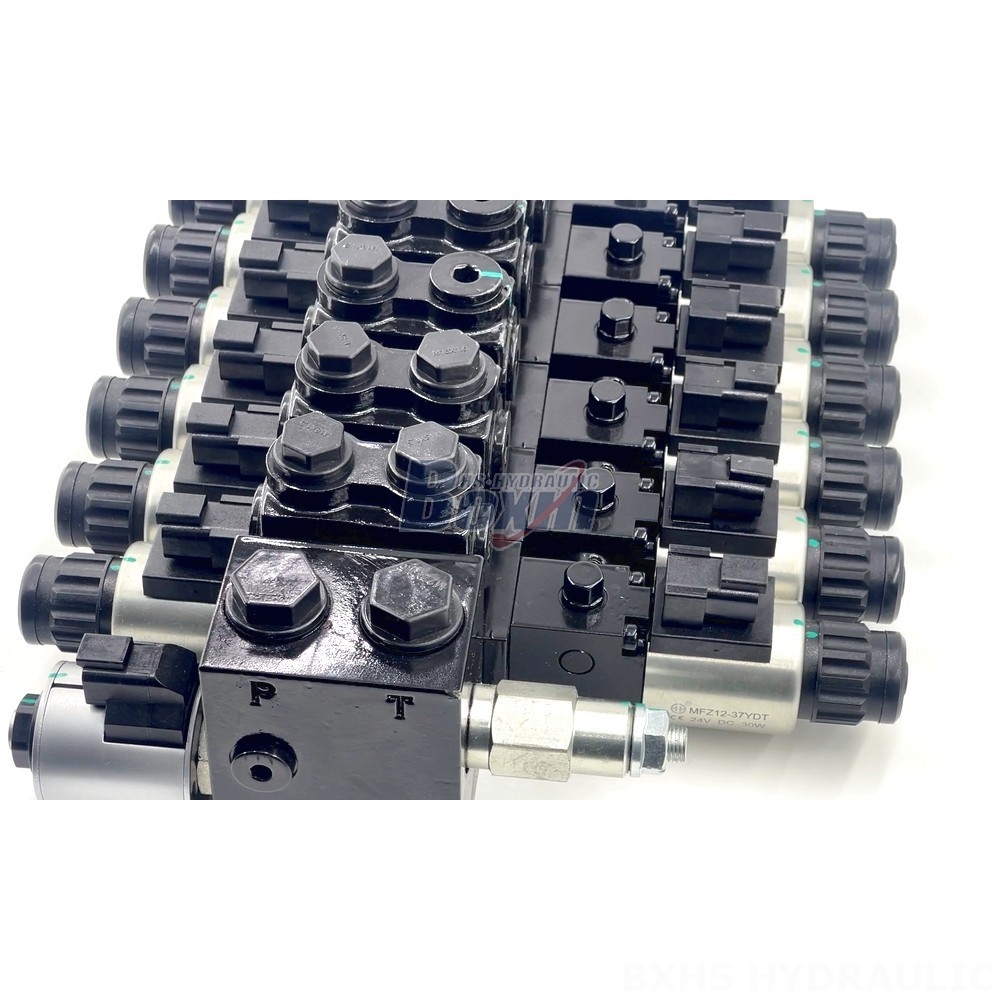

**HDCF50 Series Solenoid Valve**
**Control Method:** Solenoid
**Section:** 6 Section
**Structure Type:** Sectional valve
**Rated Flow:** 50 L/min (13.2 US gpm)
**Max Pressure:** 160 bar (2300 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -20°C to +80°C (-4°F to +176°F)
**Spool:** 6 Spool
**Voltage:** 12V 24V
**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- Mini-Excavator
- Skid Steer Loader
- Compact Wheel Loader
- Backhoe Loader
**Distributors, Wholesalers, and Traders Wanted**
We are actively seeking distributors, wholesalers, and traders to expand our global reach. Join forces with us and capitalize on the growing demand for high-quality solenoid valves. Contact us today to discuss partnership opportunities.
