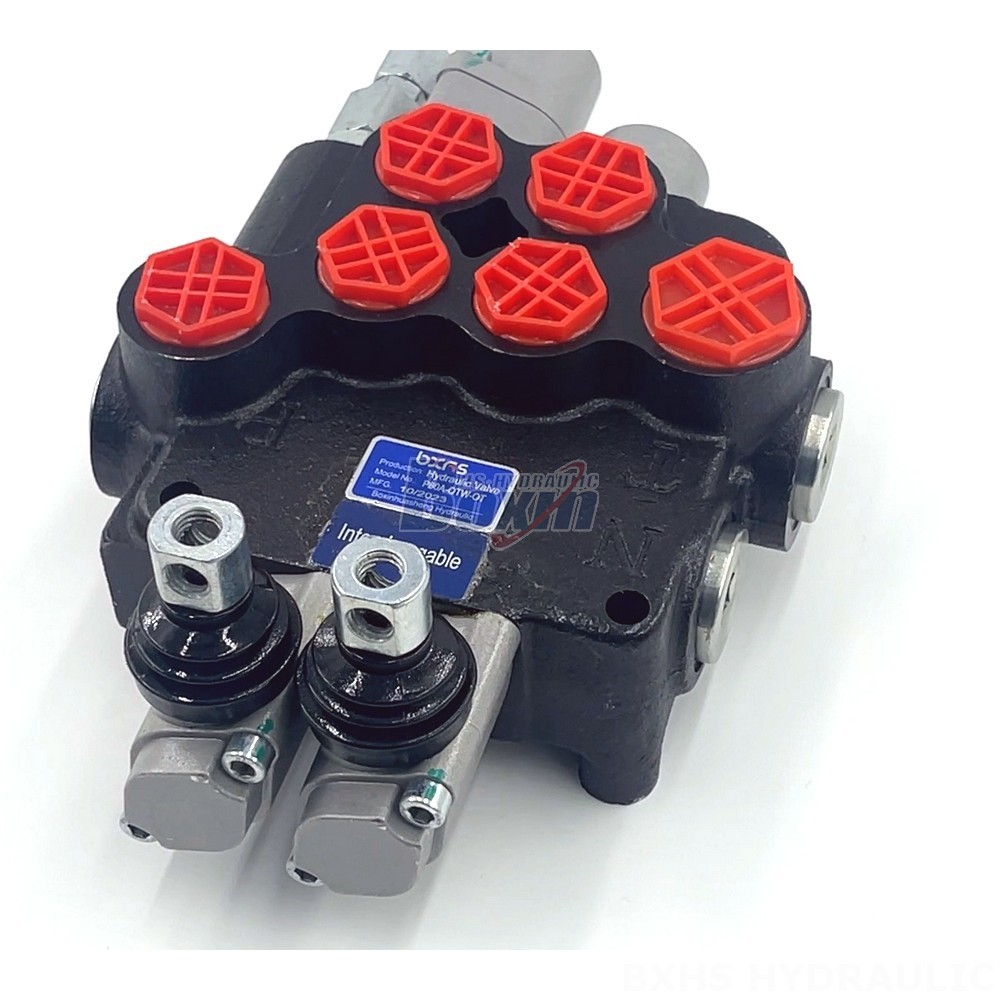

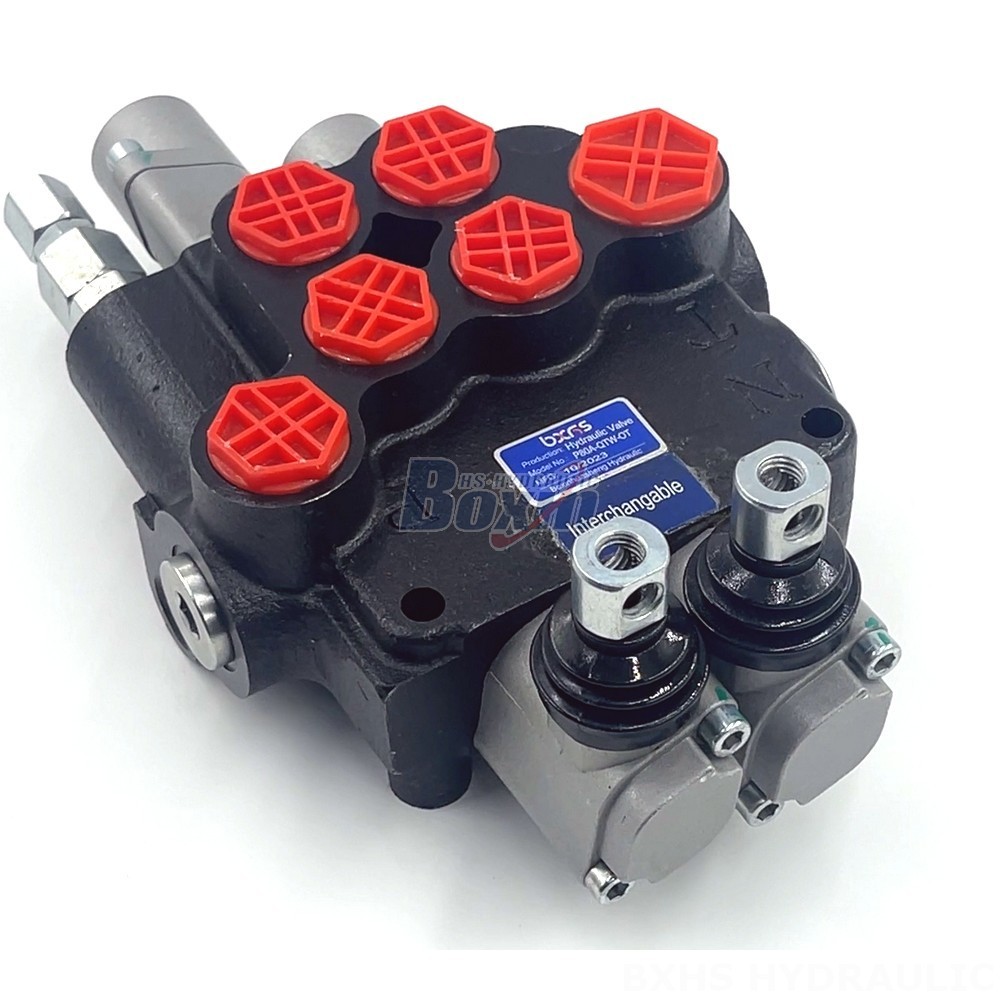

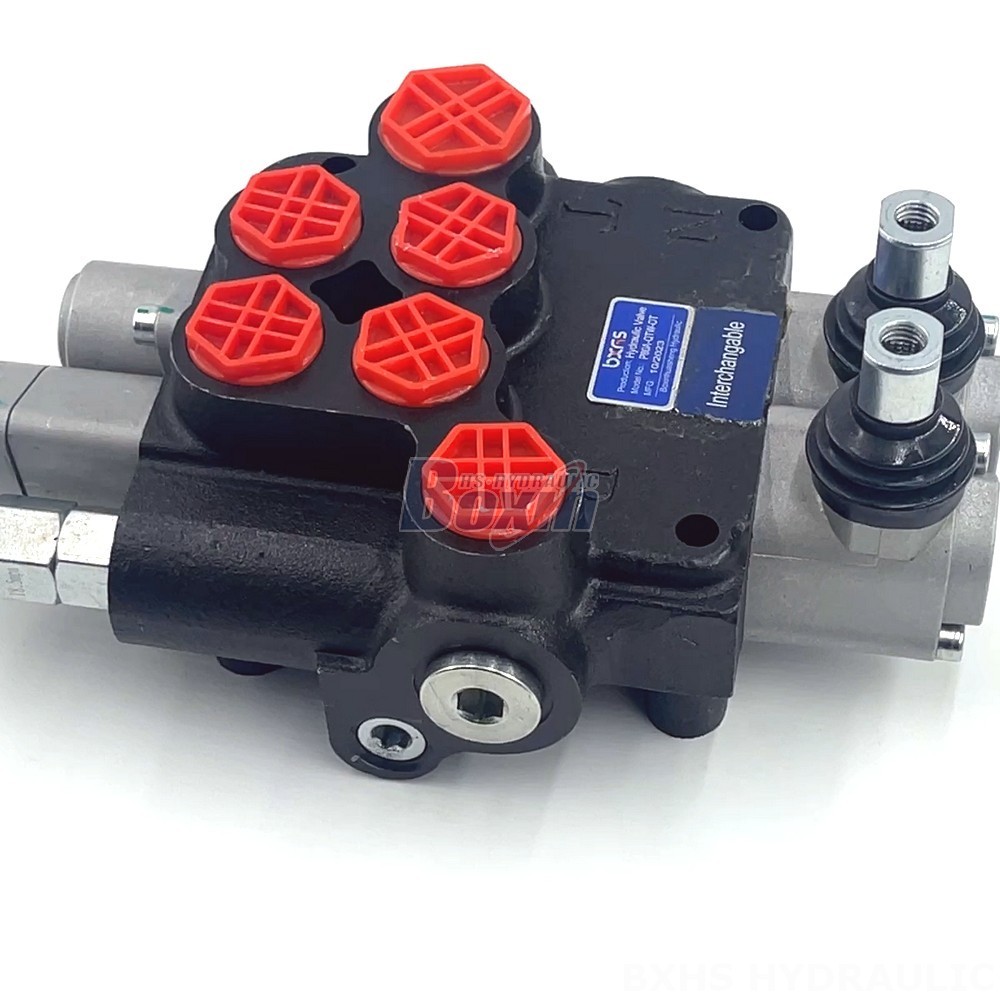

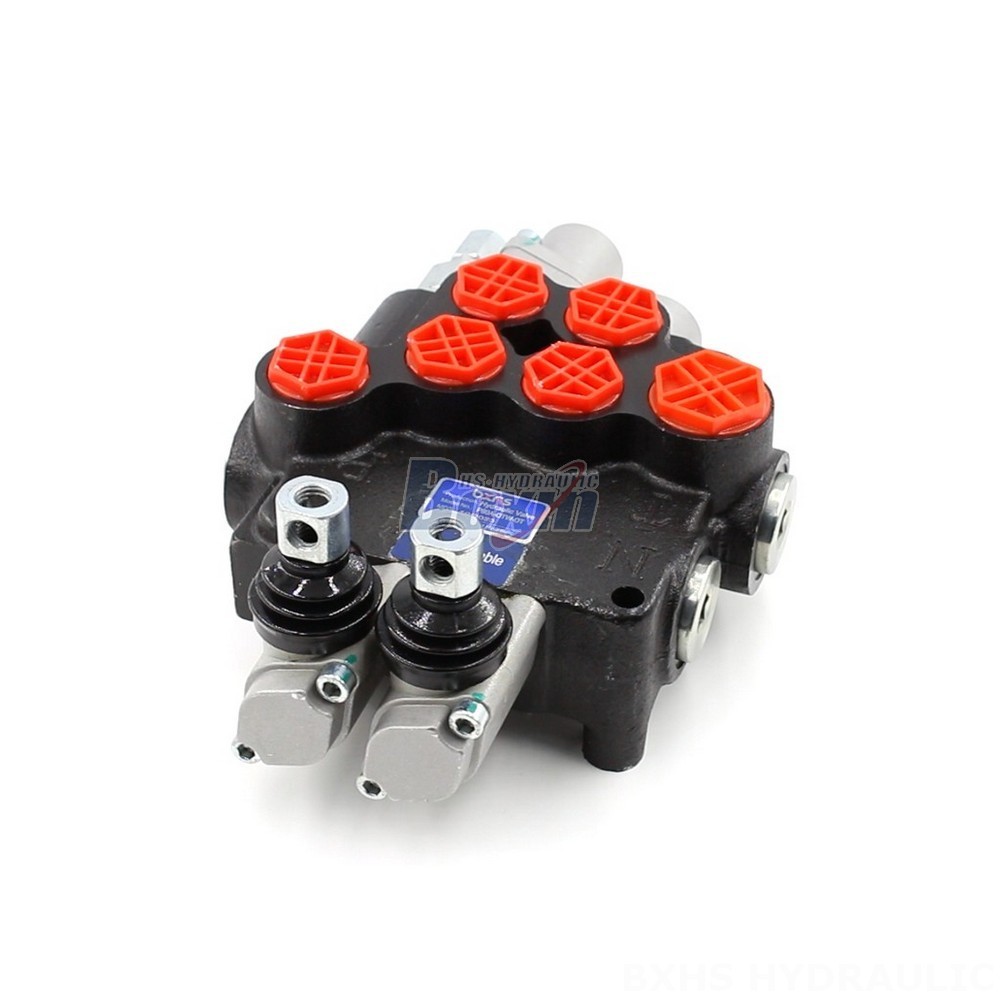

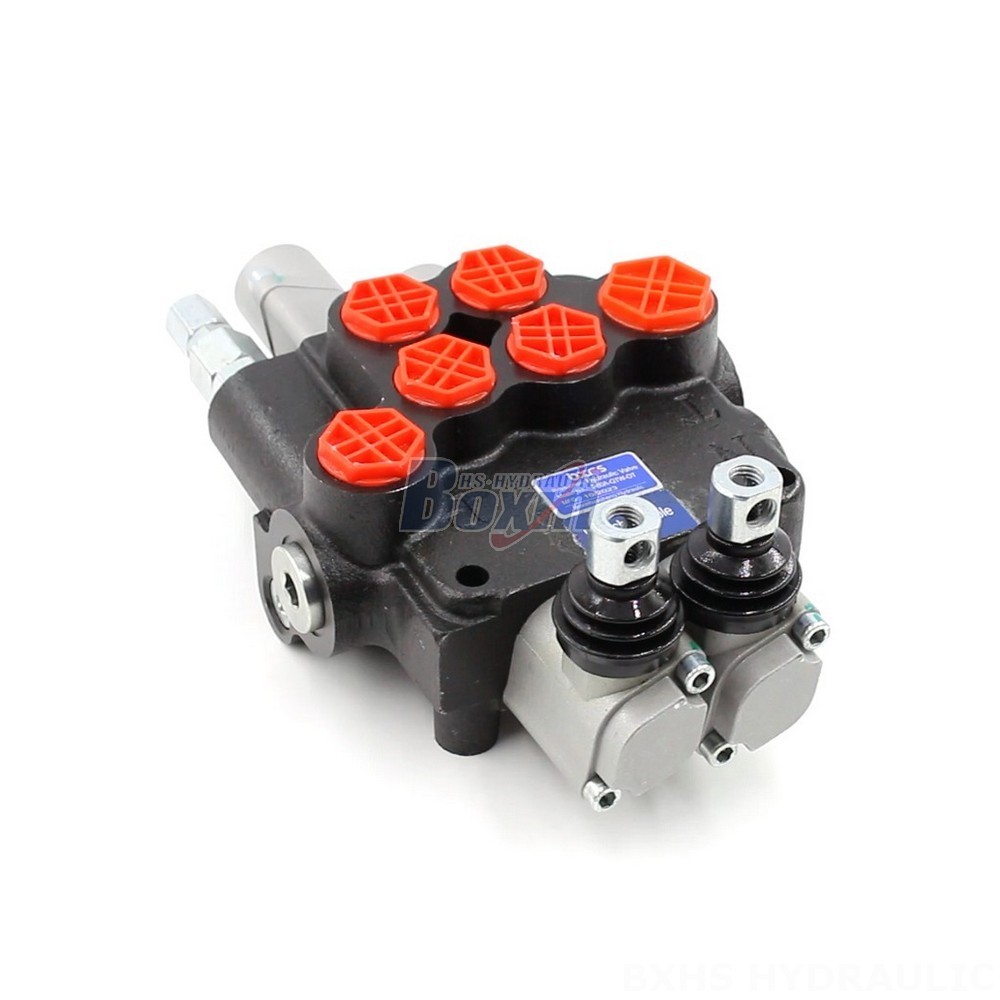

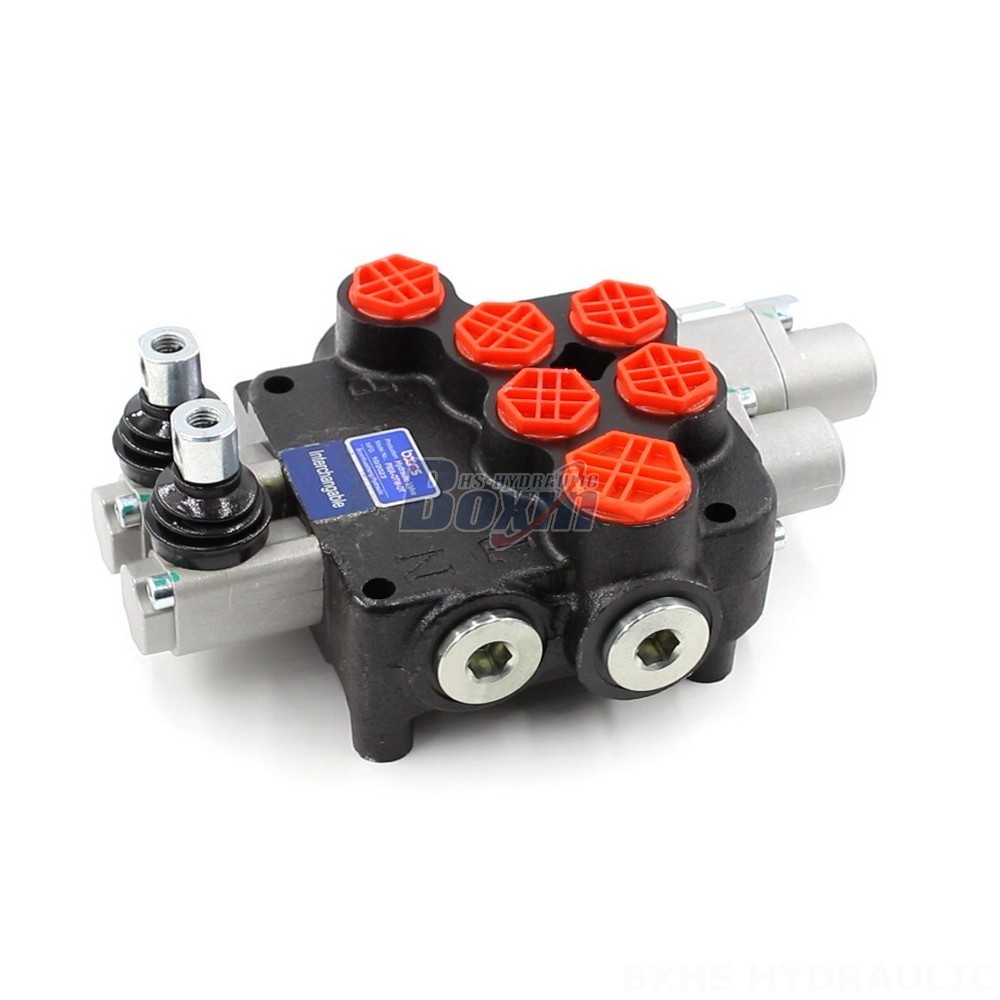

The P80A Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in industries such as material handling, construction, agriculture, and industrial vehicles. Featuring manual control, a 2-section design, and a compact monoblock structure, this valve offers reliable flow control and pressure management with a rated flow of 80 L/min and a maximum pressure of 250 bar.
| P80A系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁, 电磁和手动, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
**Key Features:**
- Manual Control for precise flow regulation
- 2 Spool design for independent control of two hydraulic circuits
- Monoblock Valve construction for enhanced durability and reduced leakage
- 80 L/min Rated Flow to meet demanding hydraulic requirements
- 250 bar Max Pressure for reliable operation in high-pressure systems
**Applications:**
- Material Handling Equipment: forklifts, telehandlers
- Construction and Earth Moving Machinery: excavators, motor graders
- Agricultural Vehicles: tractors, harvesters
- Industrial Vehicles: cranes, aerial platforms
**Benefits:**
- Improved efficiency and productivity with precise flow control
- Enhanced safety and reliability with pressure management capabilities
- Compact design for easy installation and space optimization
- Durable construction for long-lasting performance in demanding environments
- Backed by global support and distribution network
