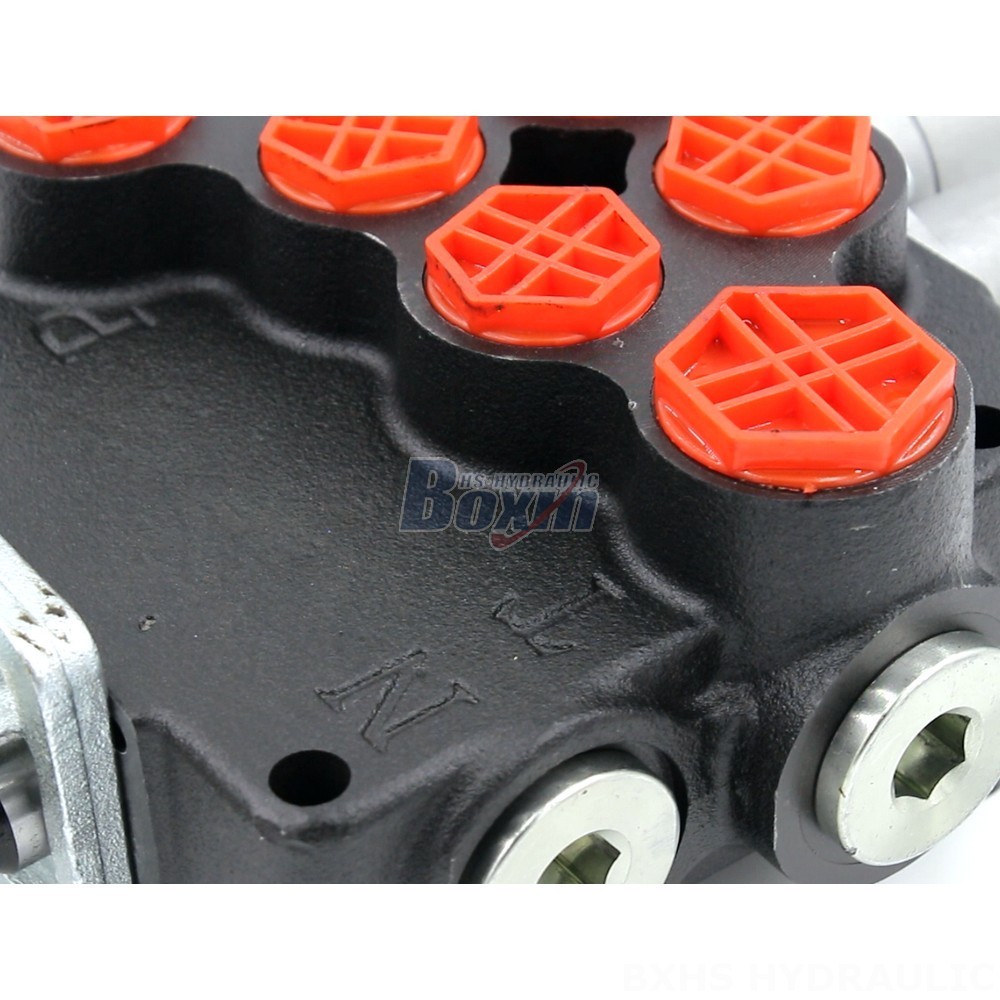

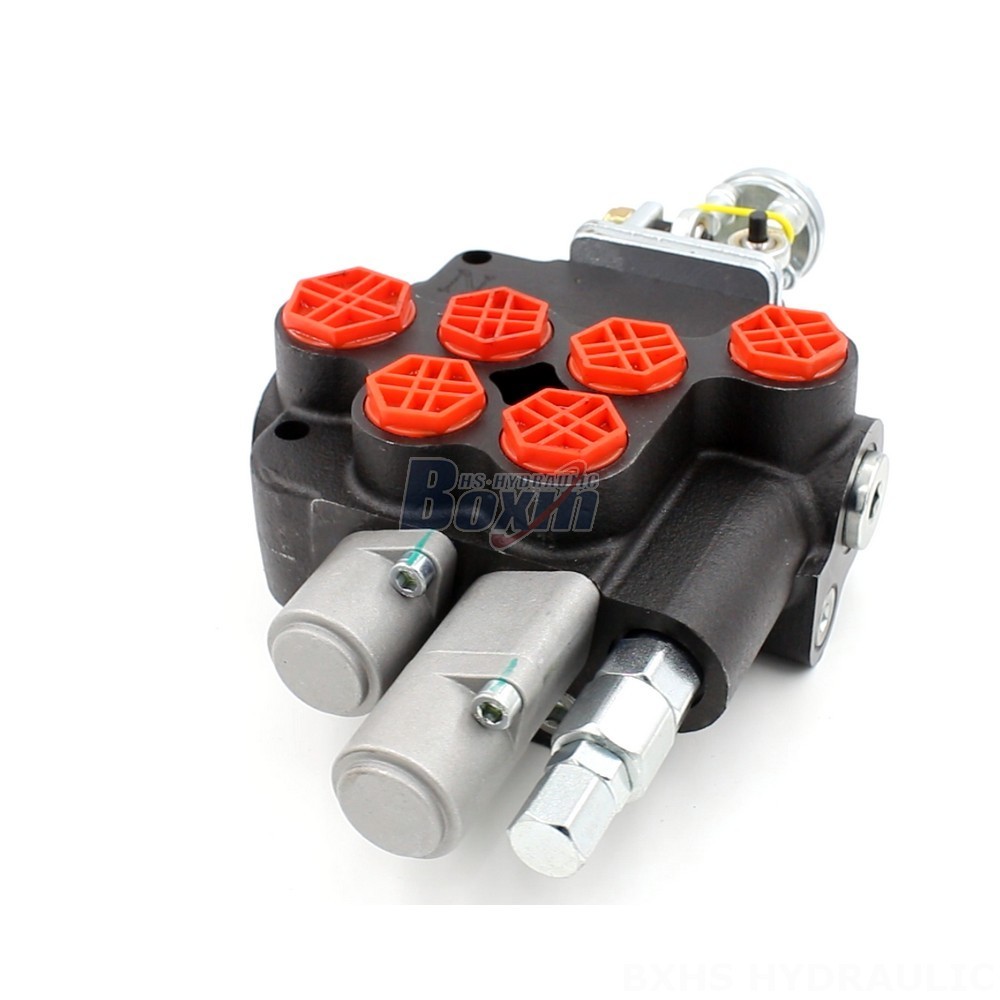

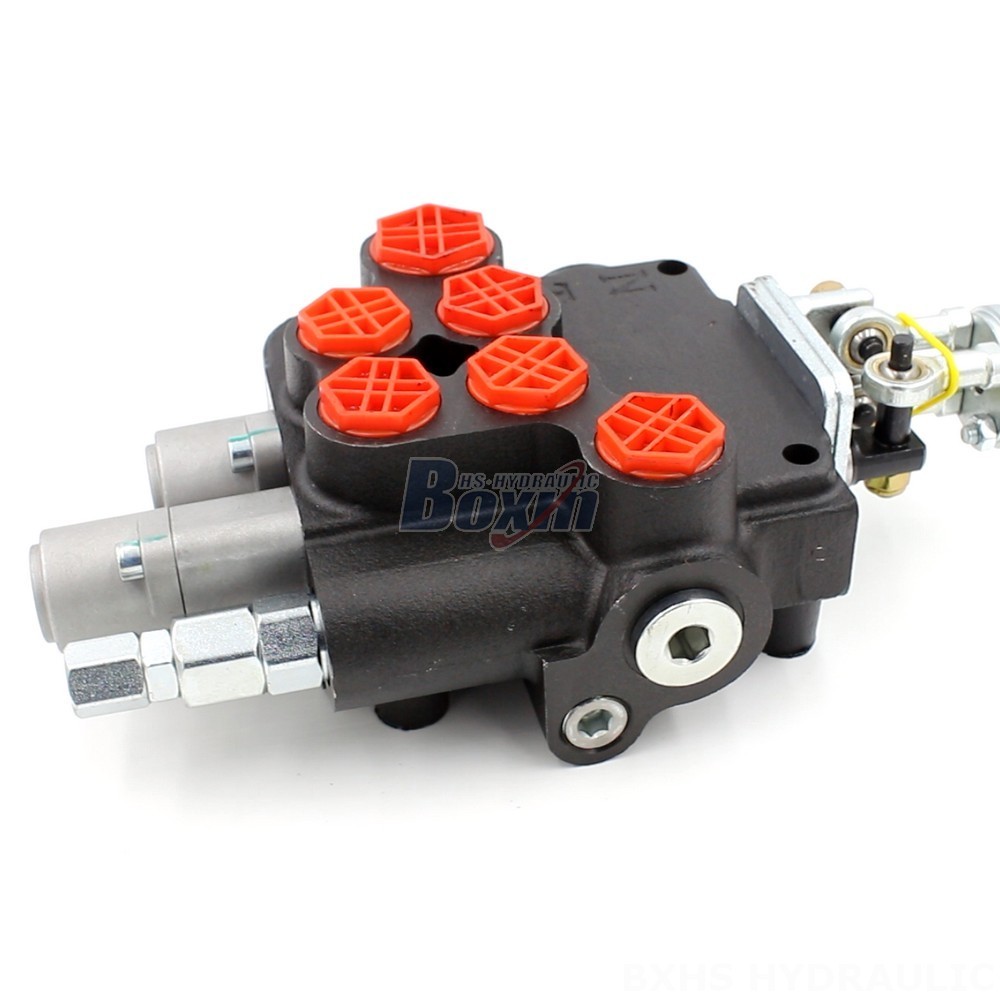

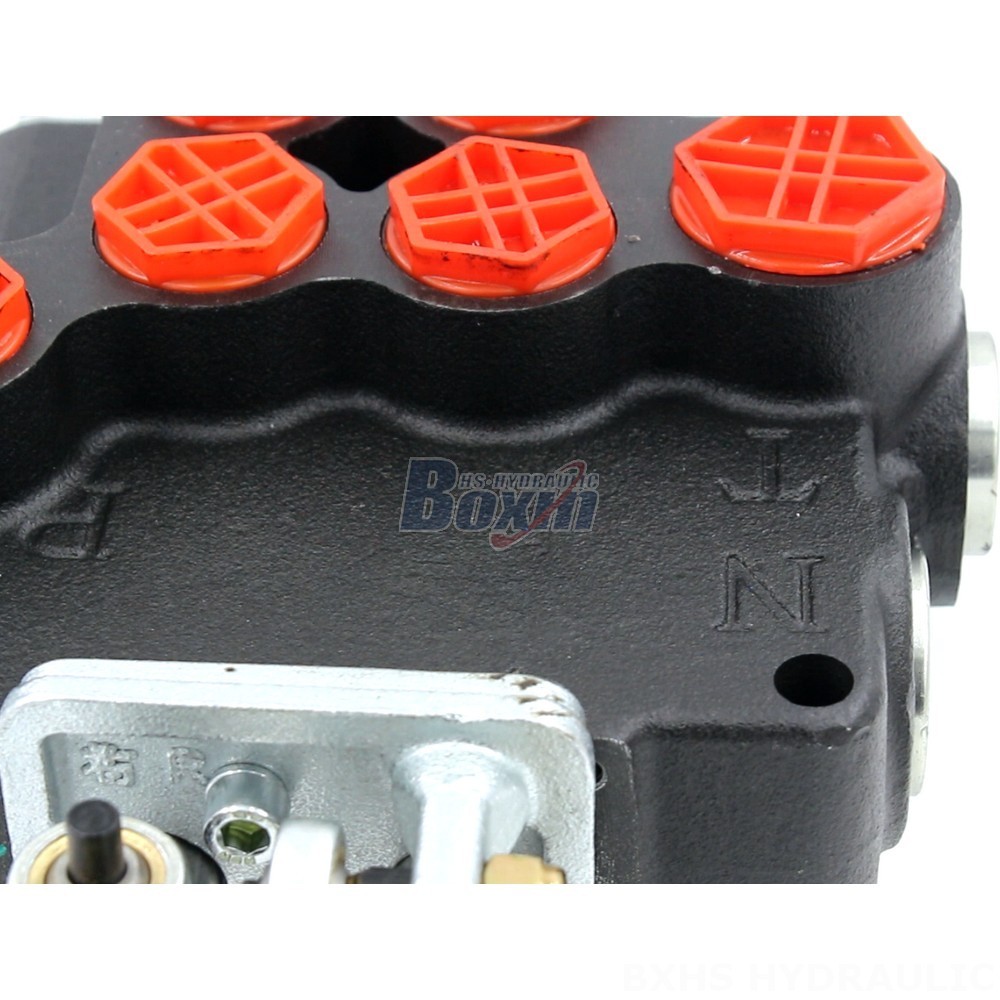

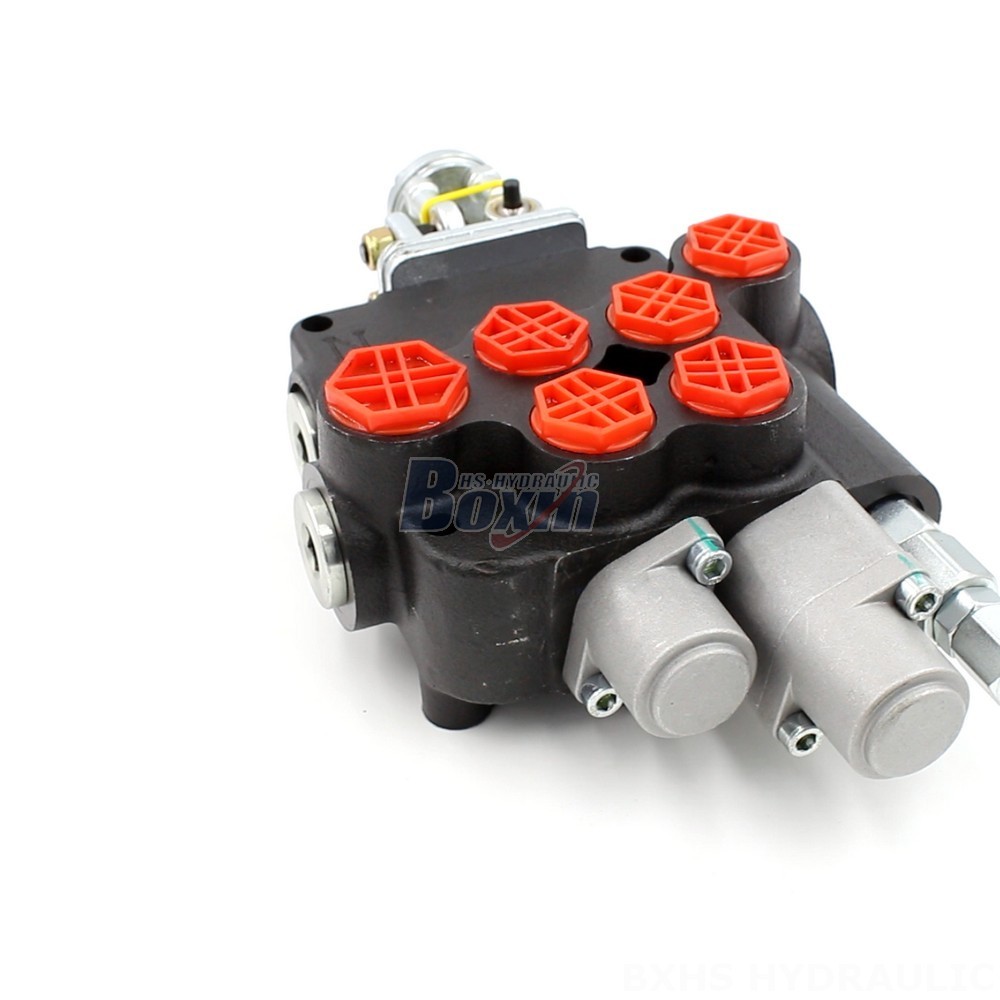

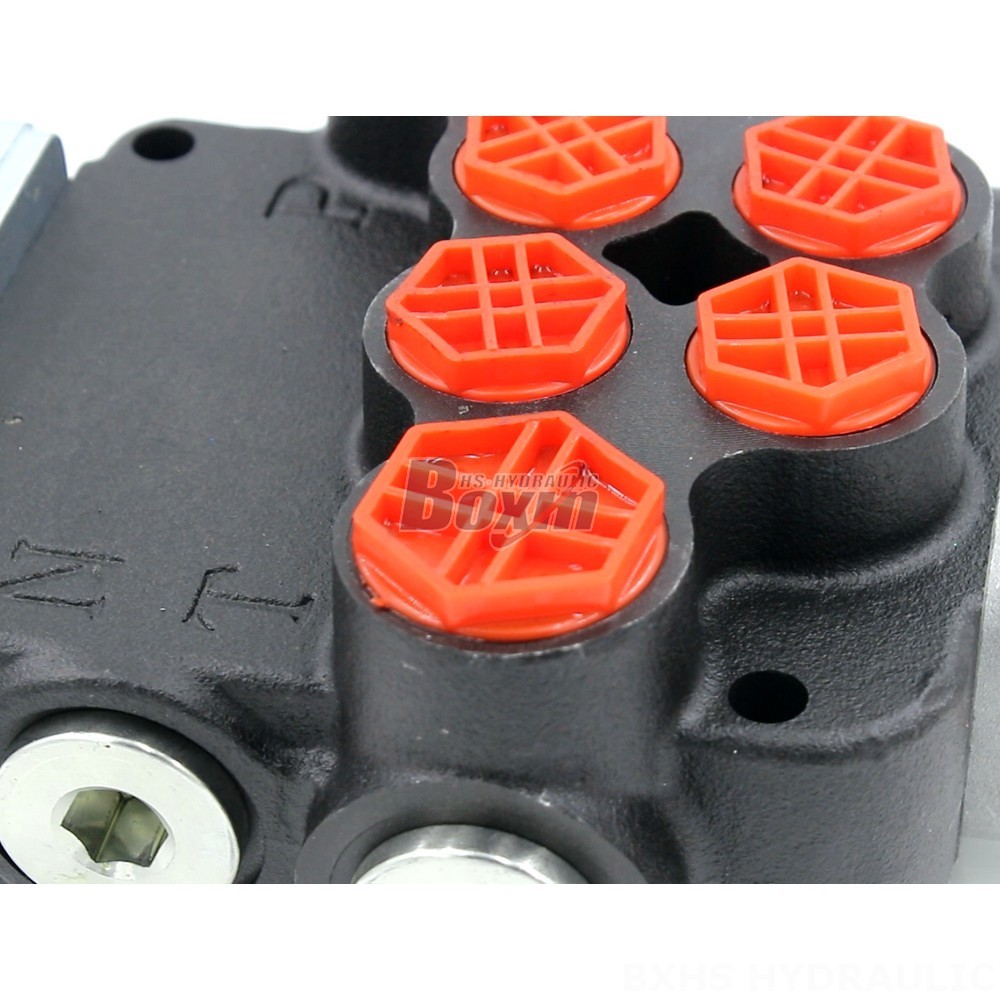

The P80 Series Hydraulic Directional Control Valve is a high-performance, reliable valve designed for a wide range of applications in construction, material handling, and industrial vehicles. Manufactured by a leading hydraulic product manufacturer, this valve is available in bulk supply and distribution options for global markets.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80 Series Hydraulic Directional Control Valve is a 2-section monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It features manual and joystick control methods and is suitable for operating viscosities ranging from 15 to 75 mm²/s. This valve is designed for demanding applications in construction, material handling, and industrial vehicles, including telehandlers, forklifts, cranes, excavators, and loaders. We offer manufacturing, OEM, private labeling, customization, and wholesale options. We are actively seeking distributors, wholesalers, agents, and trading partners worldwide. Contact us for bulk supply and distribution inquiries.
