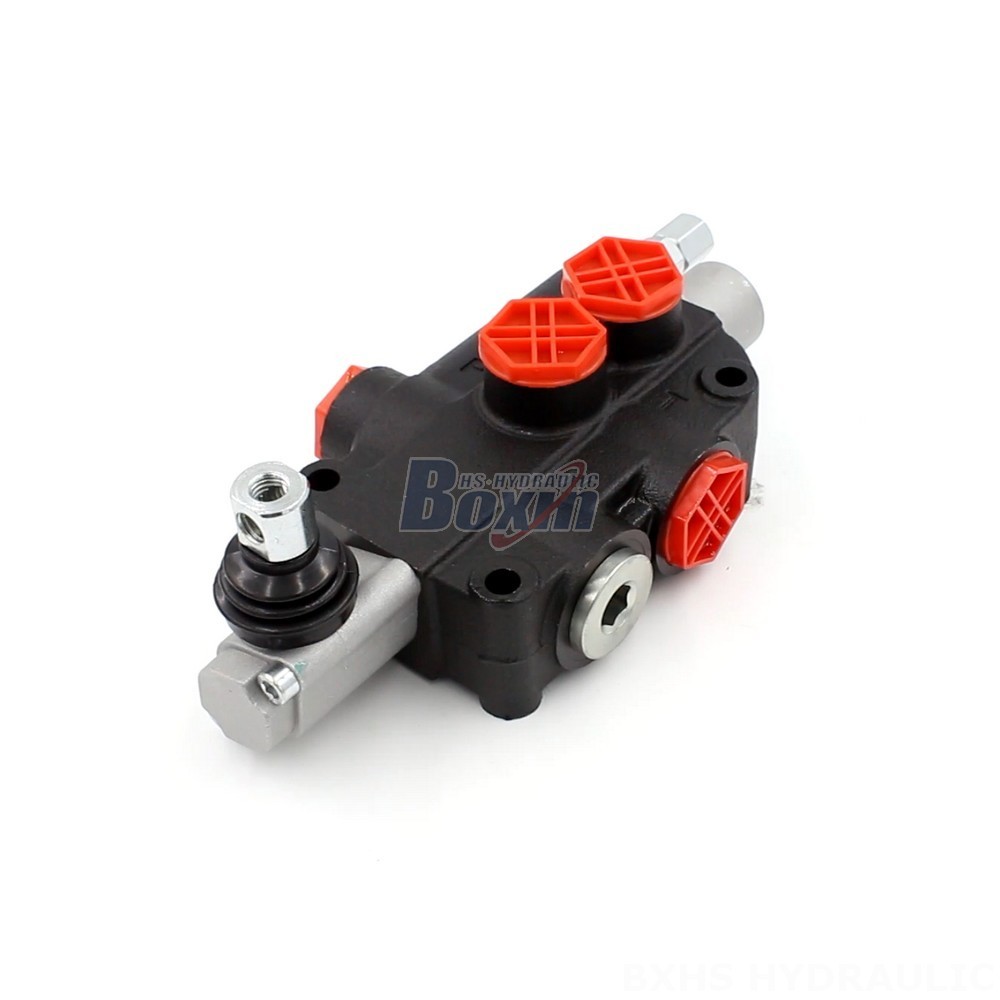

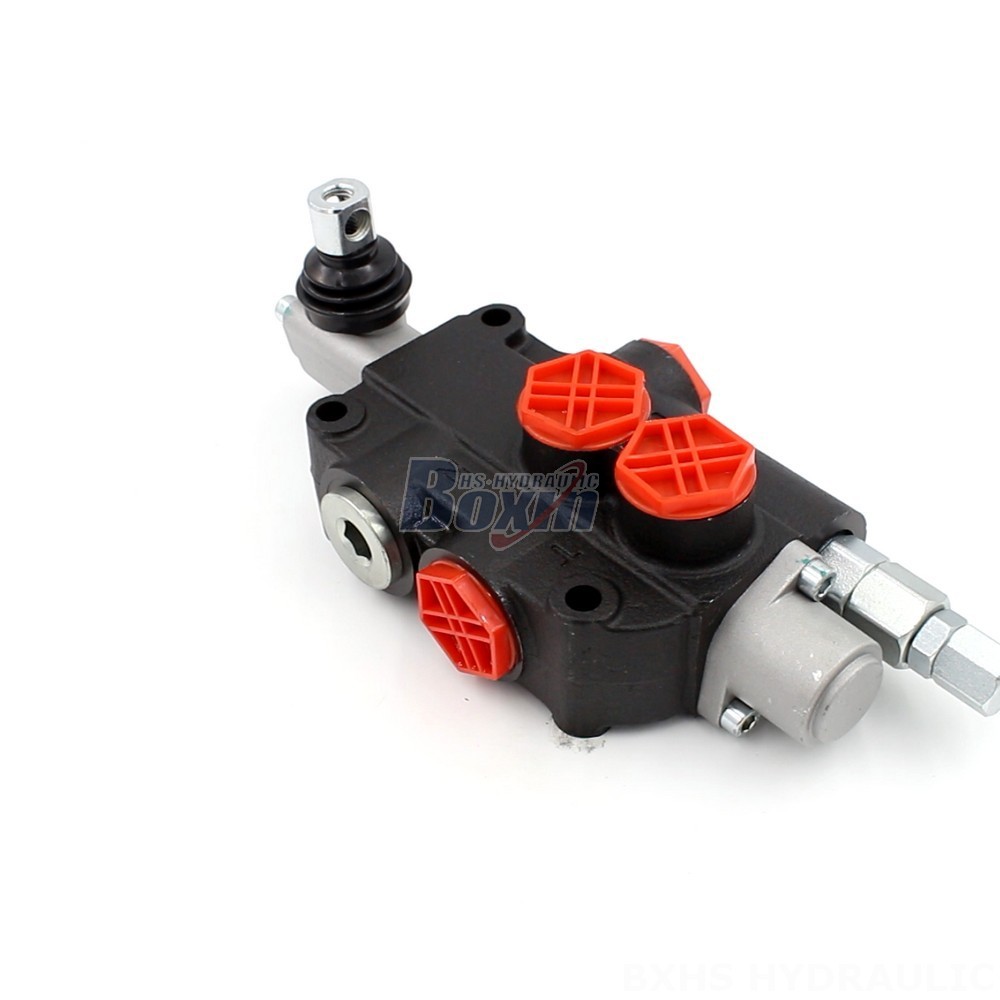

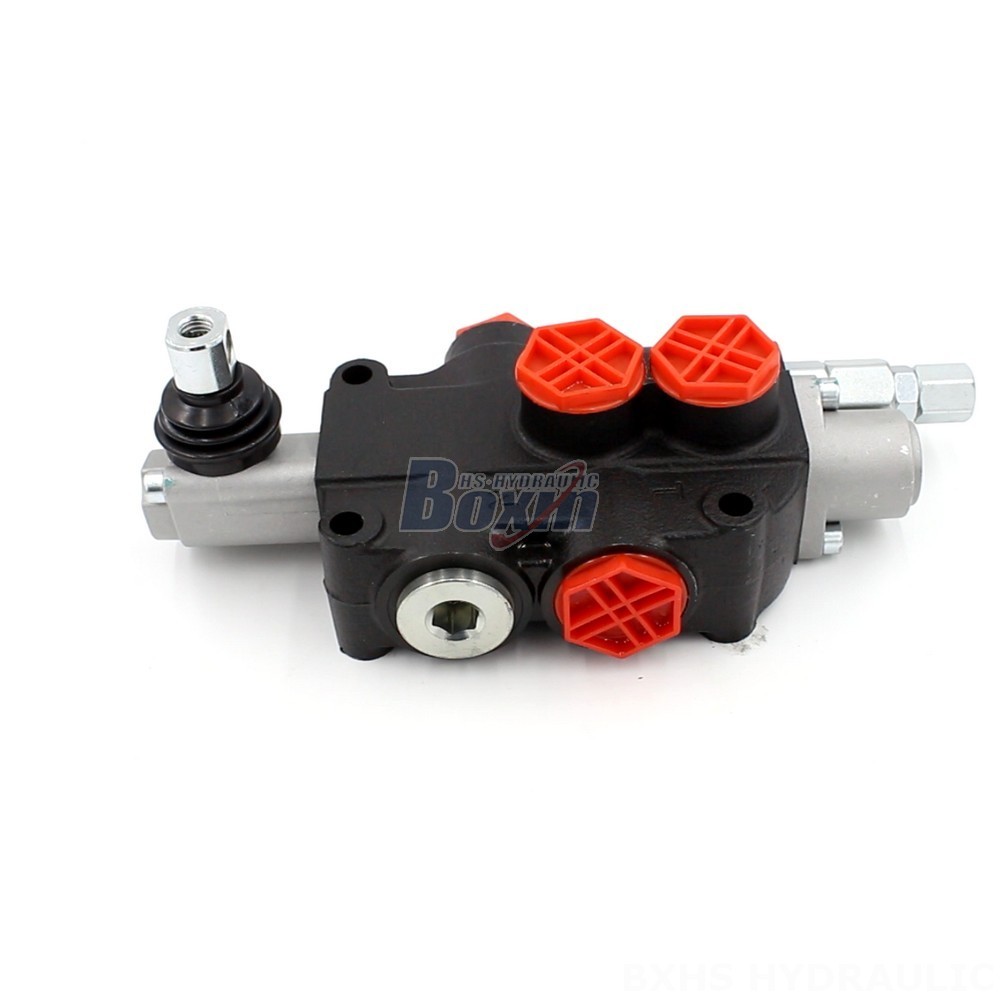

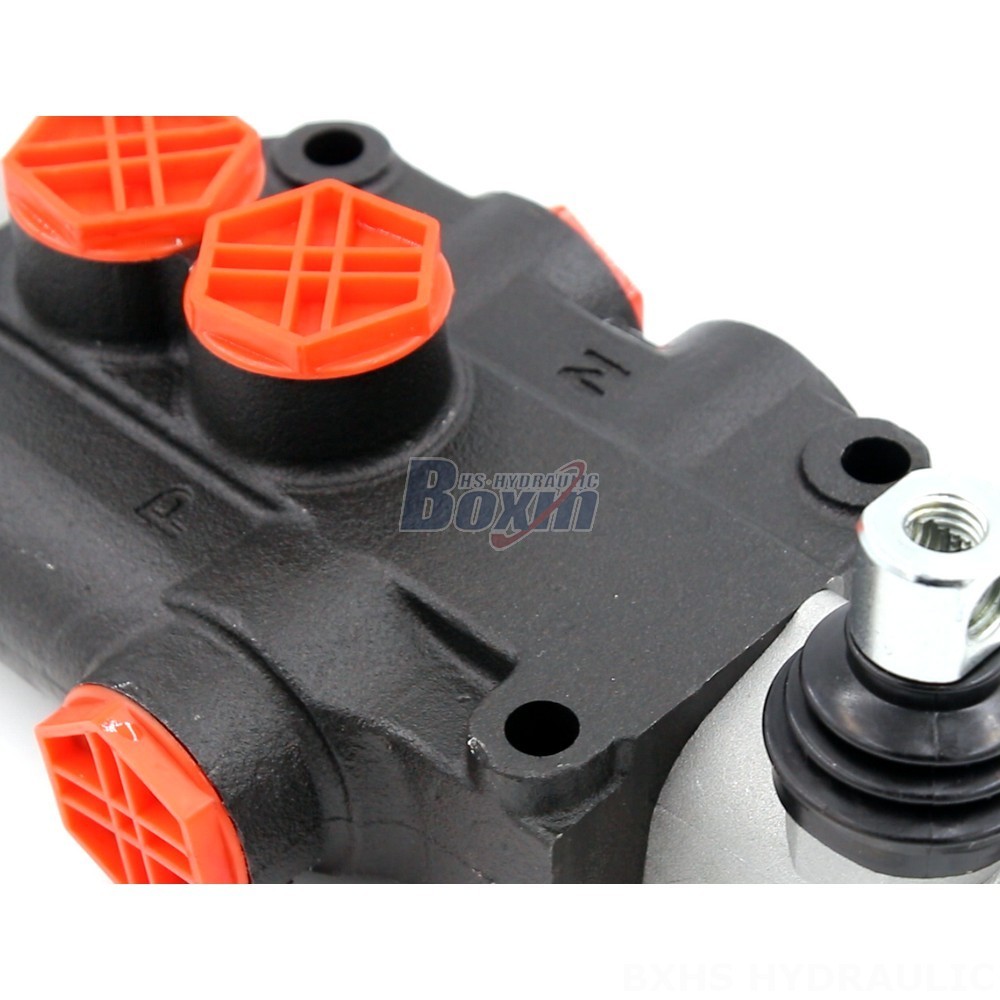

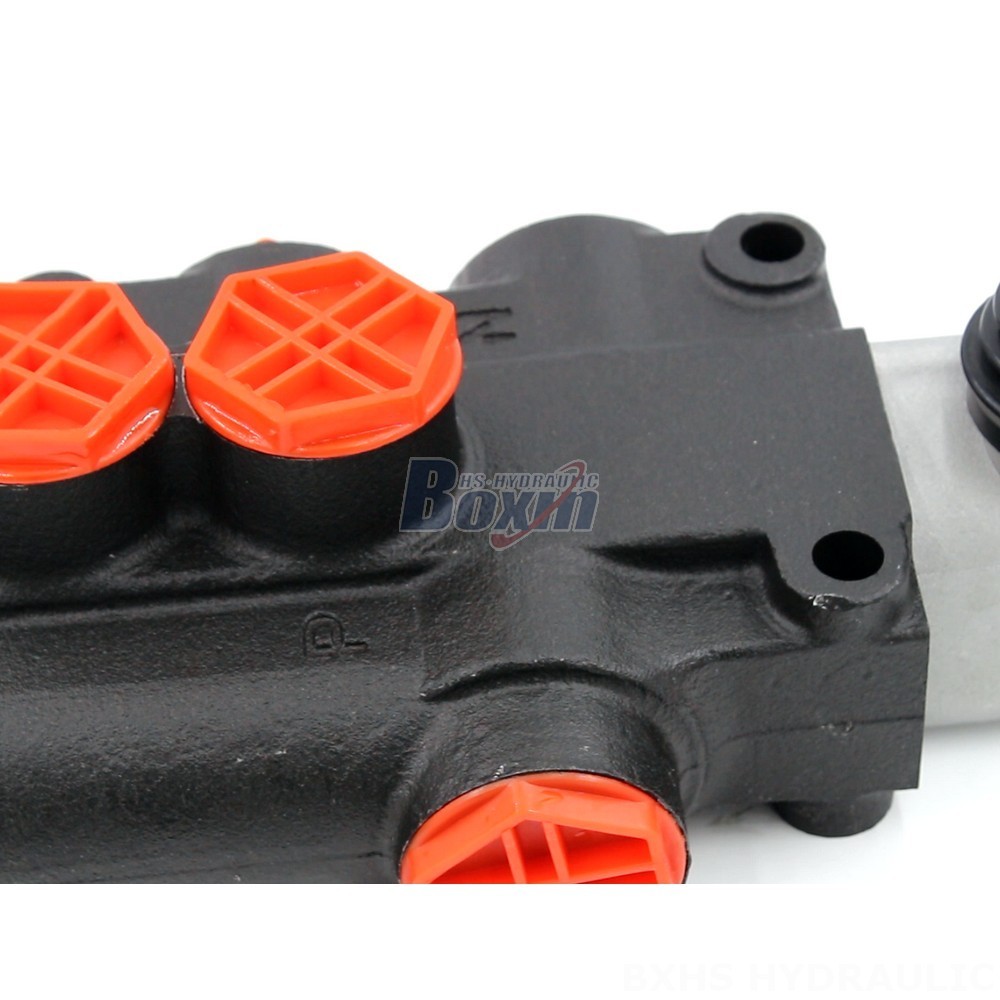

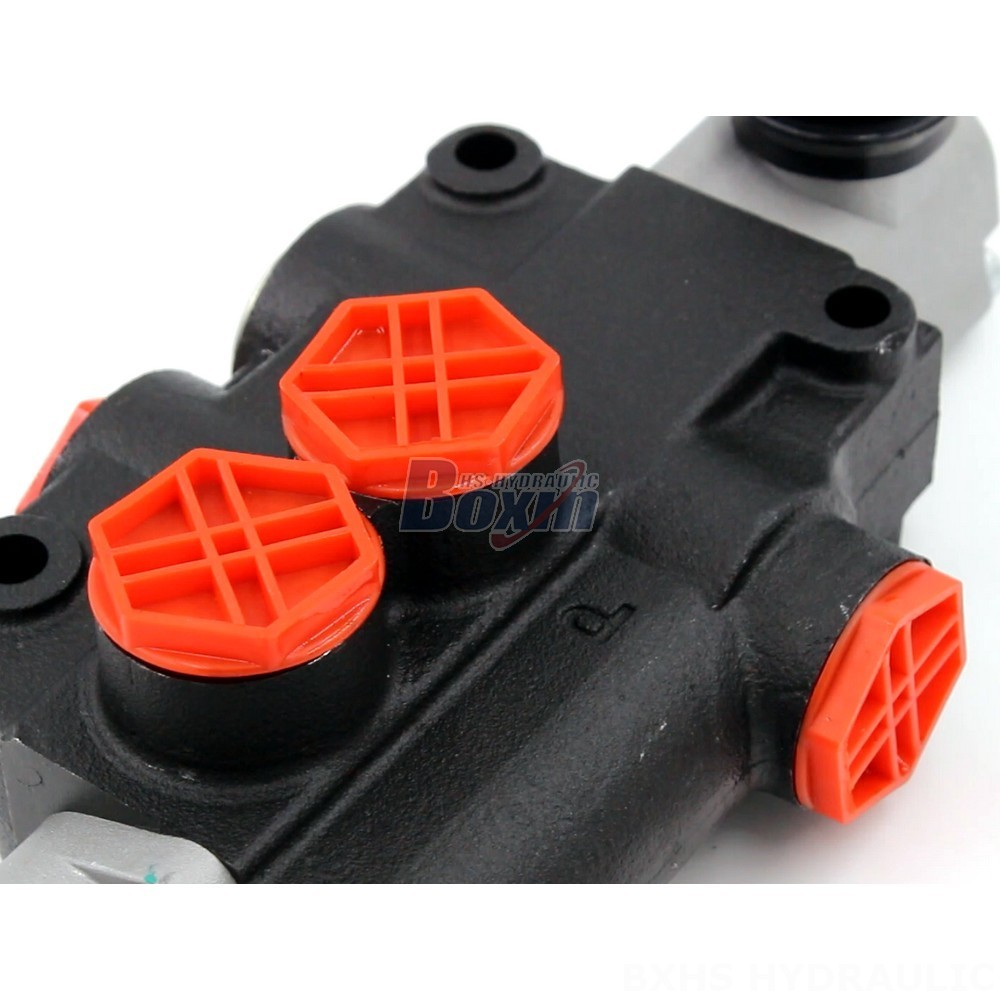

The P80-G34-OT Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in industrial vehicles, material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides precise and reliable flow control in a compact and durable package.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
**Key Features:**
* Manual Control: Allows for precise and responsive operation.
* Monoblock Construction: Provides a compact and robust design for enhanced durability.
* 1 Section: Simplifies installation and maintenance.
* 80 L/min Rated Flow: Delivers high flow capacity for efficient system operation.
* 250 bar Max Pressure: Withstands high system pressures for demanding applications.
* Operating Temperature Range: -40°C to +80°C: Suitable for a wide range of operating environments.
* Viscosity Range: 15 - 75 mm²/s: Compatible with a variety of hydraulic fluids.
**Applications:**
* Industrial Vehicles: Telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms.
* Material Handling: Compact wheel loaders, wheel loaders, backhoe loaders, dumpers.
* Construction: Tractors, front-end loaders, harvesters, bale wrappers, backhoes, seeding machines, balers, wood splitters.
* Agriculture: Skip loaders, hook-loaders.
